Product Overview
Description

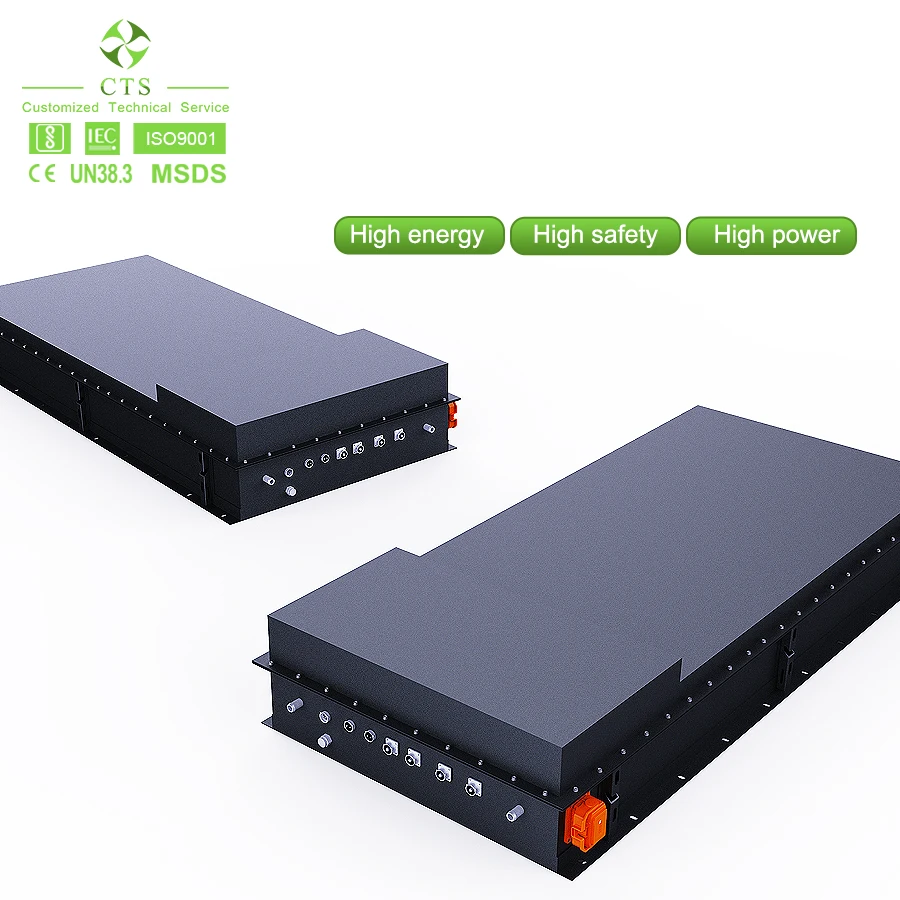

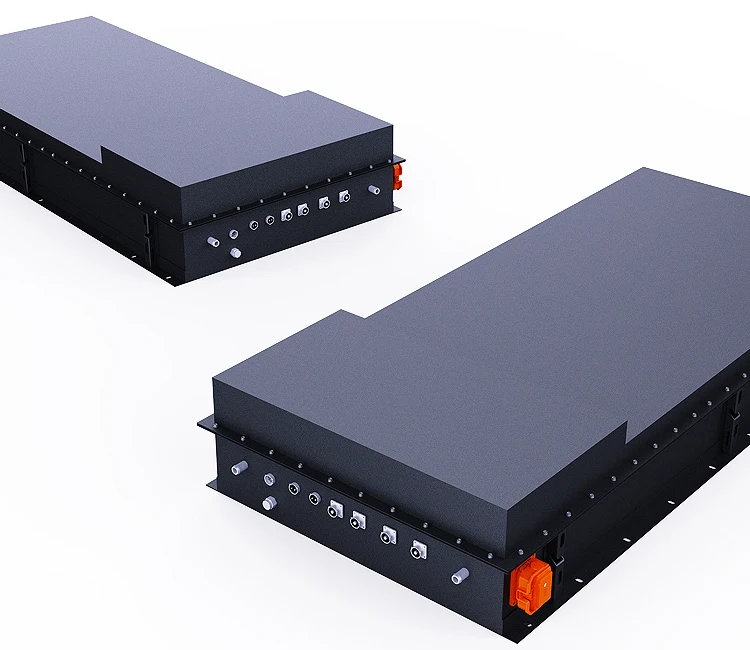

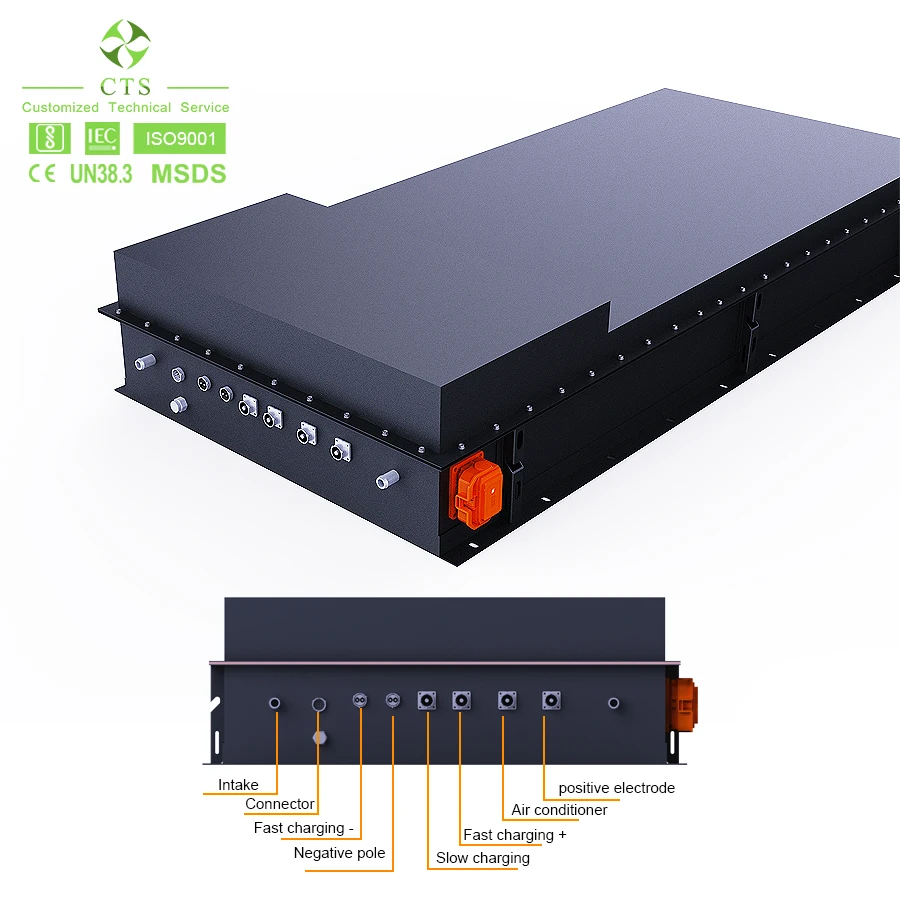

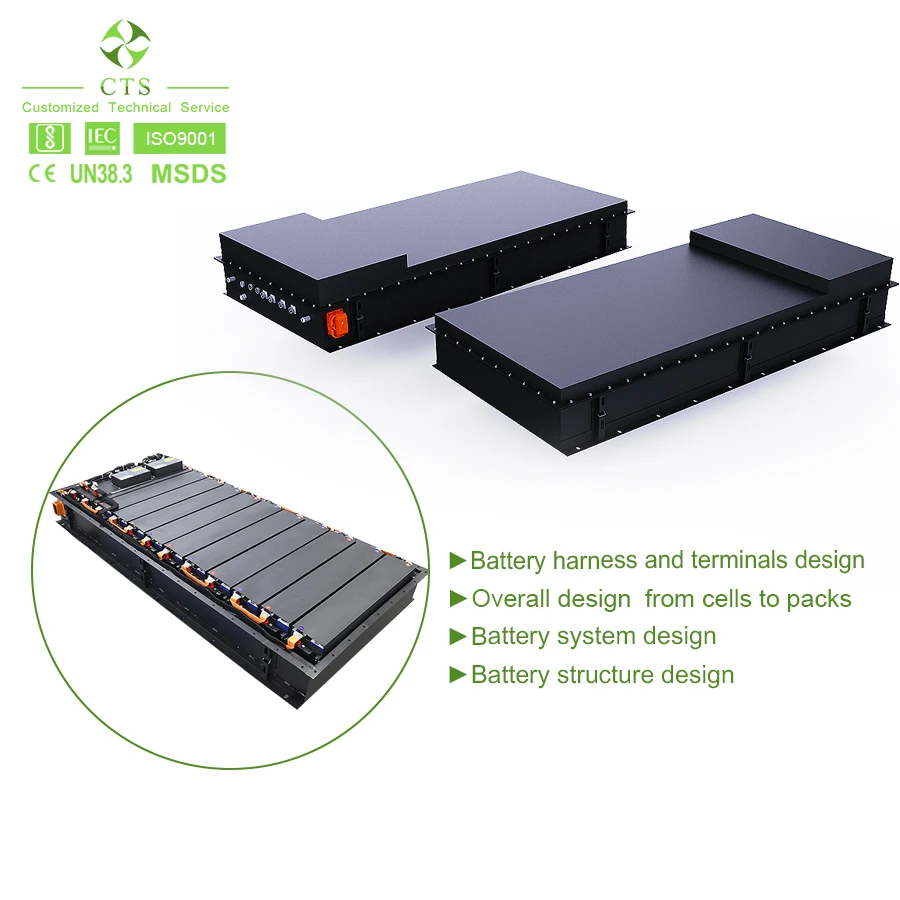

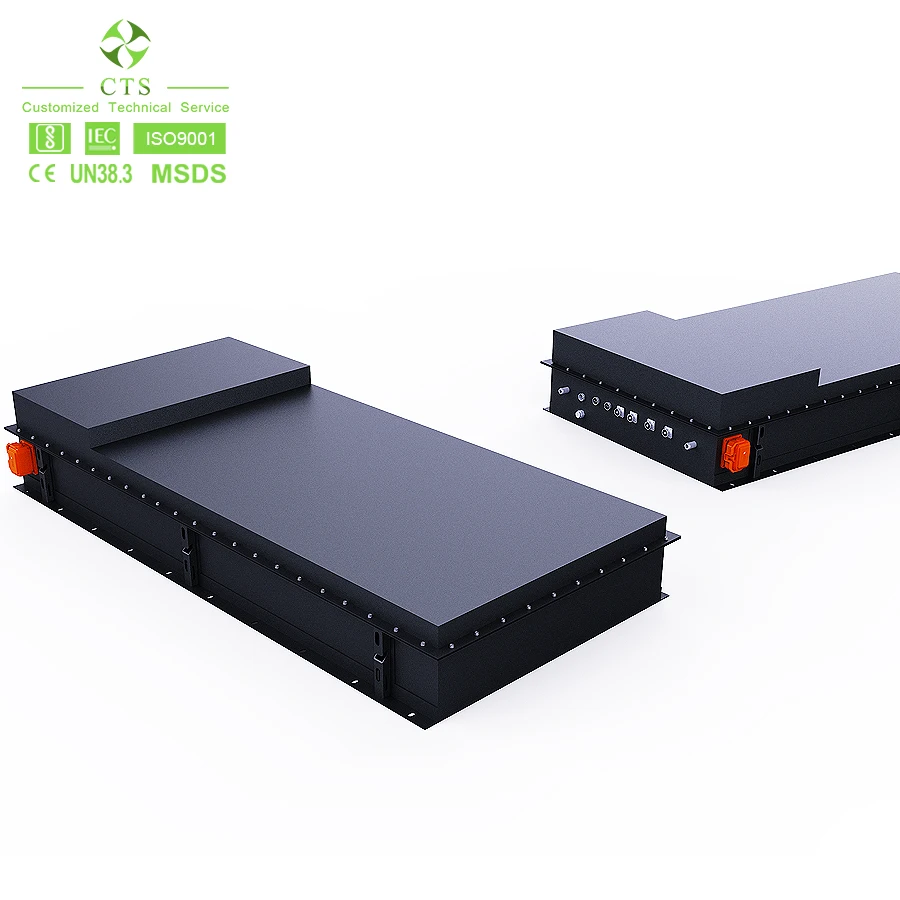

Lithium ion battery 345v 210Ah Electric Car Battery

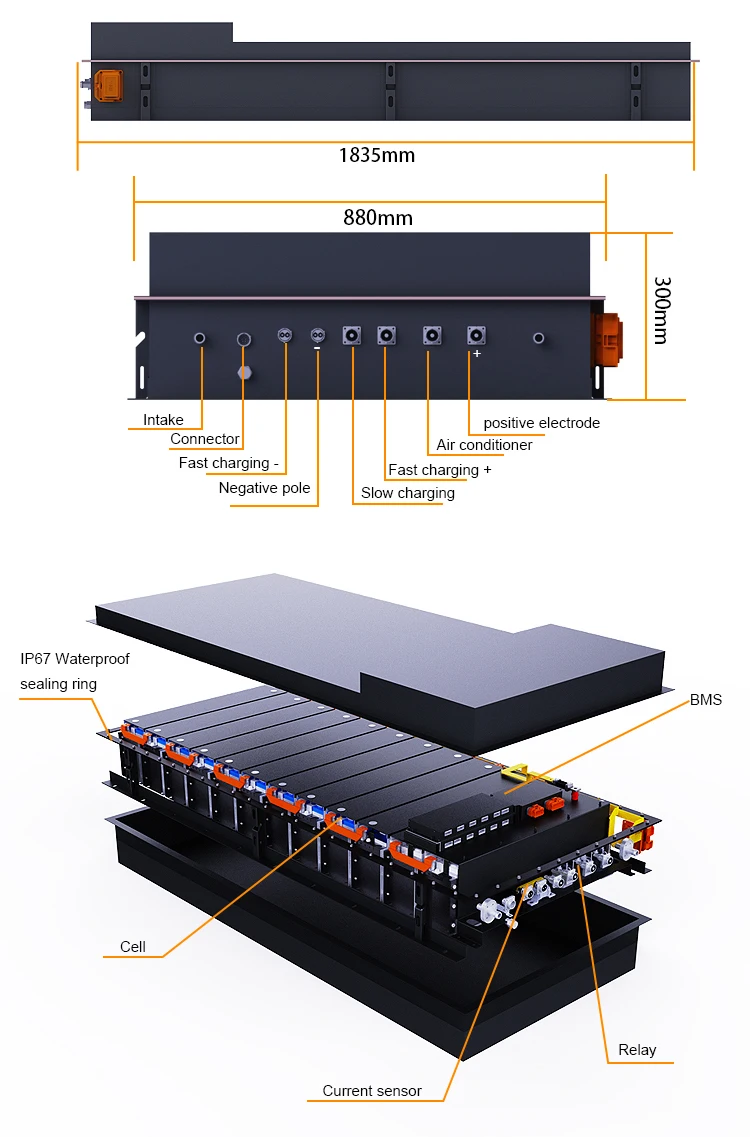

Dimensions
Details
Parameters of 345v 210Ah Lifepo4 battery pack | ||||||
No. | Items | Technical requirement | Note | |||
1 | Battery Type | Lifepo4 | 108S2P | |||
2 | Capacity(Ah) | 210 | @25℃ | |||
3 | Volatge | 345 | ||||
4 | Power(kWh) | 72.45 | ||||
5 | Weight(kg) | 603 | ||||
6 | Working Voltage range(DC V) | 270-394.2 | ||||
7 | Continuous discharge current(A) | 200 | @EOL，@25℃ | |||
8 | Peak discharge current(A) | 600 | For 30 seconds | |||
9 | Standard charge current(A) | 100 | ||||
10 | Max charge current(A) | 200 | ||||
11 | Dimension (L/W/H, mm) | 1835*880*300mm | ||||
Core technologies
>>> Lightweight and scalability <<<
CTS systematically optimizes the cell design and electrical component selection. We select the lightest steel/aluminum alloy and high-strength plastics,battery box and pack structure to reduce the volume and weight of the battery system combined with CAE structural simulation analysis to ensure structural strength and improve energy density.
CTS uses standardized cells and BMS to build a 12V \\ 24V \\ 48V \\ 72V battery modules. It can need different customer’s requirements by its excellent scalability to shorten the pack design cycle.
CTS uses standardized cells and BMS to build a 12V \\ 24V \\ 48V \\ 72V battery modules. It can need different customer’s requirements by its excellent scalability to shorten the pack design cycle.

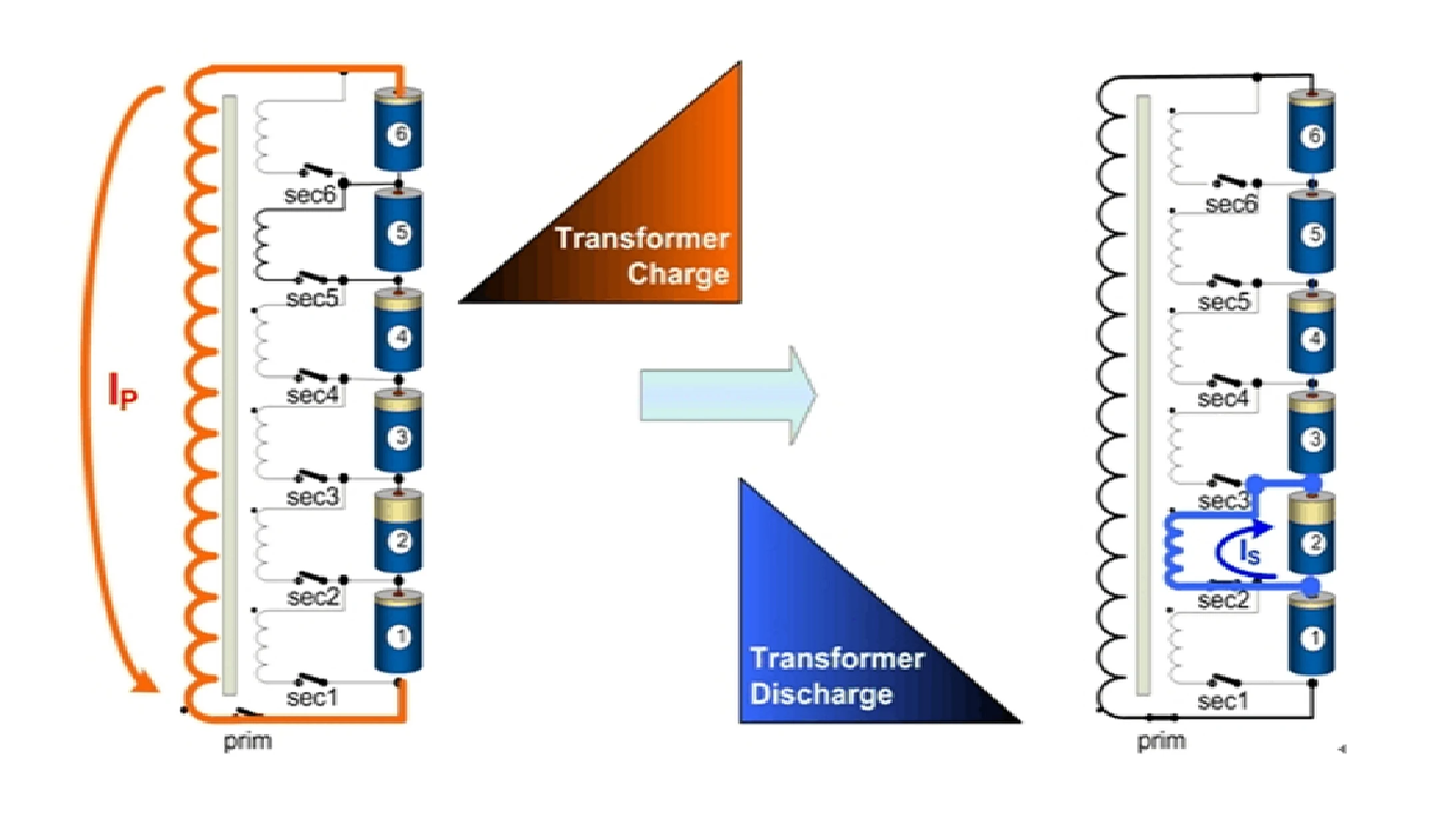

>>> BMS and Active Balance <<<
CTS has an experienced BMS development team. Our BMS uses passive balance by default. Active balance can be selected which can modify BMS parameters on site according to the actual application of customers, such as CAN / RS485 communication protocol, threshold parameters such as over / under voltage protection, high current protection, over / under temperature protection.

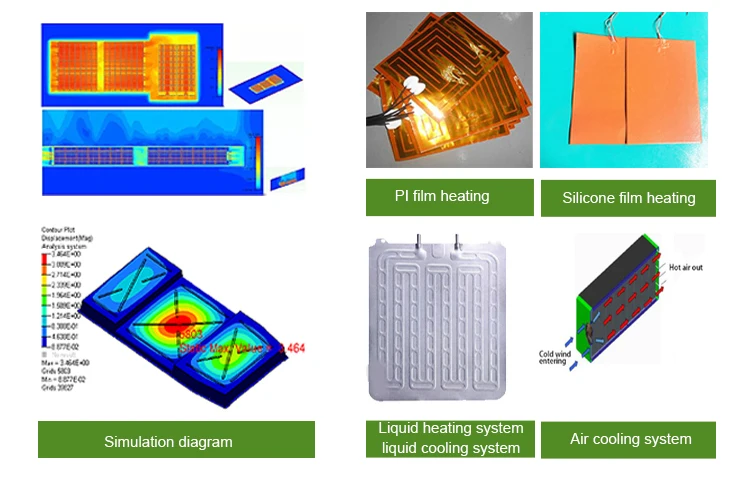

>>> Thermal Management and Simulation Design <<<
CTS has the capabilities of CFD simulation (Computational Fluid Dynamics) and CAE simulation (Computer Aided Engineering), and can do thermal management simulation design and structural mechanics simulation design for the pack system. Air cooling system, liquid heat and liquid cooling system, PI film heating, silica gel film heating are used in the thermal management design.

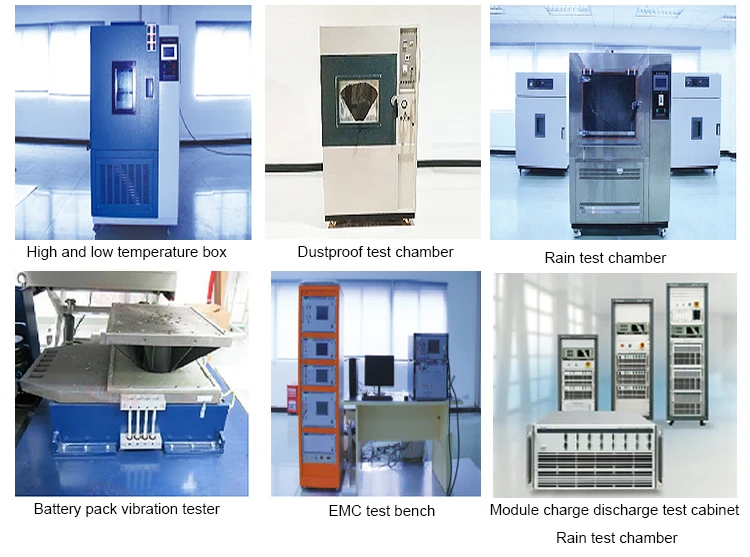

>>> Test and Verification <<<
CTS has its cooperated battery test laboratory. We will verify the battery DV / PV (design verification / production verification) stage in the laboratory to verify whether the design / production of the battery pack meets the design requirements. It includes temperature test, mechanical test, external environment simulation test, electrical safety test, battery performance test, abuse test and so on.
Product Safety
Related products
NMC 72V 200Ah Lithium battery | ||
Battery Type | NMC | |
Capacity | 200Ah @25℃ | |
Voltage | 72v | |
Weight | 130.5kg | |
Working voltage | 60v - 84v | |
Battery power: 14.4 kWh Client Country: Canada, in operation since 2015 | ||
Lifepo4 96V 400Ah Lithium battery | ||
Battery Type | Lifepo4 | |
Cpacity | 400Ah @25℃ | |
Voltage | 96v | |
Weight | 337kg | |
Working voltage | 75-109.5 | |
Battery power: 38.4 kWh Client Country: New Zealand, In operation since 2020 | ||
NMC 144V 100Ah lithium battery | ||
Battery Type | NMC | |
Capacity | 100Ah @25℃ | |
Voltage | 144v | |
Weight | 130.5kg | |
Working Voltage | 120v - 168v | |
Battery power: 14.4 kWh Client Country: Thalaind, In operation since 2020 | ||
Lifepo4 614v 100Ah lithium battery | ||
Battery Type | Lifepo4 | |
Capacity | 100Ah @25℃ | |
Voltage | 614.4v | |
Weight | 558kg | |
Working Voltage | 480v - 700.8v | |
Battery power: 61.44 kWh Client Country: UK, In operation since 2019 | ||

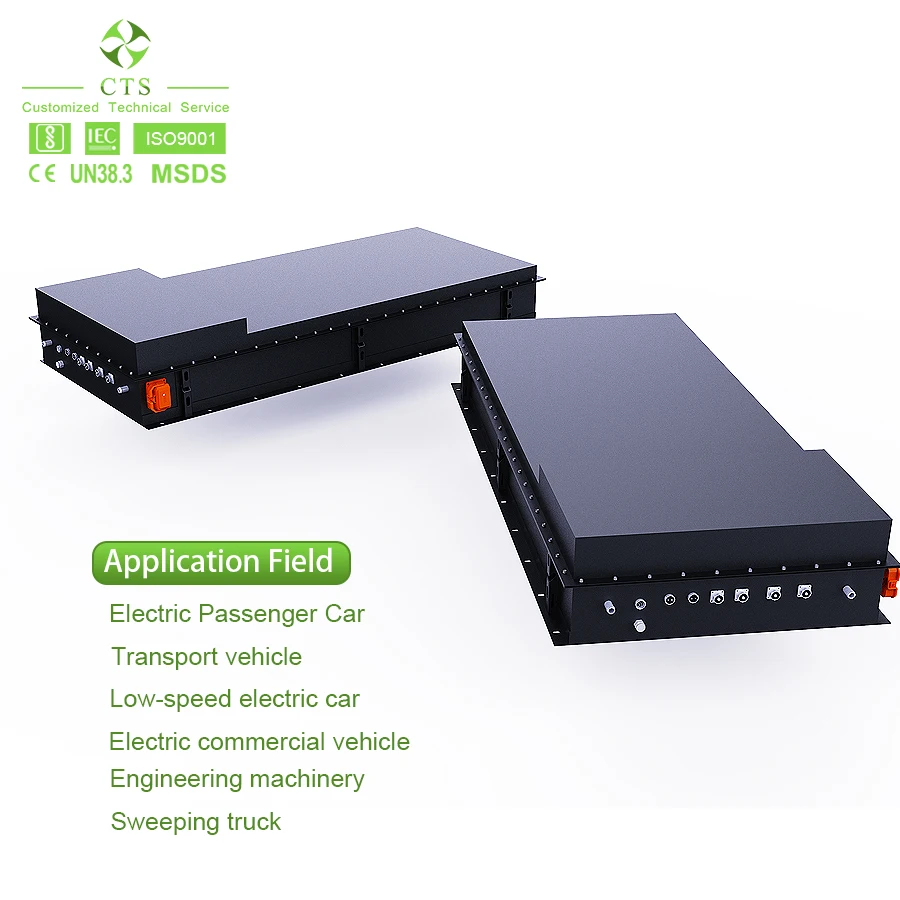

Application field
System Stability, high and low temperature resistance, long life, high cost performance,
high safty, ultra-wide application range.

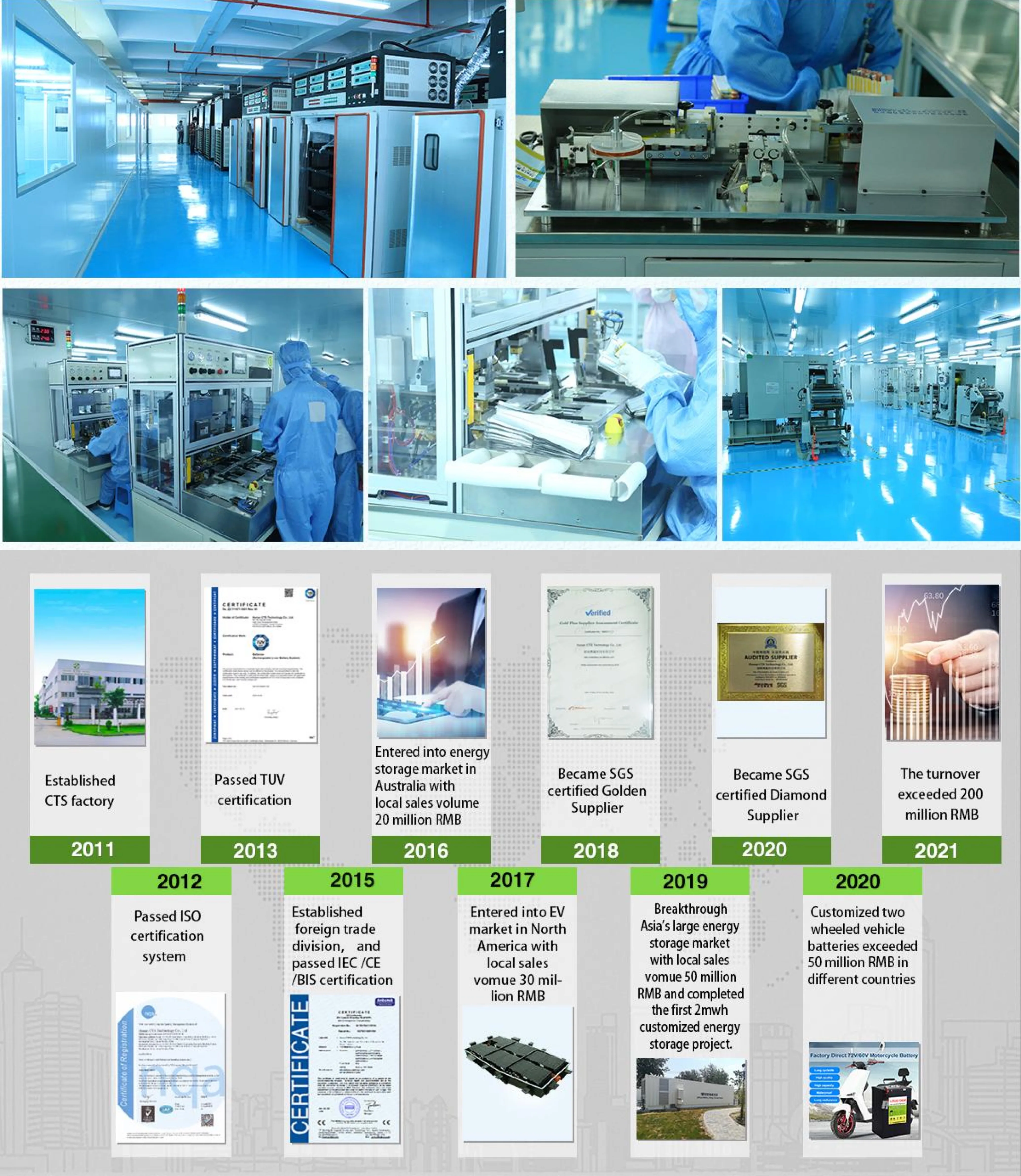

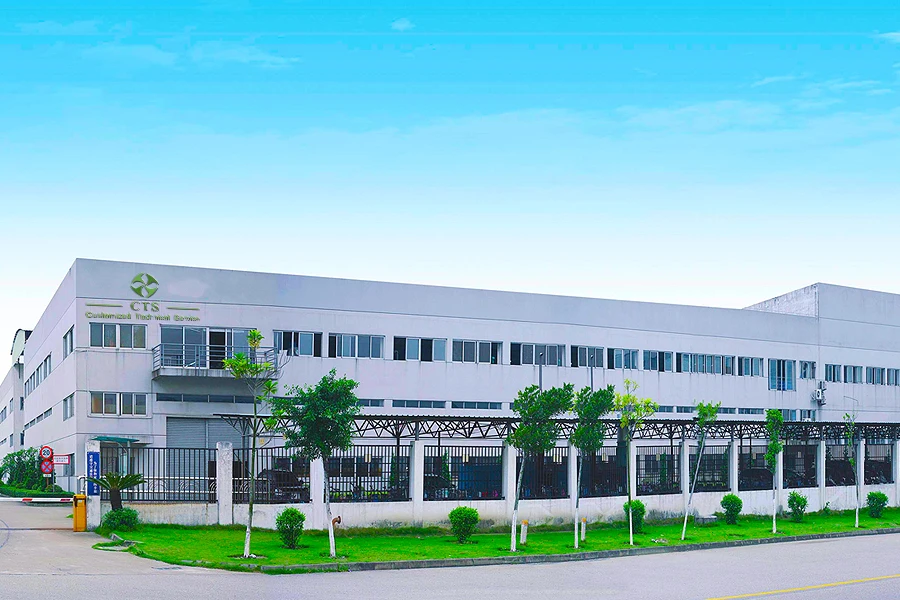

Company Profile
10+ years to sharpen a sword.
We do only one thing, professional customization.
20 + R&D team
150 front-line production employees
10 production lines
20,000 square meter plant
Capacity up to 500mwh
We do only one thing, professional customization.
20 + R&D team
150 front-line production employees
10 production lines
20,000 square meter plant
Capacity up to 500mwh
Since 2011, CTS has focused on one-stop customization of lithium battery products such as electric vehicle batteries, large energy storage batteries, smart home storage batteries, high-end electric motorcycle batteries and so on.
We has been pursuing quality policy of continuous innovation and improvement to meet customer's requirements. To realized full automation, we has introduced advanced foreign equipment and technology from Korea and Germany. To ensure the best quality, we has passed I S O 9 0 0 1 , I S O 1 4 0 0 1 and O H S A S 1 8 0 0 1 certifications.
We stick to the company concept of human orientation and efficient innovation and we welcome customization. So, lets join together to promote the development of renewable energy and friendly environment.

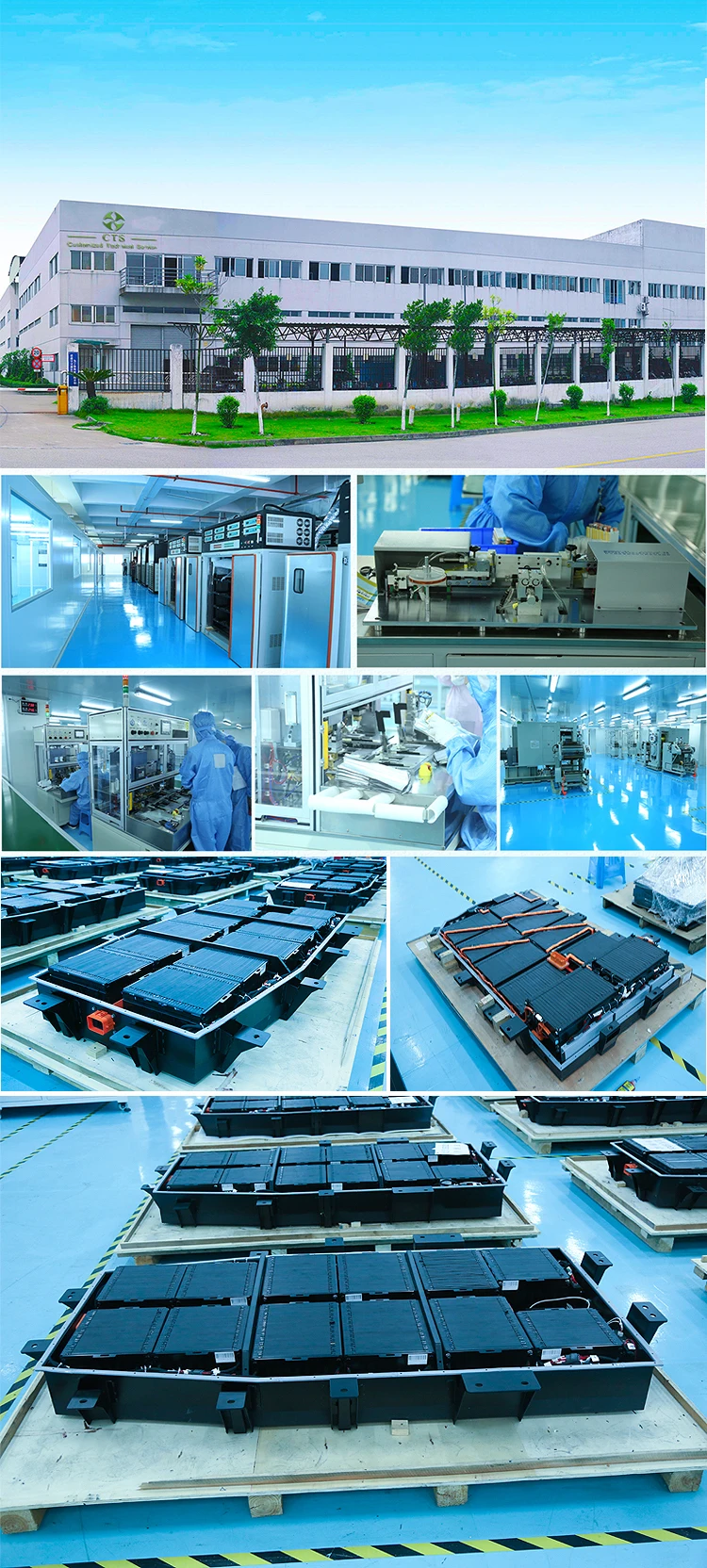

Product testing and shipping
1. Customized plywood case and foam packaging, safe for different shipment
2. 100% full testing before shipment to ensure quality
3. MSDS and UN38.3 certifications to ensure customs declaration and clearance during transportation
4. Customs on-site inspection to ensure the safety of the battery
Our business partner
Customer feedbacks
