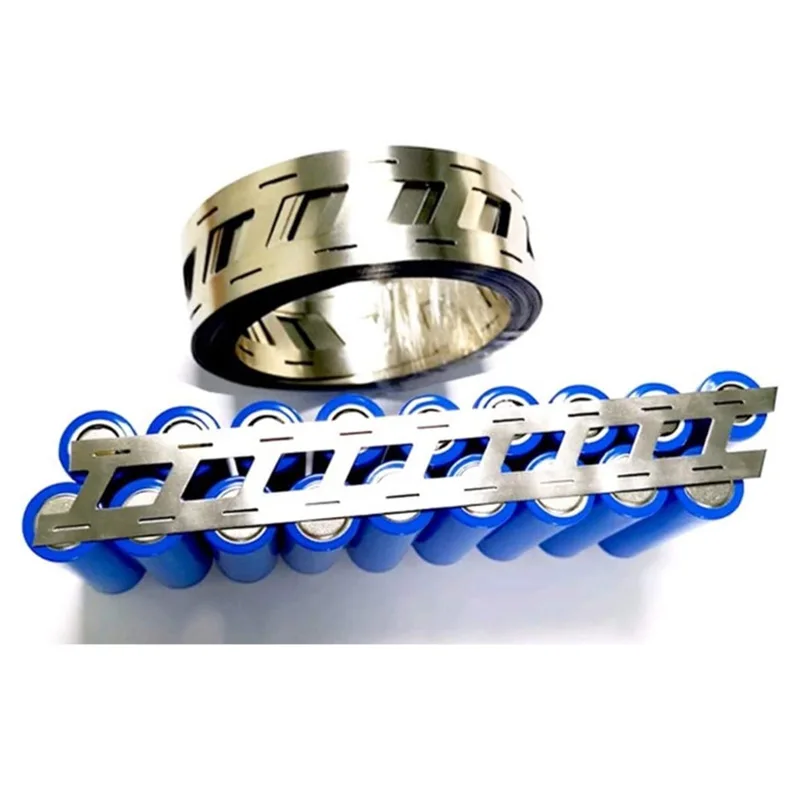

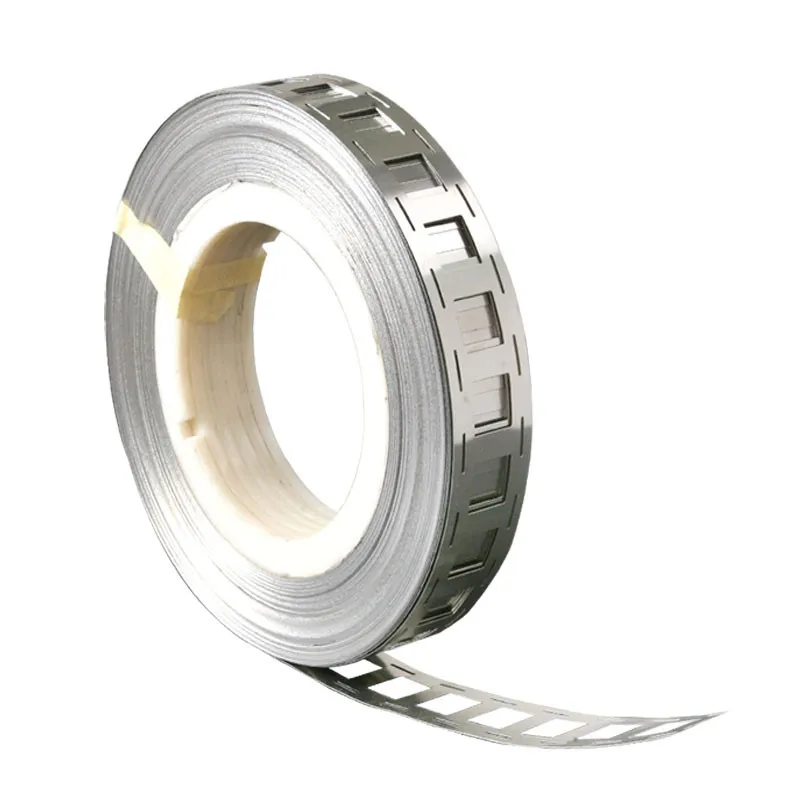

18650 21700 26650 32650 nickel alloy foil ni200 pure nickel strip for battery tab with lithium battery packs spot

Product Overview

Description

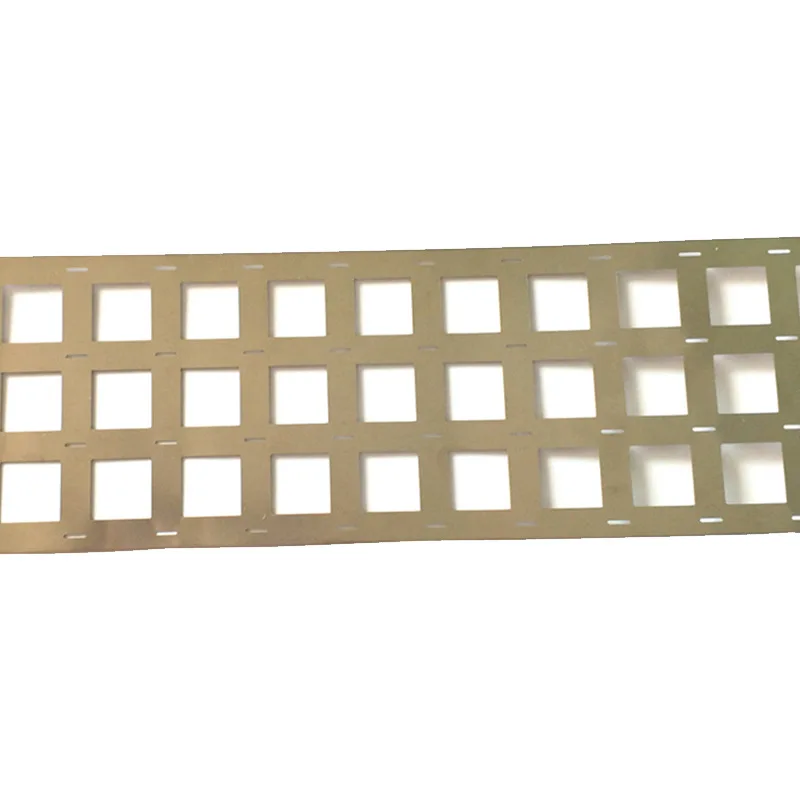

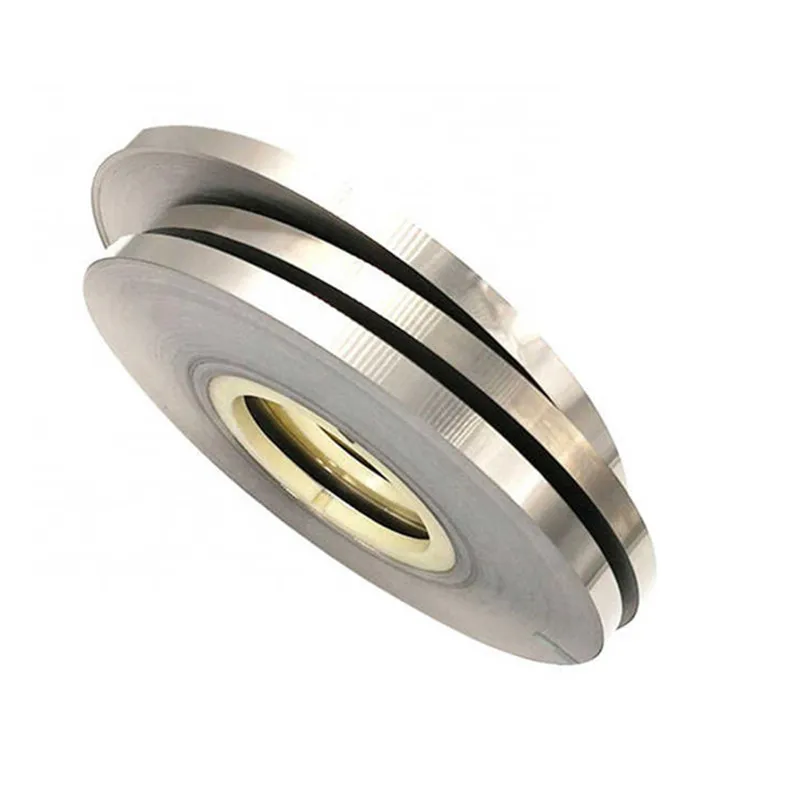

li-ion battery pure nickel strip
Grade:Ni200,Ni201,N4,N6
High ductility
Excellent corrosion resistance
good mechanical strength



18650 21700 26650 32650 nickel alloy foil ni200 pure nickel strip for battery tab with lithium battery packs spot



Pure nickel wire grade: Ni200,Ni201, N4,N6



Alloy Description



Nickel 200/201 is most widely used grade, generally specified for transistor caps, anodes for electronic tubes, leads of electronic components / Lead-in-Wires for lamps and for Wire-Mesh. Also used in strip form for various applications including Ni-Cd batteries.



Condition of Supply



Nickel 200, 201 and 205 are supplied in the following conditions:

• Cold Drawn, Special Temper.


• Cold Drawn, Annealed. Straightened and Cut Lengths.

Note:



NUS N02201 (ASTM B 162) same as N4 (GB/T 2054).



NUS N02200 (ASTM B 162) same as N6 (GB/T 2054).



Forms

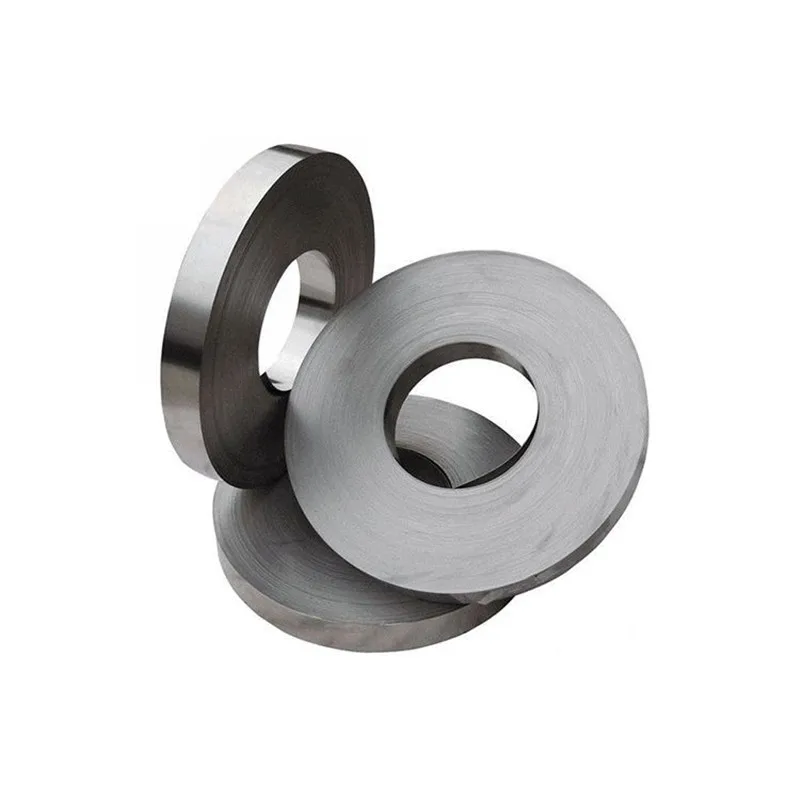

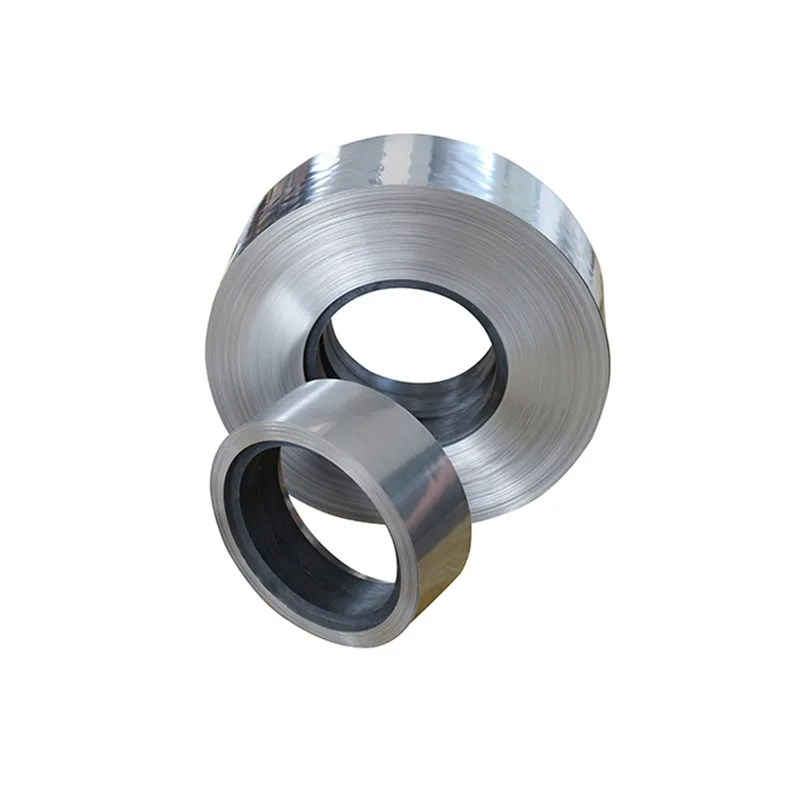

Coil – Strip, Foil, Ribbon
Wire – Profile, Round, Flat, Square

rod, bar, forgings, plate, sheet



Composition



Grade	Ni+Co	Cu	Si	Mn	C	Mg	S	P	Fe
N4	99.9	0.015	0.03	0.002	0.01	0.01	0.001	0.001	0.04
N6	99.6	0.10	0.10	0.05	0.10	0.10	0.005	0.002	0.10
Ni201	99.0	≤0.25	≤0.35	≤0.35	≤0.02	/	≤0.01	/	≤0.40
Ni200	99.0	0.20	0.30	0.30	0.15	/	0.01	/	0.40

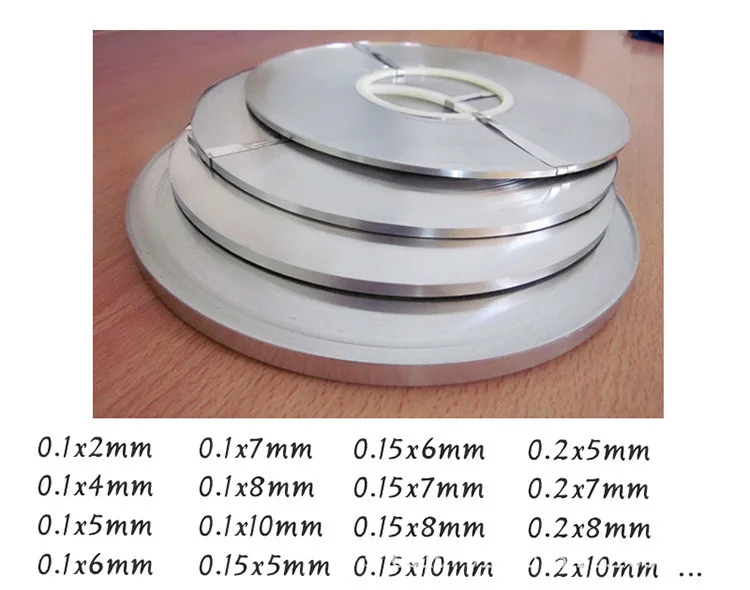

Nickel foil, strip Capabilities



Grade	Pure Nickel Strip 99.6% / 99.9%
Thickness	0.02 to 2.50 mm
Tolerances	+/- 5% (special tolerances is available)
Width	Up to 350mm wide
Coil size	Up to 80 kg without welds
Temper Ranges	Annealed to Full Hard



Nickel Foil, Strip Product Precision



Thickness	Thickness allowance	Burr height	Width scope and tolerance
			2≤w<10	10≤w<50	50≤w<100	100≤w<150	150≤w<200	200≤w
0.02≤t<0.05	±0.003	≤0.005	± 0.05	±0.10	±0.15	±0.20	±0.30	±0.50
0.05≤t<0.1	±0.005	≤0.01
0.1≤t<0.2	±0.008	≤0.015
0.2≤t<0.3	±0.012	≤0.02
0.3≤t<0.4	±0.015	≤0.03	± 0.10	±0.15	±0.25	±0.50	±0.80	±1.00
0.4≤t<0.6	±0.025	≤0.05
0.6≤t<0.8	±0.030	≤0.06	± 0.30	±0.40	±0.50	±0.50	±0.80	±1.00
0.8≤t<1.0	±0.040
1.0≤t<1.2	±0.050	≤0.08	± 0.50	±0.50	±0.80	±1.00	±1.00	±1.50
1.2≤t<1.4	±0.060
1.4≤t<1.7	±0.070	≤0.10
1.7≤t<2.0	±0.080



What are the characteristics of Nickel Foil, Strip?

• High degree of electrical conductivity


• Low electrical resistivity


• Excellent surface and slit edge conditions


• Enhanced solderability as a result of low surface oxides


• Excellent formability with deep draw characteristics with reduced die wear


• Resistance to grain growth

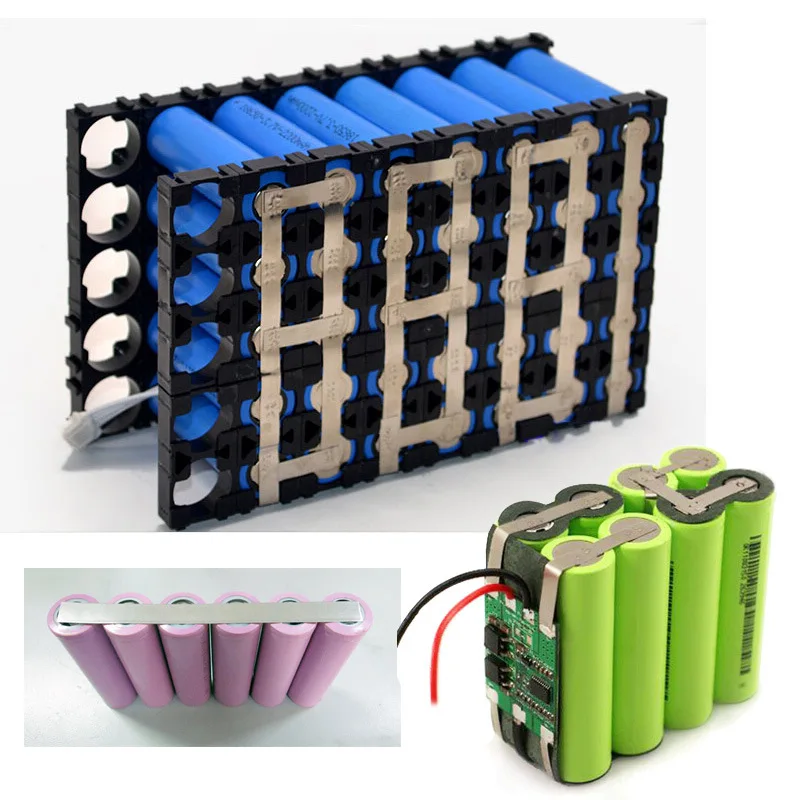

• Rechargeable Batteries (Nickel Metal Hydride, Lithium Ion)


• Metal Stampings


• Lead Frames


• Gaskets and Seals


• Lighting Applications


• Superconductor Applications


• Weld Wire













WHY CHOOSE SZNK HIGH QUALITY RESISTANCE HEATING ALLOYS?



All our raw material is made from prime material, not recycle material. We have more than 25 years experience in manufacturing resistance heating alloys.



OUR ALLOYS CHARACTERISTICS:



1. Manufactured according to international quality. System (ISO9001)

2. Stable resistance and long-life span.

3. Mill test certificate will be provided after production.

4. Size range  wire:.0.018-10mm  ribbons: 0.05-0.2*2-6mm  strips: 0.05-5*5-250mm

5. Good packing methods to keep goods no damage during delivery

6. Customized lable, packing, OEM service

7. 24 hours after-sale service





Q1.Do you attend exhibition every year?



A .Yes



Q2.Is there any discount of the nickel wire?



A.  Yes. Bigger quantity will get lower discount.



Q3.Information needed if I want a quotation?



A  Name, Standard, Material Grade(Chemical Composition), Size Quantity, Weight.



Q4. Can we visit your company/factory before place the order?



A. Yes. Welcome anytime



Q5: How does your factory do regarding quality control?



A. Quality is priority. We always attach great importance to quality controlling from beginning to end.
