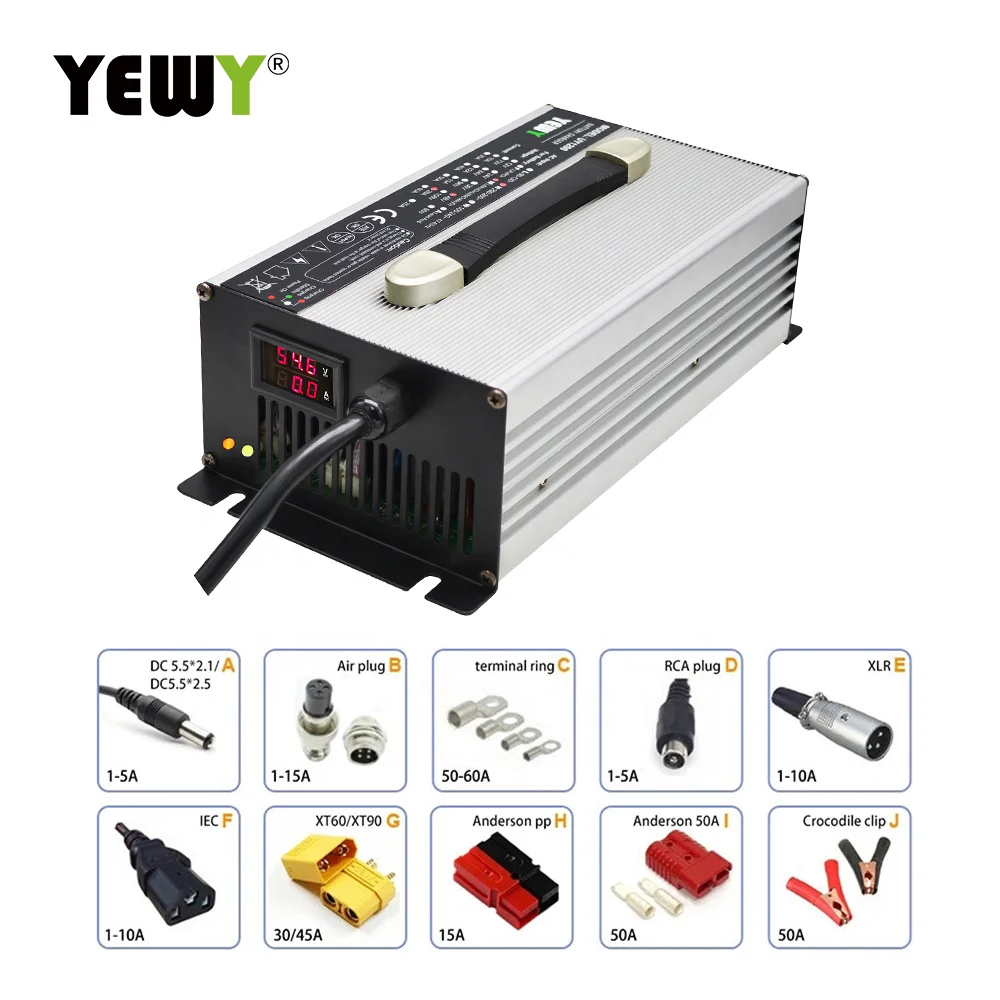

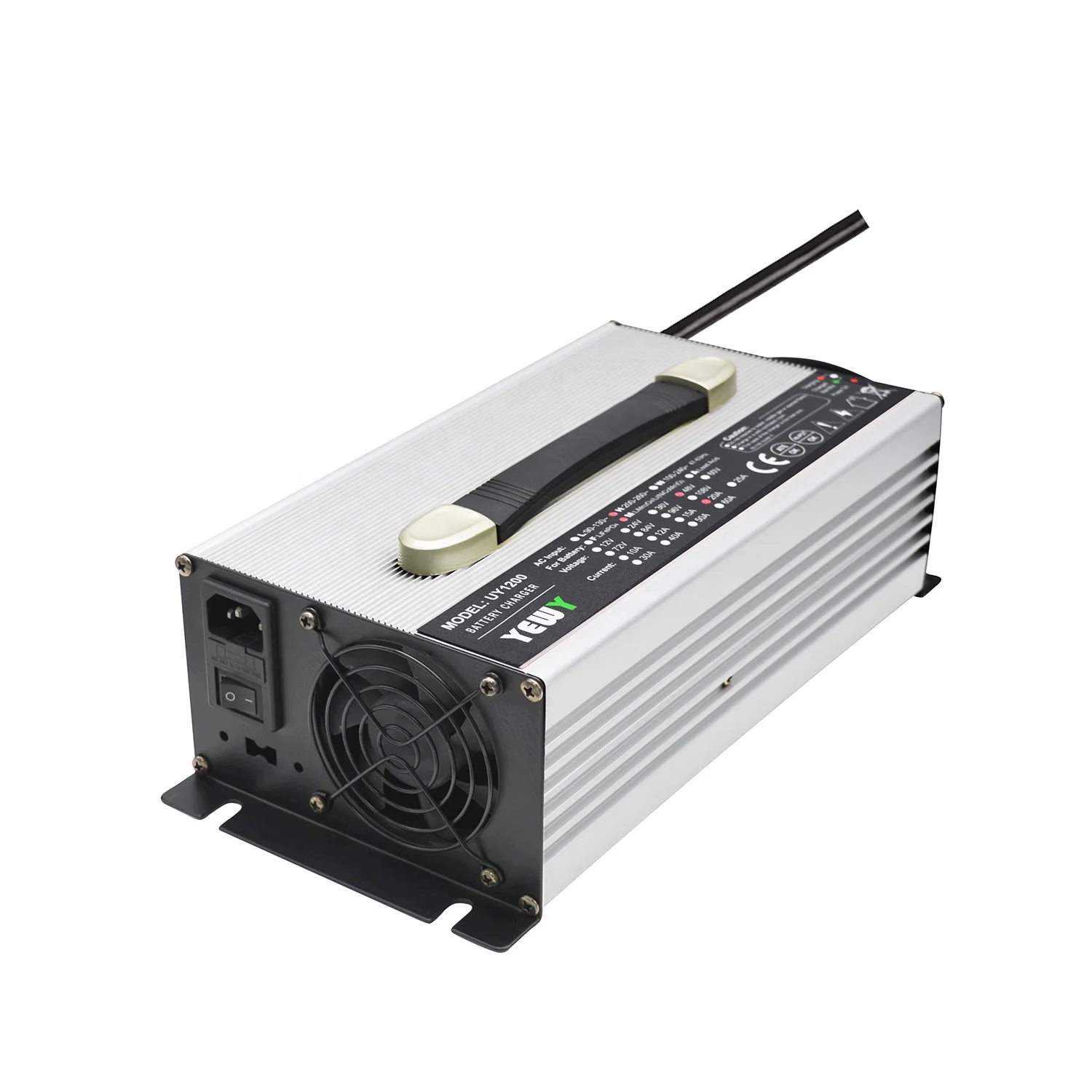

Chargers Automatic Tricycles 36v Lithium Three 24v Lifepo4 Fast Acid 60v Motorcycle 48v Electric Lead Wheelchair Battery Charger
- Category: >>>
- Supplier: Guangzhou Yunyang Electronic Technology Co. Ltd.
Share on (1600570415068):
Product Overview
Description
UY1200 is widely uesed for:Electric bicycles, electric scooters, golf carts, electric motorcycles, electric vehicles,unmanned aircraft, Washing machine ,electric motorcycle , two wheeled vehicle, electric tricycle ,patrol car,sanitation vehicle, Electric cars , electric forklift , electric pallet truck, electric four wheeled vehicles, electric tools,sightseeing cars, diplopod sweeper, etc.

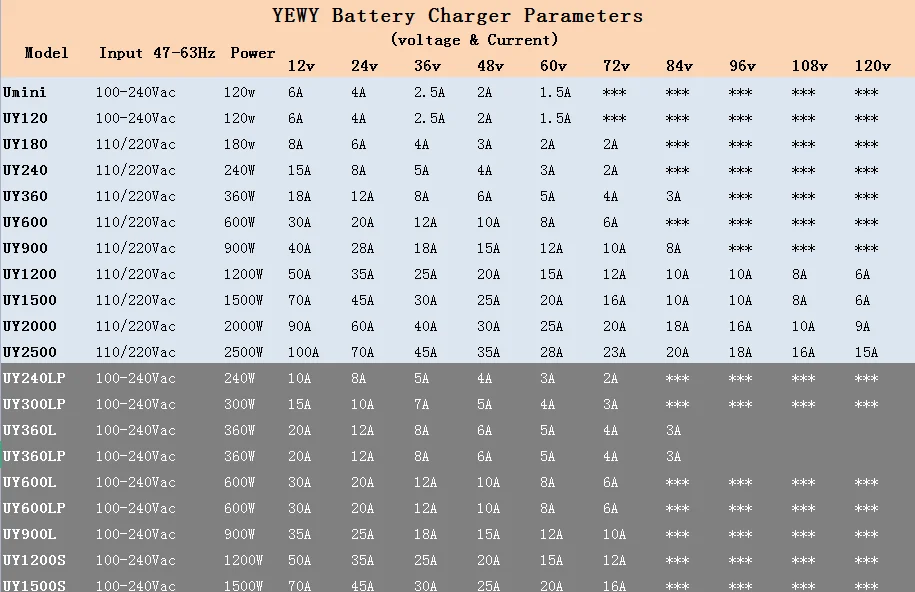

Type | Specification | DC Voltage | Charging Current | Light Turning(A) | |||
Li-ion | Lifepo4 | Lead-acid | Lithium | Lead-acid | |||
UY1200 | 12V50A | 12.6V/16.8V | 14.6V | 14.7V | 50A | 8% | 25% |
24V33A | 25.2V/29.4V/33.6V | 29.2V | 29.4V | 33A | 8% | 25% | |
36V25A | 42V/46.2V | 58.42V | 44.1V | 25A | 8% | 25% | |
48V20A | 50.4V/54.6V/58.8V | 73V | 58.8V | 20A | 8% | 25% | |
60V15A | 63V/67.2V/71.4V | 87.6V | 73.5V | 15A | 8% | 25% | |
72V12A | 79.8V/84V | 87.6V | 88.2V | 12A | 8% | 25% | |
84V11A | 88.2V/92.4V | 102.2V | 102.9V | 11A | 8% | 25% | |
Product Features

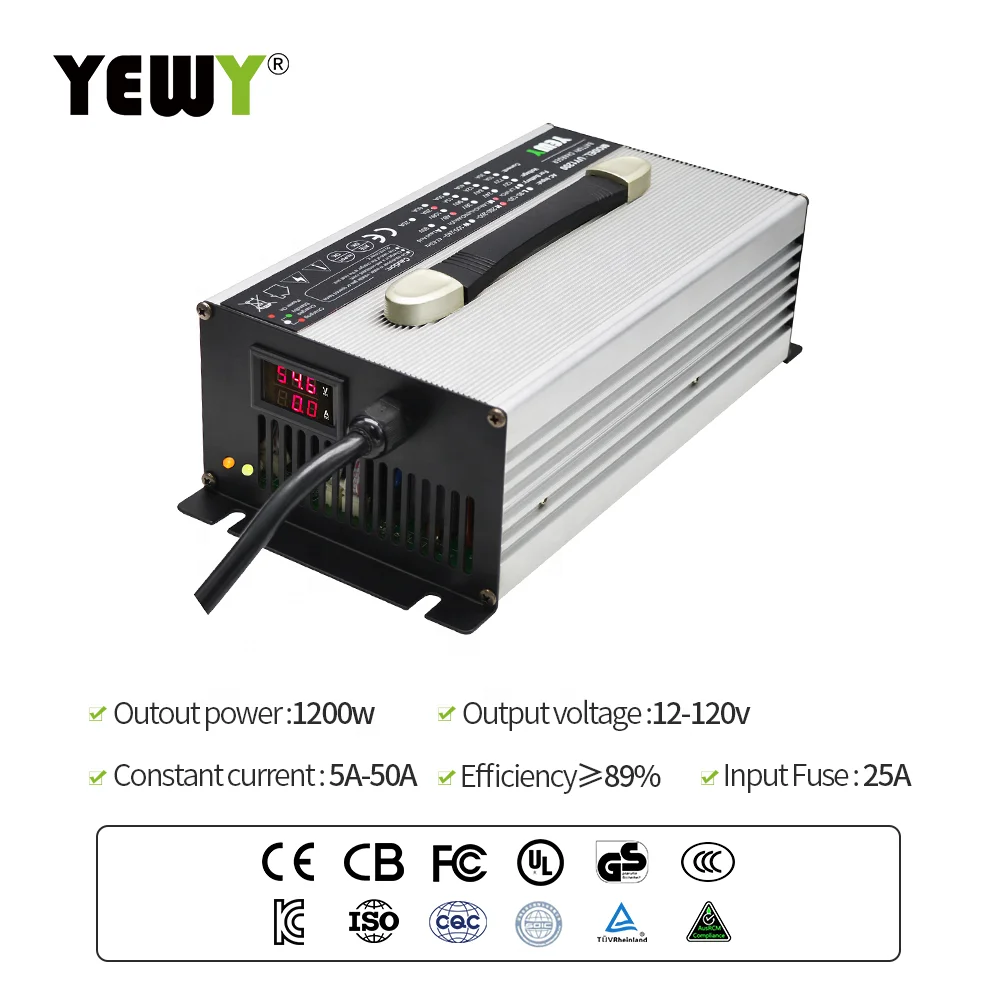

l1200W

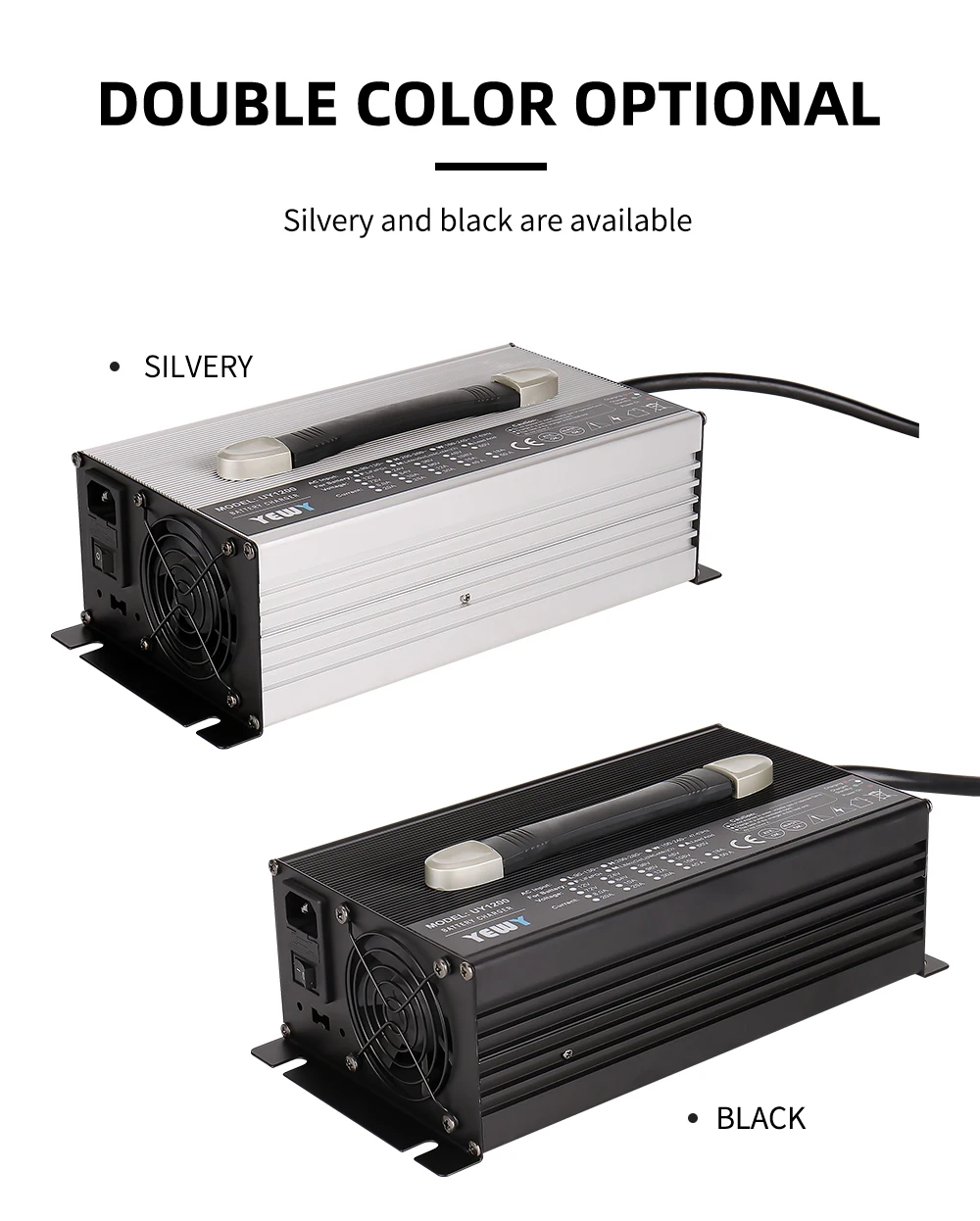

lAluminum case, ease handling
lCircuit topology: Current Half-bridge type
lOptional function: MCU,CAN Communicate etc

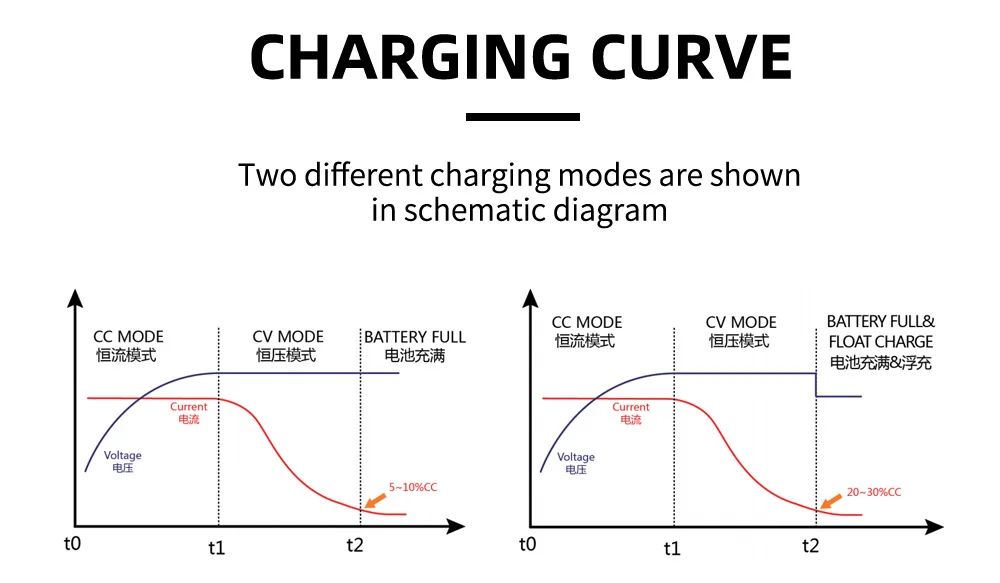

lCPU and intelling PWM IC control, full automatic transition of CC, CV and Float/Cut-off, meet the demands for different Curve

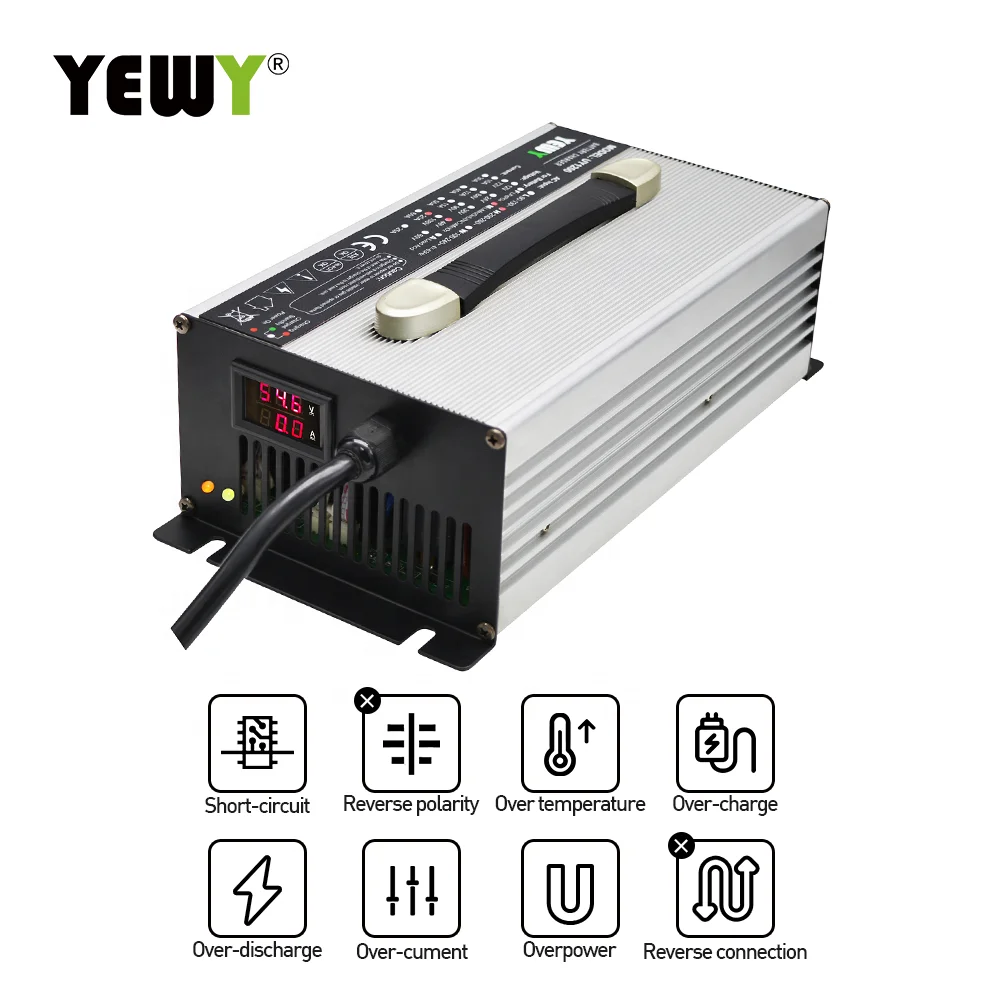

lProtections: Over Current, Over Voltage, Over temperature, Short Circuit, Reverse Polarity, shut off or trickle and anti-reverse charge

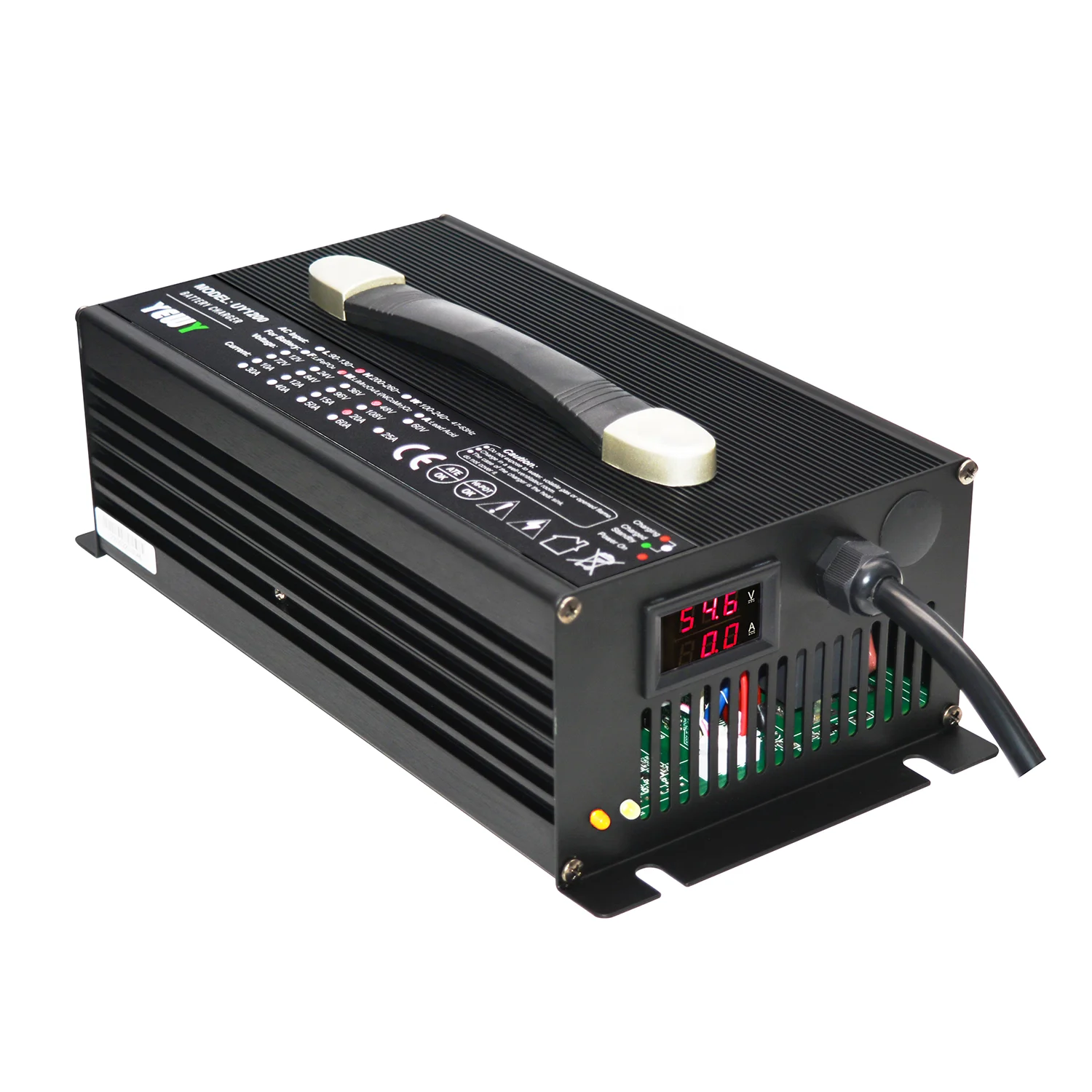

lVoltage & Current LED meter display
lIntelligent cooling fan, controlled by temperature
|
Q:How to buy your product?
A:First of all, you need to tell us your product requirements. We will recommend appropriate products according to your requirements and quote you according to your requirements. After you confirm that the information is correct and the payment is made, we will immediately arrange production
Q:How long is warranty period of the battery charger?
A:Our warranty period is for 12 months.
Q:Have you passed any certification for your products?
A:Each of our charger has been certified by CE&ROHS.We also have relevant certificates of FCC, CB, LVD and KC & KCC for waterproof products.
Q:Are you an electronics factory
A:Yes, we are a factory which can provice competitive peices,direct technicall instruct,customized production and professional after-sales service with more than 15 years of experience in export trade.
Q:Is there a professional R & D team and engineering technology department?
A:Independent R&D Team with high degree and rich experience,which makes us have the strong ability to meet different demands from our customers.
Q:Can I have a sample order?
A:Yes, we can provide an initial sample. But our samples are not free. We need to charge for the samples.
Q:Do you have any MOQ (minimum order quality)limit?
A:Low MOQ, 1pc for sample checking is available.
Q: How do you ship the goods and how long does it take to arrive?
A:We often ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.
