High power DPSS Laser module 75w for Diamond laser cutting
- Category: >>>
- Supplier: Beijing Belle Laser Technology Co. Ltd.
Share on (1600570427386):
Product Overview
Description
High power DPSS Laser module 75w for Diamond laser cutting
Product Description

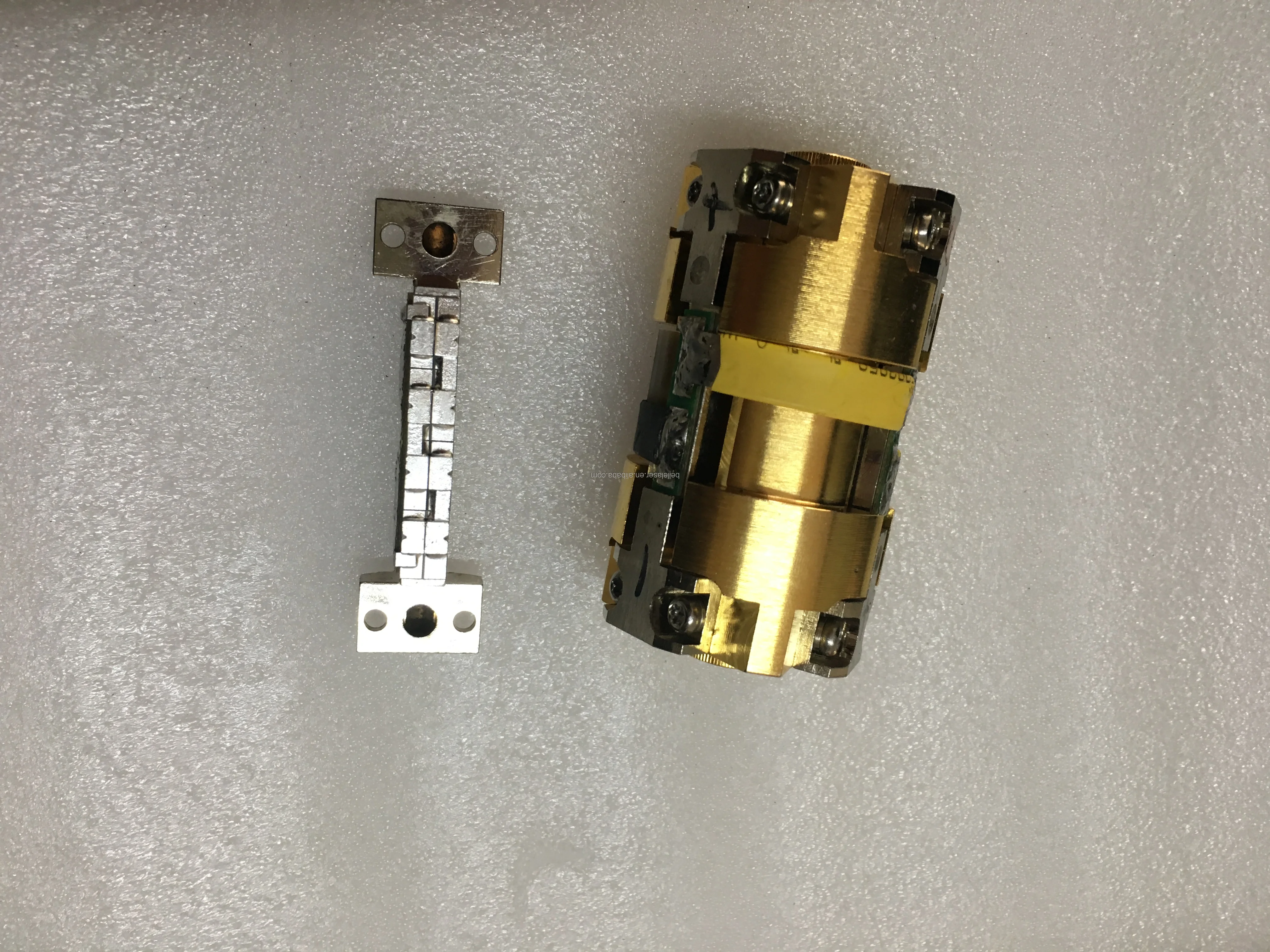

CW Diode Pumped Laser Modules (DPSS laser modules at 1064nm) are designed by side-pumping geometry with 808nm laser diode arrays and Nd:YAG rods. NDL is now providing high power laser modules with power from 10W, 20W up to 500W. It is widely used for industry, such as laser marking, engraving, welding, cutting, drilling and etc.

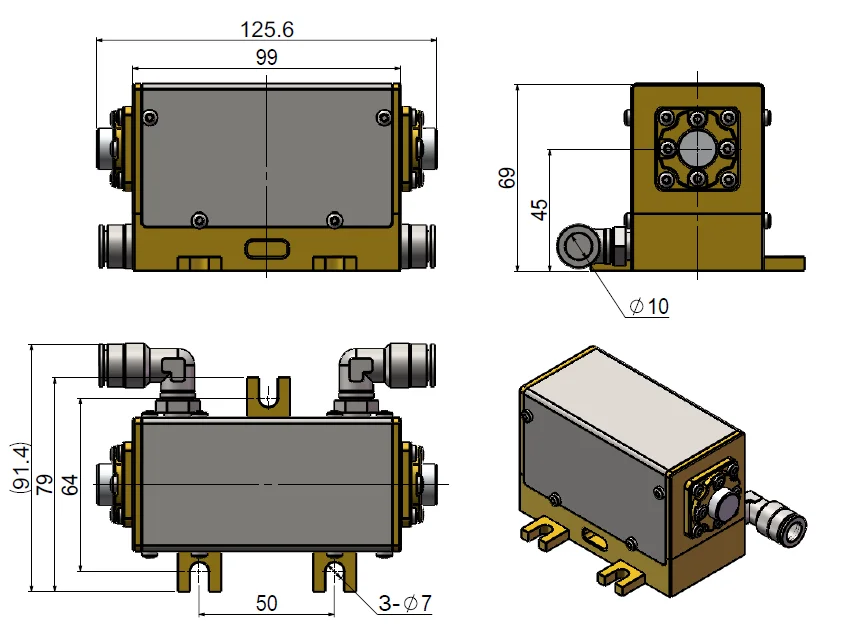

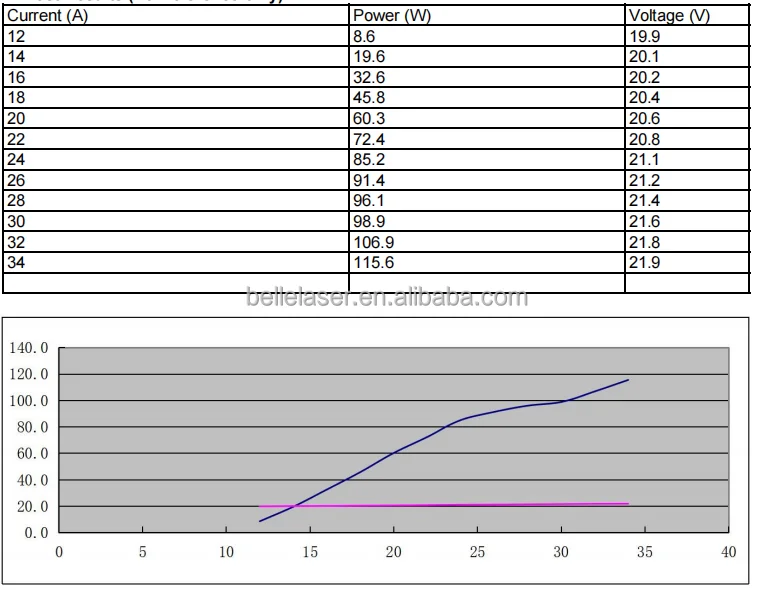

75W module datasheet

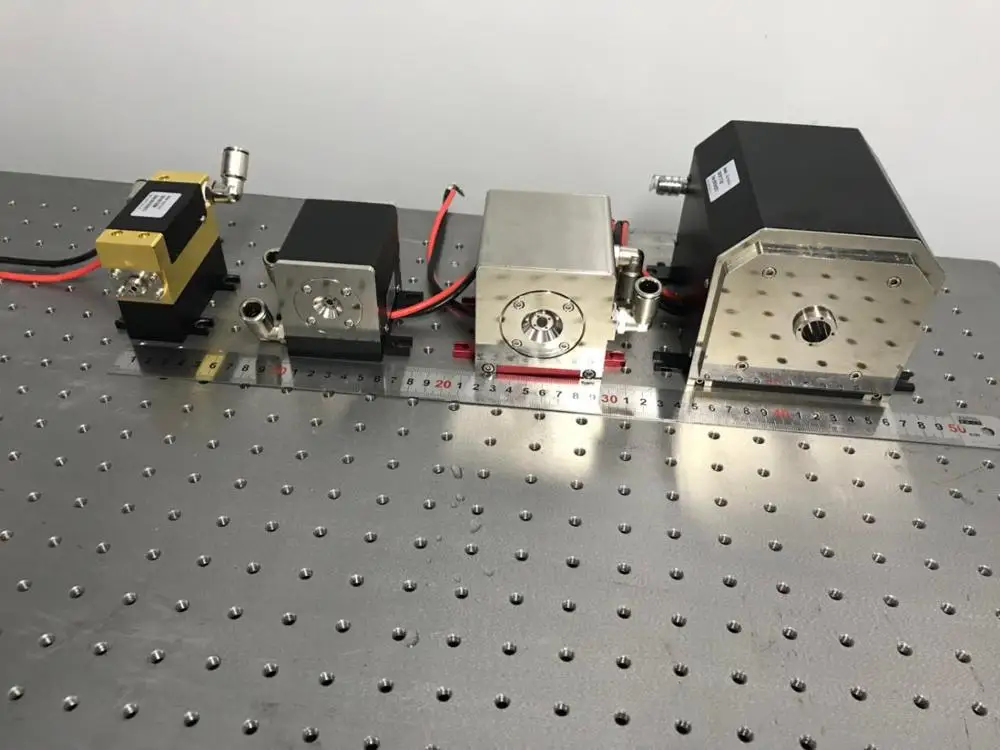

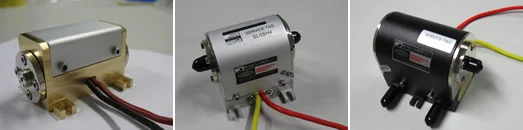

Standard Product Models
| GTPC-25 | GTPC-50D | GTPC-50S | GTPC-75 | GTPC-100 | GTPC-200 | GTPC-500 | GTPC-1000 | |
| YAG Diameter(mm) | 3 | 3 | 3 | 3 | 4 | 5 | 6/7 | 7 |
| Output Power(w) | 25 | 50 | 50 | 75 | 100 | 200 | 500 | 1000 |
| Operating ourrent(A) | 29 | 15 | 18 | 29 | 29 | 29 | 29 | 29 |
| LD Bias(V) | <6 | <24 | <18 | <18 | <24 | <42 | <100 | <180 |
Model No. | Output Power | Nd:YAG | Pumping Diodes | Voltage | Current | Lead Time |
DPLM-10CW | 10W | 2x45mm | 3x20W | <6V | 25A | 10 workdays |
DPLM-20CW | 20W | 2x55mm | 6x20W | <12V | 25A | 10 workdays |
DPLM-20CW-B | 20W | 2x63mm | 3x40W | <6V | 35A | 10 workdays |
DPLM-30CW | 30W | 2x63mm | 9x20W | <18V | 25A | 5 workdays |
DPLM-50CW | 50W | 3x63mm | 9x20W | <18V | 25A | 5 workdays |
DPLM-75CW | 75W | 3x75mm | 12x20W | <24V | 25A | 5 workdays |
DPLM-100CW | 100W | 4x90mm | 15x20W | <30V | 25A | 10 workdays |
DPLM-100CW-B | 100W | 3-4x75mm | 12x40W | <24V | 35A | 10 workdays |
DPLM-150CW | 150W | 4x90mm | 15x40W | <30V | 35A | 15 workdays |
DPLM-200CW | 200W | 4-6.35x110mm | 21x40W | <40V | 35A | 15 workdays |
DPLM-300CW | 300W | 5-8x110mm | Custom | Custom | Custom | 20 workdays |
DPLM-400CW | 400W | 5-8x110mm | Custom | Custom | Custom | 20 workdays |
DPLM-500CW | 500W | 5-8x110mm | Custom | Custom | Custom | 20 workdays |
Technical advantages
Custom Products Available
Output Power (CW): | 10W, 20W, 35W, 50W up to 500W |
Wavelength: | 1064nm |
Nd:YAG Diameter: | 1.5mm, 2mm, 3mm, 4mm, 5mm, 6.35mm, 8mm available |
Nd:YAG Doping: | Typical 0.6% doping. Other doping 0.6%~1.1% available |
Beam Height: | Typical 40mm or 45mm. Others optional. |
Company Information
We are the only manufacturer possess the core technology of laser diode packaging and diode pumped solid-state (DPSS). Not only produce product, also focus on R&D laser diode.
We have class 10K clean room and class 100 local clean zone(according to Federal Standard 209E). Insisting the concept of specialization, adopting the latest advanced technology with international standards.
Contact us
Please contact us or leave a message to request quote or ask for support.
