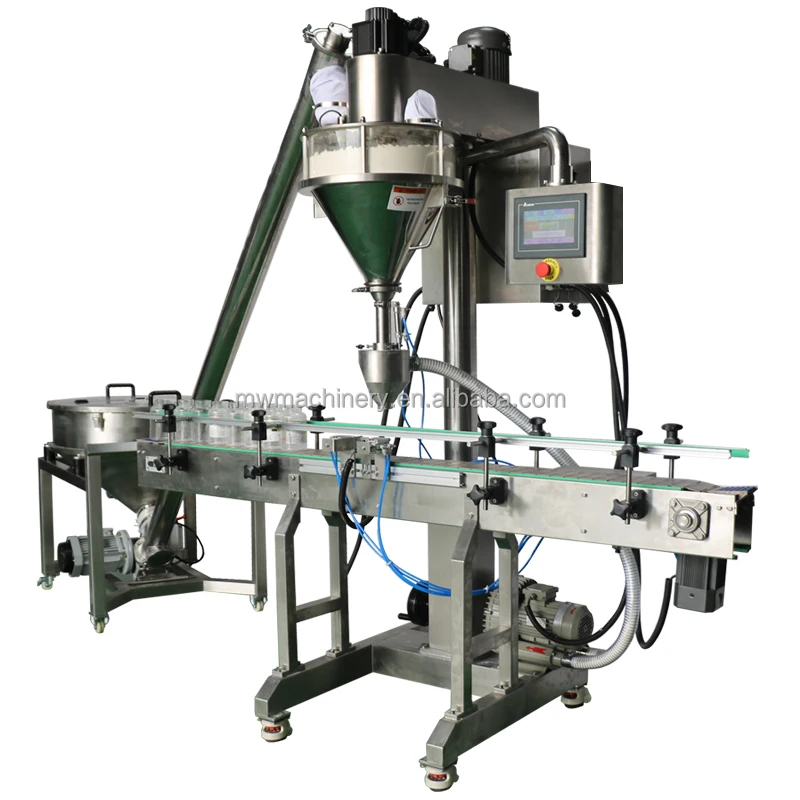

Fully Automatic Auger jar bottle Powder Filling Machine And Packaging Machine Baby Milk Powder Protein Filler for powders
semi-automatic powder filling machine, it is suitable for packing powder and granular materials, such as: milk powder, feed powder , rice powder , coffee powder , monosodium glutamate, solid drink, glucose, solid medicine, etc
Main Technical Parameters
Metering Mode | Auger filling |
Package Weight | 100-5000g changeable( by changing auger attachment) |
Package Accuracy | ±0.3-1%(according to the material ) |
Packaging Speed | 10-40bottles/min |
Power Supply | 380V 50Hz/60Hz( Customize 220V’s motor) |

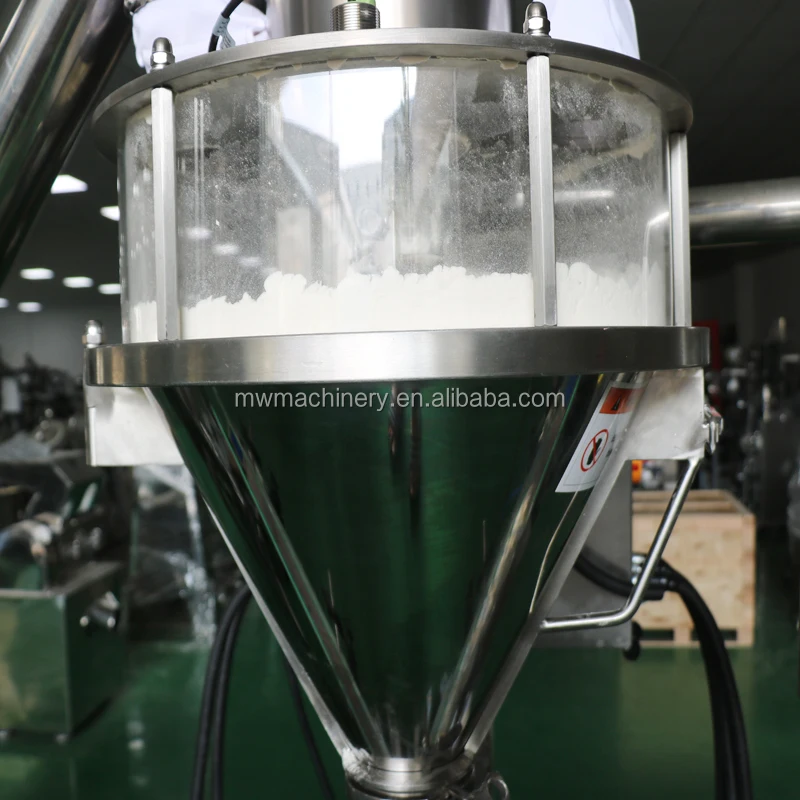

Hopper Volume | 30L |
Total Power | 3.7Kw |
Weight of machine | 270kg |
Overall Dimensions | 105*90*240cm |
Operational Style | PLC control system ,5.7 inch colorful touch screen |
Metering Mode | Auger filling |
Machine features:
1. The whole machine is made of stainless steel and Plexiglass ;
2. Chinese/English is displayed in touch screen ;
3. The machine is designed in term of National “QS” and “GMP” ;
4. The combination of whole sealed , stainless steel and plexiglass box ,can open by sideway ,make the clean easily ;
5. You may store 10 kinds of working parameters in the machine ;
6. For the dusty material , we can add a vacuum device to keep the workplace clean .
7. The machine suitable for lot kinds of package size and powdery material through changing the auger attachment .
8. Servo motor drive screw ,got high accuracy .
Applicable:
This conveyor is suitable for multiple powdery product.Working together with packing machine, the product feeding of the conveyor is controlled to retain the product level in the product cabinet. And the machine can be used independently. All parts are made of stainless steel except the electric motor, bearing and support frame.
