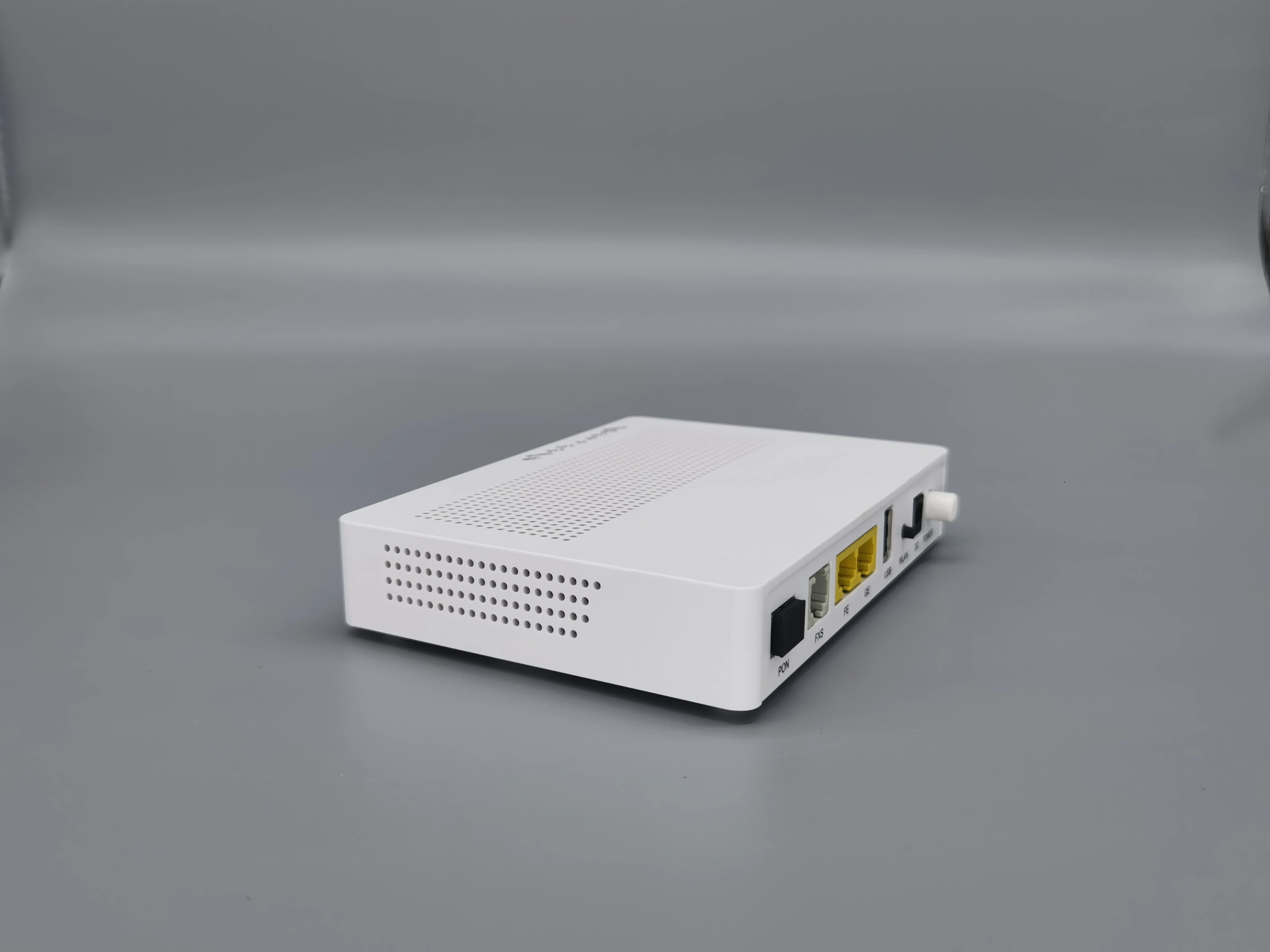

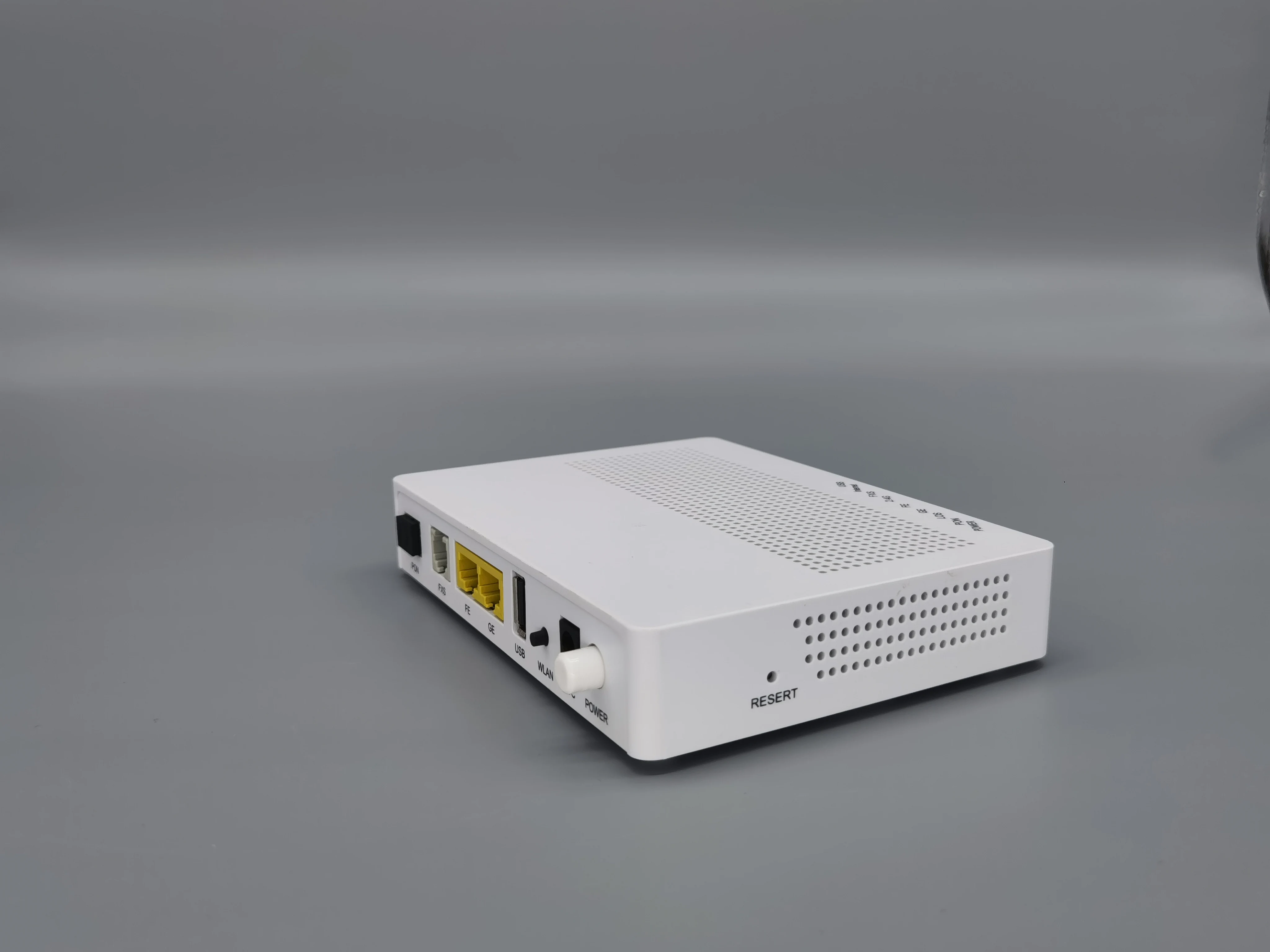

ZXG210A Wifi Router 1ge 1fe Ftth Gpon/epon Onu Ont Gpon Best Price For Huawei Zte
- Category: >>>
- Supplier: Shenzhen Zexing Zhiyun Technology Co. Ltd.
Share on (1600570465425):
Product Overview
Description
Products Description
ZXG210A is a cost effective optical network terminal designed for FTTH/FTTO scenario.It comes with one Gigabit Ethernet LAN port,one Mega Ethernet LAN port,one phone port interface.The integration of TR-069 technologies facilitates the automatic installation and automatic provisioning of services.
Details Images
Specification
item | value |
Model Number | ZXG210A |
Type | ONU |
Place of Origin | China |
Guangdong | |
Brand Name | zexing |
Warranty Time | 1 YEAR |
Product name | XPON ONU |
Application | PON Networks |
Color | White |
Certification | CE/ROHS/ISO9001 |
Material | ABS+PC |
Ports | 2 Ports |
Power supply | DC 12V/1A |
Module | Parameters |
User interface | 1*10/100/1000M RJ45 port and 1*10/100M RJ45 port 1* RJ11 port 1* USB |
PON | Transmission speed :upstream 1.25Gbps /downstream 2.5Gbps Network coverage radius: 20KM Optical receive sensitivity:≥-28dBm Continuous light power: 0.5dBm~+5dBm Security: ONU authentication mechanism |
Ethernet | 1*10/100/1000M auto-negotiation 1*10/100M auto-negotiation Full/half duplex mode RJ45 connector Auto MDI/MDI-X 100m distance |
POTS Port | 1*RJ11 with 3REN Max 1km distance Balanced Ring, 55V RMS |
Capability | Support NAT Support PPPOE/DHCP/Static IP/Bridge WAN |
QOS | Backpressure flow control(half-duplex) IEEE 802.3x flow control(full-duplex) Prevent Head Of Line IEEE 802.1p, CoS WR,SP and FIFO queue scheduling algorithm Port rate limit |
Safety | IEEE 802.1x, access control based upon Port Support local and remote RADIUS CHAP,EAP certification Storm control, port protection |
Size | 140mm(L)×92mm(W)×30mm(H) |
Environment | Operating temperature:0℃～60℃; Operating humidity:10%～85% non-condensing |
Storage temperature:-40℃～80℃; Storage humidity:5%～95% non-condensing | |
Power supply | 110～240VAC 12V/0.5A DC |
Power Consumption | 6W |
Management | Various management modes such as Web, TELNET Debug function |

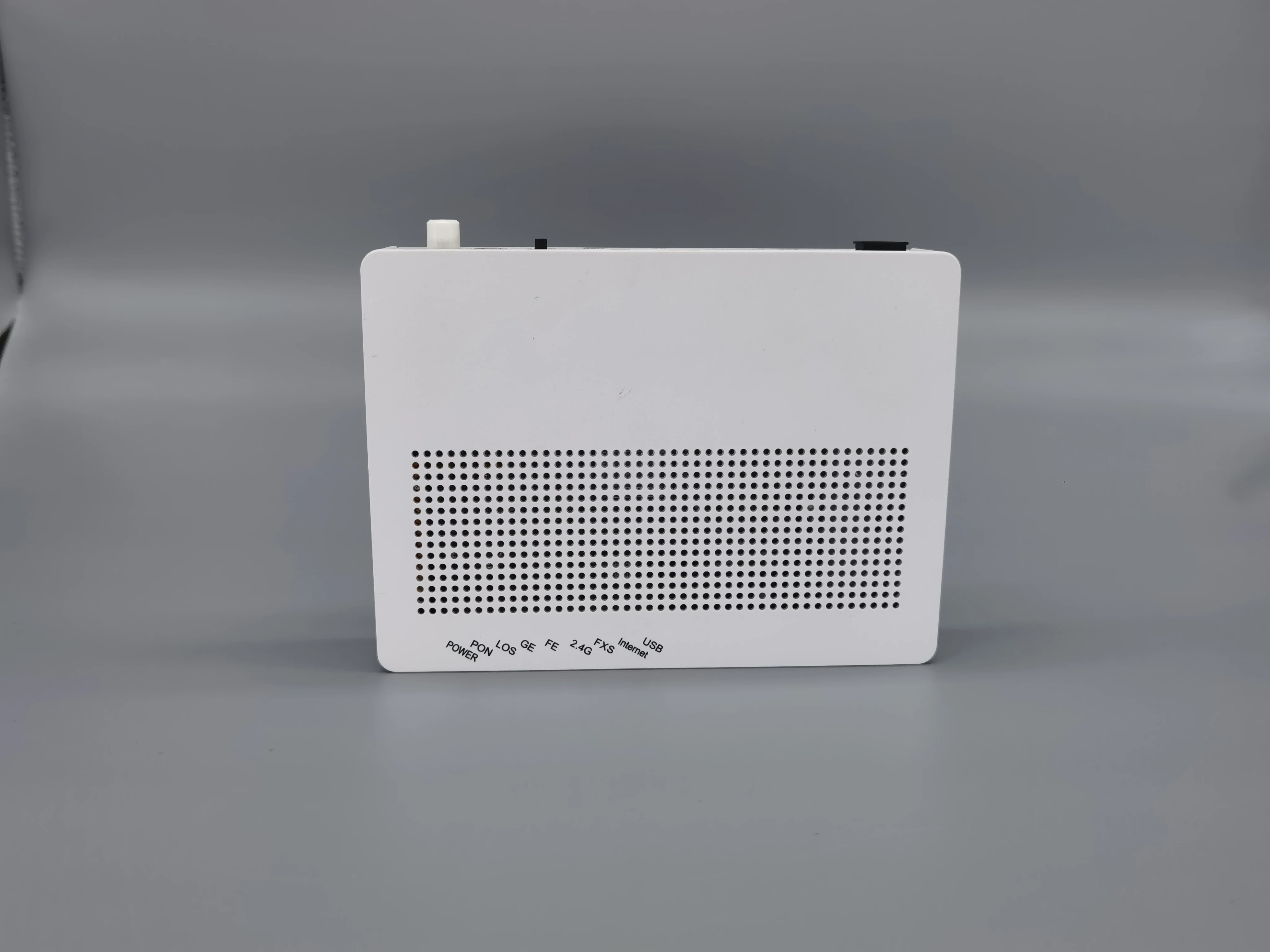

Indicator | Description | ||||
1 | Power | Power status | On:The ONU is power on Off:The ONU is power off | ||
2 | PON | ONU register | Blinking:In process of registering to OLT On:Success to register to OLT Off:Fail to register to OLT | ||
3 | LOS | Optical signals | On:Optical link lower than receiver sensitivity Off:Optical in normal | ||
4 | LAN | LAN ports status | Blinking:Data is being transmitted On:Ethernet connection is normal Off:Ethernet connection is not set up | ||
5 | TEL | Voip status | On:The ONU’s Voip port registered Off:The ONU’s Voip port not registered | ||
Support port‐based rate limitation and bandwidth control
In compliant with IEEE802.3ah Standard & ITU-U G.984
Up to 20KM transmission Distance
Support data encryption, group broadcasting, port Vlan separation ,etc.
Support Dynamic Bandwidth Allocation (DBA)
Support ONU auto‐discovery/Link detection/remote upgrade of software;
Support port mode of VLAN configuration
Support power‐off alarm function ,easy for link problem detection
Support broadcasting storm resistance function
Support port isolation between different ports
Support port flow control
Support ACL to configure data packet filter flexibly
Specialized design for system breakdown prevention to maintain stable system
Support software online upgrading
Support TR069 for ACS(Auto Config Server)
Support PPPOE/DHCP Server/IPTV/Voip/NAT
Support SIP (compatible with IMS), H.248, MGCP three VoIP protocol
Support the main producing soft exchange platform with the heartbeat function
Support ITU-T G.711, G.723.1, G.729 and other three kinds of compression algorithm;echo cancellation conforming to ITU-T G.168-2002, an echo canceller for the longest 128ms
Support high / low speed mode transparent transmission, T38 two fax
Support high-speed Modem (56Kbps) dial access; support RFC2833 and redundant RFC2833, ringing, MD5 certification, call forwarding, call waiting, the hotline, alarm
clock, abbreviated dialing and other value-added services
Support 1 POTS interface and the three party call, three party support local mixing;
Support POTS port GR909 line test function
Support dynamic PPPoE, DHCP and static IP
7 * 24 hour call loss is less than or equal to 0.01%
In compliant with IEEE802.3ah Standard & ITU-U G.984
Up to 20KM transmission Distance
Support data encryption, group broadcasting, port Vlan separation ,etc.
Support Dynamic Bandwidth Allocation (DBA)
Support ONU auto‐discovery/Link detection/remote upgrade of software;
Support port mode of VLAN configuration
Support power‐off alarm function ,easy for link problem detection
Support broadcasting storm resistance function
Support port isolation between different ports
Support port flow control
Support ACL to configure data packet filter flexibly
Specialized design for system breakdown prevention to maintain stable system
Support software online upgrading
Support TR069 for ACS(Auto Config Server)
Support PPPOE/DHCP Server/IPTV/Voip/NAT
Support SIP (compatible with IMS), H.248, MGCP three VoIP protocol
Support the main producing soft exchange platform with the heartbeat function
Support ITU-T G.711, G.723.1, G.729 and other three kinds of compression algorithm;echo cancellation conforming to ITU-T G.168-2002, an echo canceller for the longest 128ms
Support high / low speed mode transparent transmission, T38 two fax
Support high-speed Modem (56Kbps) dial access; support RFC2833 and redundant RFC2833, ringing, MD5 certification, call forwarding, call waiting, the hotline, alarm
clock, abbreviated dialing and other value-added services
Support 1 POTS interface and the three party call, three party support local mixing;
Support POTS port GR909 line test function
Support dynamic PPPoE, DHCP and static IP
7 * 24 hour call loss is less than or equal to 0.01%
Company Profile
Shenzhen Zexing Zhiyun Technology Co., Ltd. was founded in 2018. Following the rapid expansion of the world's Internet industry, the company is committed to building a reliable and good network for the world, and continues to grow and grow into a leading network equipment provider in China. Technological innovation is the soul of Zexing Zhiyun. The company has a R&D team of nearly 100 people, and has established dual R&D bases in Shenzhen and Chengdu, with a production center of more than 500 people.
The company's products cover: home wireless, commercial wireless, switches, access terminals, PLC power grids, etc., with more than 20 product series. Their common features are: strong performance, stable signal, easy deployment, easy installation, high quality and low price. Zexing is based in China, serves the world, and extends its tentacles to every corner of the world. The company has set up branches in Beijing and Chengdu, and has set up multiple offices in various places. It has established offices in the United States, Brazil, Australia, Russia, India, Indonesia, South Africa and other countries, and established cooperative relations with many agents around the world. Tenda products are exported to more than 10 countries and regions around the world. As of the fourth quarter of 2021, the total sales volume of Tenda products has exceeded 50 million units.
Exhibition
Certifications
Manufacturing Technique
FAQ
1. who are we?
We are based in Guangdong, China, start from 2018,sell to Domestic Market(30.00%),Southeast Asia(20.00%),South America(10.00%),Eastern Europe(10.00%),Africa(10.00%),Mid East(10.00%),South Asia(10.00%). There are total about 51-100 people in our office.Our product shipments are at 50K per month。
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
XPON,DSL,CPE,ROUTER,MODEM
4. why should you buy from us not from other suppliers?
We have many years of experience in optical modem, router design and R&D. The R&D team has about 50 people, all of whom are senior engineers for many years.We cooperate with many big customers at home and abroad, such as ZTE, Huawei, China Telecom, sagem, D-LINKD, etc.
5. what services can we provide?
Accepted Delivery Terms: FOB；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C;
We are based in Guangdong, China, start from 2018,sell to Domestic Market(30.00%),Southeast Asia(20.00%),South America(10.00%),Eastern Europe(10.00%),Africa(10.00%),Mid East(10.00%),South Asia(10.00%). There are total about 51-100 people in our office.Our product shipments are at 50K per month。
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
XPON,DSL,CPE,ROUTER,MODEM
4. why should you buy from us not from other suppliers?
We have many years of experience in optical modem, router design and R&D. The R&D team has about 50 people, all of whom are senior engineers for many years.We cooperate with many big customers at home and abroad, such as ZTE, Huawei, China Telecom, sagem, D-LINKD, etc.
5. what services can we provide?
Accepted Delivery Terms: FOB；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C;
