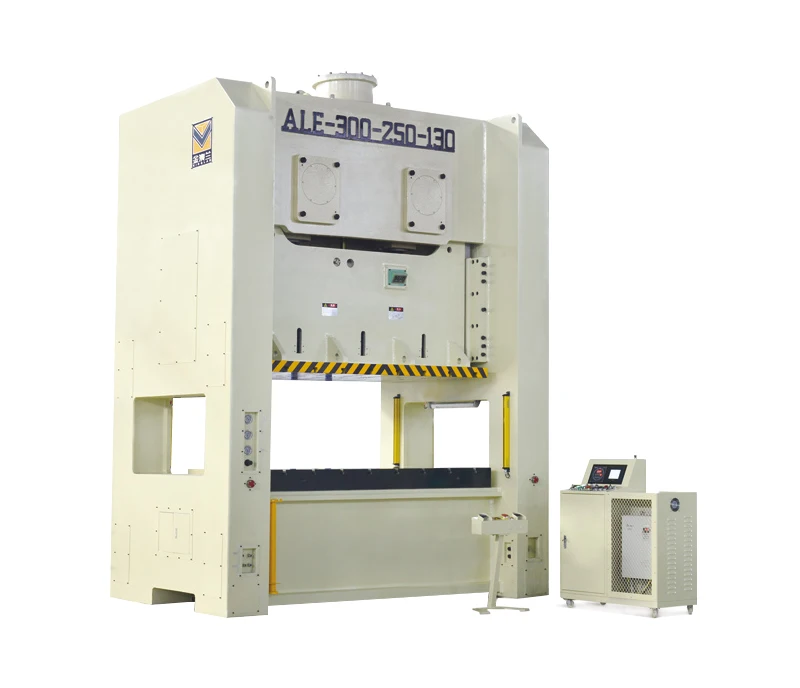

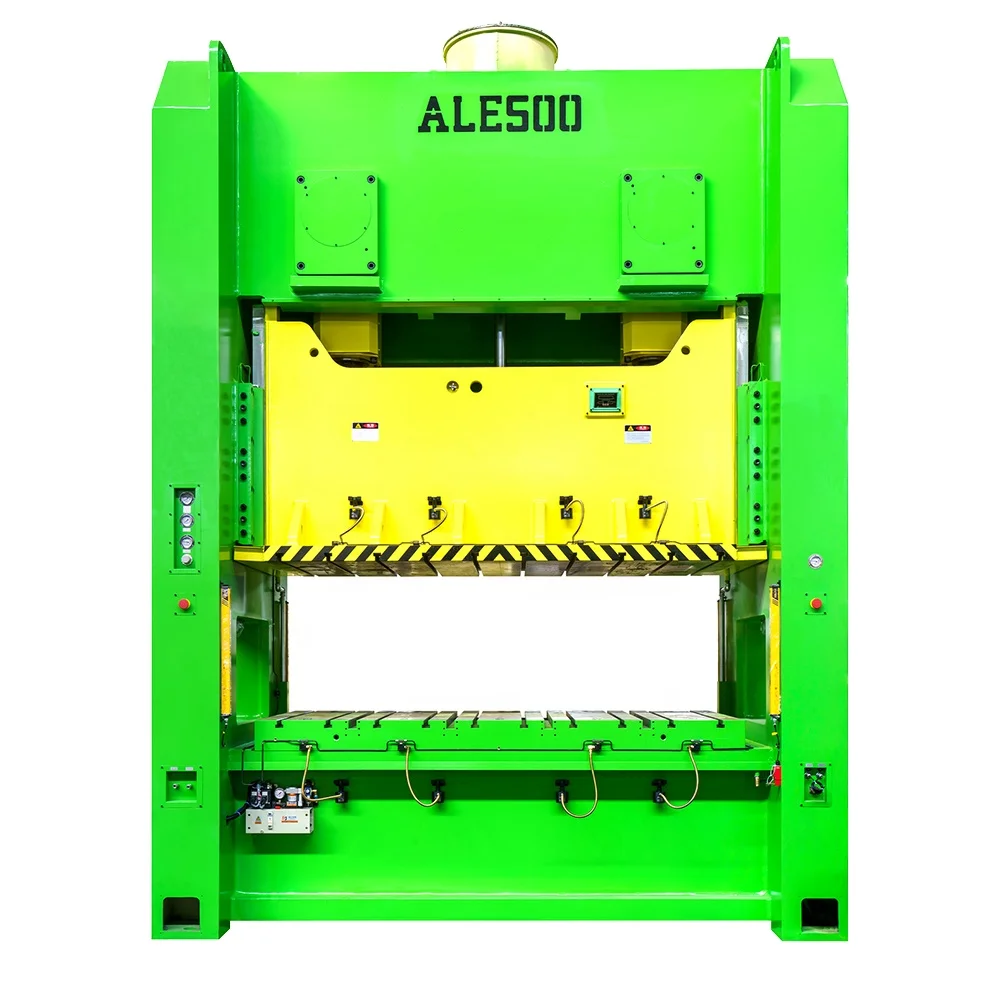

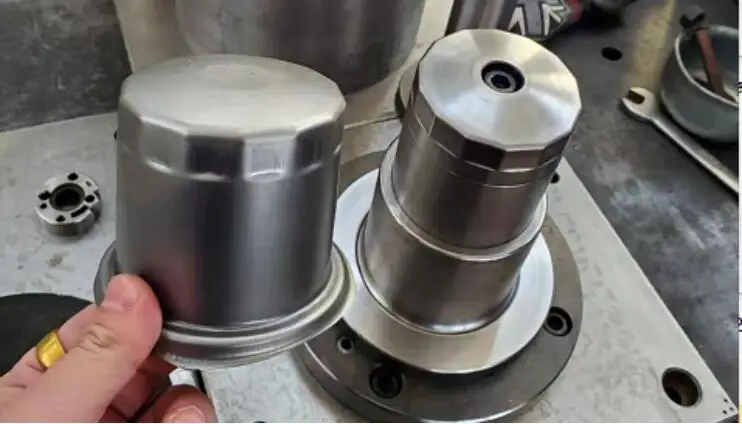

Deep drawing mold Mechanical power press ALE 200T with 2D manipulator and stage mold whole line solution

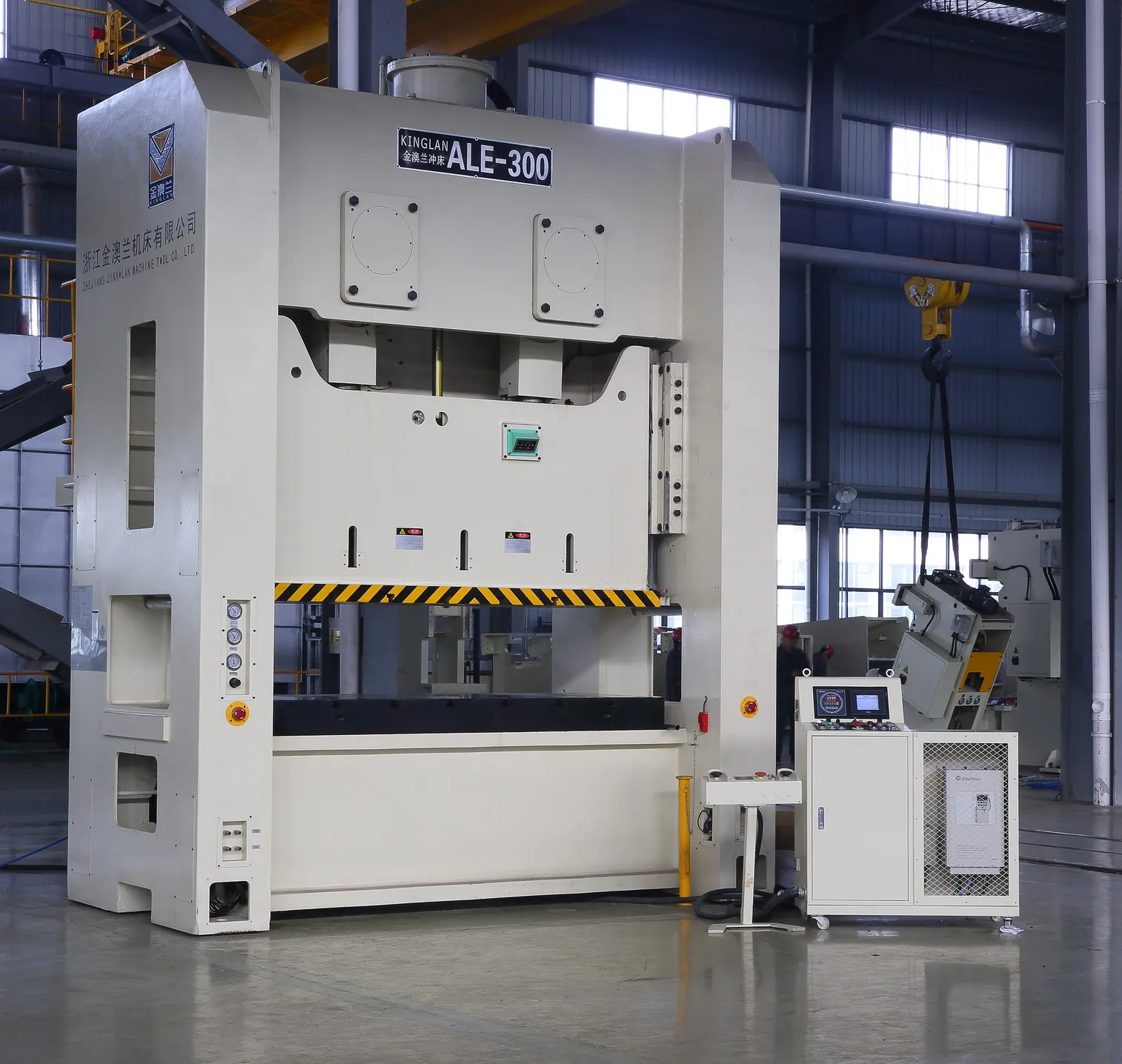

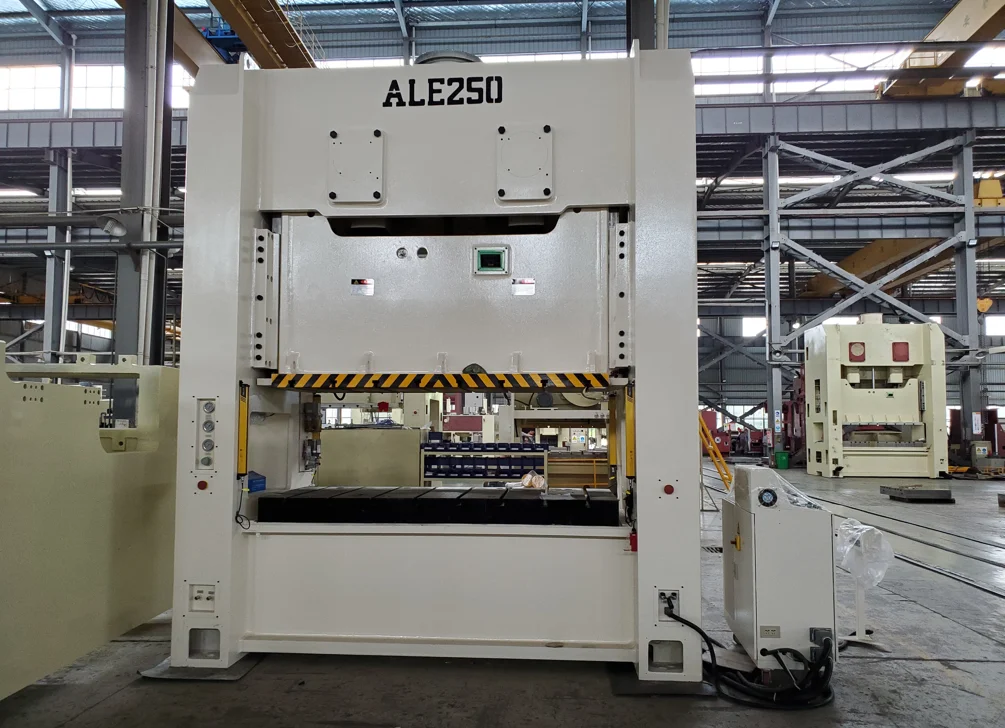

Mechanical Power Press ALE Series Press Machine Punching Machine

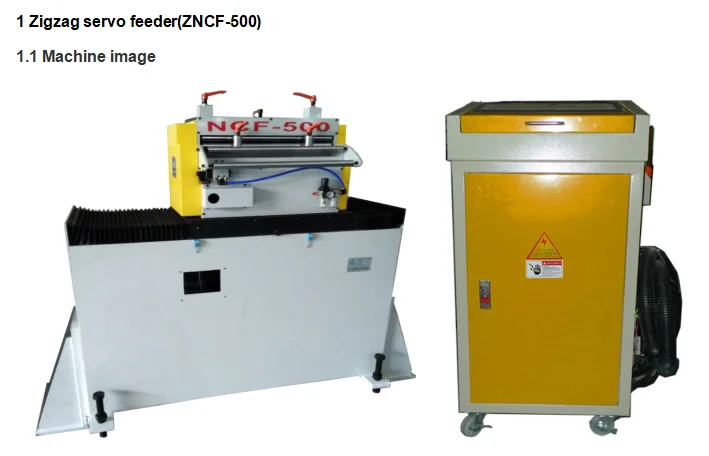

 Whole line set up:  ALE200 + Deep drawing stage mold + uncoiler straightener + Zigzag servo feeder machine + 2D Manipulator

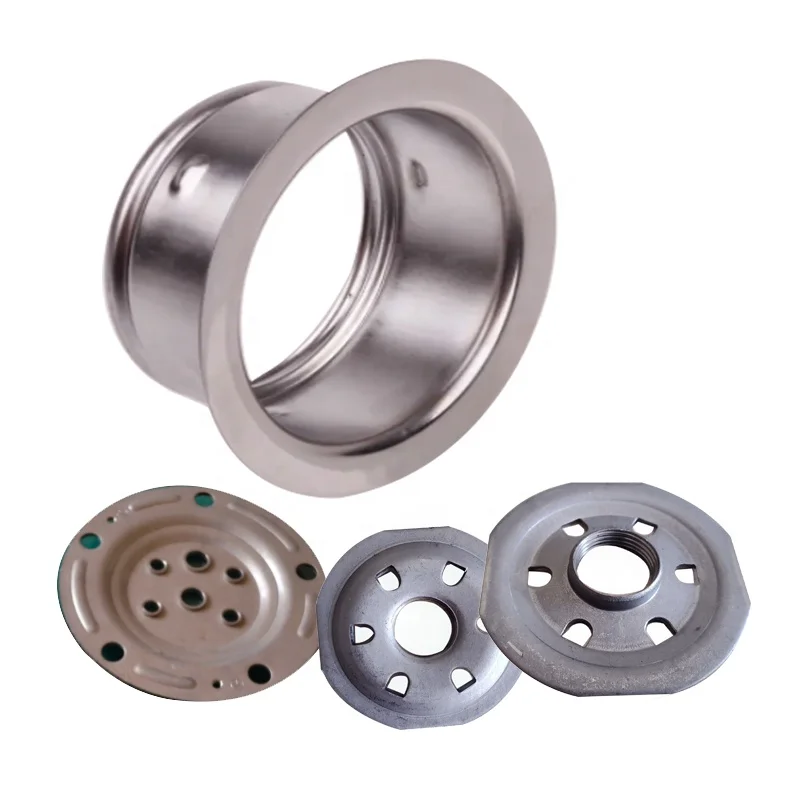

This machine is applicate to all drawing, blanking, forming process, especially in the following areas: all kinds of car sapre parts, all kinds of containers, all kinds of automobile covering parts, electric parts, kitchen utensils, tractor, motorcycle, aerospace,aviation, electronics, instrumentation, plastic,rubber,chemical and other industrial departments.

Main Features

1) High accuracy, reach JIS-Grade1
2) High rigidity, steel-welded frame
3) High precision, 6-side long guide rail
4) Dry type pneumatic clutch-brake unit
5) Imported safety dual-solenoid valve for clutch
6) Automatic grease lubrication system
7) Frequency drive inverter
8) PLC system

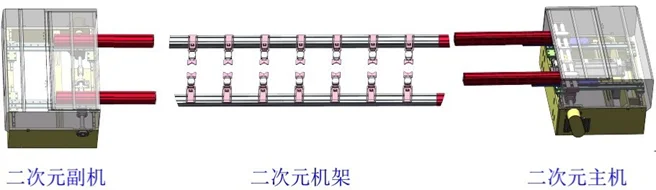

Manipulator

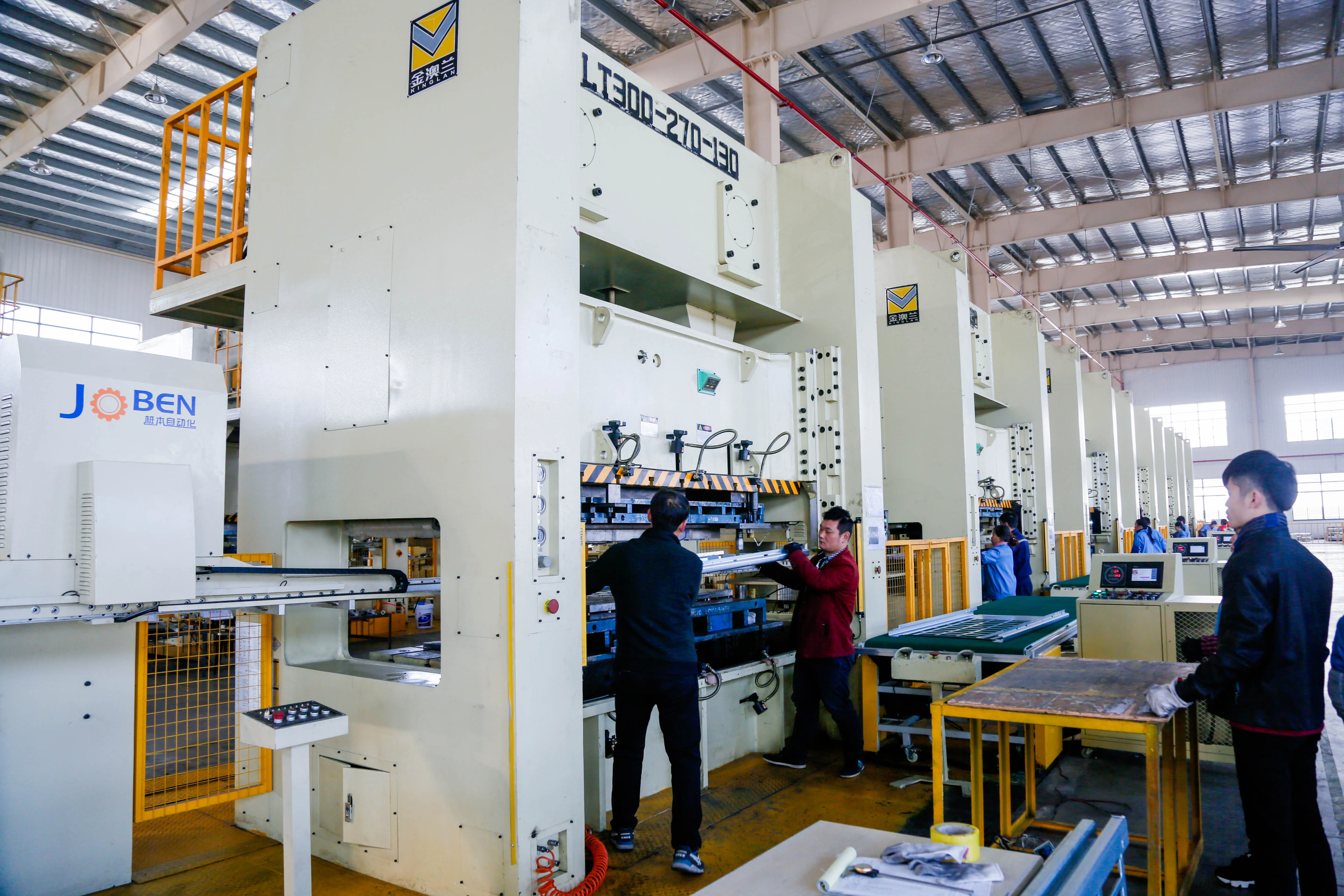

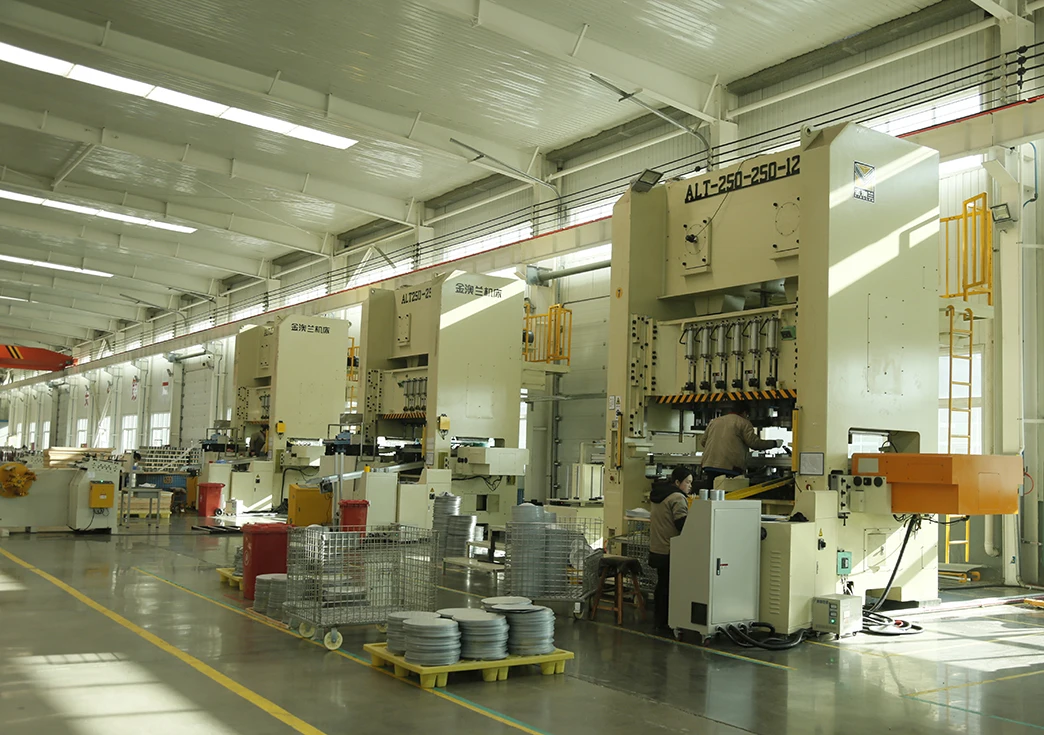

Large stamping line whole line solution

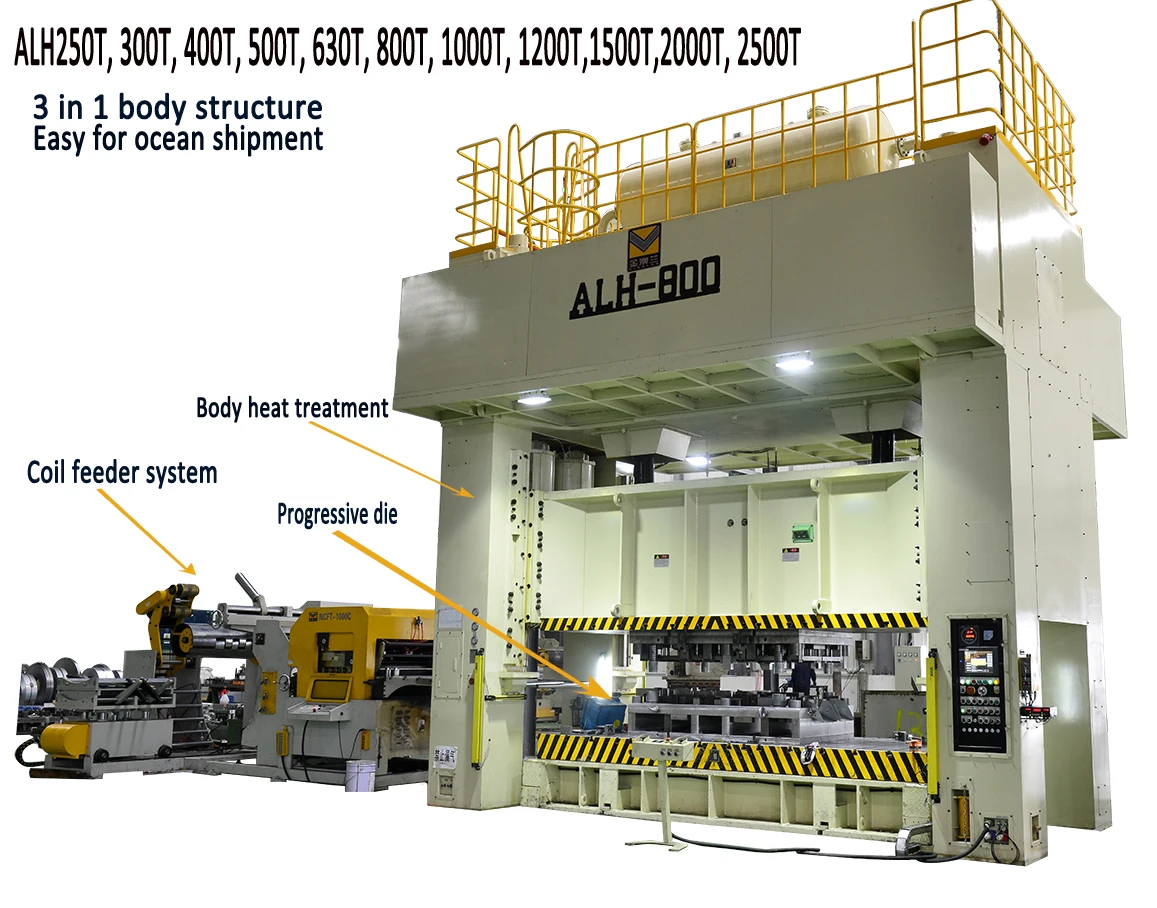

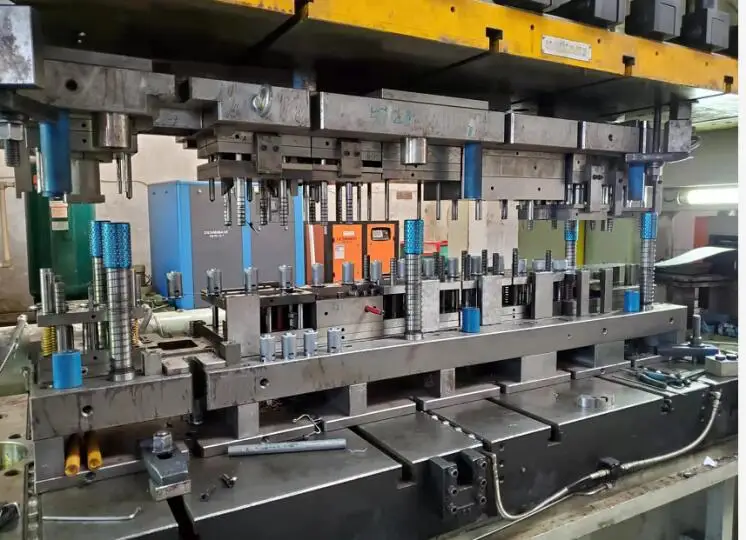

ALH 800T + Progressive die + Feeder Machine System

Our goal is to provide our customers with the highest level of quality, whether it is in our power presses and other press designs, or in our customer service dealings with each customer. We have been in business for 20 years, which makes us uniquely suited to meet the needs of our varied customers. Contact us today to learn more!
