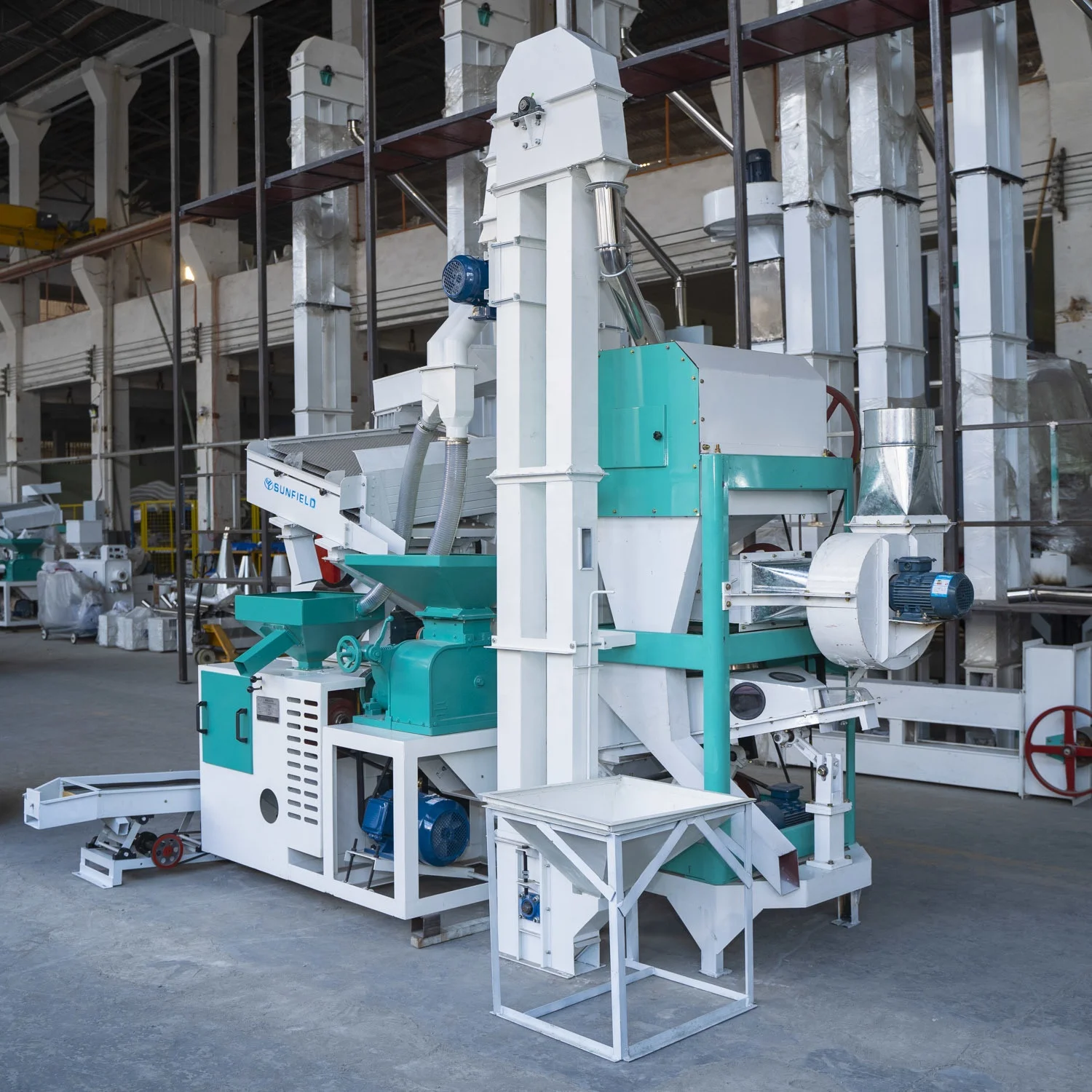

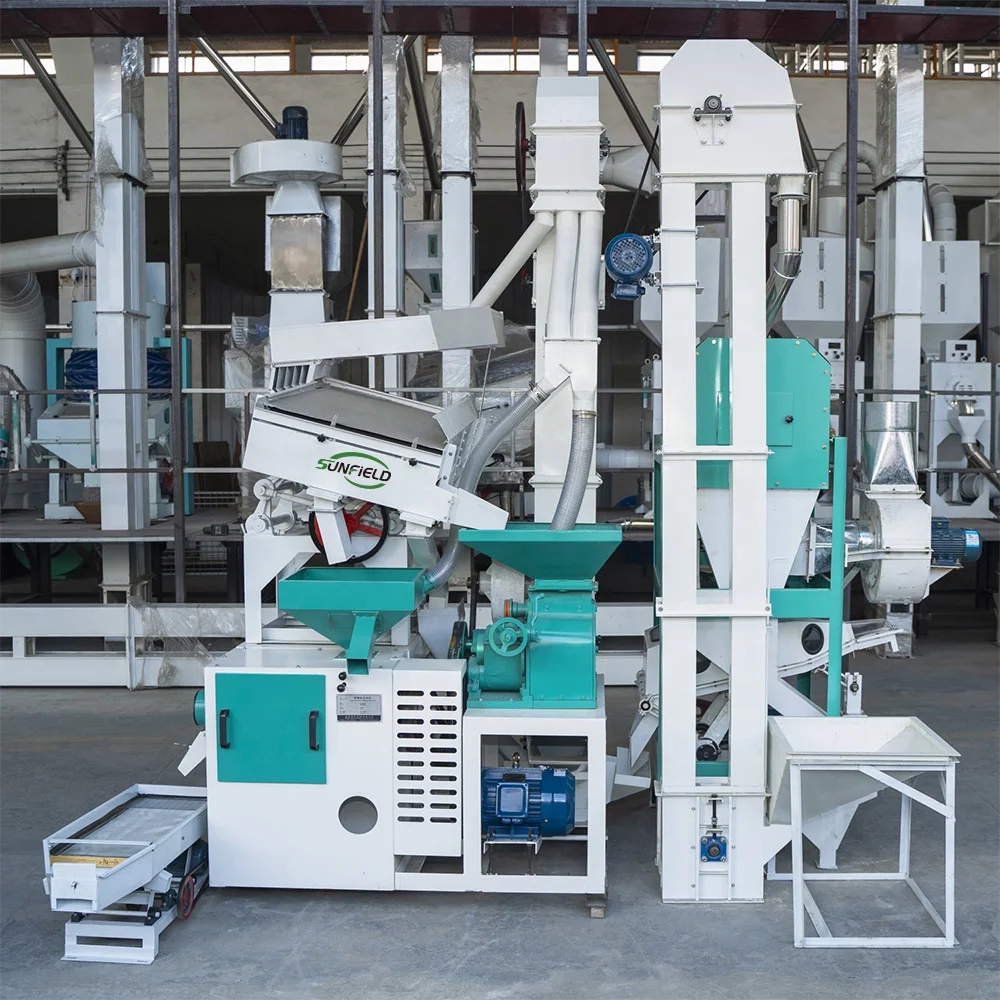

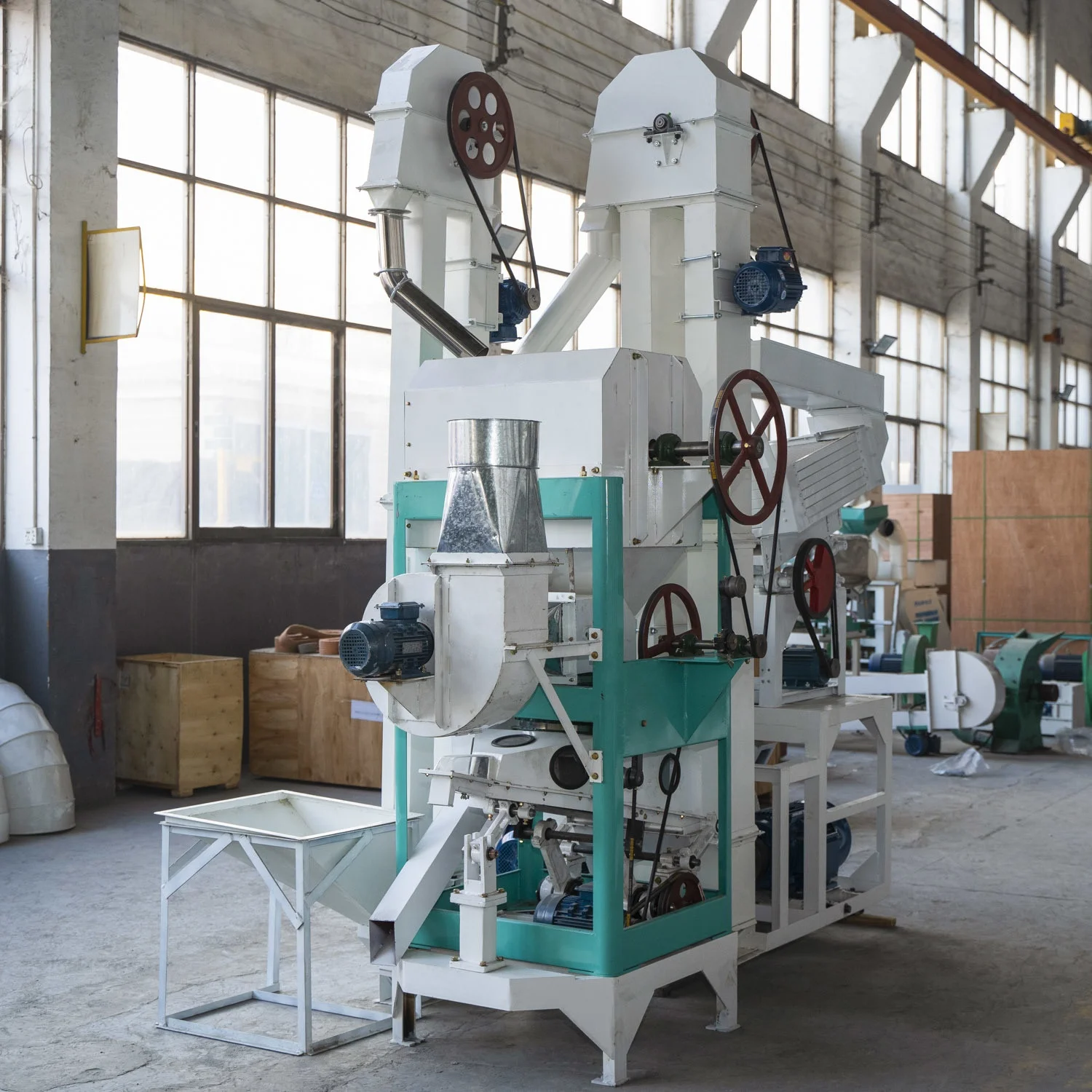

Sunfield 20 ton/day Automatic Paddy to Rice Cleaning Polishing Sorting Machine 6 IN 1 Price Combined Rice Milling Machine
- Category: >>>
- Supplier: Hunan Sunfield Machinery Co. Ltd.
Share on (1600570606639):
Product Overview
Description
Products Description

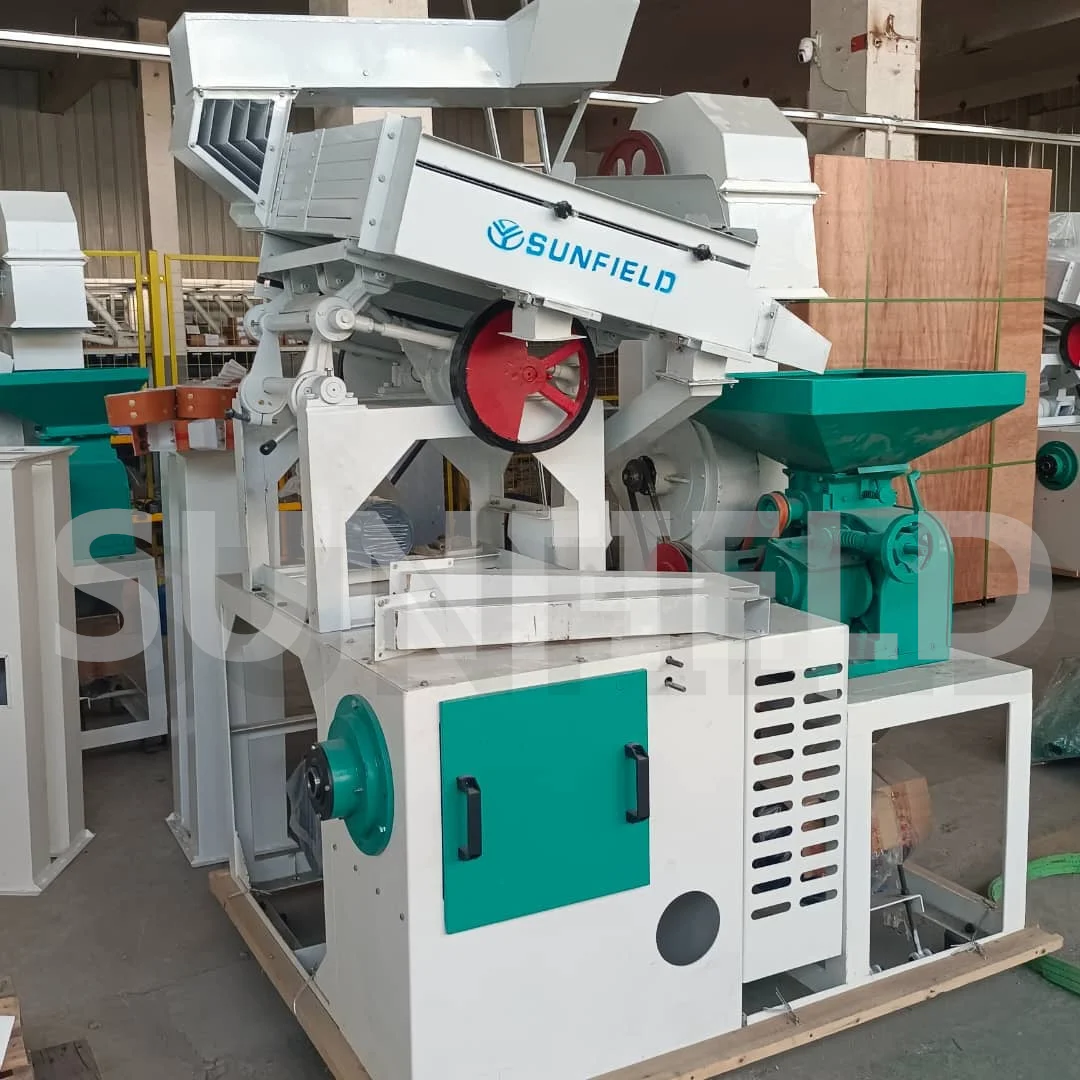

6LN-20/15SA
It is combined by:
>> Drum Paddy Cleaner;
>> De-stoner;
>> 8-inch rubber roller husker;
>> Gravity paddy separator;
>> Large volume inhale-air emery roller rice mill;
>> Rice Grader;
>> Elevators.
This models is revolutionally equipped with drum type cleaning machine which engifted very strong cleaning efficiency, great brown rice separating and rice whitening erformance, easy operation, convenient maintenance and high productivity, reducing the leftovers at the maximum level; with direct optional brown
rice outlet, provides users with a flexible multifunctional rice milling solution.
rice outlet, provides users with a flexible multifunctional rice milling solution.
At the meantime, we reserved the possibility to
match the follow up equipment such as multi-layer rice grader, rice polisher, color sorter etc., to improve the milling performance or extending its functions.
match the follow up equipment such as multi-layer rice grader, rice polisher, color sorter etc., to improve the milling performance or extending its functions.
Product Features
6LN-20/15SA
* Unibody base designed for convenient transportation and installation, stable operation, low space occupation.
* High efficiency double-layer drum type cleaning sieve, strong precleaning performance.
* It improves production efficiency by the unique rehulling leftover paddy design.
* Innovative emery roller whitening technology, low rice temperature, less bran remains, improves the rice quality.
* Smooth processing flow, easy operation for just one person.
* Independent safe electric control system for more convenient operation.
* Improved transmission system extends duration of consumption parts
* Modula design, reserves connectivity with follow up equipments to double mill, grade and sorte for better rice quality.
* Low investment and high yield
* High efficiency double-layer drum type cleaning sieve, strong precleaning performance.
* It improves production efficiency by the unique rehulling leftover paddy design.
* Innovative emery roller whitening technology, low rice temperature, less bran remains, improves the rice quality.
* Smooth processing flow, easy operation for just one person.
* Independent safe electric control system for more convenient operation.
* Improved transmission system extends duration of consumption parts
* Modula design, reserves connectivity with follow up equipments to double mill, grade and sorte for better rice quality.
* Low investment and high yield
Technical Parameters
Model | 6LN-20/15SA |
Output (kg/h) | 800-1000 |
Rice milling rate (%) | 68-72% |
Cleaner and de-stoner | TZQY54/QSX45 |
Husker | MLGT20 |
Paddy separator | MGCZ70×6 |
Rice mill | NF15A(1pc) |
Rice grader | Basic rice grader |
Single elevator | DTG19/8-1pc |
Double elevator | DTG19/8-8 |
Power (kw) | 25.32 |
Overall dimension (mm) | 3300*1200*3400 |
Core competitiveness
Unique Drum-type Combined Paddy Cleaner and De-stoner
* Independent structures for paddy cleaning and de-stoning, greatly improved the performance from traditional unibody design;
* The double-layer drum type sieve mechanism with high cleaning efficiency;
* Strong air-suction structured de-stoner, large air volume, excellent de-stoning efficiency;
* Solid shock absorption bearing strengthened the main machine by high stablility, low vibration, low noise and less dust while working.
* The double-layer drum type sieve mechanism with high cleaning efficiency;
* Strong air-suction structured de-stoner, large air volume, excellent de-stoning efficiency;
* Solid shock absorption bearing strengthened the main machine by high stablility, low vibration, low noise and less dust while working.

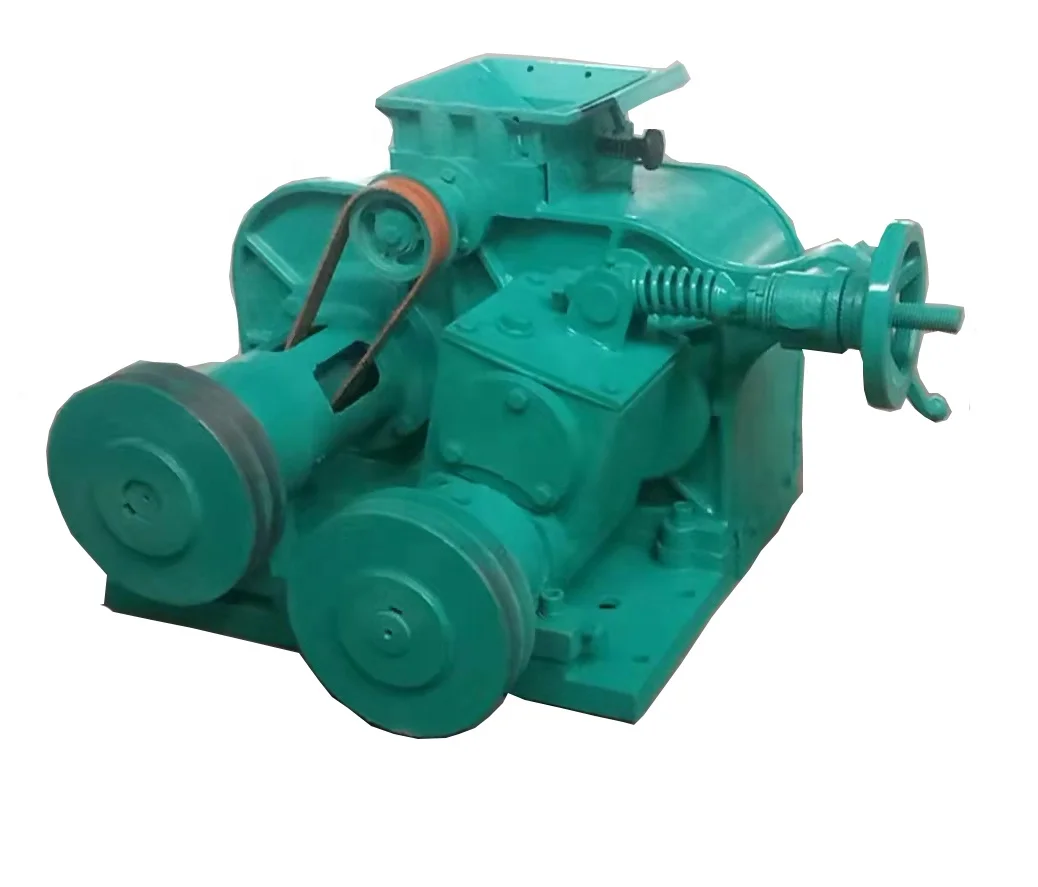

High Efficiency & Low Noise Husker
* Double support mobile gearbox husker integrated reversing gearbox and mobile tightening device, efficiently avoided miscoordination between swinging gears.
* Over 90% de-hulling rate for one time operation;
* Durable rubber roller, convenient operation and calibration, high transmission efficiency, low noise and high stability.
* Over 90% de-hulling rate for one time operation;
* Durable rubber roller, convenient operation and calibration, high transmission efficiency, low noise and high stability.
Innovated Inhale-air Emery Rice Mill
* Emery rice mill equipped with a large diameter hollow spindle and innovative Emery roller whitening mechanism design.
* Strong inhale-air fan sucks in large volume air through milling chamber to reduce rice temperature thus bring down the broken
rate, at the mean time bring away the brans to clean the rice and increase the gloss of whitened rice.
* Lower operation platform, more convenient operation and daily maintenance.
* Strong inhale-air fan sucks in large volume air through milling chamber to reduce rice temperature thus bring down the broken
rate, at the mean time bring away the brans to clean the rice and increase the gloss of whitened rice.
* Lower operation platform, more convenient operation and daily maintenance.

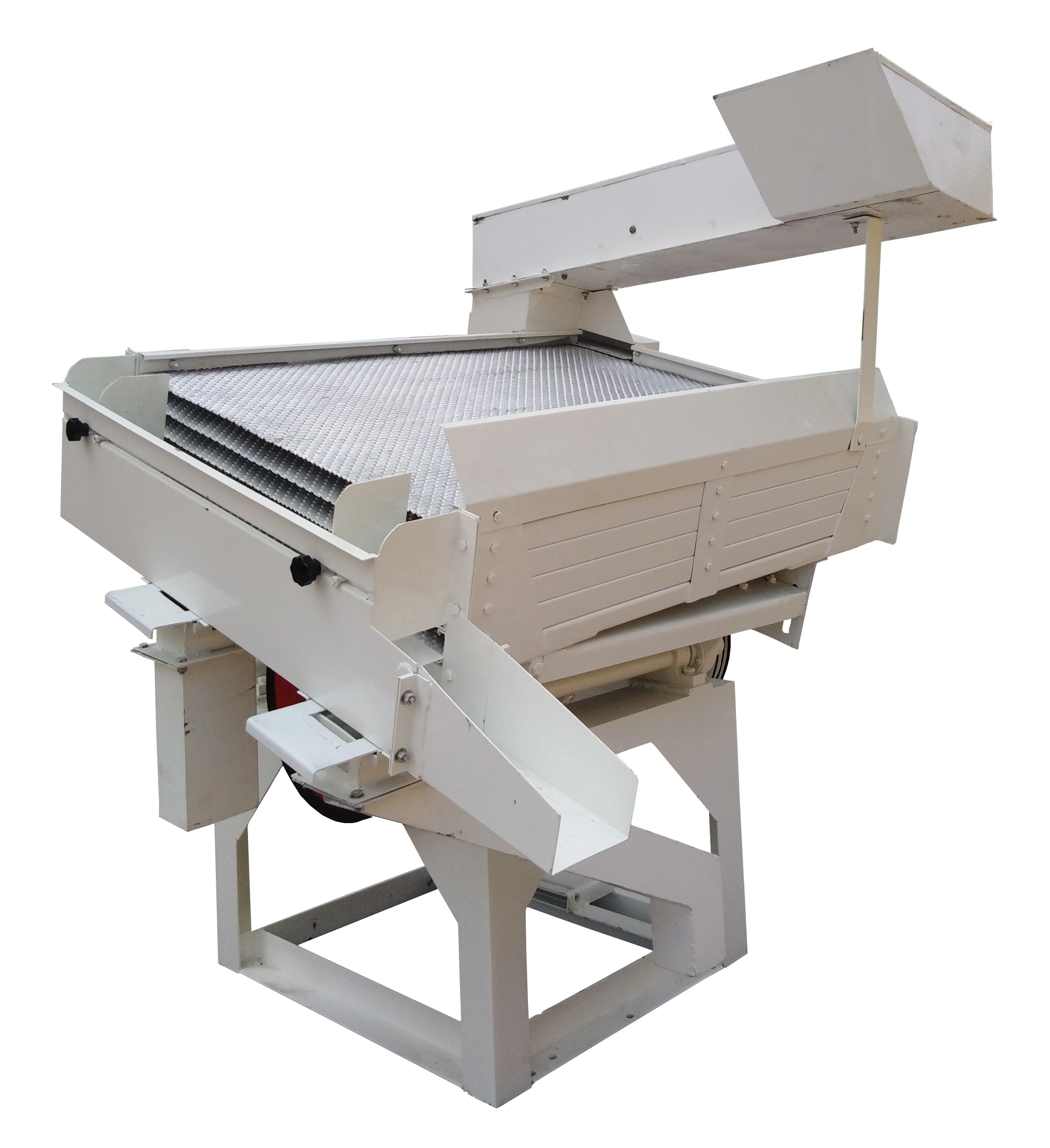

Stable Gravity Paddy Separator
* Bigger screen with high separation speed and even paddy distribution.
* The horizontal and vertical angles of the screen are adjustable, suitable for all kinds of paddy, great screening and separating efficiency.
* Low left paddy for rehusking, reduce the broken rate efficiently.
* The horizontal and vertical angles of the screen are adjustable, suitable for all kinds of paddy, great screening and separating efficiency.
* Low left paddy for rehusking, reduce the broken rate efficiently.
Packing And Shipping

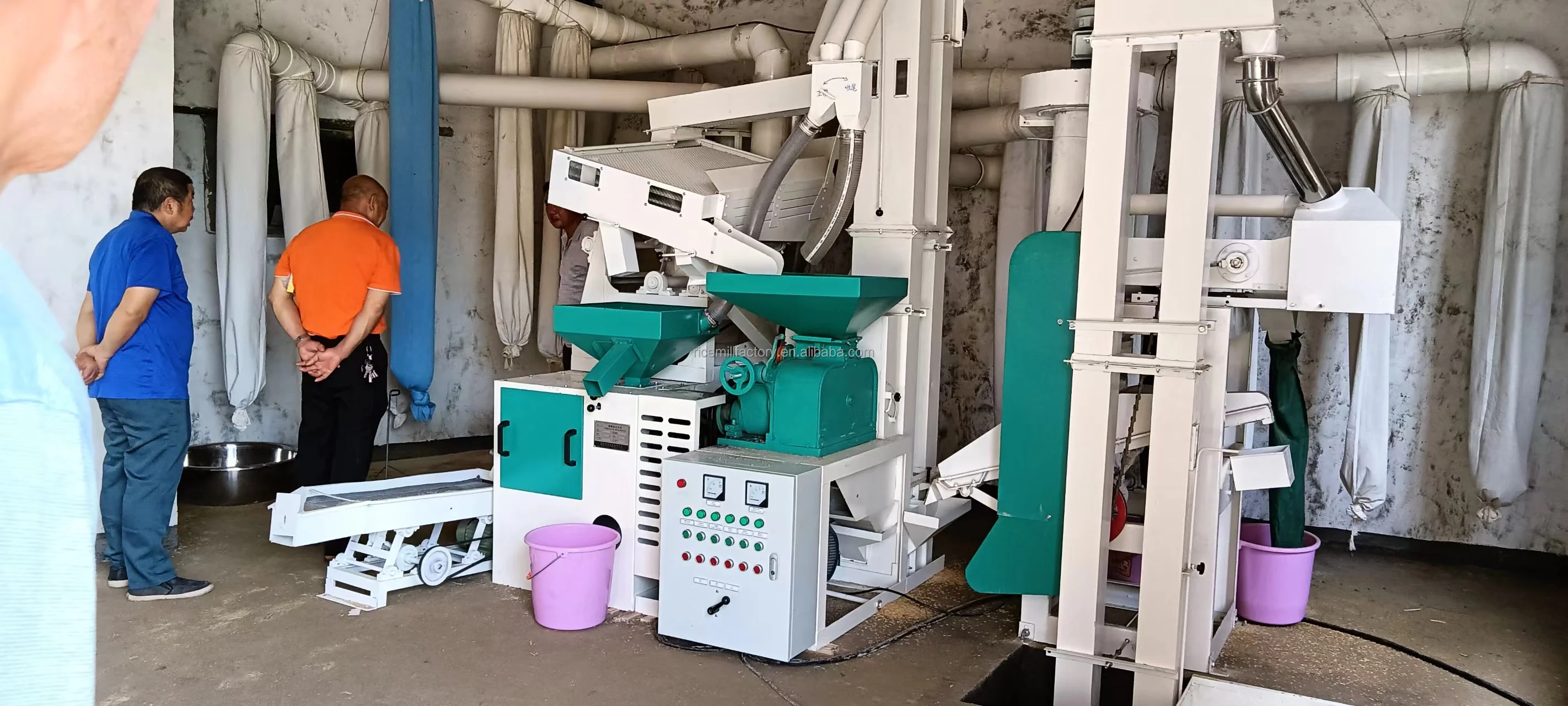

Customer Photos

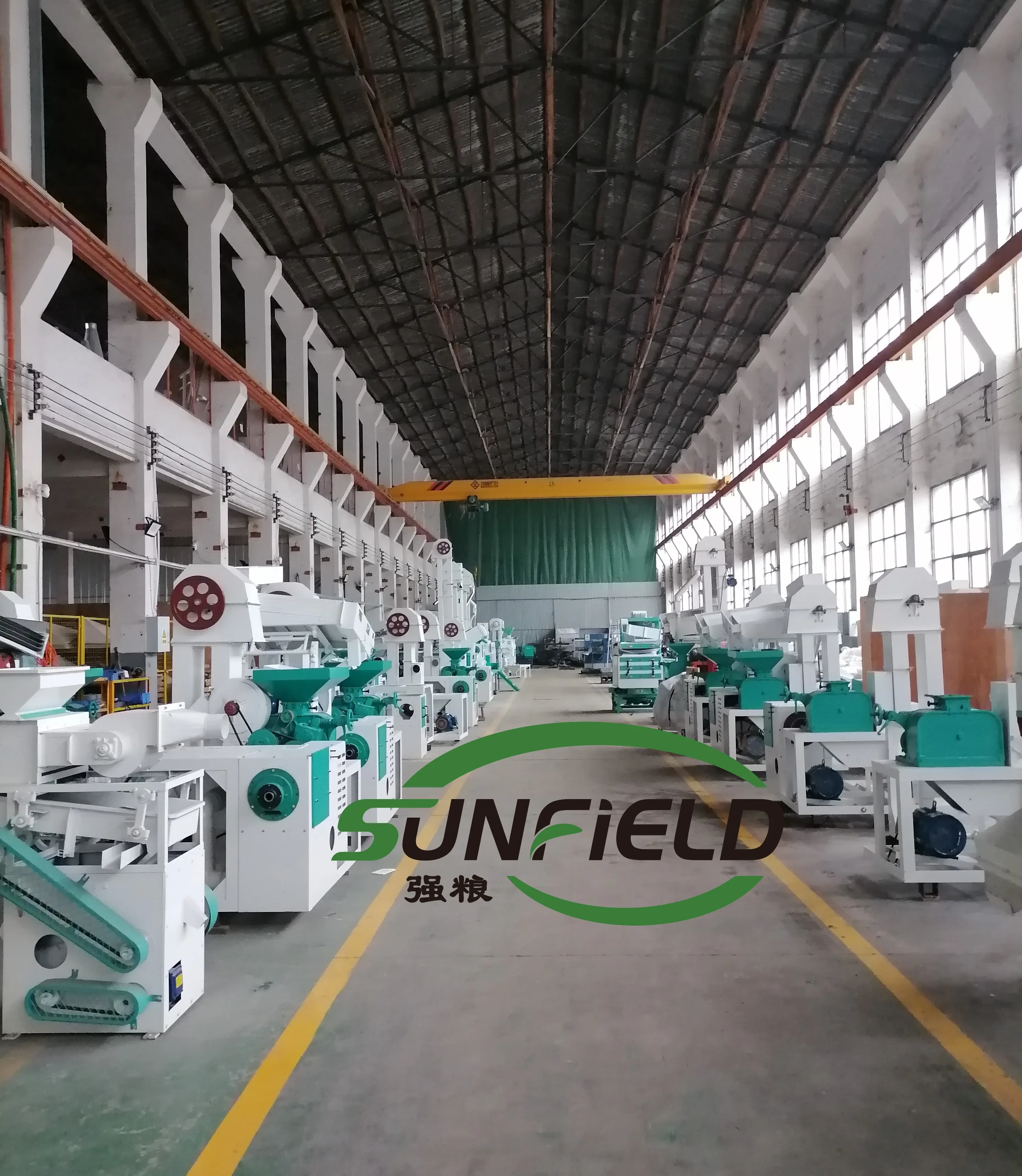

Company Profile
Hunan Sunfield Machinery Co., Ltd.
Located in Changsha, China, we are a high-tech and professional manufacturer of Combined Rice Milling Machines and Complete-set Rice Milling Equipment, covering the whole paddy-to-rice processing procedures from paddy-cleaning, de-stoning, husking,separation, rice milling, polishing, grading to color sorting.
As a Chinese leading manufacturer and exporter of rice milling machines, our products include the 400kg to 1,000kg per hour Combined Rice Milling machines and 20 ton to 120 ton per day Complete-set Rice Milling Equipment, which are multifunctional, user-friendly, cost-effective and good performance, produced under dozens of product patents in design and technology.
