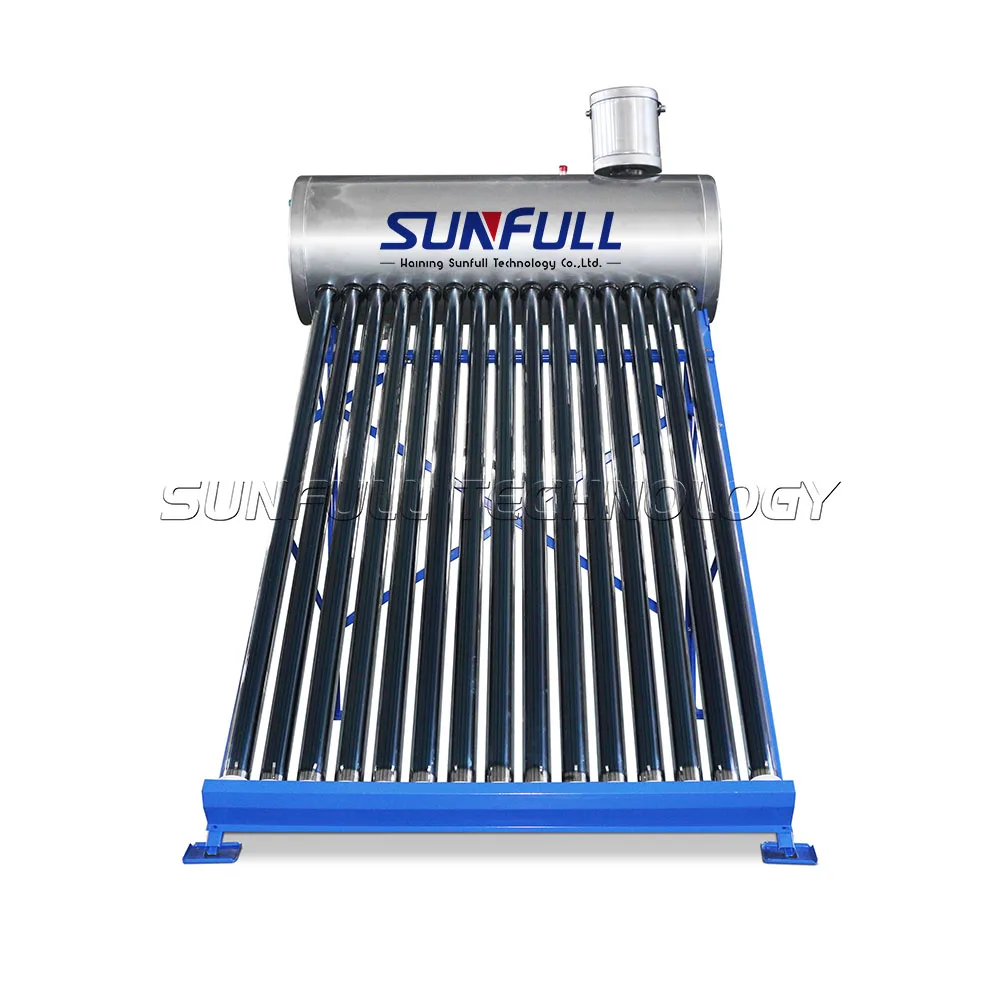

Copper Coil Solar Water Heater Pre Heated Heat Exchanger Solar Heater System
- Category: >>>
- Supplier: Haining Sunfull Technology Co. Ltd.
Share on (1600570803814):
Product Overview
Description
Product Details

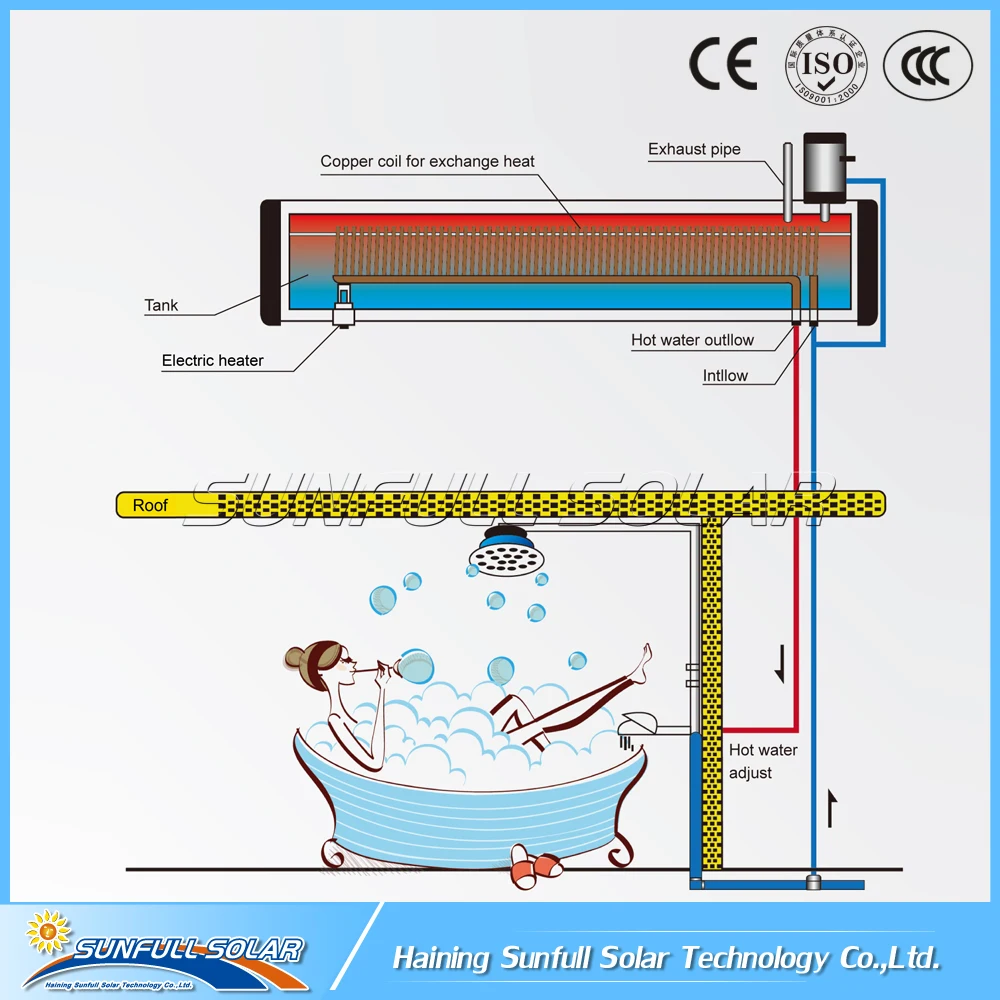

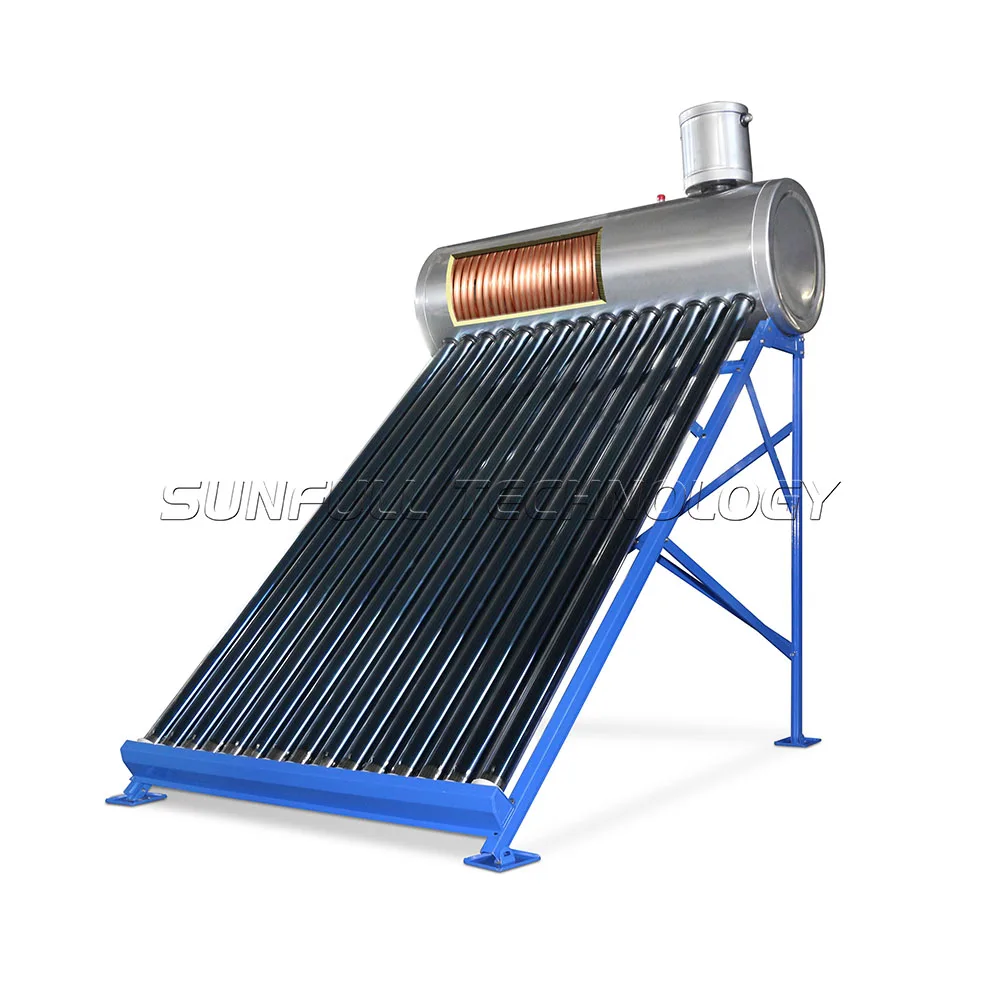

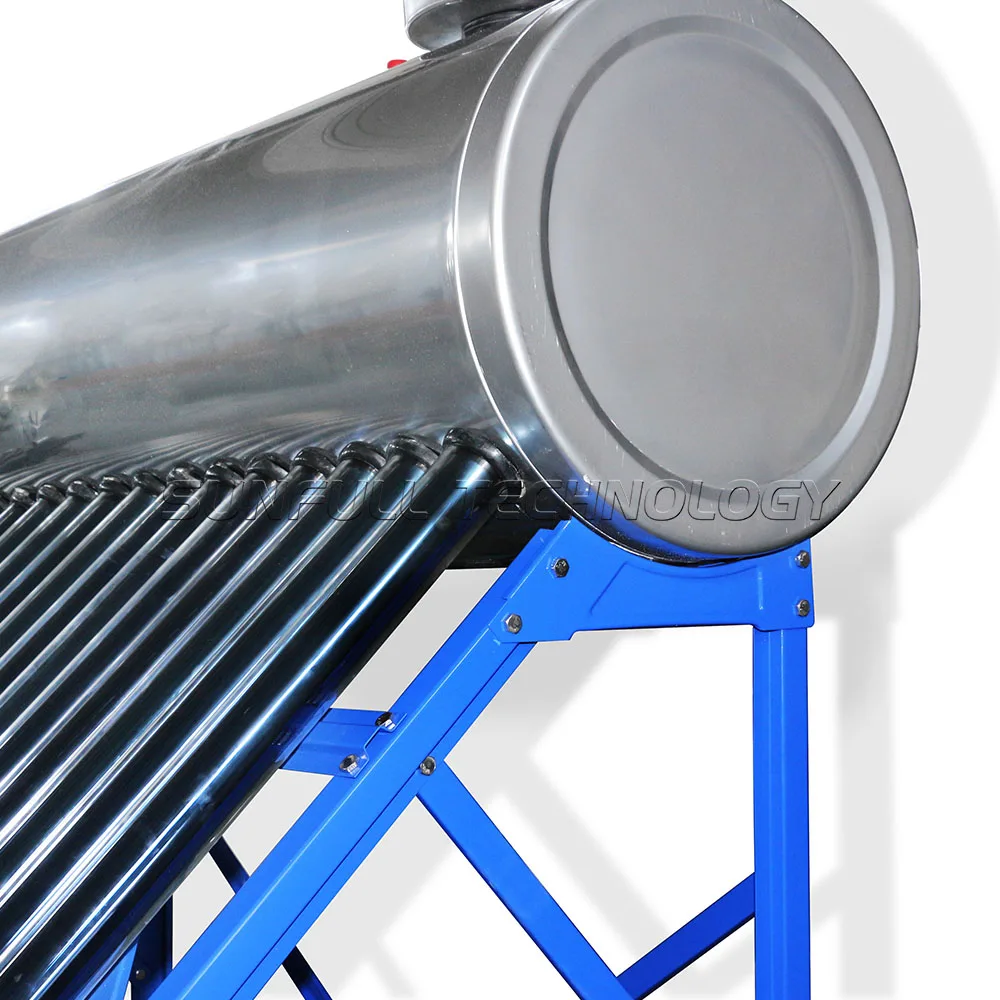

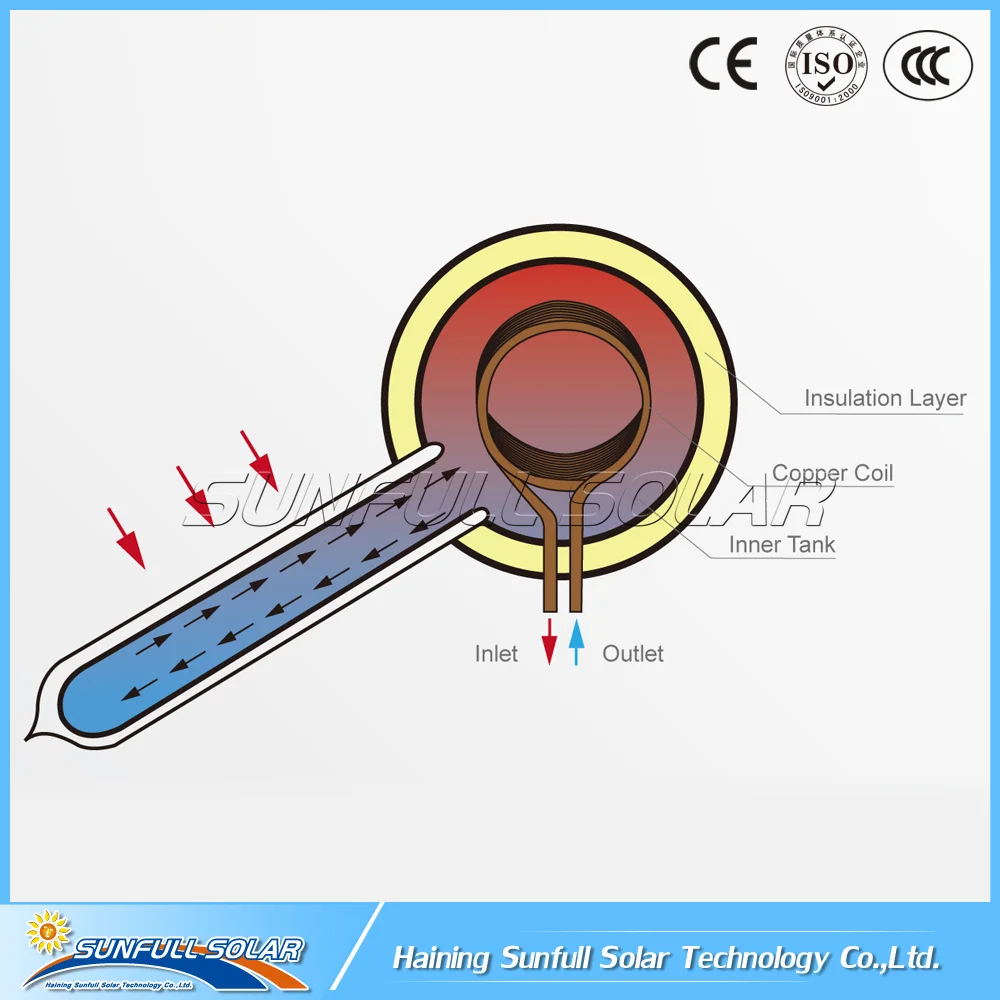

Copper coil pre-heating stainless steel solar water heater
Inner tank material: Stainless steel SUS304-2B (SUS316 is available)
Outer tank material: Stainless steel 201( SUS304-2B, Galvanized steel is available)
Tank insulation: High density polyurethane foaming, 50,55,60mm thickness
Inner tank diameter:360mm, Outer tank diameter:460mm.

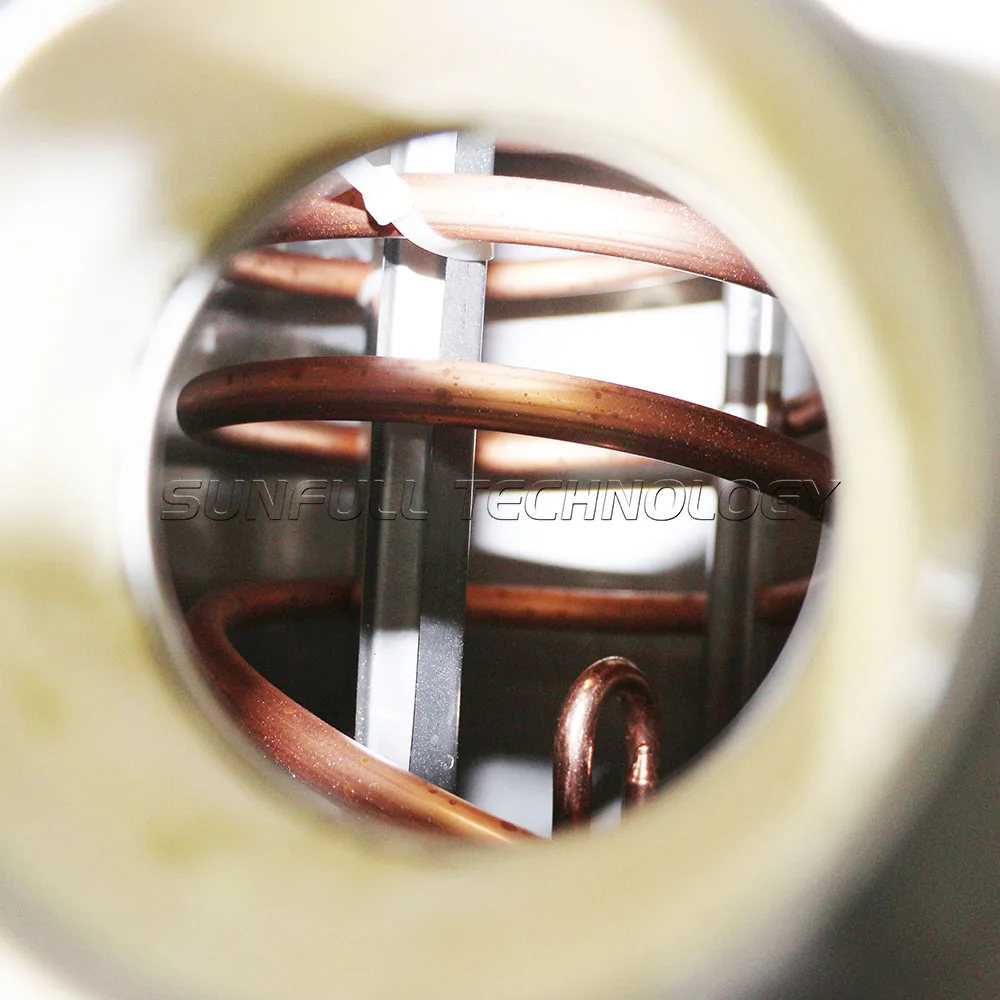

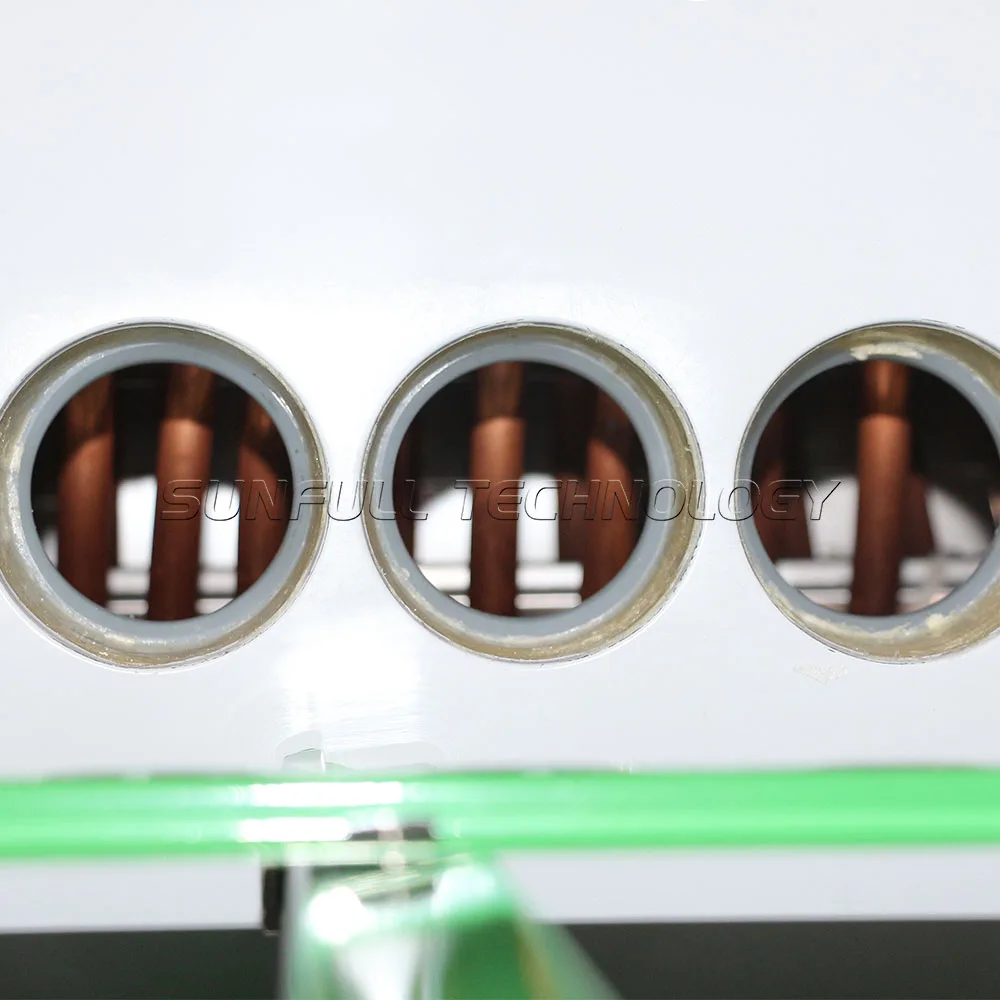

Copper coil inside tank: Φ12mm, 0.8mm thickness, 36-40 meters length
Assistant tank: auto feeder, 5L
Bracket: Stainless steel 201, have several types for choose( Aluminum alloy, galvanized steel is available)
Bracket angle: 15°,20°,25°,27°,30°,35°,38°,45° all available.
Vacuum tube: 58*1800mm three target,(47*1500mm available)
We can design and produce according customers request(Have our own designer and research & development center)
MOQ: a 20'GP container
Delivery period: 7-15 days
Outer tank material: Stainless steel 201( SUS304-2B, Galvanized steel is available)
Tank insulation: High density polyurethane foaming, 50,55,60mm thickness
Inner tank diameter:360mm, Outer tank diameter:460mm.
Copper coil inside tank: Φ12mm, 0.8mm thickness, 36-40 meters length
Assistant tank: auto feeder, 5L
Bracket: Stainless steel 201, have several types for choose( Aluminum alloy, galvanized steel is available)
Bracket angle: 15°,20°,25°,27°,30°,35°,38°,45° all available.
Vacuum tube: 58*1800mm three target,(47*1500mm available)
We can design and produce according customers request(Have our own designer and research & development center)
MOQ: a 20'GP container
Delivery period: 7-15 days
Model | Hot Water Capacity | Vacuum tube | CBM |
SF-PHS58-18 | 180L | 58-1800mm | 0.65m³ |
SF-PHS58-20 | 200L | 58-1800mm | 0.71m³ |
SF-PHS58-24 | 240L | 58-1800mm | 0.82m³ |
SF-PHS58-30 | 300L | 58-1800mm | 1.01m³ |
SF-PHS58-36 | 360L | 58-1800mm | 1.2m³ |
Features of Solar Water Heater：
(1). Cheap and reliable solution, Simple structures, Easy installation.
(2). High efficiency of heating,water heated by sun light directly.
(3). Operated without any power supplying.
(4). Electric heater can be used as back-up in rainy days.
(5). Hot water can be used directly, or can be used as a pre-heated.
(6). Water flow in the vacuum tubes and is operated when confined.
(7). Tank is equipped with electric water heater setting, automatic temperature controller(optional ).
(8). the insulating layer uses polyurethane bulk bubble,keep hot water 72 hours.
(2). High efficiency of heating,water heated by sun light directly.
(3). Operated without any power supplying.
(4). Electric heater can be used as back-up in rainy days.
(5). Hot water can be used directly, or can be used as a pre-heated.
(6). Water flow in the vacuum tubes and is operated when confined.
(7). Tank is equipped with electric water heater setting, automatic temperature controller(optional ).
(8). the insulating layer uses polyurethane bulk bubble,keep hot water 72 hours.
Pre-sale Service
1. Sample can be offered with sample charge and courier fee by buyer's side.
2. We have full stock,and can deliver within short time.Many styles for you to choose.
3. OEM and ODM order are accepted, Any kind of logo printing or design are available.
4. Good Quality+Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.
5. All of our products are produced by our professional workman and we have our high-work-effect foreign trade team,
3. OEM and ODM order are accepted, Any kind of logo printing or design are available.
4. Good Quality+Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.
5. All of our products are produced by our professional workman and we have our high-work-effect foreign trade team,
you can totally believe our service.
6. We have rich experience of design, manufacture and sell solar water heater, we cherish every order from our honor.
6. We have rich experience of design, manufacture and sell solar water heater, we cherish every order from our honor.
