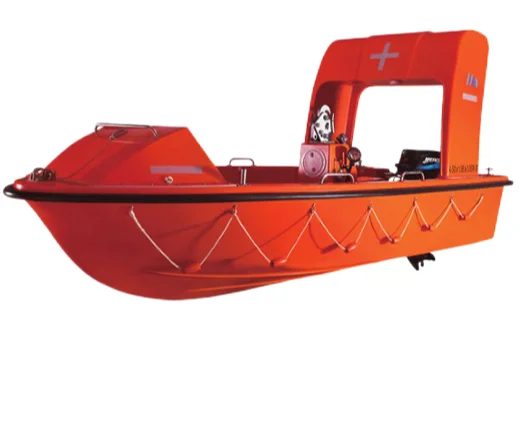

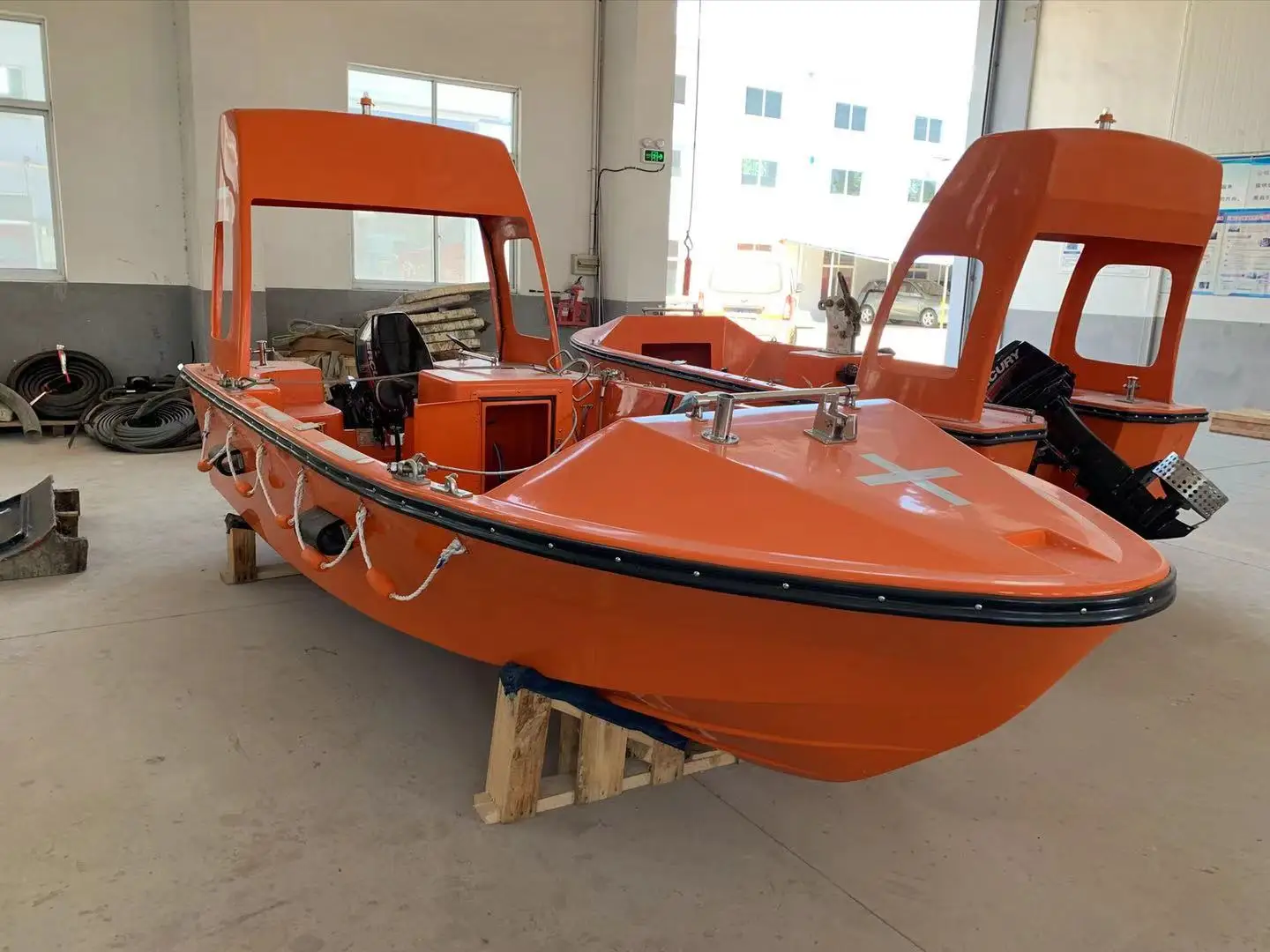

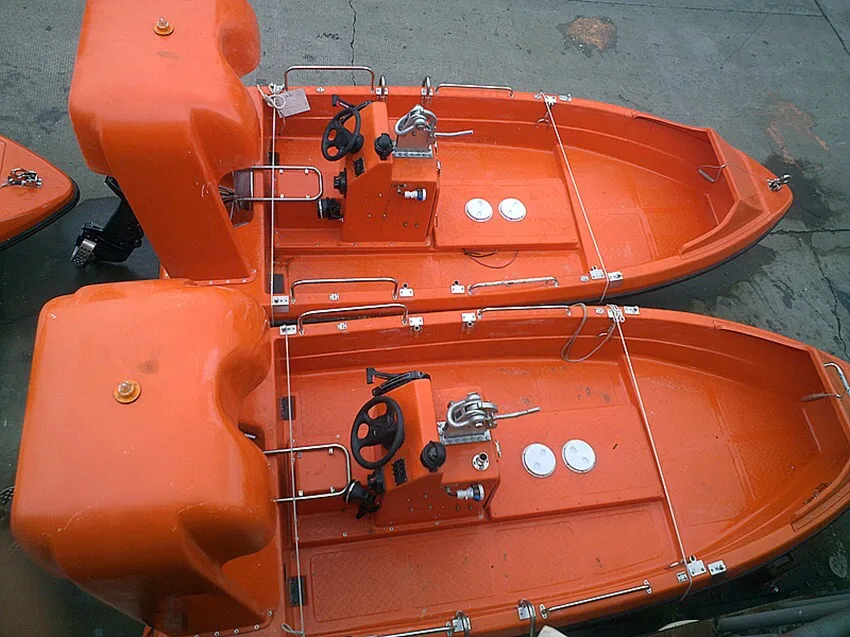

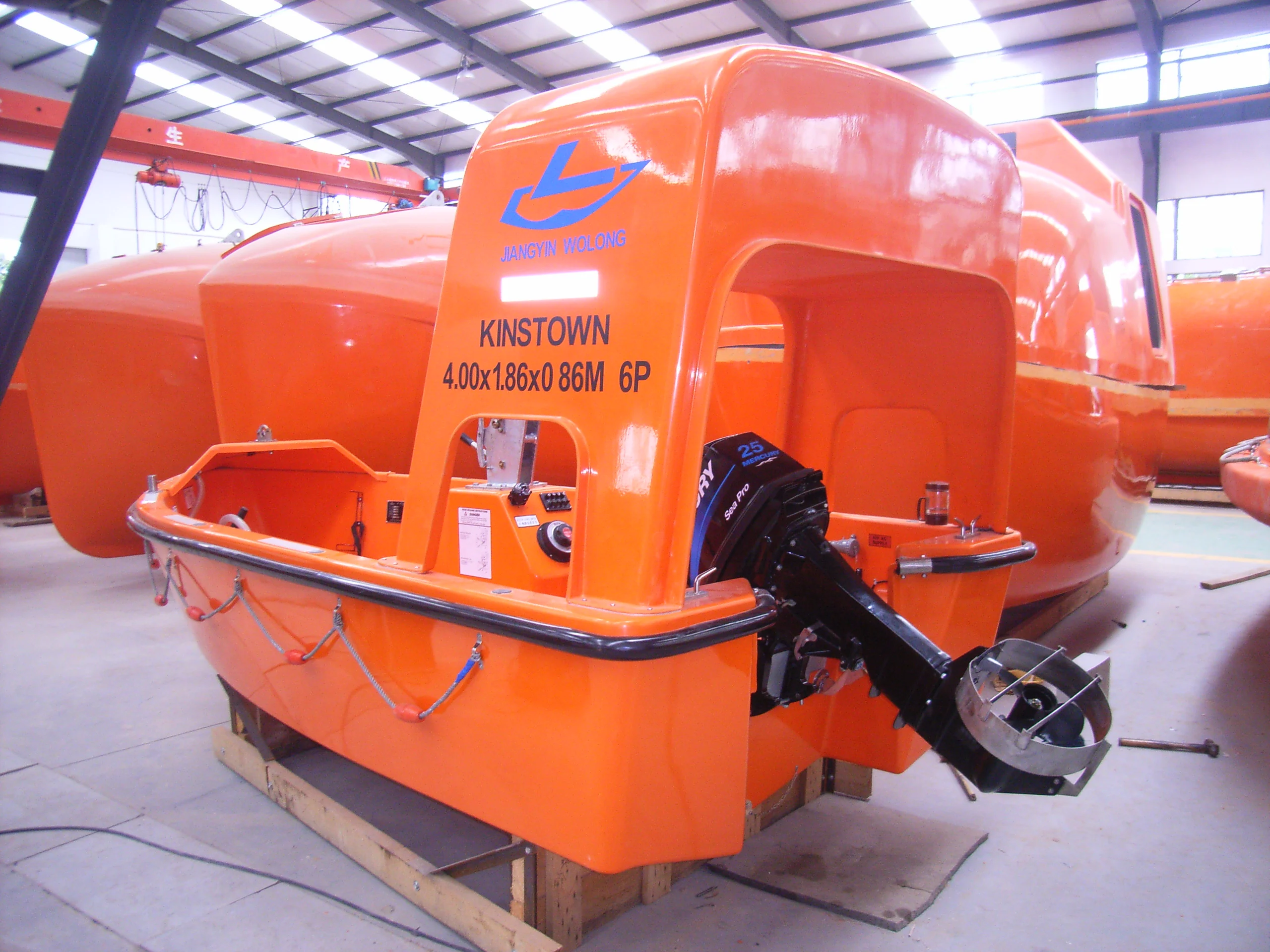

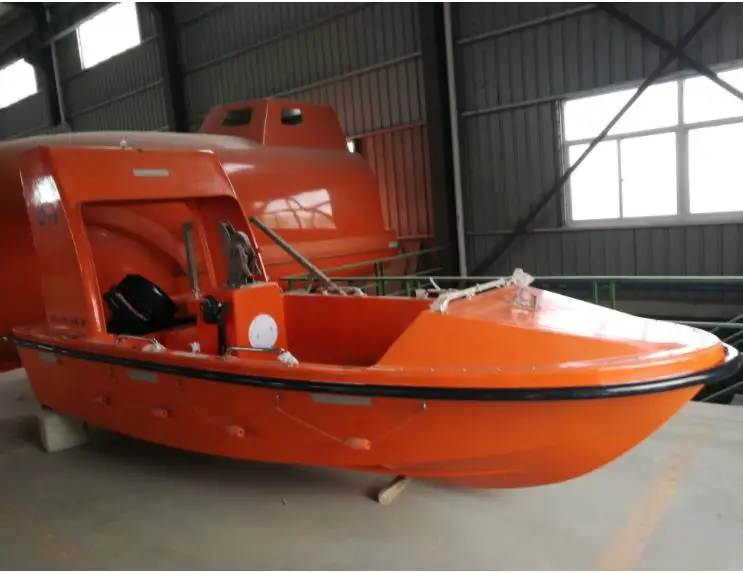

CCS Approved fiberglass rescue boat lifesaving boat with 25HP outboard engine
- Category: >>>
- Supplier: Zhenjiang Normanship Co. Ltd.
Share on (1600570826822):
Product Overview
Description
Product Description
CCS Approved fiberglass rescue boat boat with 25HP outboard engine
This F.R.P rescue boat is designed and manufactured according to Latest regulations of SOLAS amendments, international life-saving
appliance regulation (LSA) and IMO Resolution MSC.81(70), and MSC.218(82) & MSC.272(85).
Material of this rescue boat: The hull is constructed by hand lay-up with G.R.P material. The hull and the inner hull are
separately laminated. The space between the hull and the inner hull is filled with Polyurethane foam as buoyancy.
Classification society certificates accompany all mats, woven roving and resigns applied on boat.
All fittings on this boat are made of stainless steel, marine grade aluminum cooper or galvanized steel in order to increase the boats’ corrosion-resistant performances.
appliance regulation (LSA) and IMO Resolution MSC.81(70), and MSC.218(82) & MSC.272(85).
Material of this rescue boat: The hull is constructed by hand lay-up with G.R.P material. The hull and the inner hull are
separately laminated. The space between the hull and the inner hull is filled with Polyurethane foam as buoyancy.
Classification society certificates accompany all mats, woven roving and resigns applied on boat.
All fittings on this boat are made of stainless steel, marine grade aluminum cooper or galvanized steel in order to increase the boats’ corrosion-resistant performances.
Specification
Product Name | CCS Approved fiberglass rescue boat boat with 25HP outboard engine |
Application | lifesaving |
Size | 4*1.86*0.85M(length*breadth*depth) |
Customized | YES |
Capacity | 6 Persons |
Weight | 1100kgs |
Engine | 25HP |
Engine start | Hand start |
Color | International Orange |
Standard | (LSA)code |
4. Peculiarity
4.1 Main technical data
F.R.P length 4.00m
F.R.P breath 1.86m
F.R.P depth 0.85m
Capacity 6P
Empty boat weight 605kg
Full load weight 1100kg
Loading temperature -30~65℃
Working temperature(sea water) -1~30℃
Speed(full load) 6 knots
Outside color international orange
4.2 Propulsion device
Engine type: MERCURY 25HP
Engine power: 18.6KW
Engine RPM(full load): 5000~6000rpm
Engine RPM(idle speed): 700~800rpm
Start method: Handle start
Steering method: Stern Steering
number of cylinders）: 2
（recommended spark plug）; NGK BP8H-N-10
（Gear ratio） 2.25:1
（Fuel oil）: Use a major brand of automotive unloaded gasoline
with a minimum posted octane rating of 90ron.
（oil） Oil must be NMMA/BIA certificate TC-W3 2 cycle
oil
（gas/oil ratio） 50:1（in the break-in 25:1）
4.3 Hook device
Hook type: single hook
4.4 The marital for main parts
Hull、inner shell、control panel and self-righting device.
F.R.P ( fire-retardant)
Buoyant compartments polyurethane foam
Fender: Rubber
Handrail S.Steel
Fuel tank S.Steel
Fastener: S.Steel
Fittings: S.Steel
Name plate: S.Steel
4.1 Main technical data
F.R.P length 4.00m
F.R.P breath 1.86m
F.R.P depth 0.85m
Capacity 6P
Empty boat weight 605kg
Full load weight 1100kg
Loading temperature -30~65℃
Working temperature(sea water) -1~30℃
Speed(full load) 6 knots
Outside color international orange
4.2 Propulsion device
Engine type: MERCURY 25HP
Engine power: 18.6KW
Engine RPM(full load): 5000~6000rpm
Engine RPM(idle speed): 700~800rpm
Start method: Handle start
Steering method: Stern Steering
number of cylinders）: 2
（recommended spark plug）; NGK BP8H-N-10
（Gear ratio） 2.25:1
（Fuel oil）: Use a major brand of automotive unloaded gasoline
with a minimum posted octane rating of 90ron.
（oil） Oil must be NMMA/BIA certificate TC-W3 2 cycle
oil
（gas/oil ratio） 50:1（in the break-in 25:1）
4.3 Hook device
Hook type: single hook
4.4 The marital for main parts
Hull、inner shell、control panel and self-righting device.
F.R.P ( fire-retardant)
Buoyant compartments polyurethane foam
Fender: Rubber
Handrail S.Steel
Fuel tank S.Steel
Fastener: S.Steel
Fittings: S.Steel
Name plate: S.Steel

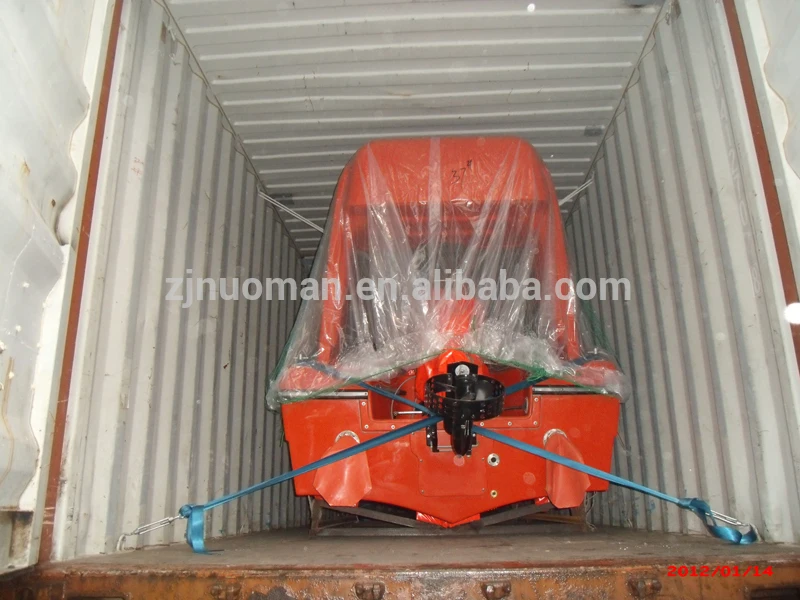

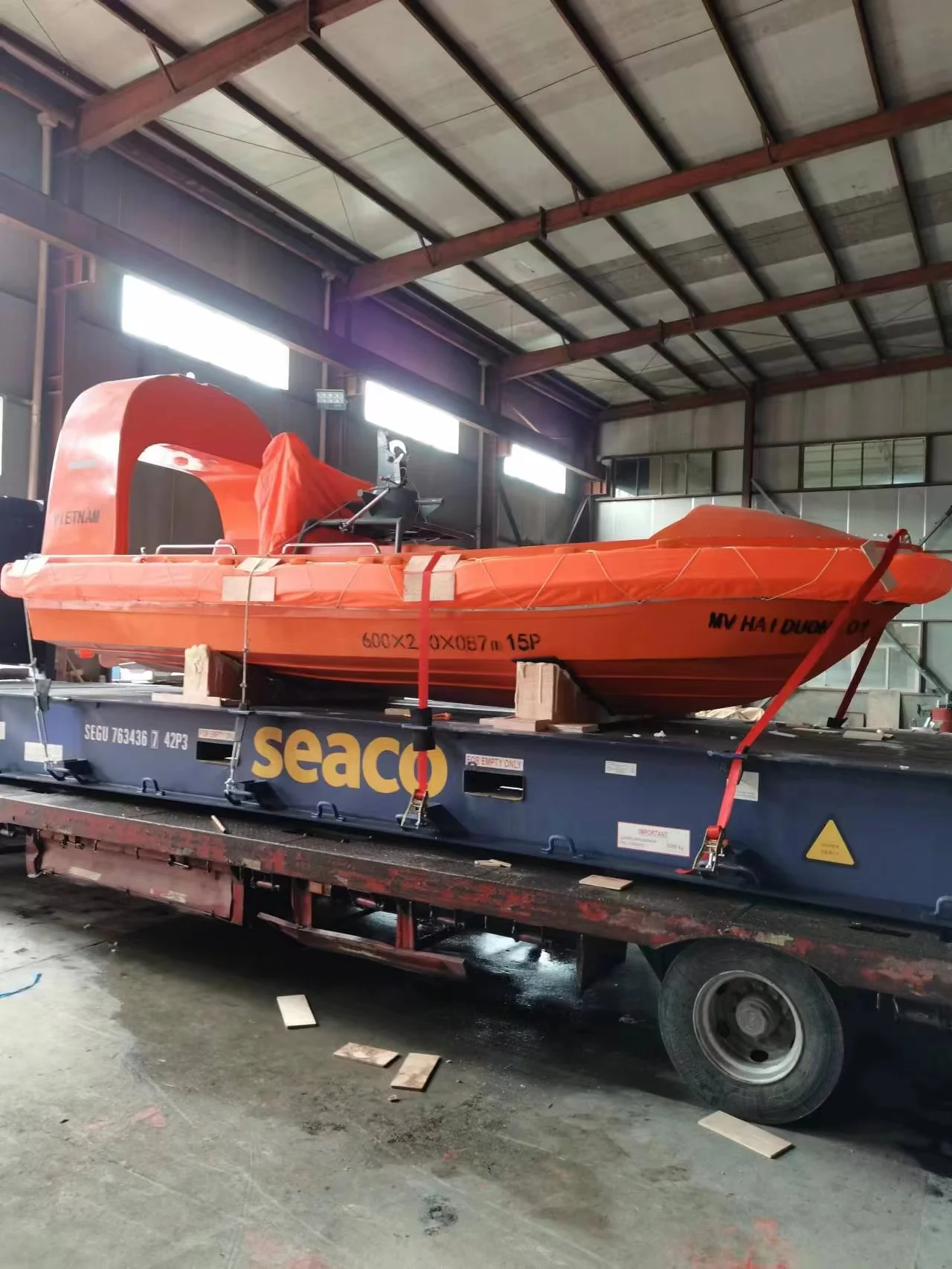

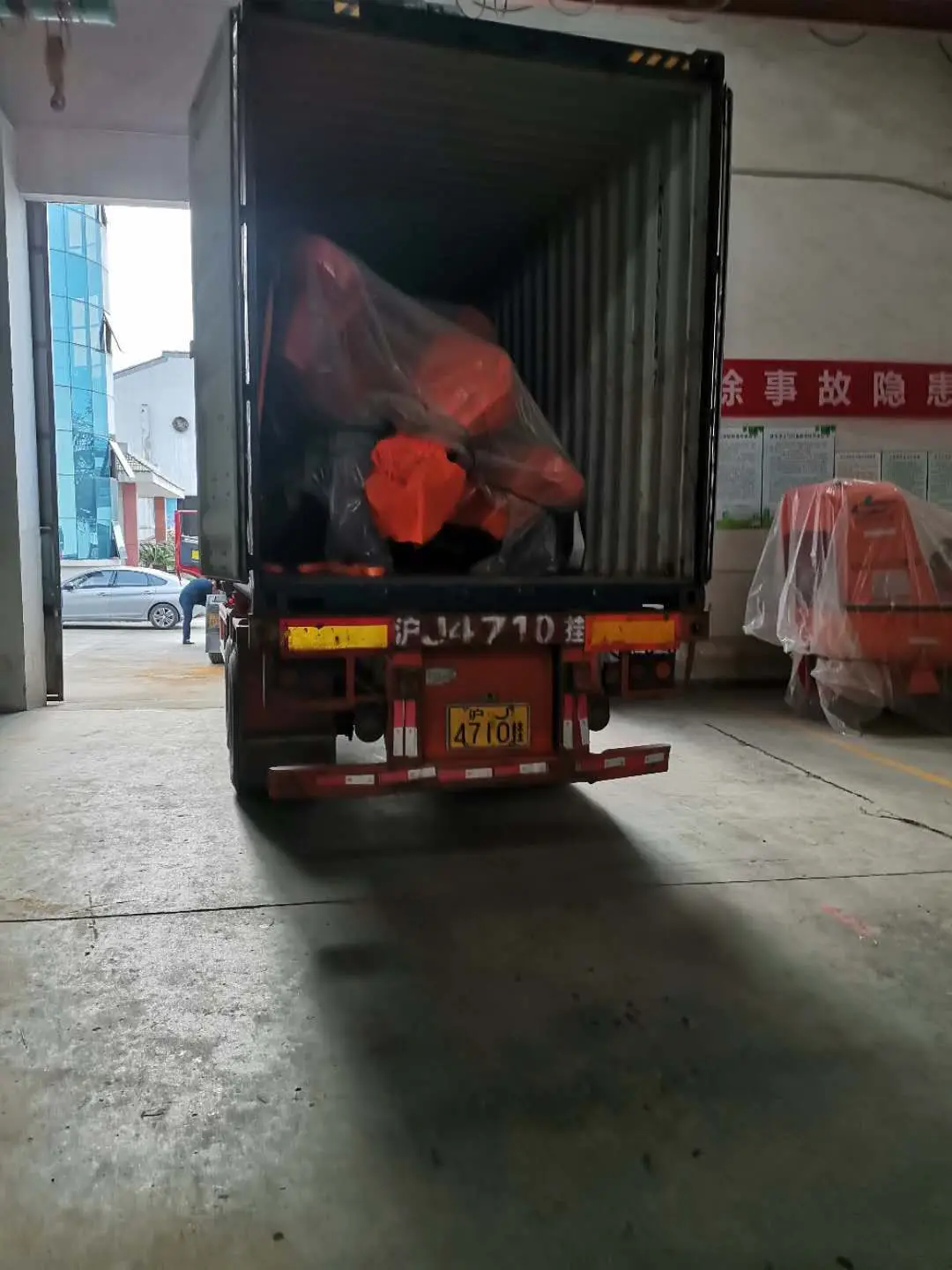

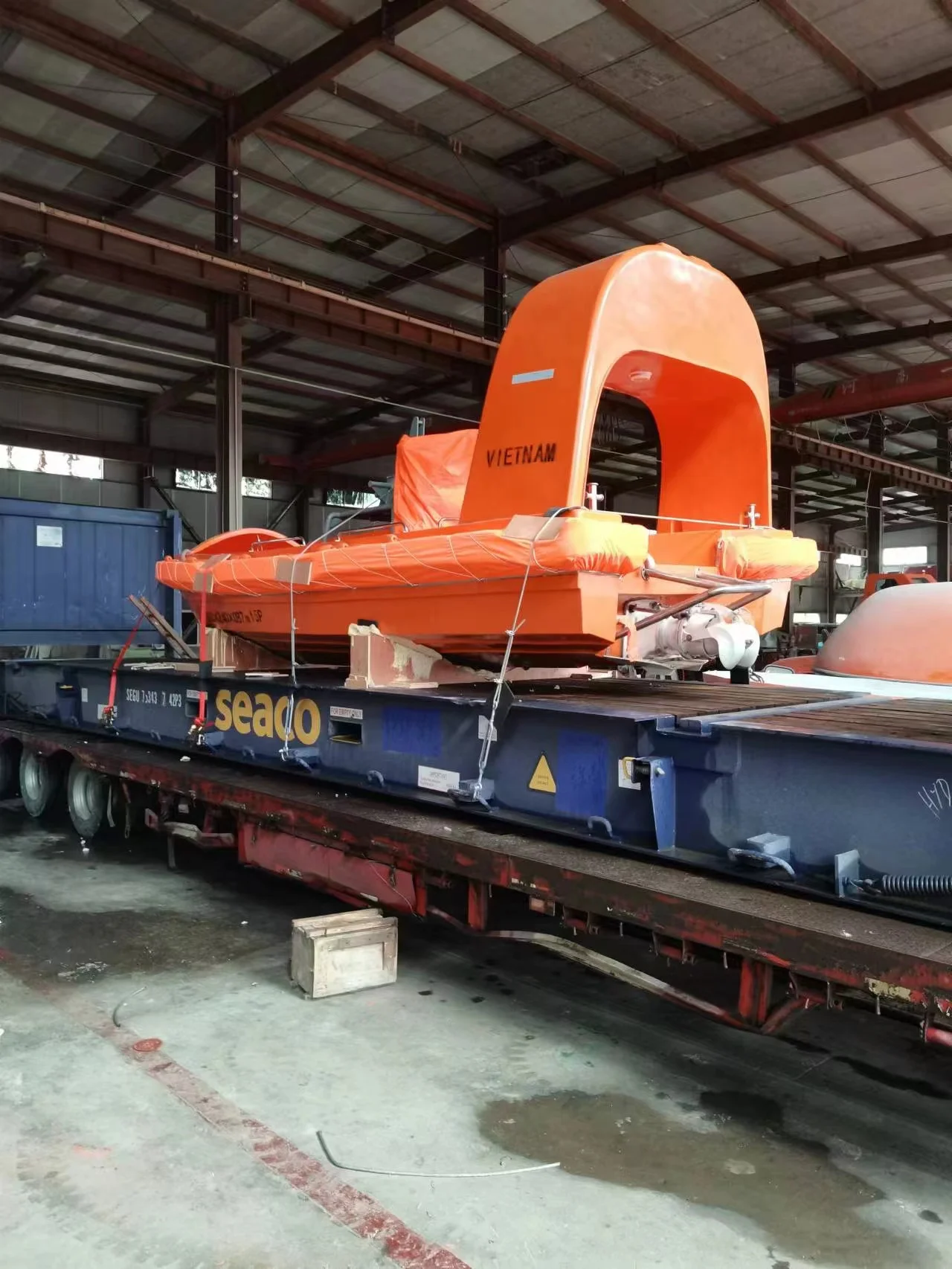

Packing & Delivery
