Lotion Cream Making Mixing Vacuum High Shear Emulsifier Mixer Machine With Hydraulic Lifting
- Category: >>>
- Supplier: Guangzhou Jutao Machinery Equipment Co. Ltd.
Share on (1600570847779):
Product Overview
Description
Product Description
Cosmetic homogenizing machine is available for heating, melting, homogenizing and emulsifying. It is best choice for face cream, wash cream, cosmetics materials; it is an ideal device for paste-cream products of middle and high grades. This equipment includes oil phase boiler, water phase and emulsifying vessels, operation platform and control tank.
Detailed Images
1. The vacuum emulsifiers produced by our company include many varieties. Various high quality products can be customized according to customer’s requirements.
2. Provided with single-cylinder and double-cylinder lifting system, which can freely lift or lower the pot lid and easy to clean, the emulsifying pot can adopt tilt discharge.
3. SIEMENS frequency converter for speed adjustment, keeping the machine working stably and durably.
4. The vacuum defoaming can make the materials meet the requirement of being sanitary and aseptic. The vacuum sucking material adopted can avoid dust, especially for the powder products.
5. The tank body and the pipes adopt mirror polishing, which fully confirms to GMP requirements.
6. Complex scraping board caters to body of blending groove and scrape out viscosity material on boiler wall.
7. According to technological requirements, the tank can heat and cool the material. The heating modes can be chose to steam or electric heating according to customer requirements.
8. Material contact parts all use SUS316L.
9. Advanced PLC touch screen control is optional, which is equipped with color touch screen to completely supervise the data of material temperature, blending and homogenizing rotation speed and time etc. and print out the above data.
2. Provided with single-cylinder and double-cylinder lifting system, which can freely lift or lower the pot lid and easy to clean, the emulsifying pot can adopt tilt discharge.
3. SIEMENS frequency converter for speed adjustment, keeping the machine working stably and durably.
4. The vacuum defoaming can make the materials meet the requirement of being sanitary and aseptic. The vacuum sucking material adopted can avoid dust, especially for the powder products.
5. The tank body and the pipes adopt mirror polishing, which fully confirms to GMP requirements.
6. Complex scraping board caters to body of blending groove and scrape out viscosity material on boiler wall.
7. According to technological requirements, the tank can heat and cool the material. The heating modes can be chose to steam or electric heating according to customer requirements.
8. Material contact parts all use SUS316L.
9. Advanced PLC touch screen control is optional, which is equipped with color touch screen to completely supervise the data of material temperature, blending and homogenizing rotation speed and time etc. and print out the above data.
Main tank tilting system
Handwheel or Electric tilting system,conveniently discharge finished product
Handwheel or Electric tilting system,conveniently discharge finished product
Homogenizer motor
This whole machine use ABB brand motor. The products can discharged from the bottom outlet,or connect the pump to pump the products out fast.
This whole machine use ABB brand motor. The products can discharged from the bottom outlet,or connect the pump to pump the products out fast.
Blender
Type: frame oar scrape blender, single way or double way rotating
Material: SUS316L
Speed: 0-65rpm
Type: frame oar scrape blender, single way or double way rotating
Material: SUS316L
Speed: 0-65rpm
Scraper
The mixer with scraper to scrap the stick materials which stick on the pot body
Homogenizer
Name: Rotor and stator adopts wire-cutting finish machining high shearing homogenizer
Material: SUS316L
Speed: 0-3600rpm
Name: Rotor and stator adopts wire-cutting finish machining high shearing homogenizer
Material: SUS316L
Speed: 0-3600rpm
Discharge
Bottom discharge to discharge the finished products.

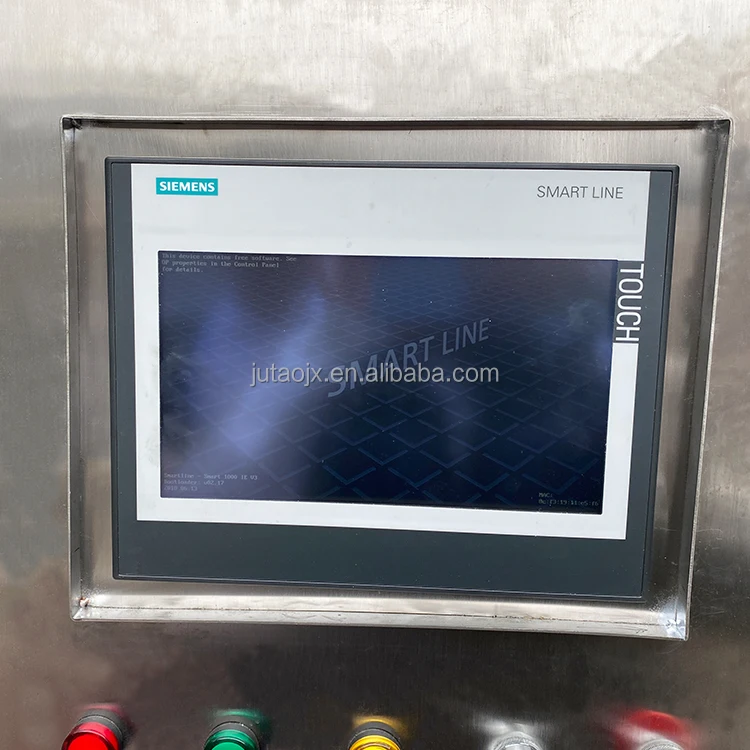

Control panel
Whole set machines with PLC touch screen control, and button control for choose.
Water and oil pot
Oil and water pot
Name: Hygiene grade mirror polish & SUS304&316L,
Half open lid, easy for operation;
High shearing disperser plate;
Disperser on bottom
Water pot and oil pot drainer pipe connect to one outlet.
Name: Hygiene grade mirror polish & SUS304&316L,
Half open lid, easy for operation;
High shearing disperser plate;
Disperser on bottom
Water pot and oil pot drainer pipe connect to one outlet.
Sightglass
Cover with a lighting observation hole, keep abreast of the product of the emulsification of the pot.
Homogenizer
Max rotation speed could reach 4200r/min,highest shearing fineness could reach 0.2-5μm. The materials will be well homogenized regardless of the quantity of materials put into the tank. The total quality fo the materials must cover up the homogenizer. The homogenizer can be installed through the bottome of the machine.
Main pot configuration
There are hopper, sight glass, air filter, suction hopper, vacuum valve, vacuum meter....
Model | Volume(L) | Main pot power (Kw) | Hydraulic system (kW) | Vacuum pump power(Kw) | ||||||
Main pot | Water pot | Oil pot | Wall scraping | Homogenizer | ||||||
JT-5L | 5L | - | - | 0.18 | 1.1 | 0.75 | 0.55 | |||
JT-10L | 10L | 8 | 5 | 0.18 | 1.1 | 0.75 | 0.75 | |||
JT-20L | 20L | 18 | 10 | 0.37 | 1.5 | 0.75 | 0.75 | |||
JT-50L | 50L | 40 | 25 | 0.75 | 4-7.5 | 1.5 | 1.5 | |||
JT-100L | 100L | 80 | 50 | 1.5 | 4-7.5 | 1.5 | 1.5 | |||
JT-200L | 200L | 170 | 100 | 2.2 | 7.5-11 | 1.5 | 2.2 | |||
JT-300L | 300L | 250 | 150 | 2.2 | 7.5-11 | 1.5 | 2.2 | |||
JT-500L | 500L | 420 | 250 | 4 | 11 | 1.5 | 2.2 | |||
JT-1000L | 1000L | 820 | 500 | 5.5 | 15 | 2.2 | 3 | |||
Product Presentation
1. For Cosmetic industries: face cream, hand cream, sunscreen cream, eyelash to cream, hair gel, lotion, bath shampoo,hair gel, nail polish, hair conditioner etc.
2. For Pharmaceutical industries: ointments, syrup, nutrition, bio-products, paste of pharmaceutical etc.
3. For Daily use industries: toothpaste, detergents, shoes polish, soap, fragrance etc
4. For Food industries: sauces, jam, chocolate, butter, vegetable proteins, animal proteins etc.
