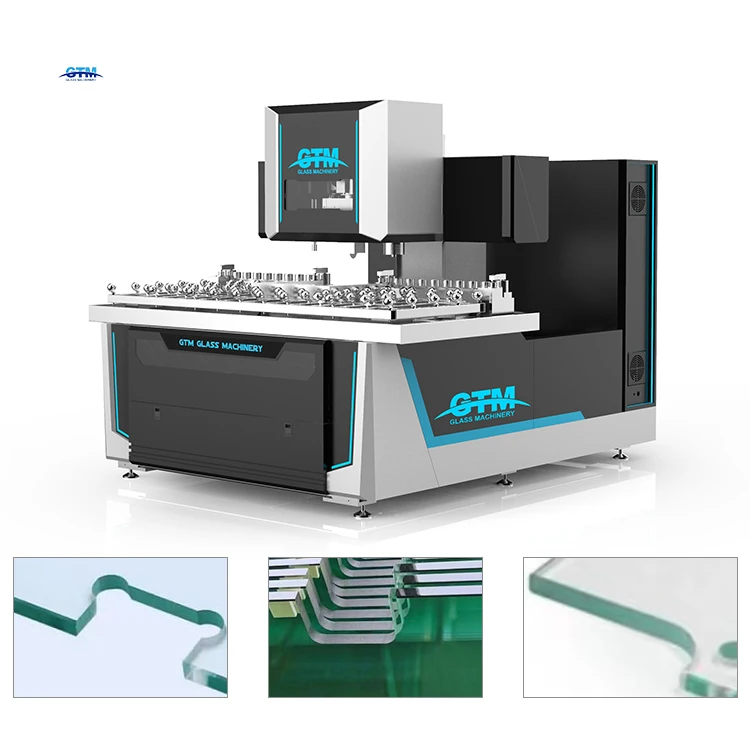

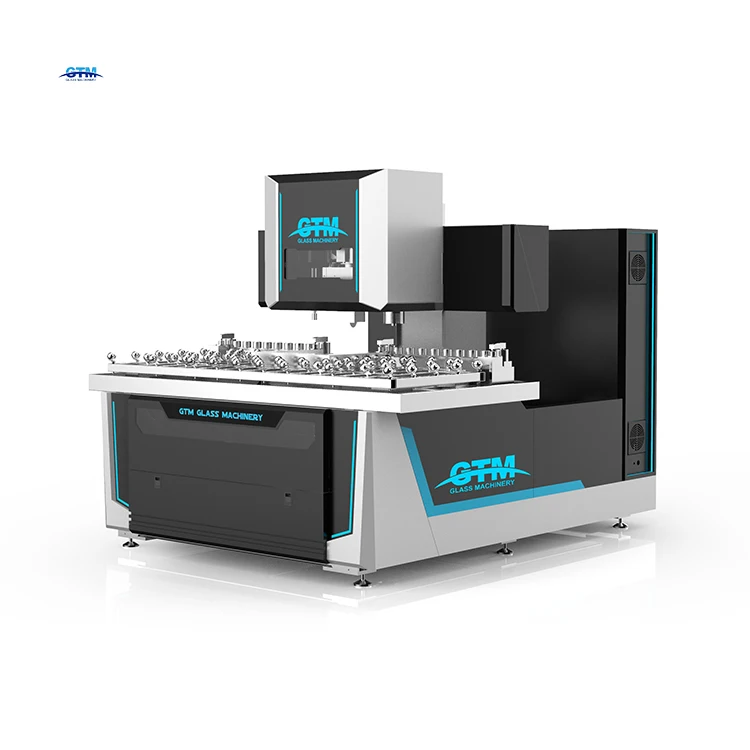

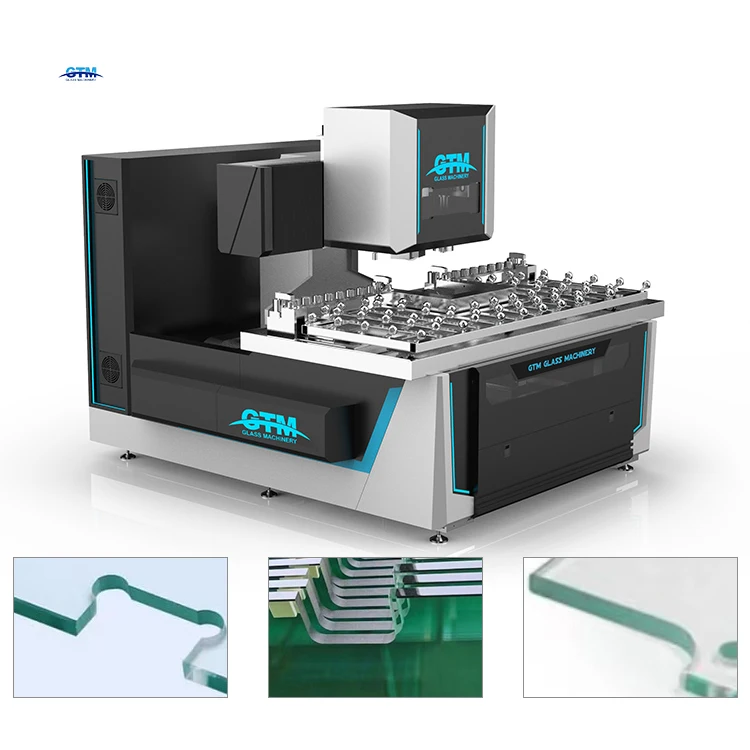

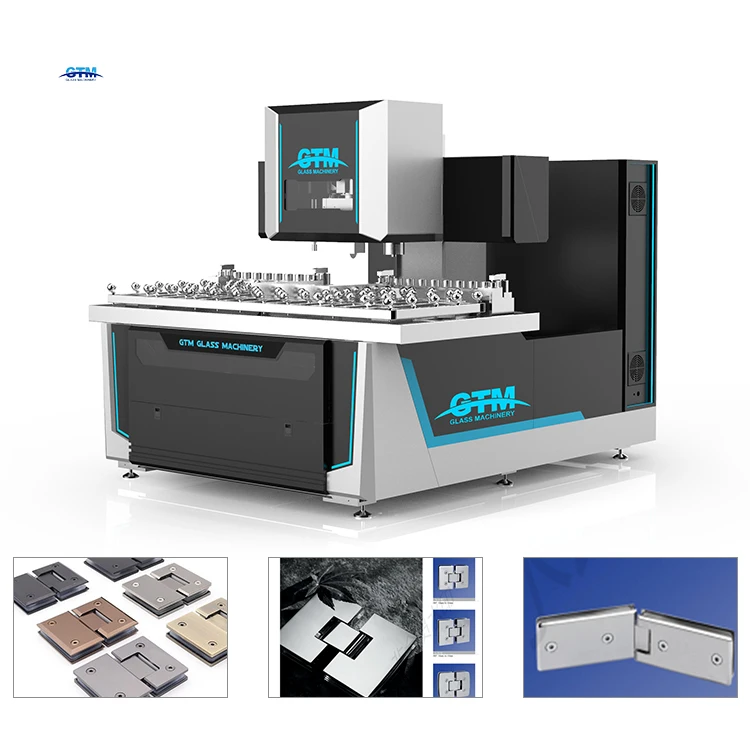

Cnc Automatic Glass Working Center Machinery For Milling Drilling
- Category: >>>
- Supplier: Gtm Glass Machinery Co. Ltd.
Share on (1600570871771):
Product Overview
Description
Products Description
Product Paramenters
Min.Processing size of Notch | 60mm(L)*30mm(W) |
Max.Processing size of Notch: | 200mm(L)*250mm(W) |
Processing Thickness: | 3‐19mm |
Height of working table: | 900±30mm |
Effective range of movement: | a. X axis:±100mm b. Y axis:30‐250mm c. Z axis (upper):0‐200mm d. Z axis(lower):0‐70mm |
Weight: | ≈ 1500Kg |
Power: | ≈12KW |
Over Dimensions: | 1600*1950*2000mm |

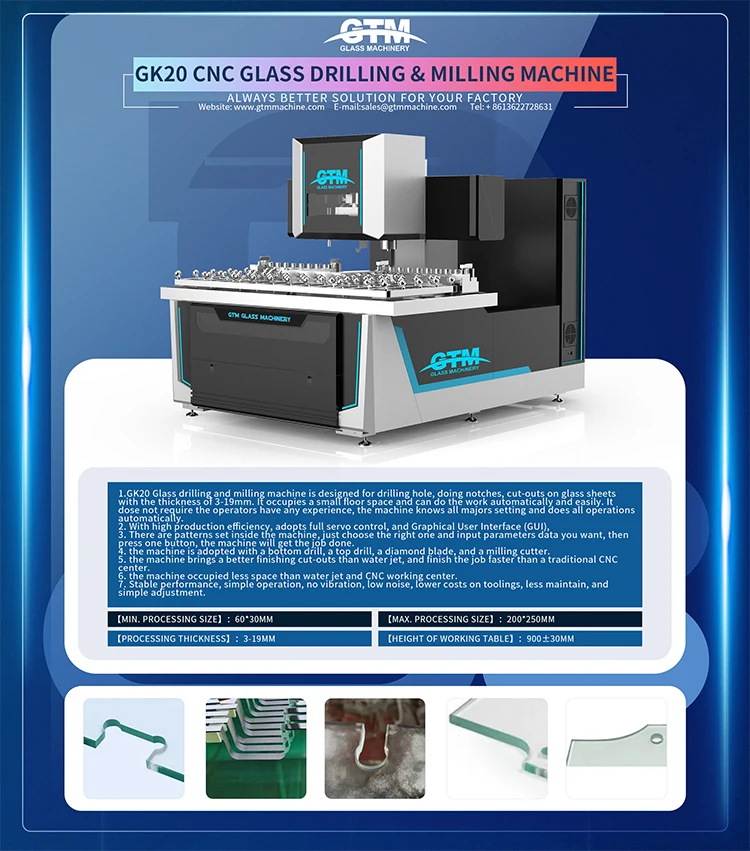

1.GK20 Glass drilling and milling machine is designed for drilling hole, doing notches, cut-outs on
glass sheets with the thickness of 3-19mm. It occupies a small floor space and can do the work automatically and easily. It dose not require the operators have any experience, the machine knows all majors setting and does all operations automatically.
2. With high production efficiency, adopts full servo control, and Graphical User Interface(GUI),

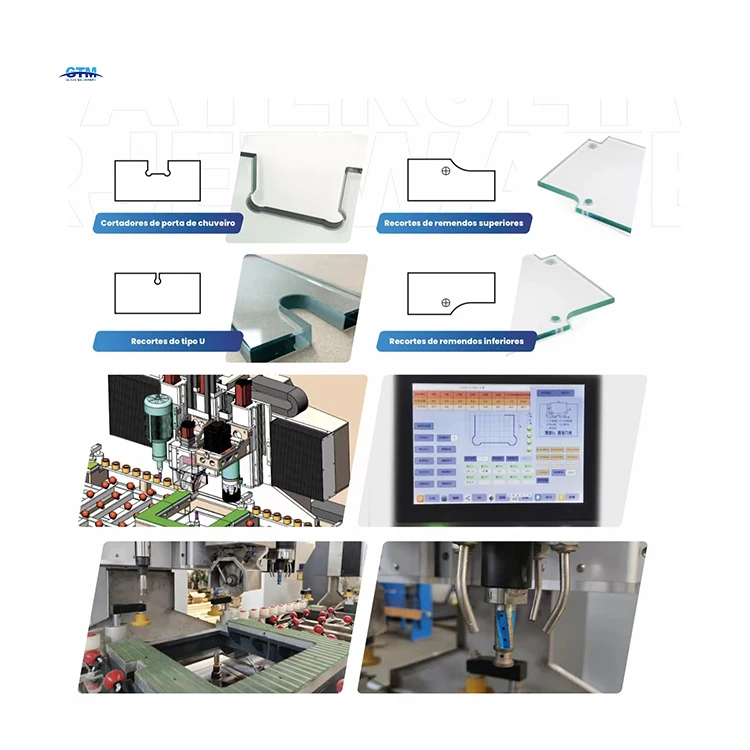

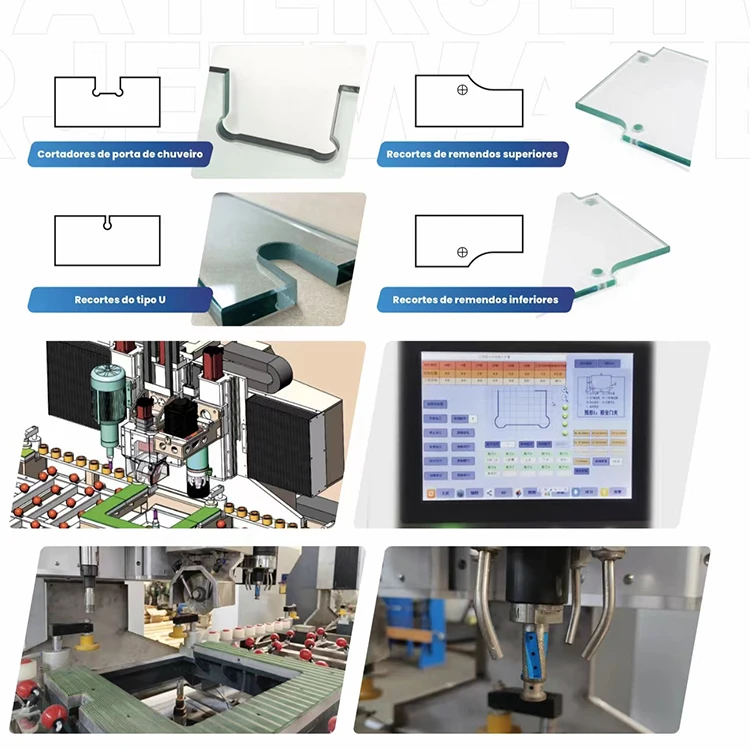

3. There are patterns set inside the machine, just choose the right one and input parameters data you want, then press one button, the machine will get the job done.
4. the machine is adopted with a bottom drill, a top drill, a diamond blade, and a milling cutter.
5. the machine brings a better finishing cut-outs than water jet, and finish the job faster than a traditional CNC center.
6. the machine occupied less space than water jet and CNC working center.
7. Stable performance, simple operation, no vibration, low noise, lower costs on toolings, less maintain, and simple adjustment.
glass sheets with the thickness of 3-19mm. It occupies a small floor space and can do the work automatically and easily. It dose not require the operators have any experience, the machine knows all majors setting and does all operations automatically.
2. With high production efficiency, adopts full servo control, and Graphical User Interface(GUI),
3. There are patterns set inside the machine, just choose the right one and input parameters data you want, then press one button, the machine will get the job done.
4. the machine is adopted with a bottom drill, a top drill, a diamond blade, and a milling cutter.
5. the machine brings a better finishing cut-outs than water jet, and finish the job faster than a traditional CNC center.
6. the machine occupied less space than water jet and CNC working center.
7. Stable performance, simple operation, no vibration, low noise, lower costs on toolings, less maintain, and simple adjustment.
