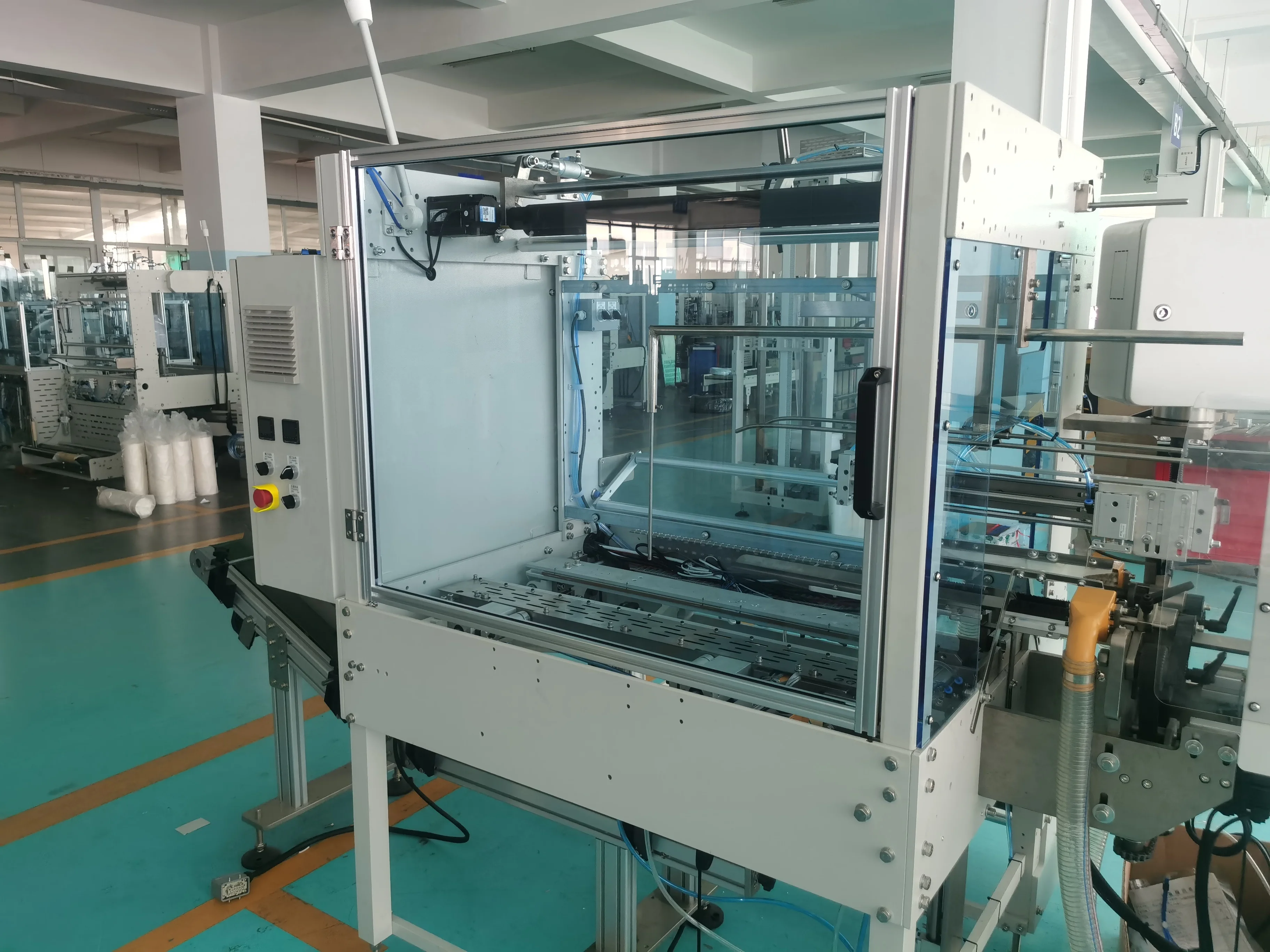

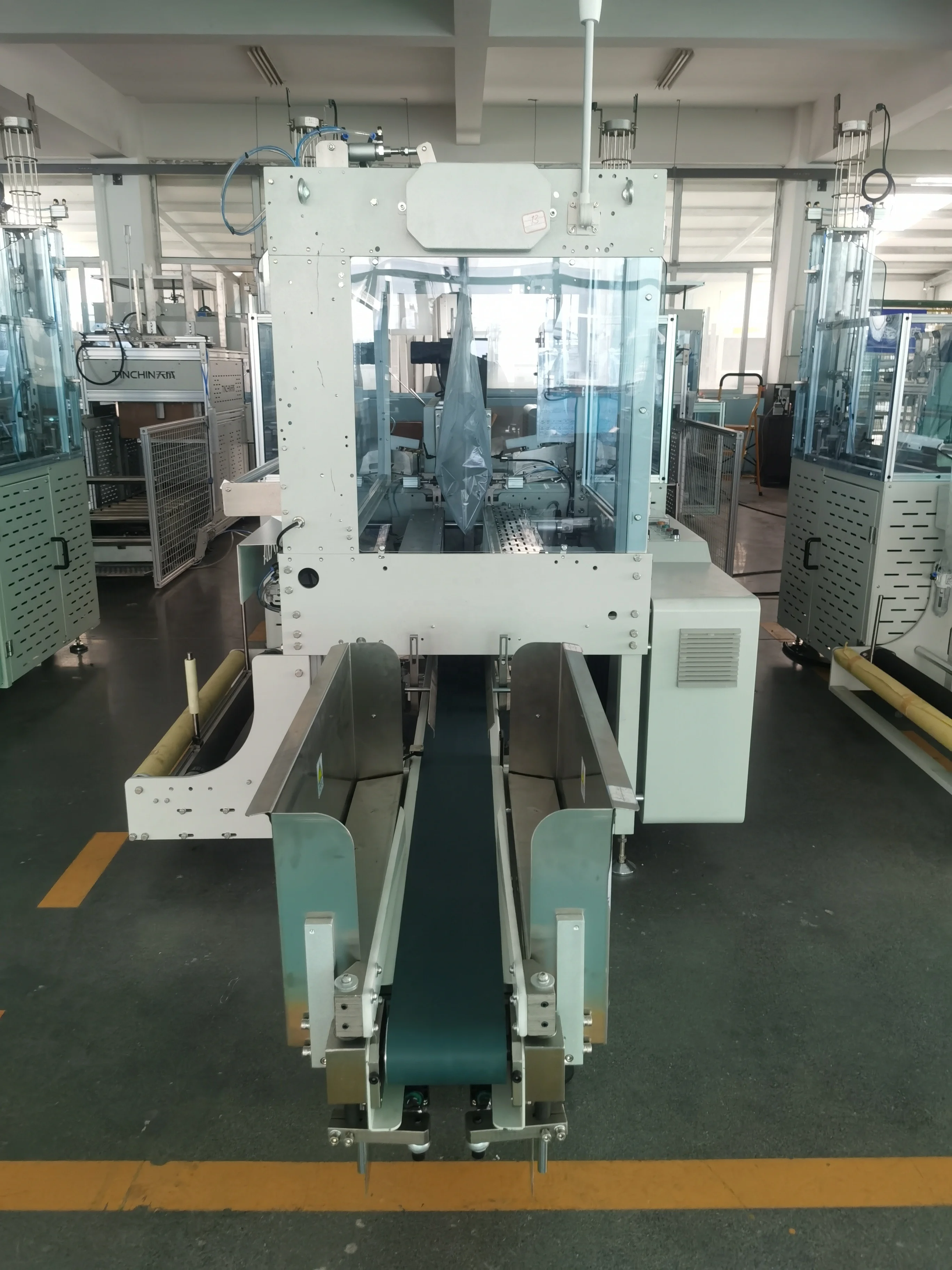

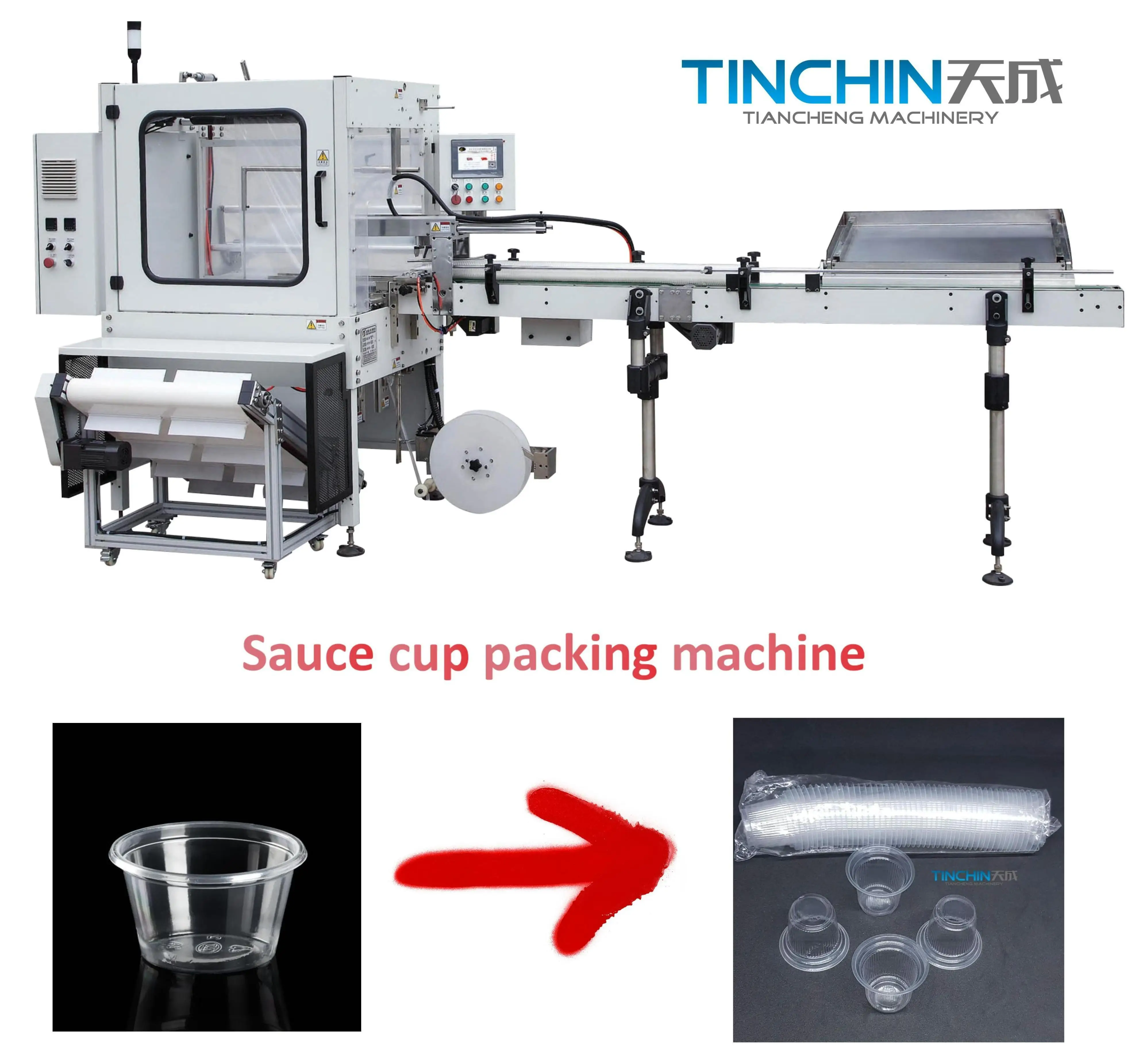

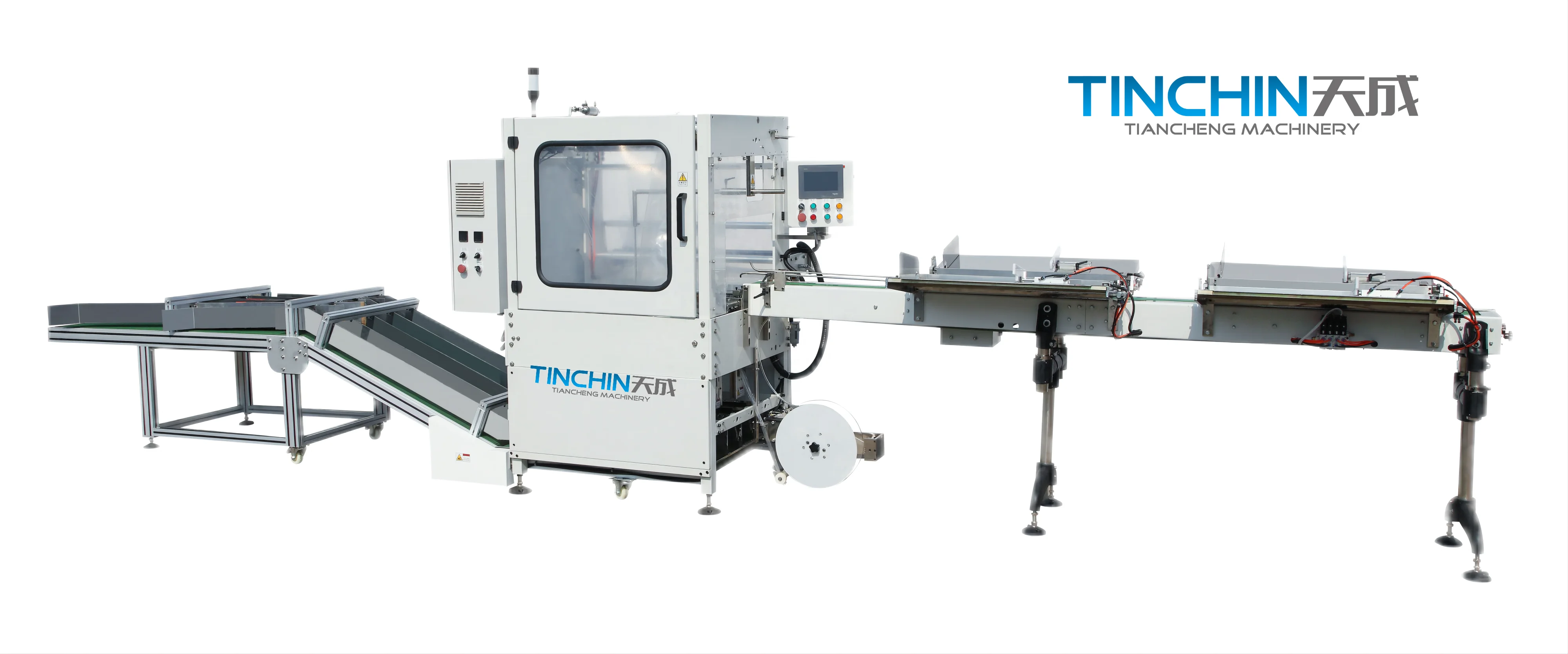

disposable plastic cup packing sauce cup packing machine with laser counting
- Category: >>>
- Supplier: Ruian Tiancheng Packing Machinery Co. Ltd.
Share on (1600570874904):
Product Overview
Description
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
Packing machine | ||||||||
No | Item | Data | ||||||
1 | Model No. | TCJ-QSJ700 | ||||||
2 | Product | Plastic cup/plastic bowl | ||||||
3 | Top Diameter | Φ60mm-Φ100mm ( other size can be customized) | ||||||
4 | Max. Stacking length of cups | 630mm/720mm | ||||||
5 | Packaging material | HDPE.LDPE.PP.POF.PO | ||||||
6 | Packaging film thickness | 12μm-50μm | ||||||
7 | Max speed | 18bags/min | ||||||
8 | Max. torque | 500N.m | ||||||
Case machine | ||||||||
No | Item | Data | ||||||
1 | Max.Packaging Speed | Speed 12 sleeves /min | ||||||
2 | Effective cup Diameter | Φ60mm-Φ150mm | ||||||
3 | Carton Length | 350mm to 500mm( other size can be customized) | ||||||
4 | Carton Width | 240mm to 450mm( other size can be customized) | ||||||
5 | Carton height | 330mm to 600mm( other size can be customized) | ||||||
6 | Electrical Req | 0.8KW one phase 220V 50HZ/60HZ | ||||||
7 | Air Req | 0.6MPa | ||||||
Product Overview
TCJ-QSJ700
Full-automatic plastic cup (bowl) packing machine (Laser count)
1.Plastic cup packing machine is one of the necessary equipment in modern Plastic cup production and it is the best option to replace manual work.
2.First it solves the problem about the dust and fingerprint which is a big problem in manual work.
3.Second it can reduce labors and save lots of packing materials.
4.Thirdly,the packaging result is more beautiful than hand bag packaging.
1.Plastic cup packing machine is one of the necessary equipment in modern Plastic cup production and it is the best option to replace manual work.
2.First it solves the problem about the dust and fingerprint which is a big problem in manual work.
3.Second it can reduce labors and save lots of packing materials.
4.Thirdly,the packaging result is more beautiful than hand bag packaging.
SIMILAR PRODUCTS
Certifications
FAQ
FAQ
1.Are you a manufacturer?
Yes, We are manufacturer that specialized in this field for 21 years.
2.what’s our product range for cup(bowl,lid) packing?
Tea cups,Milk tea cups,coffee cups,ice cream cups,yogurt cups,sauce cups,noodle bowl,KFC bowl and all disposable lid(cover) etc
3.What’s size of the cup/bowl you can make? (Top Diameter)
Φ60mm-Φ95mm /Φ95mm-Φ150mm ( other size can be customized)
4.What information should let you know if I want to get a quotation?
(1)Quantity
(2)What’s the detailed size(top diameter,bottom diameter,height)
(3)If it with cups collect station equipment, (fly cup plastic pipe inner and external diameter )
(4)If it with case machine(Packing Spec)
5.What’s our advantages？
(1)21 years experience:We are been in making disposable cup(bowl) packing machine for 21 years.
(2)Customers all over the world
(3)Certificate: CE certificate
(4)Fast reply: Our team will reply you soon.
6.After-sale service:
We have a after sale department , service for your problems and dealing with
spare parts. Engineers available to service machinery overseas,commissioning and training,field maintenance and repair service,video technical support,online support
7.What about the payment term
Terms of payment and time limit: pay 30% by T/T before manufacture, the balance should be paid before the shipment by T/T
1.Are you a manufacturer?
Yes, We are manufacturer that specialized in this field for 21 years.
2.what’s our product range for cup(bowl,lid) packing?
Tea cups,Milk tea cups,coffee cups,ice cream cups,yogurt cups,sauce cups,noodle bowl,KFC bowl and all disposable lid(cover) etc
3.What’s size of the cup/bowl you can make? (Top Diameter)
Φ60mm-Φ95mm /Φ95mm-Φ150mm ( other size can be customized)
4.What information should let you know if I want to get a quotation?
(1)Quantity
(2)What’s the detailed size(top diameter,bottom diameter,height)
(3)If it with cups collect station equipment, (fly cup plastic pipe inner and external diameter )
(4)If it with case machine(Packing Spec)
5.What’s our advantages？
(1)21 years experience:We are been in making disposable cup(bowl) packing machine for 21 years.
(2)Customers all over the world
(3)Certificate: CE certificate
(4)Fast reply: Our team will reply you soon.
6.After-sale service:
We have a after sale department , service for your problems and dealing with
spare parts. Engineers available to service machinery overseas,commissioning and training,field maintenance and repair service,video technical support,online support
7.What about the payment term
Terms of payment and time limit: pay 30% by T/T before manufacture, the balance should be paid before the shipment by T/T
