Product Overview

Description



Intrduction

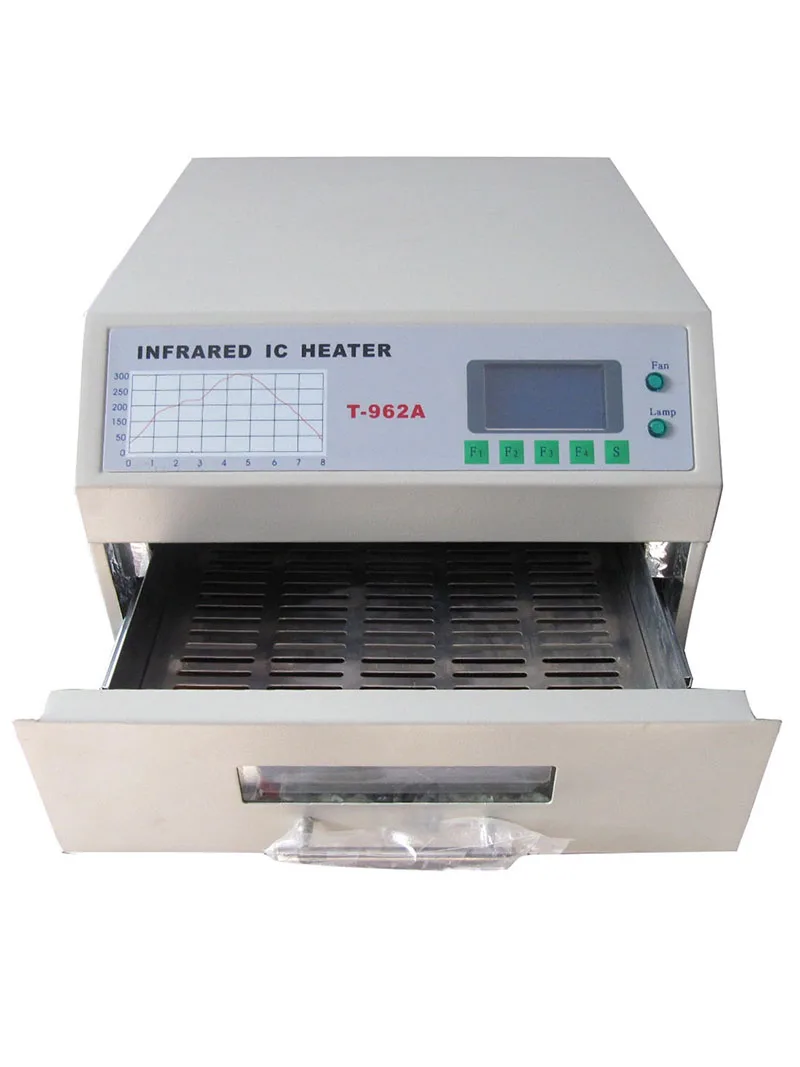

The INFRARED IC HEATER T962A is a micro processor controlled reflow-oven. It can be used for effectively soldering various SMD and BGA components. The whole soldering process can be completed automatically and it is very easy to use. This machine uses a powerful infrared emission and circulation of the hot air flow, so the temperature is being kept very accurate and evenly distributed. A windowed drawer is designed to hold the work-piece, and allows safe soldering techniques and the manipulation of SMD/BAG and other small electronic parts mounted on a PCB assembly. The T962A may be used to automatically rework solder to correct bad solder joints, remove/replace bad components and complete small engineering models or prototypes.




Features
1.A big infrared soldering area
The welding area of the machine is 300*320mm. It is increases the usage range.
2.Choice of different soldering curves
Eight soldering curves are predefined and the entire soldering process can be completed automatically from Preheat, Soak and Reflow through to cool down.
3.The Output power reaches to 1500W.
It adopts infrared radiation to heat, the temperature is very accurate and even.
4.The unique design of temperature rise and average temperature
Visual operation, friendly human operation interface, perfect temperature curve scheme, show the spirit of science and technology; compact size and weight, helps you save a lot of money; Desktop placement mode allows you to have more space.
5.The machine has perfect function selection, such as soldering, drying, heat preservation, finalize the design, fast cooling . It can complete such as CHIP, SOP, PLCC,QFP,BGA,etc packaging form 's single and double sided PCB 's welding.
6. The machine can be used for the glue curing, the aging circuit board and the PCBs maintenance work .


Part List
· 1 x T-962A Reflow Oven
· 1 x Power Line



Paramenters


Specification
Type
Reflow Solder
Heating Zone
One Zone(for desktop type)
Soldering Max Area
300x 320 mm
Voltage
AC220V/110V,50-60Hz
Mode of Heating
Infrared Tubes
Mode of Controlling
8 Intelligent Temperature Curves Heating
Rated Power
1500W
Process Cycle Time
6-8 Minutes
Temperature Range
0-280℃
Temperature Control Accuracy
± 1℃
Temperature Distribution Deviation
± 2℃
Dimensions
51x33x45cm
Rated Duty Cycle
100%
Application
PCB soldering/CHIP/SOP/PLCC/QFP/BGA


Infrared Heater

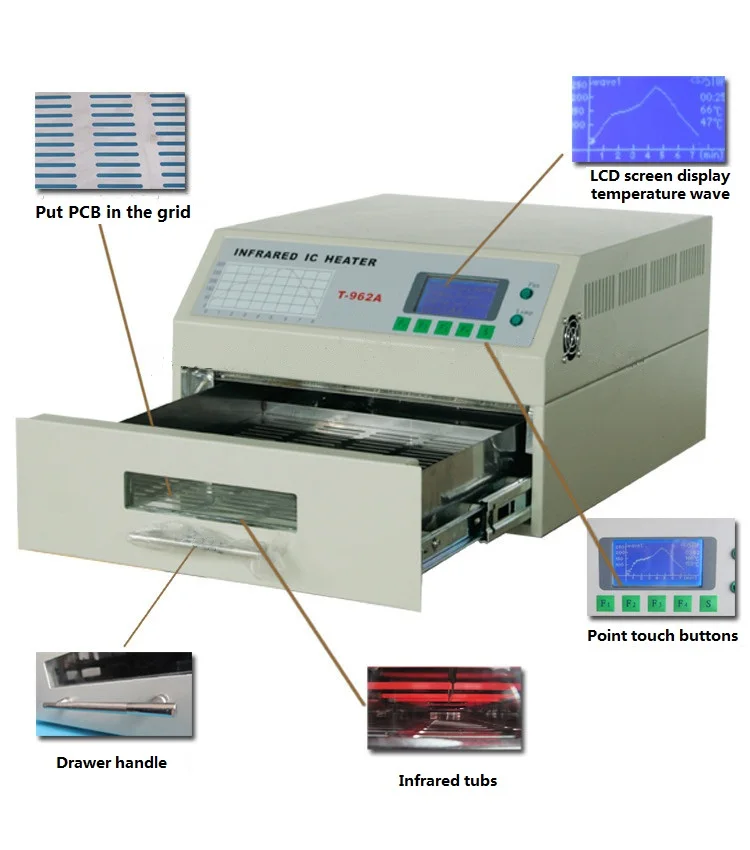

Automatic micro-computer control Infrared Heater. Adoption fast infrared radiation and circulation the wind for heat. So the temperature is very accurate and even.The non-contact output of imported high-current solid-state relays can effectively avoid damage to IC or circuit boards, making the entire welding process more scientific and safe

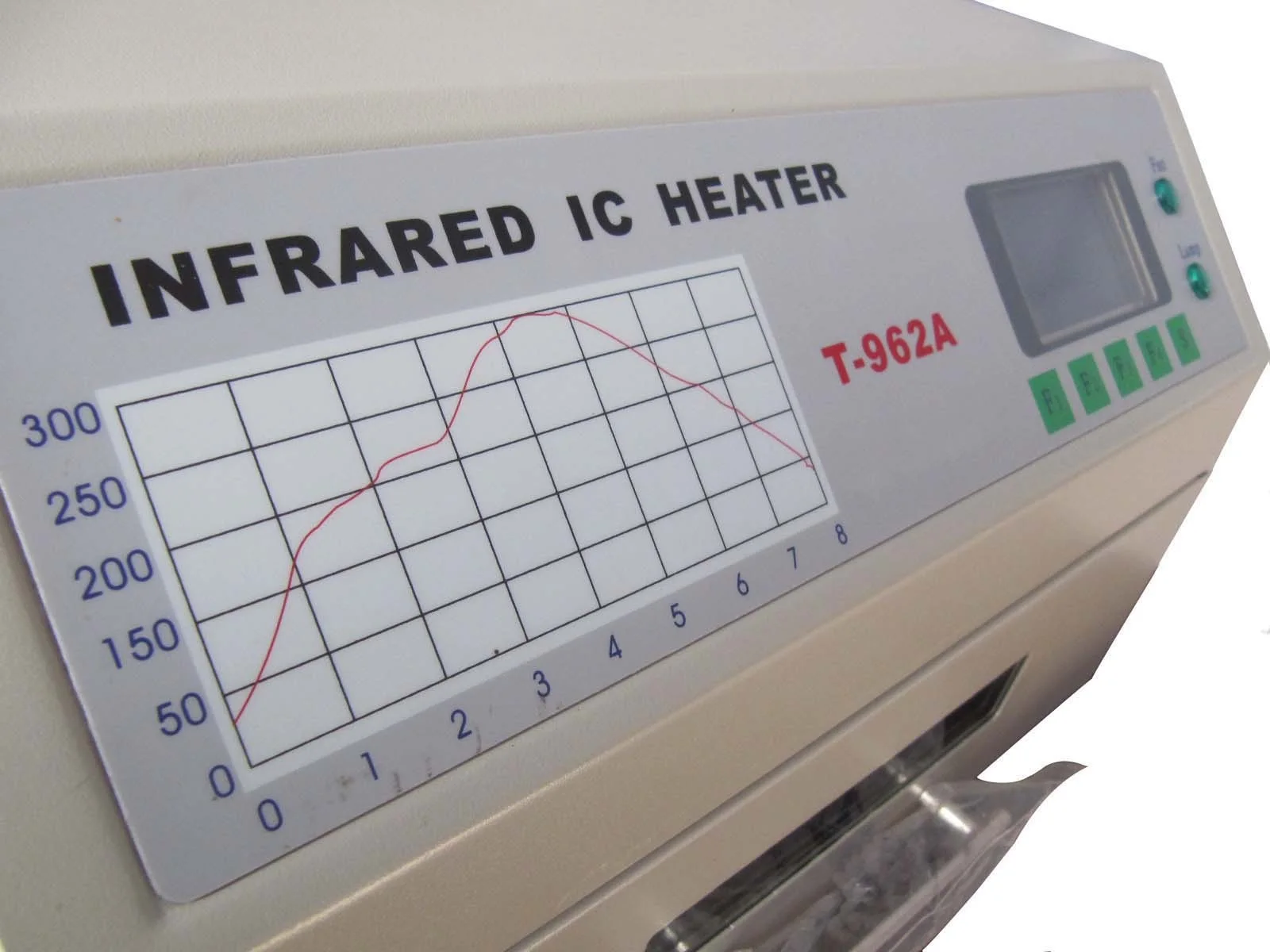

Eight Temperature Waves
This Reflow oven can provide eight kinds of stored temperature parameter waves as options to meet the requirements of various welding processes, and it has mobile heating and cooling functions. Besides, the entire welding process is auto-completed after you preset the wave. So you can say it is easy to use.




Wide Application
The T-962A reflow soldering machine is able to solder small parts of most PCB boards, for example, CHIP, SOP, PLCC, QFP, BGA, etc.It is the ideal rework solution from single runs to on-demand small batch production.

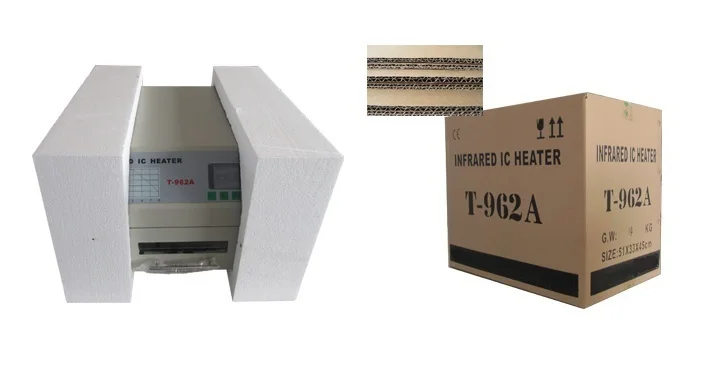

Packing details




Certifications




                                Wenzhou Yingxing Technology Co.,Ltd                           Specialises in SMT Production Line (PNP Machine）more than 9 years




Our Services
1.Video technical support
2.24-hour online support
3.Goods tracking support
4.Free broken parts（With 1 YEAR warranty）


FQA
Q:How is the training?
A:After buying our machines,your engineers can go to our company or it is so easy to operate the machine according the training video and user manual,the user manual will come with the machine together.

Q:Is it hard to use these machines?
A:No,not hard at all.For our previous clients,at most 2 days is enough to learn to operate the machines.

Q:Does your machines have quality certificate?
A:All of our machines have passed CE certificate,ISO14001(BCC),ISO9001(IQNET) and have own patent.

Q:The Warranty of the machine?
A:One year,then the parts will be free for the buyer in the warranty.

Q:English version for these machines?
A:Yes
