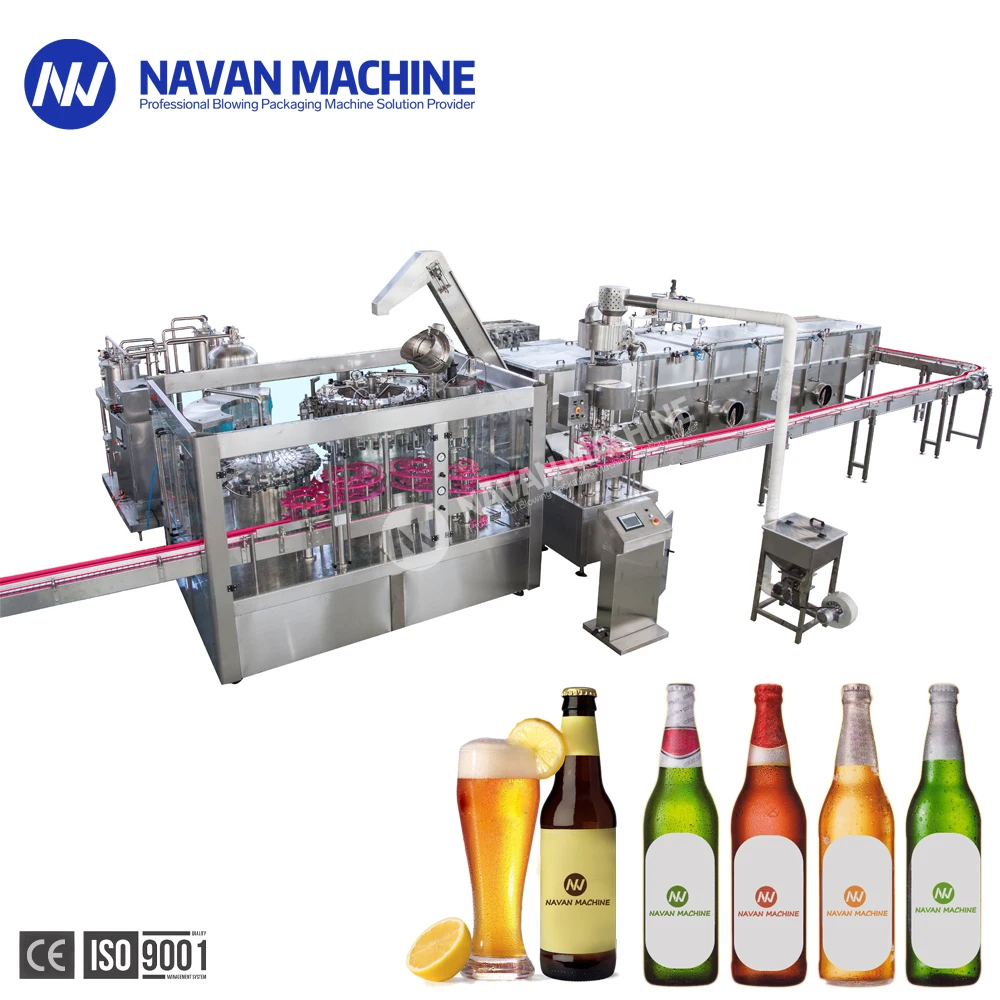

Navan Machine Automatic Glass Bottle Filling Machine For Craft Beer Wine Gin Vodka Spirit Liquor
- Category: >>>
- Supplier: Zhangjiagang Navan Industrial Co. Ltd.
Share on (1600570909782):
Product Overview
Description
NAVAN Machine.
We are one of the earliest companies engaged in manufacturing liquid filling and packing equipment in China. Our products include: Liquid filling machines (water, fruit juice/tea, carbonated drink, oil, alcohol, plant protein drink, etc.), Barreled filling line (3-5 gallon) Water treatment machines, Labeling & packing machines, semi-automatic /full automatic bottle blowing machines, and injection molding machines.Navan Machinery can provide turn-key services for customers, from plant layout, equipment manufacture and production line setup to operator training.
Products Description
Navan Machine Automatic Glass Bottle Filling Machine For Craft Beer Wine Gin Vodka Spirit Liquor
Responding to your customers' requirements, respecting your distributors' restrictions and withstanding pressure from your competitors is a delicate balancing act. There are numerous ways of managing this complexity but the fact is that only specific solutions will really build your competitive advantage. To get the best from your assets, you must leverage your uniqueness to boost your competitiveness.
This is where our offering is unique.
Throughout our 50 years of partnership with the beer industry, we have developed a holistic understanding of everything that contributes to your performance. It materializes through unique value creation capabilities offering full complementarity:engineering services, line design, integration project management and equipment manufacturing. And to make the most of what differentiates you, whilst taking your own restrictions into account, we constantly strive to initiate innovative reflection when developing your made-to-measure solution. To achieve this, our value proposition is based on leading-edge technology, disruptive concepts and human ingenuity.
Our goal: to design, build and maintain advanced performance throughout the entire lifecycle of your beer production assets.
Our goal: to design, build and maintain advanced performance throughout the entire lifecycle of your beer production assets.
Would like to know more about NAVAN Machine equipments, feel free to send us an inquiry!
Final Products
Equipment Type | Automatic |
Bottle Type | Glass / PET round or square bottle Volume 200 - 2000ml Bottle diameter 50-115mm Bottle height 160-320mm |
Output | up to 72,000 bph |
Your product | Carbonated Soft Drink |
Certificates | CE / SGS / ISO 9001 |
Details Images

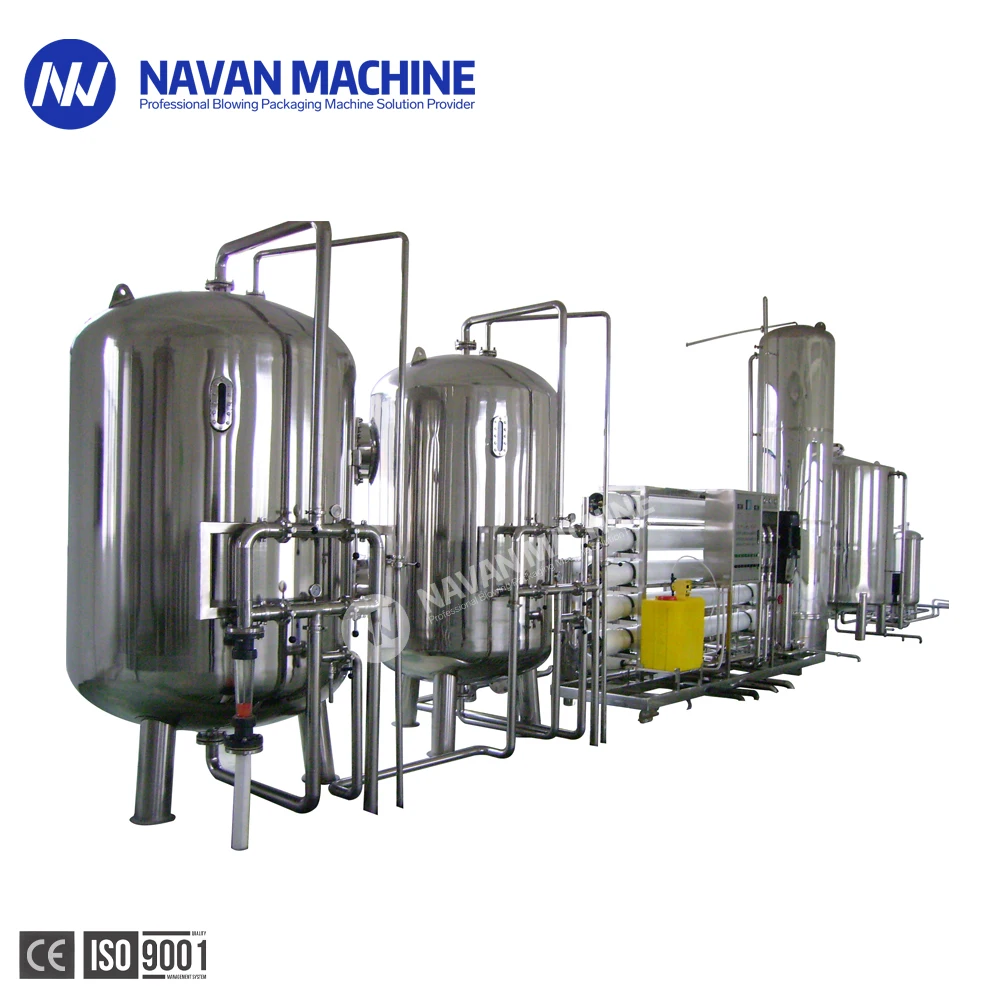

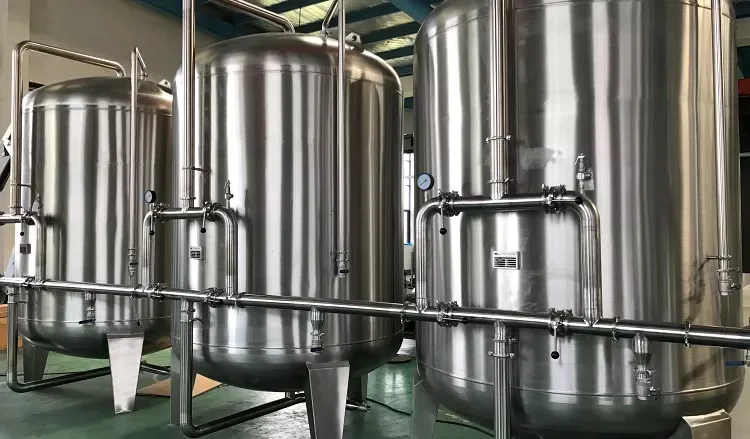

1-NAVAN Machine Water Treatment System
* Raw water tank + Raw water pump
* Silica sand filter + Active carbon filter + Sodium ion exchanger + Precision filter + Security filter
* Reverse Osmosis (one level)
* UV sterilizer
* Finished water tank + Pure water pump
* Silica sand filter + Active carbon filter + Sodium ion exchanger + Precision filter + Security filter
* Reverse Osmosis (one level)
* UV sterilizer
* Finished water tank + Pure water pump
1 / Stainless steel high pressure film shell
2 / All kinds of capacity indicator, pressure indicator, electricity magnetic valve, balance device and pipe valve system
3 / Online type pressure auto self-protection device
4 / Online type electricity indicator (with stable compensation)
5 / System safe protecting and alarm system
6 / System frame
2 / All kinds of capacity indicator, pressure indicator, electricity magnetic valve, balance device and pipe valve system
3 / Online type pressure auto self-protection device
4 / Online type electricity indicator (with stable compensation)
5 / System safe protecting and alarm system
6 / System frame
2 - NAVAN Beer Brewing System.
1.Crush system.
2.Heating System.
3.Mash System.
4. Fermentation System.
5. Cooling System.
6. Cleaning System.
7.Control System.
2.Heating System.
3.Mash System.
4. Fermentation System.
5. Cooling System.
6. Cleaning System.
7.Control System.

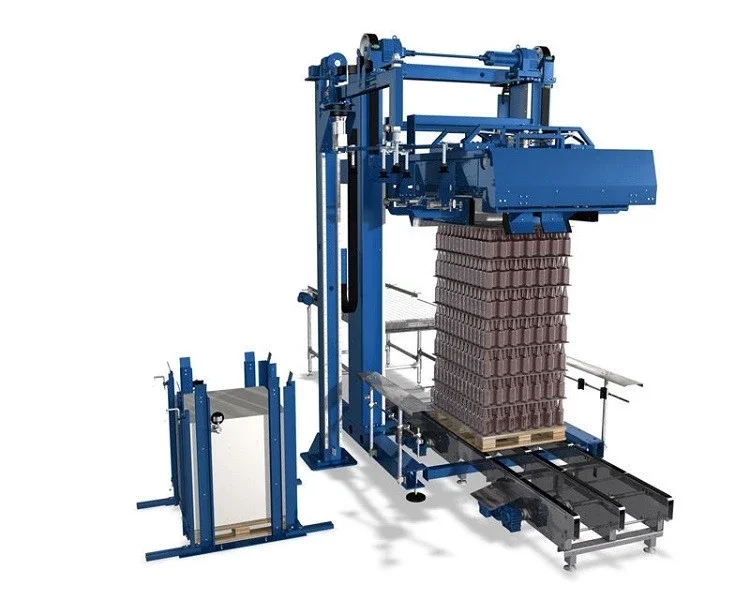

3 - NAVAN Palletizers and Depalletizers.
A pallet stacker is a pallet jack used to help lift, move and stack pallet goods.The main use of pallet stackers is to load and unload pallets on trucks and to transfer pallets from one location within a warehouse or storage space to another.

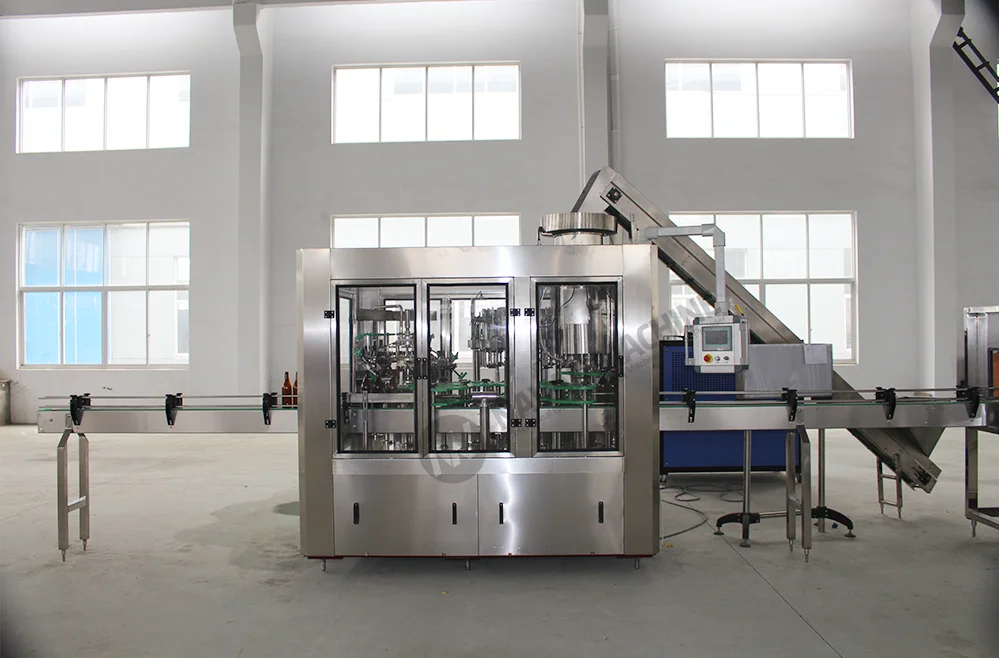

4 - NAVAN BCGF Beer Filling Machine [ Washing Filling Capping 3 in 1 type ]
1 / Enhanced food safety: Stainless steel 304/316L for all components in contact with your beverage
2 / Optimum uptime: 30 % reduction in changeover and maintenance downtime
3 / Sustainable solution: Reduced filler enclosure and servomotors reduce resource consumption
4 / Hygiene improvement through volume control and contactless filling
5 / Automatic dummy bottles: Safer, easier cleaning procedures
6 / Automatic bottle changeover improves uptime
2 / Optimum uptime: 30 % reduction in changeover and maintenance downtime
3 / Sustainable solution: Reduced filler enclosure and servomotors reduce resource consumption
4 / Hygiene improvement through volume control and contactless filling
5 / Automatic dummy bottles: Safer, easier cleaning procedures
6 / Automatic bottle changeover improves uptime
5 - NAVAN Bottle Cooling System.
- Mainly for cooling and sterilization
- The main parts of the machine are made of stainless steel, the top is designed to be openable for easy maintenance and observation
- Nozzles are manufactured using U.S. technology and spray water evenly
- Conveyor belt adopts Rexnor technology, flat surface with small wear
- Smooth and reliable operation with low energy consumption
- The main parts of the machine are made of stainless steel, the top is designed to be openable for easy maintenance and observation
- Nozzles are manufactured using U.S. technology and spray water evenly
- Conveyor belt adopts Rexnor technology, flat surface with small wear
- Smooth and reliable operation with low energy consumption
OPP Rotary Labeling Machine

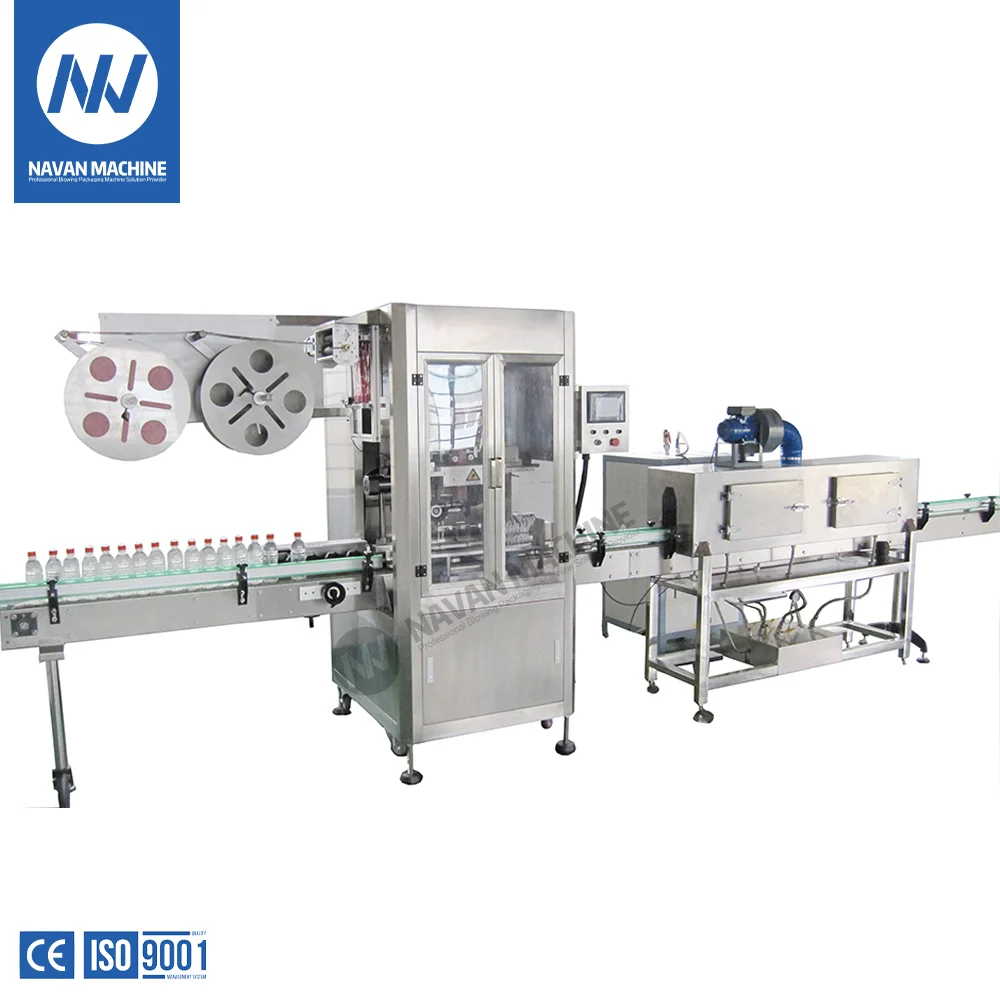

Shrink Sleeve Labeling Machine
Adhesive Labeling Machine
6 - NAVAN Machine Labeling Machine.
Boasting four carousel sizes, up to three labelling stations and 24 configurations, can generate outputs of up to 36,000
containers per hour, when standalone, at an efficiency rate of 98%.
Benefits
1 / Greater performance and ergonomics
2 / Boasted production uptime
3 / Sustainable and quality production
containers per hour, when standalone, at an efficiency rate of 98%.
Benefits
1 / Greater performance and ergonomics
2 / Boasted production uptime
3 / Sustainable and quality production
finished product display
Automatic Carton Packing Machine with hotling glue

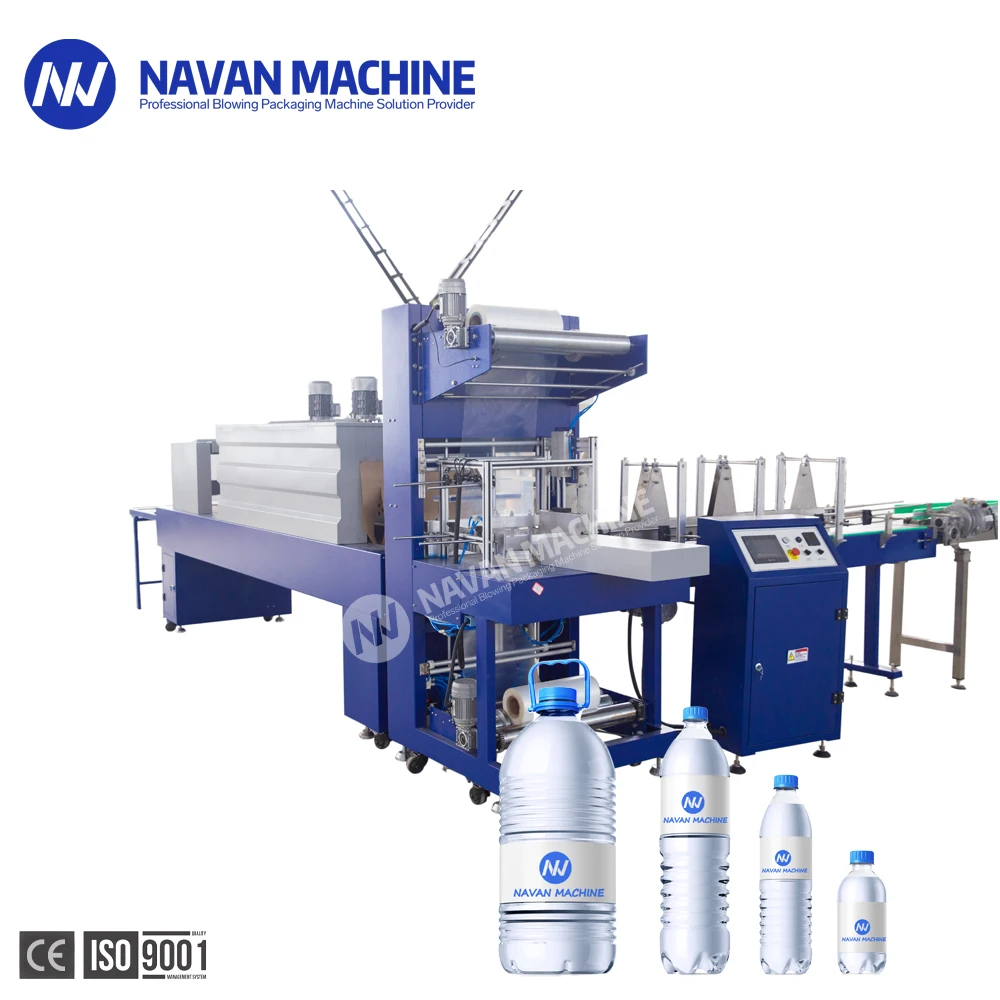

L Type Film Wrapping Packing Machine
Linear Type Film Wrapping Packing Machine
7 - NAVAN Machine Packing Machine.
Once your beverage product has been filled and the bottle has been labelled, the primary package is gently transferred using conveyors to its secondary packaging process. The final result is the package the customer sees at the point of sale, so it needs to grab their attention. These packs ensure protection from elements such as weather, pressure and temperature changes.Whether you choose shrink-printed film, nested packs or wraparound cartons, NAVAN Machine packers gently feed bottles to ensure durable and cost-effective packs.
BENEFITS.
1 / Pack consistency and quality
2 / Gentle and precise infeed configuration
3 / Flexible handling of multiple SKUs
4 / Automatic pack and raw material changeovers
5 / Heat, glue, carton and film optimisation
BENEFITS.
1 / Pack consistency and quality
2 / Gentle and precise infeed configuration
3 / Flexible handling of multiple SKUs
4 / Automatic pack and raw material changeovers
5 / Heat, glue, carton and film optimisation
Would like to know more about NAVAN Machine equipments, feel free to send us an inquiry!
Finished Product Display
NAVAN Factory Competitive Prices Beer Complete Line Solution for Glass Bottle Beer
Product Paramenters
Model | BCGF18-18-6 | BCGF24-24-6/8 | BCGF32-32-8 | BCGF40-40-10 | BCGF50-50-12 | |||||
Application | Beer /aerated drink / Sparkling Drink and so on | |||||||||
No. of Rinsing/Filling/Capping | 18-18-6 | 24-24-6/8 | 32-32-8 | 40-40-10 | 50-50-12 | |||||
Production Capacity(500ml) | 3000BPH | 6000BPH | 8000BPH | 12000BPH | 15000BPH | |||||
Filling precision | ≤±3mm(liquid level) | ≤±5mm(liquid level) | ≤±5mm(liquid level) | ≤±5mm(liquid level) | ||||||
Filling temperature | 0~5℃ | |||||||||
User Ambient Conditions | Temperature:10~40℃; Humidity: No dew | |||||||||
Suitable bottle specification | Volume=200-2000ml Diameter φ=50-100mm Bottle height H=150 ~350mm | Volume=100-2000ml Diameter φ=50-105 Bottle height H=150 ~340mm | ||||||||
Bottle type | Glass Bottle / Metal Bottle | |||||||||
Bottle neck/Cap Style | Metal Crown Cap φ=24-28mm | |||||||||
Machine material | Food stage SS304 OR SS316 | |||||||||
Air source pressure | 0.15~0.5Mpa | |||||||||
Filling way/principle | Isobar filling method / Twice vacuumized | |||||||||
Control system | SIMENS PLC+ TOUCH SCREEN | |||||||||
Features | No Bottle No Filling No Bottle No Capping | |||||||||
Main Power | 2.75kw | 3.18kw | 4.18kw | 7.68kw | 11.0kw | |||||
Power Supply | Voltage:220V~480V, 3phase; Frequency: 50HZ/60HZ or your requirement | |||||||||
Overall dimensions (mm) | 2550*2220*2400 | 3280*2220*2400 | 4430*2880*3220 | 4650*3200*3200 | 4987*3846*3200 | |||||
Weight (kg) | 3800 | 5000 | 6800 | 8800 | 11000 | |||||
All machines could be customized , we could design and produce machines according to your request. | ||||||||||
Recommend Products
Best Service
NAVAN Machine Services Online.
NAVAN Machine Services Online gives you fast and easy online access to your Installed Base to order your NAVAN Machine original spare parts and explore the Options & Upgrades relevant for your line.
It is a user-friendly interface, available 24/7, in different languages, and is your one-stop online shopping. Designed to make your life easier in your day to day business, it will help you to improve your line and maintain its performance.
It is a user-friendly interface, available 24/7, in different languages, and is your one-stop online shopping. Designed to make your life easier in your day to day business, it will help you to improve your line and maintain its performance.
NAVAN Machine Services Online helps you:
1 - Machine running video
2 - Watch our factory online
3 - Quick reponse on technicial supports
1 - Machine running video
2 - Watch our factory online
3 - Quick reponse on technicial supports
Options & Upgrades.
Beverage producers need to be able to meet the demands of an evolving beverage industry, and NAVAN Machine is committed to ensuring optimal productivity and performance over your line's entire lifetime. With NAVAN Machine Options & Upgrades, new technologies or refurbished components help to maintain or even improve performance - without replacing your entire line.
Options: New functionalities that optimise flexibility and costs
Upgrades: New technologies that improve performance, safety, hygiene and resource savings
Since we built your line, we have a comprehensive understanding of its design, and our engineering experts can analyse equipment and processes to determine how to strengthen performance. As new technologies and solutions are introduced to the market, we ensure that your production benefits accordingly, so you can stay on target in a changing, competitive marketplace.
NAVAN Machine Options & Upgrades helps you:
1 - Boost product quality
2 - Increase efficiency
3 - Reduce Total Cost of Ownership
4 - Future-proof your productivity
5 - Browse our online catalogue
Options: New functionalities that optimise flexibility and costs
Upgrades: New technologies that improve performance, safety, hygiene and resource savings
Since we built your line, we have a comprehensive understanding of its design, and our engineering experts can analyse equipment and processes to determine how to strengthen performance. As new technologies and solutions are introduced to the market, we ensure that your production benefits accordingly, so you can stay on target in a changing, competitive marketplace.
NAVAN Machine Options & Upgrades helps you:
1 - Boost product quality
2 - Increase efficiency
3 - Reduce Total Cost of Ownership
4 - Future-proof your productivity
5 - Browse our online catalogue

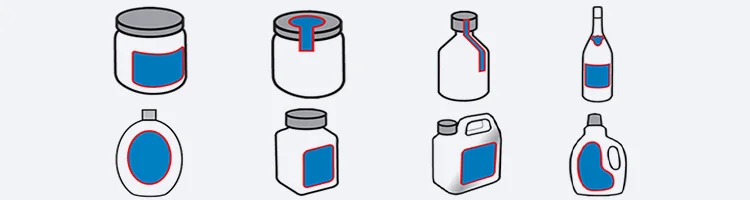

Label Design.
We can provide the label design according to the bottle size, the icon style you want.

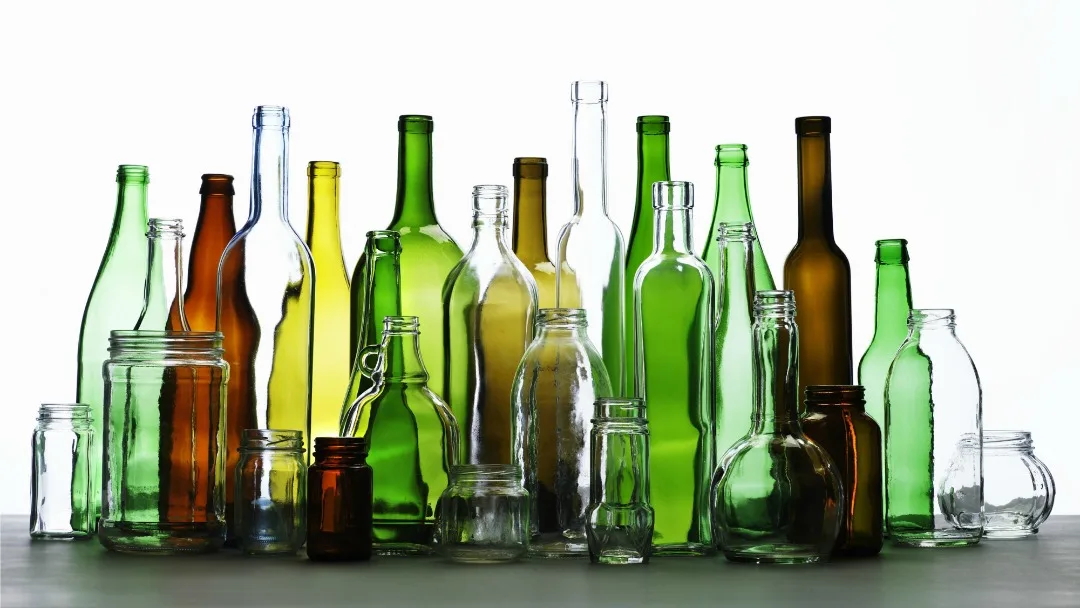

Bottle Design.
Our designers can design bottle styles according to your requirement.

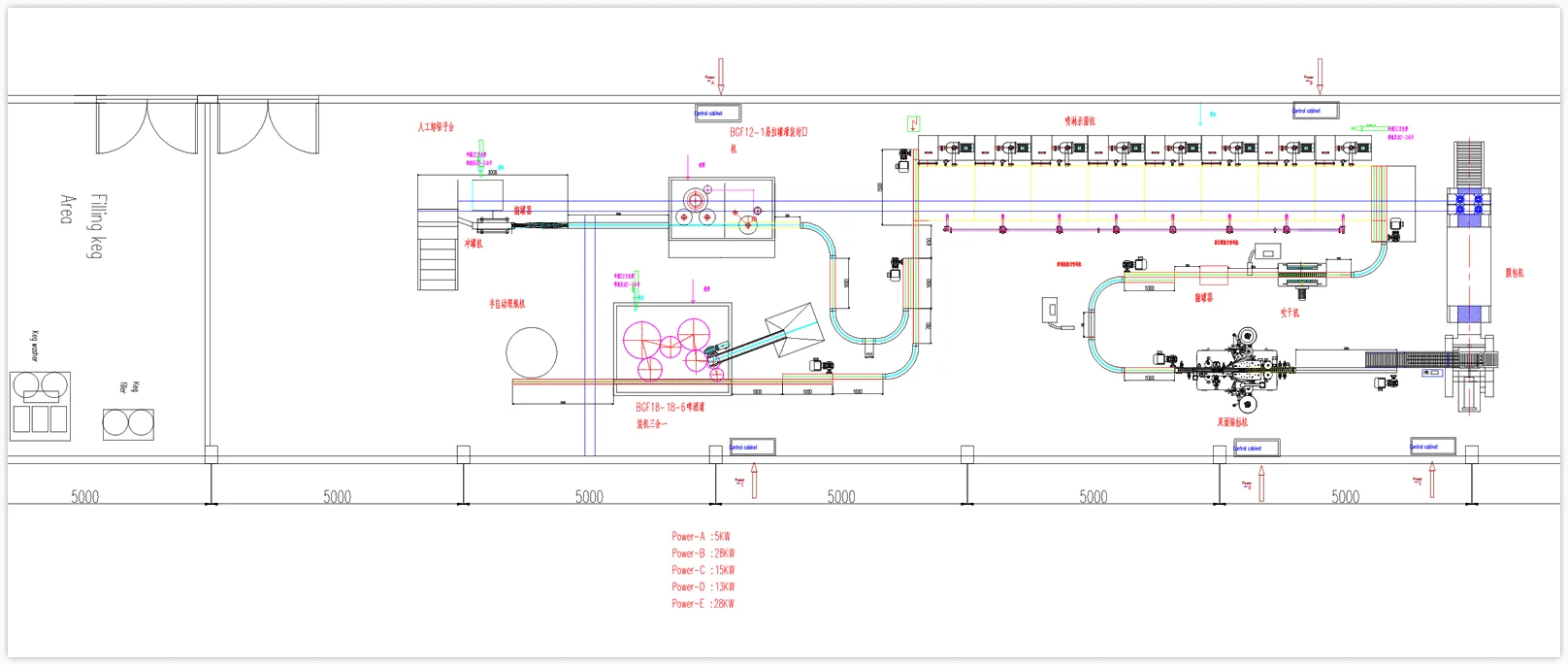

Machine Layout.
We will design andconfirm the machine layout according to your factory sketch.
Why Choose Us
NAVAN Machinery.
About Us
Navan Industrial has invested its best resources in technical research, to design and realize innovative in bottle blowing, filling, capping , labeling and packing systems which enable to respond and reach different demands and achieve new goals everyday, seizing the market's expectations in the pass years .At the same time , we also provides turn-key services for customers, from plant layout, equipment manufacturing, production line setup, to operators training. We are always trying our best to meet the demands of our customers continuously and seeking for mutual development.
Today Navan has enhanced its exsitence both in domestic and global market. Thanks to its various and perfect cases, we provide our customers with delicated and customized solutions at quick response. Navan machines are utilized in large and small companies all around the world since 1990s.
Massive experience gained through the years of water, juice , soft drink , beer, honeys, sauces etc., with all the abundant experience we are able to deal with any problems related to specific customers requirements, such as daily or special products., and perfect the creation of various machine to satisfy any customer's demands.
Development History
1993 , Tengfei Beverage Machinery factory was founded by DR HONGBING LI in
1996 , 2000~6000BPH Linear type Isobaric filling production line was developed
2005, Start the production of Triblock( three-in-one) drinking water machine
2008, the country's first PET soda water production line was made successfully
2009, Annual sales exceeding 20 million Chinese Yuan
2010 ,Annual sales exceeded 30 million yuan thanks to the fresh juice production line/glucose beverage broke out in China market
2017, we set foot in the high-end glass bottle production line, with sales exceeding 50 million Chinese yuan
2017, NAVAN Industrial was established in October 2017 to open up the international market
2021 , NAVAN(TENGFEI) registered NN trademark and invest more in developing the international market .
1993 , Tengfei Beverage Machinery factory was founded by DR HONGBING LI in
1996 , 2000~6000BPH Linear type Isobaric filling production line was developed
2005, Start the production of Triblock( three-in-one) drinking water machine
2008, the country's first PET soda water production line was made successfully
2009, Annual sales exceeding 20 million Chinese Yuan
2010 ,Annual sales exceeded 30 million yuan thanks to the fresh juice production line/glucose beverage broke out in China market
2017, we set foot in the high-end glass bottle production line, with sales exceeding 50 million Chinese yuan
2017, NAVAN Industrial was established in October 2017 to open up the international market
2021 , NAVAN(TENGFEI) registered NN trademark and invest more in developing the international market .
Factory Show.
<1> Standardized workshop of total 3,000 square meters.
<2>The equipment will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline, and pneumatic, electrical and mechanical stability.
<3>Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.
<4>Engineers are experienced. We can produce different products with different capacities and work out reasonable flow chart as per customers’ requirements to save space.
<5>Professional installation team who can speak fluent English can help customers make benefits in the shortest time.
<2>The equipment will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline, and pneumatic, electrical and mechanical stability.
<3>Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.
<4>Engineers are experienced. We can produce different products with different capacities and work out reasonable flow chart as per customers’ requirements to save space.
<5>Professional installation team who can speak fluent English can help customers make benefits in the shortest time.
Certificates.
Verification Certificates of equipments: ISO9001:2001; CE Certificate , SGS-COC , TUV
National Certificate of equipment verification:standard organisation of Nigeria , CNCA certificate, Logo trademark
registration,etc.
National Certificate of equipment verification:standard organisation of Nigeria , CNCA certificate, Logo trademark
registration,etc.
Customers.
We are a professional manufacturer of beverage machinery in China. With the scientific progressive conception of rapid introduction, we make our machinery cover all over the overseas market. We have been producing our goods with mature techniques and first-class quality.
FAQ
Q 1 When can I get installation from you? how much the cost?
When you finish the preparation conditions(water resource,electricity,air supply,production materials) according to our designed layout , please contact with our sales manager, we will dispatch engineer to you.
Inspect and improve connection jobs together with your team .
Guide your staff to operate machines , and explain how to operate and maintain machines .
Collected your your comments on our machines , we will send feedback to our technical team to improve our machines continuously.
The customer should be responsible for the room, meals and board and the two-way air tickets and visa and fee as well the allowance 100 USD per day for each person. And should be also responsible for the engineer’s personal safety.
Note: Normally when your preparation is done,you can contact with our sales people and cooperate us to get the visa for the engineer and our engineer will be there within 15 days more or less .
Q 2 How long time for installation?
According your machines order,we will send one or two engineers to your plant,it will take about 15 days to 30 days.
Q 3 When can I get my machine after I paid?
Normally production time is around 30-60days , it depends on your ordered machines and quantity .
The shipping time is based on your destination port.(Usually we use Shanghai port , Ningbo Port as loading port )
Q 4 How about the spare parts?
We will send one year enough easy broken spare parts together with the machines together when delivery.
During the warranty time, we will supply the spare parts with our cost price including and delivery fees.
Q 5 What`s your payment term?
We accept TT , TT/LC/Western union.etc
Q 6 What`s your delivery term?
We provide EXW,FOB,CFR,CIF ... etc delivery terms.
Q 6 How to test machine before delivery?
We will connect all machines in line make them running over 8 hours non-stop , then take and send testing videos. Or we could live video inspection .
Q 7 How about the Packaging details?
Standard export packing to ensure that the product packaging integrity and safety. ( Heavy products adopt export plywood case packing with waterproof film . Small products use thick carton packing waterproof film)
Q 8 Are you a trading company or a manufacturer
We are a manufacturer(our factory name is ZHANGJIAGANG TENGFEI BEVERAGE MACHINERY FACOTRY established in 1993 and sale & engineering company is ZHANGJIAG NAVAN INDUSTRIAL CO.,LTD established in 2017 ), we offer the factory direct supply price machine with good quality, welcome to visit us !
Q 9 Do you have reference project?
We have reference project in most countries. After getting the permission of the customer who has brought the machines from us ,we will send you their contact information and arrange your visiting to their factory.
And you are always welcome to come to visit our factories ,and inspect the machine running in our factory .We will be glad offer necessary supports on hotel booking , transportation , VISA application. OR you can get video of our reference running machine on our website too .
Q 10 Do you provide turnkey project?
YES Turnkey project is available .We can help you to start a new beverage / water factory from A to Z.
Q 11 Do you have agent and after-service stations?
So far we have agent in Kampala ,Uganda and Dubai ,UAE .You are mostly welcomed to join us!
Q 12 Do you have any certificate?
We have been certificated by the famous certification authority such as CE , ISO, SGS ...etc
Q 13 Do you provide customized service?
We are able to develop the machines according your requirements(material ,power,filling type,the kinds of the bottles,and so on),at the same time we will offer you professional advice based on our 30+ years beverage machine industrial experience.
Q 14 What`s your guarantee or the warranty of the quality if we buy your machines?
We offer you high quality machines with 1 year guarantee and supply life-long technical support for free .
When you finish the preparation conditions(water resource,electricity,air supply,production materials) according to our designed layout , please contact with our sales manager, we will dispatch engineer to you.
Inspect and improve connection jobs together with your team .
Guide your staff to operate machines , and explain how to operate and maintain machines .
Collected your your comments on our machines , we will send feedback to our technical team to improve our machines continuously.
The customer should be responsible for the room, meals and board and the two-way air tickets and visa and fee as well the allowance 100 USD per day for each person. And should be also responsible for the engineer’s personal safety.
Note: Normally when your preparation is done,you can contact with our sales people and cooperate us to get the visa for the engineer and our engineer will be there within 15 days more or less .
Q 2 How long time for installation?
According your machines order,we will send one or two engineers to your plant,it will take about 15 days to 30 days.
Q 3 When can I get my machine after I paid?
Normally production time is around 30-60days , it depends on your ordered machines and quantity .
The shipping time is based on your destination port.(Usually we use Shanghai port , Ningbo Port as loading port )
Q 4 How about the spare parts?
We will send one year enough easy broken spare parts together with the machines together when delivery.
During the warranty time, we will supply the spare parts with our cost price including and delivery fees.
Q 5 What`s your payment term?
We accept TT , TT/LC/Western union.etc
Q 6 What`s your delivery term?
We provide EXW,FOB,CFR,CIF ... etc delivery terms.
Q 6 How to test machine before delivery?
We will connect all machines in line make them running over 8 hours non-stop , then take and send testing videos. Or we could live video inspection .
Q 7 How about the Packaging details?
Standard export packing to ensure that the product packaging integrity and safety. ( Heavy products adopt export plywood case packing with waterproof film . Small products use thick carton packing waterproof film)
Q 8 Are you a trading company or a manufacturer
We are a manufacturer(our factory name is ZHANGJIAGANG TENGFEI BEVERAGE MACHINERY FACOTRY established in 1993 and sale & engineering company is ZHANGJIAG NAVAN INDUSTRIAL CO.,LTD established in 2017 ), we offer the factory direct supply price machine with good quality, welcome to visit us !
Q 9 Do you have reference project?
We have reference project in most countries. After getting the permission of the customer who has brought the machines from us ,we will send you their contact information and arrange your visiting to their factory.
And you are always welcome to come to visit our factories ,and inspect the machine running in our factory .We will be glad offer necessary supports on hotel booking , transportation , VISA application. OR you can get video of our reference running machine on our website too .
Q 10 Do you provide turnkey project?
YES Turnkey project is available .We can help you to start a new beverage / water factory from A to Z.
Q 11 Do you have agent and after-service stations?
So far we have agent in Kampala ,Uganda and Dubai ,UAE .You are mostly welcomed to join us!
Q 12 Do you have any certificate?
We have been certificated by the famous certification authority such as CE , ISO, SGS ...etc
Q 13 Do you provide customized service?
We are able to develop the machines according your requirements(material ,power,filling type,the kinds of the bottles,and so on),at the same time we will offer you professional advice based on our 30+ years beverage machine industrial experience.
Q 14 What`s your guarantee or the warranty of the quality if we buy your machines?
We offer you high quality machines with 1 year guarantee and supply life-long technical support for free .
Middle East Technical Supports
Majarlica Technical Services Supply Solutions
Warehouse No.#2, LAQ 97th St .Al Gouz Industrial 3 Al Qouz Dubai UAE
Africa Technical Supports
Choksi Engineering Uganda Limited
Add: Mango hill road conditions plaza office MP 40/1,Kampala , Uganda
Majarlica Technical Services Supply Solutions
Warehouse No.#2, LAQ 97th St .Al Gouz Industrial 3 Al Qouz Dubai UAE
Africa Technical Supports
Choksi Engineering Uganda Limited
Add: Mango hill road conditions plaza office MP 40/1,Kampala , Uganda
We Recommend
New Arrivals
New products from manufacturers at wholesale prices
