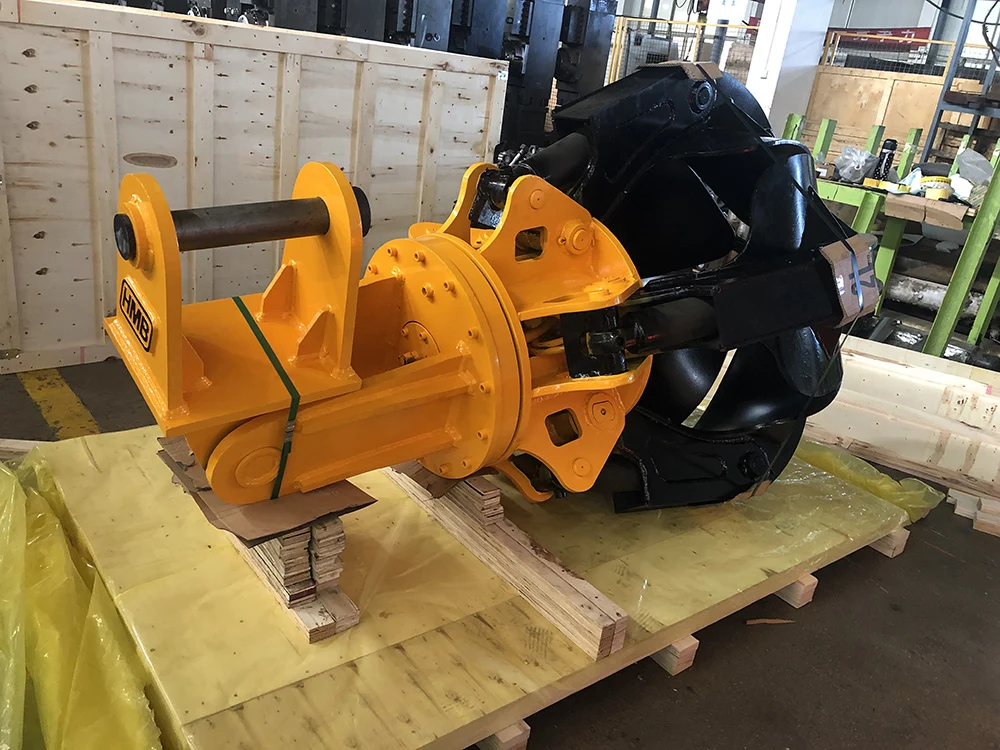

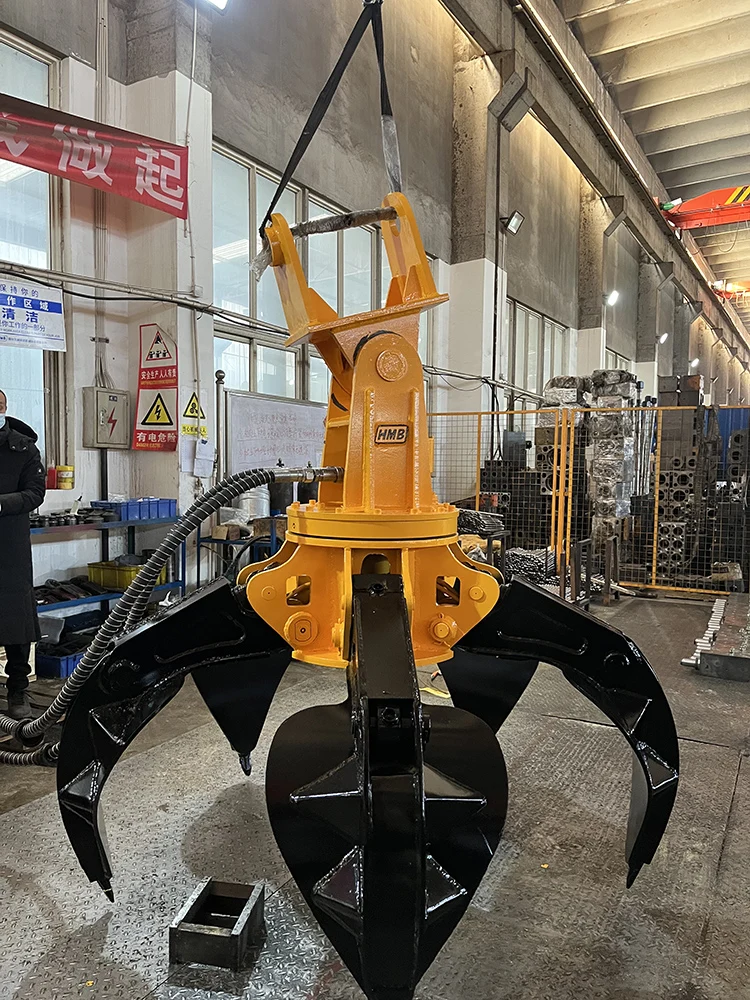

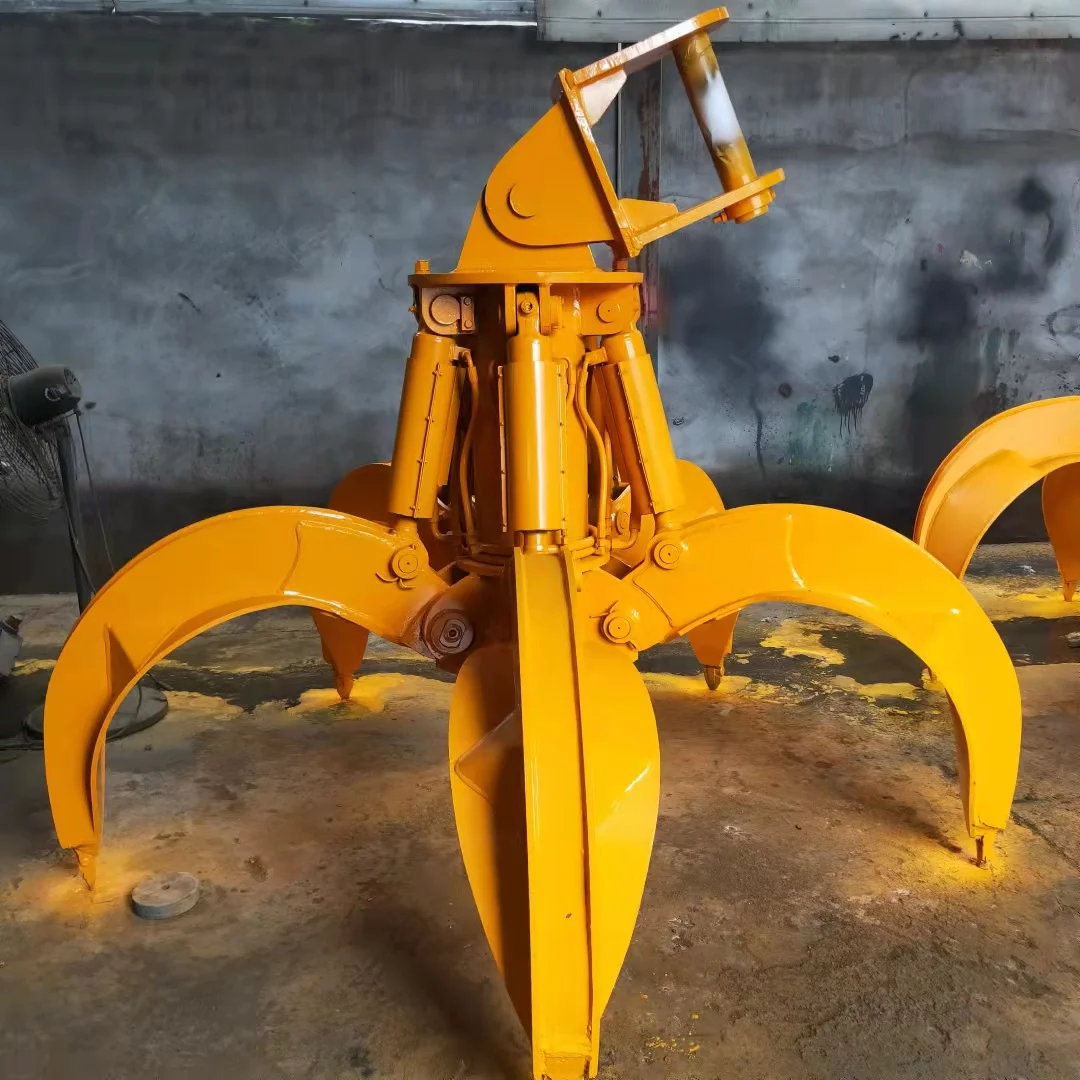

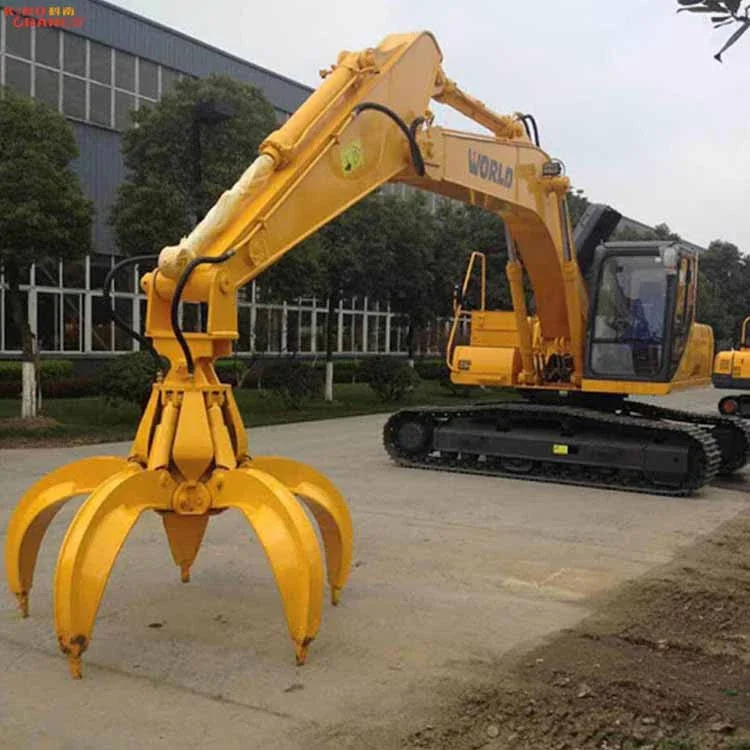

Excavator attachments steel scrap grabber Make Steel Scrap Yards hydraulic orange peel grapple
- Category: >>>
- Supplier: Yantai Jiwei Construction Machinery Equipment Co. LTD
Share on (1600570916235):
Product Overview
Description
Product Description
Model | Unit | HMB04 | HMB06 | HMB08 | HMB10 | HMB14 |
Dead-weight | kg | 550 | 1050 | 1750 | 2150 | 2500 |
Maximum Opening | mm | 1575 | 1866 | 2178 | 2538 | 2572 |
Open Height | mm | 900 | 1438 | 1496 | 1650 | 1940 |
Closed Diameter | mm | 600 | 756 | 835 | 970 | 1060 |
Closed Height | mm | 1150 | 1660 | 1892 | 2085 | 2350 |
Bucket Capacity | m3 | 0.3 | 0.6 | 0.8 | 1.0 | 1.3 |
Maximum Load | Kg | 800 | 1600 | 2000 | 2600 | 3200 |
Applicable for excavator | Ton | 8-11 | 12-17 | 18-25 | 26-35 | 36-50 |
Flow Demand | L/min | 50 | 90 | 180 | 220 | 280 |
Opening Times | L/min | 15 | 16 | 15 | 16 | 18 |

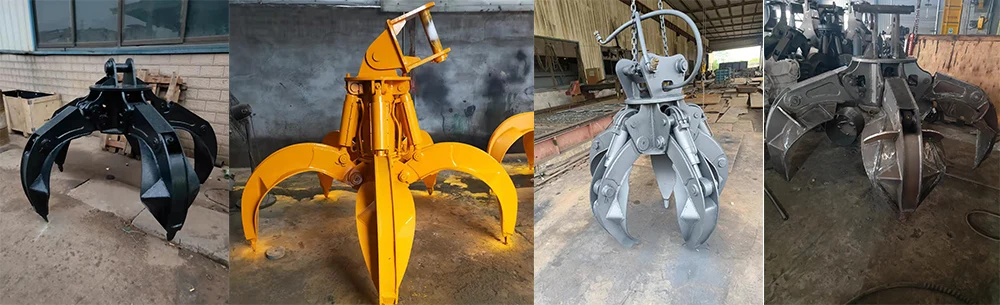

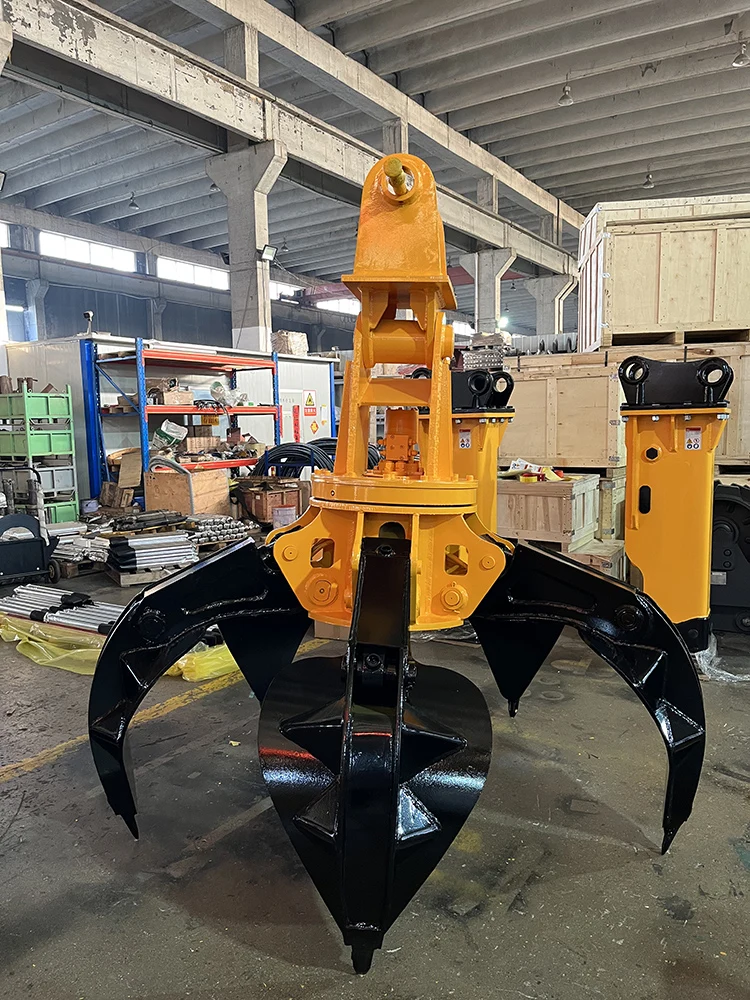

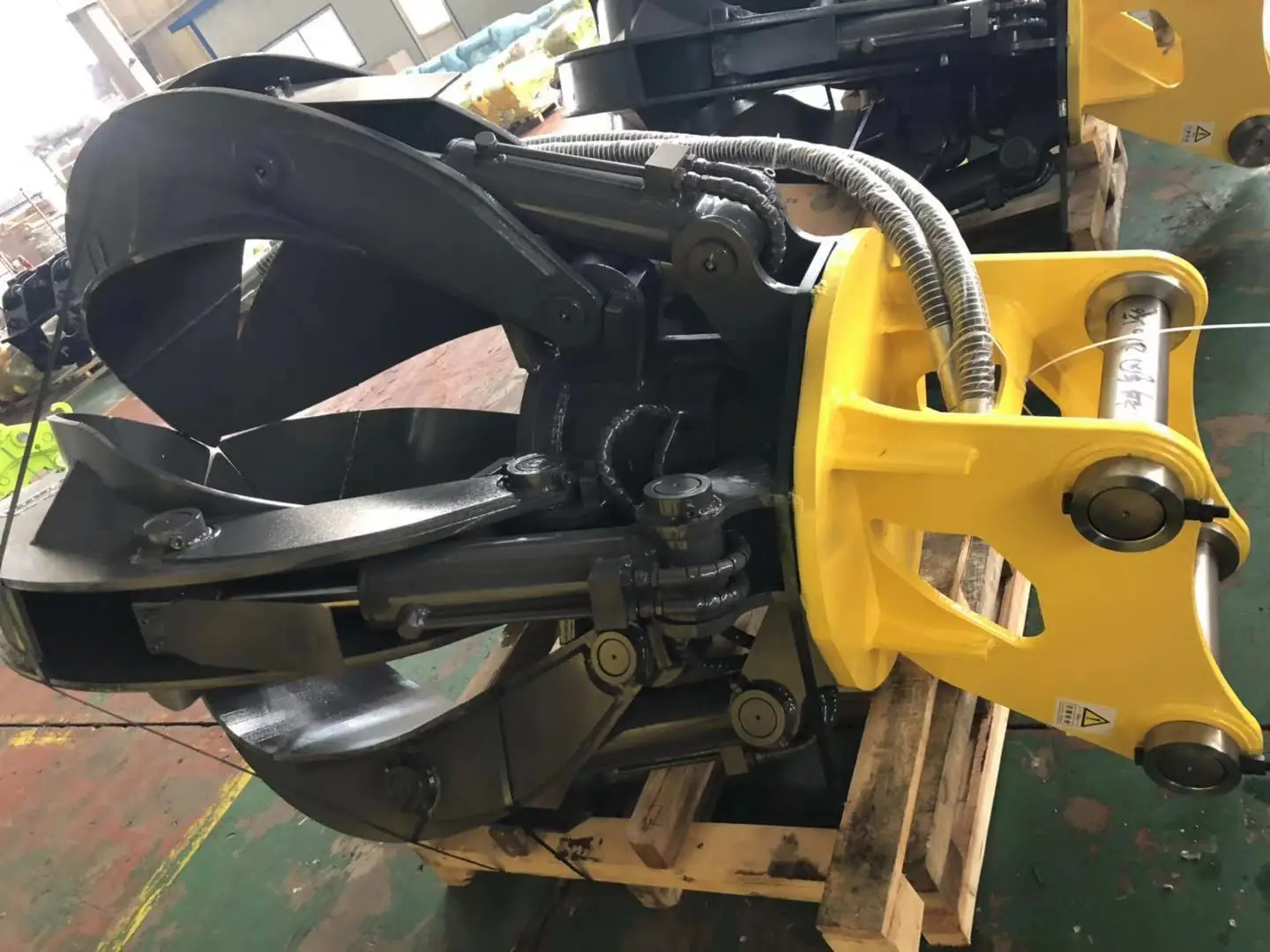

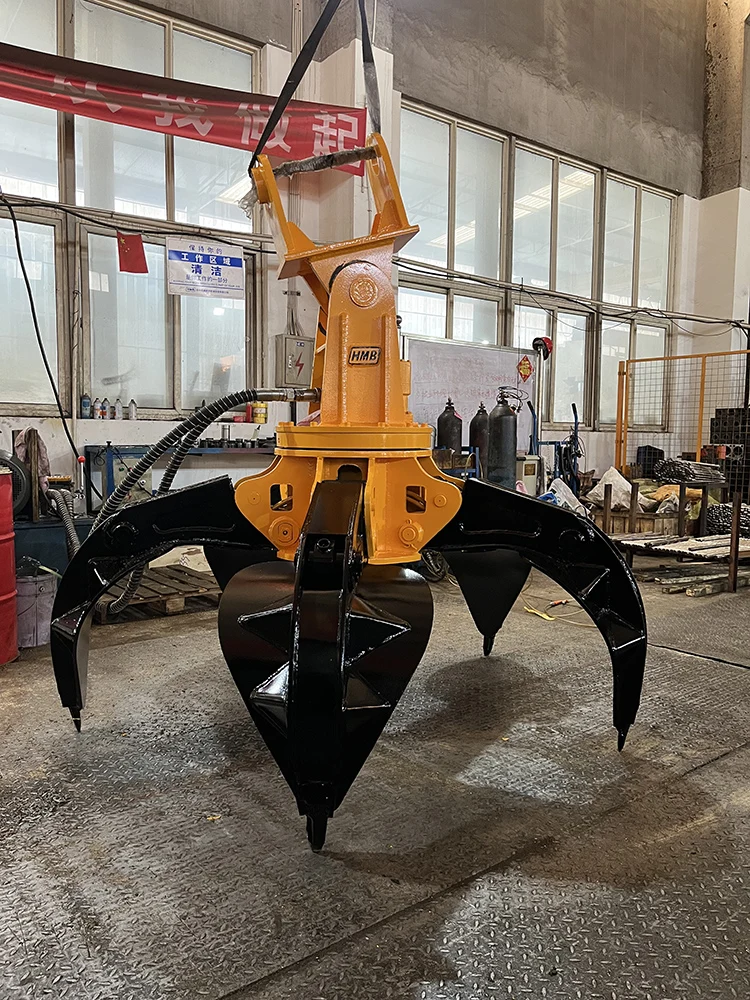

Hydraulic orange pel grapple
Product features
1.It adopts imported HARDOX400 sheet material,and is light in weightand excellent in wear resistance;
2.Amongthe same products,it has the largest grabbing force and widest grabbing distance;
3.It has built-in cylinder and high-prssure hose,and the oil circuit is completely closed,protecting the hose and prolonging the service life;
4.The cylinder is equipped with an abnti-fouling ring,which can effectively prevent the tiny impurity in the hydraulic oil from damaging seals.
Main Features

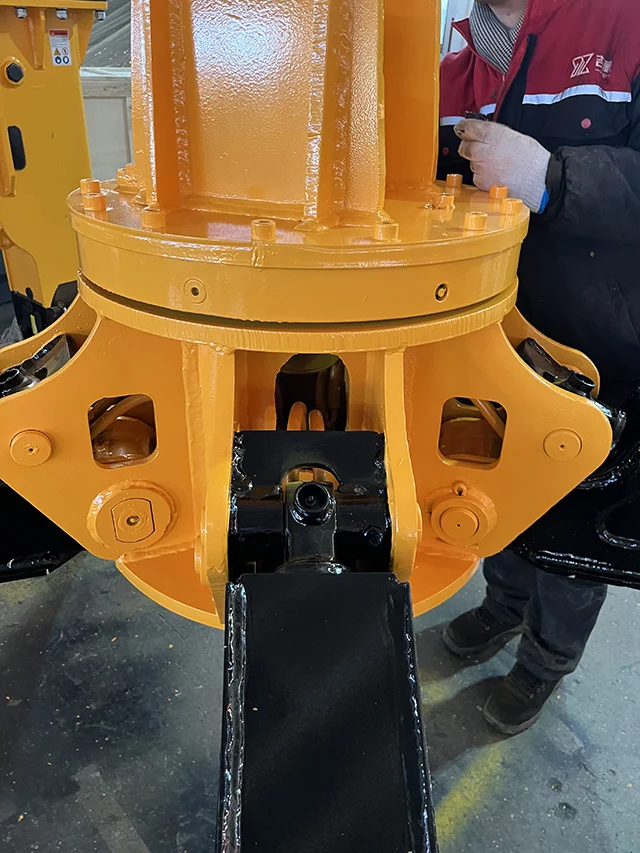

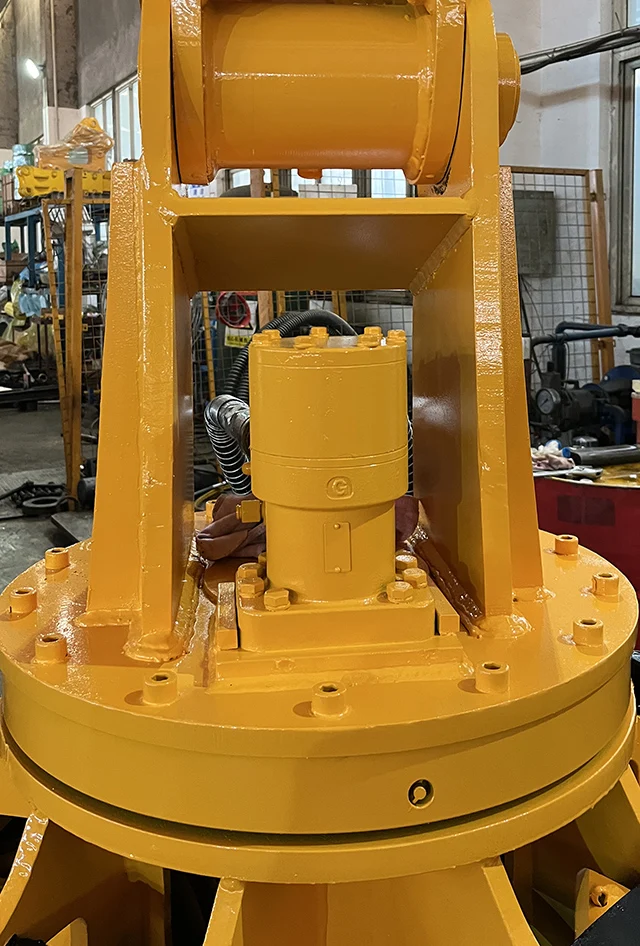

1.Driven by M+S motor with brake valve,cylinder with USA safety valve
2.Unlimied 360 degrees clockwise and couterclockwise rotation,operator can control the rotating speed
3.The built-in balancing valveof oil cylider has better impact resistance,and can makes it operate smoothly.
4.Durable material make it more stablity and durability.
5.customizability.

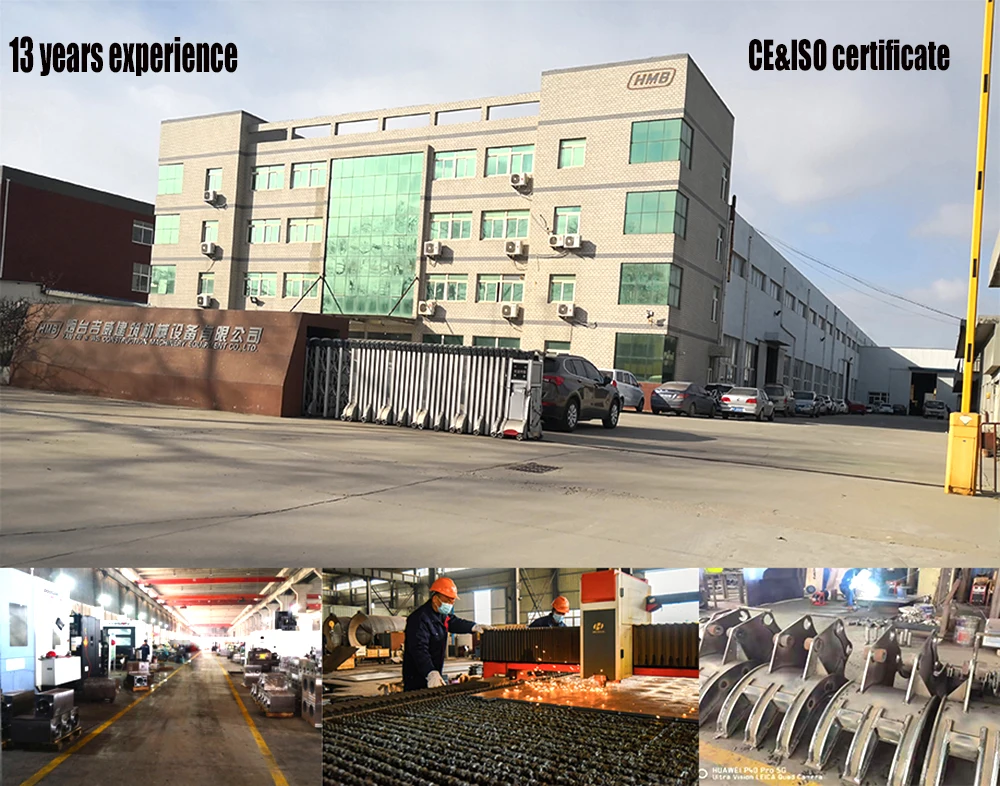

Company Introduction
Located in Yantai, Shandong province, established in 2009, Yantai Jiwei Construction Machinery Equipment Co.,Ltd registered HMB Brand in 2011. We started to develop oversea market in 2013.With 12 years experience, specialized in manufacturing Hydraulic Breakers, Quick Couplers, Excavator Palte Compactors, Earth Augers and Spare Parts. Our own brand "HMB" hydraulic breakers have full series and are compatible to all brands' excavators.
Exhibition Show
FQA
Q: Are you a manufacturer?
A: Yes,our factory was established in 2010.
Q: Are you sure your product will fit my excavator?
A: Our equipments are suitable for most excavators. Show us your excavator model, we'll confirm the solution.
Q: How about your products warranty?
A: 12 months warranty for hydraulic breaker, beyond the warranty period.
Q: Can you produce according to customers' design?
A: Sure, OEM/ODM service available. We are professional manufacturer in Yantai.
Q: What's the MOQ and payment terms?
A: MOQ is 1set. Payment via T/T,L/C, Western Union accepted, other terms can be negotiated.
Q: How about delivery time?
A: 5-25 work days after the payment.
Q: How about the package?
A: Our equipments wrapped by stretch film, packed by pallet or polywood case; or as requested.
Q: Which country have you exported?
A: Saudi Arabia, America, Thailand, Cyprus, India, Canada, Australia, Peru, Egypt, Brazil, Mexico, South Africa, etc.
