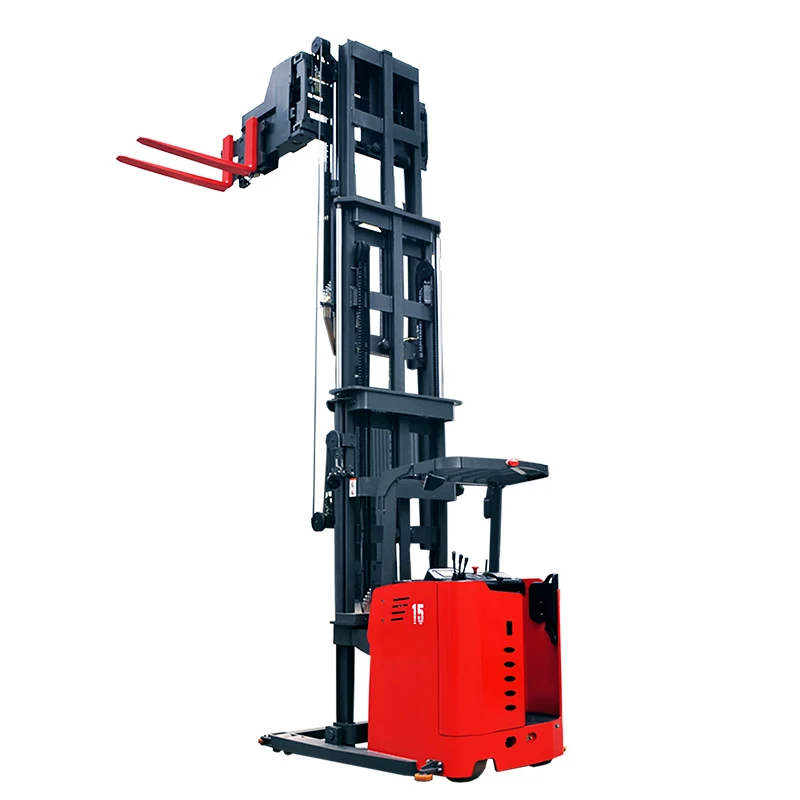

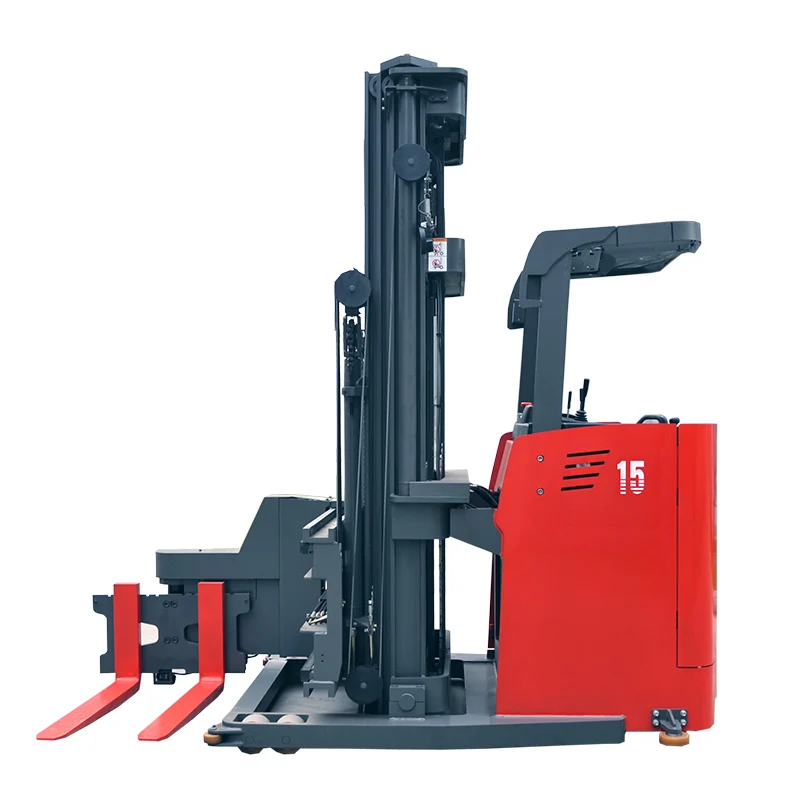

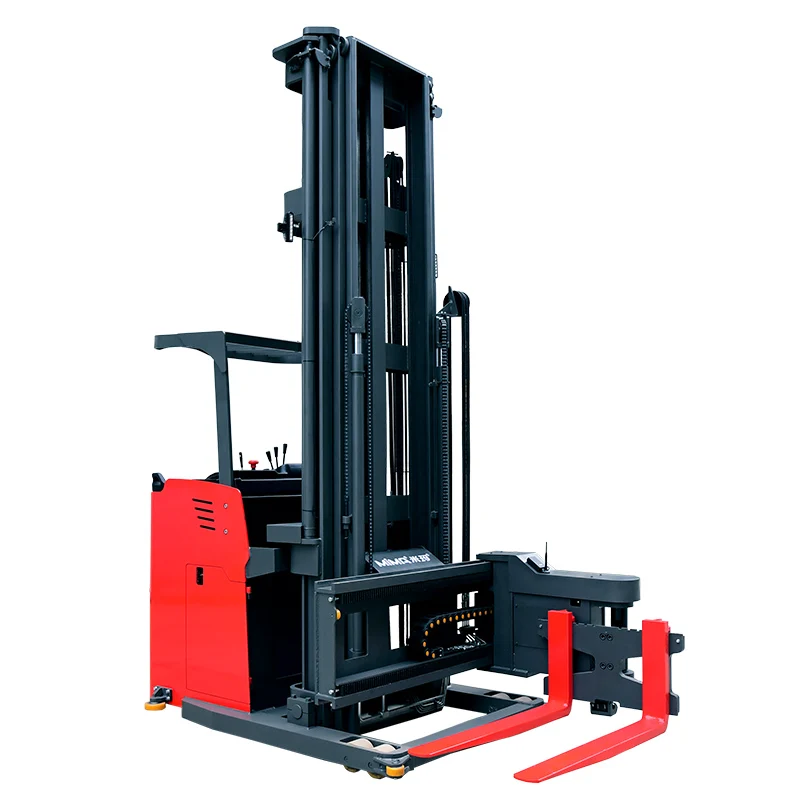

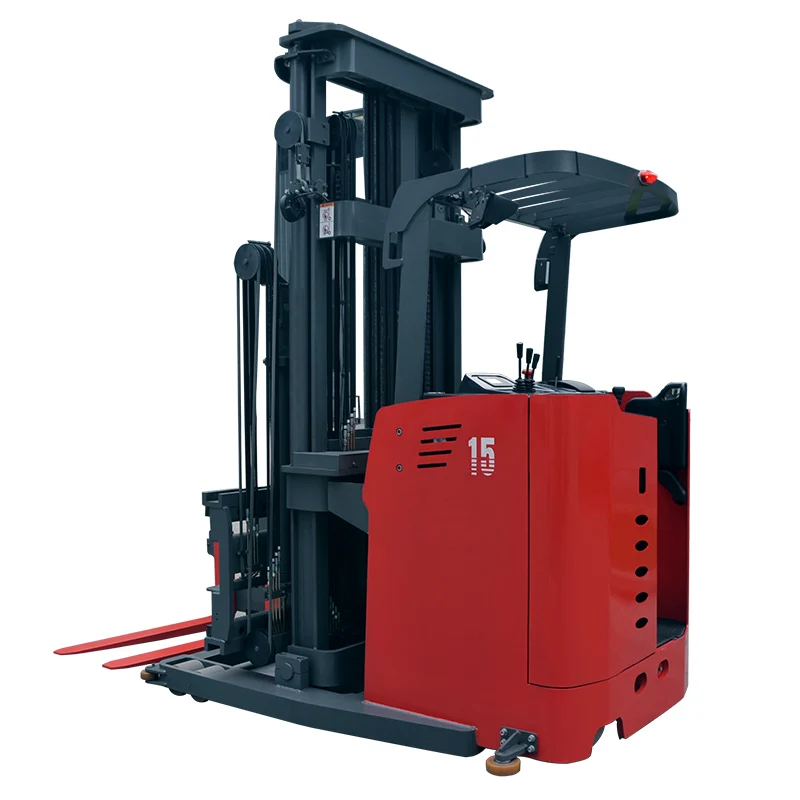

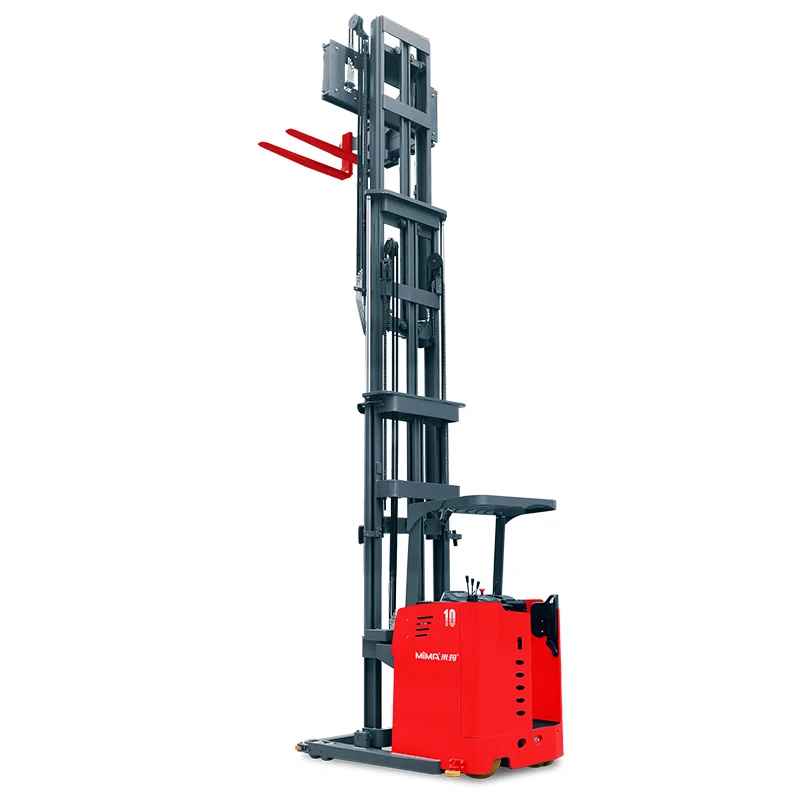

MIMA VNA Forklift 1.5 Tons Stand on Electric 3 Way Pallet Stacker for Narrow Aisle
- Category: >>>
- Supplier: Banyitong Science & Technology Developing Co. Ltd.
Share on (1600570928479):
Product Overview
Description
MiMA 1ton 1.5ton electric turret truck with rotating forks for very narrow aisle
Features:
1. Full AC system 2. The minimum working aisle is 1480mm, and the maximum lifting height is 10000mm 3. The mast is made of KRUPP steel from Germany, with good load capacity and stability 4. Turning speed limited, high speed limited, mast buffer and other safety functions escort;. 5. Electric steering, easy to operate rod design and multi-functional intelligent instrument panel, with wheel display function 6. Equipped with wireless camera, video color display and rotary positioning function of cargo fork, which makes stacking more safe and efficient 7. Standard side pull battery
8. American WHITE steering motor, safe and reliable
wireless camera and
video display
video display
The operator can adjust the steering wheel according to his position
Fully considering the human machine engineering console, each function button is convenient and easy to operate
The fork can rotate 180 degrees
Led warning light
Guide wheel
Brand | MiMA | MiMA | MiMA | MiMA | |
Model | MC10 (Duplex mast) | MC10 (Triplex full free mast) | MC15 (Duplex mast) | MC15 (Triplex full free mast) | |
Power Type | Battery | Battery | Battery | Battery | |
Operation Type | Stand-on | Stand-on | Stand-on | Stand-on | |
Rated Capacity | Q(kg) | 1000 | 1000 | 1500 | 1500 |
Load Center | C(mm) | 500 | 500 | 600 | 600 |
Lift height | h3(mm) | 3000 | 4500 | 3000 | 4500 |
Mast closed height | h1(mm) | 2595 | 2800 | 2570 | 2817 |
Free lift height | h2(mm) | 0 | 1690 | 0 | 1750 |
Mast extended height with load backrest | h4(mm) | 4085 | 5584 | 4040 | 5555 |
Forks size | l/e/s(mm) | 1000/125/50 | 1000/125/50 | 1200/125/50 | 1200/125/50 |
Turning radius | Wa(mm) | 1880 | 1880 | 1980 | 1980 |
Driving speed(load/unload) | km/h | 7.5/8 | 7.5/8 | 7.5/8 | 7.5/8 |
Lifting speed(load/unload) | mm/s | 240/290 | 240/290 | 260/300 | 260/300 |
Lowering speed(load/unload) | mm/s | 310/310 | 310/310 | 360/390 | 360/390 |
Battery voltage /capacity | V/Ah | 48/390 | 48/390 | 48/480 | 48/480 |
Steering system | EPS | EPS | EPS | EPS |
Hot Solution
for Very Narrow Aisle/Long Material Handling/Fully Automatic Handling
Man-up Turret Truck - MCC16
Rated Capacity: 1600kg
Max.lift height:14200mm
Battery: 80V560AH

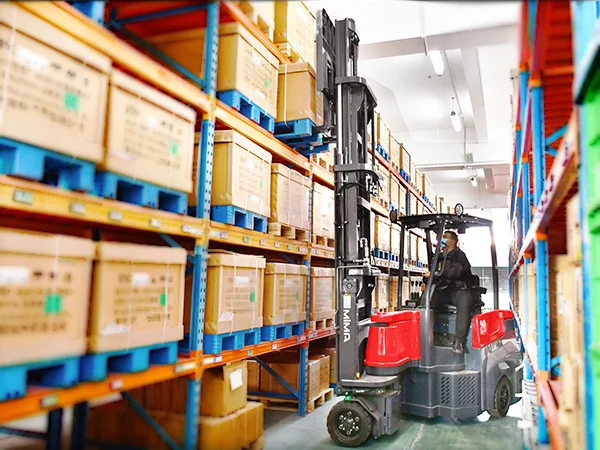

Articulated Forklift - MJ20
Rated Capacity: 2000kg
Max. lift height: 12500mm
Battery: 48V900AH/80V500AH
Seated 3-way Pallet Stacker - MCA15
Rated Capacity: 1500kg
Lifting height: 10000mm
Battery: 48V900AH

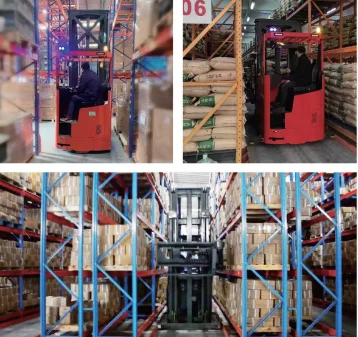

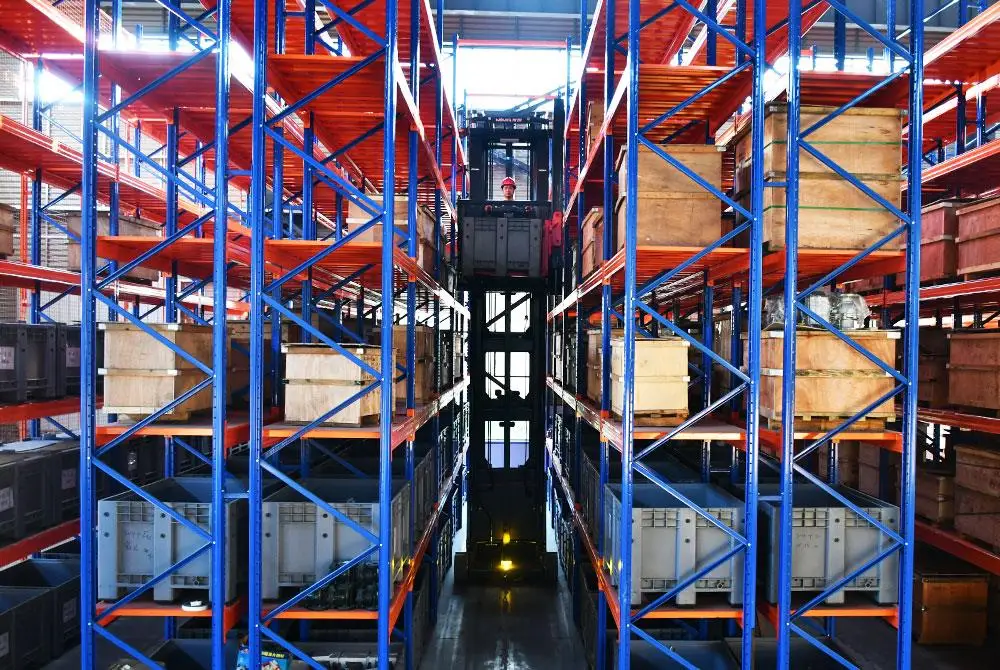

1. Ultra-high Storage Capacity Extremely Narrow Aisle.
2. Used in warehouses with aisles as narrow as 1.6 meters.
3. Efficient Picking Operation.
3. Efficient Picking Operation.
4. Multiple Driving Modes in the Aisle.
MJ20 - Features
1. Great reach and capacity means a 50% increase in warehouse storage and reduced costs.2. Used in warehouses with aisles as
narrow as 1.9 meters.
3. Indoor and outdoors opeartion.
4. The forklift is equipped with a mast swing angle of 210 degrees, an ultra-small turning radius, and flexible and comfortable
operation.
narrow as 1.9 meters.
3. Indoor and outdoors opeartion.
4. The forklift is equipped with a mast swing angle of 210 degrees, an ultra-small turning radius, and flexible and comfortable
operation.
1. The operation type is seated.
2. Ultra-high Storage Capacity Extremely Narrow Aisle.
3. Lifting height is 10000mm.
4. Through 180° rotation and left and right side movement of fork, the goods stacking and loading and unloading on both sides of roadway can be realized.
Company Introduction
MIMA Forklift

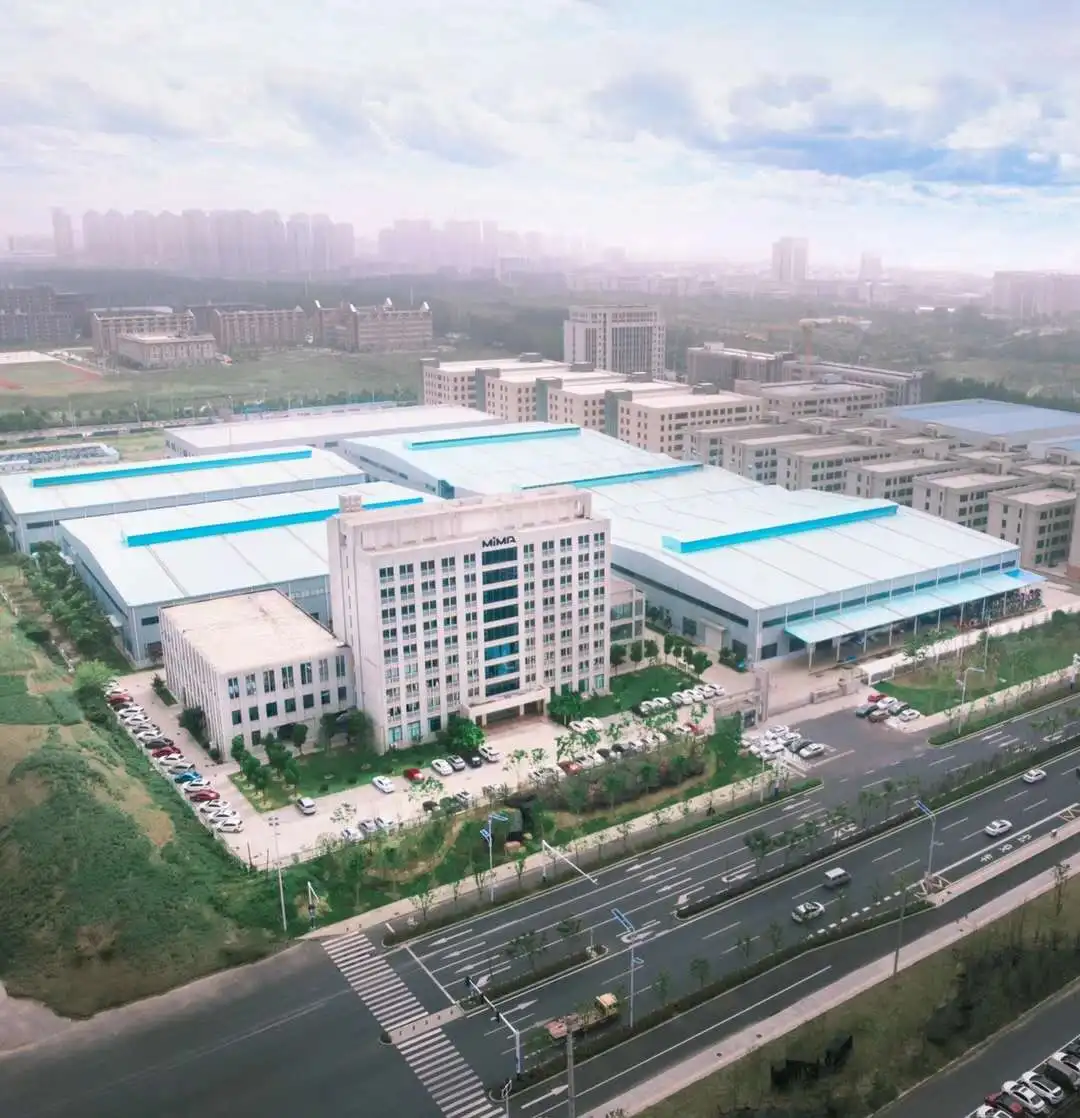

Founded in 1994, Banyitong Science & Technology Developing Co., Ltd. is a high-tech enterprise specializing in designing and manufacturing electric material handling equipments. The company covers an area of 72000 square meters with 420 employees. We are a national small giant enterprise with an R&D team of move than 60 staff. Relying on it, Banyitong has continuously developed and launched industry-leading innovative electric material handling equipments.
The brand MIMA, is interpreted as Min and Max! Standing for Min. Space,Max. Performance! We aim to create more excellent value for customers through our professional products and realize more fantastic dreams together with our customers.
Since its establishment more than 20 years ago, Banyitong has led the industry in narrow aisle storage, long material handling, heavy-duty, and AGV forklifts body. More than 100000 professional electric equipments have been widely used in all walks of life.
MIMA has more than 100 agents and distributors worldwide, which can quickly customers with timely and professional services. At the same time, the company has a professional direct sales team to provide professional material handling solutions for large customers.
“Safety, quality, innovation, service”has been the consistent business philosophy of the MIMA brand for more than 20 years. Every professional electric forklift produced by MIMA has undergone strict whole-process testing to create continuous use-value for customers.
The brand MIMA, is interpreted as Min and Max! Standing for Min. Space,Max. Performance! We aim to create more excellent value for customers through our professional products and realize more fantastic dreams together with our customers.
Since its establishment more than 20 years ago, Banyitong has led the industry in narrow aisle storage, long material handling, heavy-duty, and AGV forklifts body. More than 100000 professional electric equipments have been widely used in all walks of life.
MIMA has more than 100 agents and distributors worldwide, which can quickly customers with timely and professional services. At the same time, the company has a professional direct sales team to provide professional material handling solutions for large customers.
“Safety, quality, innovation, service”has been the consistent business philosophy of the MIMA brand for more than 20 years. Every professional electric forklift produced by MIMA has undergone strict whole-process testing to create continuous use-value for customers.
FAQ
1.Are you factory or trading company?
We are the factory which have been manufacture electric forklift for more than 20 years.
2.What is the delivery time?
Generally it is can delivery immediately if the goods are in stock. Or it is 15-30 days if the goods are out of stock.
3.What is the Payment?
TT(bank transfer), LC at sight or Alibaba , all will be accepted.
4.Is OEM & ODM available?
1). We can do the product according your design
2). We can provide customized solutions according your requirments.
5.Can you provide training for the customer?
Yeah. We can provide training for our customer.
6.What certification do you have?
Our company has passed ISO 9001:2008 and all of the forklift have CE certification.
7.How can I get the best price?
Price is the most concerning problem of every customer,if you want to know the price.We need to know your detailed requirements.
We are the factory which have been manufacture electric forklift for more than 20 years.
2.What is the delivery time?
Generally it is can delivery immediately if the goods are in stock. Or it is 15-30 days if the goods are out of stock.
3.What is the Payment?
TT(bank transfer), LC at sight or Alibaba , all will be accepted.
4.Is OEM & ODM available?
1). We can do the product according your design
2). We can provide customized solutions according your requirments.
5.Can you provide training for the customer?
Yeah. We can provide training for our customer.
6.What certification do you have?
Our company has passed ISO 9001:2008 and all of the forklift have CE certification.
7.How can I get the best price?
Price is the most concerning problem of every customer,if you want to know the price.We need to know your detailed requirements.
