Manufactory Direct Multifunctional Rice Hulling Machine Vibratory Screen Separate Paddy Straw Broken Rice Separator
- Category: >>>
- Supplier: Hunan Sunfield Machinery Co. Ltd.
Share on (1600570936832):
Product Overview
Description
Product Description
Model | 6LN-15/11B | ||
Rated output ( kg/h) | 500-600 | ||
Electromotor | YE2-180M-4/22KW | ||
Diesel engine | CF40M/40HP | ||
Rice milling rate | >65% | ||
Small broken rice rate | <4% | ||
Rubber roller dimension | 6 inch | ||
Steel roller dimension（mm） | φ110 | ||
Overall weight（kg） | 820 | ||
Dimension(L×W×H) (mm) | 2700×1800×2250 | ||
Packing dimension (mm) | 1800×1100×2300（ Rice mill） 980×500×850（ Diesel engine） | ||
Product Introduction

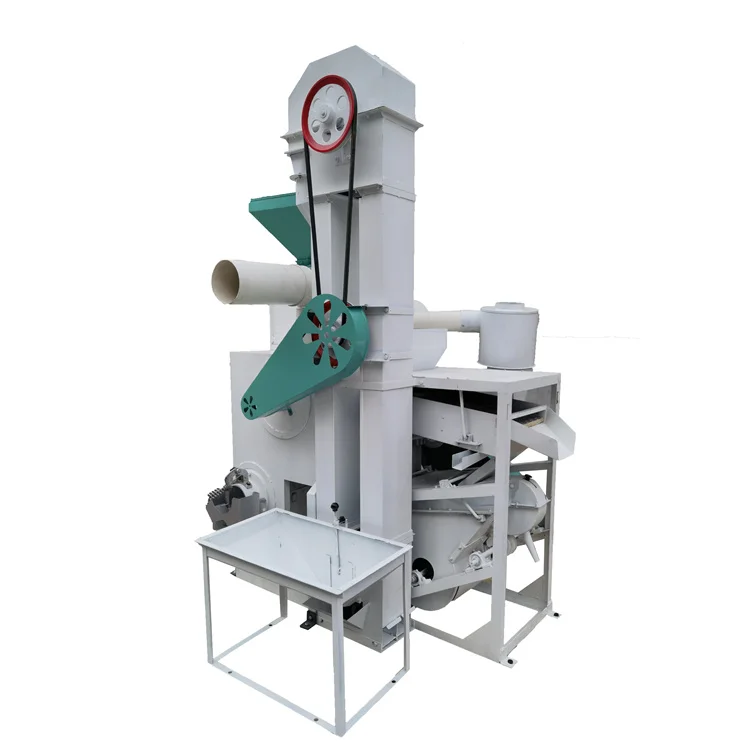

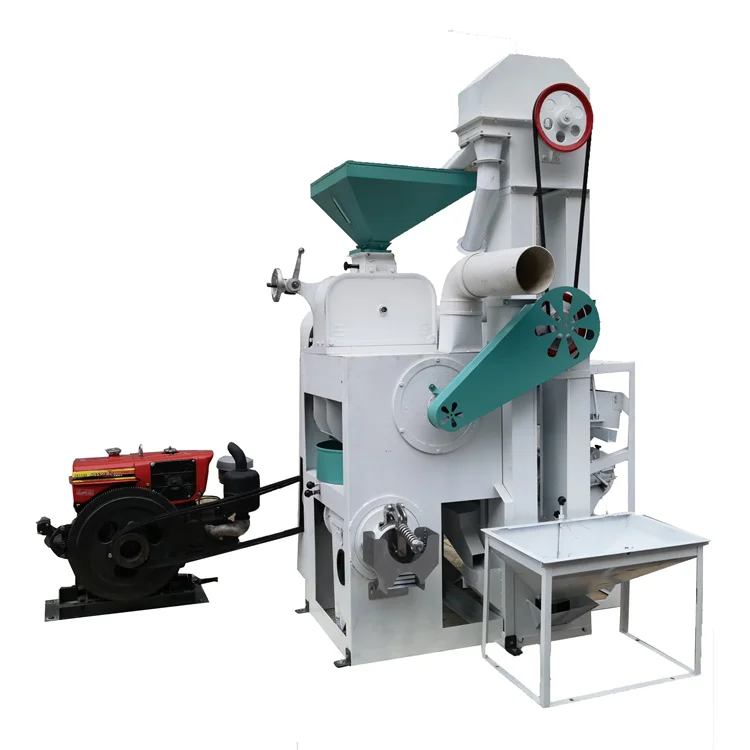

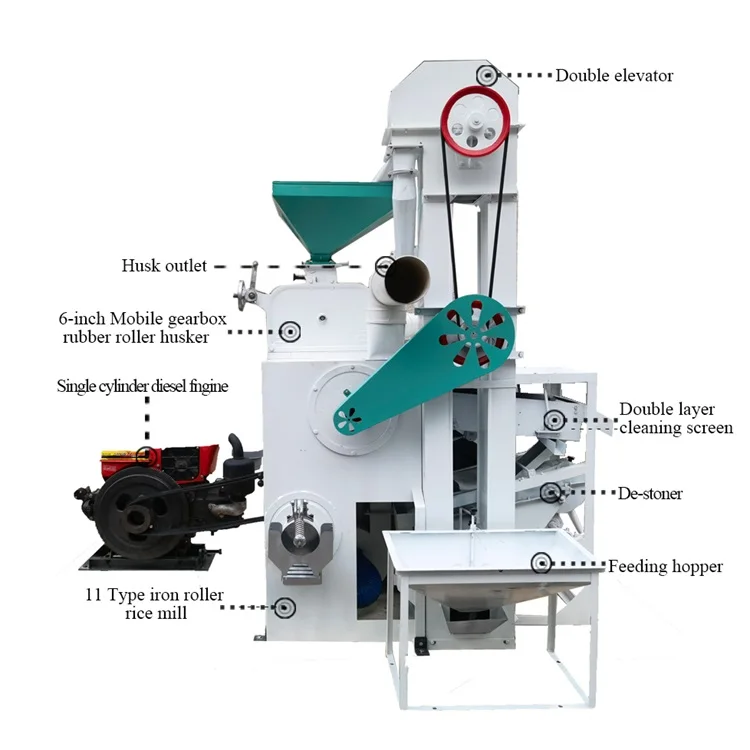

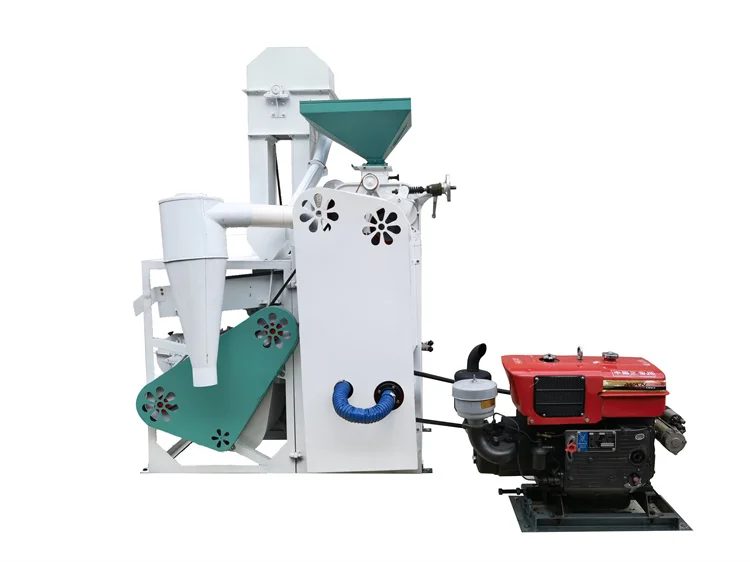

6LN-15/11B Combined Rice Milling machine is composed with TQS380 Cleaner and De-stoner, 6-inch Mobile gearbox rubber roller husker，11 Type Iron Roller Rice Mill, and Double Elevator. It features great cleaning, de-stoning, and rice whitening performance, compacted structure, easy operation, convenient maintenance and high productivity, reducing the leftovers at the maximum level. It is a kind of rice processing equipment especially suitable for the areas, where power is shorted.
Core competitiveness

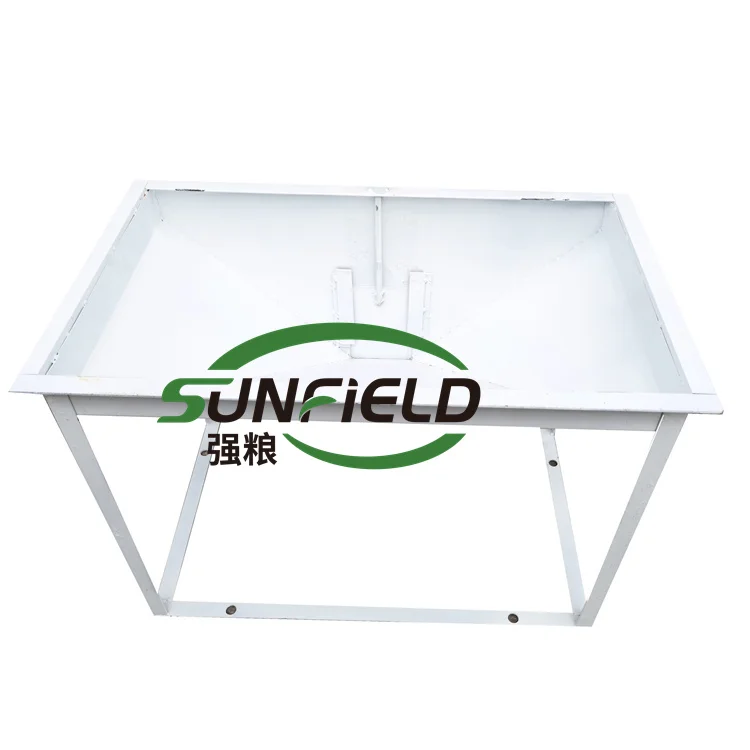

Steel frame structure, which is more stable and durable. It can hold a bag of rice at a time, which is low in height and easy to feeding.

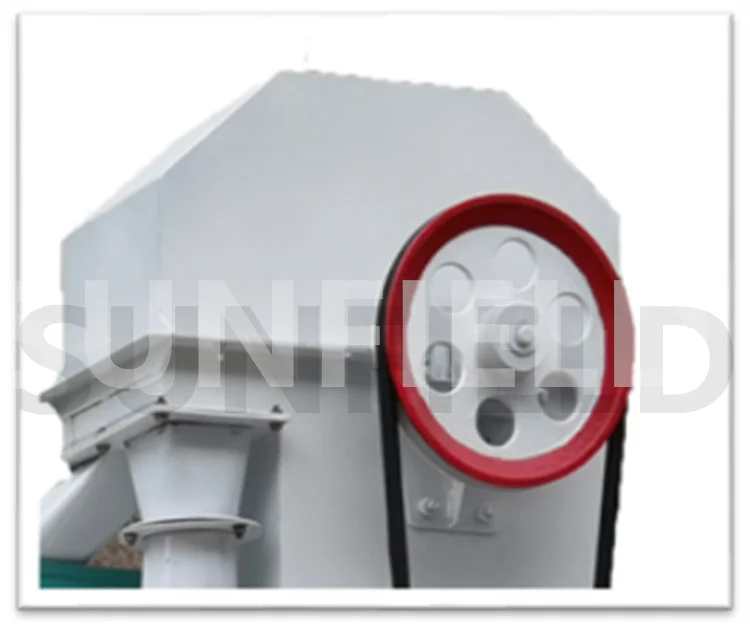

Double elevator is compact in structure and low in energy consumption. One side of lifting transports the uncleaned rice from paddy inlet, it flows into the other side of the lifting and transports to husker machine for shelling after being cleaned and treated by the stone removing machine. The two common powers for lifting do not interfere with each other.

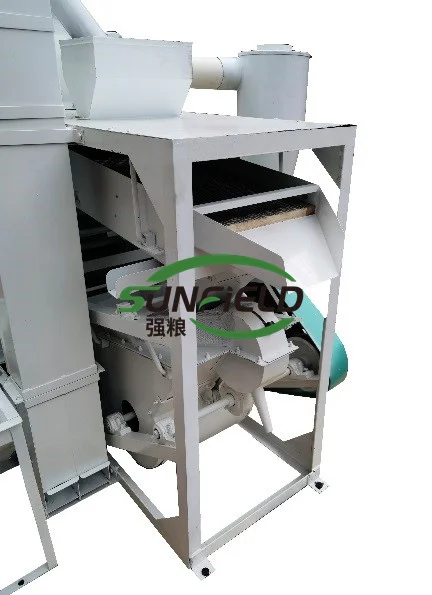

③ Flat Rotary Cleaning Sieve

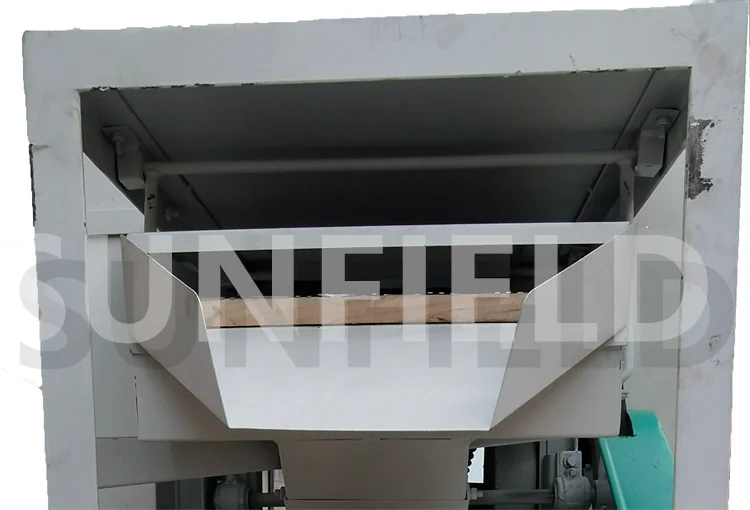

Two-layer Flat Rotary Cleaning Sieve, the first layer sieve can effectively remove the large and medium impurities such as straw and rice leaves in the rice, the rice enters the second layer sieve, screens out the fine grass seeds, dust, etc. The impurities in paddy will be cleaned with high efficiency.

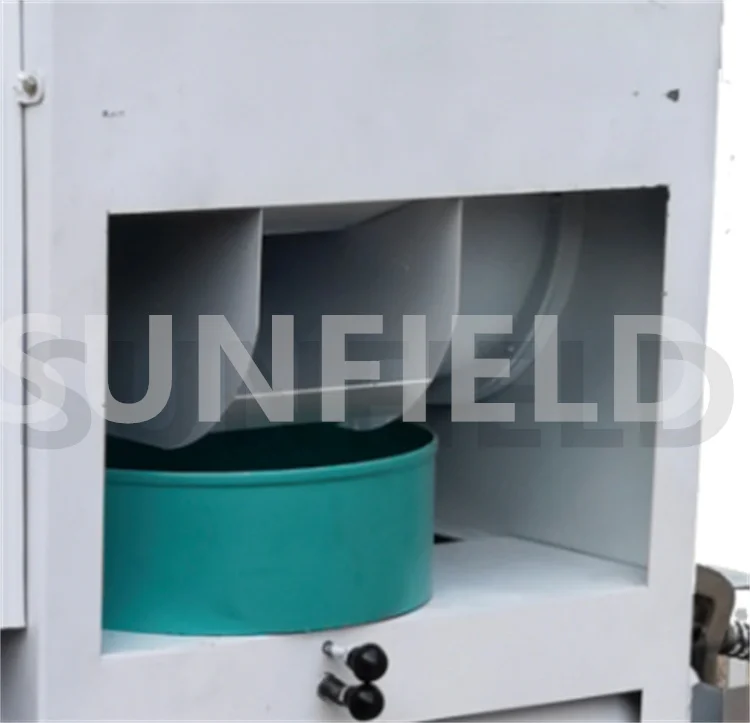

④ De-stoner
The de-stoner adopts a large air volume blow design, which has a large air volume and efficiently removes stones that cannot be screened by the cleaning sieve.

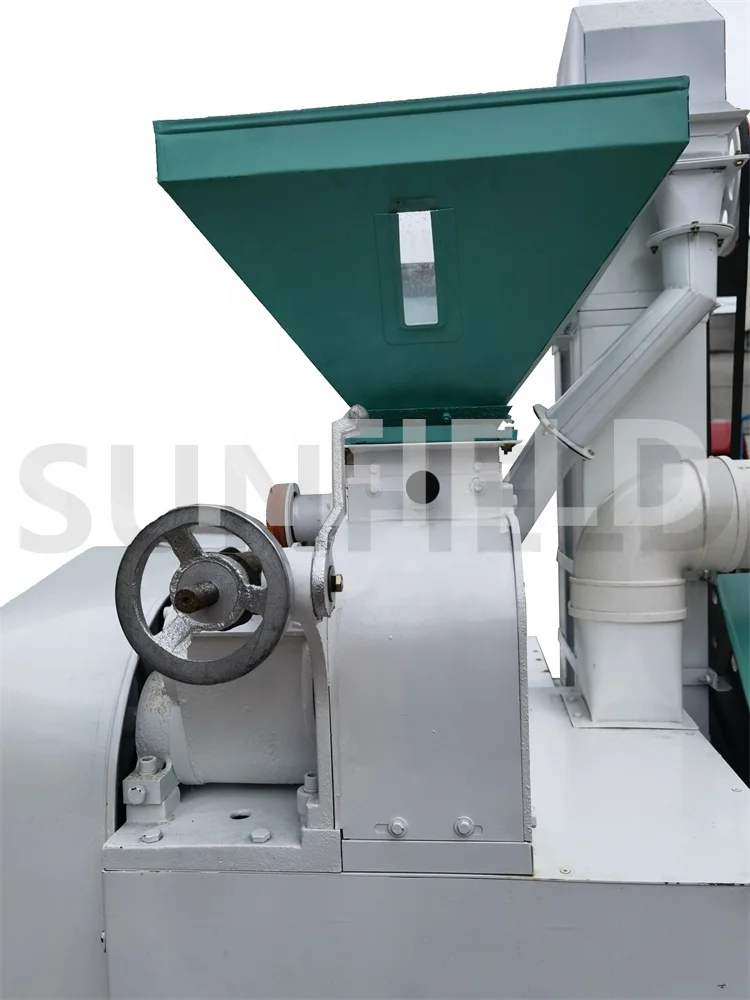

It adopts the universal 6-inch Mobile gearbox rubber roller husker, and the shelling rate can reach more than 85%, when the brown rice is less damaged. The husker has simple structure, small consumption and can easy to maintenance.
This separator has strong wind power and high efficiency to remove the chaff in the brown rice. The damper is easy to adjust, and the fan shell and the fan blades are made of cast iron, which is durable.

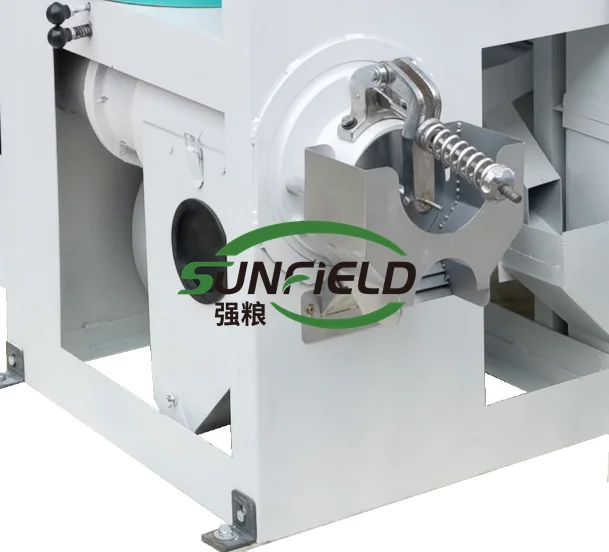

Strong inhale-air iron roller rice mill, low rice temperature, cleaner rice, special rice roller and sieve structure, low broken rice rate, high gloss of rice.

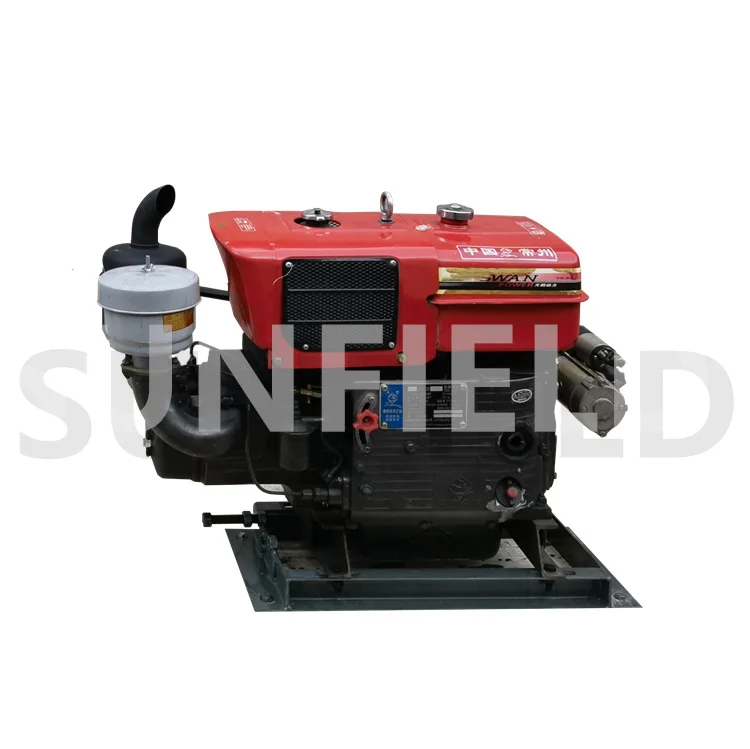

⑧ Single Cylinder Diesel Engine

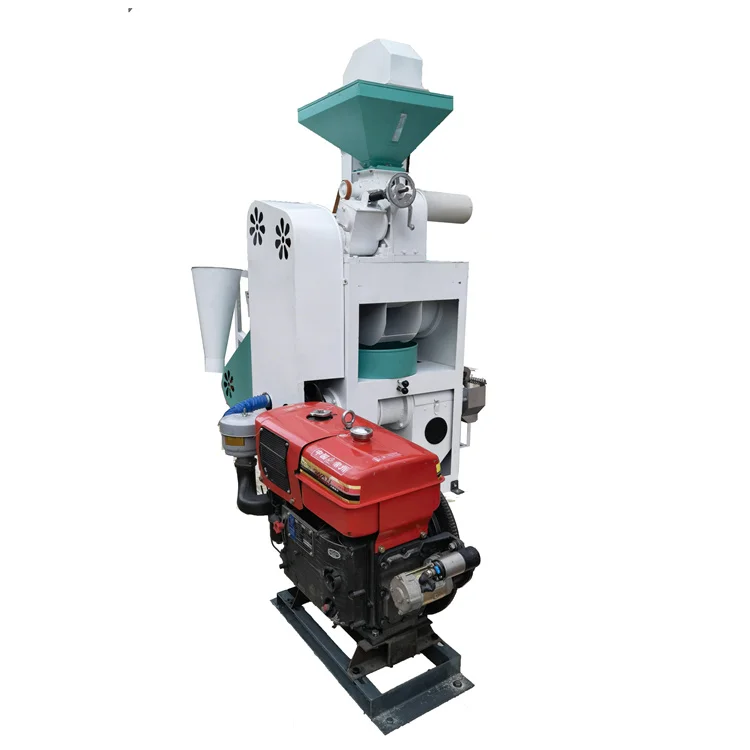

This rice machine can be powered by a single-cylinder diesel engine for power shortage areas and mobile rice processing needs; and it is equipped with an electric starter for easy and convenient operation.
Product Features
-Single cylinder diesel engine, suitable for power shortage areas;
-Complete set rice processing procedure, high rice quality;
-Unibody base designed for convenient transportation and installation, stable operation, low space occupation；
-Strong inhale steel roller rice milling, low rice temperature, less bran, improve rice quality
-Improved belt transmission system, more convenient to maintain.
-Independent safe diesel electric starter, easy and convenient to operate.
-Low investment, high yield.
-Complete set rice processing procedure, high rice quality;
-Unibody base designed for convenient transportation and installation, stable operation, low space occupation；
-Strong inhale steel roller rice milling, low rice temperature, less bran, improve rice quality
-Improved belt transmission system, more convenient to maintain.
-Independent safe diesel electric starter, easy and convenient to operate.
-Low investment, high yield.
Why Choose Us
Located in Changsha, China, Hunan Sunfield Machinery Co., Ltd. is a high-tech and professional manufacturer of Combined Rice Milling Machines and Complete-set Rice Milling Equipment. Our company has a complete manufacturing system and more than 50 sets of large and small production equipment, equipped with advanced 6025 fiber laser cutting machine, electro-hydraulic servo numerical control bending machine, CNC processing center and other devices. Our products cover the whole process of rice processing from paddy cleaning, de-stoning, husking, separation, rice milling, polishing, grading to color sorting, including the 15-30 tons per day Combined Rice Milling machine and 20-100 tons per day Complete-set Rice Milling Equipment.
Our company always adheres to the technology orientation, continuously increases the investment in technology development and innovation and has more than 20 technical patents now. To seek longer-term development in the field of rice processing and storage, we actively carry out various industry university research cooperation with scientific research institutes, and have successively reached technical cooperation with Hunan Agricultural University, Hunan Academy of Agricultural Sciences and Hunan Rice Research Institute.
Driven by "integrity, quality and innovation", the company continues to improve itself with advanced manufacturing and technology. In recent years, while stabilizing its domestic business, the company has increased the expansion of international business and achieved remarkable results. Its products have been exported to 30 countries and regions in Southeast Asia, South Asia, Central Asia, Africa, South America, Oceania and Europe.
Our company always adheres to the technology orientation, continuously increases the investment in technology development and innovation and has more than 20 technical patents now. To seek longer-term development in the field of rice processing and storage, we actively carry out various industry university research cooperation with scientific research institutes, and have successively reached technical cooperation with Hunan Agricultural University, Hunan Academy of Agricultural Sciences and Hunan Rice Research Institute.
Driven by "integrity, quality and innovation", the company continues to improve itself with advanced manufacturing and technology. In recent years, while stabilizing its domestic business, the company has increased the expansion of international business and achieved remarkable results. Its products have been exported to 30 countries and regions in Southeast Asia, South Asia, Central Asia, Africa, South America, Oceania and Europe.

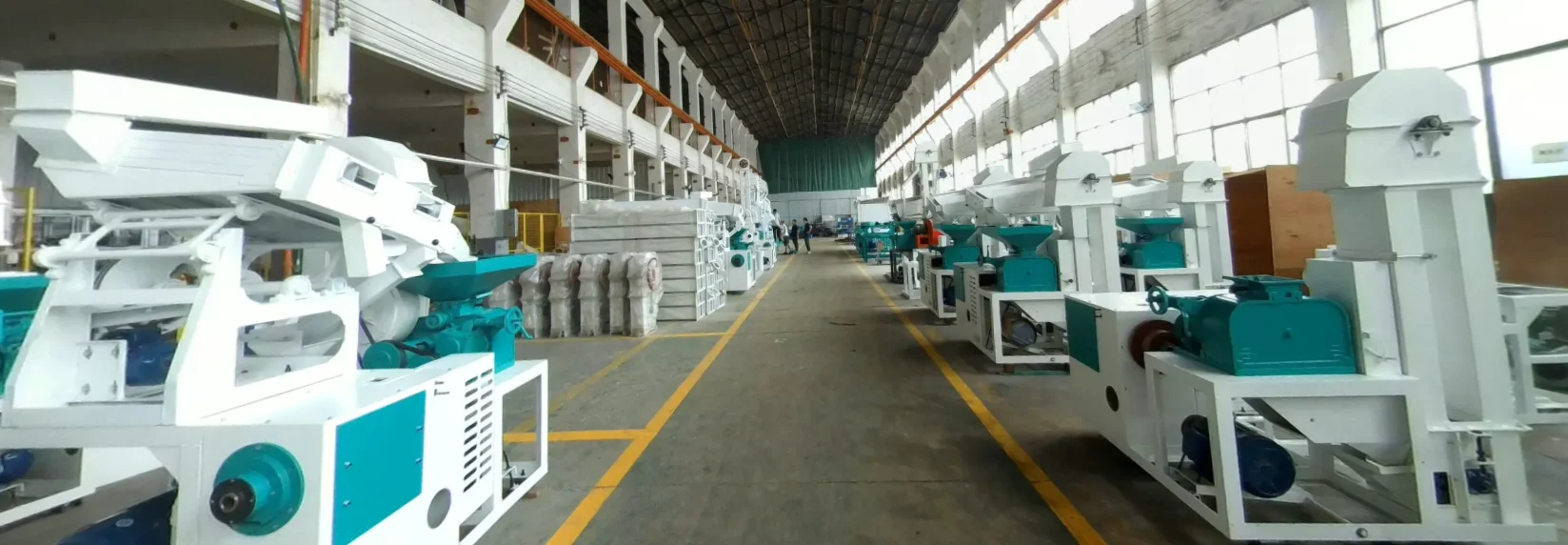

Workshop
Exhibition
Certifications
Cooperating Client
Packaging & Shipping
FAQ
A) How long does the delivery time take?
15 Days.
B) Whether you could make our brand on your products?
Yes. We can print your Logo on both the products and the packages if you can meet our MOQ.
C) How to guarantee the quality of your products?
1) Strict detection during production.
2) Strict sampling inspection on products before shipment and intact product packaging ensured.
15 Days.
B) Whether you could make our brand on your products?
Yes. We can print your Logo on both the products and the packages if you can meet our MOQ.
C) How to guarantee the quality of your products?
1) Strict detection during production.
2) Strict sampling inspection on products before shipment and intact product packaging ensured.
