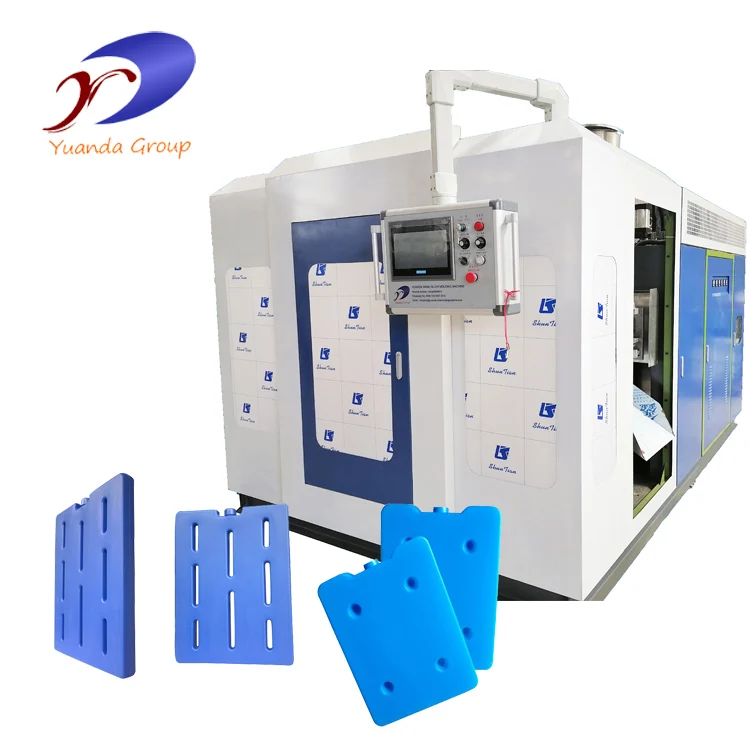

China Plastic HDPE Jerrycan Oil Bottle Extrusion Blow Moulding Making Machine
- Category: >>>
- Supplier: Yuanda Power Machinery Co. Ltd.
Share on (1600570937447):
Product Overview
Description
Product Overview

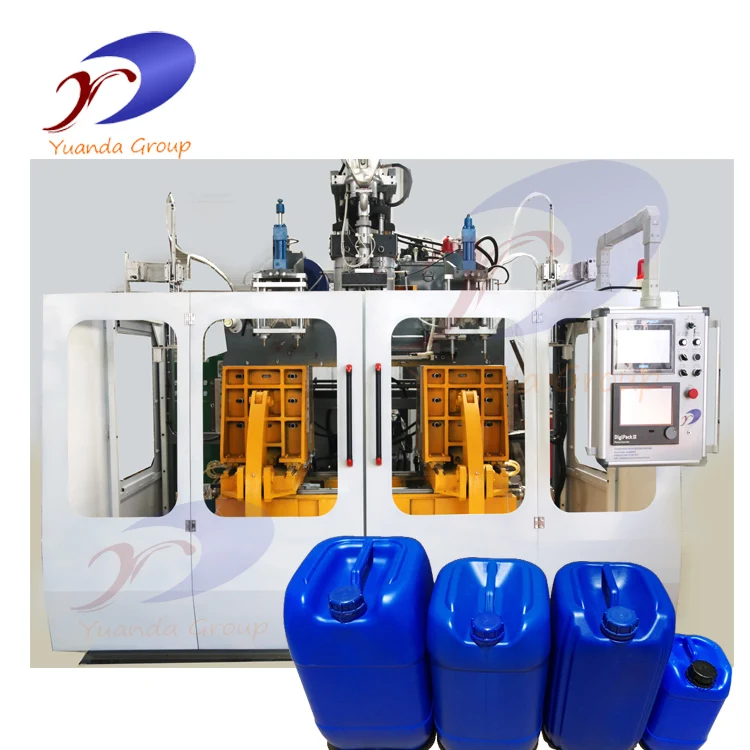

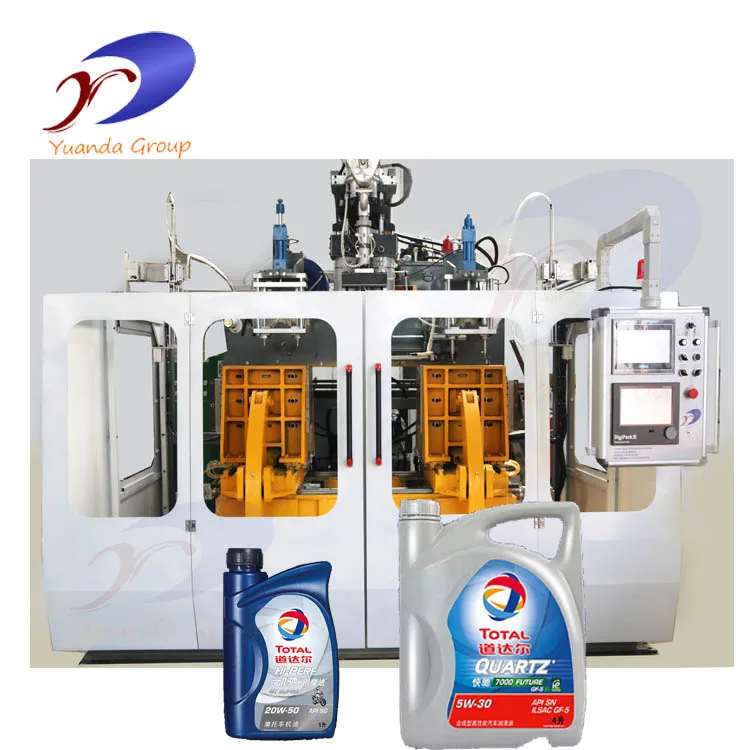

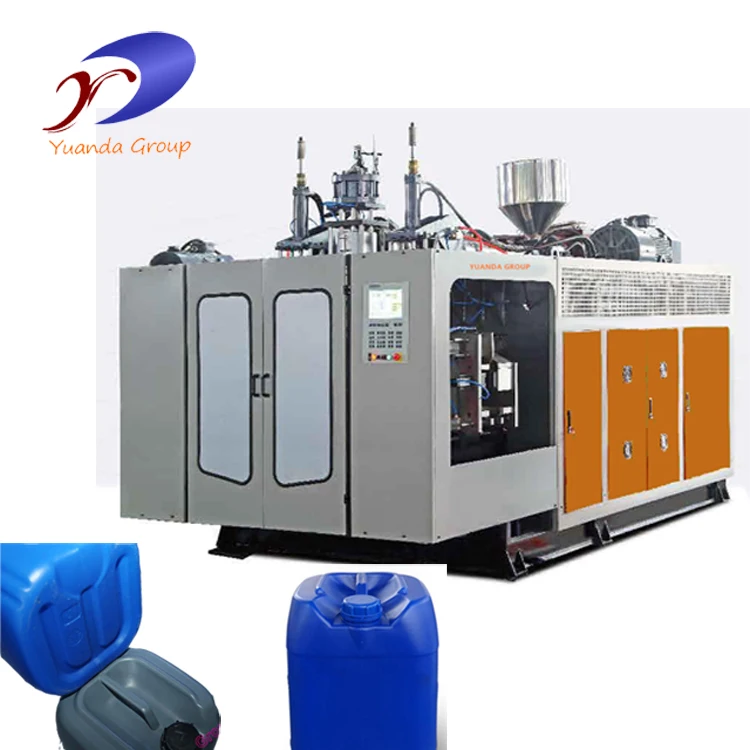

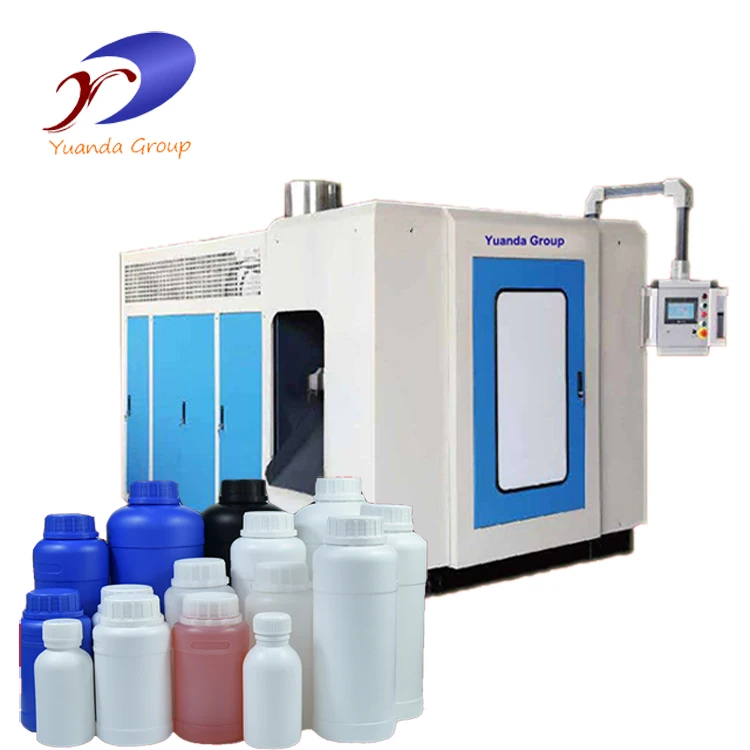

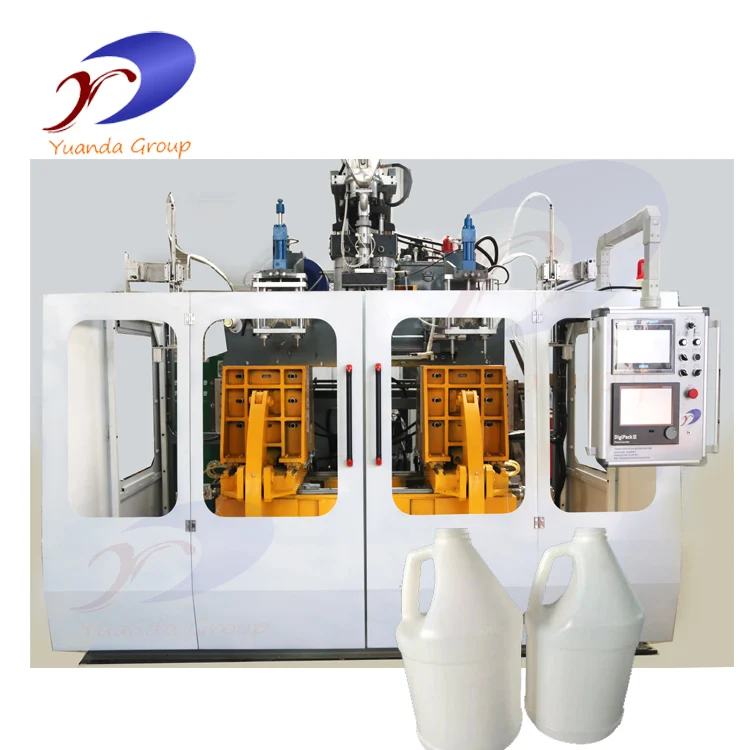

YD80II Extrusion Blow Molding Machine Double Stations for 100ml-5Liter bottle making
This is our normal series machine. It is single or double station with single head or double heads. This machine is suitable for the 100ml-5liter jerry can and bottle . It can be equipped with several die-heads and then it is also suitable for small bottles. The main parts of this machine are designed and manufactured by ourselves. We do the independent R&D and inspection. If you have other special requirements, our expert will give you the best project and lowest investment than anyone supplier , we can provide customized services for you. you also contact to us on line or whatsapp.
FEATURES AT A GLANCE
right view
Left view
Front view
PRODUCT SPECIFICATIONS
Name | Units | YD75Ⅰ | YD75Ⅱ |
Max, product volume | L | 8 | 8 |
Dry cycle | PC/H | 800 | 750*2 |
Screw diameter | MM | 80 | 80 |
Screw L/D ratio | L/D | 24 | 24 |
Screw drive power | KW | 22 | 22 |
Screw heating capacity | KW | 7-8 | 7-8 |
No, of heating zone | ZONE | 4 | 4 |
Outpul of HDPE | KG/H | 100 | 100 |
oil pump drive power | KW | 7.5 | 7.5 |
Camping force | KN | 100 | 100 |
Max,size of mold | MM | 400*430 | 400*430 |
Template size | MM | 380*420 | 380*420 |
Mold stroke | MM | 170-520 | 170-520 |
Max,die diameter | MM | 170 | 170 |
Bolwing pressure | MPA | 0.6 | 0.6 |
Air volume | M³/MIN | 0.7 | 0.8 |
Cooling water pressure | MPA | 0.3 | 0.3 |
Water consumption | L/MIN | 60 | 80 |
Size of machine | L*W*H | 4.2*2.0*2.7 | 4.2*2.0*2.7 |
Weight of machine | TON | 6.8 | 7.5 |

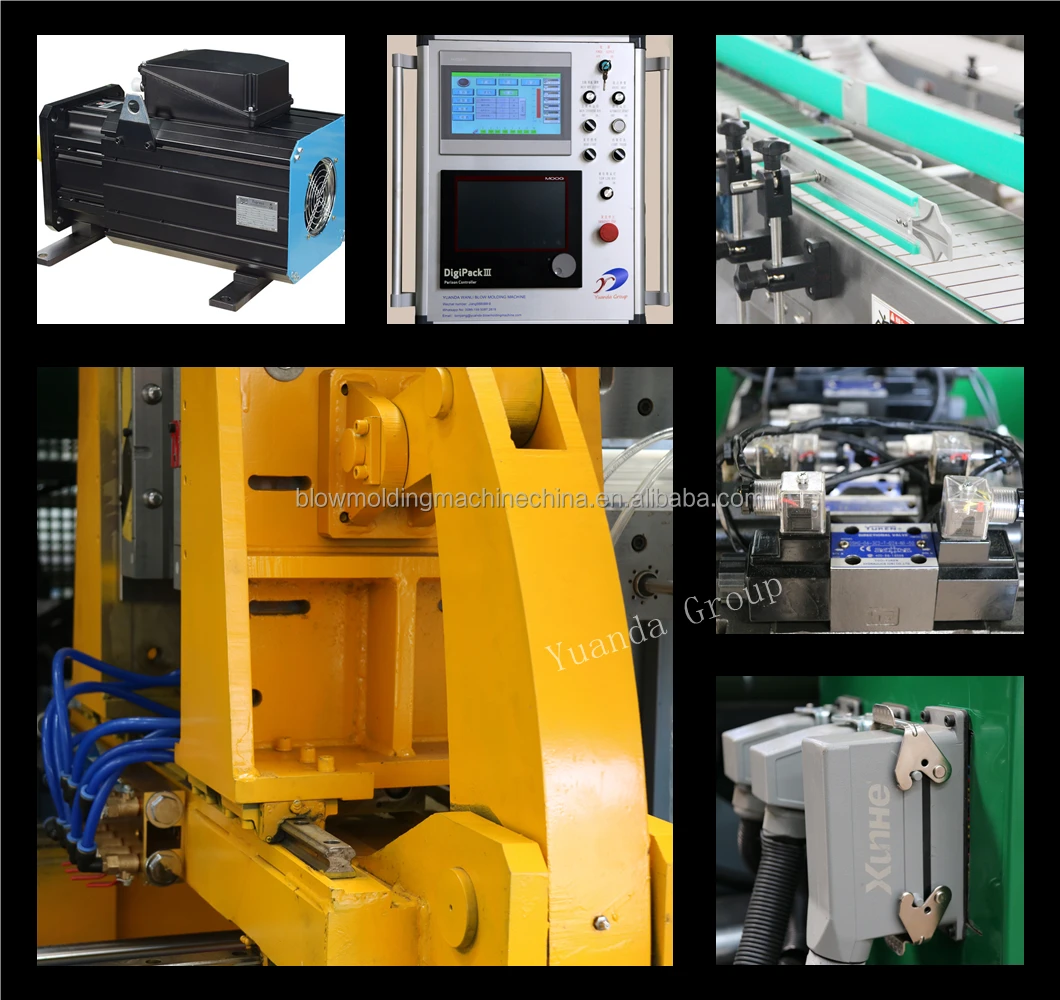

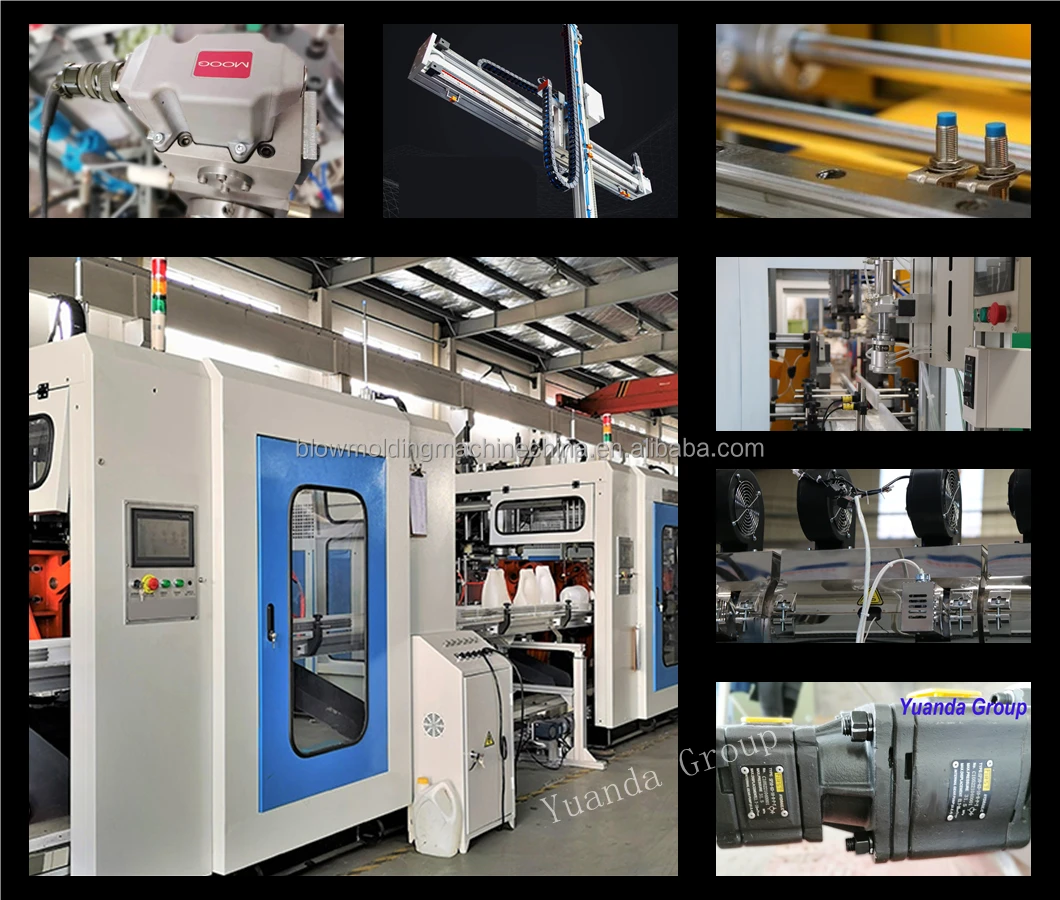

PRODUCT CONFIGURATION
