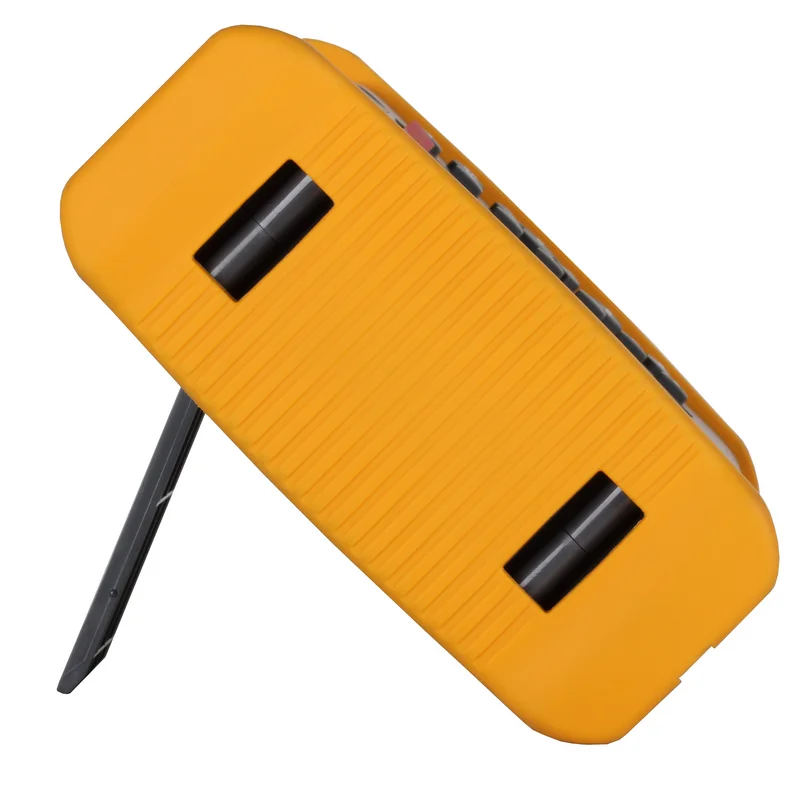

[grandway Original]OTDR EXFO FHO5000 D26 Fiber Optic OTDR 1310/1550nm 26/24dB 100km built in power meter,VFL, touch screen iOLM
- Category: >>>
- Supplier: Zhejiang Grandway Telecommunication Technology Co. Ltd.
Share on (1600570939350):
Product Overview
Description
Product Description

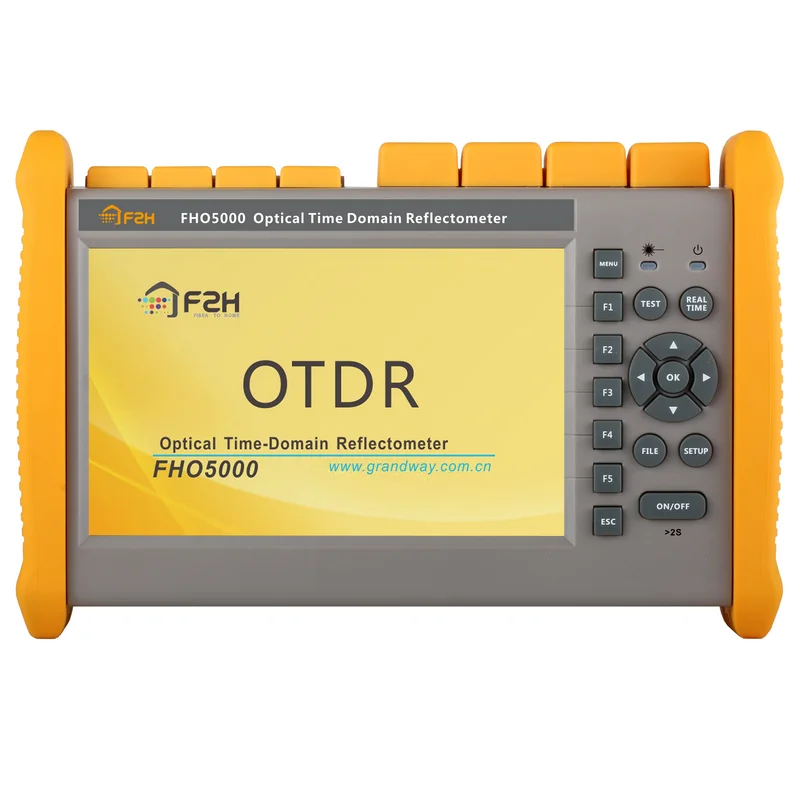

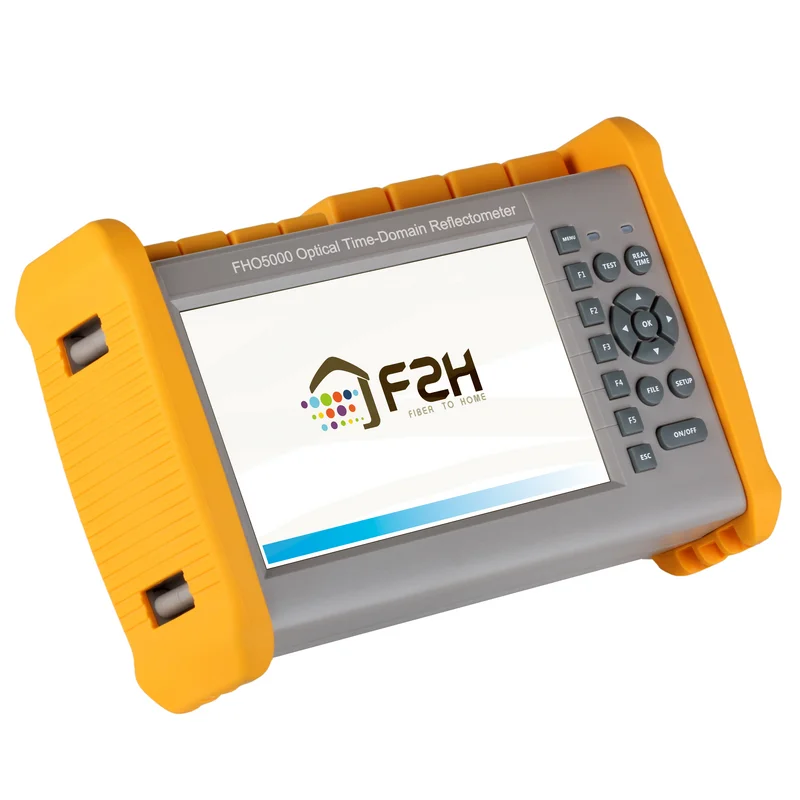

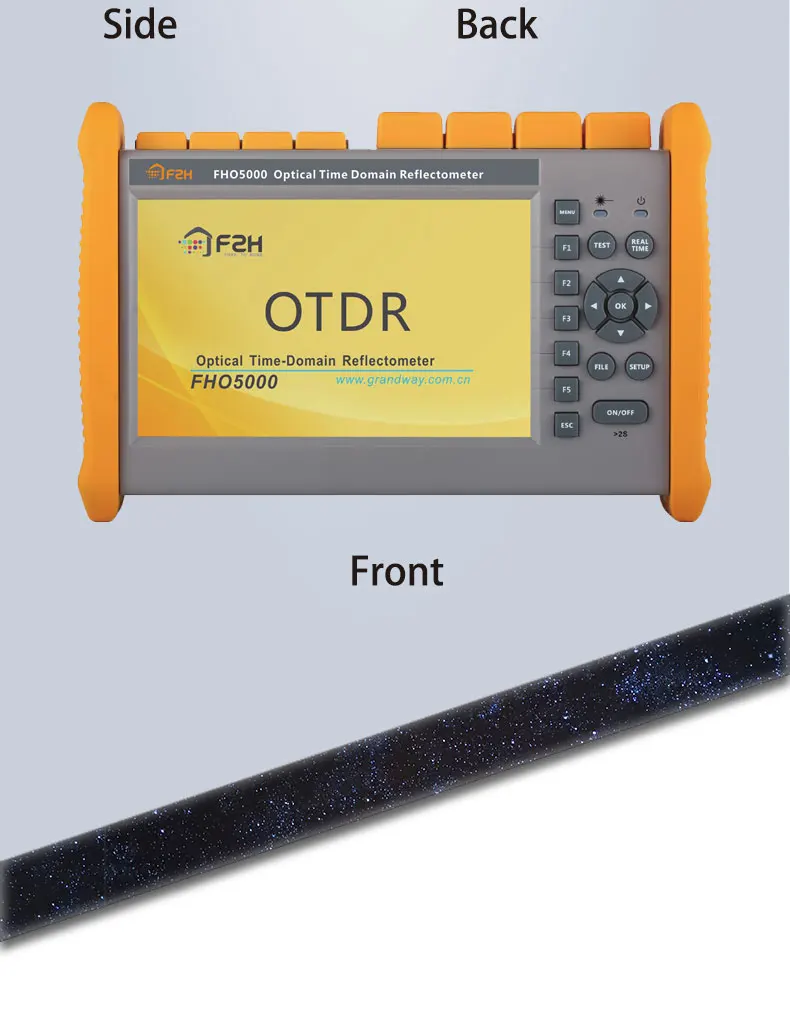

FHO5000 Series OTDR
Dynamic range from 26dB to 50dB, small deadzone 0.8m/3m. Optimized PON test capability to pass through 1x128 splitter, the minimum distance between splitters is 30 meters(pro version)

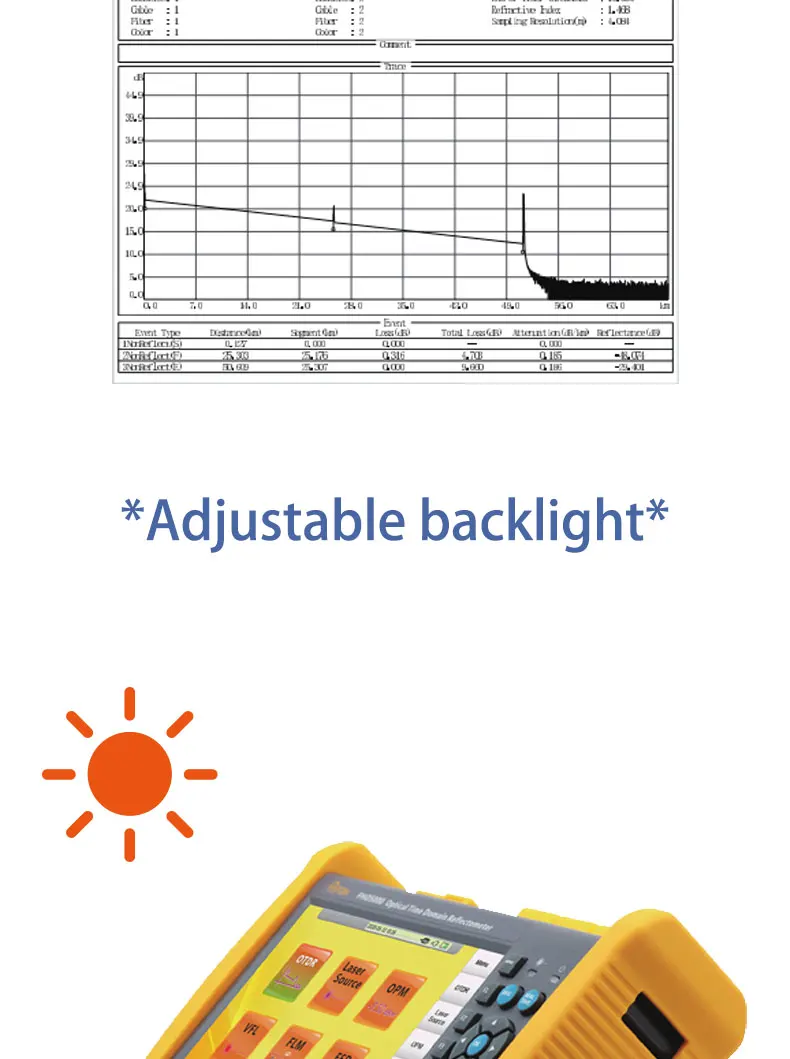

Excellent FLM(Fiber Link Map) testing performance Built-in OTDR trace and FLM testing PDF report
Remote control on PC software is available

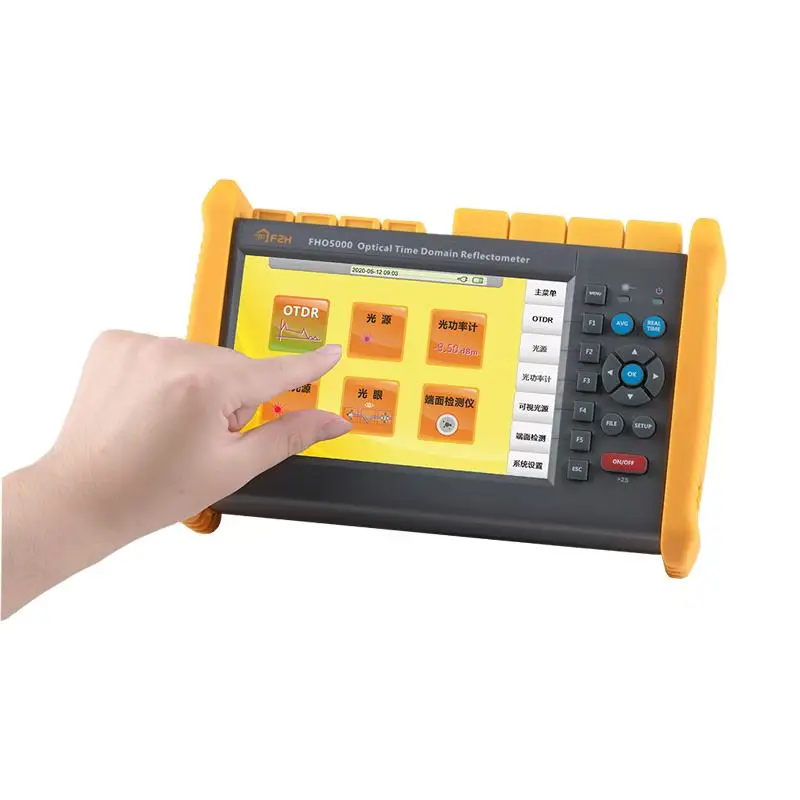

Multi function Integrated design, smart and rugged
Bluetooth and mobile APP is available on PRO
version
Excellent FLM(Fiber Link Map) testing performance Built-in OTDR trace and FLM testing PDF report
Remote control on PC software is available
Multi function Integrated design, smart and rugged
Bluetooth and mobile APP is available on PRO
version

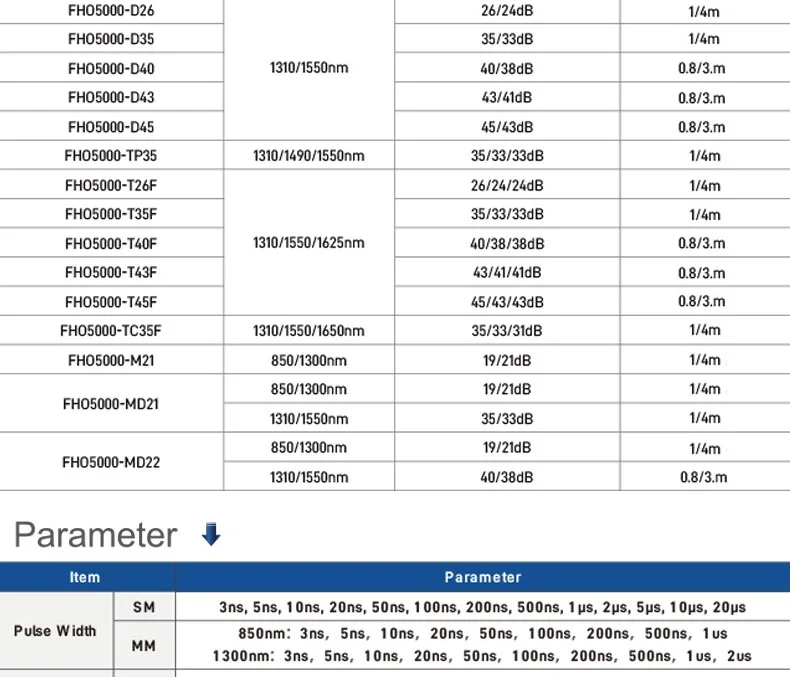

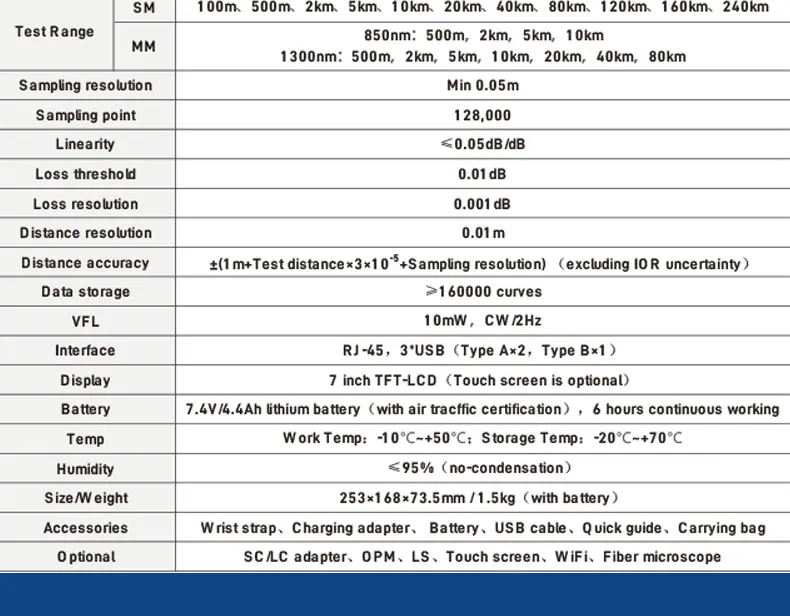

Specification
Model Number | FHO5000-D26 |
Wavelength | 1310/1550nm |
Dynamic Range | 26/24dB |
Dead-zone | 1/4m |
Pulse Width | 3ns, 5ns, 10ns, 30ns, 50ns, 100ns, 275ns, 500ns, 1us, 2us, 5us, 10us, 20us |
Distance range | 500m, 2km, 5km, 10km, 20km,33km, 40km, 80km, 120km, 160km, 265km |
Sampling Resolution | Min 0.05m |
Sampling Points | Max 256,000 |
Linearity | ≤0.03dB/dB |
Loss Threshold | 0.01dB |
Distance Resolution | 0.01m |
Loss Resolution | 0.001dB |
IOR | 1.2000~1.7000,0.0001 step |
Distance Accuracy | ±(1m+test distance×3×10-5+sampling resolution) (excluding IOR uncertainty) |
Memory Capacity | 16G TF card |

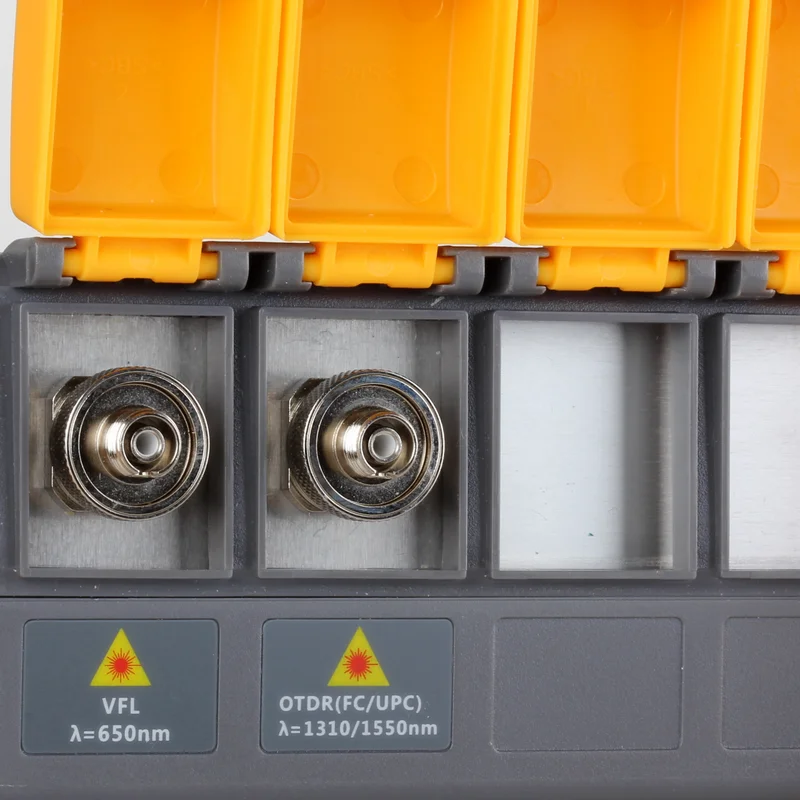

VFL | 10mW，CW/2Hz |
OPM | Calibrated wavelength：850/1300/1310/1490/1550/1625/1650nm Test range：-60~+5dBm |

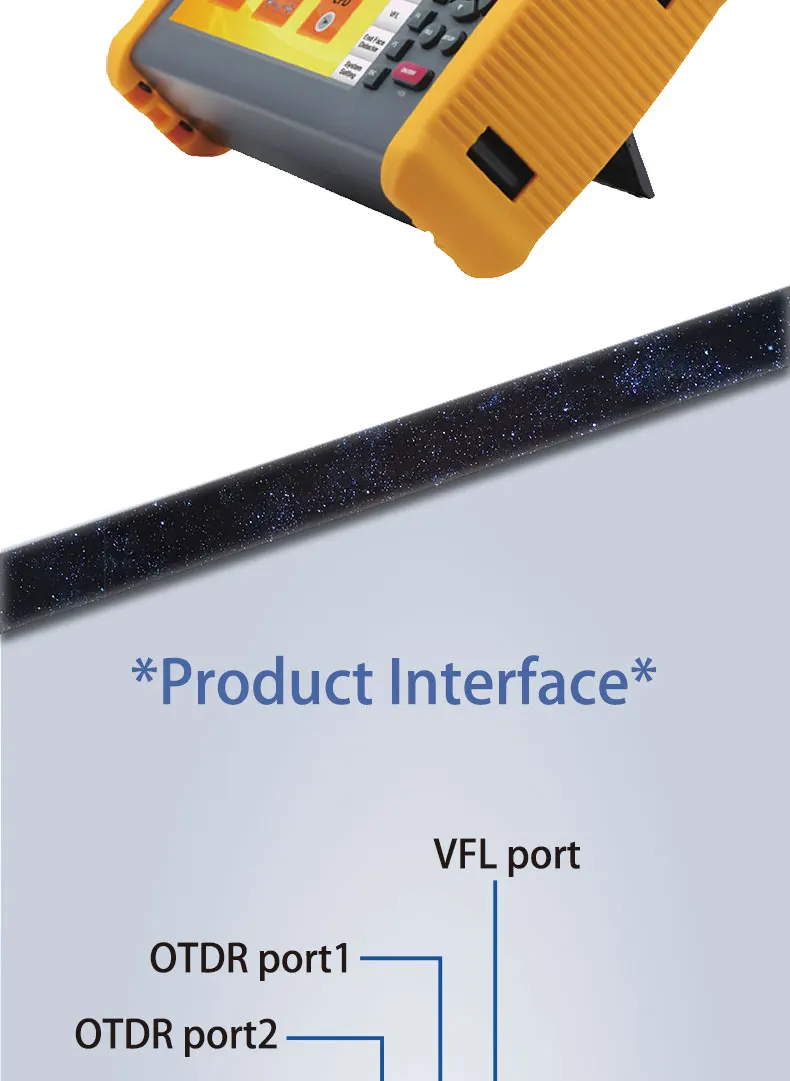

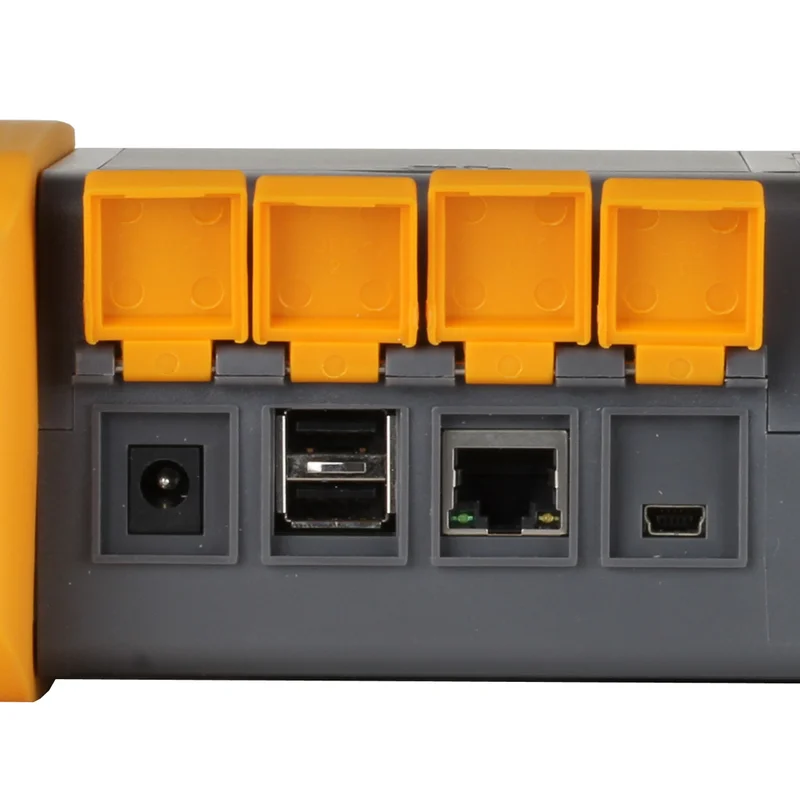

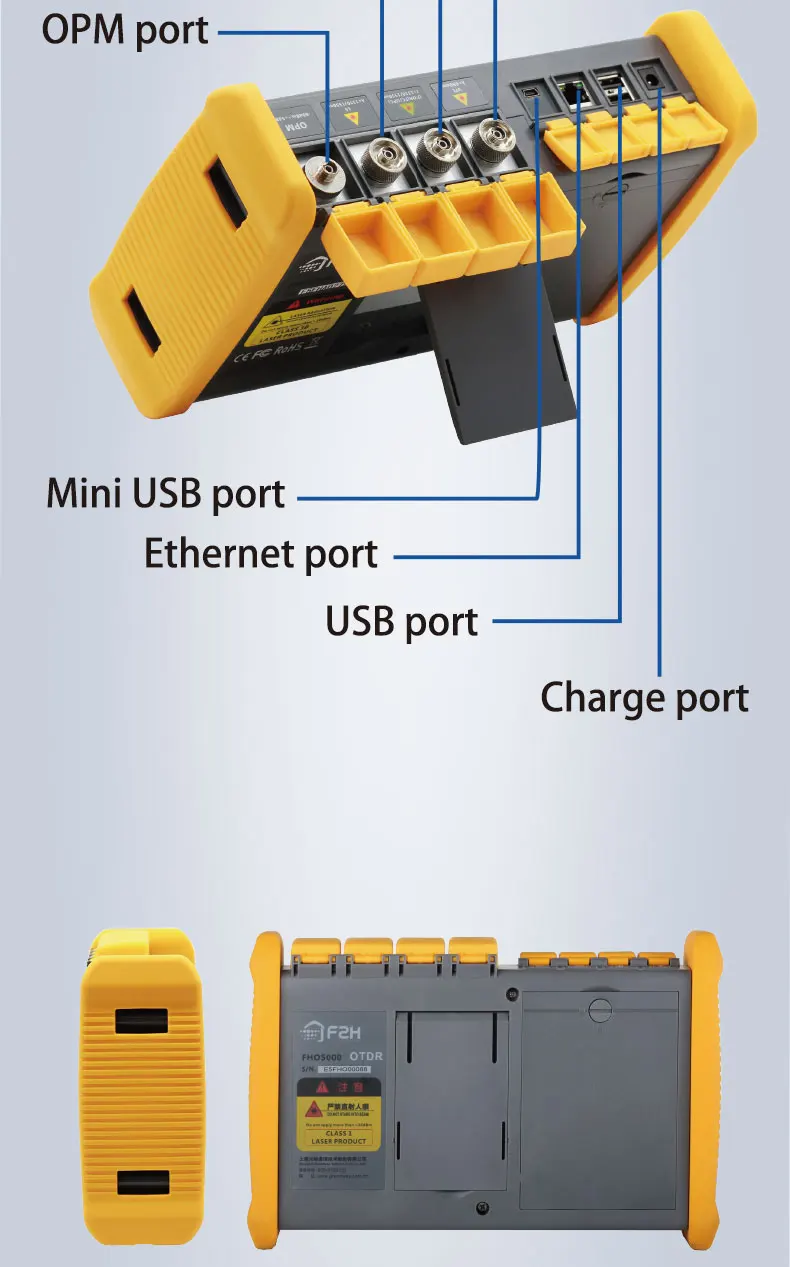

Interface | 1*RJ-45, 3*USB (Type A×2, Type B×1) |
Display | 7-inch touch screen TFT-LCD |
Battery | 7.4V/5.2Ah lithium battery (with air traffic certification) |
Humidity | ≤95% (No-condensation) |
Dimension/Weight | 253×168×73.5mm / 1.5kg (with battery) |

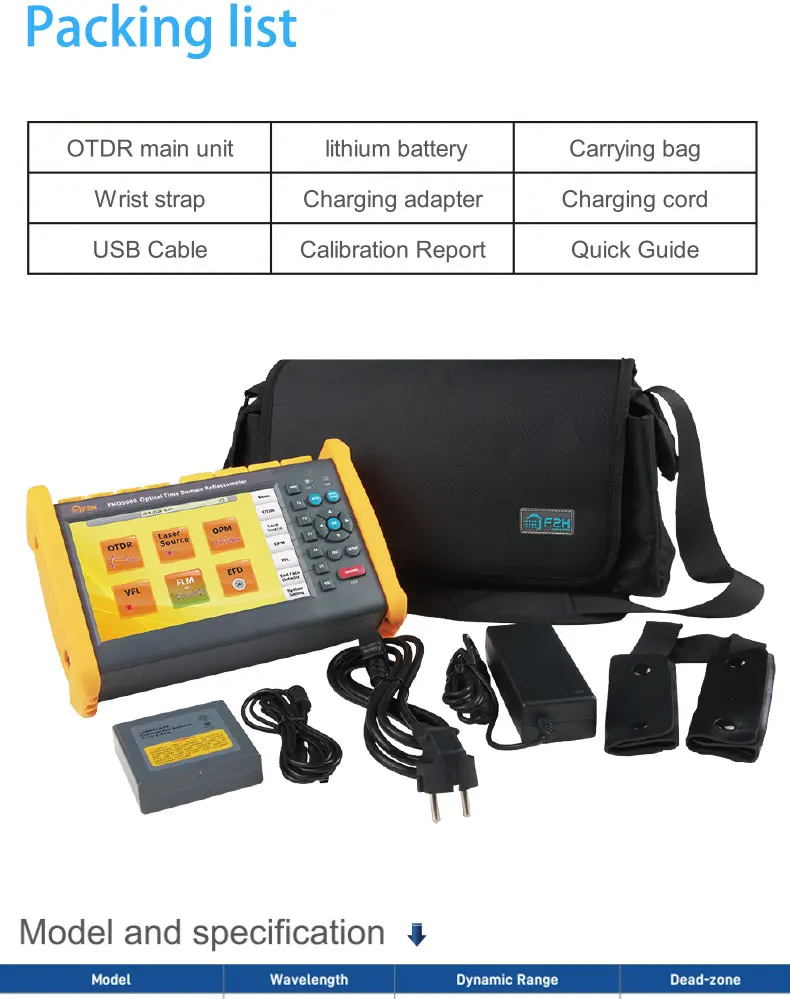

Accessories | Power adapter, Charge cord, Lithium battery, FC adapter, USB cable, Quick guide, Test report, CD, Carrying bag, Wrist strap |
Optional | SC/LC adapter, Fiber microscope, Launch cable box |
Company Profile
Our Advantages
Exhibition
Certifications
Product packaging
FAQ
Q1: What if there is quality problem when we get the goods?
A1: The quality of our products is stable and there will be no problems in general. Even if there are problems, most problems can be solved by software and remote.If it is the hardware problem of the unused new machine, it can be replaced free of charge, or are fund. If it is used, half of the freight will be borne within the warranty period respectively, and there is no maintenance cost. Outside the warranty period, customers will bear the two-way freight + maintenance cost.(For subsequent orders, discount is available)
Q2: How long is the guarantee of the product?
A2: According to the type of product,we offer Instrument 12 months free warranty. Lifetime maintenance service, may be charged.Consumable materials used on the warranty, such as cutting knife
Q3: Can you supply customized products with our brand?
A3: Yes,OEM service costs, software is free, labels and other costs are subject to the actual purchase quotation.Label has a minimum order quantity, OTDR minimum order quantity of 5 sets, small instrument minimum order quantity of 50 sets.
Q4: Can I get a sample free?
A4: A discount can be offered for samples of new products, or a discount can be offered for subsequent orders
Q5: What about the MOQ?
A5: We can accept the minimum order quantity is 1 pcs .
Q6: What’s your payment way?
A6: We suggest you to place credit order by alibaba.com. Trade assurance will ensure your payment safe. We will get the payment after you received goods and confirmed the order.Credit order accept TT, Paypal, West Union, credit card.
A1: The quality of our products is stable and there will be no problems in general. Even if there are problems, most problems can be solved by software and remote.If it is the hardware problem of the unused new machine, it can be replaced free of charge, or are fund. If it is used, half of the freight will be borne within the warranty period respectively, and there is no maintenance cost. Outside the warranty period, customers will bear the two-way freight + maintenance cost.(For subsequent orders, discount is available)
Q2: How long is the guarantee of the product?
A2: According to the type of product,we offer Instrument 12 months free warranty. Lifetime maintenance service, may be charged.Consumable materials used on the warranty, such as cutting knife
Q3: Can you supply customized products with our brand?
A3: Yes,OEM service costs, software is free, labels and other costs are subject to the actual purchase quotation.Label has a minimum order quantity, OTDR minimum order quantity of 5 sets, small instrument minimum order quantity of 50 sets.
Q4: Can I get a sample free?
A4: A discount can be offered for samples of new products, or a discount can be offered for subsequent orders
Q5: What about the MOQ?
A5: We can accept the minimum order quantity is 1 pcs .
Q6: What’s your payment way?
A6: We suggest you to place credit order by alibaba.com. Trade assurance will ensure your payment safe. We will get the payment after you received goods and confirmed the order.Credit order accept TT, Paypal, West Union, credit card.
