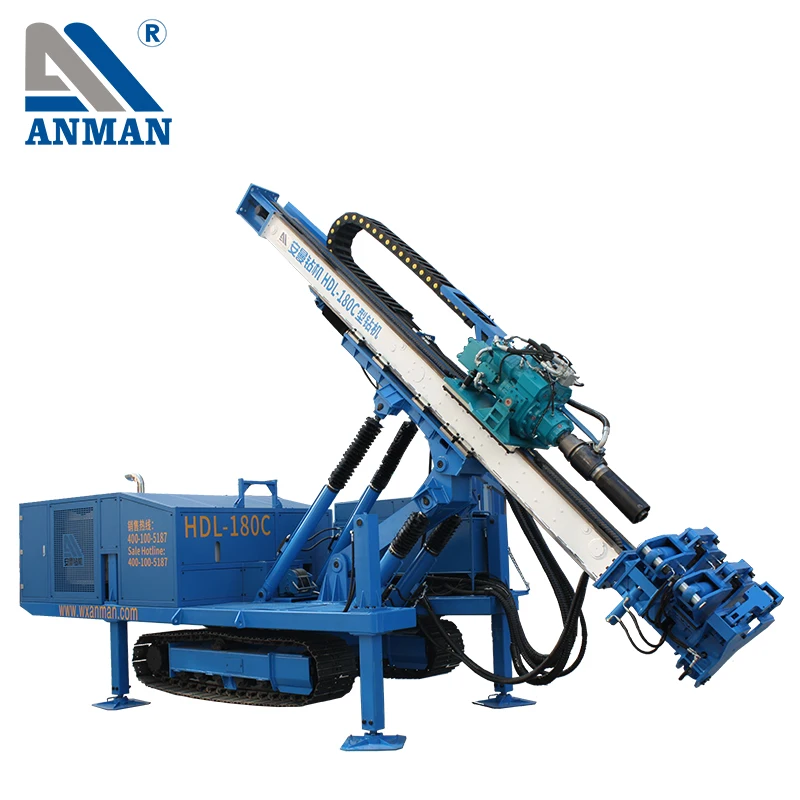

HDL series drilling rig is top drive type multifunctional drilling rig which our company design and manufacture for complex formation according to market request.

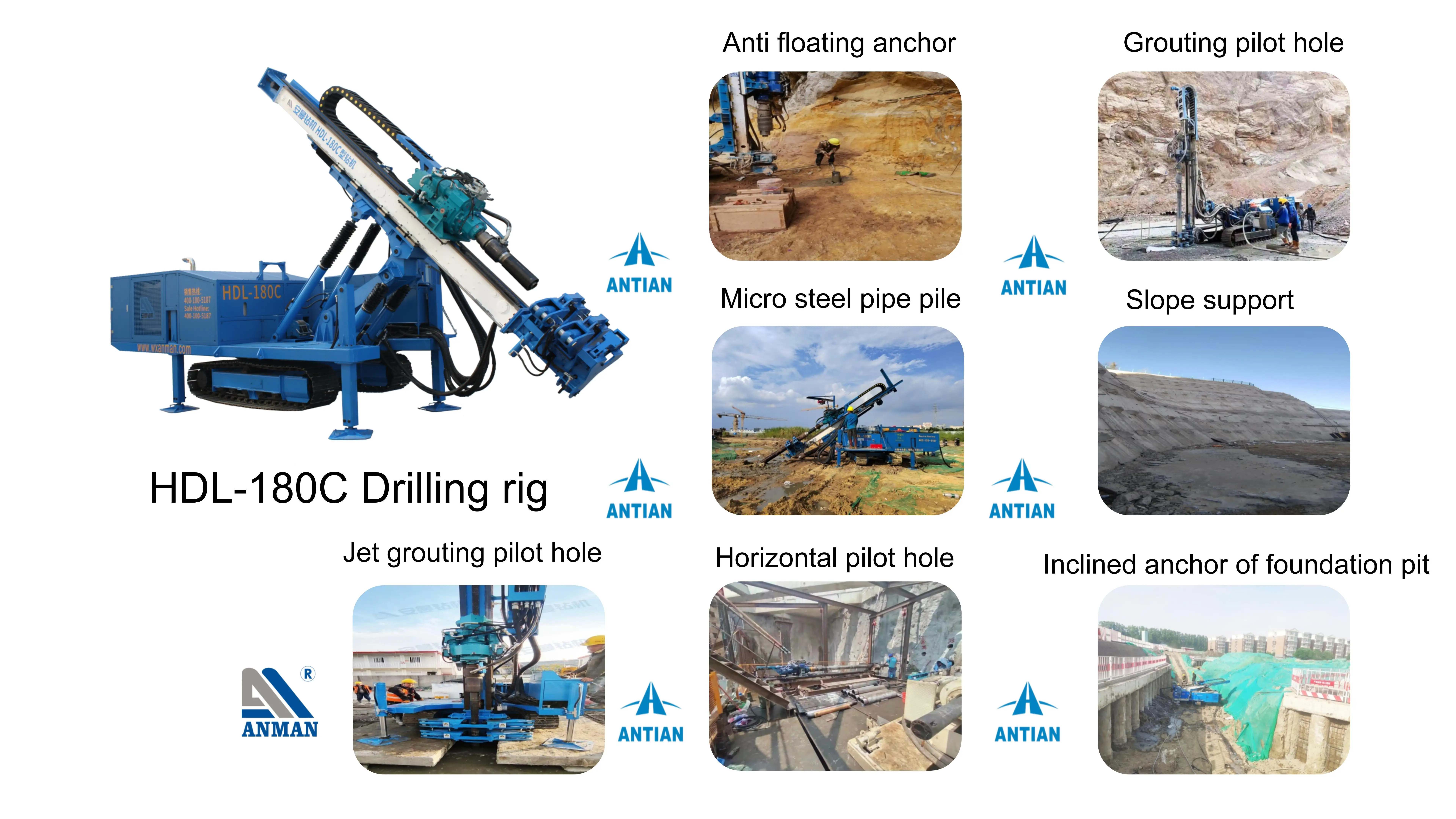

Application
PRODUCT SPECIFICATIONS
HDL-180C dangerous rock groundwork reinforcing Top drive power head Quick after-sales service Multifunctional drilling rig
Model number | HDL-180C |
Hole diameter(mm) | Φ100~Φ250 |
Hole depth(m) | 150~180 |
Rod diameter(mm) | Φ73，Φ89，Φ102，Φ114，Φ140，Φ168 |
Hole angle(°) | -12~90 |
Output speed of rotary head(max)(r/min) | 80 |
Output torque of rotary head(max)(N.m) | 14000 |
Lifting speed of rotary head(m/min) | 0~5,30 |
Feeding speed of rotary head(m/min) | 0~10,60 |
Input power(Diesel)(kW) | 154 |
Dimension(L*W*H)(mm) | 7700*2200*2300 |
Vertical Working Dimension (L*W*H)(mm) | 5600*2400*7200 |
Weight(kg) | 9000 |
Impact power of rotary head（max）(N.m) | 900 |
Impact frequency of rotary head（max）(b/min) | 2300 |
Rated lifting force (kN) | 90 |
Rated feeding force (kN) | 45 |
Feeding stroke(mm) | 3400 |
Sliding stroke(mm) | 1500 |
Climbing angle(°) | 15 |
Working pressure(MPa) | 20 |
Walking speed(m/h) | 3000/1500 |
Details

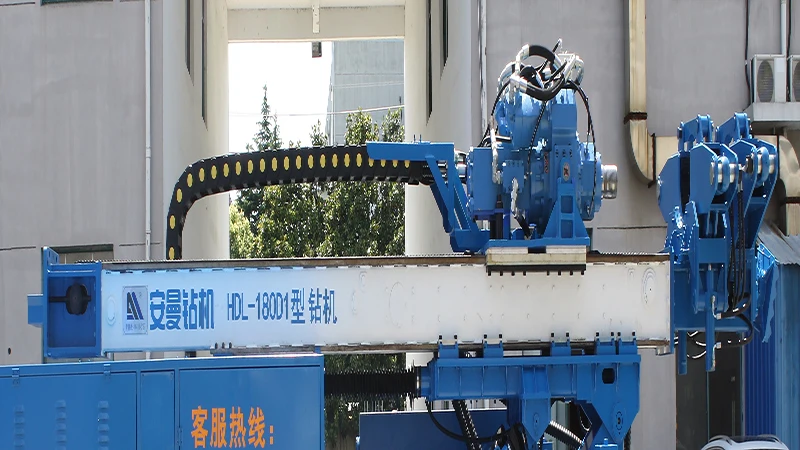

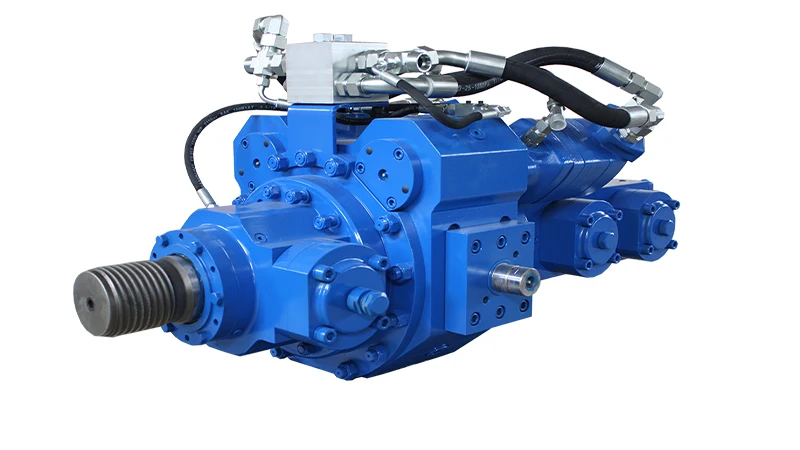

1、Top drive type rotary head
With large torque, high speed, high impact frequency and stable performance.

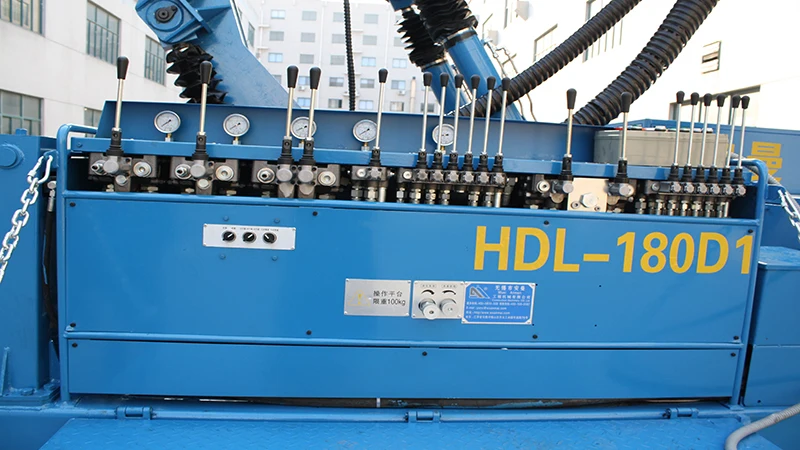

2、Stable hydraulic system
It is equipped with control valve that is imported with original packaging. It has reliable quality, high performance, long performance life and good controllability.
3、Its stroke length is longer, it can combine 4-meter-long drilling rod in one time, has higher efficiency.

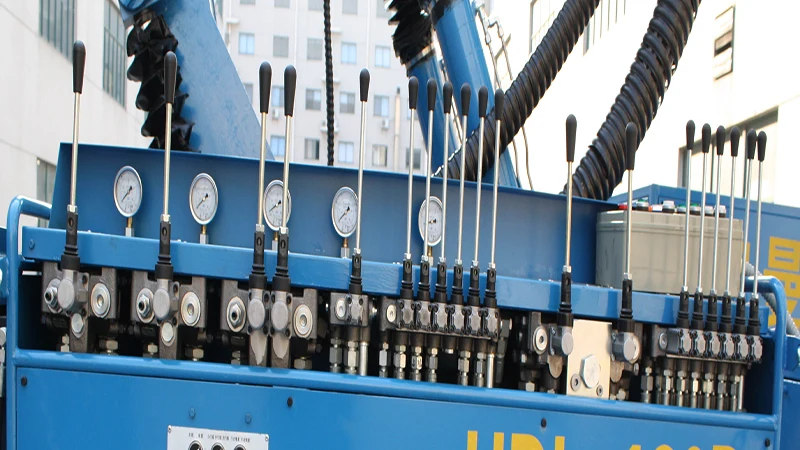

4. Easy operating
We adopt imported control valve, it is more flexible , reliable and convenient for maintenance.

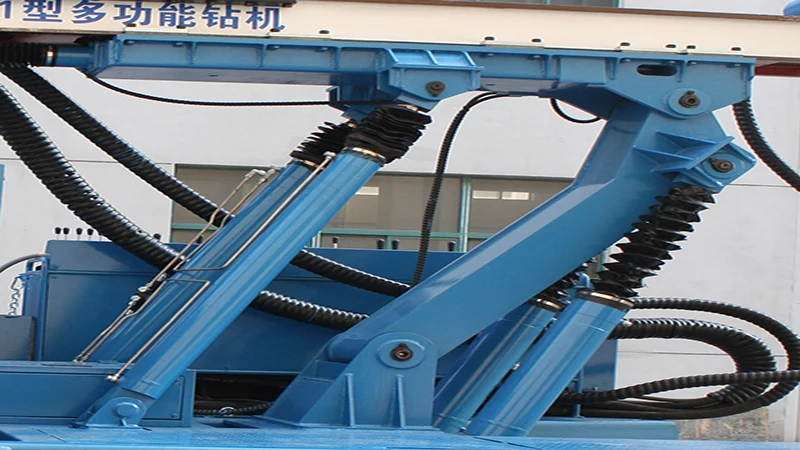

5、The structure design is more stable

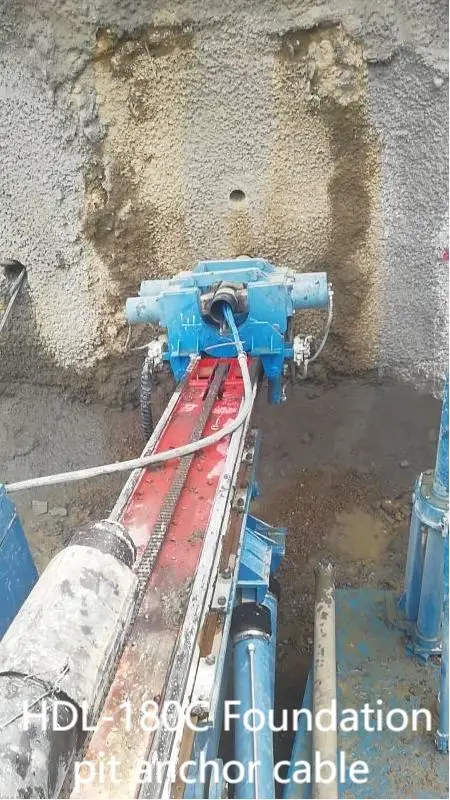

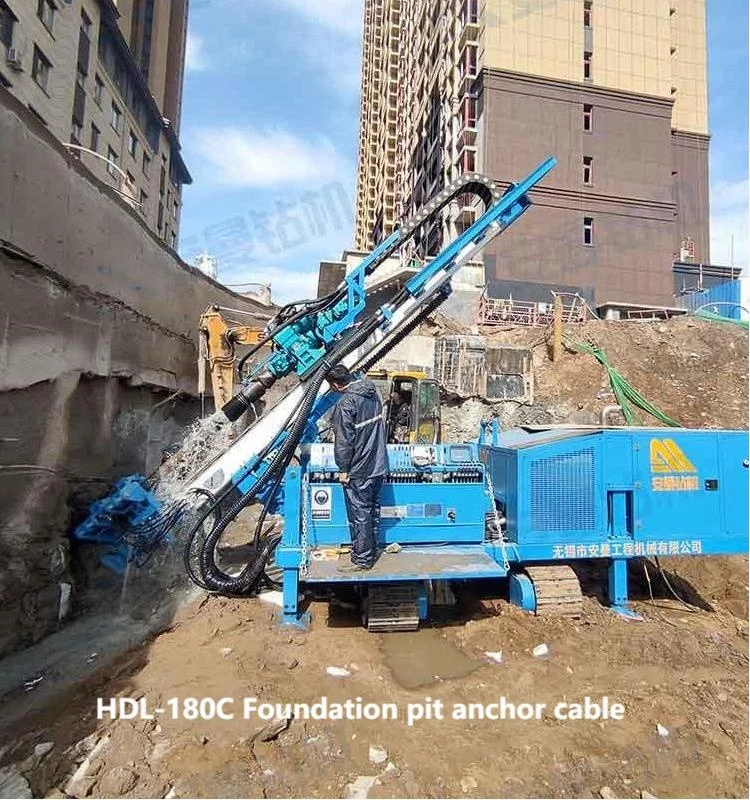

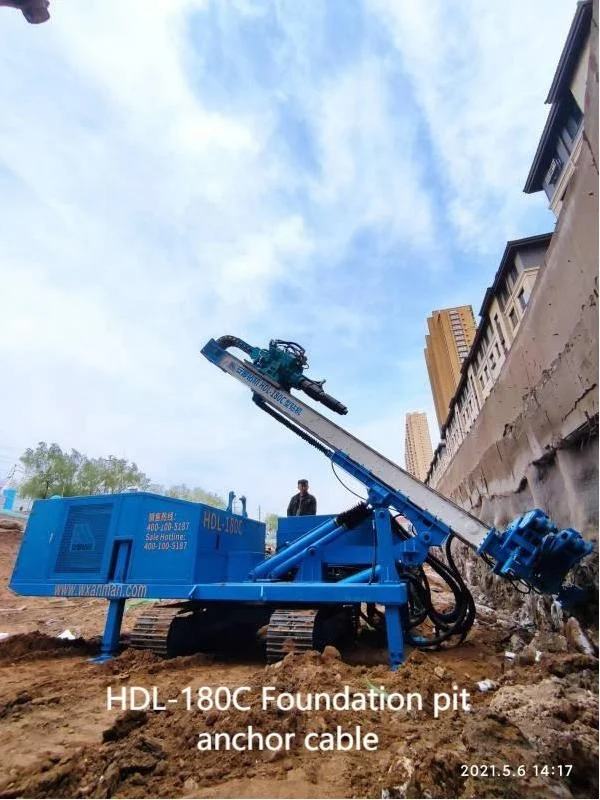

Successful projects
