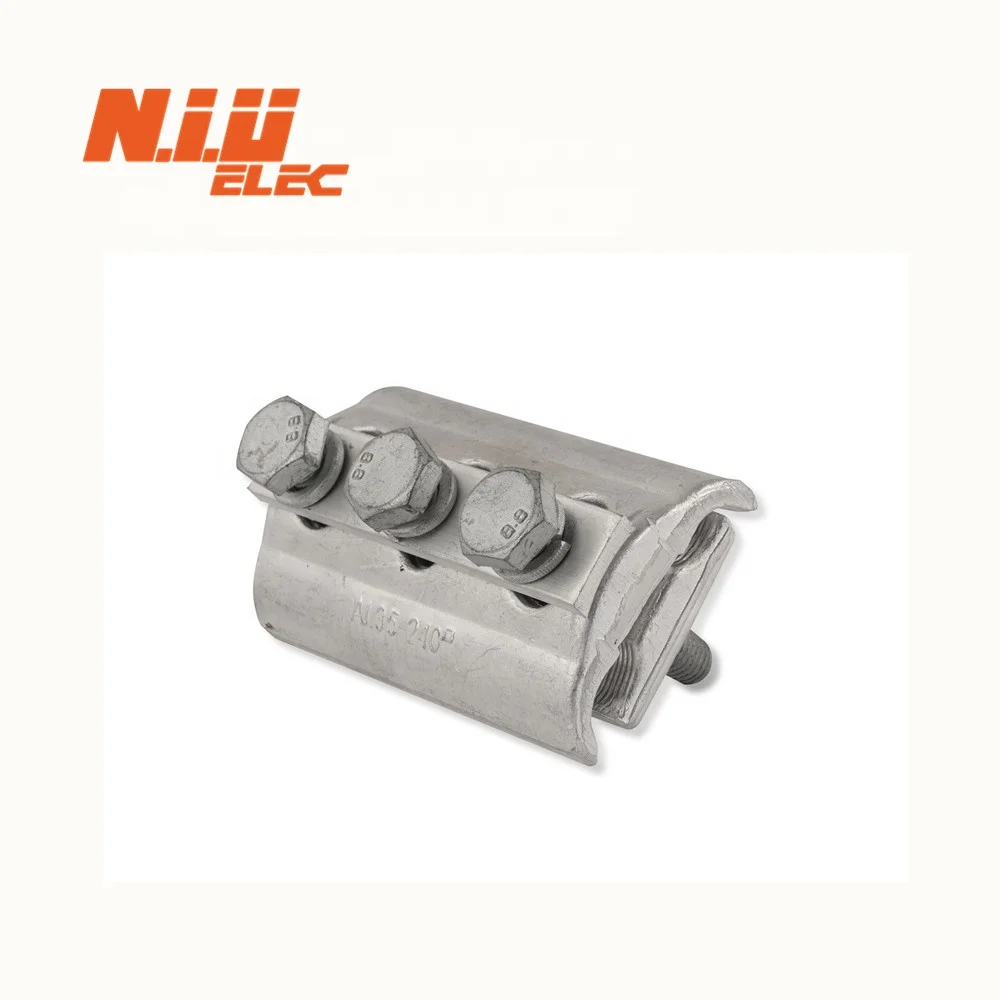

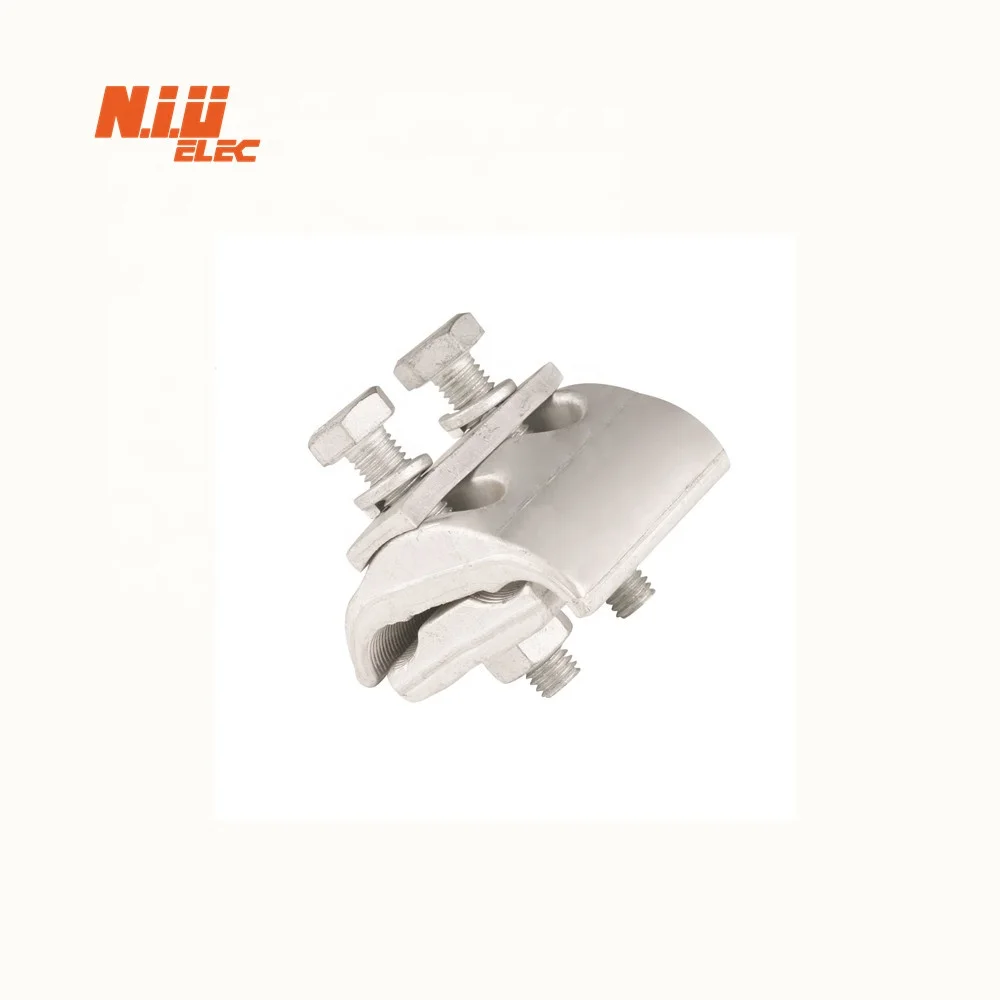

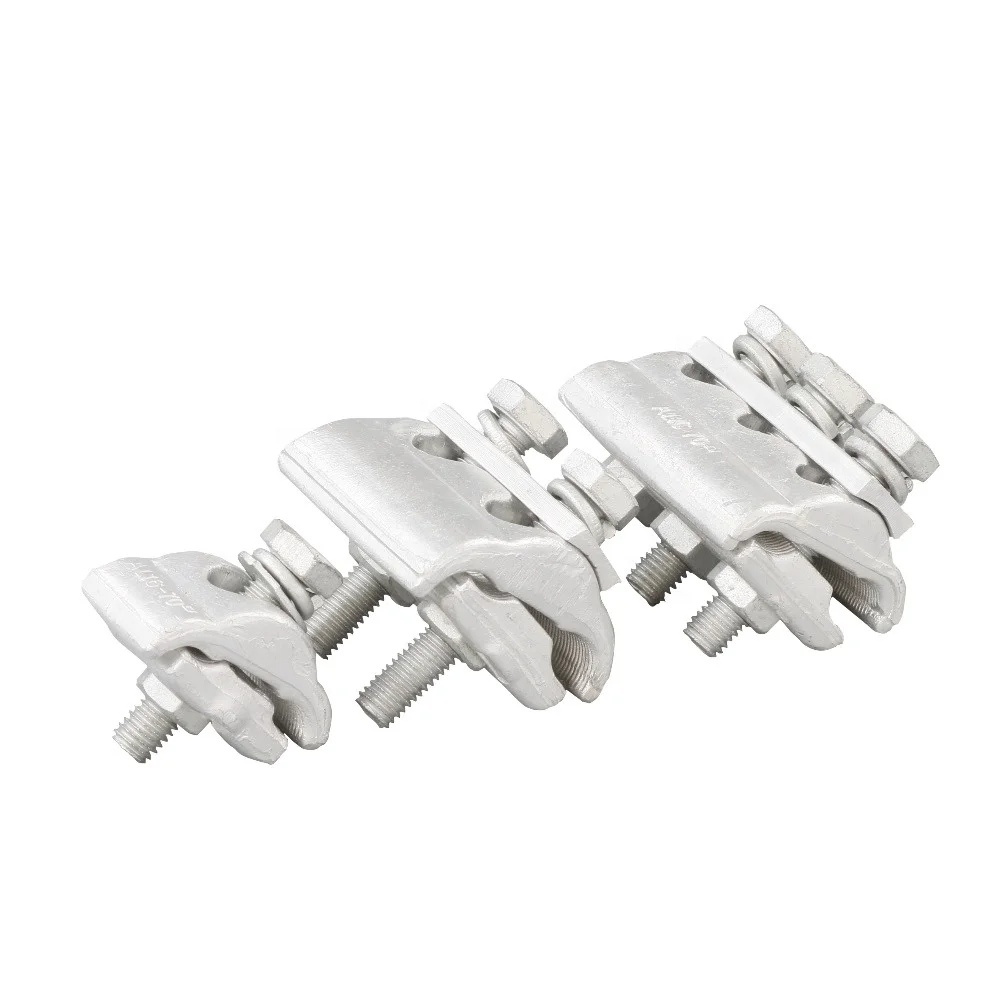

Manufactured Cable Fitting Aluminium Parallel Groove Clamp APG
- Category: >>>
- Supplier: N.i.u Electric Co. Ltd.
Share on (1600570954027):
Product Overview
Description
Product Description
Manufactured Cable Fitting Aluminium Parallel Groove Clamp APG
Features:
APG parallel clamp is used for tapping or jointing copper conductor to aluminum overhead conductors AAC, AAAC, or ACSR. Forging creates a high strength clamp. Slotted holes allow adjustment for varying conductors to each side.
Advantages:
1)APG parallel clamp body is made of high corrosion resistant aluminum alloy.
2)Threaded bottom part of connector can provide easy installation.
3)Wide range from 16mm-300mm.
Instructions:

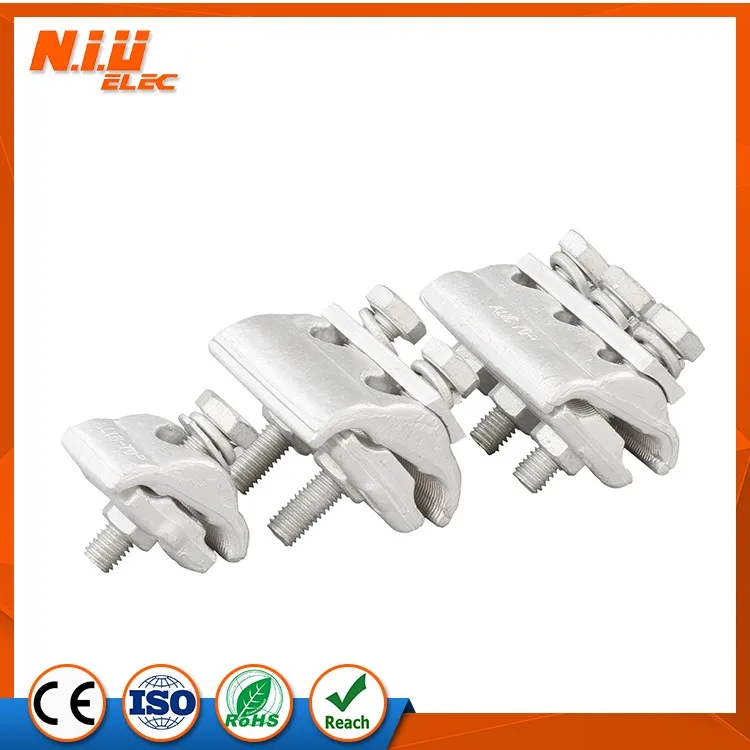

APG Aluminum Parallel Groove Clamp is suitable for main and tap conductor aluminum, aluminum alloy cond.
| Item No. | Size(mm²) | Bolt |
| APG-A1 | AL16-70 | Single bolt |
| APG-A2 | AL16-150 | Single bolt |
| APG-B1 | AL16-35 | Double bolt |
| APG-B2 | AL16-70 | Double bolt |
| APG-B3 | AL16-150 | Double bolt |
| APG-B4 | AL25-200 | Double bolt |
| APG-C1 | AL16-150 | Tri-bolt |
| APG-C2 | AL25-200 | Tri-bolt |
| APG-C3 | AL35-300 | Tri-bolt |
Package:
| Item No. | Pcs/Carton | Gross Weight | Net Weight | Carton Size |
| APG-A1 | 300 | 16 | 15 | 34*17*21 |
| APG-A2 | 300 | 24.4 | 23.4 | 40*19*26 |
| APG-B1 | 360 | 17 | 15.84 | 37*19*19 |
| APG-B2 | 200 | 23 | 22 | 34*18*25 |
| APG-B3 | 240 | 34.6 | 33.6 | 42*22*26 |
| APG-B4 | 120 | 34.6 | 33.6 | 46*25*22 |
| APG-C1 | 150 | 26.2 | 25.2 | 38*18*25 |
| APG-C2 | 150 | 31.3 | 30.3 | 38*23*26 |
| APG-C3 | 64 | 26.6 | 25.6 | 44*20*26 |
Shipping:
Port of Departure: Ningbo or Shanghai
Delivery Time: 15 days after receiving the payment
