Small Size Rugged PC ADU510 Embedded Jetson Xavier NX 8G 16G CAN GPS 4G/5G Multiple Interfaces AI Fanless Industrial Computer
- Category: >>>
- Supplier: Shenzhen Cookoo Technology Co. Ltd.
Share on (1600570956504):
Product Overview
Description
Products Description
ADU510 series AI edge computer adopts multi-module compatible design, can be equipped with NVIDIA Jetson Xavier NX, Nano, TX2 and other computing modules, AI computing power 0.47TFLOPS to 21TOPS.It can meet needs of AI applications such as deep learning,visual processing, accelerated computing, depth estimation, route planning and object detection. Standard configuration: four USB3.0 ports, four 1000M Ethernet ports, and a detachable solid-state disk (SSD). Support customized EPA expansion board, expand more interfaces and functions, meet more AI application fields of computing and system integration.
Application Scenarios: Artificial Intelligence, Machine Vision, Intelligent Security, Intelligent Monitoring, Intelligent
Equipment, etc.
Application Scenarios: Artificial Intelligence, Machine Vision, Intelligent Security, Intelligent Monitoring, Intelligent
Equipment, etc.
Specifications
Computing Platform | ||||||||
Item | ADU510-A | ADU510-B | ADU510-C | ADU510-D | ||||
SOC | NVIDIA Jetson Xavier NX | NVIDIA Jetson Tx2 NX | NVIDIA Jetson NANO | |||||
AI Power | 21TOPS | 1.33 TFLOPS | 0.47TFLOPS | |||||
GPU | 48 Tensor Core 384 cores NVIDIA Volta™ GPU | NVIDIA Pascal™ architecture, 256 NVIDIA® CUDA® Core | NVIDIA Maxwell™ architecture,128 NVIDIA CUDA®Core | |||||
CPU | 6 cores NVIDIA Carmel ARM®v8.2 64 bit CPU 6MB L2 + 4MB L3 | Dual-cores NVIDIA Denver 2 64 bit CPU and Quad-core Arm® Cortex®-A57 MP-Core | Quad-cores ARM® Cortex®-A57 MP-Core Processor | |||||
Memory | 16 GB 128 bit LPDDR4x | 8GB 128-bit LPDDR4x | 4GB 128 bit LPDDR4 | 4GB 64 bit LPDDR4 | ||||
Storage | 16GB e.MMC 5.1 | |||||||
Visual Accelerator | Visual Accelerator | / | / | |||||
DL Accelerator | 2 PCs NVDLA engine | / | / | |||||
Video Coding | 2x 4K60 | 4x 4K30 | 10x 1080p60 | 22x 1080p30 (H.265) 2x 4K60 | 4x 4K30 | 10x 1080p60 | 20x 1080p30 (H.264) | 1x 4K60 | 3x 4K30 | 4x 1080p60 | 8x 1080p30 (H.265) 1x 4K60 | 3x 4K30 | 7x 1080p60 | 14x 1080p30 (H.264) | 250 MP/s 1x 4K @ 30 (HEVC) 2x 1080p @ 60 (HEVC) 4x 1080p @ 30 (HEVC) | |||||
Video Decoding | 2x 8K30 | 6x 4K60 | 12x 4K30 | 22x 1080p60 | 44x 1080p30 (H.265) 2x 4K60 | 6x 4K30 | 10x 1080p60 | 22x 1080p30 (H.264) 2x 8K30 | 6x 4K60 | 12x 4K30 | 22x 1080p60 | 44x 1080p30 (H.265) 2x 4K60 | 6x 4K30 | 10x 1080p60 | 22x 1080p30 (H.264) | 2x 4K60 | 4x 4p30 | 7x 1080p60 | 14x 1080p30（H.265 和 H.264） | 500 MP/s 1x 4K @ 60 (HEVC) 2x 4K @ 30 (HEVC) 4x 1080p @ 60 (HEVC) 8x 1080p @ 30 (HEVC) | |||||
OS | Ubuntu 18.04 | |||||||
Standard Interface (ADU510 - A/B/C/D - 01) | ||
Power | 1-line，Rated input DC 24V | |
Display | 1-line，HDMI、TYPE-A | |
USB | 4-line，USB3.0 、TYPE-A | |
Ethernet | 4-line，1000BASE-T、with POE | |
Storage Extension | 1-line，detachable M2.M SSD solid-state disk interface | |
Debug | 1-line，use for developing and debugging，including signals USB,UART,etc. | |
Recovery Button | 1 piece，use for developing and debugging | |
Indicator | 2 pieces，power status indicator and working status indicator | |
Standard Interface (ADU510 - A/B/C/D - 02) | ||
Add on the basis of "01" | ||
RS232 | 4-line | |
RS485 | 4-line | |
WIFI | 1-line | |
Standard Interface (ADU510 - A/B/C/D - 03) | ||
Add on the basis of "01" | ||
RS232 | 2-line | |
RS485 | 2-line | |
WIFI | 1-line | |
4G | 1-line | |
GPS/BD | 1-line | |
Performance Index | ||
Voltage | Rated Input DC 24V | |
Operating Temperature | -20°C ~ +70°C | |
Vibration | (3Grms，10Hz~500Hz，1h/axis) | |
IP | (IP43) | |

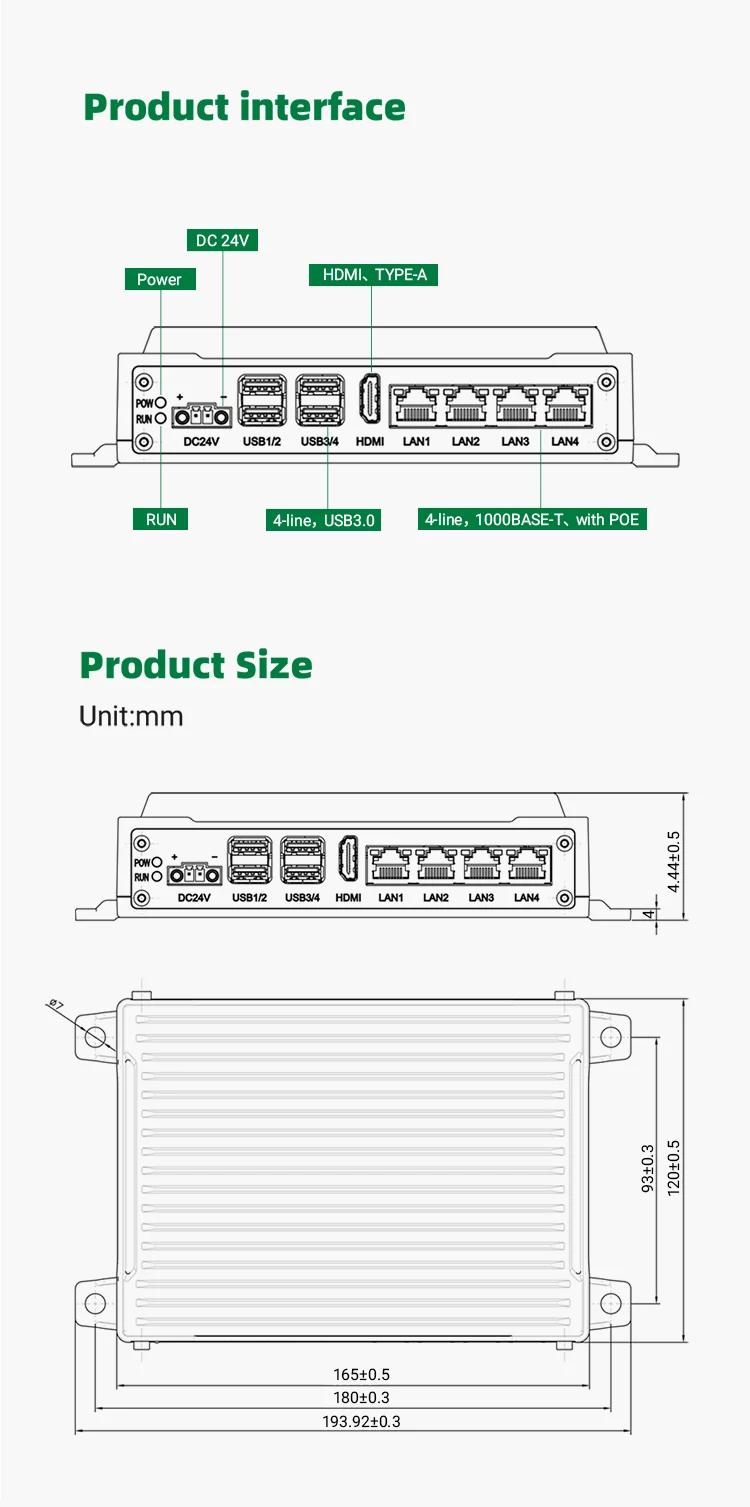

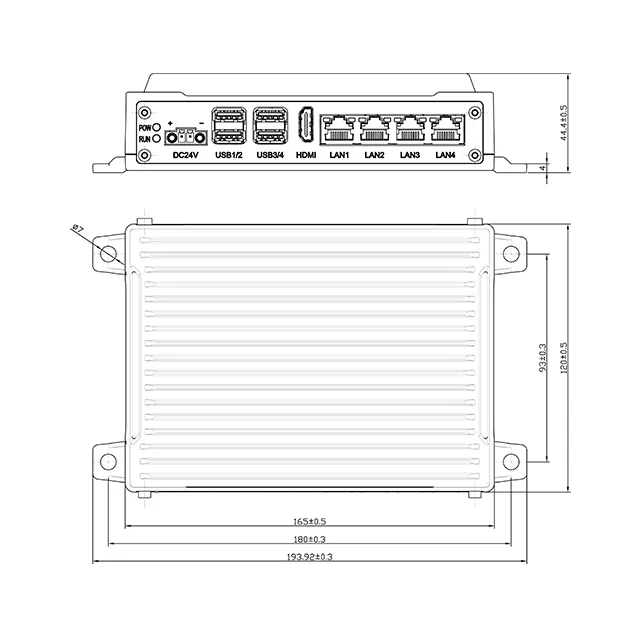

Size | 165 * 120 * 44mm（L*W*H） | |
