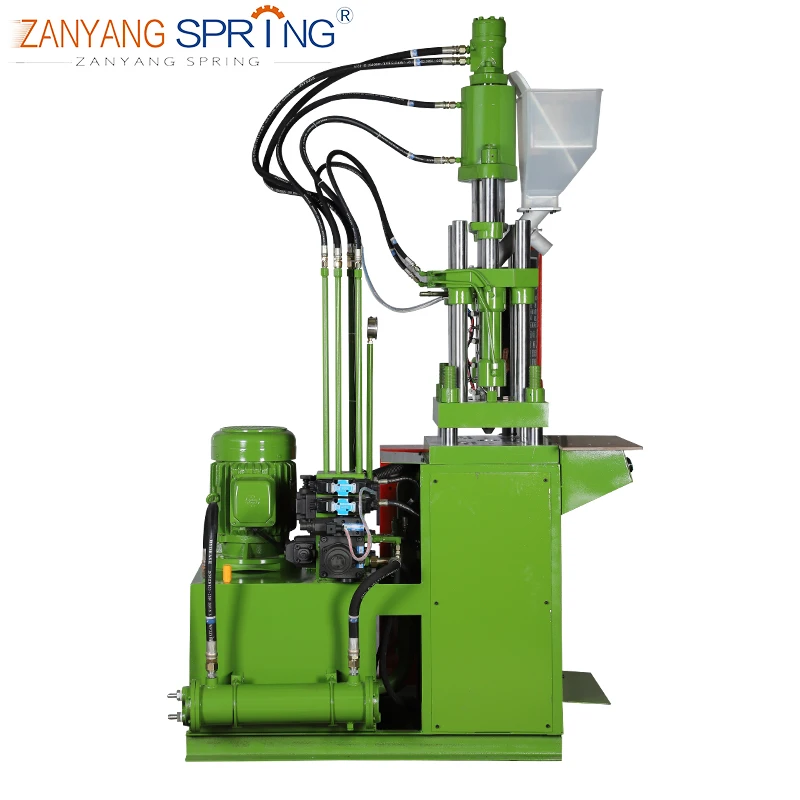

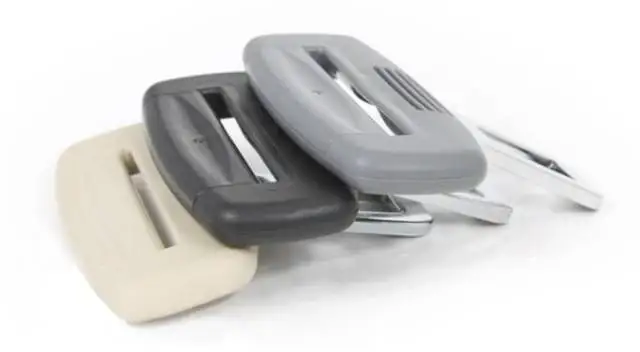

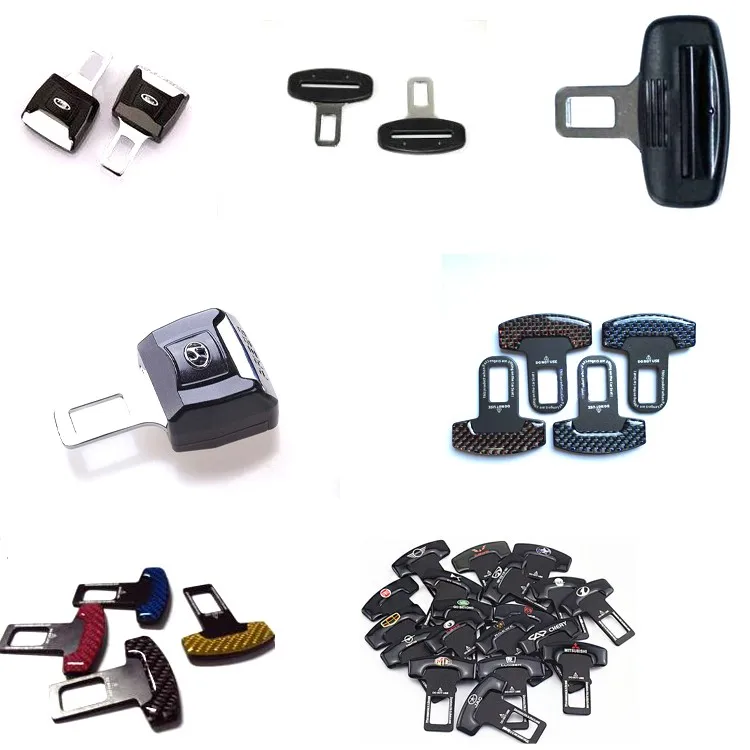

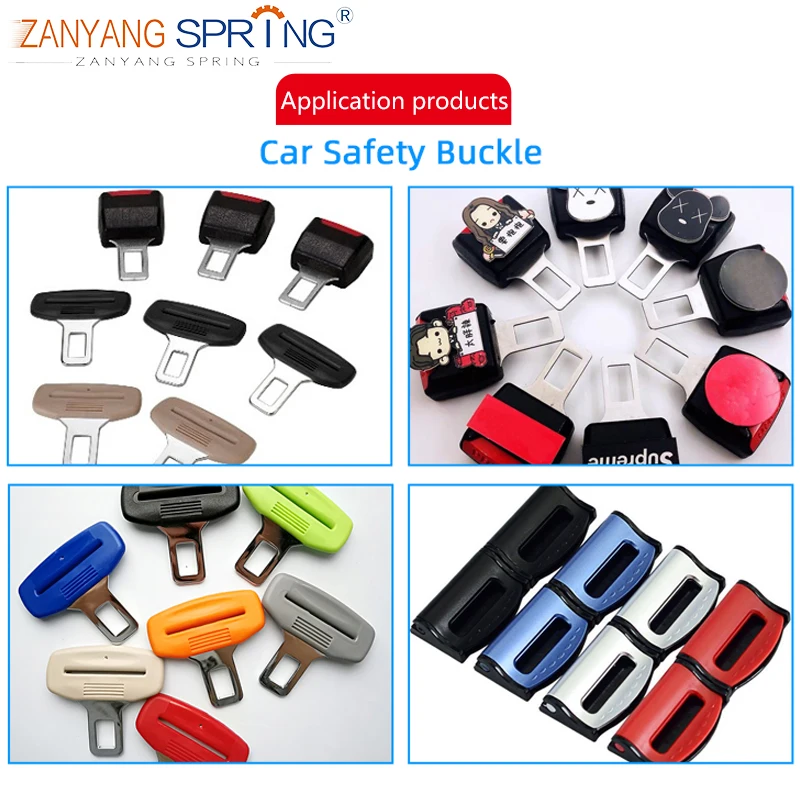

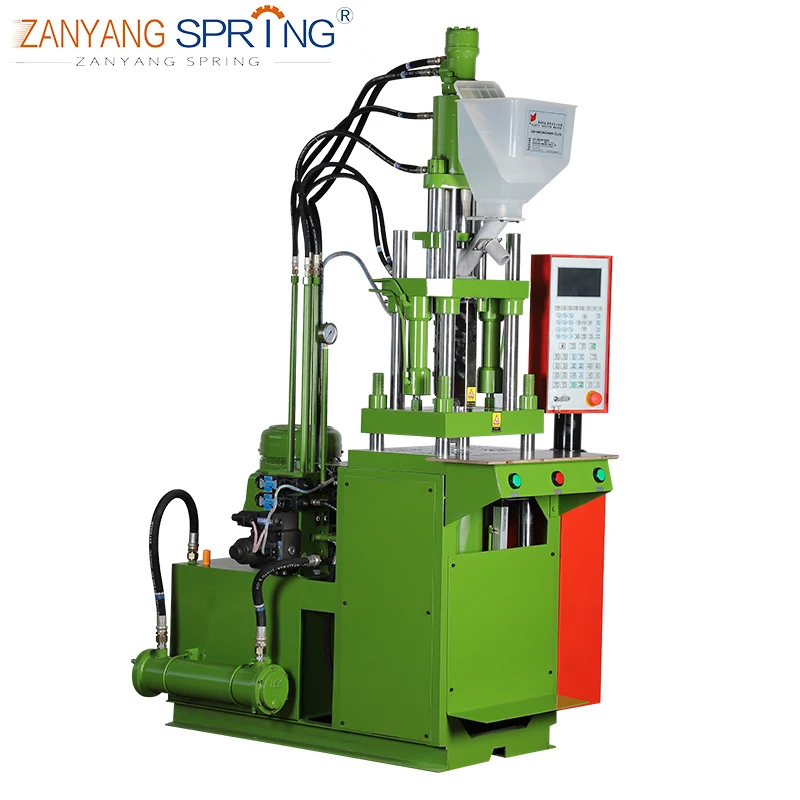

Metal belt and plastic car belt manufacturing machine for all sizes of vehicles Vertical injection molding machine 55T

Product Overview

Description

1. Verical opening and closing mpold and inline screw ijcion for esysina and injection molding.

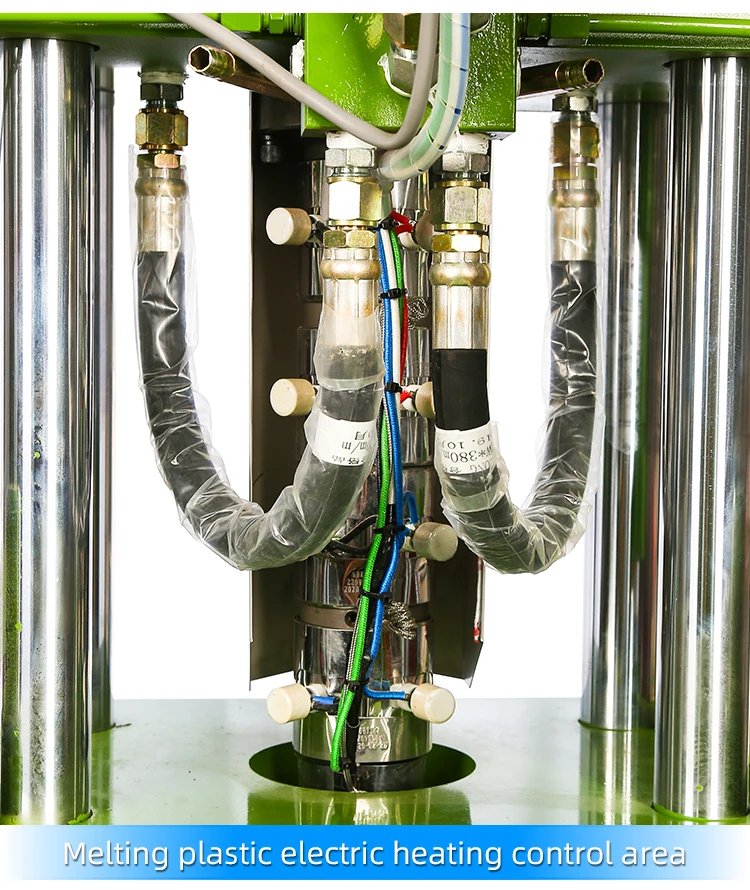

2. Multi section PID temperature control of material pipe, stepless speed regulation of feeding, stable forming.

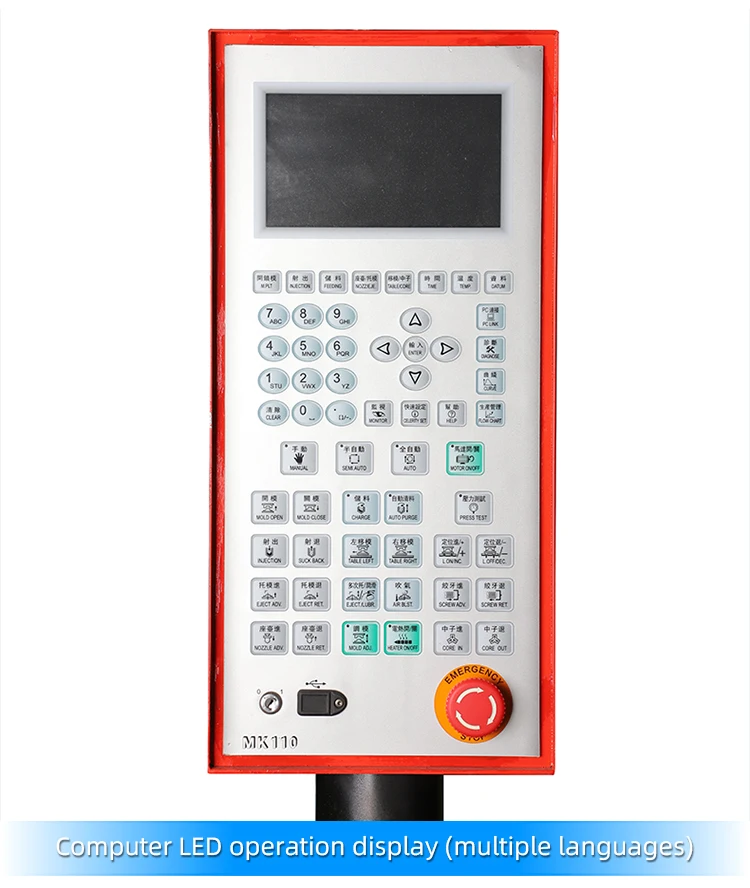

3. Screen industrial control computer, simple operation, precise control and low failure.

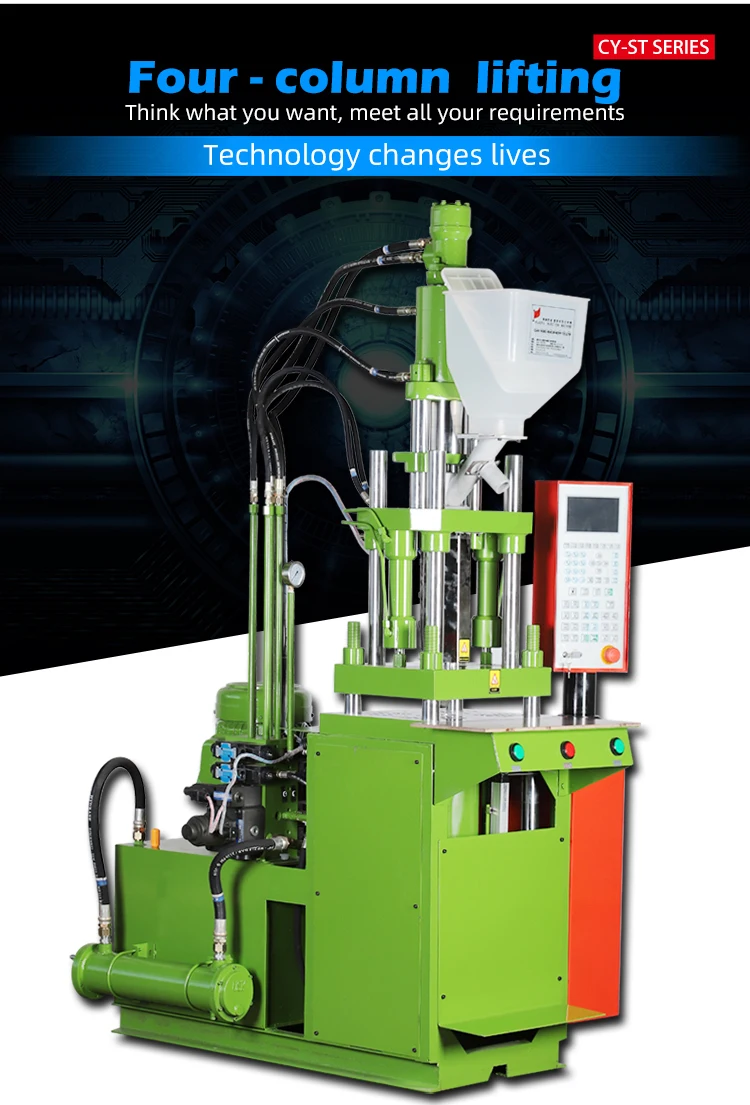

4. Four column type with pedestal lifting, more stable large mold, more stable product quality.

5. It can be equipped with manipulator and automatic feeding device to realize unmanned automatic production.

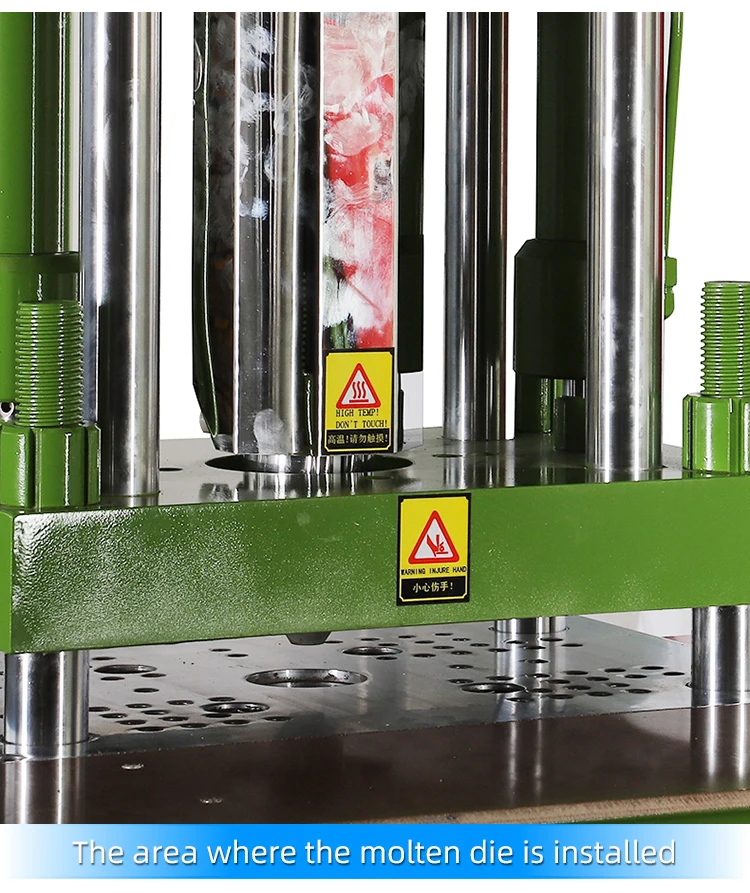

It is easy to fix die.

	MODEL	UNIT	CY-550ST-PP
INJECTION UNIT	Screw Diameter	mm	32	35	42
	lnjection Pressure	kg/cm²	1907	1590	1110
	Theoretical Shot Volume	cm³	112	134	194
	Max.Shot Weight(Ps)	g	103	123	178
	Safe Shot Weight(Ps)	oz	3.6	4.3	6.2
	Injection Rate	cm³/sec	50	60	87
	Screw Stroke	mm	140
	screw Speed Max.	rpm	0-170
	Nozzle Comtact Force	tons	5.5
	Nozzle Retraction Stroke	mm	210
	Number of Temperature Control		3
CLAMPING UNIT	Clamping Force	tons KN	55 550
	Platen Size	mm	680×480
	Distance Between Tie Bere	mm	470×280
	Min.Mold Height	mm	270/70
	pening Stroke	mm	200
	Max.Open daylight	mm	470/270
	Ejetor Force	tons	1.76
	Ejetor Stoke	mm	35

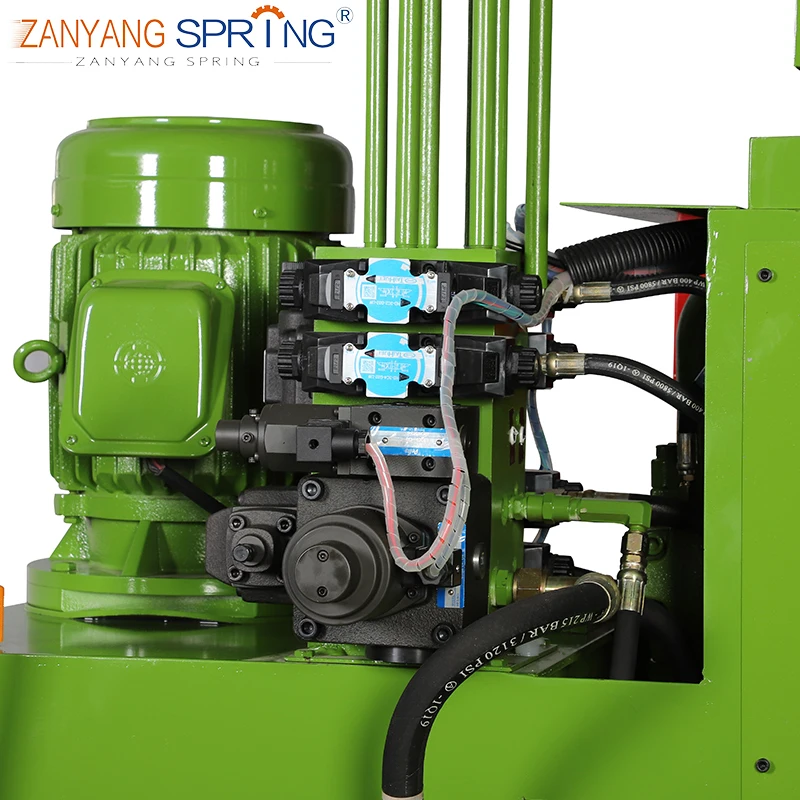

POWER/HEADING UNIT	Max.Hydaulic Pressure	kg/cm²	140
	Pump output	l/min	43.2
	Oil Resservoir Capacity	l	150
	Cooling waer Consumption	l/hr	800-1000
	Pump Motor Power	kW/HP	7.5/10HP
	BerrelHeating Power	kW	4.5
	Total Electricity Usage	kW	12
OTHER	Machine Weight	tons	1.9
	Machine Dimensions(LxWxH)	m	1.8 x 1.2 x2.54
	Shipping weight	tons	2.1
	Shipping Measurements(LxWxH)	m	2.0 × 1.3 × 2.5

Q1:Are you a trading company or a manufactory?

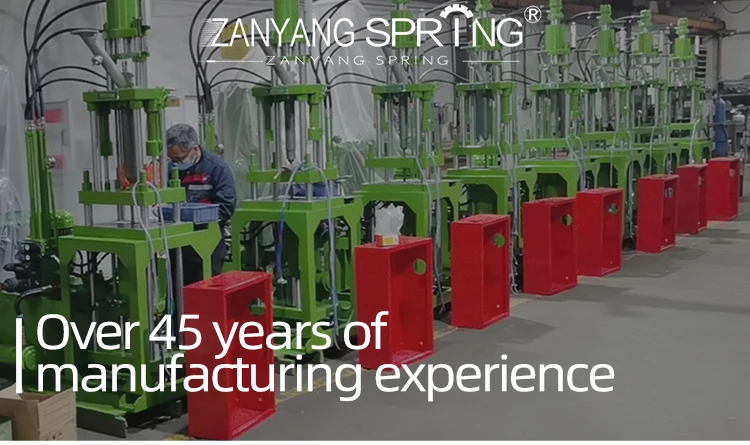

A1:We are a manufactory,can give u best service and low price.

Q2:What's your guarantee or the warranty of the quality if we buy your machines?
A2:We offer you high quality machines with 1 year warranty .

Q3:When can I get my machine after I paid?
A3:We will deliver the machines on time as the date we agreed both side.
