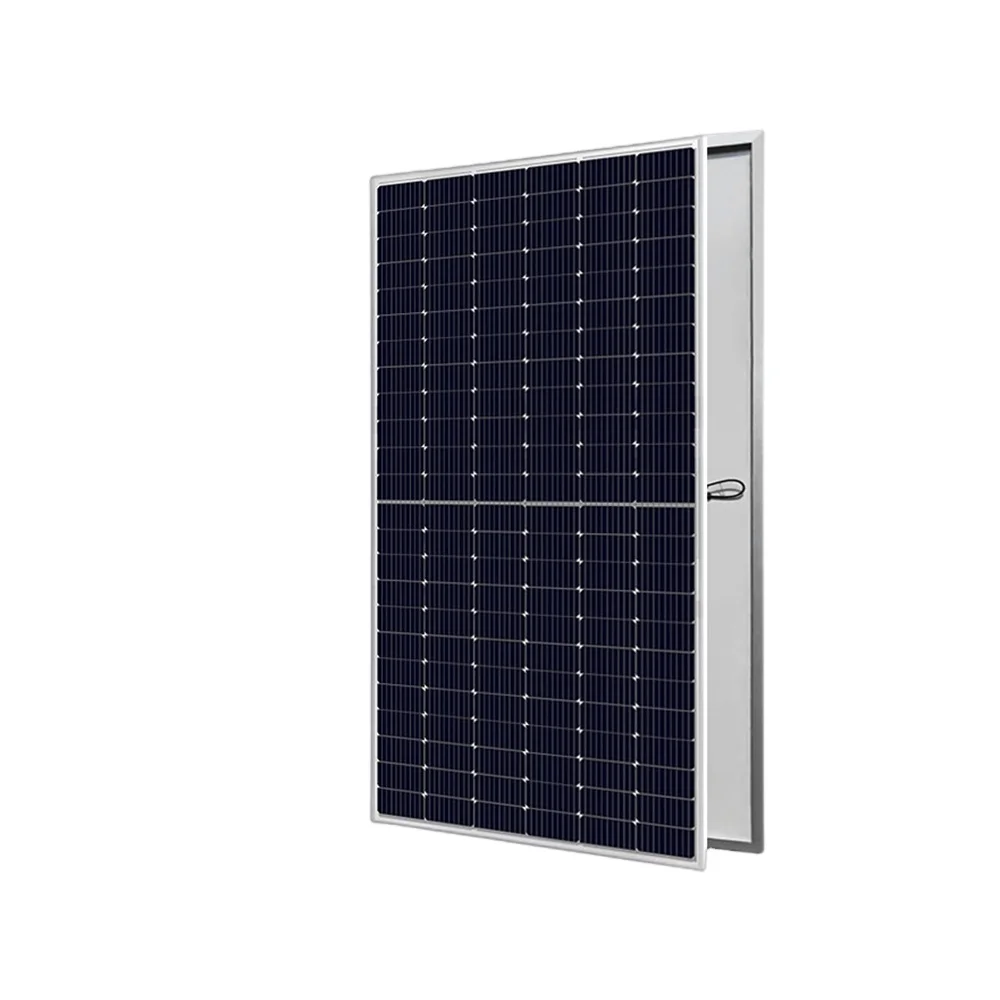

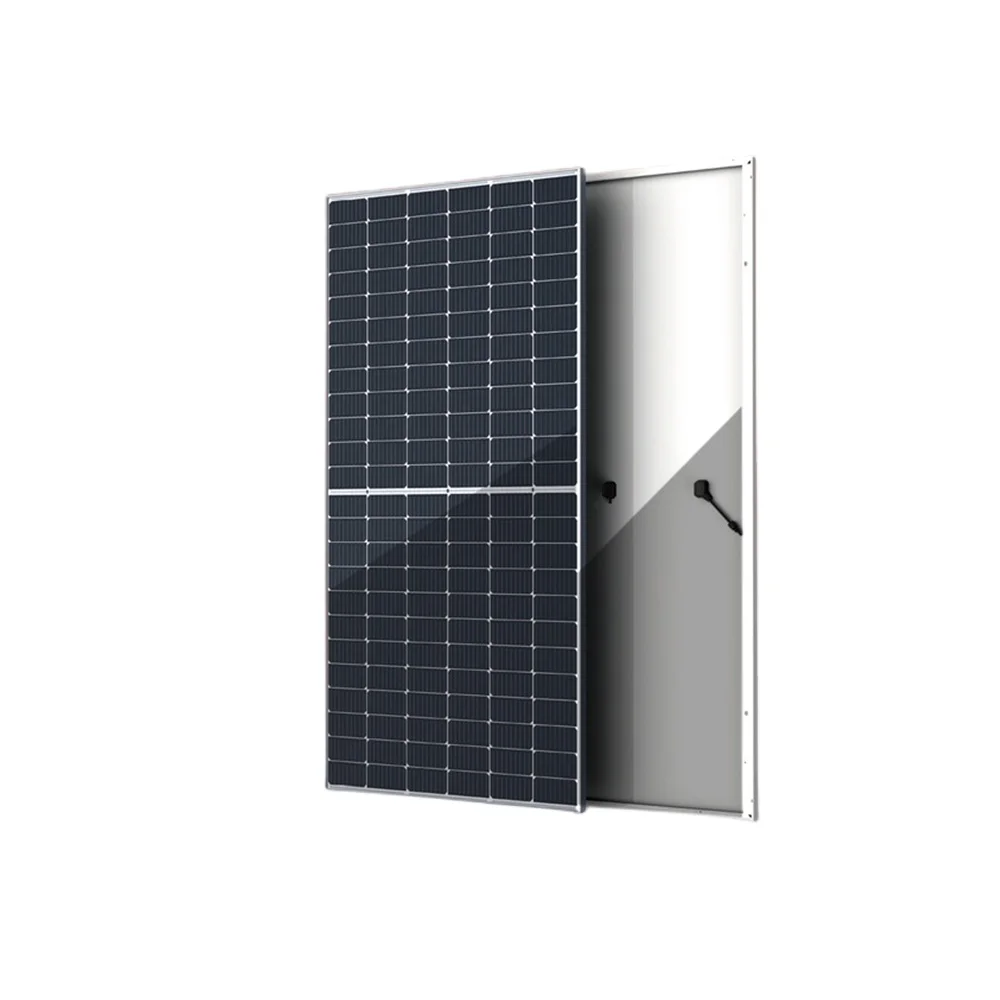

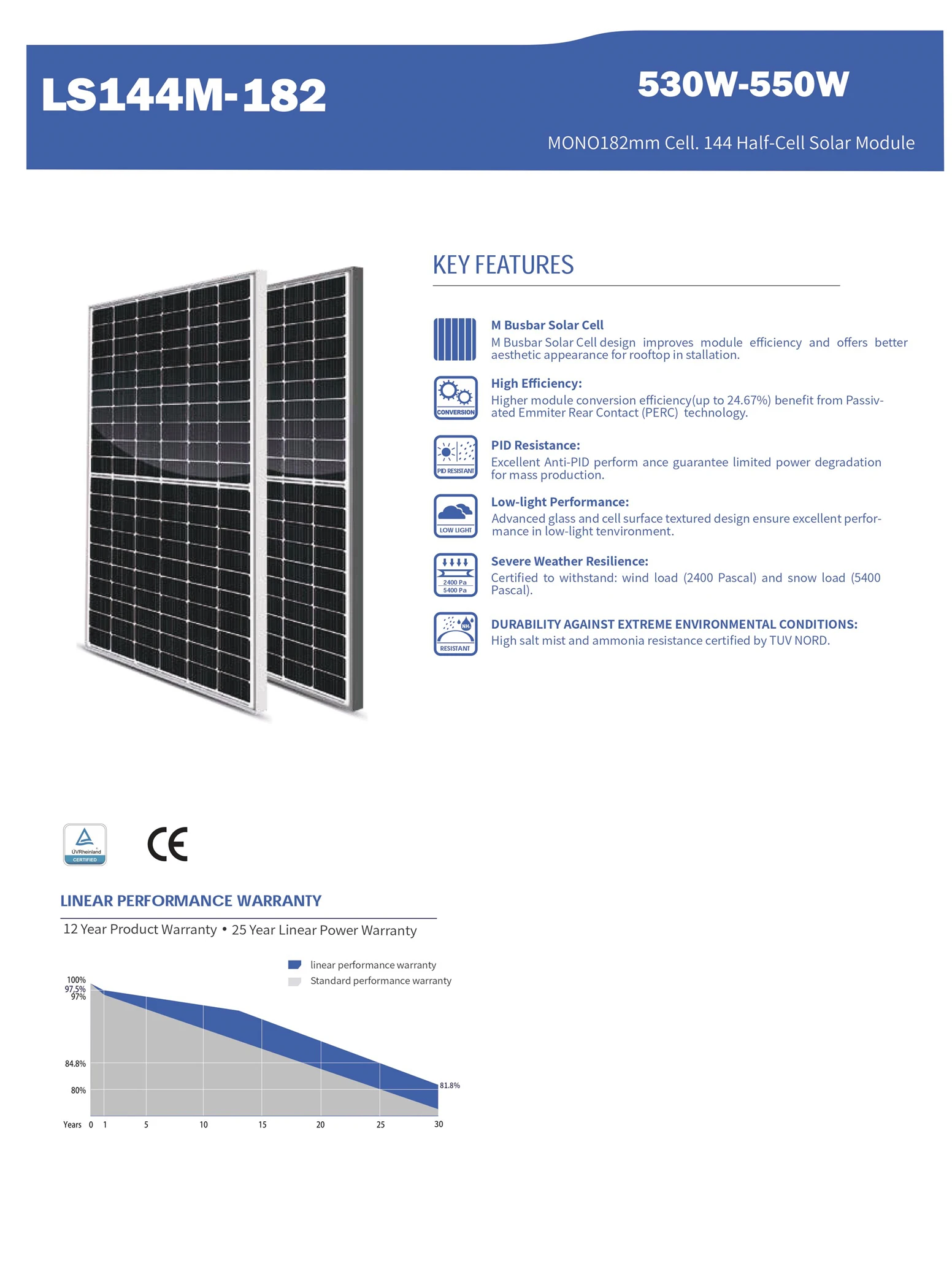

Wholesale Price Mono PV Solar Module Photovoltaic Panel 530Watt For PV Project
- Category: >>>
- Supplier: Linyi Lisai International Trade Co. Ltd.
Share on (1600571041570):
Product Overview
Description
Product Description

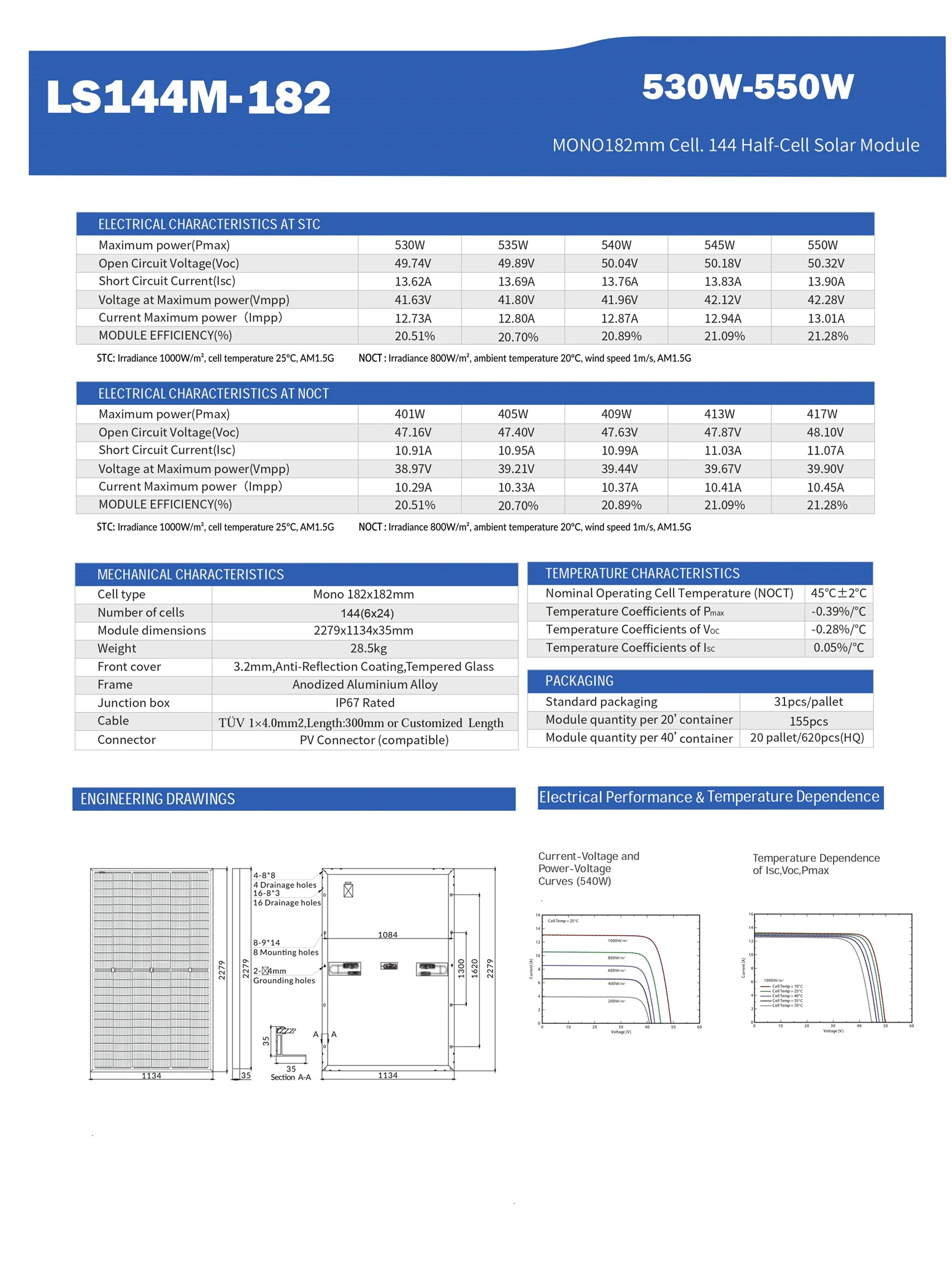

ELECTRICAL CHARACTERISTICS AT STC
| Nominal Power(Pmax/) | 530W | 535W | 540w | 545W | 550W |
| Open Circuit Voltage(Voc) | 49.74V | 49.89V | 50.04V | 50.18V | 50.32V |
| Short Circuit Current(Isc) | 13.62A | 13.69A | 13.76A | 13.83A | 13.90A |
| Voltage at Nominal Power(Vmp) | 41.63V | 41.80V | 41.96V | 42.12V | 42.28V |
| Current at Nominal Power(Imp) | 12.73A | 12.80A | 12.87A | 12.94A | 13.01A |
| Module Efficiency(%) | 20.51% | 20.70% | 20.89% | 21.09% | 21.28% |
| Operating Temperature | -40ºC to +85ºC | ||||
| Maximum System Voltage | 1000VDC (IEC) | ||||
| Fire Resistance Rating | Type1(in accordance with 1703)/ Class C(IEC61730) | ||||
| Maximum Series Fuse Rating | 20A | ||||
| STC:Irradiance 1000w/m2, Cell temperature 25ºC,AM1.5 | |||||

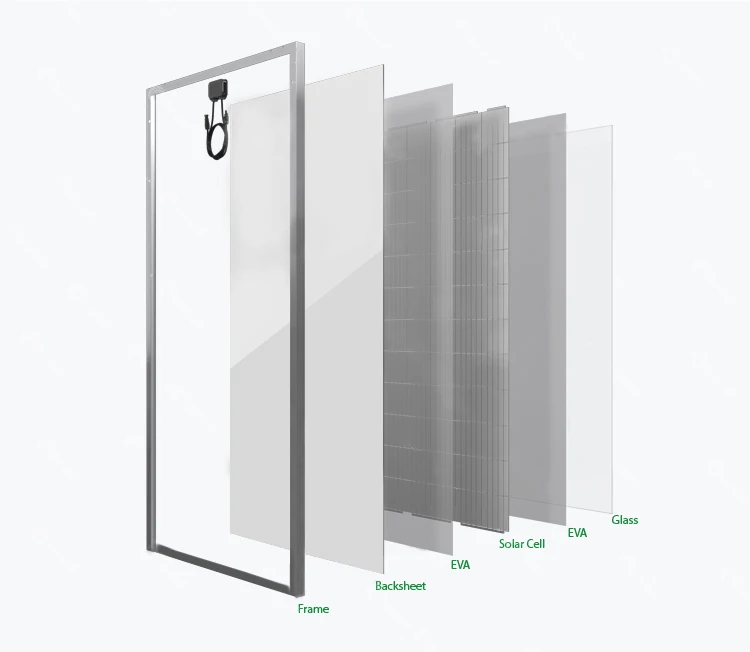

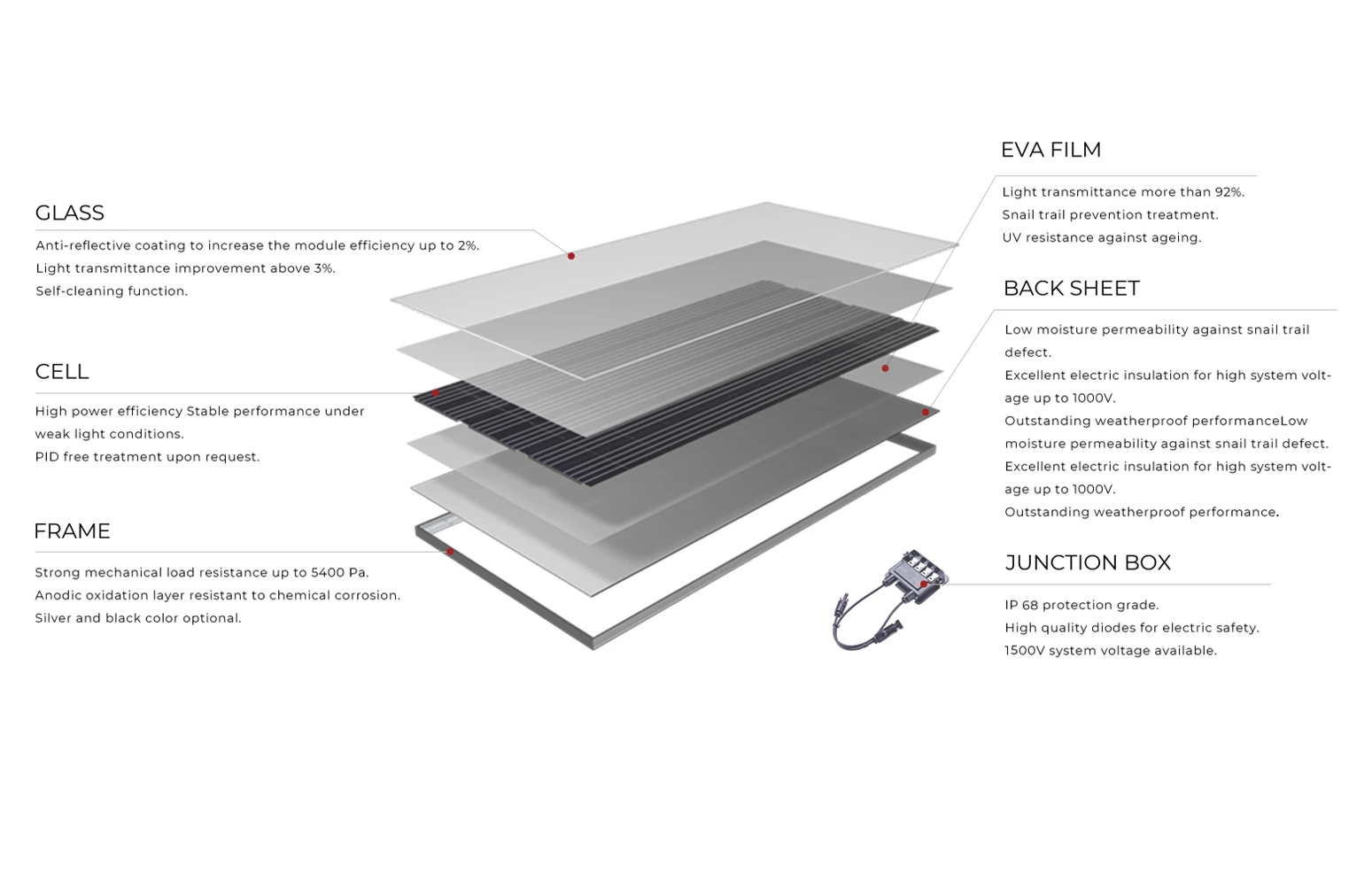

Detail Images

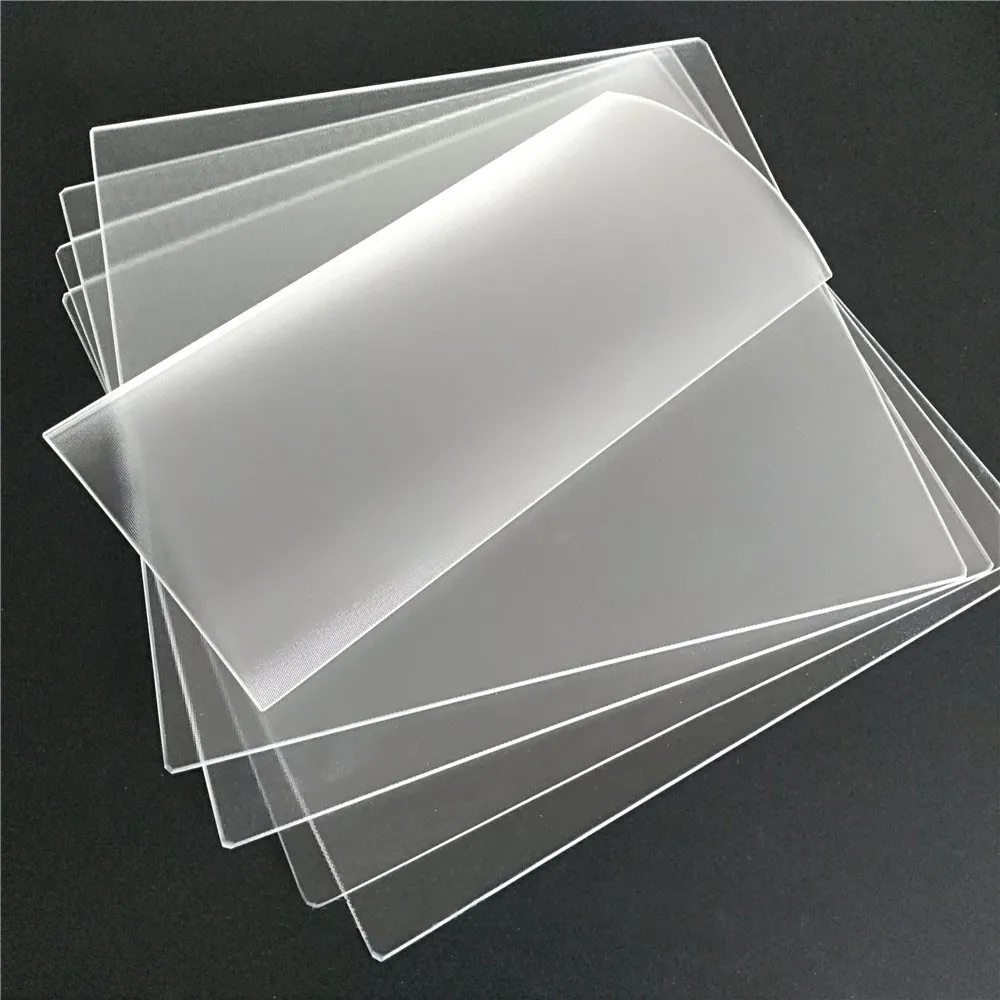

1. Glass
> Antireflective glass
> Translucency of normal luminance is increased by 2%
> Module efficiency is increased by 2%
> Self-cleaning function
> Service life is as long as 25 years (30 years optional)

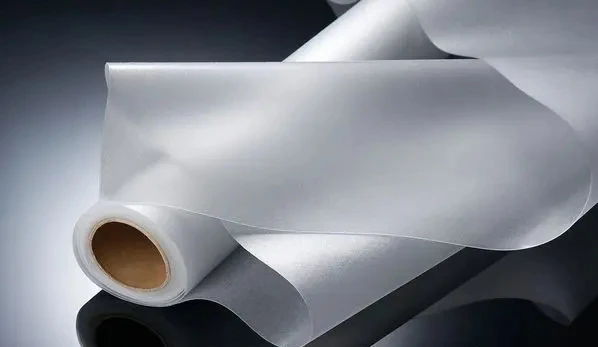

2. EVA
>91% Higher Transmittance EVA,
>Higher GEL Content To Provide Good Encapsulation And Protect Cells
From Vibration With Longer Durability

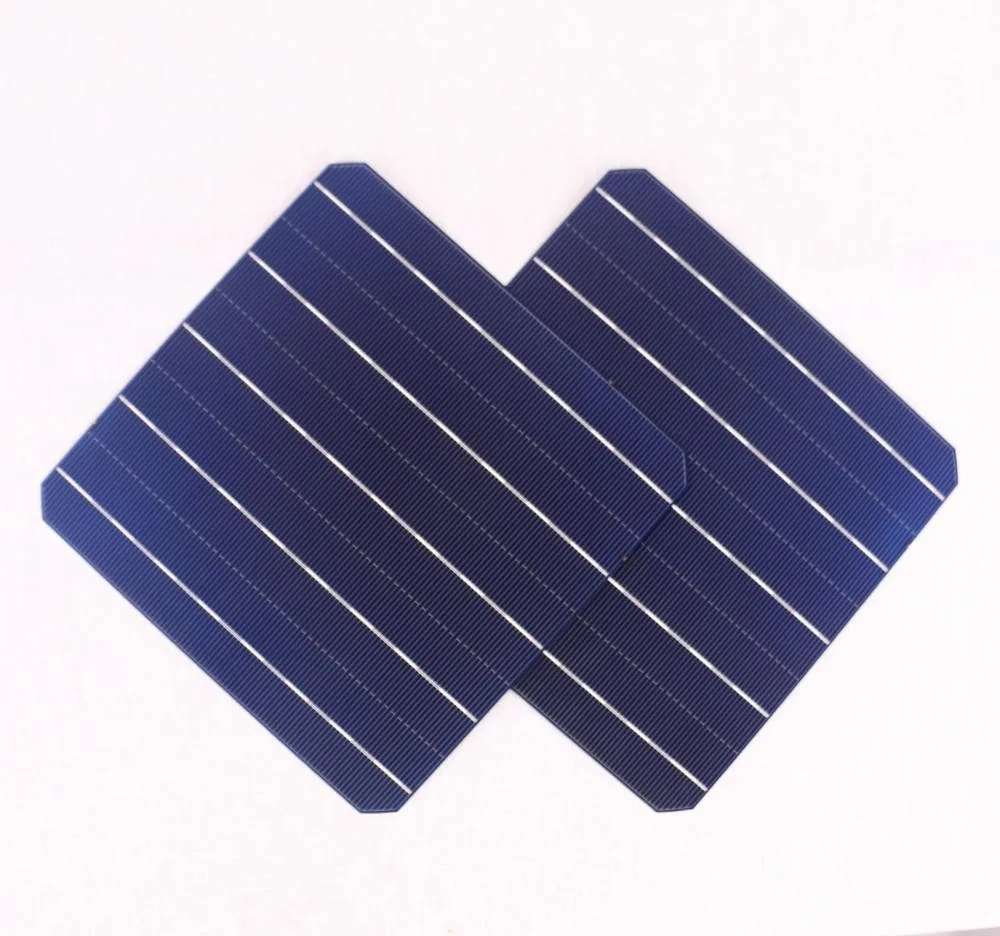

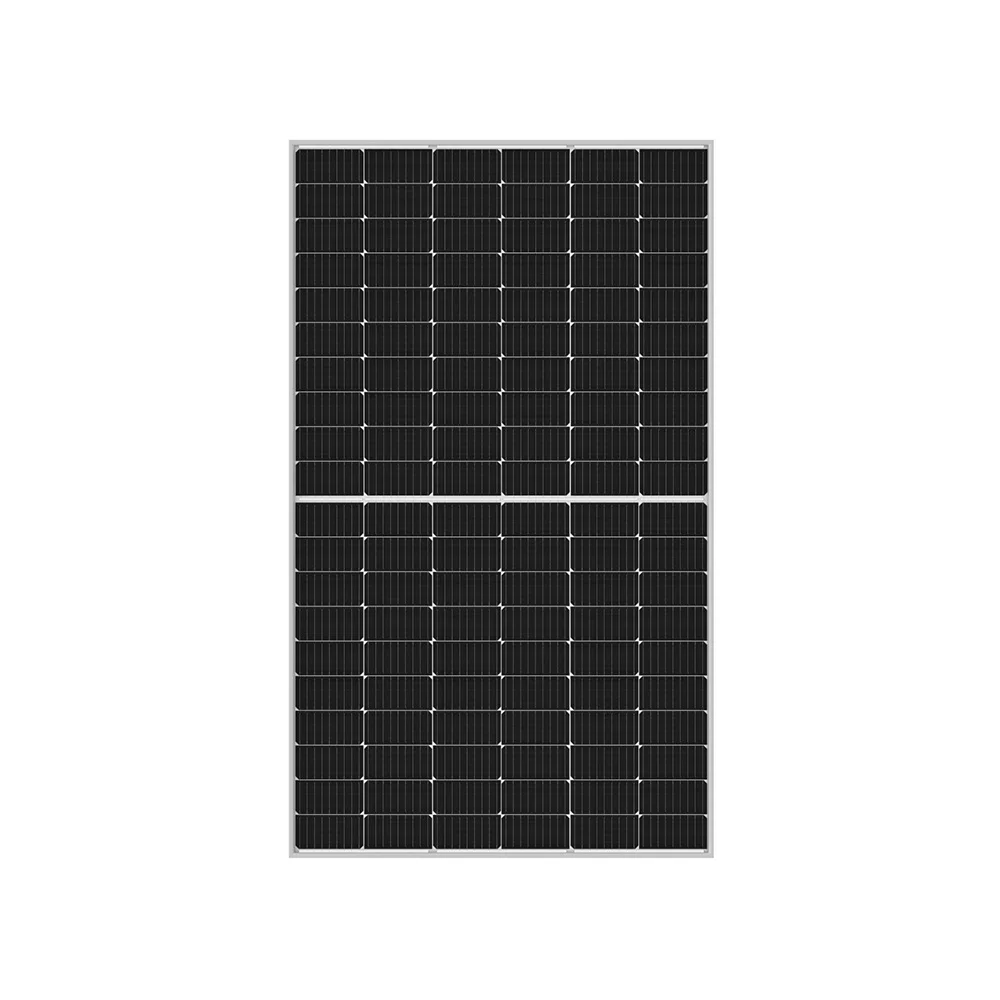

3. Solar Cells
> High Efficiency PV Cells
> Appearance Consistency
> Color sorting ensure consistent appearance on each module
> Anti-PID

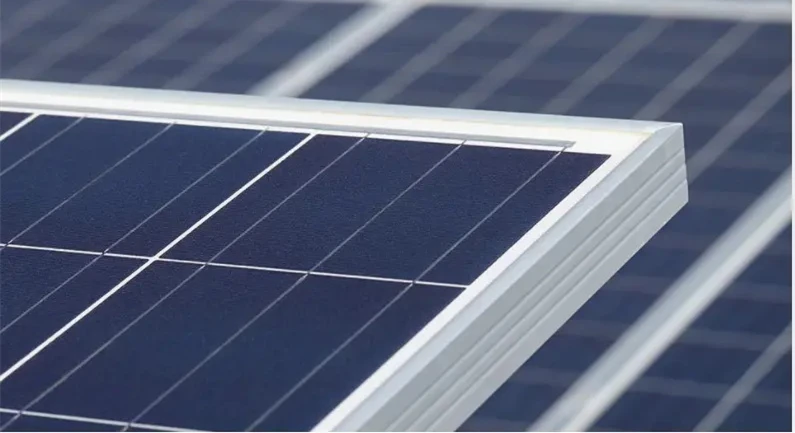

4. Frame
> Conventional frame
> Silver or black frames are optional
> Boost bearing capability and prolong service life
> Serrated-clip design tensile strength
> Seal-lip designglue injection

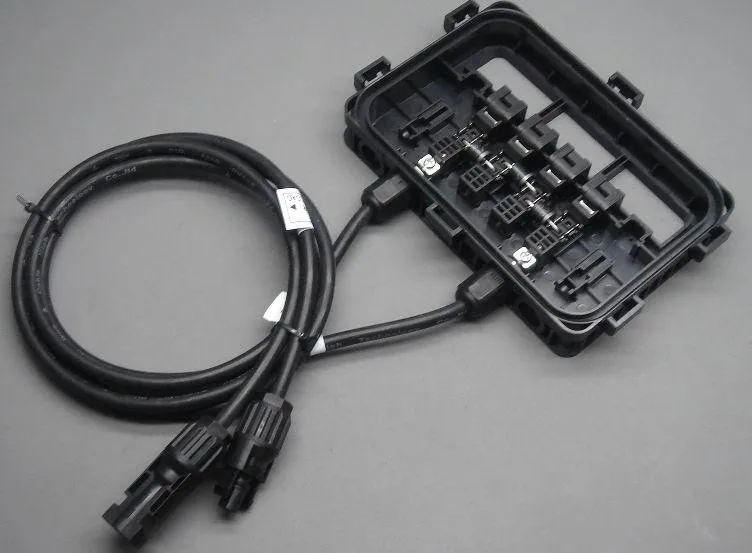

5. Jution Box,cables& MC4
> IP67 Waterproof, Closed
> 4mm2, 6mm2 Wire Size Range
> -40 ℃ to +85 ℃ Temperature Range
> Innovative full-glue-filled junction box Outstanding sealability
Company Information

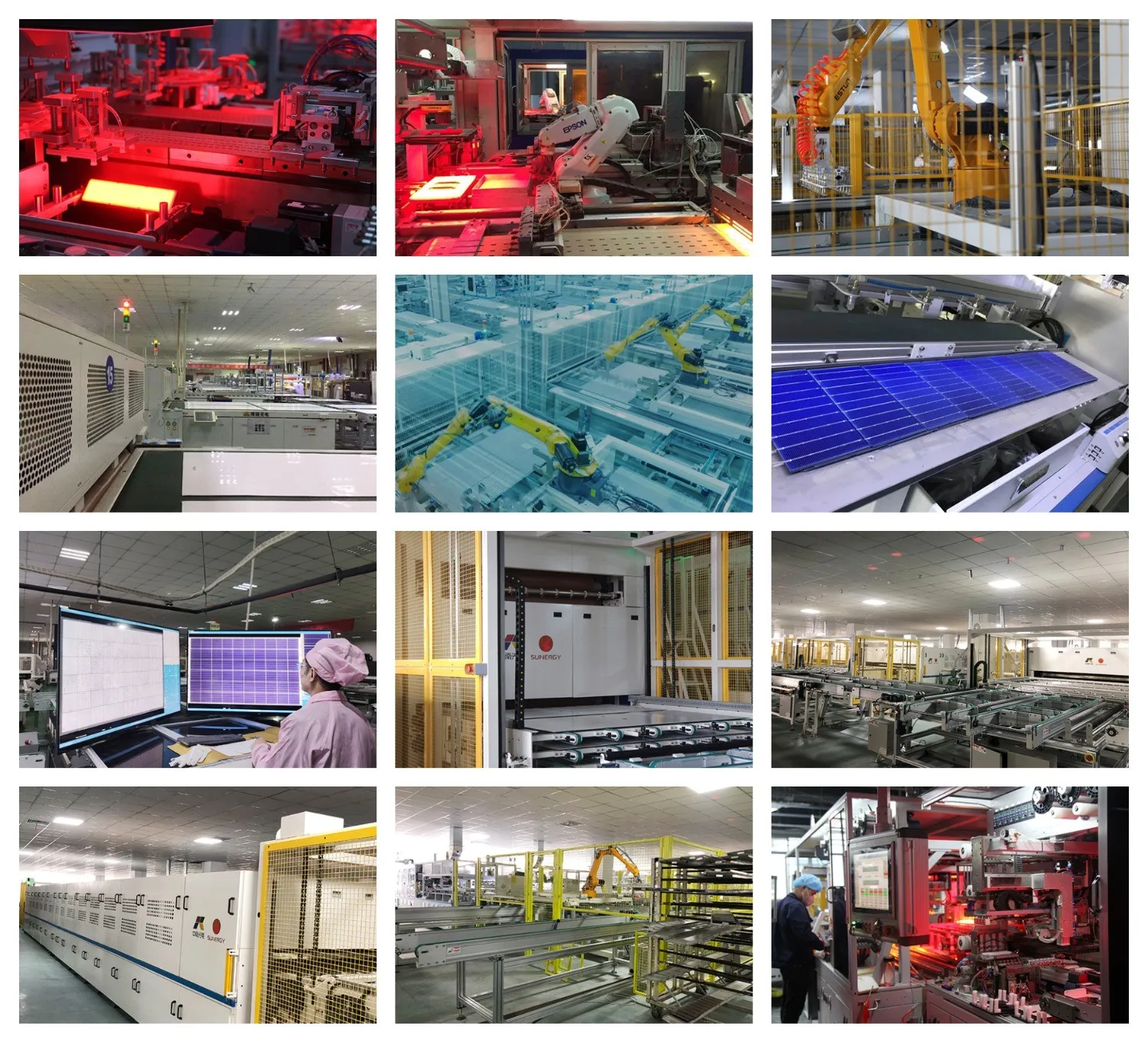

Production Process
Certificate

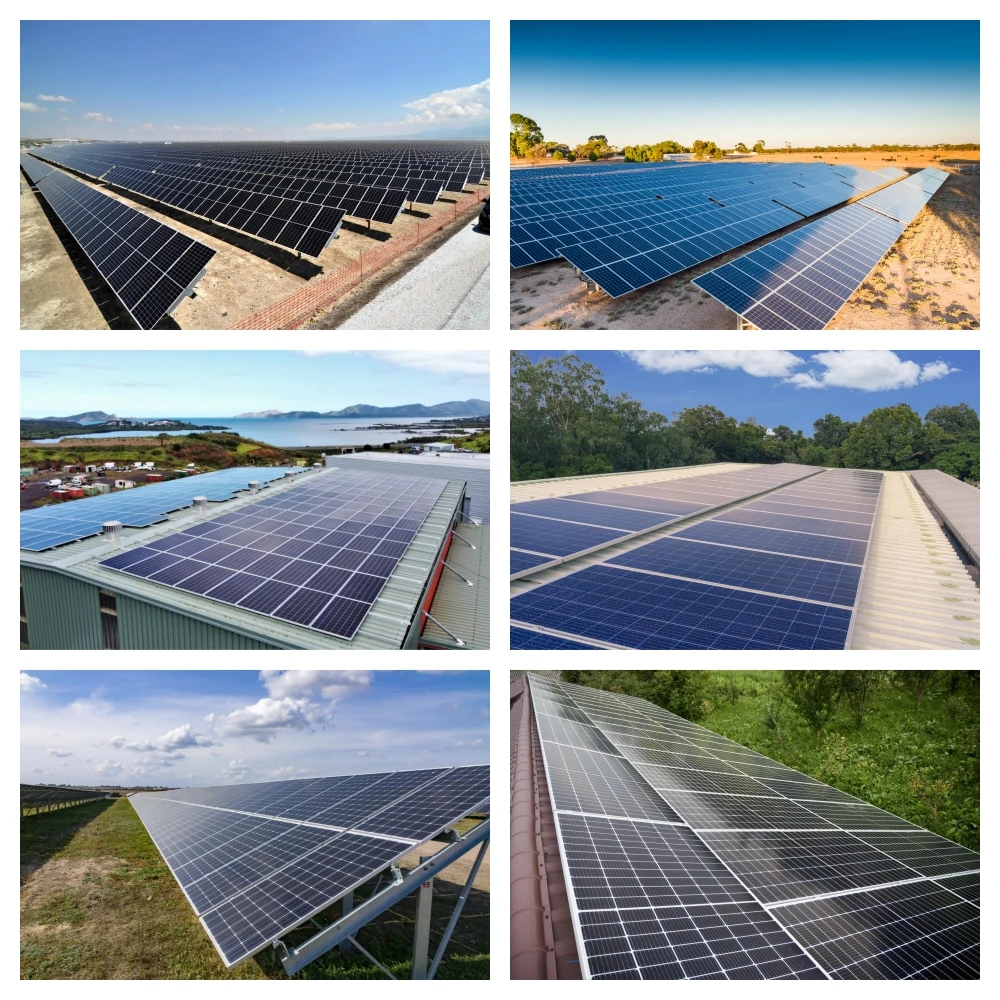

Project Case

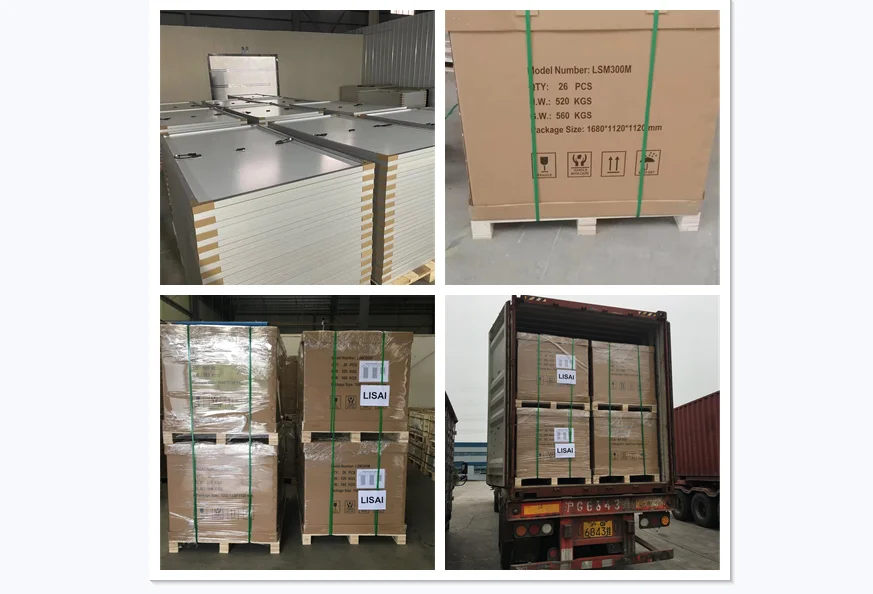

Packaging & Shipping
Payement Terms
Payment Terms |
T/T | EXW | 30%T/T in advance,paid the balance before shipment |
FOB | |||
CFR(C&F) | 30%T/T in advance,paid the balance against copy of B/L | ||
CIF | |||
L/C | Optional L/C amount above 50,000usd, we can accept L/C at sight | ||
West Union |
Optional for amount less than 5000usd | ||
paypal | |||
Delivery Time | 7~10days after receiving payment for one container | ||
FAQ
Q1.Can you accpet the small order?
A. We can accpet the small order as trial order with testing our quality.
Q2.What's the payment term?
A. 30% advance by T/T, the balance of payment by T/T before shipment.
Q3. How's the delivery time?
A.It will take about 7-15days for production,The shipping time depends on the production quantity and destination country as well as the mode of shipping used, please consult
us if you want to obtain the exact time.
us if you want to obtain the exact time.
Q4. Would you accept to OEM ?.
A. We accpet the OEM.
