Product Overview
Description
High Efficiency New Foam Cement Brick Machine Cement Foaming Machine For Construction
Our company has all kinds of cement foaming machines for you to choose from!
Please contact Monna for more detailed information and a quote!
Ms Monna
Web: http://hnkellen.en.alibaba.com
WeChat: 15824835079
E-mail:[email protected]
WhatsApp:008615824835079
Web: http://hnkellen.en.alibaba.com
WeChat: 15824835079
E-mail:[email protected]
WhatsApp:008615824835079
Miniature Cement Foaming Machine
Description: The miniature cement foaming machine is specially produced for the development and testing of new products by scientific research institutions such as schools and scientific research institutes. 15 cubic meters of foam per hour.
Machine weight | 36 kg |
Voltage | 220V |
Size | 700*480*600mm |
Power | 1.5kw |
Pressure | 0.8Mpa |
Small cement foaming machine
Description: The small cement foaming machine is a special equipment for producing foam. It foams 30 cubic meters per hour. It can be used as needed. It is suitable for universities, research institutes and other scientific research institutions to develop new products. The factory produces explosion-proof booths. Whole bathroom use. It is more efficient to use the small foam concrete special mixer produced by our company.
Machine weight | 70kg |
Voltage | 380V |
Size | 1150*820*960mm |
Power | 3 phase:3kw 2 phase:4.5kw |
Pressure | 0.8Mpa |
Medium cement foaming machine

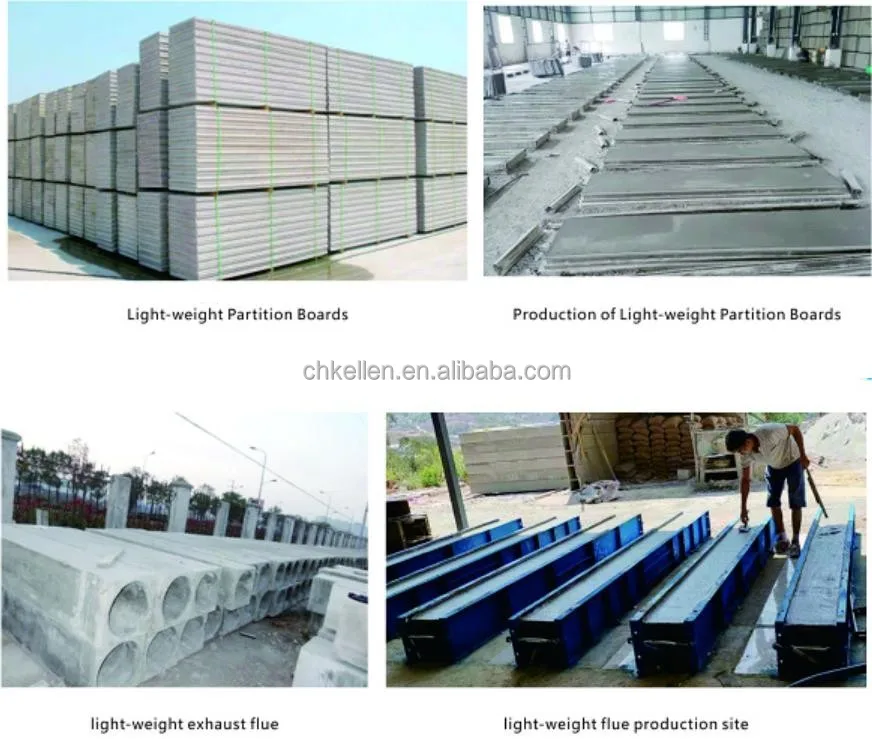

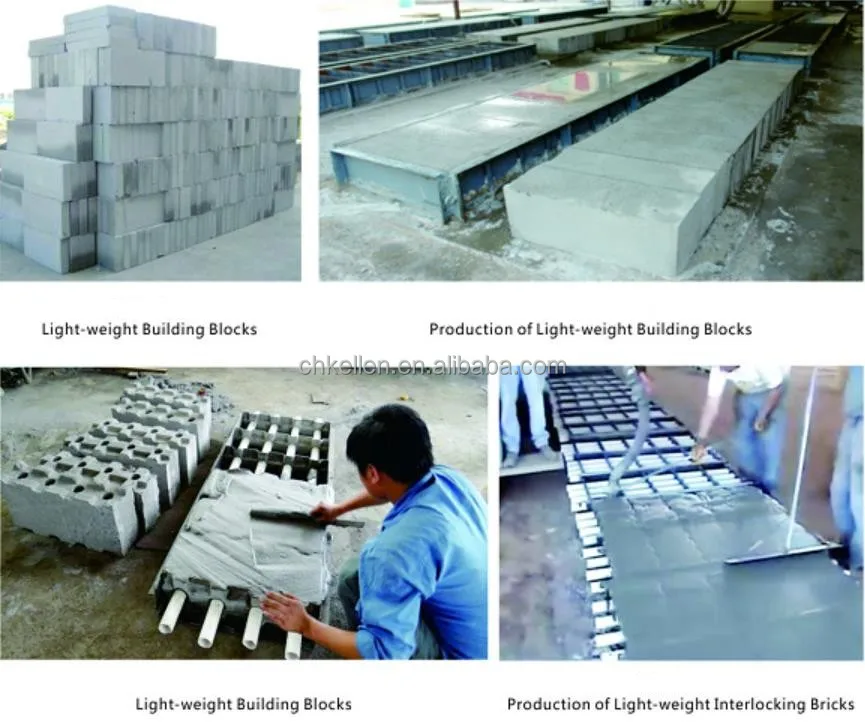

Description: The medium-sized cement foaming machine is specially designed and produced for the production of light blocks, light partition boards, fire door core boards, fire isolation belts, garden rockery and other landscape projects. It has large output and high efficiency.
50-60 cubic meters of foam per hour.
Machine weight | 170kg |
Voltage | 380V |
Size | 1200*700*760mm |
Power | 4kw |
Pressure | 1.6Mpa |
Large cement foaming machine
Description: The large-scale cement foaming machine is specially designed for the production of integrated houses, large-scale prefabricated components and other foams that use a large amount of foam. It is designed for mass production of foamed cement products in the factory. The output is large and the efficiency is high. 100 cubic meters of foam per hour.
Machine weight | 260kg |
Voltage | 380V |
Size | 1260*760*760mm |
Power | 5.5kw |
Pressure | 1.6Mpa |
Of Cement foaming machine production line series
BL-10 Cement Foaming Machine
L-10 cement foaming machine is the smallest foam concrete production equipment carefully developed by our company on the basis of many years of equipment production and construction experience. The output of this equipment is 8-10 cubic meters per hour. It is designed and produced according to market demand, and has been highly praised by customers. It is easy to move, can be directly loaded on the vehicle, and can be constructed anytime, anywhere.
1. Split design, easy to move.
2. The power consumption is small, it can be directly connected to the rural lighting power, or it can be used by its own 15kw generator.
3. Each device is individually controlled, easy to learn and master.
4. The high-pressure screw pumping system is adopted, with a large conveying volume and a conveying height of 30 meters.
6. The fuselage is intensively designed, small in size and light in weight. It can be loaded on and off with a manual forklift, or directly installed on a small truck, saving the cost of up and down hoisting.
5. Compared with other similar equipment, this equipment can save 50-100 kilograms of cement consumption per cubic product, greatly reducing production costs and improving economic benefits.
Technical parameter:
Model: BL-10
Rated voltage: 220V or 380V
Total Power: 6.7KW
Output: 6-8m/h
Horizontal conveying distance: 80m
Vertical conveying height: 30m
Maximum pressure: 1.6Mpa
Total weight: 460Kg
Outlet pressure: 1.2Mpa
Host size: 1300*650*1100mm
BL-20 Cement Foaming Machine
BL-20 type cement foaming machine is a small foam concrete production equipment carefully developed by our company on the basis of many years of equipment production and construction experience. After being used by customers, it has been highly praised. It is easy to move, can be directly loaded on the vehicle, and can be constructed anytime, anywhere.
1. The cement slurry is pumped by a single-cylinder piston driving mechanism, and the outlet pressure is high, which can meet the needs of high-rise buildings.
2. The ratio of various components is precisely controlled, and the density of foamed cement is easy to adjust.
6. Unique pump head structure, easy to disassemble and clean.
3. Selected high-quality components are used, with reliable quality and guaranteed after-sales service.4. The high-quality foaming agent produced by our company can be used to reduce the construction cost.
5. With walking wheels and universal wheels, it is convenient and flexible to move and position.
7. Intensive design of the fuselage, small size and light weight, can be transported by manual forklifts, or directly installed on small trucks, saving up and down hoisting costs.
Technical parameter:
Model: BL-20
Rated voltage: 380V
Total power: 15.5KW
Theoretical vertical conveying height: 120m
Output: 15-20m/h
Theoretical horizontal conveying distance: 260m
Through particle size: ≤0.5cm
Maximum air pressure: 1.6Mpa
Total weight: 760Kg
Outlet pressure: 8Mpa
Host size: 1600*900*900mm

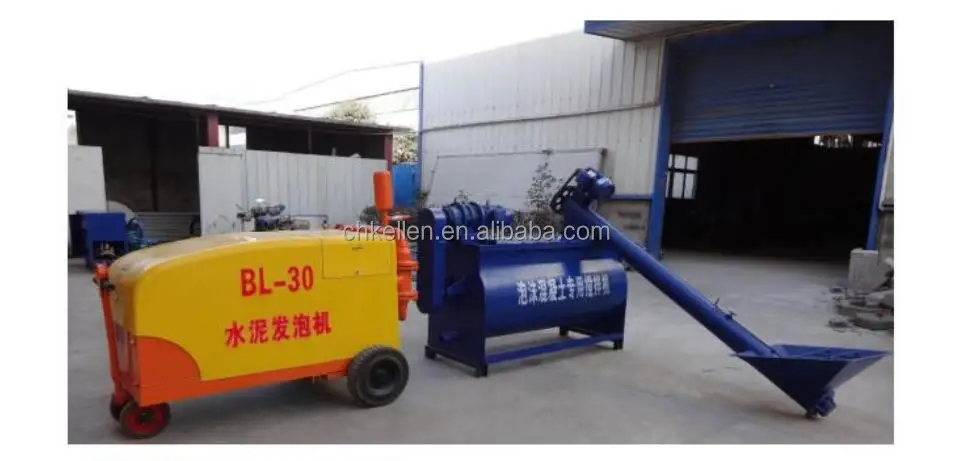

BL-30 Cement Foaming Machine
BL-30 type cement foaming machine is a hydraulic automatic medium-sized cement foaming equipment independently developed, designed and produced by our company on the basis of learning from foreign advanced technology and combining the actual situation of domestic market application. The equipment integrates hydraulic system, quantitative feeding system, stirring system, automatic foaming system, output system, photoelectric control system, etc. It is easy to use, and the foamed cement produced is light in weight and has fine and uniform bubbles.
Product performance:
1. The cement slurry is pumped by a double-cylinder full-hydraulic driving mechanism, and the outlet pressure is high, which can meet the needs of high-rise buildings;
2. The ratio of various components is automatically controlled, and the density of foamed cement is easy to adjust;
3. Selected high-quality components are used, with reliable quality and guaranteed after-sales service;
4. The high-quality foaming agent produced by our company can be used to reduce the construction cost;
6. Unique pump head structure, easy to disassemble and clean.
5. With walking wheels and universal wheels, it is convenient and flexible to move and position;
6. Unique pump head structure, easy to disassemble and clean.
Technical parameter:
Model: BL-30
Total power: 26.5kw
Conveying method: hydraulic piston type
Hydraulic system maximum pressure: 16Mps
Theoretical conveying distance: vertical 120m, horizontal 500m
Maximum production: 30m3/h
Pharmacy pump power: 5.5kw
The maximum conveying capacity of the auger feeder: 9200kg
Air pressure: 4Mpa
Mixer power: 3KW
Mixer volume: 30.8m
Weight: 1600kg
Dimensions: 2.4m*1.4m*1. 5m

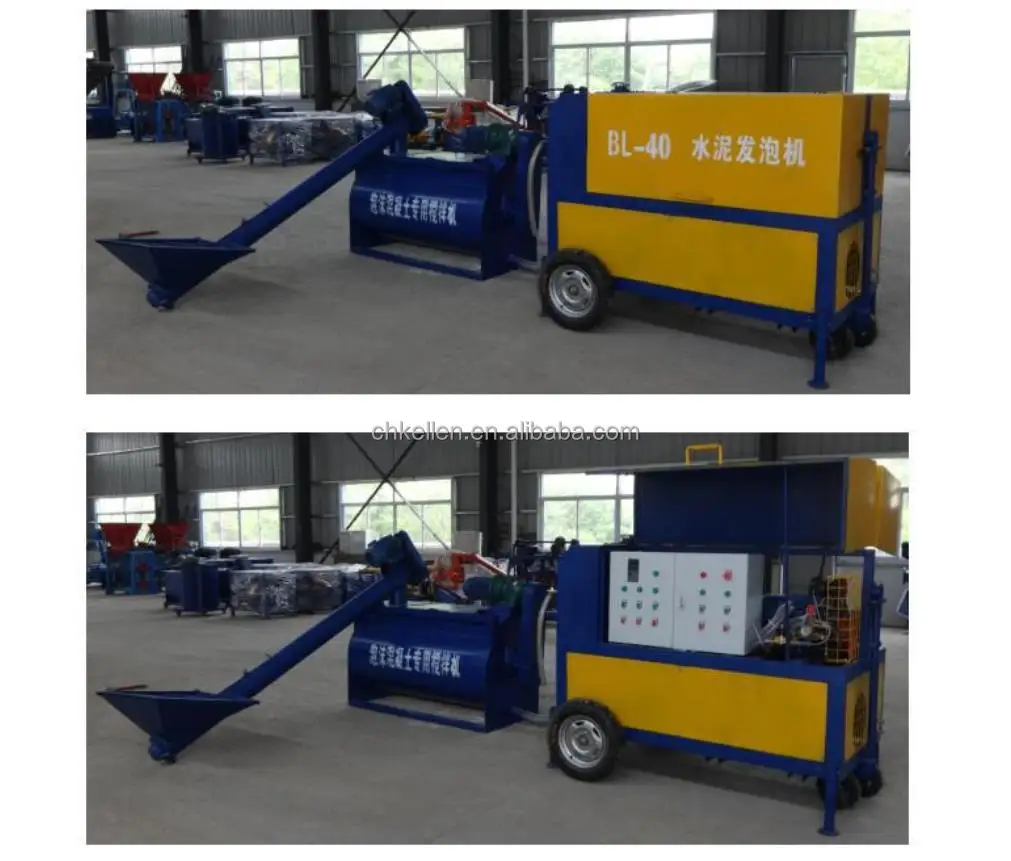

BL-40 Cement Foaming Machine
BL-40 type cement foaming machine is a hydraulic automatic medium-sized cement foaming equipment independently developed, designed and produced by our company on the basis of learning from foreign advanced technology and combining the actual situation of domestic market application. The equipment integrates hydraulic system, quantitative feeding system, stirring system, automatic foaming system, output system, photoelectric control system, etc.
Product performance:
1. The frequency conversion speed control is adopted, which can precisely control the product density.
2. The cement slurry is pumped by a double-cylinder full-hydraulic driving mechanism, and the outlet pressure is high, which can meet the needs of high-rise buildings;
3. The electrical box is easy to operate, all functions can be controlled arbitrarily, and it is easy to learn.
7. Compared with other similar equipment, this equipment can save 50-100 kilograms of cement consumption per cubic product, greatly reducing production costs and improving economic benefits.
4. The ratio of various components is automatically controlled, and the density of foamed cement is easy to adjust;5. The measurement of the foaming agent adopts a variable frequency metering pump, which can precisely control the amount of the foaming agent.
6. Adopt high-pressure pneumatic pumping system, with large output and high conveying height.
Technical parameter:
Model: BL-40
Conveying method: hydraulic piston type
Total power: 33.5kw
Hydraulic system maximum pressure: 18MDS
Theoretical conveying distance: vertical 150m, horizontal 600m
Maximum production: 40m3/h
Pharmacy pump power: 7.5kw
The maximum conveying capacity of the auger feeder: 9200kg
Air pressure: 4Mpa
Mixer power: 3kw
Mixer volume: 0.8m3
Weight: 2100kg
Mainframe dimensions: 2.4*1.4*1.5m
♦ Project Design
Assist you to choose equipment, design production process flow According to the customer actual production environment and production requirements.
♦ Installation Training
Provide telephone guidance for equipment installation and debugging; or send technician to install and debug machine and train your workers if needed.
Provide free relevant training as customer required.
Long-term technical support.
♦ After-sale service
One year warranty, life-long maintenance;
24 hours online for technical consulting service;
Once Problems on equipment, provide phone or on-site troubleshooting fault response plan.
♦ One year warranty time
From the date which the product is qualified commissioning. Any damage except the wrong operation during warranty period is repaired freely. But the travel and hotel expenses should be paid by buyer.Engineers available to service machinery overseas. We value every inquiry sent to us, ensure quick competitive offer within 24 hour.
♦ Payment way
We accept multiple terms of payment, such as L/C, T/T, western Union, Money Gram, Alibaba Trade Assurance.
