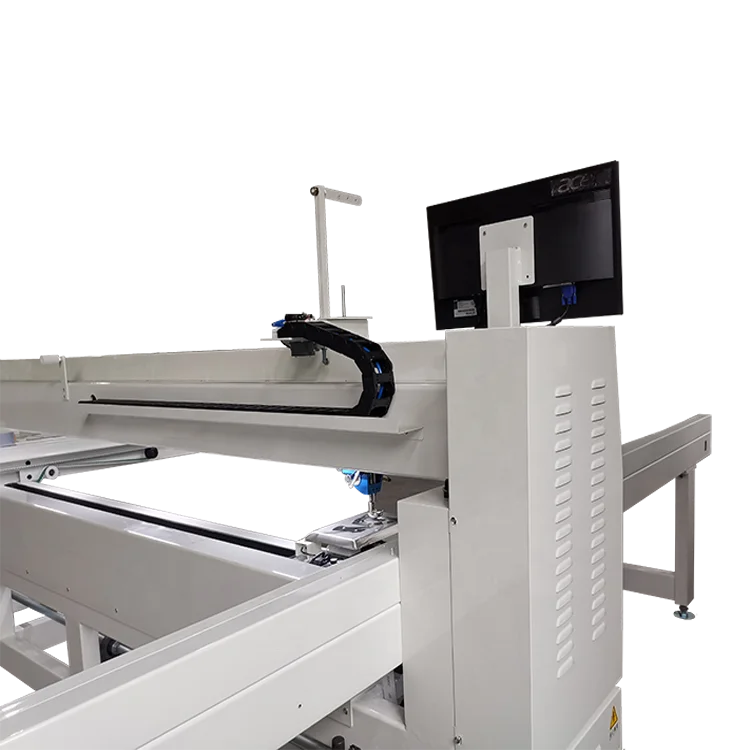

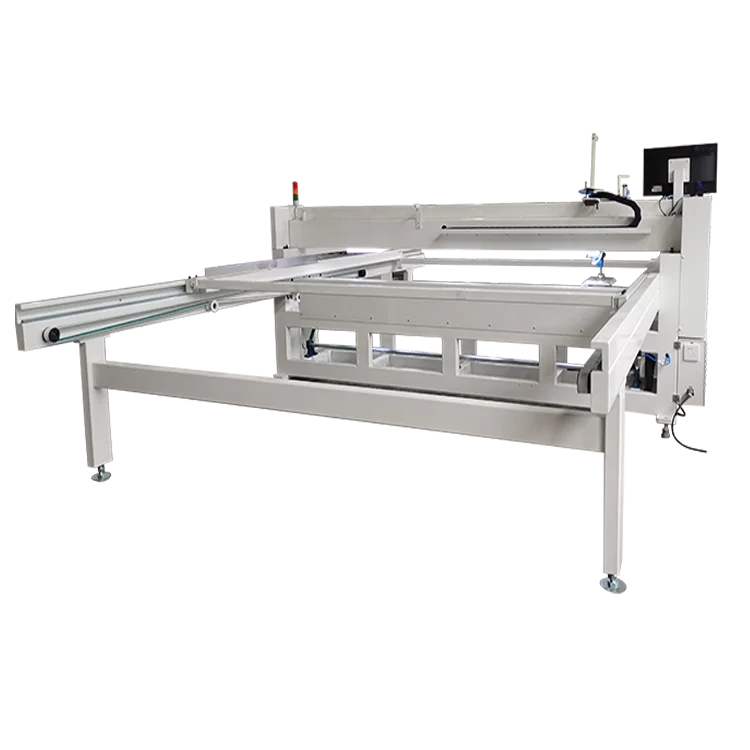

FSTQZ Good Price Computerized Quilting Machine
- Category: Quilting Machines >>>
- Supplier: Nantong First Export And Import Co. Ltd.
Share on (1600571410112):
Product Overview
Description
Uses
This machine is used for quilting all kinds of bedding products, such as quilt, coverlet, bedcover, sponge, leather and so on.
Model | FSTQZ-26 | FSTQZ-28 | FSTQZ-30 | FSTQZ-32 | FSTQZ-35 |
Max Quilt Size | 2.6m * 2.8m | 2.8m * 3.2m | 3.0m * 3.2m | 3.2m * 3.5m | 3.5m * 3.5m |
Max Needle Drop Size | 2.4m * 2.6m | 2.6m * 3.0m | 2.8m * 3.0m | 3.0m * 3.3m | 3.3m * 3.3m |
Max Quilting Thickness | 1200GSM | 1200GSM | 1000gsm | 1000GSM | 1000GSM |
Machine Area (L* W*H) | 5.0m * 3.6m * 1.4m | 5.4m * 3.8m * 1.4m | 5.4m * 4.0m * 1.4m | 5.8m * 4.2m * 1.4m | 5.8m * 4.5m * 1.4m |
Weight | 1800Kgs | 1900Kgs | 2000Kgs | 2200Kgs | 2300Kgs |
Thread Type | Double lock zigzag |
Needle | MR5 18 ~ 21# |
Stitch Length | 2 ~ 7mm |
Speed | 500~2500RPM |
Power | AC 220V, 50Hz, 1500W |

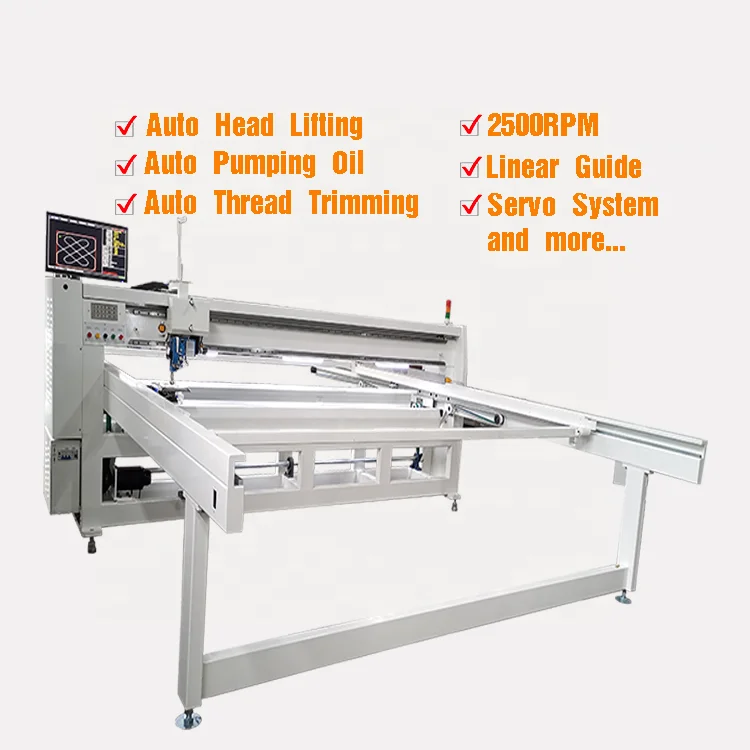

Features
1. Using special technology, the quilt can’t be broken.
2. The quilting speed can reach 2500RPM.

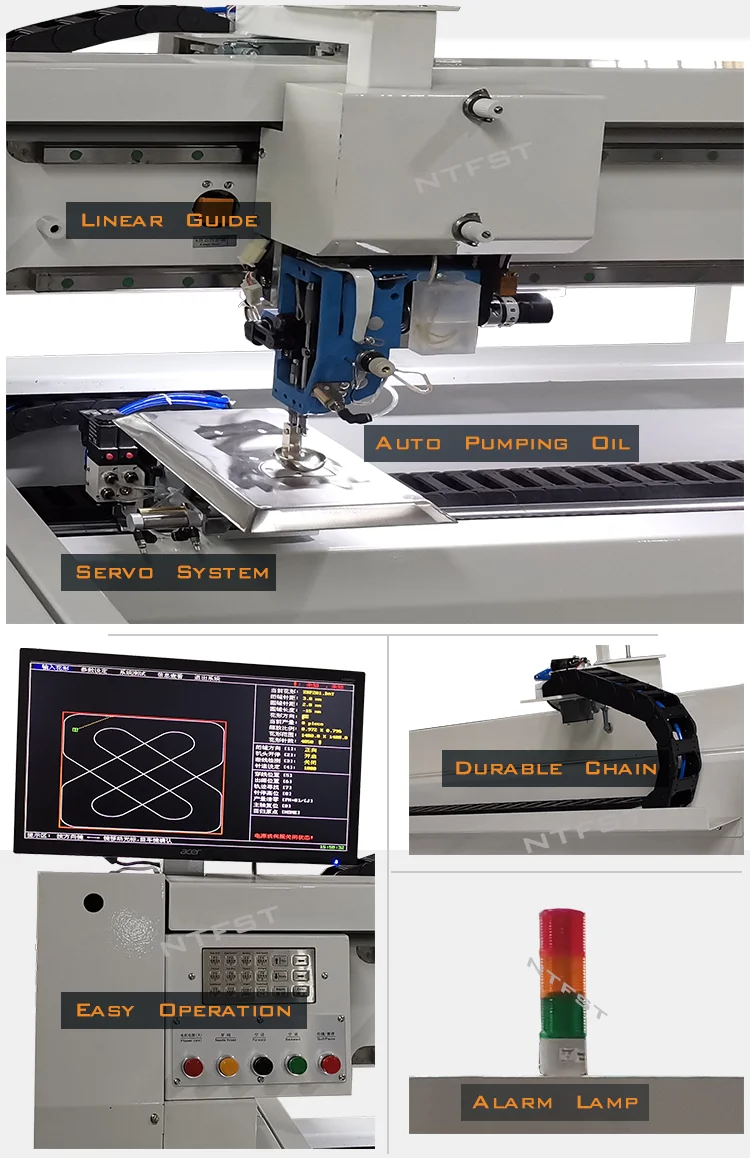

3. The machine head adopts the Japanese Panasonic AC servo technology to improve its quality and reliability. AC servo technology is also adopted in X and Y axis, to ensure the machine runs precisely and steadily.
4. Guide rail on X axis adopting high precision rolling rail enables machine run accurately and steadily.
5. Automatic cutting thread device can be added. This technology leads the quilting field.
6. It is optional for function of raising sewing head automatically, that facilitates frame replacement and reduces labor intensity of operator.
7. Equipped with a new automatic oiling system, controlled by the computer, machine can accurately adjust oil supply, avoiding oil pollution, to ensure reliable operation of the equipment.

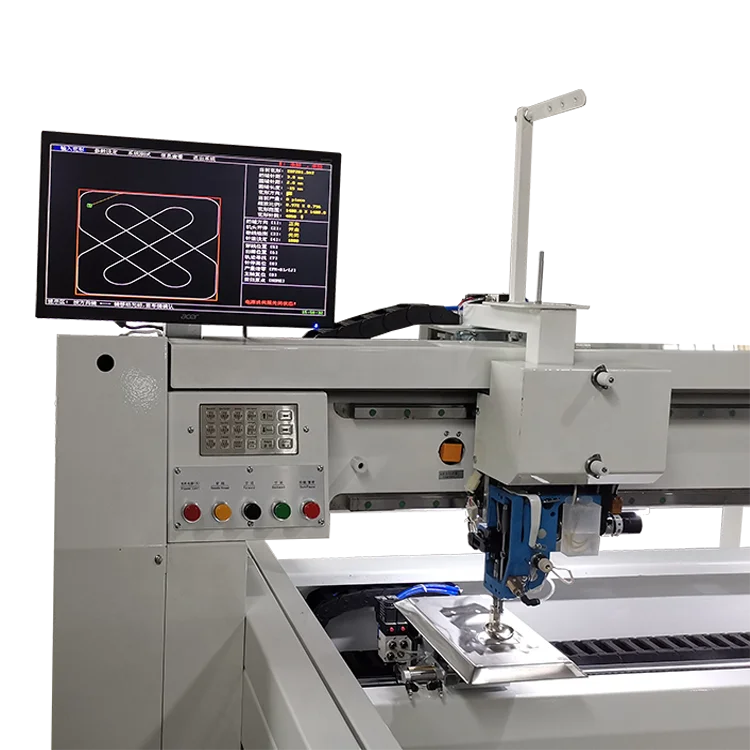

8. 17" color LCD monitor, Chinese or English character, on which pattern, stitch distance, current stitch, rotation speed can be displayed.
9. Adoption of LED lights make convenient for user operation.
2. The quilting speed can reach 2500RPM.
3. The machine head adopts the Japanese Panasonic AC servo technology to improve its quality and reliability. AC servo technology is also adopted in X and Y axis, to ensure the machine runs precisely and steadily.
4. Guide rail on X axis adopting high precision rolling rail enables machine run accurately and steadily.
5. Automatic cutting thread device can be added. This technology leads the quilting field.
6. It is optional for function of raising sewing head automatically, that facilitates frame replacement and reduces labor intensity of operator.
7. Equipped with a new automatic oiling system, controlled by the computer, machine can accurately adjust oil supply, avoiding oil pollution, to ensure reliable operation of the equipment.
8. 17" color LCD monitor, Chinese or English character, on which pattern, stitch distance, current stitch, rotation speed can be displayed.
9. Adoption of LED lights make convenient for user operation.
