Algae Tubular Separator Centrifuge
US $6800
Jieda Gk1000 Steady Running Peeler Centrifuge With Good Price
- Category: Separation Equipment >>>
- Supplier: Jiangsu,Jieda,Centrifuge,Manufacture,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Features & Uses of Jieda GK1000 Model Automatic Horizontal Scraper Centrifuge:
GK1000 Model Horizontal Peeler Centrifuge Machine is a type of automatic filtration centrifuge featuring continuous running, intermittent operation and high-speed peeling, which is able to complete feeding, separation, washing, dehydration, discharging, back-blowing and other processes at full speed, and therefore is commonly applied to the washing and solid-liquid separation of suspension medium containing solid particles.
With high separation factor, short single circulation duration and large handling capacity, relatively dry residues after
filtration can be obtained and ideal washing effect can be ensured.
This type has high performance in separating suspensions with the cake density of 0.8~2.5, particle size of 0.05mm~1mm and solid concentration of 15%~80%.
It has been widely applied in the chemical, food, pharmaceutical, light industry and other industries for separating such
materials as sodium bicarbonate, caustic soda, starch, boric acid, ammonium sulfide, sulfuric acid, sodium sulfate, ferrous sulfate, calcium phosphate, polyvinyl chloride, sodium chloride, and potassium chloride.
With high separation factor, short single circulation duration and large handling capacity, relatively dry residues after
filtration can be obtained and ideal washing effect can be ensured.
This type has high performance in separating suspensions with the cake density of 0.8~2.5, particle size of 0.05mm~1mm and solid concentration of 15%~80%.
It has been widely applied in the chemical, food, pharmaceutical, light industry and other industries for separating such
materials as sodium bicarbonate, caustic soda, starch, boric acid, ammonium sulfide, sulfuric acid, sodium sulfate, ferrous sulfate, calcium phosphate, polyvinyl chloride, sodium chloride, and potassium chloride.
Product Configuration of Jieda GK1000 Model Automatic Horizontal Scraper Centrifuge:
• Control mode: PLC control, with touch panel and human-machine interface and supporting electric-hydraulic actuator to realize automatic remote control.
• Multiple safety protections: speed detection, overvibration protection, cover opening protection, overload protection,
overtemperature protection, peeler action protection, nitrogen protection, electromagnetic interlocking, etc.
• Discharge mode: open discharging through chute or integrated discharging with peeler conveyed through spiral.
• Hydraulic coupler can be adopted for the transmission of models below GK1250 to realize stable startup, simple control and effective overload protection of motor.
• Variable-frequency control, dynamic braking or energy feedback braking, stepless regulation of speed are designed to realize energy saving, environmental protection and more reliable operation.
• Optional configurations: online washing system, nitrogen protection system, steel platform, hydraulic locking device, etc.
• Multiple safety protections: speed detection, overvibration protection, cover opening protection, overload protection,
overtemperature protection, peeler action protection, nitrogen protection, electromagnetic interlocking, etc.
• Discharge mode: open discharging through chute or integrated discharging with peeler conveyed through spiral.
• Hydraulic coupler can be adopted for the transmission of models below GK1250 to realize stable startup, simple control and effective overload protection of motor.
• Variable-frequency control, dynamic braking or energy feedback braking, stepless regulation of speed are designed to realize energy saving, environmental protection and more reliable operation.
• Optional configurations: online washing system, nitrogen protection system, steel platform, hydraulic locking device, etc.
Notices before Order Jieda GK1000 Model Automatic Horizontal Scraper Centrifuge:
1. Technical parameters on product specification shall prevail.
2. Inquire, please give customer detailed against material characteristic parameters and working condition requirements.
3. According to customers' special needs, we can take personalized design and manufacturing.
4. Material: material contact part of the material can be for ordinary stainless steel, special stainless steel, aluminum alloy
and titanium alloy, etc.
5. Peel ways: can use oil cylinder, cylinder, electric cylinder or mechanical balance device, etc.
6. Can be designed by GMP, manufacturing.
7. Other technical requirements can be agreed.
2. Inquire, please give customer detailed against material characteristic parameters and working condition requirements.
3. According to customers' special needs, we can take personalized design and manufacturing.
4. Material: material contact part of the material can be for ordinary stainless steel, special stainless steel, aluminum alloy
and titanium alloy, etc.
5. Peel ways: can use oil cylinder, cylinder, electric cylinder or mechanical balance device, etc.
6. Can be designed by GMP, manufacturing.
7. Other technical requirements can be agreed.
Specification
Model | GK(F)800 | GK(F)1000 | GK(F)1250 |
Drum Diameter(mm) | 800 | 1000 | 1250 |
Drum Volume(L) | 95 | 165 | 230 |
Maximum Loading Limit(KG) | 135 | 225 | 280 |
Drum Rotational Speed(RPM) | 1400/1600 | 1350 | 1000 |
Separation Factor(ω²r/g) | 876/1150 | 1020 | 700 |
Motor Power(KW) | 30 | 37 | 55 |
Weight(KG) | 4000 | 6500 | 7000 |
Dimensions(L*W*H)(mm) | 2050*1940*1327 | 2200*2100*1950 | 2500*2370*2000 |
Company Profile
Founded in 2001, Jieda Centrifuge specializes in technical research and development, project design, equipment manufacturing, product sale and application services in the filtering and separating fields. Our company is a National High-tech Enterprise, a Private Technology-oriented Enterprise in Jiangsu Province, a member of Separating Machinery Division of China General Machinery Industry Association, a member of National Filtering Professional Technical Association, and a member of China Association for Pharmaceutical Equipment.
With a wide variety of products, we focus on providing whole-course services and offering overall filtering and separating
solutions for such industries as medicine, chemical industry, food, environmental protection and metallurgy. With complete manufacturing equipment and advanced management concepts, our company has been certified to the ISO9001 international quality system and GMP. Our products have been underwritten by PICC P&C. While focusing on technical innovation, our company has cooperated with Jiangsu University of Science and Technology to establish the postgraduate work station and build the centrifuge separating technology research center, continuously climbing high peaks in the centrifugal separation field.
Constant pursuit of perfection will surely create distinguished products and accomplish prominent quality. With higher passion, more extraordinary belief, as well as excellent products and services, Jieda personnel will realize future prosperity and dreams.
With a wide variety of products, we focus on providing whole-course services and offering overall filtering and separating
solutions for such industries as medicine, chemical industry, food, environmental protection and metallurgy. With complete manufacturing equipment and advanced management concepts, our company has been certified to the ISO9001 international quality system and GMP. Our products have been underwritten by PICC P&C. While focusing on technical innovation, our company has cooperated with Jiangsu University of Science and Technology to establish the postgraduate work station and build the centrifuge separating technology research center, continuously climbing high peaks in the centrifugal separation field.
Constant pursuit of perfection will surely create distinguished products and accomplish prominent quality. With higher passion, more extraordinary belief, as well as excellent products and services, Jieda personnel will realize future prosperity and dreams.

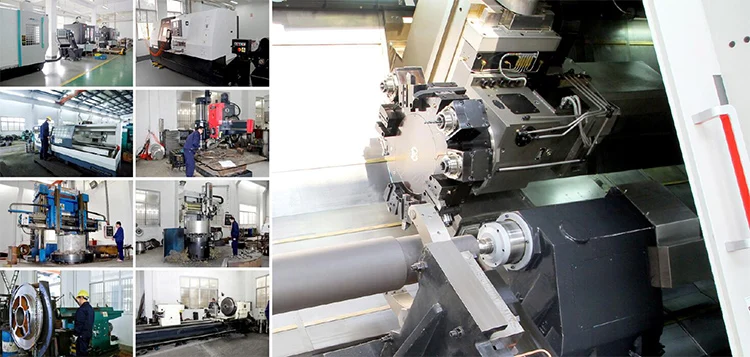

Our Workshop

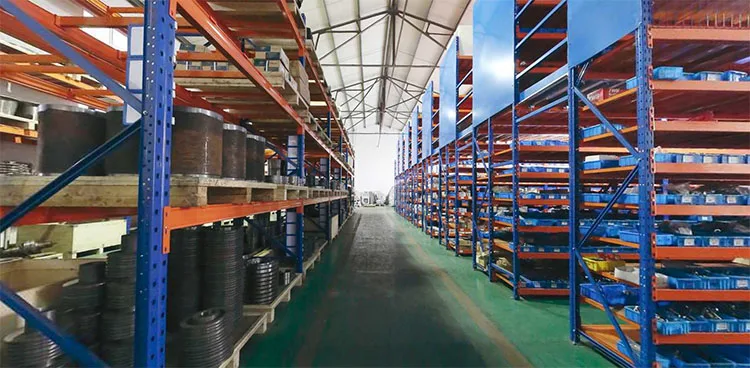

Warehouse
Certifications
FAQ
1. Do you have OEM service? Do you supply the parts? Yes, we do, as long as you provide us your drawing and detailed requirements.
2. How can we easily find out the most fit centrifuges? We have experienced engineer team to help you make the model selection, as long as you provide us the detailed processing material characteristics.
2. How can we easily find out the most fit centrifuges? We have experienced engineer team to help you make the model selection, as long as you provide us the detailed processing material characteristics.
3. Will you dispatch technicians for installation andcommissioning? Yes, we can, we do lots of service, please refer to our after sales part.
4. What is your advantage compared with your competitors? Quality and experience. We are the top centrifuge supplier in China, our designs and structures are similar to world leader Alfa Laval, Westfaliar, Flottweg etc.
5. How do you protect the quality? My factory is a state owned enterprise with more than 20 years experience, strict operation policy is performed, advanced processing machines guarantee the precision of all components, workers with operation license, parts get multiprocessing, transmission&electrical parts are of international famous
brand. Series of test and inspection are done in the whole producing stage.
brand. Series of test and inspection are done in the whole producing stage.
Contact us
