Product Overview
Description
Product Description

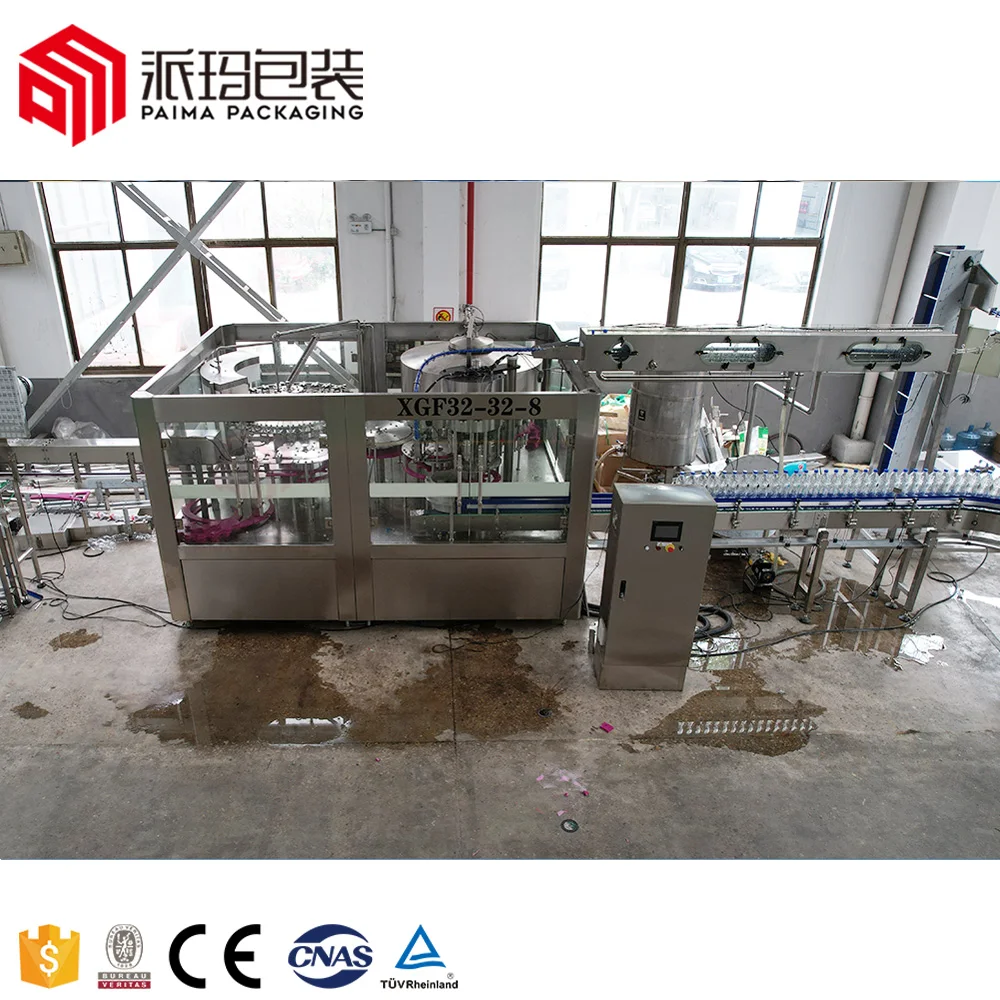

Brief introduction of water filling machine
3-in-1 filling monoblock, combined with rinsing, filling and capping. It is innovated and designed in the requirement of still pure water and mineral water, on the bases of introducing, digesting and absorbing advanced technology from Germany and Italy.
The water filling machine is mainly used in the beverage filling operations. The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic. The machine is used in filling juices, mineral water and purified water in bottles made of polyester and plastics. The machine can also be used in hot filling if being installed with temperature controlling device. The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles. The filling operation is faster and more stable because the micro pressure filling operation of the new type is adopted.
Beverage Machinery can finish all the process such as press bottle, filling and sealing, it can reduce the materials and outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.
Specification
Bottle Material: Plastic Bottle
Cap: PE
Bottle Volume: 100-2500ml
Production Speed: 1000-32000bph
Suitable Bottle:
Height 170-320
Diameter 20-100
Cap: PE
Bottle Volume: 100-2500ml
Production Speed: 1000-32000bph
Suitable Bottle:
Height 170-320
Diameter 20-100

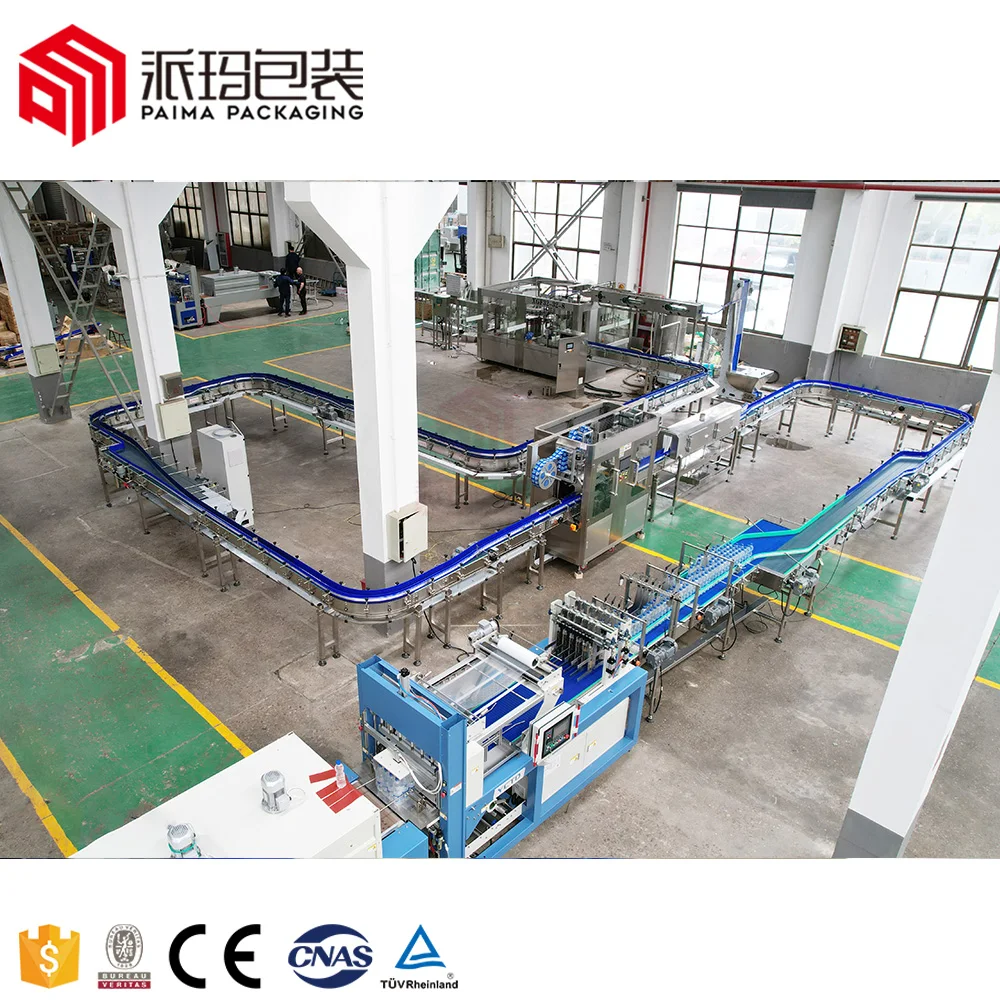

Project | Water bottling plant | ||||||||||
Model | 14-12-4 | 18-18-6 | 24-24-8 | 32-32-10 | 40-40-12 | 50-50-12 | |||||
Capacity (BPH) | 3000-5000 | 6000-8000 | 8000-12000 | 13000-15000 | 16000-18000 | 20000-24000 | |||||
Applicable bottle | φ=50-115 H=160-330 (200ML TO 2000ML) round or square | ||||||||||
Air press(Mpa) | 0.3-0.7 | ||||||||||
Power supply | 4.4 KW | 4.4 KW | 5.2 KW | 6.2 KW | 7.8 KW | 10 KW | |||||
Overall dimension | 2500×1880×2300 | 2800×2150×2300 | 3100×2450×2300 | 3880×2800×2500 | 4100×3000×2500 | 4500×3300×2250 | |||||
Weight (KG) | 3200 | 4500 | 6500 | 7500 | 8500 | 9000 | |||||
Details Images
Characteristic of water filling machine
1. Intelligent contact screen, human design, easy operation.
2. Imported filling valve, avoiding drop leaking, accurate filling quantity.
3. Program logic controller(PLC), easy for changing size or modifying parameters.
4. Pneumatic elements are all imported, stability and reliability.
5. Accurate liquid sensing, automatically adding liquid, ordinary pressure flow passage parameters.
6. Solely and specially-designed whole lifting device, easy governing to meet the needs of all kindsof container packing.
7. Photo-electric sensing and pneumatic linking control, automatic protection for shortage of bottle.
8. Pneumatic executive control valve, high efficiency and safety. Each flow passage can be separately governed and cleaned.
9. Close positioning design, easy governing, suitable for packing of all sizes of bottles.
10. The whole machine is designed according to requirements of buyer's.

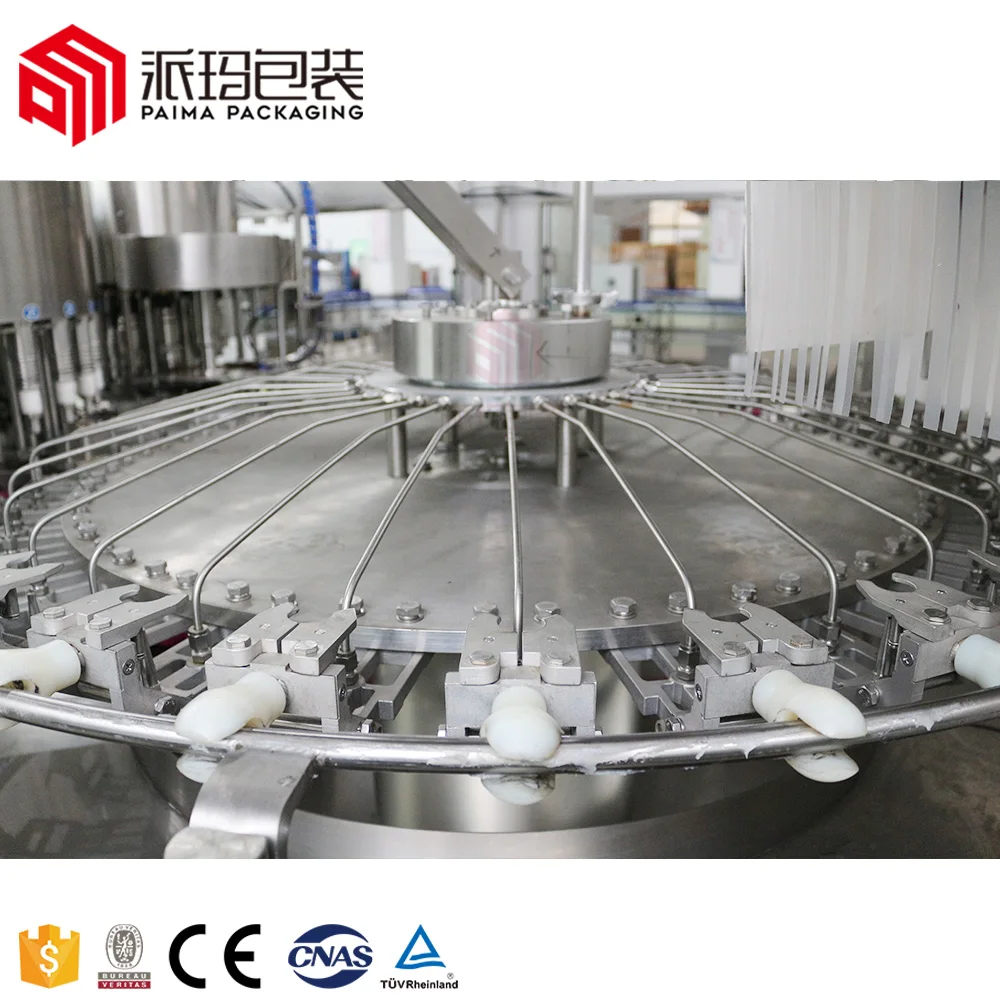

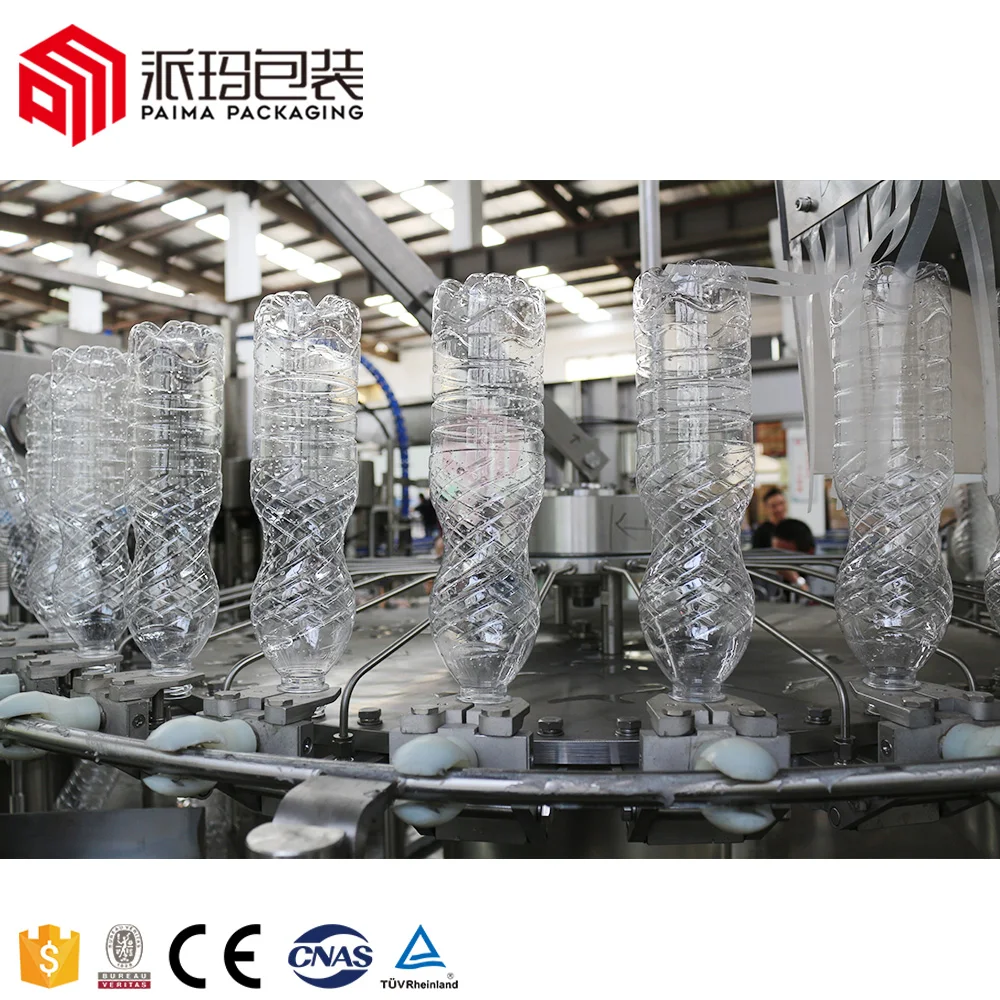

Washing parts of water filling machine
1.Using unique design,avoid the traditional bottle on rubber clip to block the bottle threaded parts may be caused by the pollution.
2.Washing pump is made of stainless steel.
3. By high spray nozzle, blunt bottle of water jet angles, flush to the bottle of any part of the inner wall, rinse with water thoroughly and save flush bottle.
4. Bottle clamp and flip agencies sliding sleeve adopts Germany igus corrosion resistant bearing without maintenance.

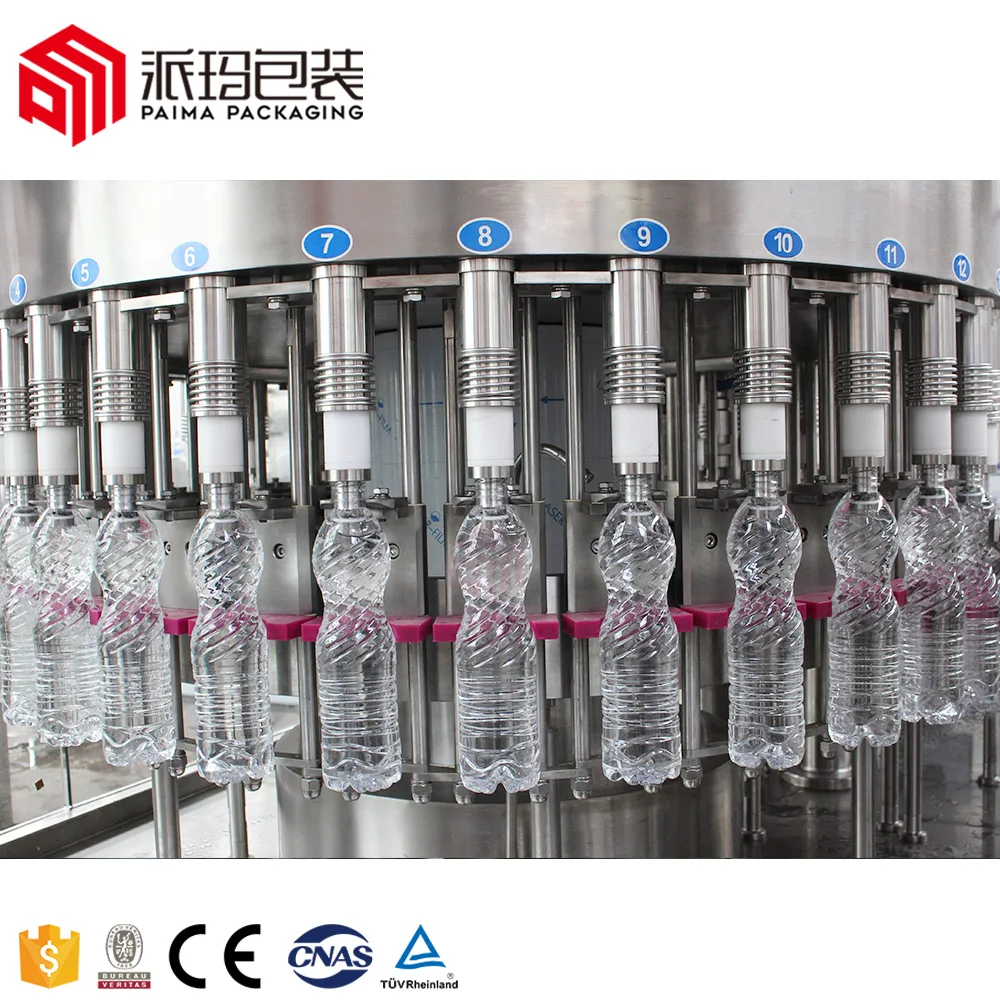

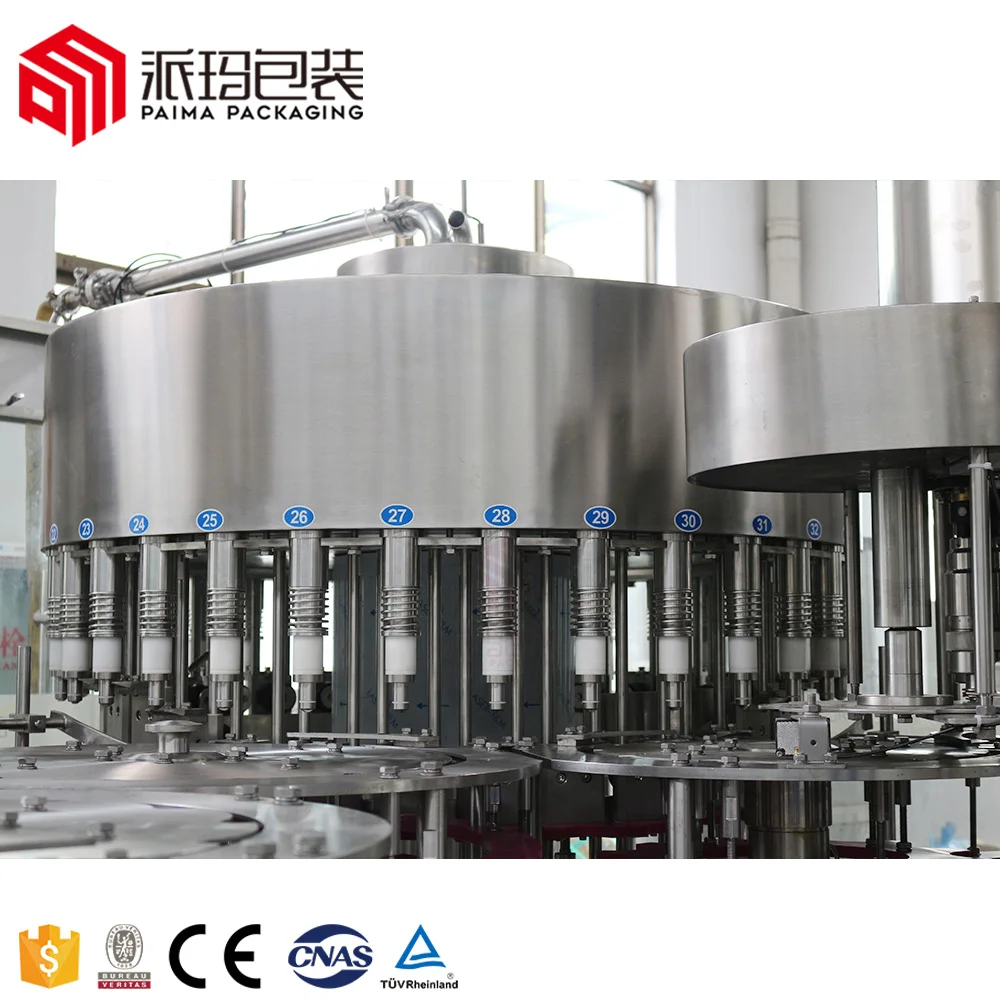

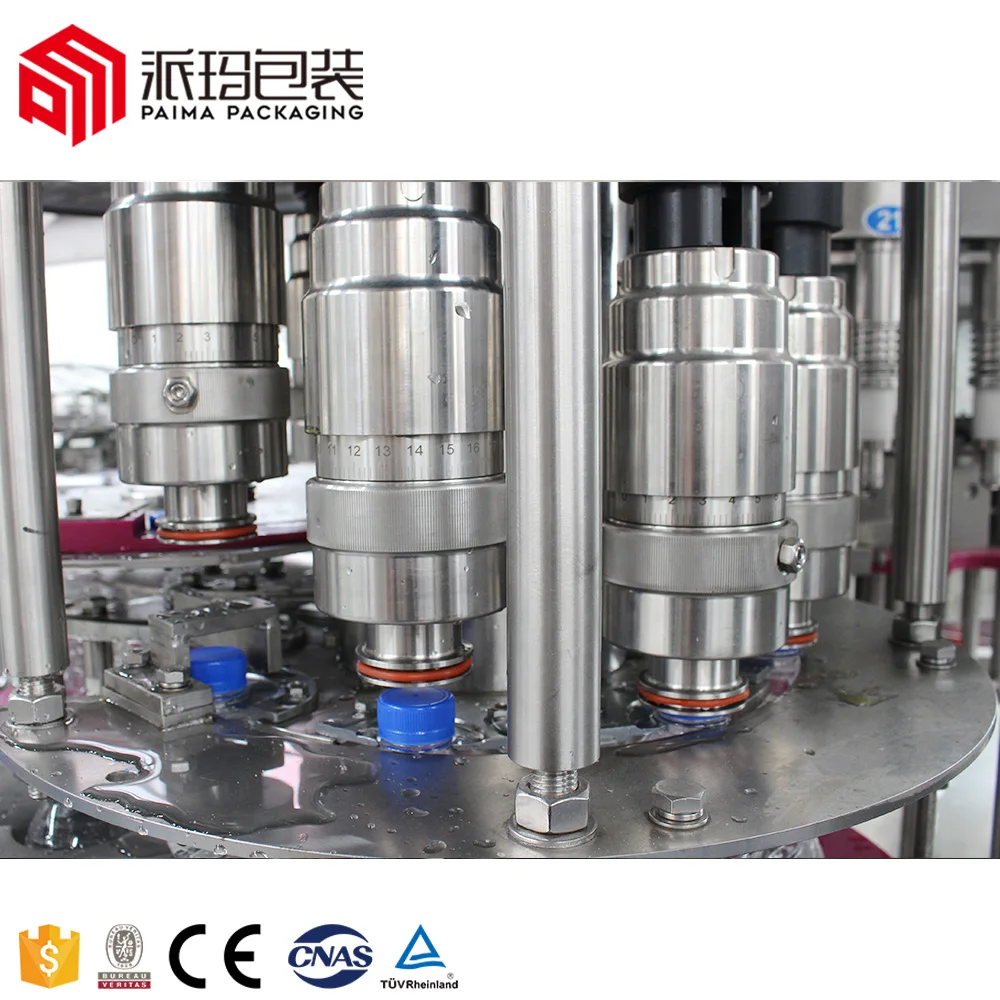

Filling parts of water filling machine
1.Filling method for gravity filling.
2.Filling valve manufactured SUS 304/316L.
3.High precision, high speed liquid filling.
4.Filling move by the rack drive system through gear transmission.
5.Hydraulic cylinder controlled by a float liquid level.
6.Using the latest double guide pillar type bottle of lifting mechanism, avoid the bottle of elevating the old products must be
through the mesa caused by leakage on the edge, at the same time, easy installation and maintenance.

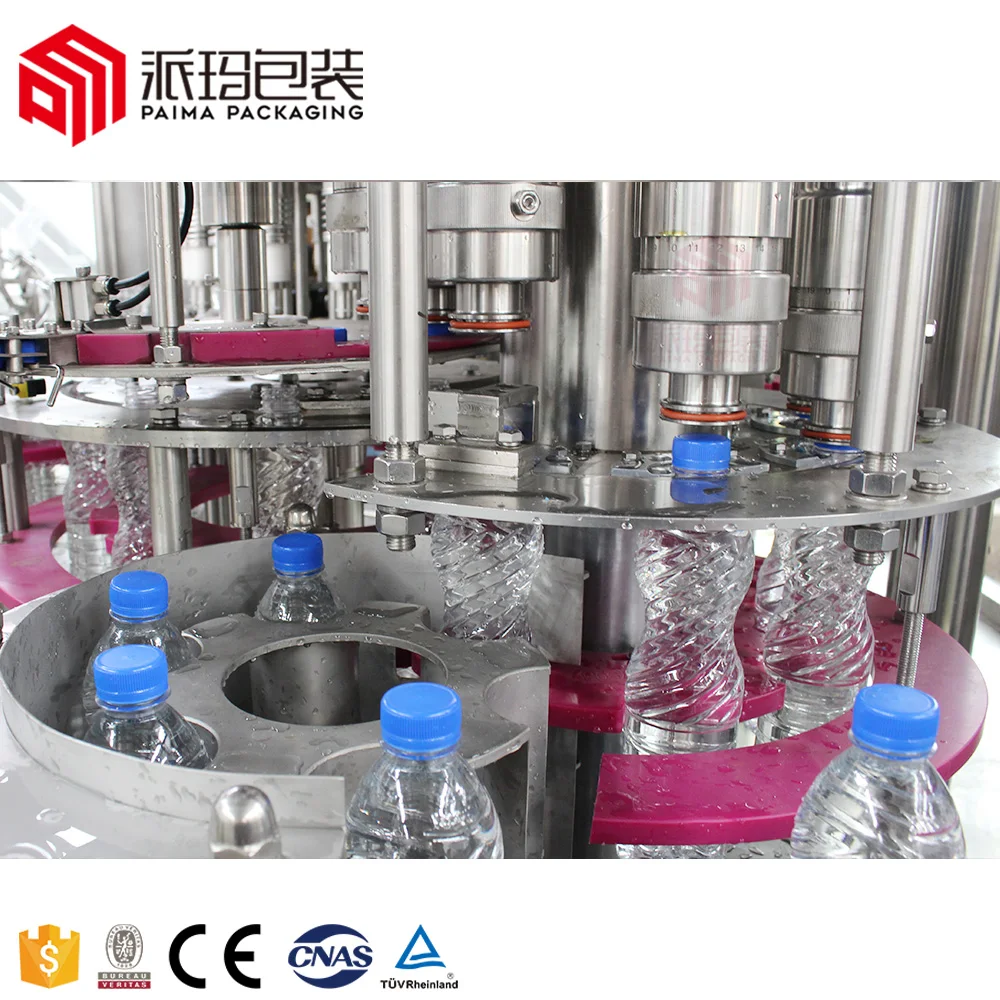

Capping parts of water filling machine
1.Automatic check,no bottle no capping.2.Capping heads in stainless steel 304/316L.
3.Capping heads stop working when lack of bottle.
4.Fall guy guide sets out to prevent the cover through and cover on the body, at the same time equipped with a set of
photoelectric switch, automatic stop when lighted cover rail without cover machine, can effectively avoid the occurrence of open
bottle.
5.High efficiency centrifugal principle.
Related Products

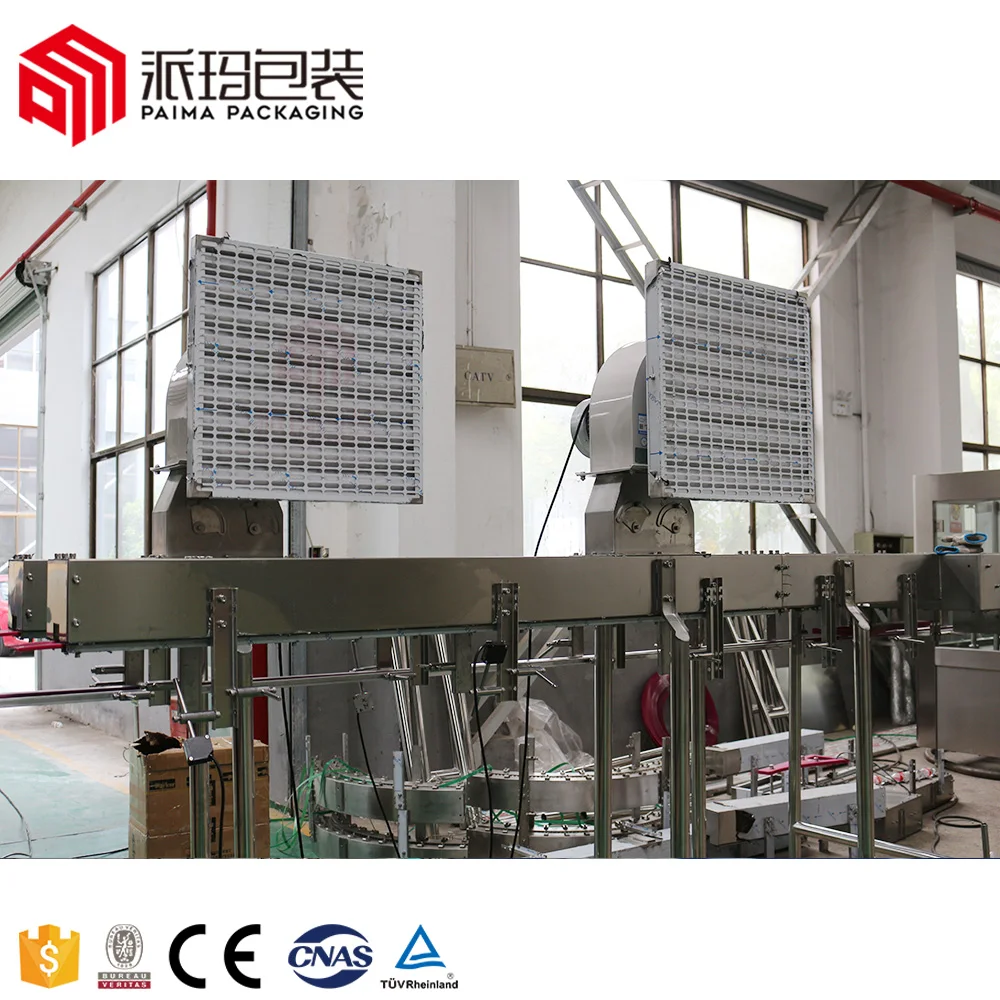

Air Conveyor
Air conveyor is fixed on the floor, with fan installed on the top.
Air filter is positioned at every entrance of air fan, to prevent dust blown into bottles.
Bottles are held on the neck in the conveyor and transported into filling machine by blowing power.
All are made of stainless steel SUS 304 /316.
Rack made by high quality carbon steel welded.
Air filter is positioned at every entrance of air fan, to prevent dust blown into bottles.
Bottles are held on the neck in the conveyor and transported into filling machine by blowing power.
All are made of stainless steel SUS 304 /316.
Rack made by high quality carbon steel welded.

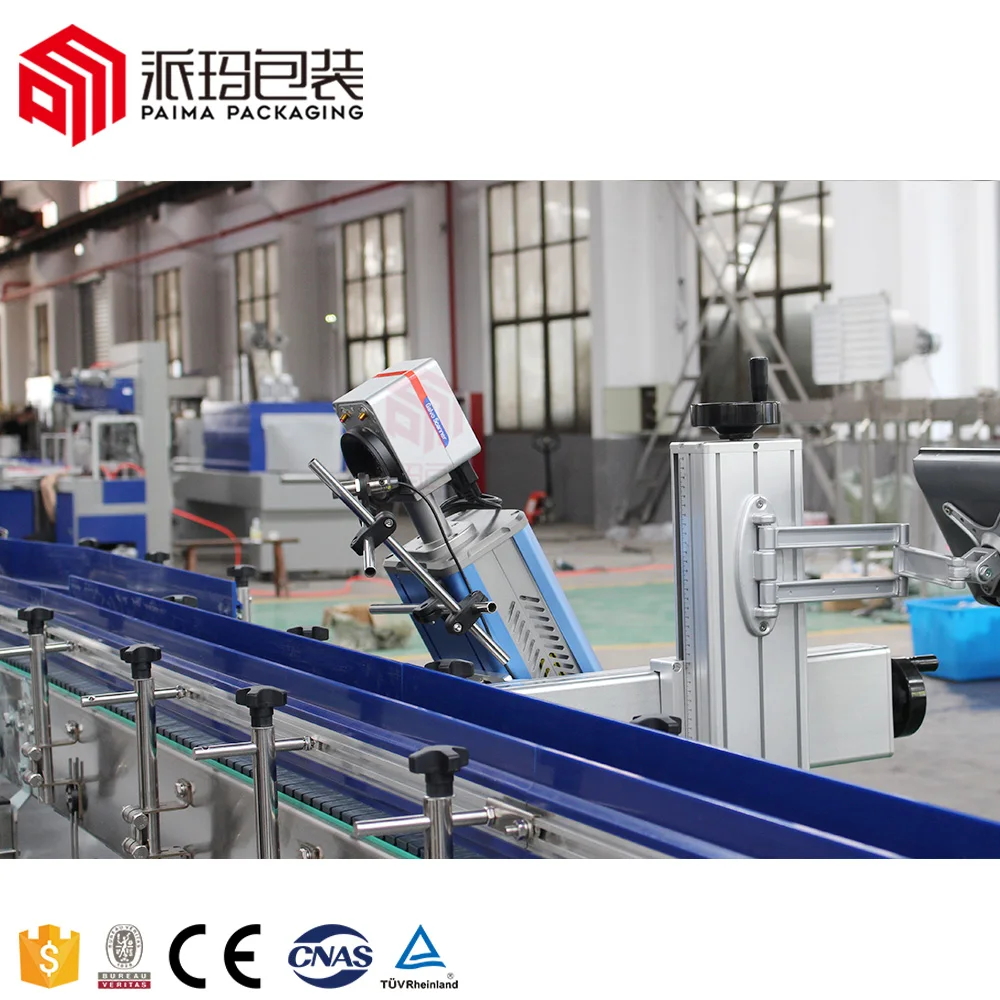

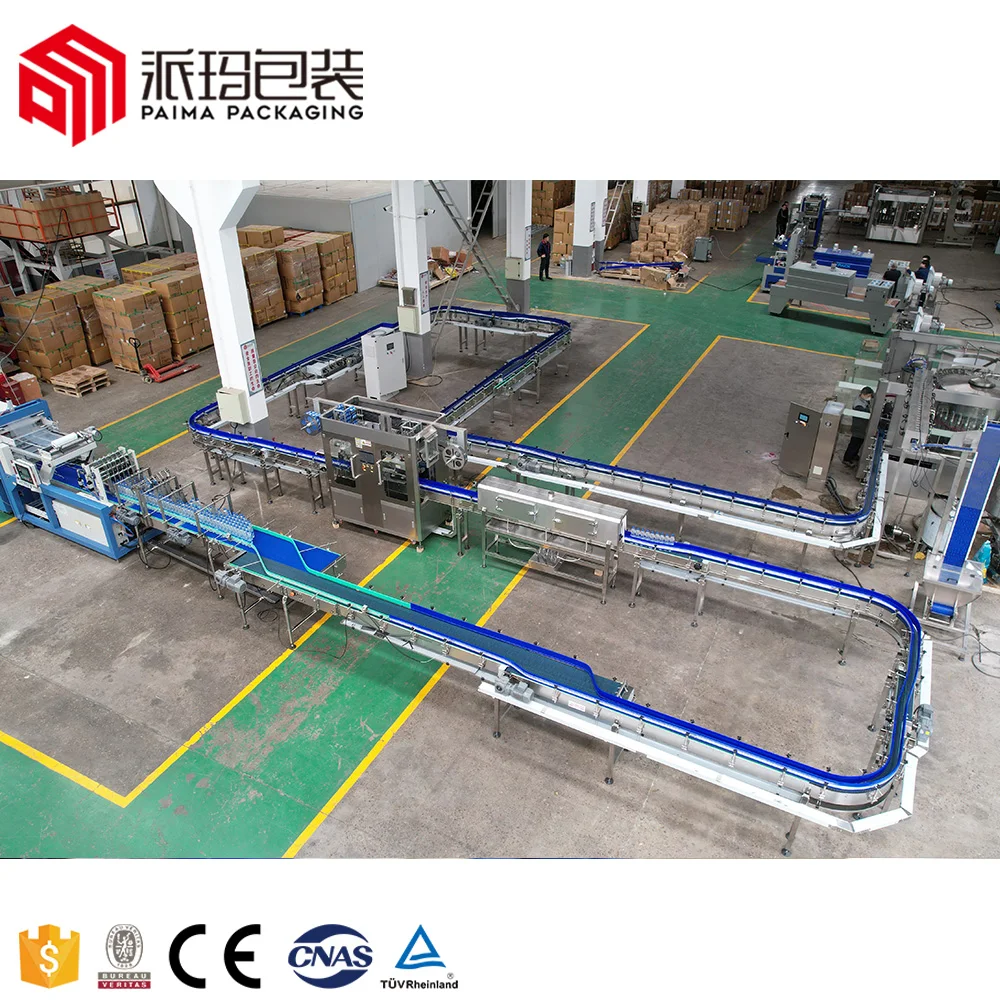

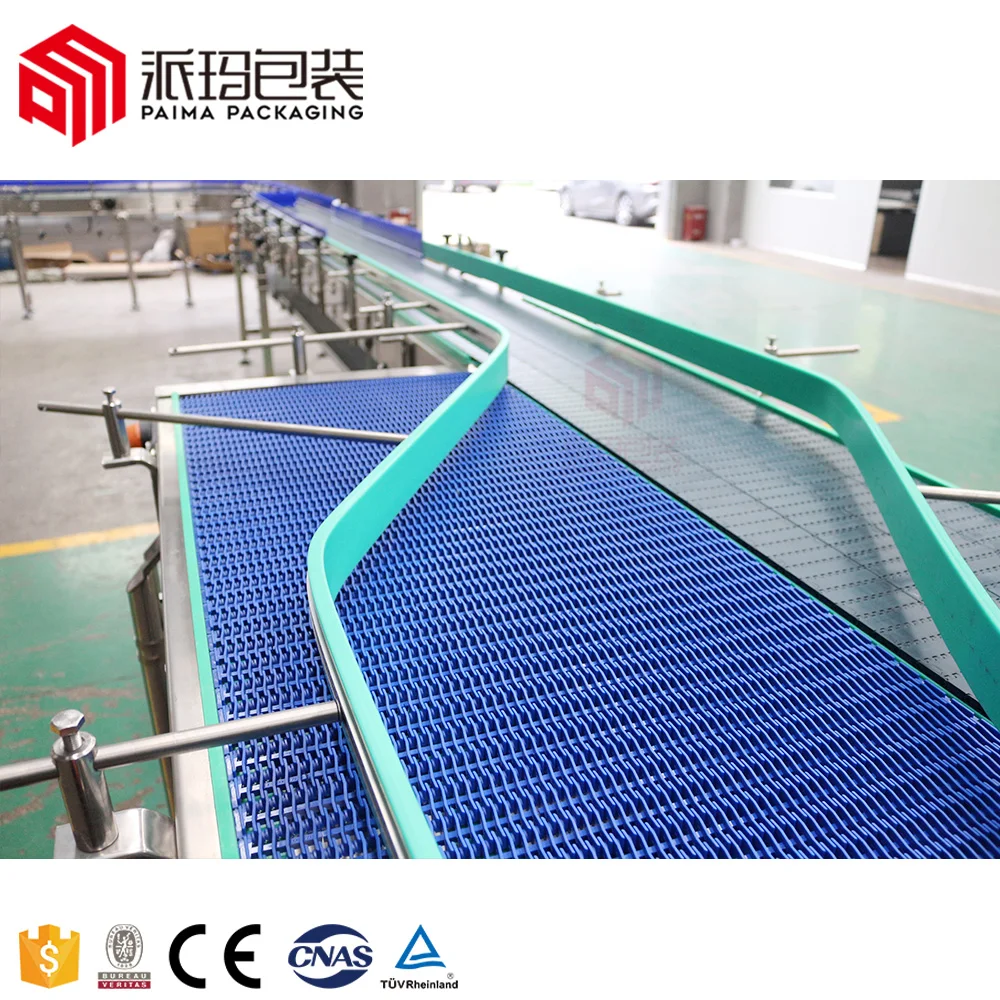

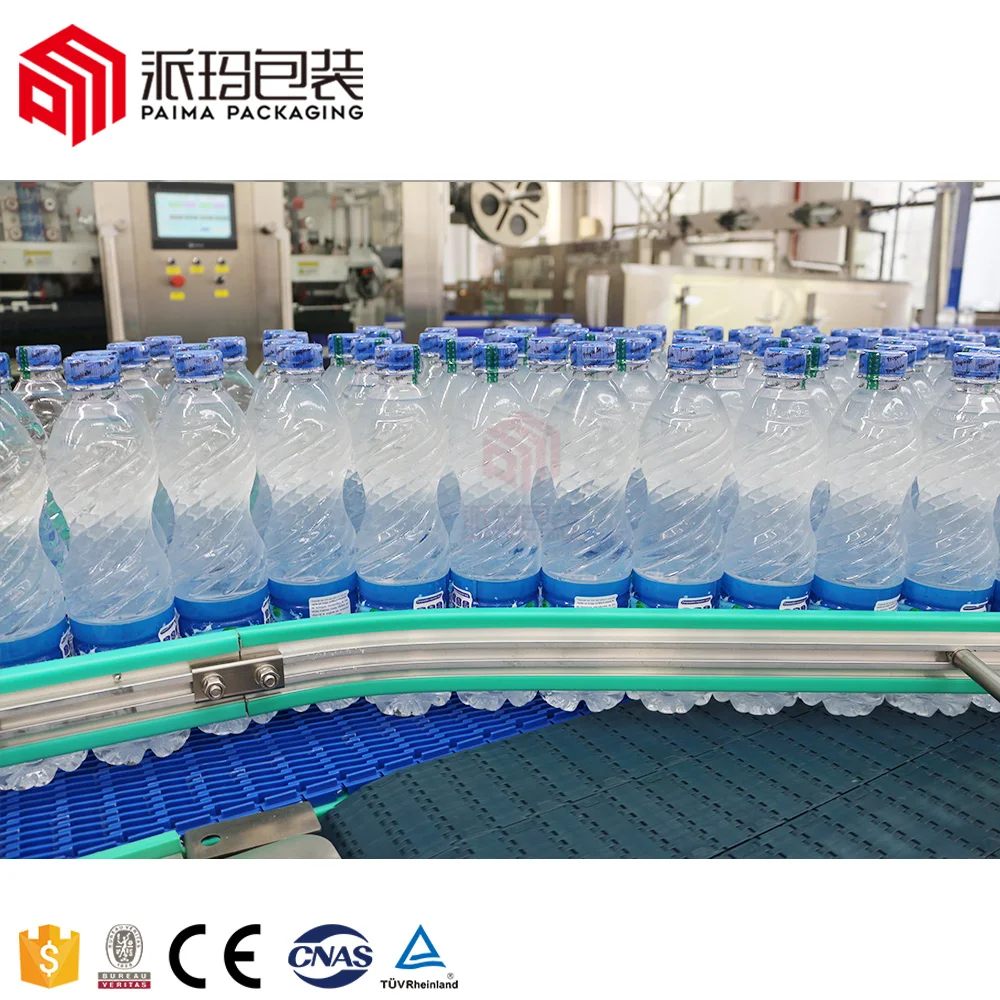

Flat Conveyor
Energy saving. High efficient. Adapt to customer factory layout;
Special lubrication system, keep products clean, health, safety;
Extended service life;
Electric eyes design keep whole line running safety and quickly;
Overload protection mechanism to effectively ensure the safety of the machine.
Special lubrication system, keep products clean, health, safety;
Extended service life;
Electric eyes design keep whole line running safety and quickly;
Overload protection mechanism to effectively ensure the safety of the machine.
The efficiency of the model is very high,even in the face of a fast production line,the output can be matched.Laser heads need not be cleaned,not will they age or be replaced over time.It can identify large complex graphics,even on difficult materials or in a limited time,can provide high-quality laser printing effect.Ink spray codes may be scratched or erased,but laser jet codes are permanent.

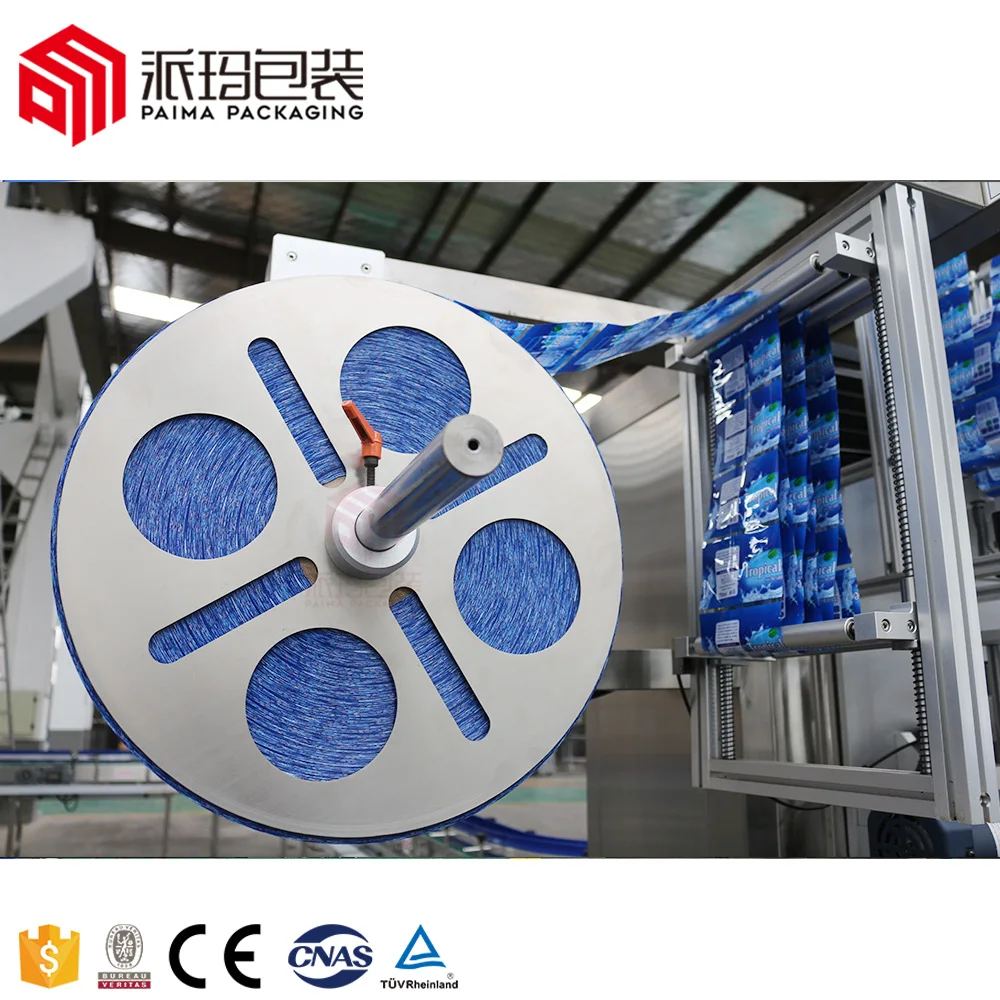

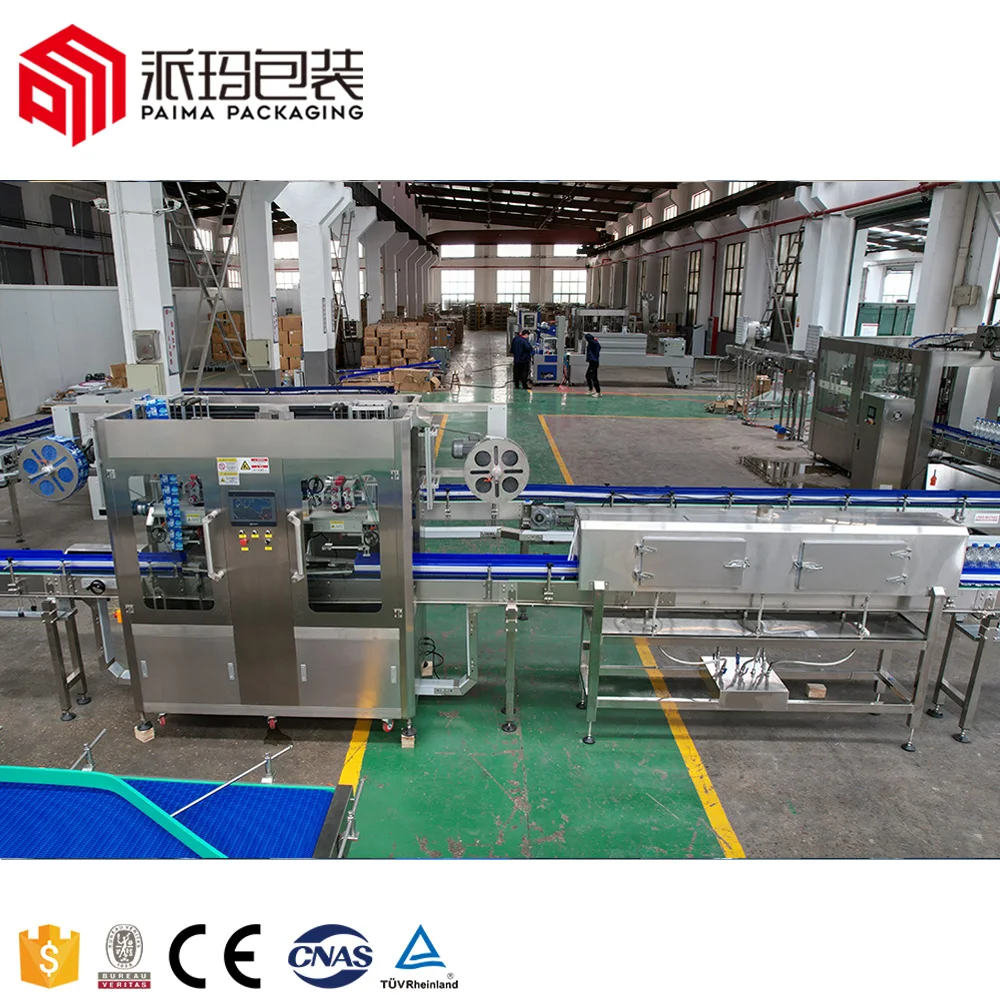

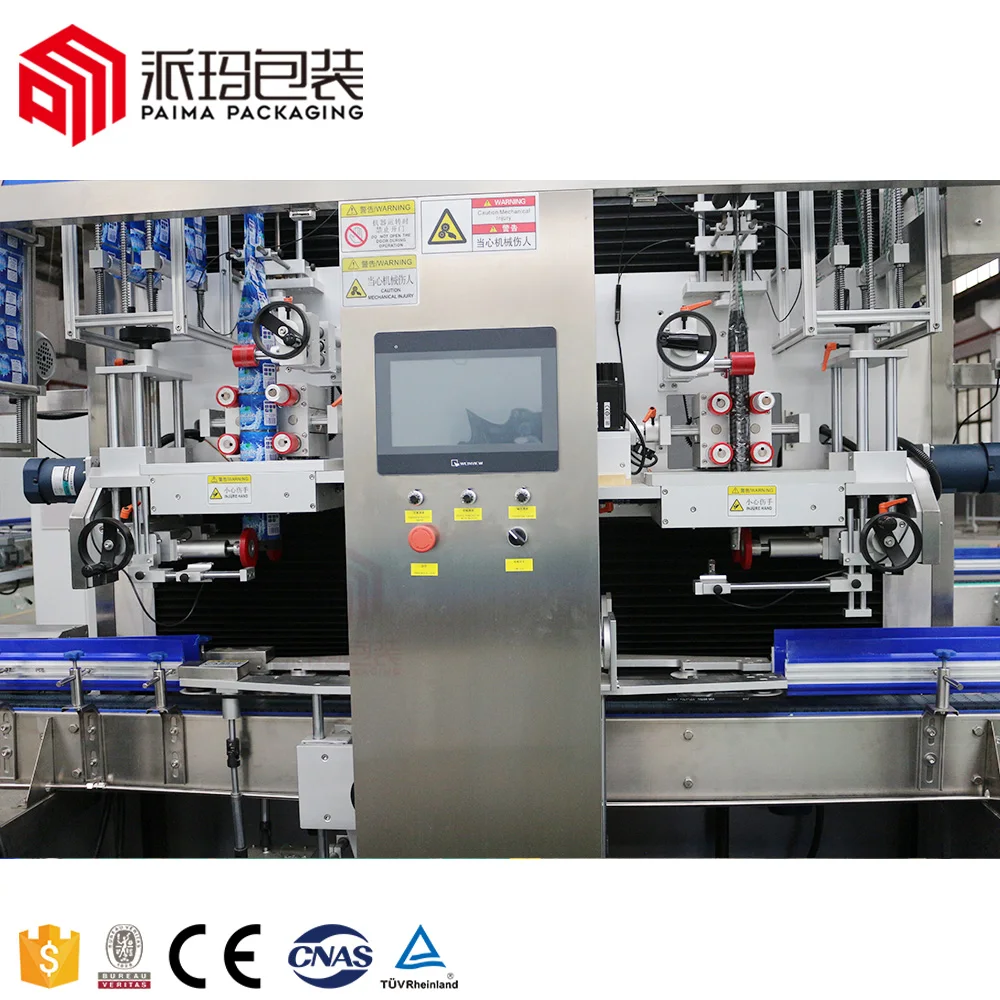

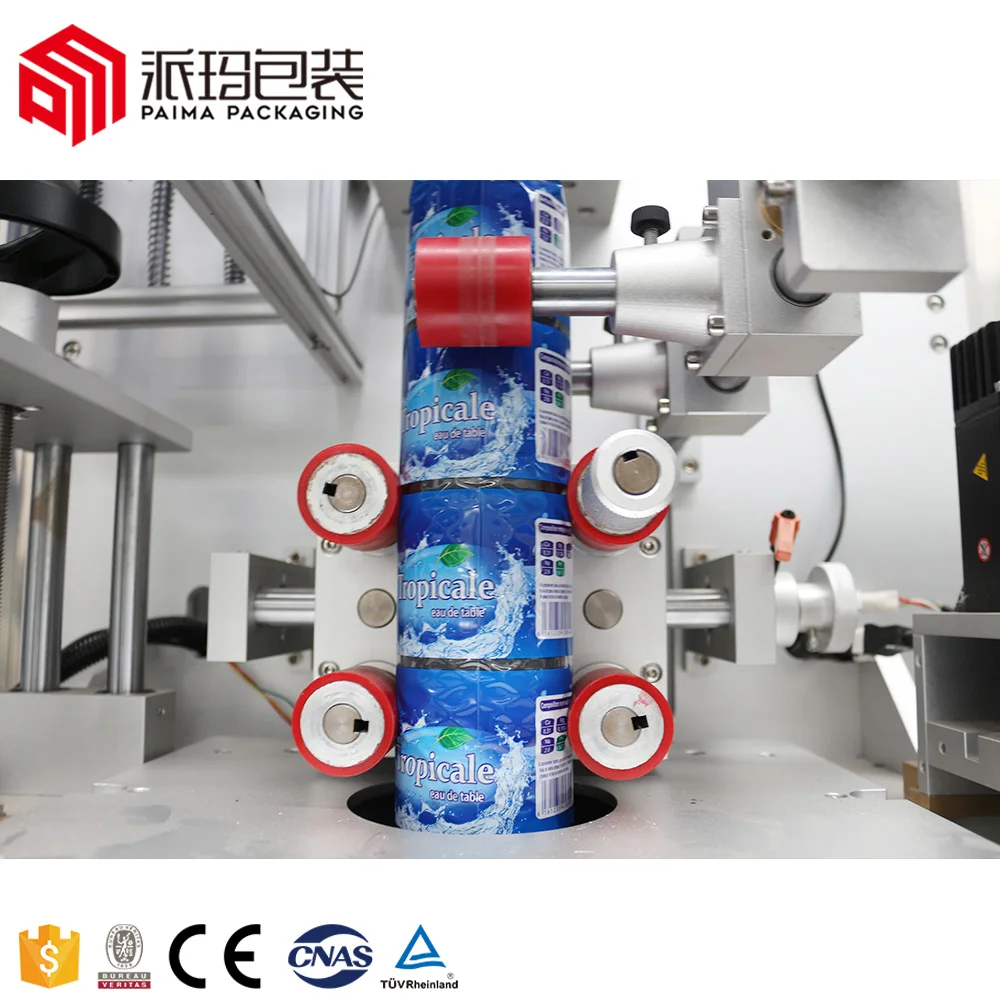

Shrink sleeve labeling machine
1. The mainly used for container labeling cylindrical, square or other special shapes of detergents, beverages, mineral water, food, etc.
2. Labeling machine is controlled by PLC touch screen, all-electric eyes are using imported advanced configuration.
3. High speed, high accuracy, stable performance.
4. Easy to operate and look elegant appearance.

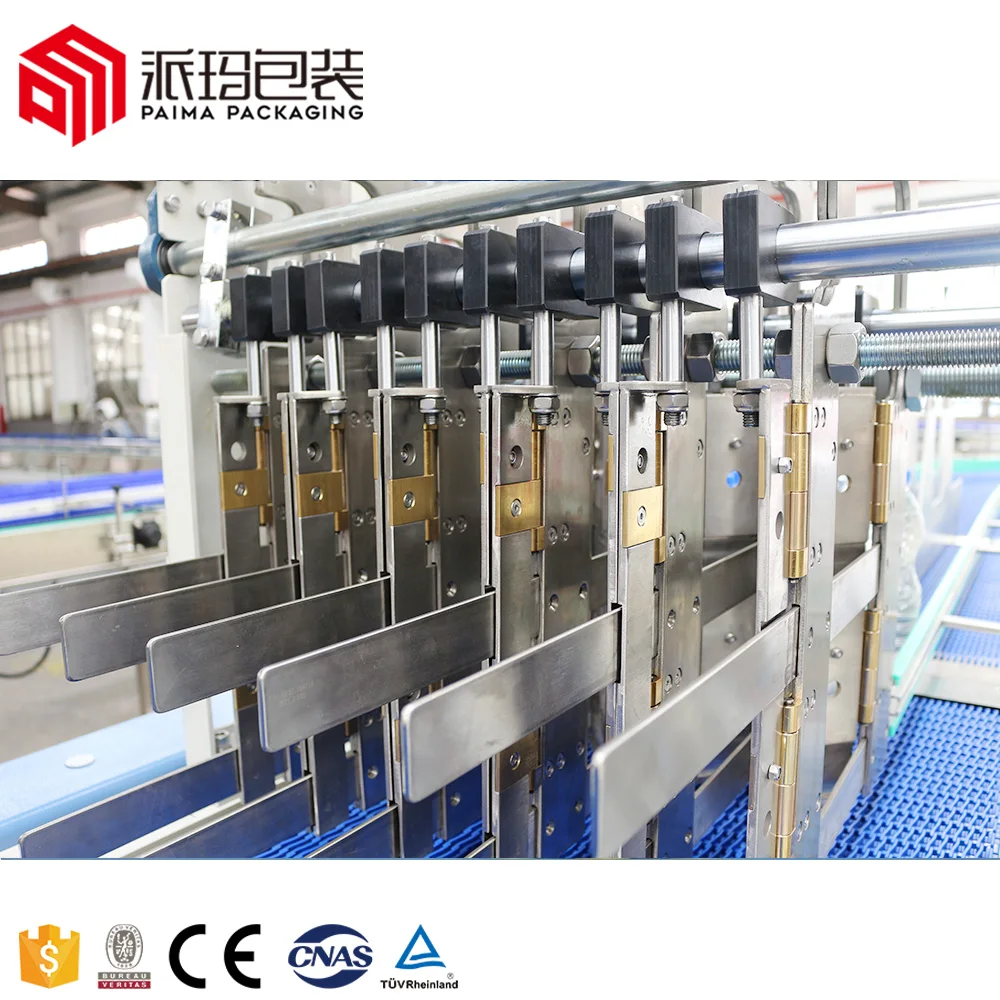

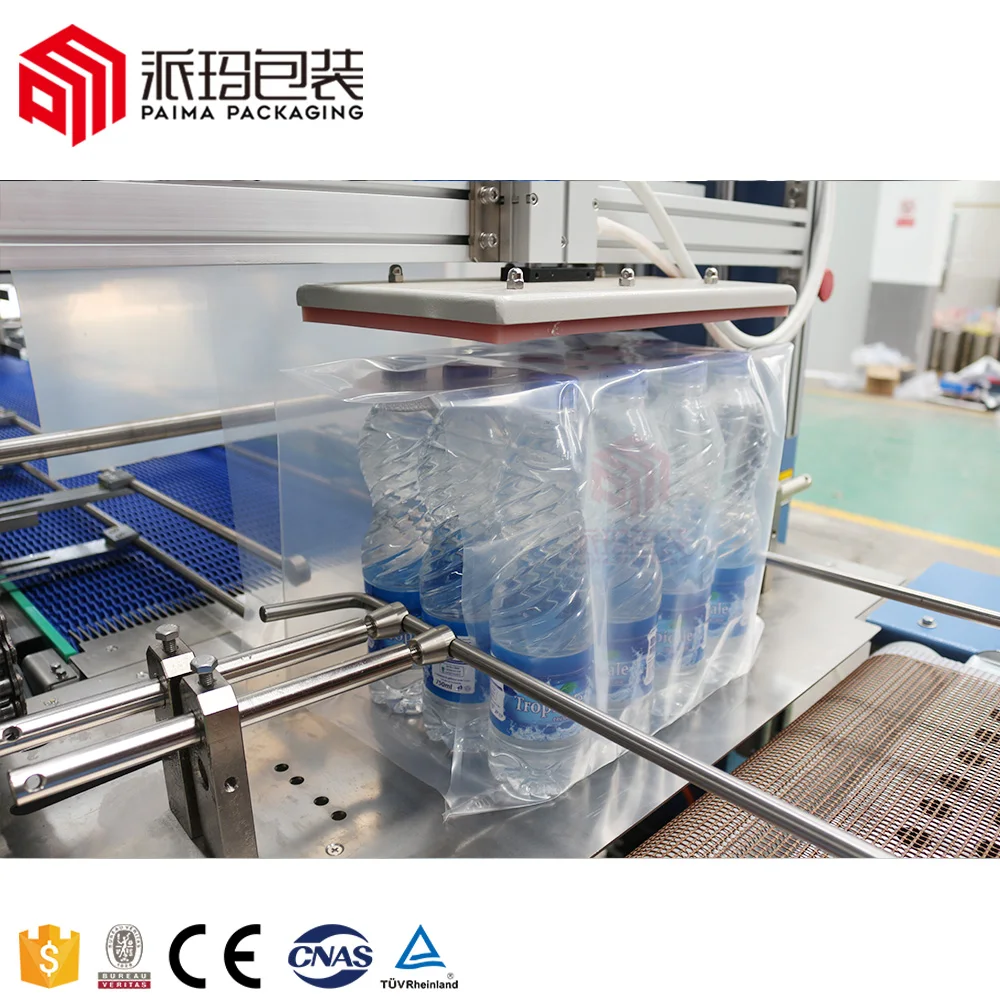

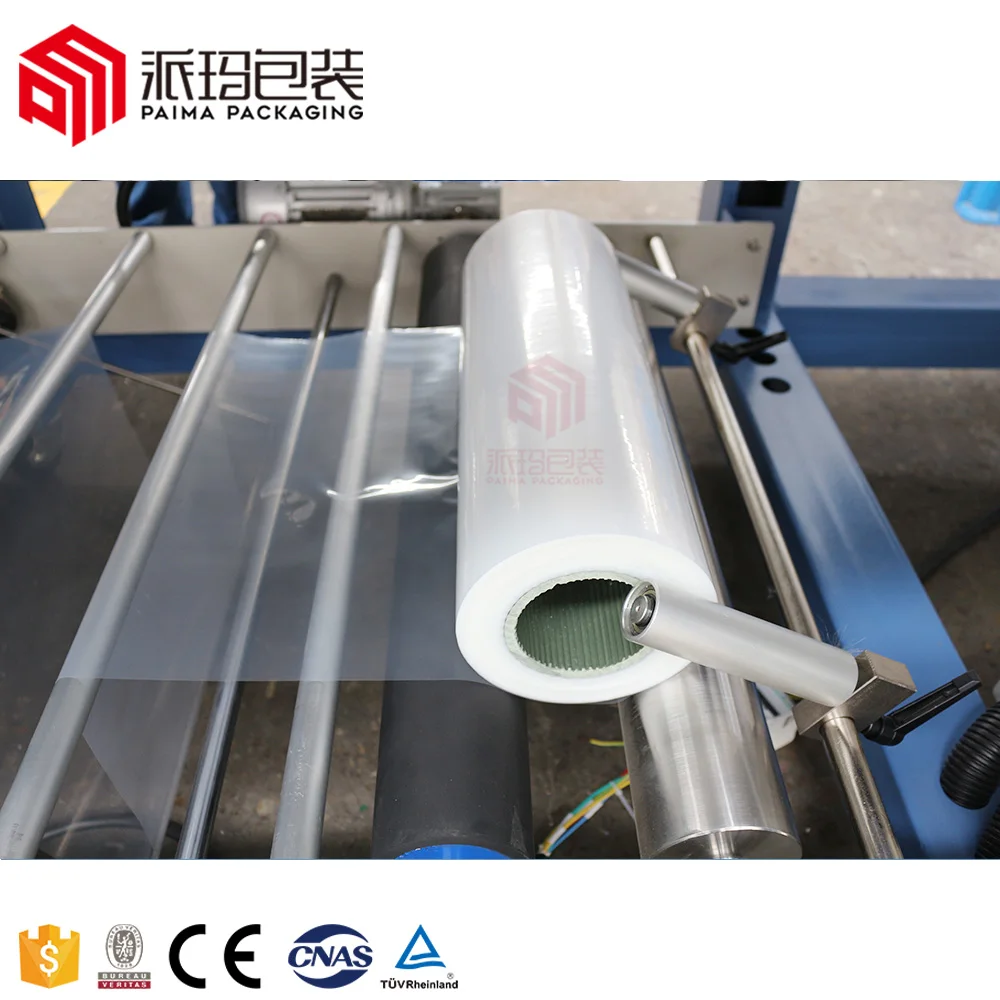

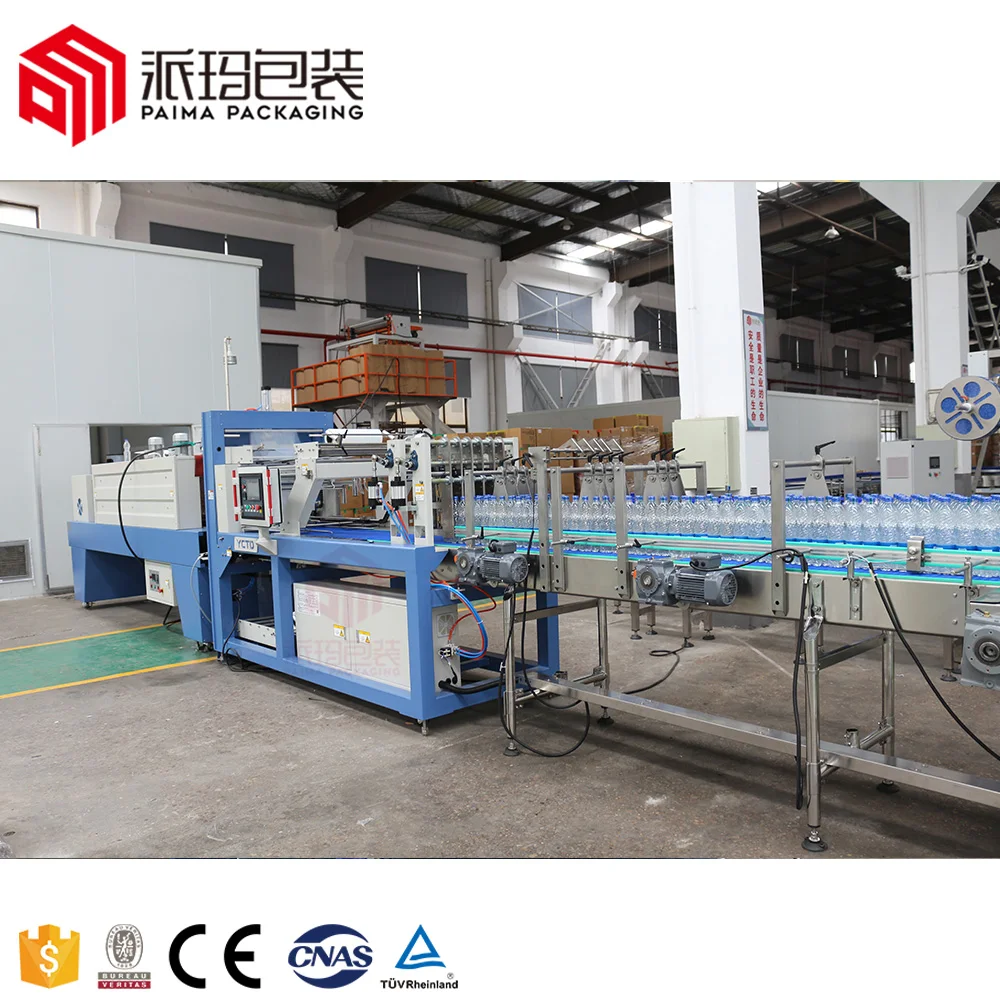

Shrink wrapping machine
The shrink wrapping machine is specially designed for packing production line of beverage, drinking water, fruit juice, dairy products, etc .with full automatic functions of bottle transfer and arrange, membrane packing, sealing and cut, shrinkage, cooling and shaping, etc.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Customer cases
We have a customer from Ethiopia who ordered a complete water line from water treatment to the back-end packaging equipment. And last year, when we went to Ethiopia to participate in the exhibition, we specially visited them. These are the real pictures we took from the our customer's factory.
