Product Overview
Description

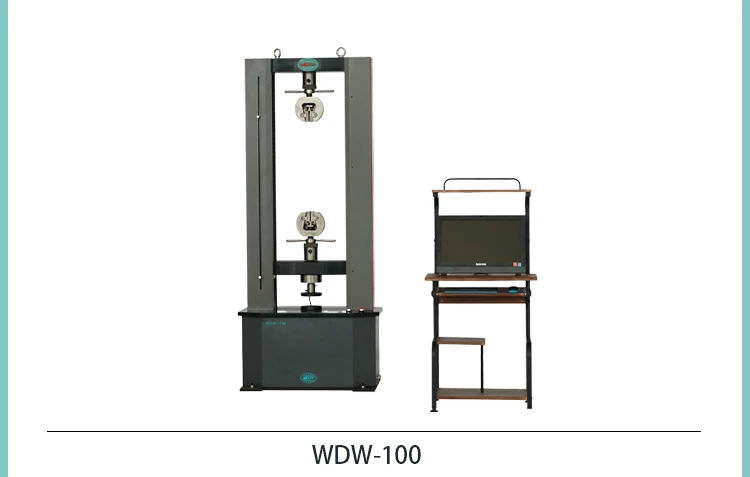

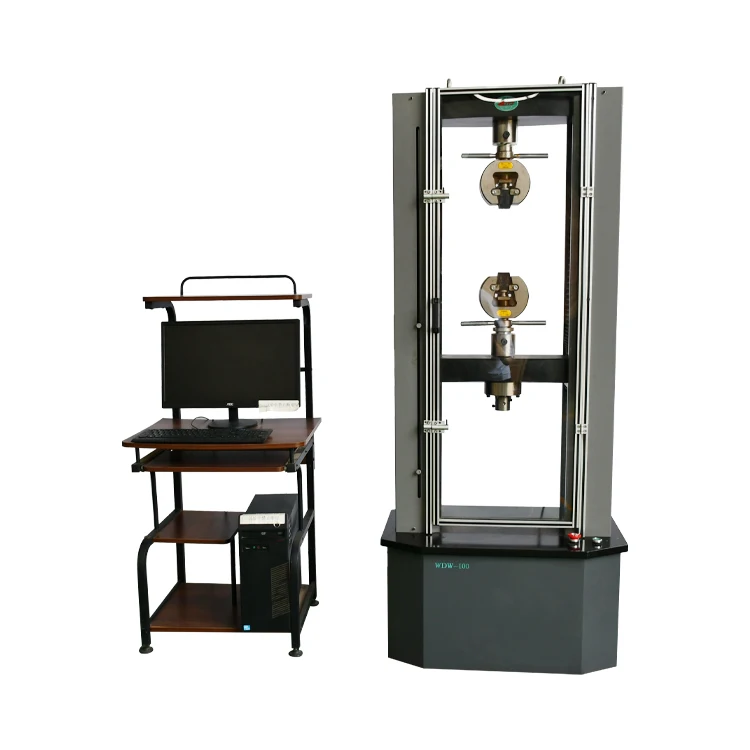

WDW-100 Computerized Universal Testing Machine
Usage Overview
WDW-100 series of test machine is suitable for the mechanical properties testing and research of metal, rubber, plastic and other materials. It can be widely used in machinery, metallurgy, construction, transportation, aviation, aerospace, shipbuilding, ceramics, automotive, medicine and electronics.
1. Loading frame
a.The main frame includes the table top, the middle beam, the moving beam, the column and the ball screw. All the parts are steel parts. The structure is compact and the connection is firm, which ensures the rigidity of the testing machine and the smooth running of the moving beam.
2. The test machine is divided into upper and lower test spaces, the upper space is subjected to tensile test, and the lower space is subjected to compression and bending tests, which reduces the trouble of different test replacement
test aids, and ensures the accuracy of the test machine and is easy to operate.
c. The test space is sufficient to meet the requirements of various tests to the utmost extent.
d. The frame protection cover ensures the cleaning of the ball screw. The beam limit device can arbitrarily set the limit
position of the| moving beam up and down to ensure the safe operation of the test machine.
2.Beam drive
a. The AC servo drive system controls the AC servo motor, and the ball screw is rotated by the precision planetary reduction system to move the beam up and down.
b. Using the gapless arc timing belt to link the two lead screws, high efficiency, low noise, ball screw drive loading, force
valuec. Full digital closed loop control.
3.Test machine controller
a. Set load, displacement, deformation measurement and display, speed control, test parameter setting, test machine calibration, data processing, report output and other functions in one.
b. The test force and deformation amount are enlarged in four steps.
c. Fully automatic data processing. The main items include: elastic modulus, upper and lower yield points, maximum points, non-proportional stress points at break points, and partial curve amplification.
4. Data processing and curve drawing and output.
a. Display mode: screen display
b. Operation mode: Easy operation through the 101 keyboard and mouse.
5.Other characteristics
a. Power supply use 220V or customized.
b. Safety protection device can prevent problems such as over-travel, overload, leakage and current overload.
c. Appearance plexiglass shield.
d. A variety of special accessories are available as an option
2. The test machine is divided into upper and lower test spaces, the upper space is subjected to tensile test, and the lower space is subjected to compression and bending tests, which reduces the trouble of different test replacement
test aids, and ensures the accuracy of the test machine and is easy to operate.
c. The test space is sufficient to meet the requirements of various tests to the utmost extent.
d. The frame protection cover ensures the cleaning of the ball screw. The beam limit device can arbitrarily set the limit
position of the| moving beam up and down to ensure the safe operation of the test machine.
2.Beam drive
a. The AC servo drive system controls the AC servo motor, and the ball screw is rotated by the precision planetary reduction system to move the beam up and down.
b. Using the gapless arc timing belt to link the two lead screws, high efficiency, low noise, ball screw drive loading, force
valuec. Full digital closed loop control.
3.Test machine controller
a. Set load, displacement, deformation measurement and display, speed control, test parameter setting, test machine calibration, data processing, report output and other functions in one.
b. The test force and deformation amount are enlarged in four steps.
c. Fully automatic data processing. The main items include: elastic modulus, upper and lower yield points, maximum points, non-proportional stress points at break points, and partial curve amplification.
4. Data processing and curve drawing and output.
a. Display mode: screen display
b. Operation mode: Easy operation through the 101 keyboard and mouse.
5.Other characteristics
a. Power supply use 220V or customized.
b. Safety protection device can prevent problems such as over-travel, overload, leakage and current overload.
c. Appearance plexiglass shield.
d. A variety of special accessories are available as an option
Product | WDW-100 Universal Testing Machine |
Max. Test Force | 100KN |
Effective Range | 0.4%~100% |
Test Force Relative Error | ≤±0.5% |
Beam Moving Speed Range | 0.01~500mm/min |
Max. Stroke of the Beam | 1000mm |
Stretching Stroke | 700mm |
Effective Test Width | 400mm |
Weight | 440KGs |
