factory price cca rope stranded copper clad aluminum wire 7/0.26mm 18/0.26mm (1600572376665)

Share on (1600572376665):


Price:
Price in USD:Details

Quantity:


Product Overview

Description

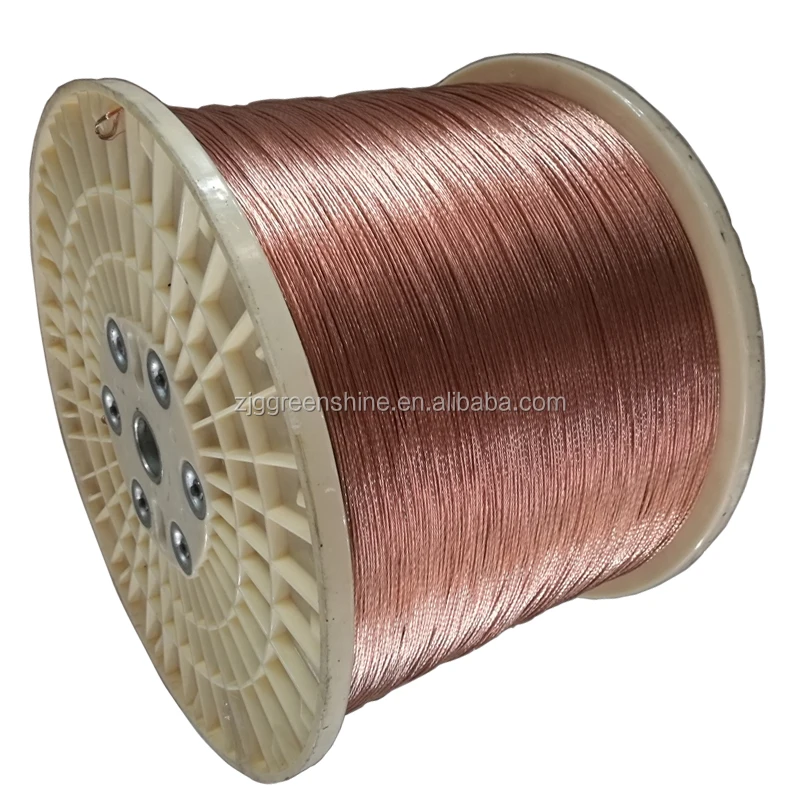

factory price cca rope stranded copper clad aluminum wire






Product Description


Copper Clad Aluminum Stranded wire consists of a number of small CCA wires. Density of CCA wire is lower than that of copper wire, so CCA stranded wire has advantage on length compare with copper stranded wire. That will help cable manufacturer to reduce production cost.





Feature: High Flexibility ;Outstanding bending performance


Technical Data

















































































































Structure



Calculated Cross Section Area
(mm2)



Calculated Overall diameter
(MM)



MAX D.C Resistance
(Ω/km)



KG/KM



Strands



Strands/Nominal diamater of single wire



13



13/0.20



0.408



0.83



67.2



1.31



20



20/0.20



0.628



1.03



43.68



2.02



32



32/0.20



1.005



1.31



27.3



3.24



10



10/0.25



0.491



0.91



55.91



1.58



16



16/0.25



0.785



1.16



34.94



2.53



26



26/0.25



1.276



1.47



21.5



4.11



29



29/0.25



1.423



1.55



19.28



4.58



19



19/0.47



3.295



2.37



8.33



10.61



19



19/0.59



5.192



2.97



5.28



16.72



19



19/0.75



8.39



3.78



3.27



27.01



7



7/1.29



9.144



3.94



3



29.44



7



7/1.33



9.72



4.06



2.82



31.3



Note: 1.wires not listed in above sheet are available.2. Customized wires are available.





Production Process:


ccas processing.jpg





Packaging Option: DIN 400,DIN 500,DIN630,DIN800


CCAS packing 02.jpg





Application: CCA stranded wire is used for electrical and industrial purpose.


CCAS application.jpg







 cca cable



Our Services




1.Qualified Products ; Competitive Price; Customized Products;Fast Delivery time; Quick Customer service


2.Sample is available

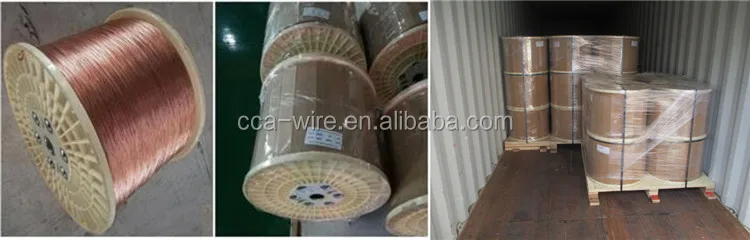

Packaging & Shipping


 cca cable

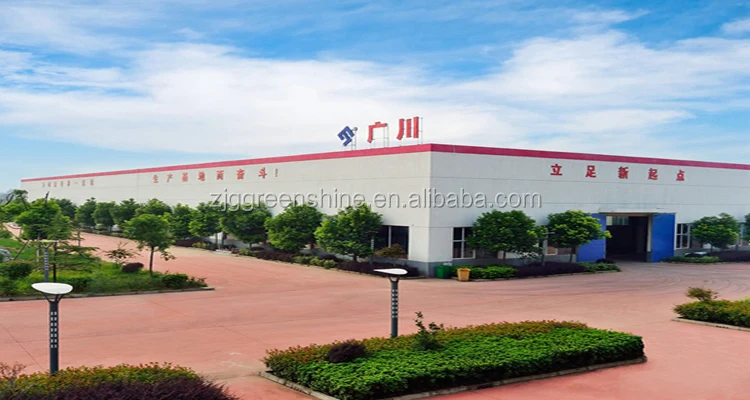

Company Information





cca cable








cca cablecca cable








Certifications







FAQ


 cca cable
