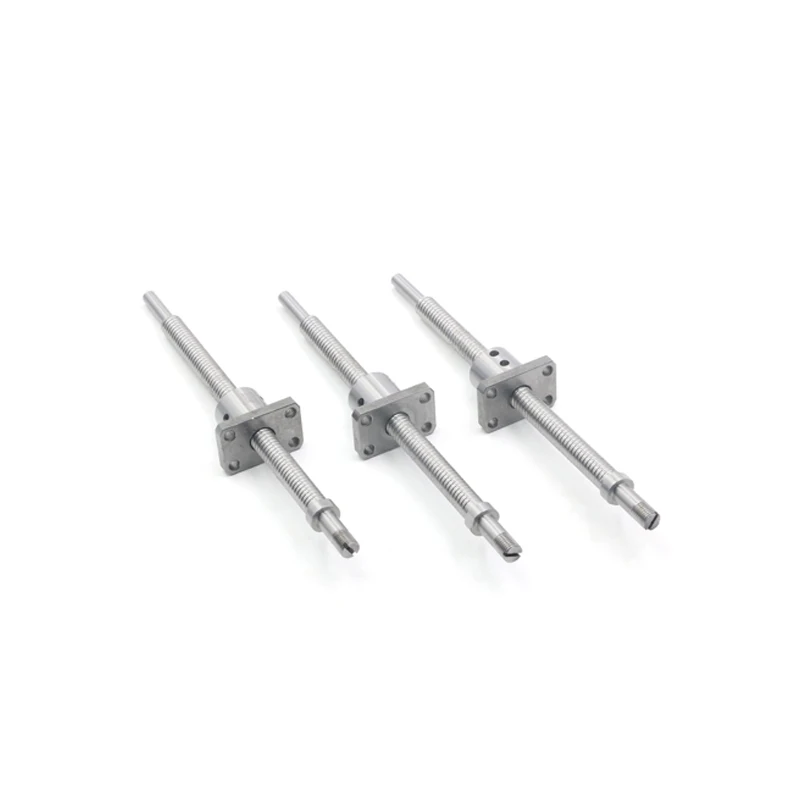

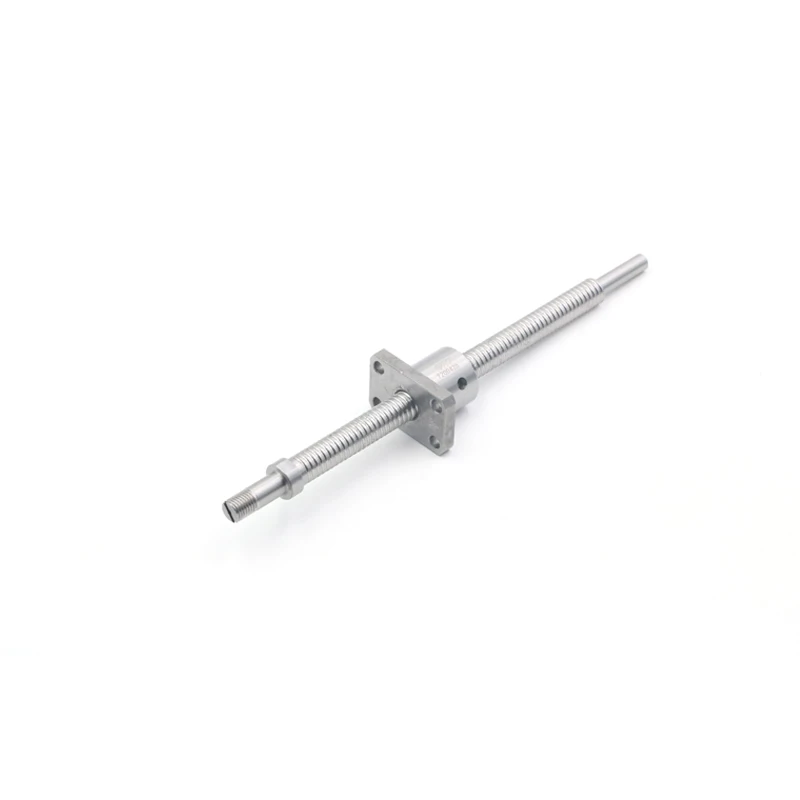

Ball screw 1002 with bi directional thread and double nut

Ballscrews are mechanical devices that convert torational motion to linear motion with a minimal amount of friction. Ballscrews are used in an array of applications ranging from low accuracy transport guides to high accuracy precision grade screws. They are also used in robots,machine tools and precision assembly devices. Ballscrews comes with high positioning accuracy, high life expectancy,low pollution and high-speed forward and reverse transmission and transforamtion drive characteristics as well. with these advantages,ballscrews has become one of the important mechanical machinery components for precision machinery industry and machinery in high-measurement industry.

Model d D F L B W H X Dynamic load Static load Axial clearance(mm) MIF0401 4 10 20 12 3 15 14 2.9 490 700 0-0.005 MIF0501 5 10 20 12 3 15 14 2.9 530 810 0-0.005 MIF0601 6 12 24 15 3.5 18 16 3.4 580 1000 0-0.005 MIF0602 6 12 24 15 3.5 18 16 3.4 750 1200 0-0.005 MIF0801 8 14 27 16 4 21 18 3.4 780 1650 0-0.005 MIF0802 8 14 27 16 4 21 18 3.4 1500 2600 0-0.005 MIF0802.5 8 16 29 26 4 23 20 3.4 1850 3000 0-0.005 MUF0804 8 16 29 26 4 23 20 3.4 2350 3300 0-0.005 Model d D F L B W H X Q Dynamic load Static load Axial clearance(mm) MIF1002 10 18 35 28 5 27 22 4.5 - 1500 2600 0-0.005 MIF1003 10 20 37 32 6 29 24 4.5 - 2600 5200 0-0.005 MIF1004 10 20 37 38 8 29 24 4.5 M5 3000 5200 0-0.005 Model d D F L B W H X Dynamic load Static load Axial clearance(mm) MIF1201 12 20 37 28 5 29 24 4.5 780 1600 0-0.005 MIF1202 12 20 37 28 5 29 24 4.5 3000 6000 0-0.005 MIF1203 12 22 39 32 6 31 26 4.5 3650 9900 0-0.005 MIF1204C 12 24 40 28 6 32 25 3.5 4100 9900 0-0.005 MIF1205 12 22 43 38 8 31 26 4.5 6190 8830 0-0.005
