PVC/PE/PP/PPR plastic pipe making machine/Plastic Extruder
- Category: >>>
- Supplier: Kunshan Oneplus Machinery Co. Ltd.
Share on (1600572503547):
Product Overview
Description
Product Description

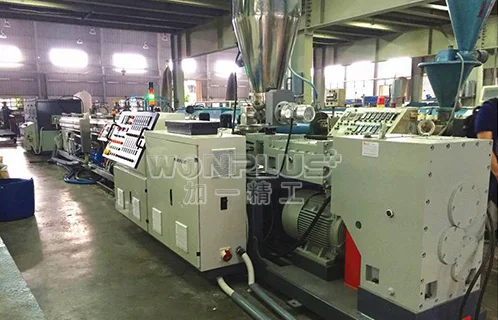

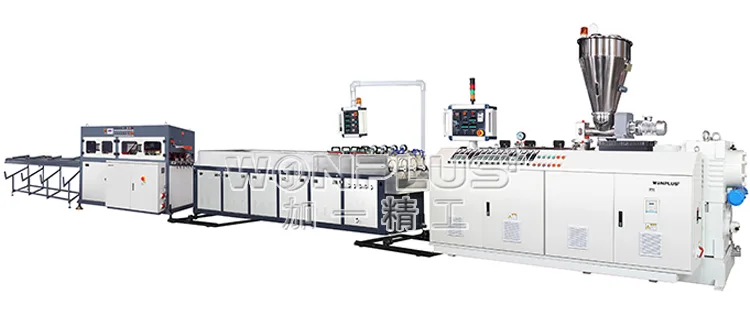

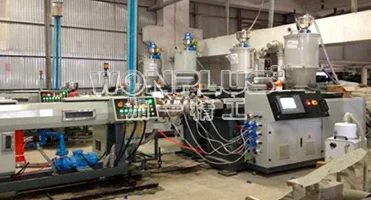

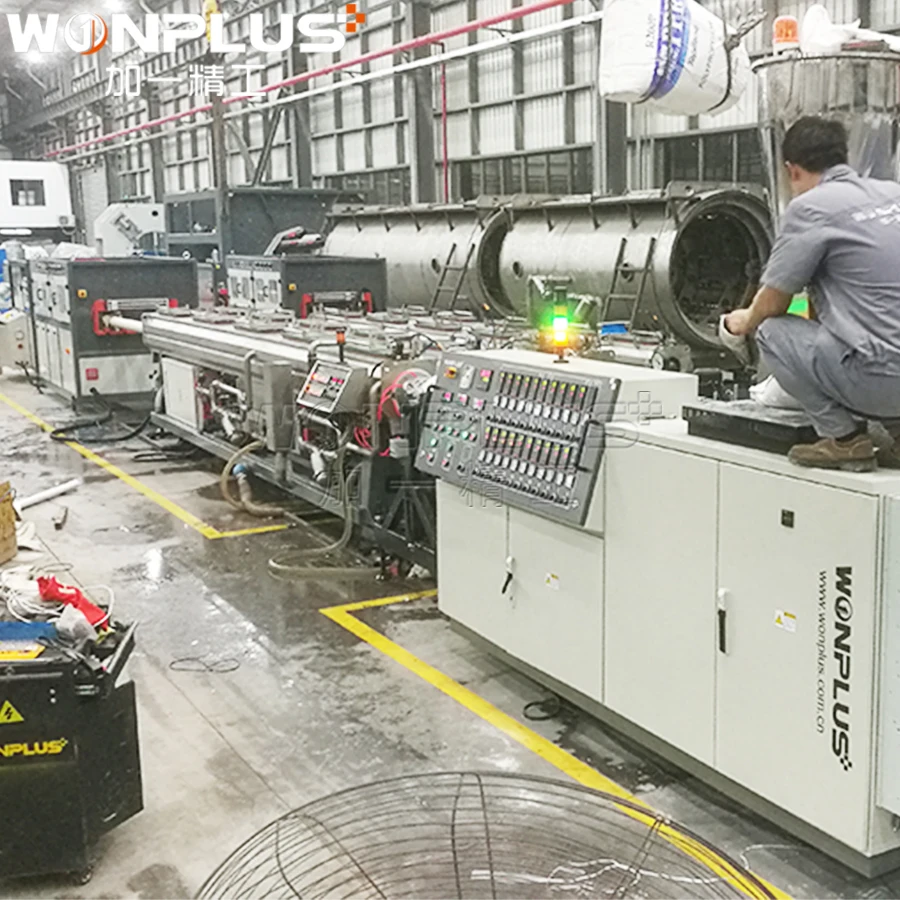

PVC extrusion line consists of conical twin-screw extruder, vacuum forming equipment, Haul-off machine, cutting machine, stacker and other components, with good stability and high capacity, easy to operate, reliable. The production line can produce water supply and drainage pipe, the material is U-PVC, C-PVC, large diameter PVC. and small diameter pipe for electricity wire conduit pipe. Full automatic control by SIMENS PLC computer.
SPECIFICATIONS FOR PVC/U-PVC PIPE EXTRUSION LINE | |||||||
Extruder model | Driven motor power | Mould | Extrusion capacity | Pipe size (O/D) | |||
SJZ-65/132 | 37KW | Four outlet | 300kg/hour | Φ16-32mm | |||
37KW | Double outlet | 300kg/hour | Φ16-63mm | ||||
37KW | Single outlet | 300kg/hour | Φ20-110mm Φ50-160mm | ||||
SJZ-80/156 | 55KW | Four outlet | 400kg/hour | Φ32-63mm | |||
55KW | Double outlet | 400kg/hour | Φ50-110mm | ||||
55KW | Single outlet | 400kg/hour | Φ75-250mm Φ75-315mm | ||||
SJZ-92/188 | 110KW | Single outlet | 750kg/hour | Φ200-400mm Φ315-630mm | |||
SJP-130 | 132KW | Single outlet | 800kg/hour | Φ500-800mm | |||
The parameters is for your reference, Specifications and standard equipment are subject to charge without notification.
-----------------------------------------------------------------------------------------------------------------------------------------------------

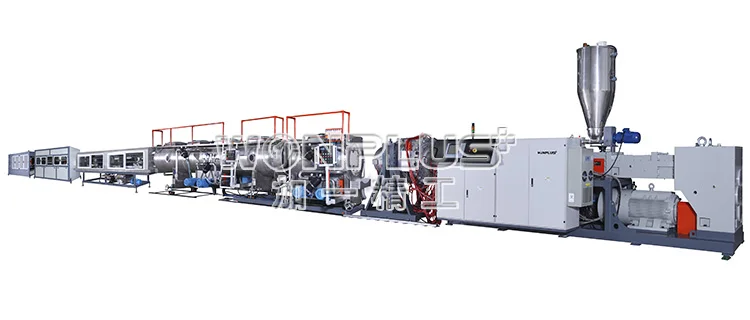

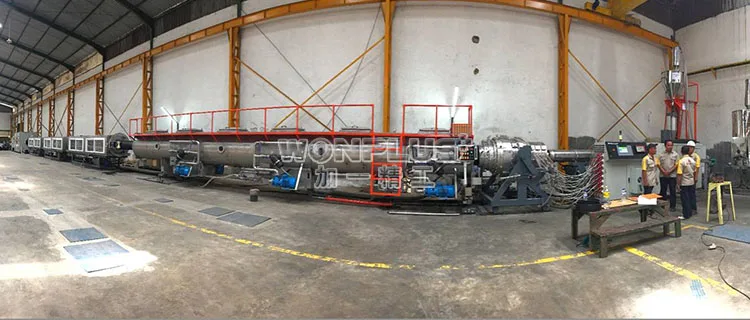

PVC 630mm PIPE EXTRUSION LINE
-----------------------------------------------------------------------------------------------------------------------------------------------------
PVC 250mm PIPE EXTRUSION LINE
-----------------------------------------------------------------------------------------------------------------------------------------------------

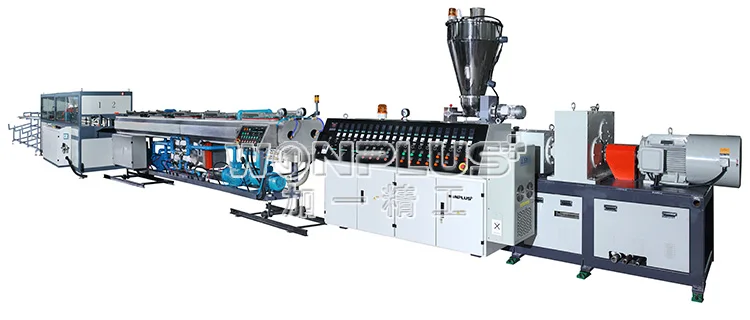

PVC 63mm PIPE EXTRUSION LINE
-----------------------------------------------------------------------------------------------------------------------------------------------------
PVC 32mm PIPE EXTRUSION LINE
-----------------------------------------------------------------------------------------------------------------------------------------------------
Equipment Details

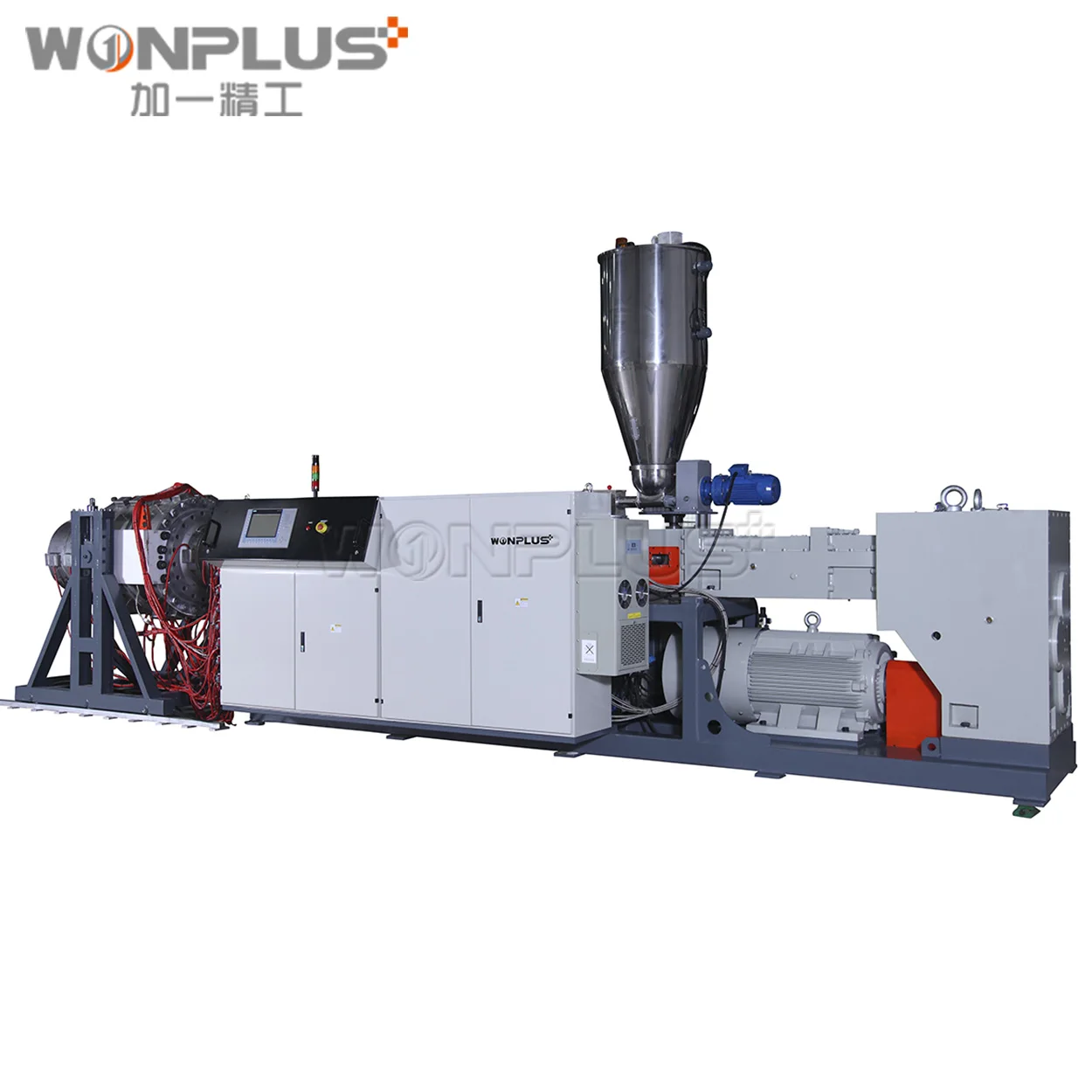

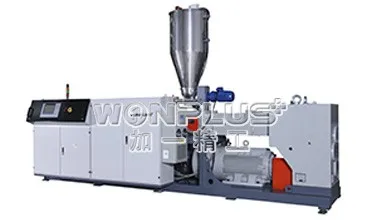

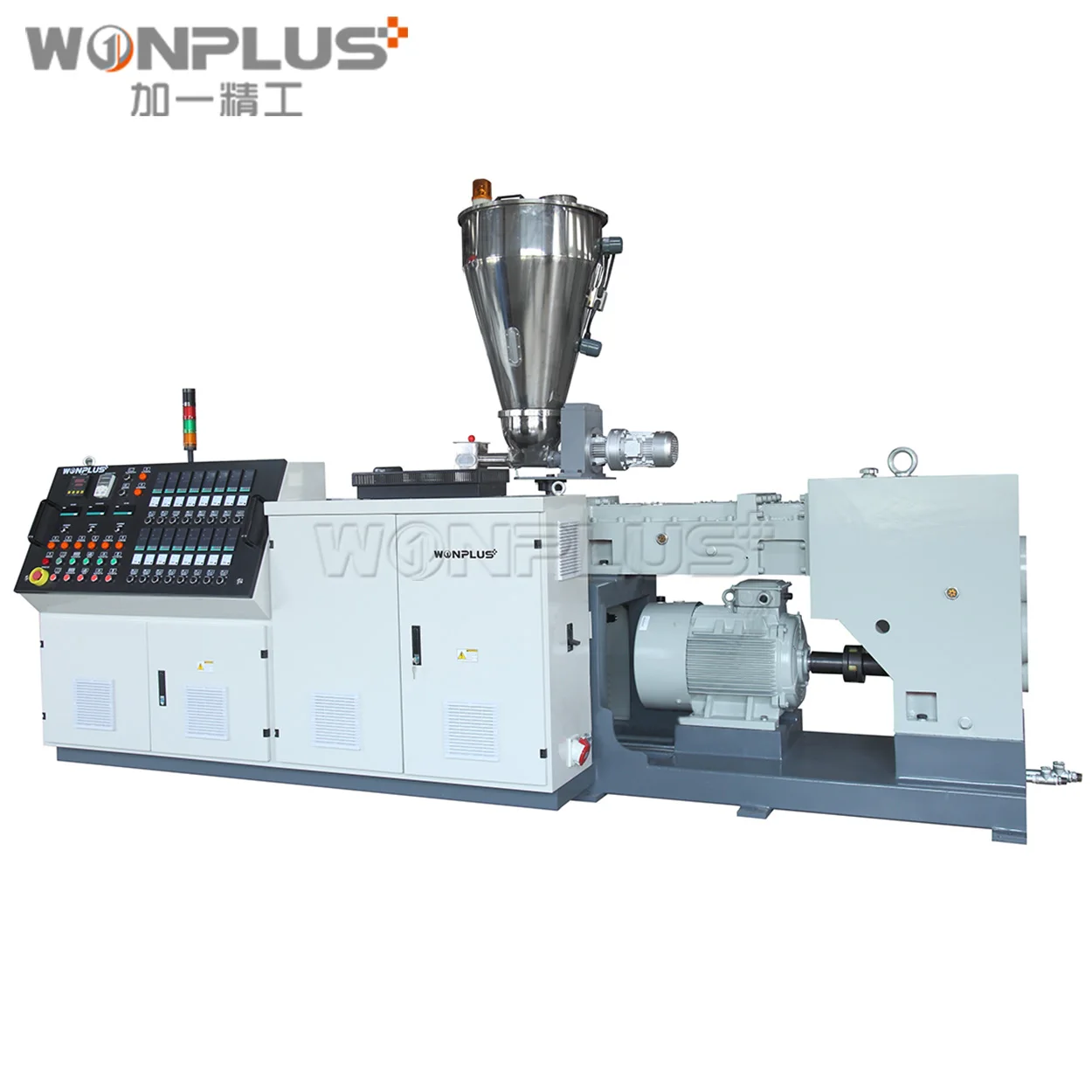

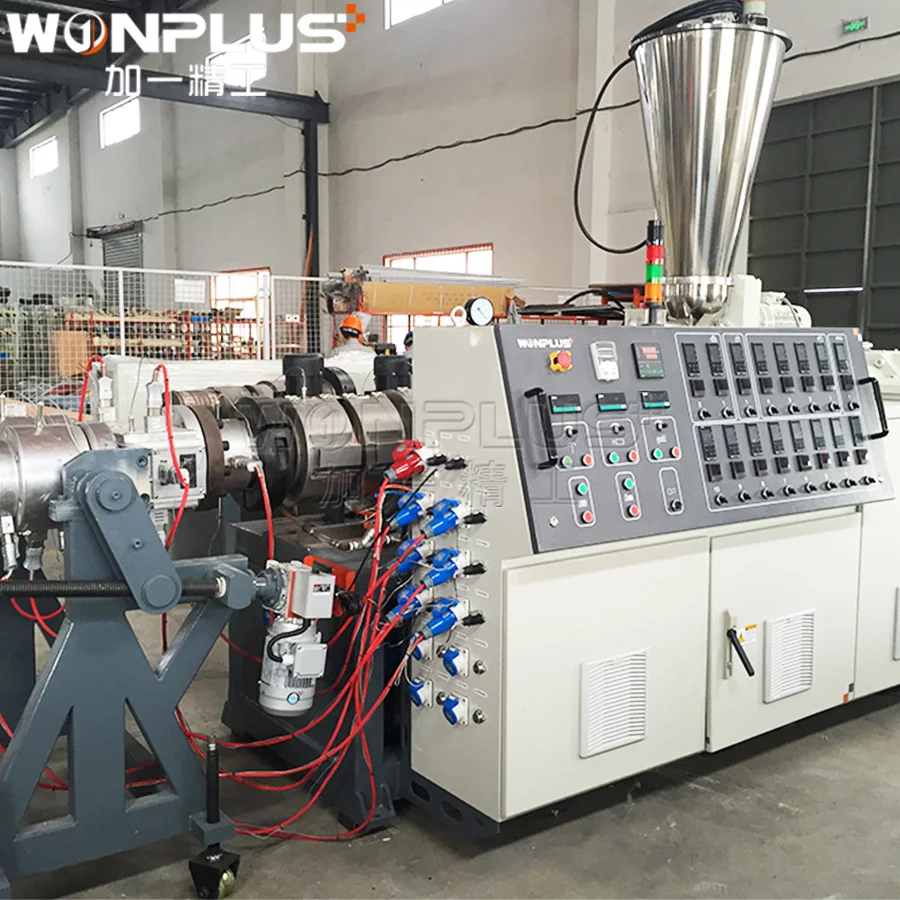

Conical Twin Screw Extruder
Driven motor: Siemens brand
Temperature control: Japan RKC, Omron, or Siemens computer
Inverter: ABB brand
Cotactor & Relay: Schneider brand
Circuit breaker: DELIXI
Extrusion Mould
Material: 40Cr
Calibrator: Stainless steel
The inner flow channel is plated with hard chrome, the outer surface is treated with high temperature paint, the corrosion resistance is strong.

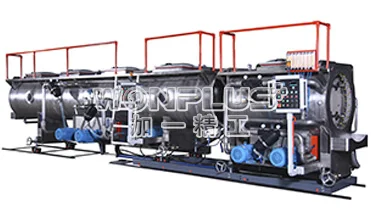

Calibration Tank
Material: Stainless steel
Tank Movement : Forth and back by motor driven
Up and down by food screw adjust

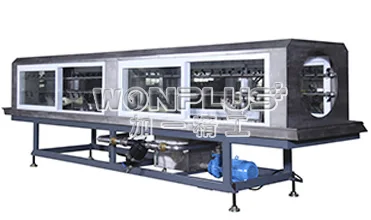

Spraying Tank
Material: Stainless steel
Length: 6m or customized
***Not standard device, required for over 315mm size***
Hauler
Traction motor reducer: Servo motor, INNOVANCE brand
Electricity components: Schneider brand

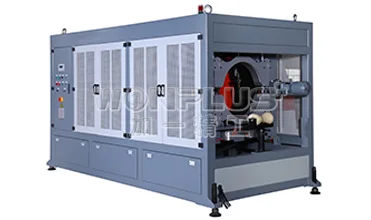

Cutter
Cutting control: SIEMENS PLC computer
Cutting type: Planetary saw cutter, Non-dust cutter

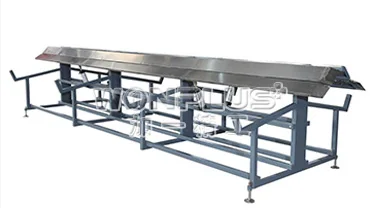

Stacker
Humanized design, humanpower saving
Packing & Delivery
Inner with high strenth plastic film + export wooden tray
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* One year warranty.

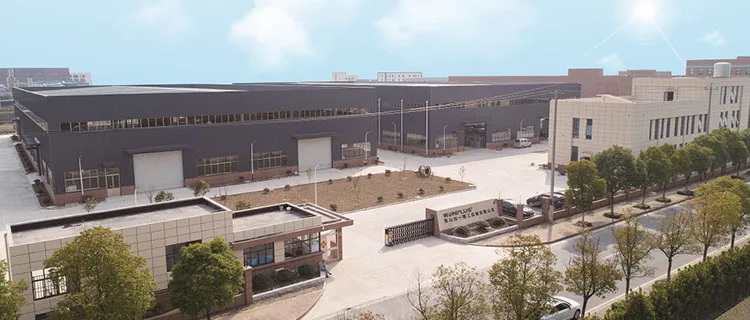

Our Company
---Specialized In Plastic Extrusion Machinery---
Kunshan Oneplus Machinery Co.,Ltd. is specialized in twin and single screw extrusion line for pipes, profile,sheet and board, plastic recycling granulator. We manufacture both conical and parallel types of extrusion lines depending on the applications. The product has been exported to South East Asia, the Middle East, Africa,Europe and other regions.
