MAKA 4 in 1 Wall Detector Wood Live Wire detector stud finder
- Category: >>>
- Supplier: Jinhua Maka Technology Co. Ltd.
Share on (1600573201016):
Product Overview
Description
china Multi-function digital stud finder Wall Detector
Reliable partner |
| ♦ OEM&ODM is available |
| ♦ 24 hours online service |
| ♦ Full quality control service |
| ♦ The longest warranty period is 2 years |
| ♦ BSCI,ISO9001,CE,ROHS,FCC certification |
| ♦ Main market to North America,south America, Europe, Russia etc. 35 countries |
| ♦ Professional research and development team, with 4-5 new products every year |
♦ More than 10 years experience in manufacturing and exporting measuring and detecting instruments
|
PRODUCT FEATURES

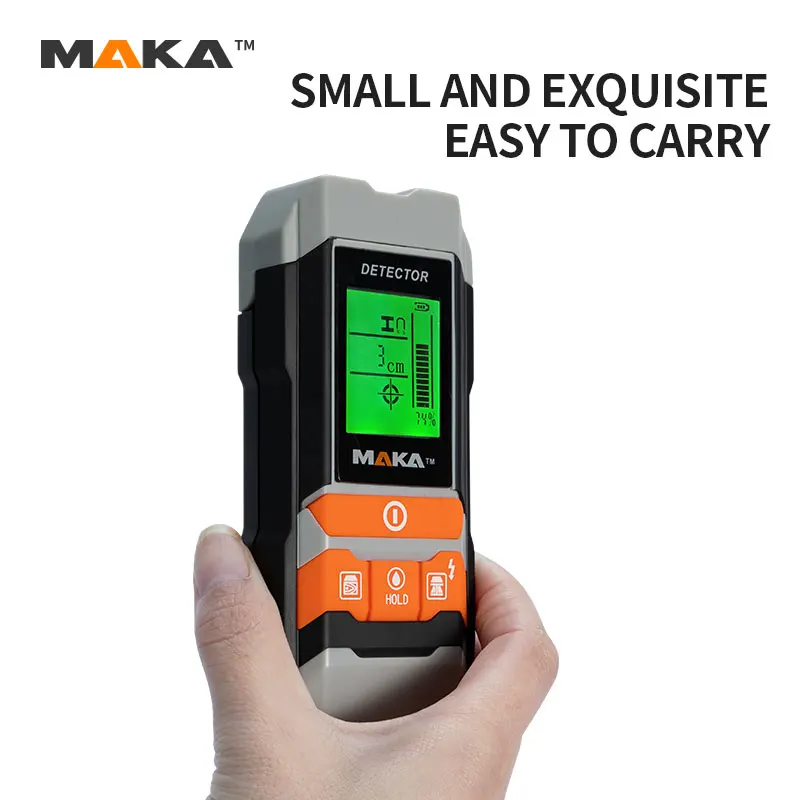

1.Small size, light weight, easy to carry.
2.When detecting metal, the depth value can be displayed numerically.
3.Powerful function, stable perfor-mance-class level.
4.Can detect metals(iron and non-ferrous metals),wood beams and live cables hidden in walls,ceilings and floors.Referring to the wall, ceiling and floor are conven-tional concrete, ceramic tile and board.
PRODUCT APPLICATIONS
The application scope of this 4-in-one detector is:
1. It can be used to determine the moisture content of various kingds of tree species,wood,bambll ware,paper,Chiness medicinal materials, plasterboard, cement mortar and lime mortar.
2. Can test the moisture content of all kinds of wood and building materials.
Product Description
| PARAMETER |

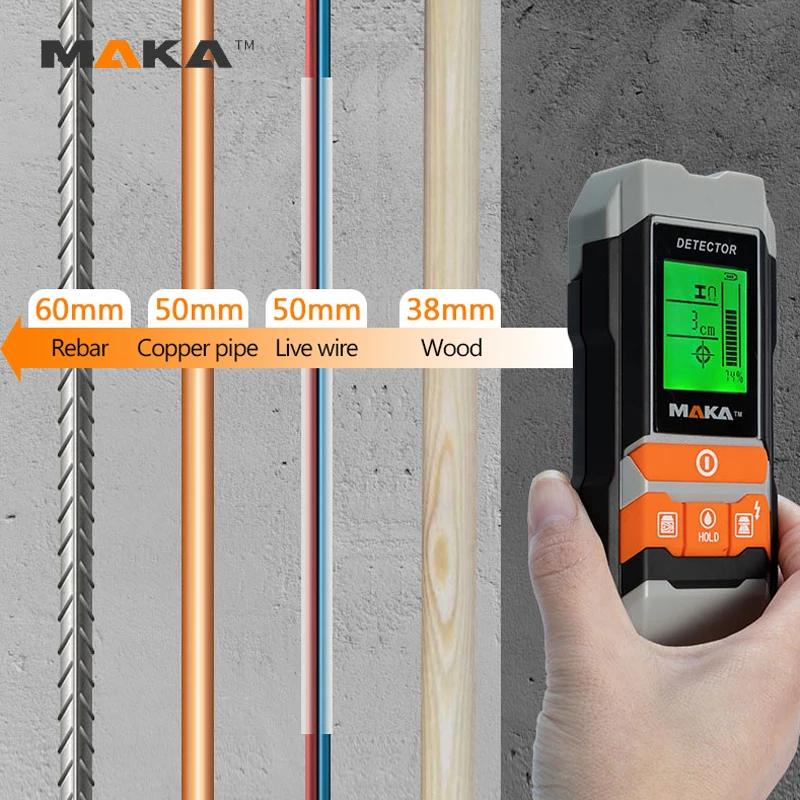

| Maximum scanning depth: | Ferrous metals 60mm Non-ferrous metals(Copper) 50mm Copper conductors(live)** 50mm Wood exact mode 20mm/deep mode 38mm |
| Moisture maximum detection depth | 8mm |
| Moisture test range/accuracy | WOOD 5%-50%/±2% Building materials 1.5%-33%/±2% |
| Automatic switch off after approx | 5min |
| Working humidity range | Metal 0-85% RH Wood 0-60% RH Copper conductors(live)** 0-30% RH |
| Operating temperature | -10℃+50℃ |
| Storage temperature | -20℃+70℃ |
| Battery | 2*1.5V AAA |
| Operating lifetime approx. | 6h |
| Product size | 134.5*60*25mm |

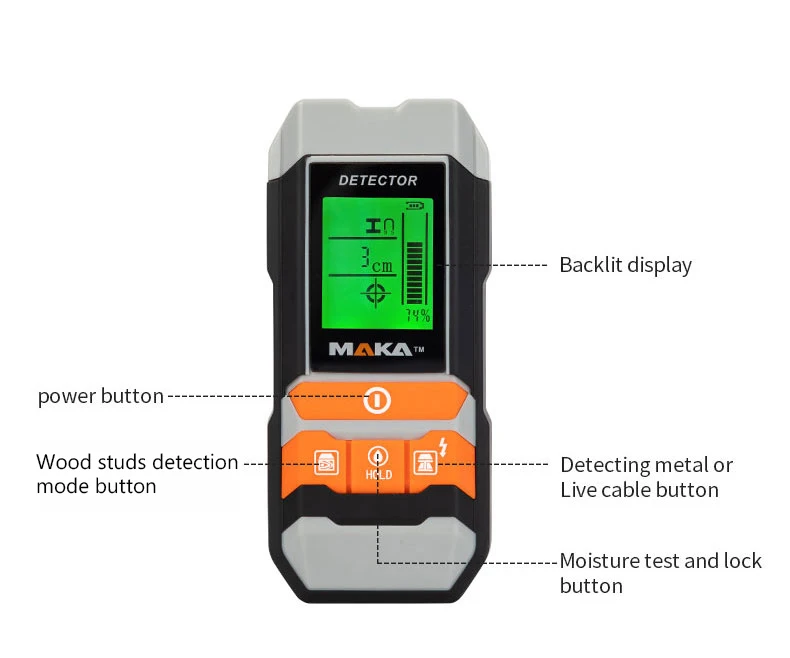

Display Elements
a. Current is the "deep" mode of detecting foreign objects such as wood (maximum depth of detection is 38mm).
b. Current is the "exact" mode of detecting foreign objects such as wood (maximum depth of detection is 20mm).
c. Indicator for the current detection mode(Wood,live wire,metal.
d. Metal detecting depth and moisture test data display area(this depth means :the distance is from the center of detection area to the object measured).
e. Current it is the moisture measurement model of building materials.
f. Current it is the moisture measurement model of the wood.
g. Moisture test completed locking test data
h. Battery power indicator
i. Indicator for magnetic/non-magnetic metals
j. Detecting signal strength display area

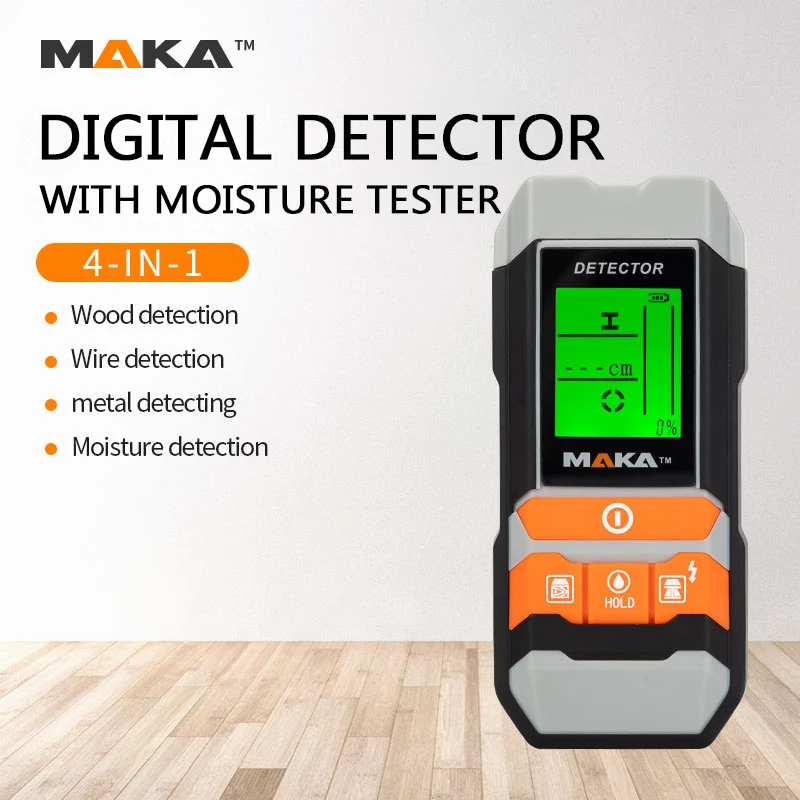

4-in-1
DIGITAL DETECTOR
WITH MOISTURE TESTER

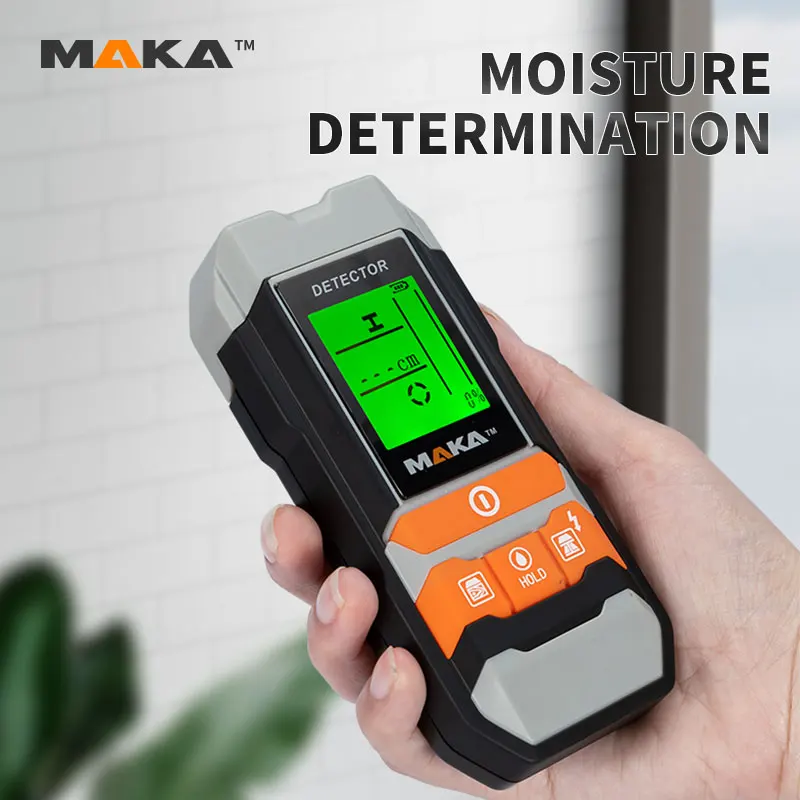

Press the HOLD button to enter moisture measurement mode
HIGHLY SENSITIVE
METAL PROBE
Measure sensitive accuracy with new low-power chip technology
MULTIPLE DETECTION
PRECISE POSITIONING
Suitable for a variety of materials, avoiding the cumbersome and easu to use
The screen displays the probe distance data to accurately detect the position
ONE-CLICK CONVERSION
Metal detection / wood detection / wire detection / moisture detection
Easy to switch
| Metal detection | wire detection |
| wood detection | moisture detection |
IMPROVE ACCURACY
LARGE AREA SENSOR
The sensor is located near the marked hole and center target is positioned
Ensure detection accuracy
EXHIBITION |
| CERTIFICATE |
Packaging & Shipping
| PACKAGE & TRANSPORTATION |
Warm tip: a small number of orders, not including batteries when shipped.
| contact me |
FAQ
Q: What is your quality warranty?
A: The longest warranty period is 2 years.
Q: Should we use our logo/brand?
A: Yes, of course. OEM is absolutely supported; both on package or devices.
And the MOQ IS 20 PCS or the price will add the printing plate charge.
Q: What certificates do you have?
A: All electronic products are with CE & RoHS certificates.
Q: How can I get a sample? What's the sample fee? How long will it take?
A: Please confirm with us the model you'll purchase, and you prepaid the sample fee , after sample tested and qualified, we will refund this sample fee when you place the bulk order. We can send out the sample within 2 working days after receiving payment.
Q: What's the lead-time for orders?
A: If the number less than 20 pcs with our logo or with neutral packing .Normally it takes 5 working days after receiving payment.
Q: Do you have any in stock?
A: Yes, we usually hold some quantities in stock, such as 100pcs or 200pcs are ready to ship immediately.
Q: What about your after-sale services?
A: We have 100% QC before shipment. If there are some unexpected problems happen, we hope to solve these problems with our customers through friendly ways as below:
1, If it's quality problem, customers must provide photos or videos and other evidences to us for identify. After confirmation, we'll send the new products to replace the damages in next order.
2, If it's man-made damaged, customers should take full responsibility.
Q: How to Contact Us?
A: Please Write Down your Inquiry Details to Get Quick Answer, Click "Send" Now!
