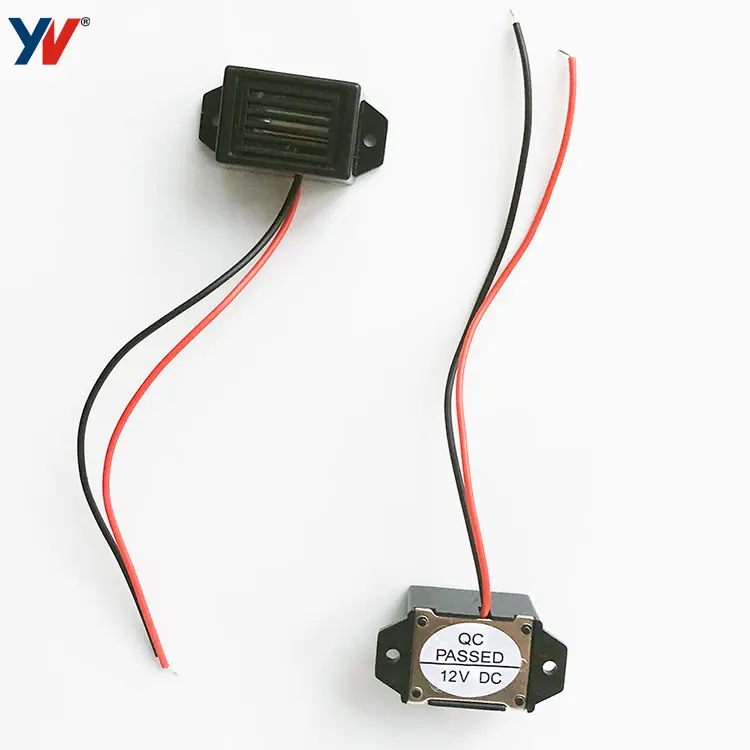

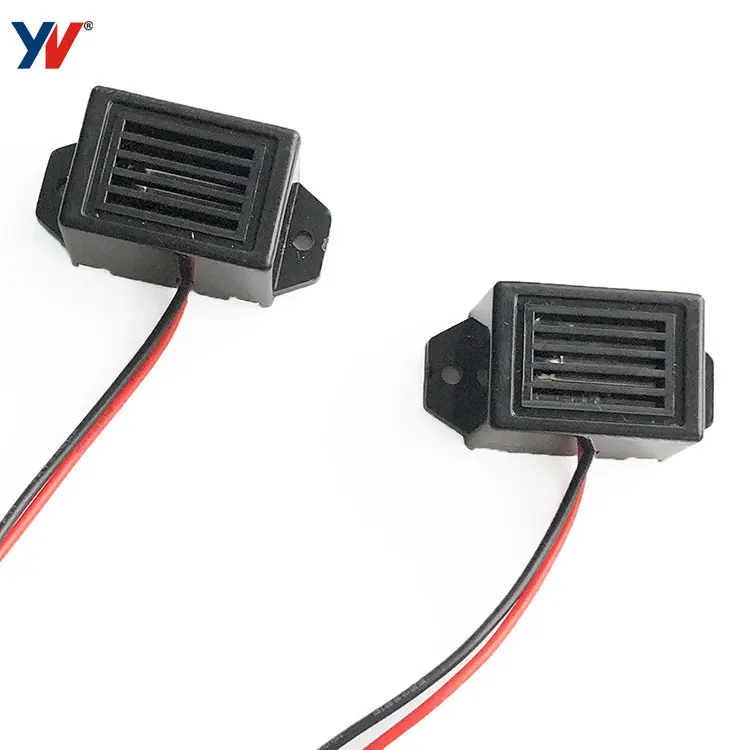

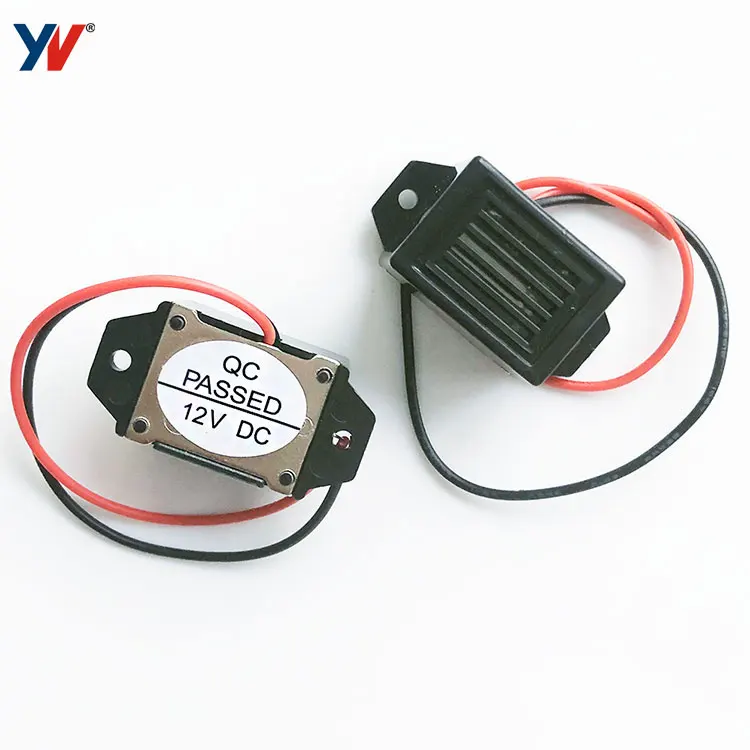

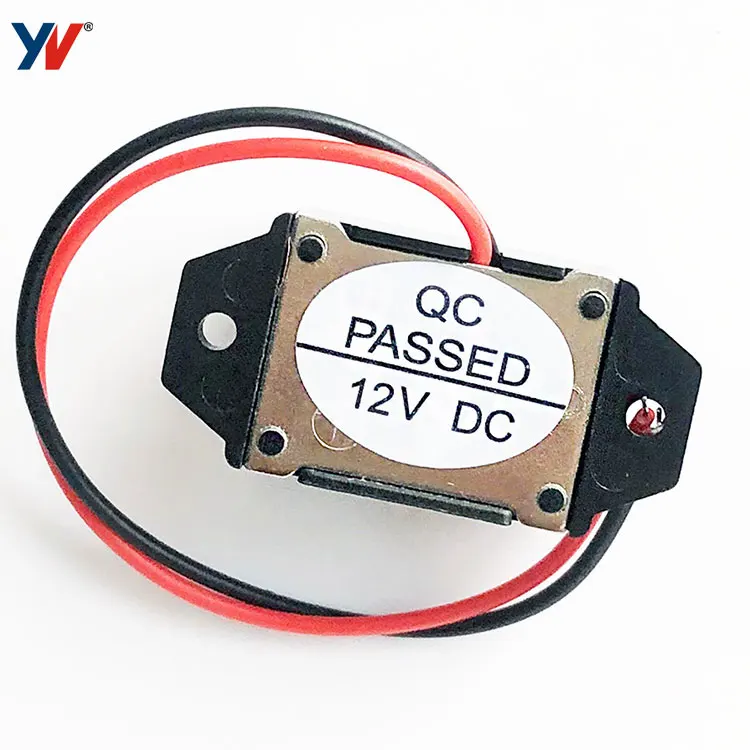

23mm 400Hz square Low frequency Vibration mini 2315 alarm dc 12v mechanical buzzer
- Category: >>>
- Supplier: Guangzhou Yueneng Technology Co. Ltd.
Share on (1600573296397):
Product Overview
Description
23mm 400Hz square Low frequency Vibration mini 2315 alarm dc 12v mechanical buzzer
Product Name | 23mm 400Hz square Low frequency Vibration mini 2315 alarm dc 12v mechanical buzzer |
Type | Buzzer |
Rated Voltage | 12V |
Operating Voltage | 10-13V |
Operating Temperature | -20°C ~ 60°C |
Storage Temperature | -30℃～+70℃ |
Rated Current | Max.30mA |
Sound Output at 10cm | Min. 85dB |
Tone Nature | Constant |
Resonant Frequency | 400Hz±100 |
Input Type | DC |
Dimension | 23.5x 16.5 x H15.5mm |

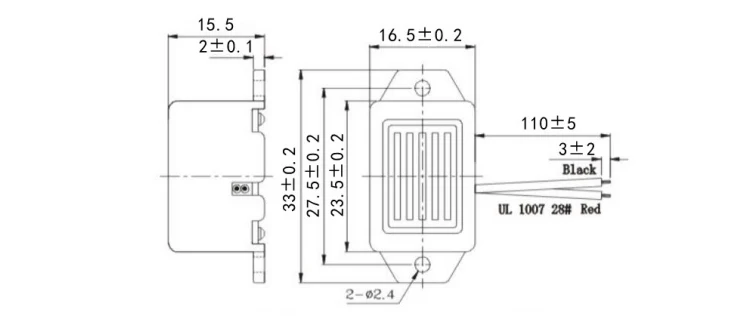

1. Mechanical Buzzer Dimensions

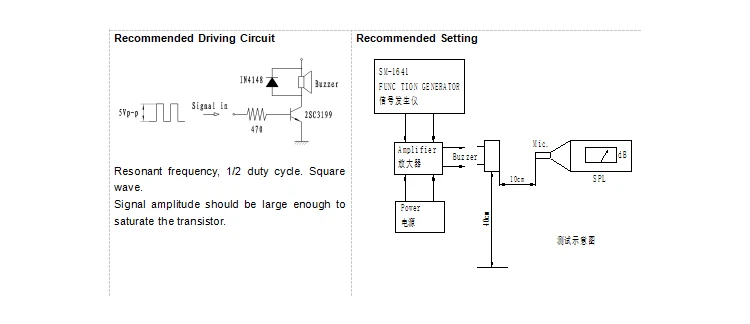

2. Mechanical Buzzer Test Circuit

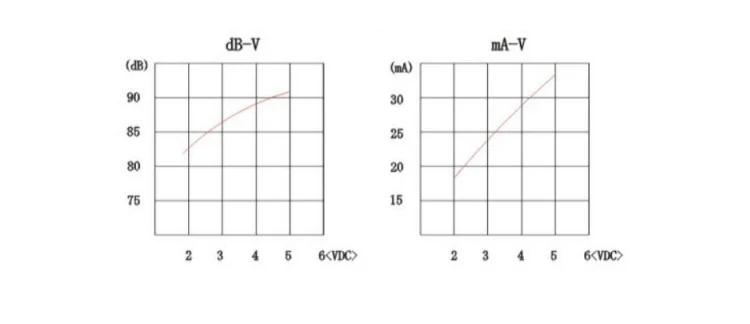

3. Mechanical Buzzer Frequency Response
Note:
1. In automated mounting of the SMD sound transducers on PCB, any bending, expanding and pulling forces or shocks against the SMD sound transducers shall be kept minimum to prevent them from electrical failures and mechanical damages of the devices.
2. In the reflow soldering, too high soldering temperatures and too large temperature Gradient such as rapid heating or cooling may cause electrical failures and mechanical damages of the devices.
