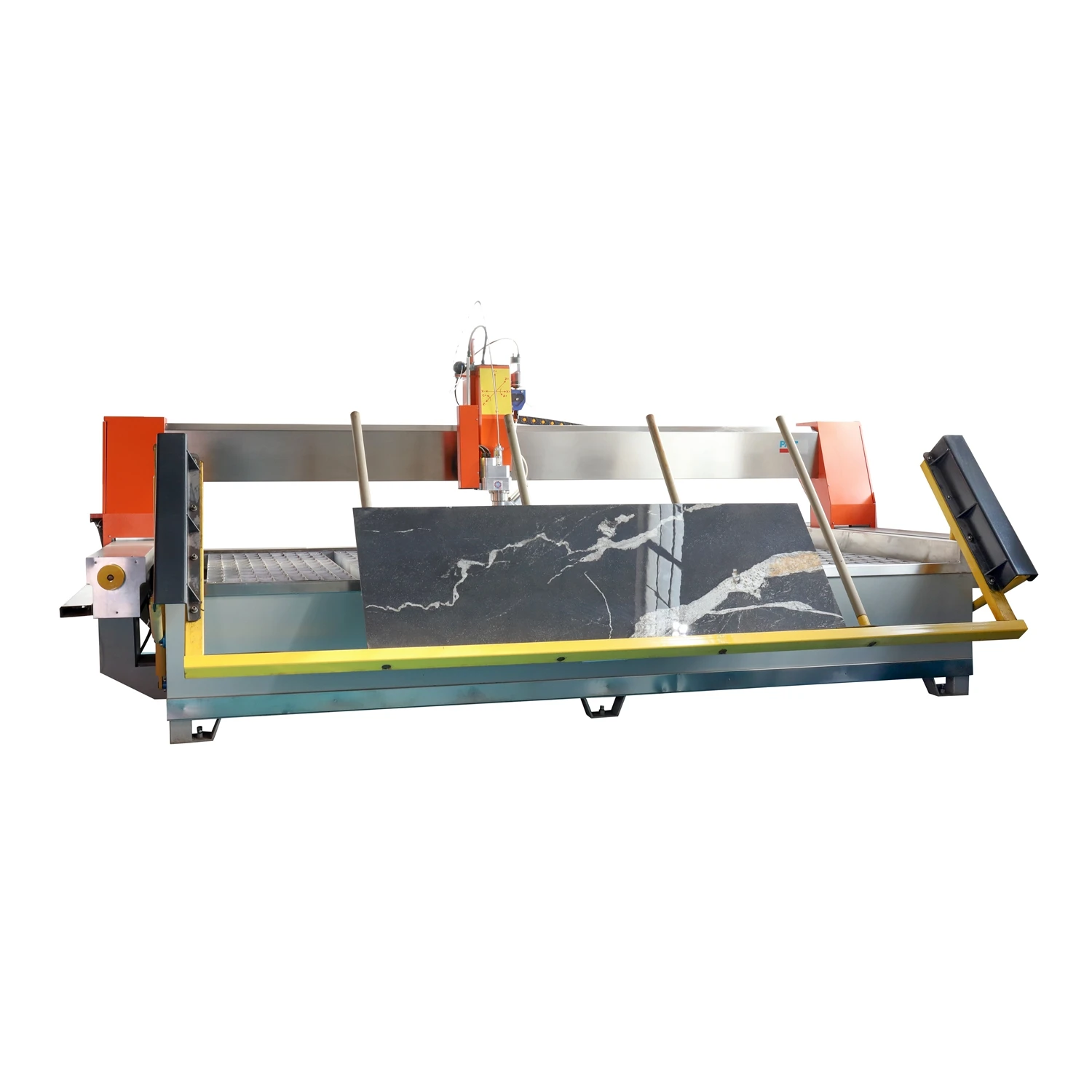

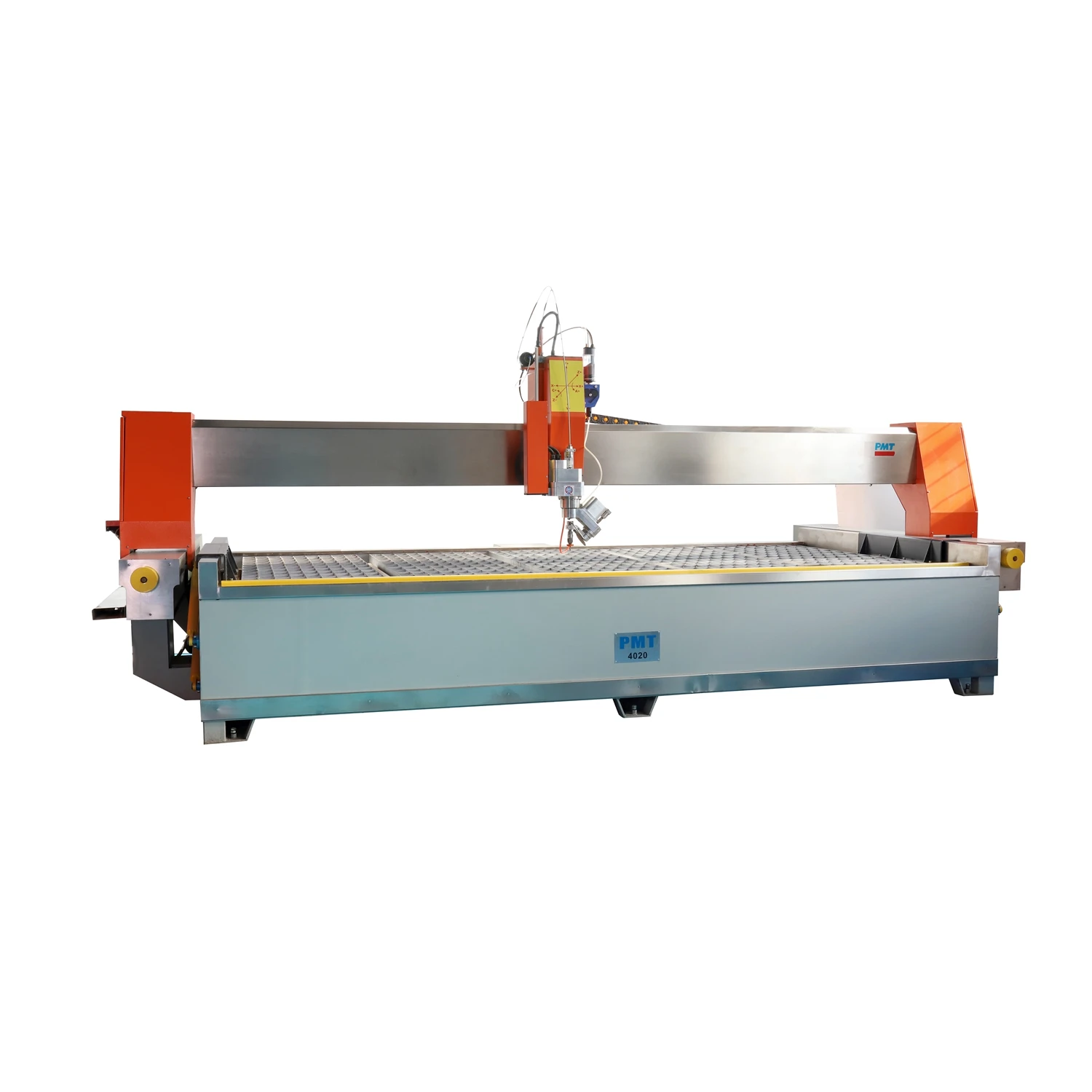

SLV50 AC5X 75K 550MPA 5Axis Waterjet Machine For Marble Glass Metal 45 Degree WaterJet Cutter Machine Equipment 7500PSI
- Category: >>>
- Supplier: Guangzhou Perfect Machinery Technology Co. Ltd.
Share on (1600573359862):
Product Overview
Description
Product Description
Advantage of PMT waterjet cutting machine
1. Smooth cutting quality is perfect.German Rexroth hydrualic and siemens motor and eletric part.
2.The cutting accuracy of waterjet cutter is up to 0.1mm. Edge joints are regular, and waterjet cutting can also make very complex puzzles and murals.
3.Cutting speed is fast, and product consistency and interchangeability are very good.
4. Drilling, cutting and forming can be done at once.
5. Improve the working environment and reduce the impact of dust and noise on the operator.
6. Waterjet cutting is a cold cutting that does not damage the internal structure of the material.
7. It is the only machine for processing composite materials and fragile porcelain.

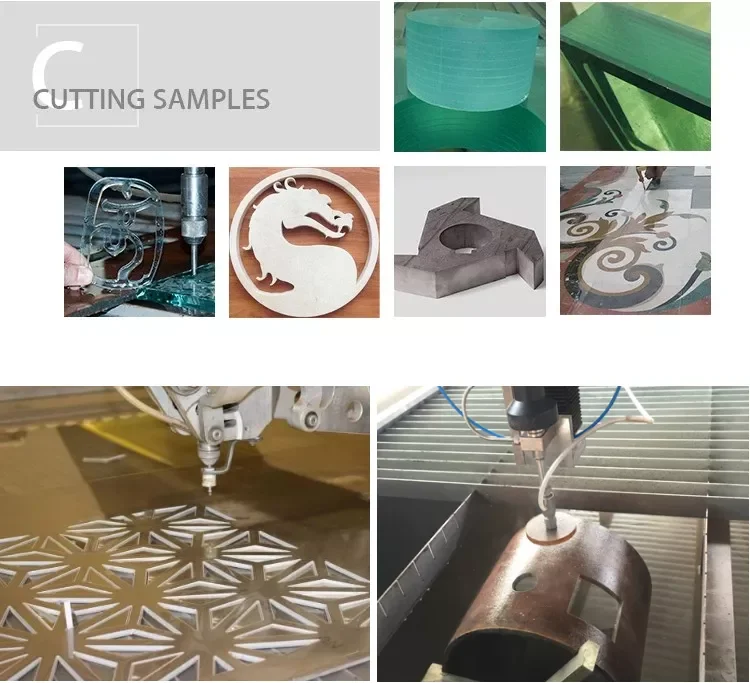

8. Waterjet Cutter can cut metal, rubber, foam, plastic, composite materials, stone, ceramic tile, marble,glass, etc.
About size, we have 4000*2000 mm , 3000*2000mm , 2000*1500mm , 2500*1550mm , 6000*1950mm ect, which you want?
2.The cutting accuracy of waterjet cutter is up to 0.1mm. Edge joints are regular, and waterjet cutting can also make very complex puzzles and murals.
3.Cutting speed is fast, and product consistency and interchangeability are very good.
4. Drilling, cutting and forming can be done at once.
5. Improve the working environment and reduce the impact of dust and noise on the operator.
6. Waterjet cutting is a cold cutting that does not damage the internal structure of the material.
7. It is the only machine for processing composite materials and fragile porcelain.
8. Waterjet Cutter can cut metal, rubber, foam, plastic, composite materials, stone, ceramic tile, marble,glass, etc.
About size, we have 4000*2000 mm , 3000*2000mm , 2000*1500mm , 2500*1550mm , 6000*1950mm ect, which you want?

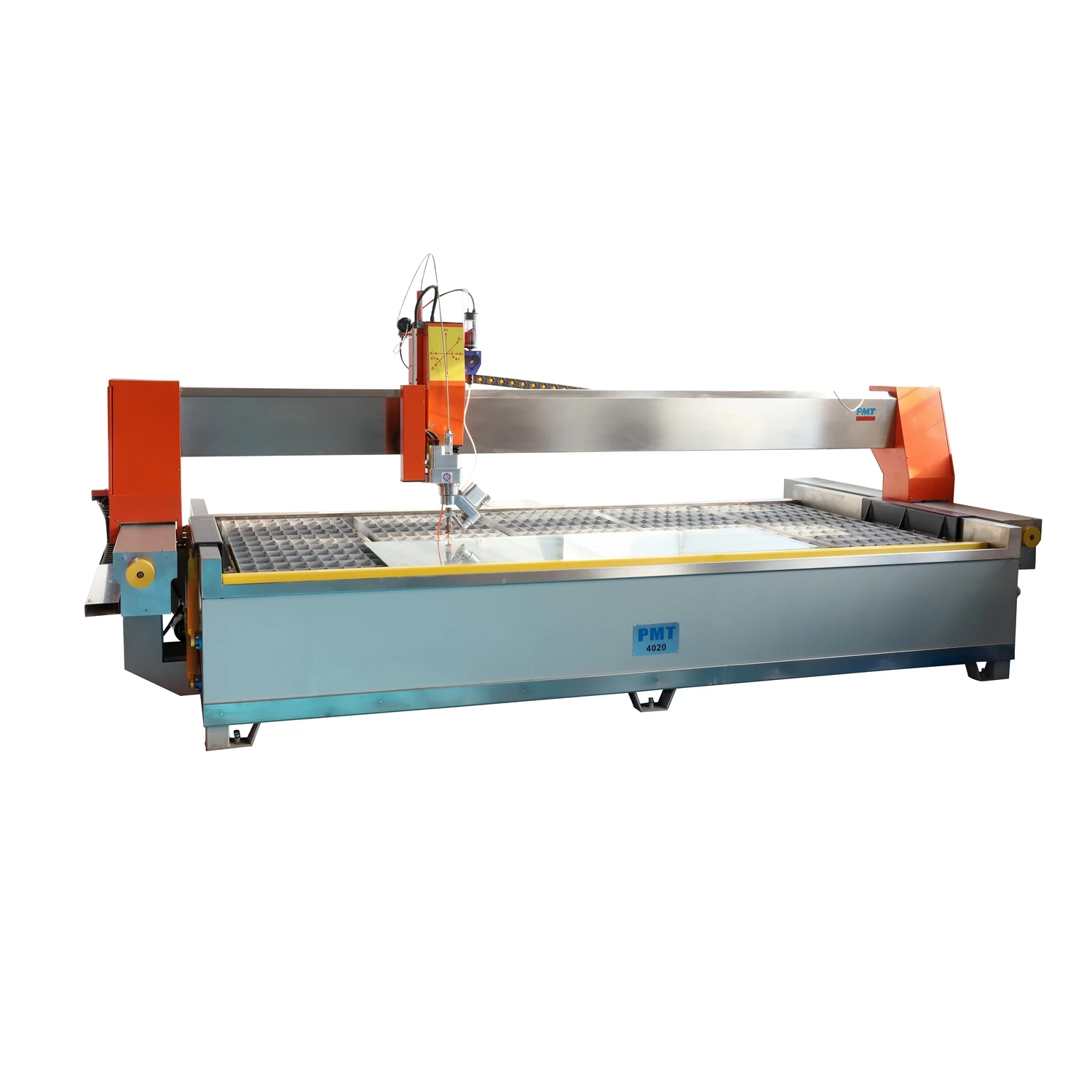

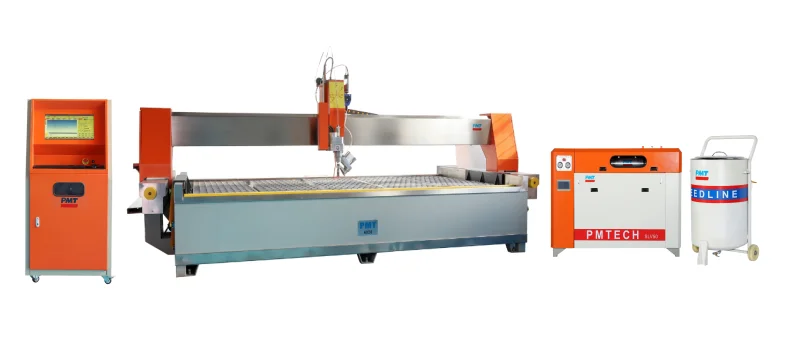

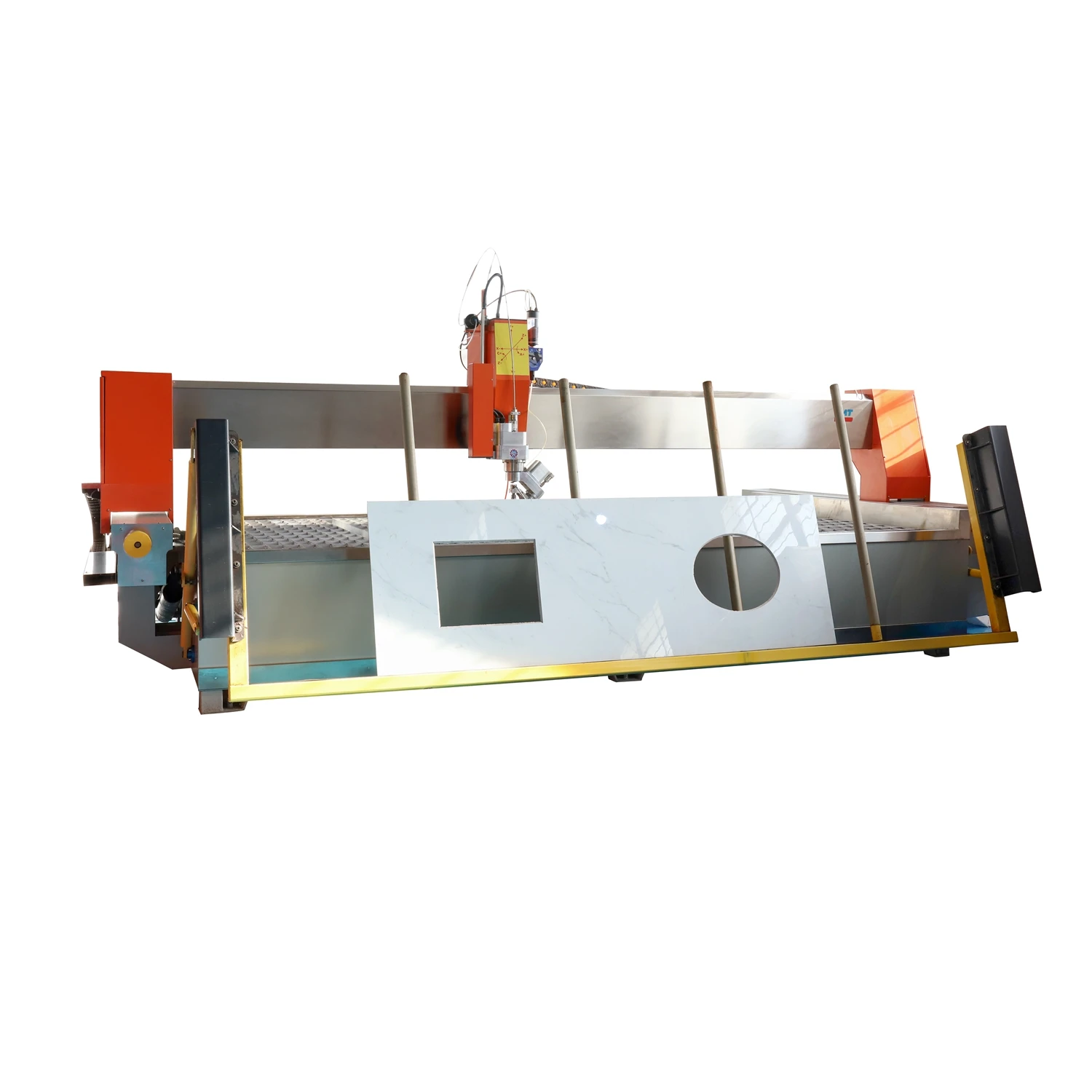

1.Working Table & Controllor
PMT waterjet cutting table consists of transmission part with X axis, Y axis and Z axis, water tank, cutting head, lubrication part and servo driving system. Gantry mechanical structure is fit to large size machines, long running distance of X and Y axis,suitable for processing a variety of complex big size parts.
The cutting table is a 2-D pc-controlled table, consisting of Y-axis, catcher, X-axis, Z-axis (cutting head rest), cutting head,high pressure hose, and the abrasive box. Both the X axis and the Y-axis are installed with linear guide and ball screw.
Model | 2015 | 2515 | 3020 | 4020 | 6020 | ||||||
Dimension(mm) | 2650*2150mm | 3100*2150mm | 4500*2300mm | 5250*2300mm | 7250*2300mm | ||||||
Max. cutting range | 2000*1600mm | 2000*1500mm | 3200*1750mm | 4000*1750mm | 6000*1750mm | ||||||
Travel of Z axis | 180mm | ||||||||||
Servo system | Weihong,OEM Panasonic | ||||||||||
ball-screw linear-rail | ABBA/TBI,Taiwan Brand | ||||||||||
Re-positioning accuracy | ±0.025mm/m | ||||||||||
Cutting accuracy | ±0.1mm | ||||||||||
Max. running speed | 15m/min | ||||||||||
lubrication | Oil Immersion | ||||||||||
Material | 203stainless steel material tank,cast steel beam,rubber and stainless steel cover | ||||||||||

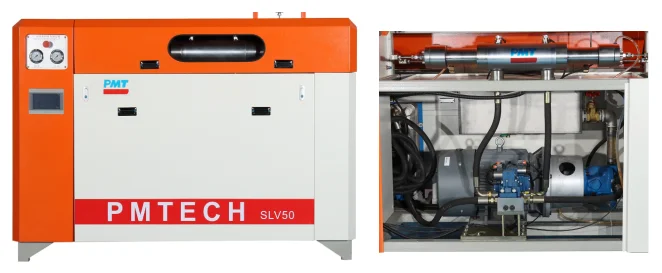

It is includes water supply system,Hydraulic system,Waterjet Intensifer system,Electrical control system.
The Intensifier is from USA Accstream,the motor is Greman Siemen motor.
Dimension(L*W*H) | 1800*1000*1400mm |
Weight | 1200Kg |
Power rate | 37kw/50hp |
Max. pressure | 550Mpa /5500bar |
Working pressure | 350-450Mpa |
Max. oil discharge | 104L/min |
Max. Flow rate | 4.2 L/min |
Power supply | 380 V 50hz |
Water supply | ≥15.1L/min |
Accumulator | 1.5liter |
Hydraulic system | Bosch Rexroth |
Main Motor | Siemens Brand |
Φ of orifice | 0.30-0.33mm |
The main engine needs two water sources for cutting and cooling, thus we need two drainages: the cooling water drainage and the water leakage drainage.
Special definition is listed below:
Cutting water: The intensifier must be supplied with water of 20-1000psi (1.4-6.9bar). The input water should not less than the output water by 1.5 times.
Cooling water (for the heat exchanger): The heat exchanger is used to adjust the accumulated heat in the hydraulic oil.
Cutting water: The intensifier must be supplied with water of 20-1000psi (1.4-6.9bar). The input water should not less than the output water by 1.5 times.
Cooling water (for the heat exchanger): The heat exchanger is used to adjust the accumulated heat in the hydraulic oil.
The hydraulic system consists of pressurization, filtration, and cooling systems. The intensification principle is: a motor of
37kw drives the hydraulic pump, then the pump will pressurize the hydraulic oil up to 20Mpa max.
37kw drives the hydraulic pump, then the pump will pressurize the hydraulic oil up to 20Mpa max.

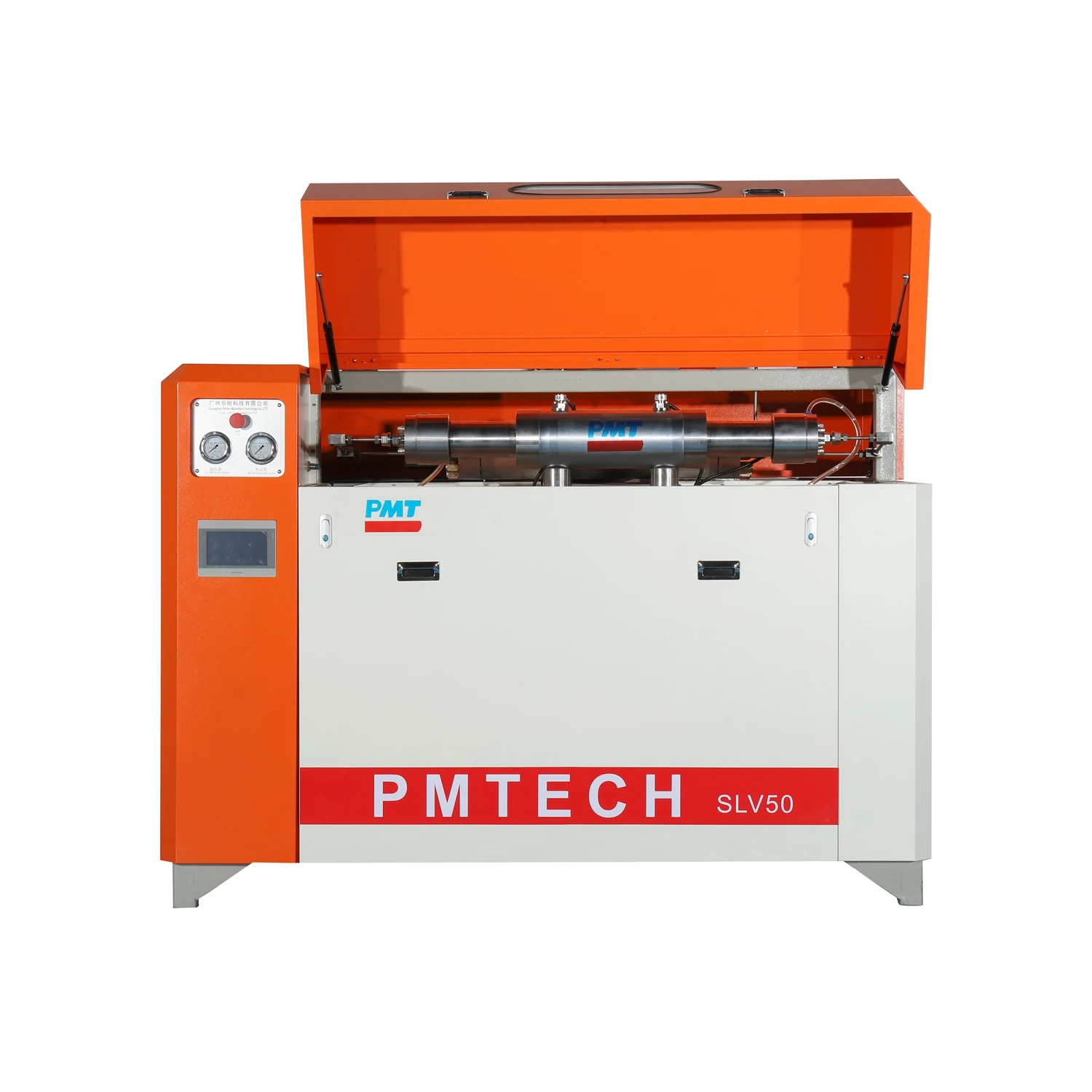

③Waterjet Intensifer system
The intensification system mainly refers to the intensifier, but it also includes other components in the water circuit that make the lower pressure water into high pressure water. Specifically, it includes intensifier, accumulator, high pressure tube,connector etc. Intensifier is main part of the intensification system. A section for the intensifier 's principle, structure, and maintenance is contained in this manual.
④Electrical control system
The electric control system is integrated into the control panel, including PC, control circuit. This control system is used to start/stop the main engine and adjust the speed. The function of the display, buttons and knobs on the panel is listed below.
"power indicator" "voltage meter" "currency meter" "master switch" "Pump & main engine switch" "high pressure/abrasive switch" "emergency stop"
、
Power supply | AC220V 50/60Hz |
Drawing system | Auto-CAD |
Computer system | Windows 7 |
Function | Remoter controller |
screen | Apply 19 inch LCD |
Water jet software NC-Studio-V10 | Support DXF file and NC code |

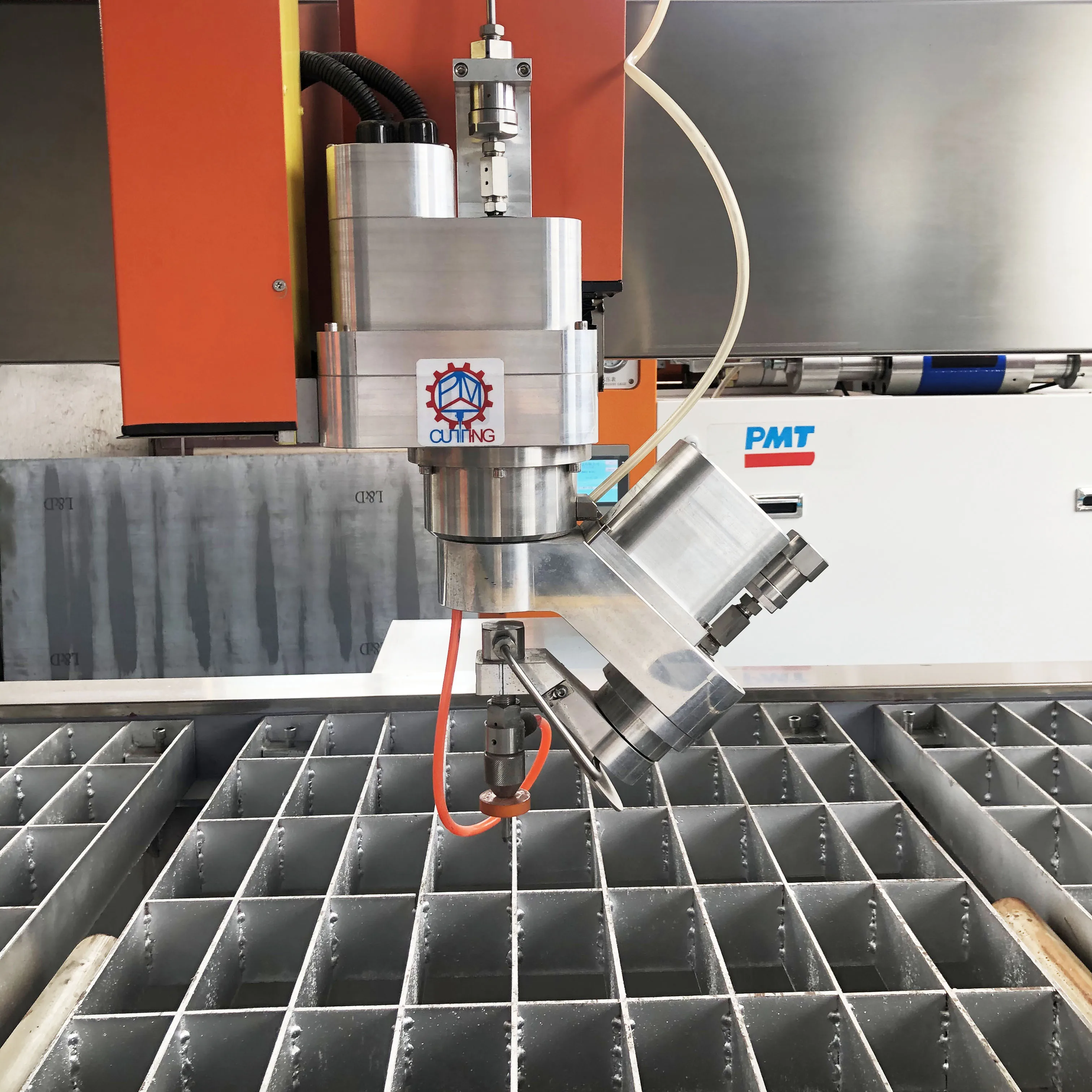

PMT diamond Italy import diamond,it can work 1500 hours.
Re-positioning accuracy | ±0.05/1000mm | |
Cutting accuracy | ±0.15/1000mm | |
Max. prussure | 550mpa | |
A-Axis Roteting Angle | ±67° | |
C-Axis Roteting Angle | ±360° | |

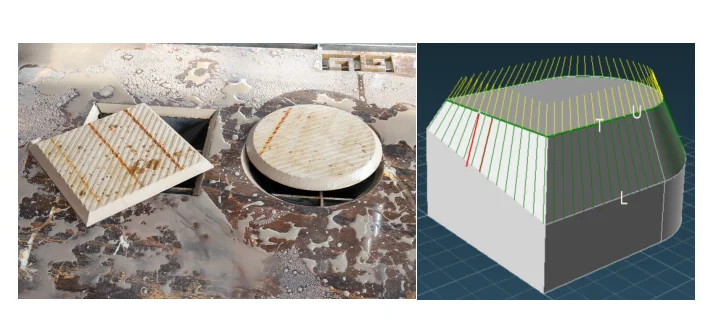

Bevel cutting | ±45° | |
IDE Integrated cutting head working life 1500 hours each one. | ||
Dimension(L*W*H) | 700*700*1350mm | |
Weight | 80kg | |
Max. capacity | 200kg | |
Max. air pressure supply | 2bar | |
software controlling motor adjustting regulator | ||
Eliminates abrasive waste | ||

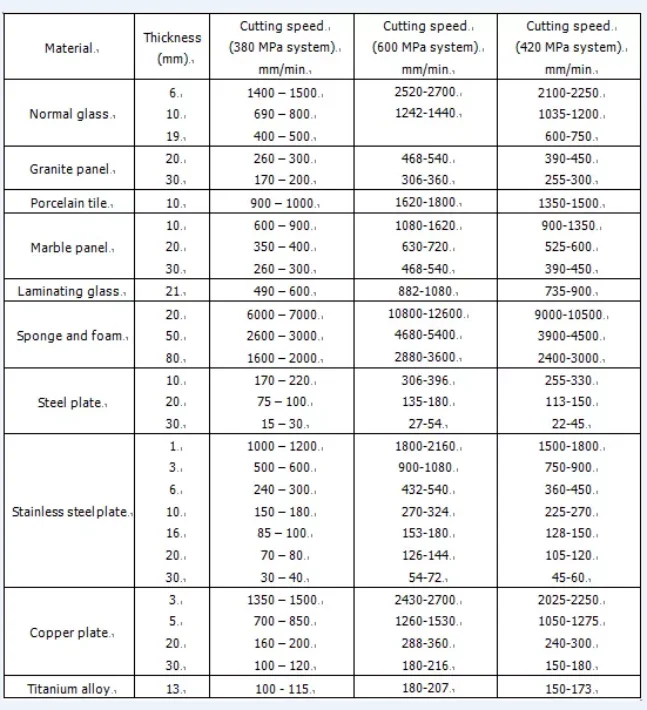

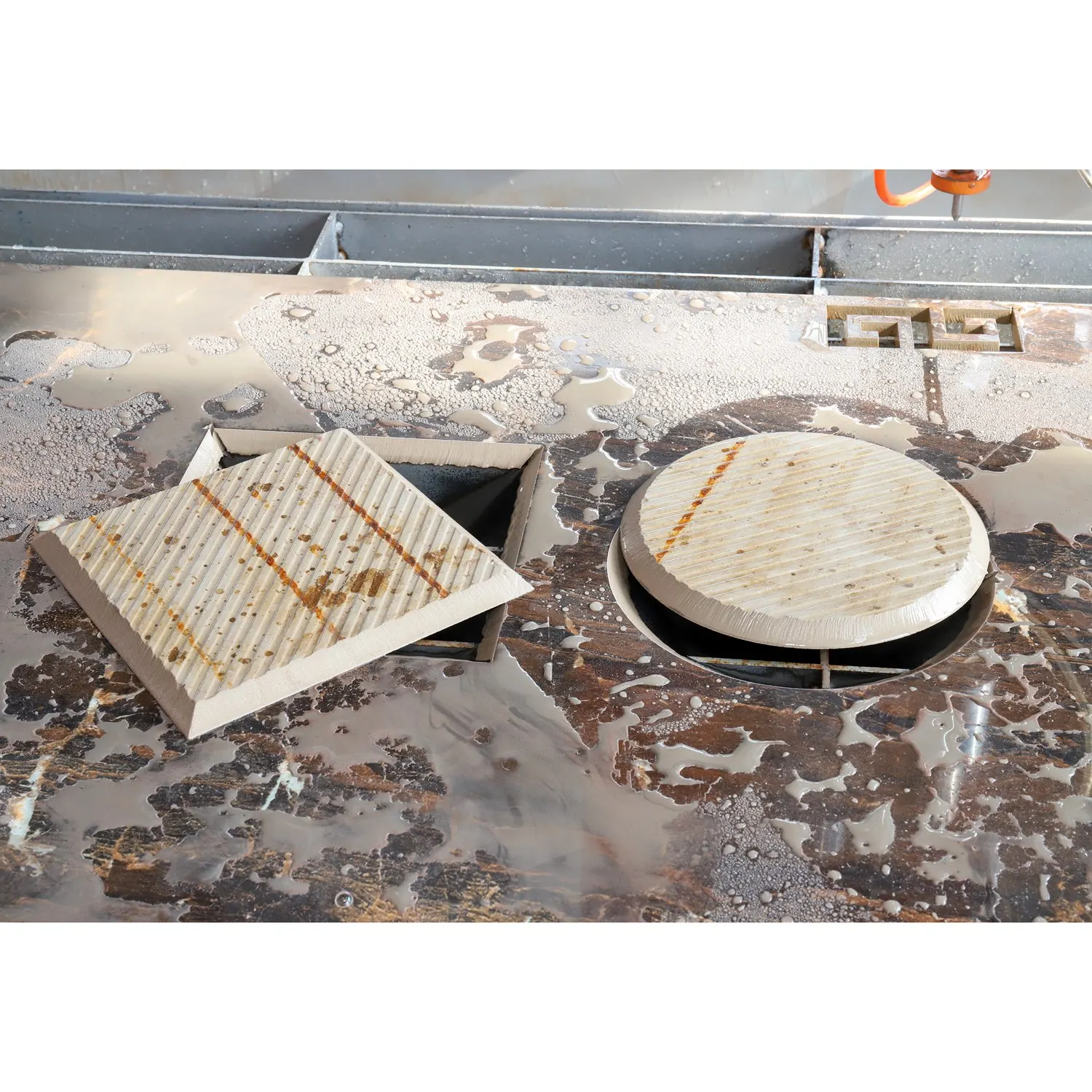

The cutting speed for PMT water jet cutting machine
The cutting speed of mini waterjet cutting machine varies depending on the material, thickness, desired cut quality, water pressure and the machine itself configuration, Generally for PMT waterjet, you could find the following speed just for your reference.
Ralevant Products
Our factory not only have all kinds of size of water jet machines and waterjet spare parts, but also our company sell all kinds of stone carving machines, laser machines, bridge cutting machines, edge grinding machines, row pitch machines and rope machines and so on !!!
Technical Training
1, basic working principle of the super-high pressure water jet cutting machine2 , working principle of the high-pressure system
and supercharge
3 , replacement of the high-pressure sealed, low-pressure sealed and high-pressure parts
4 , maintenance of the high-pressure system and judgment and troubleshooting of common failures
5 , CNC Programming&operation&operation of the NC cutting platform
6 , daily maintenance of the NC cutting platform
7 , equipment installation
8 , abrasive control and transportation operation and CNC communication
9 , operation of the CAD / CAM software and CNC communication
10 , working principle, maintenance and judgment and troubleshooting of common failures of the main high-pressure functional
parts, high-pressure water switches and abrasive cutting head
and supercharge
3 , replacement of the high-pressure sealed, low-pressure sealed and high-pressure parts
4 , maintenance of the high-pressure system and judgment and troubleshooting of common failures
5 , CNC Programming&operation&operation of the NC cutting platform
6 , daily maintenance of the NC cutting platform
7 , equipment installation
8 , abrasive control and transportation operation and CNC communication
9 , operation of the CAD / CAM software and CNC communication
10 , working principle, maintenance and judgment and troubleshooting of common failures of the main high-pressure functional
parts, high-pressure water switches and abrasive cutting head
1 , Free warranty for the whole machine for one year or 2000 high-pressure/hour 2 , Training of two personnel for operation and
maintenance of equipment and one computer operator for the user
3 , On-line installation and commissioning (the user is responsible for board and lodging)
4 , Lifetime maintenance
5 , To Guarantee long-term supply of spare parts
6 , To enjoy upgrade of special prices when there are new products and technologies
7 , Repair response time: during the quality assurance period, when the user's equipment fails, respond within 24 hours after
receipt notice. For a common failure, direct the user to resume production as soon as possible by way of telephone or e-mail
maintenance of equipment and one computer operator for the user
3 , On-line installation and commissioning (the user is responsible for board and lodging)
4 , Lifetime maintenance
5 , To Guarantee long-term supply of spare parts
6 , To enjoy upgrade of special prices when there are new products and technologies
7 , Repair response time: during the quality assurance period, when the user's equipment fails, respond within 24 hours after
receipt notice. For a common failure, direct the user to resume production as soon as possible by way of telephone or e-mail

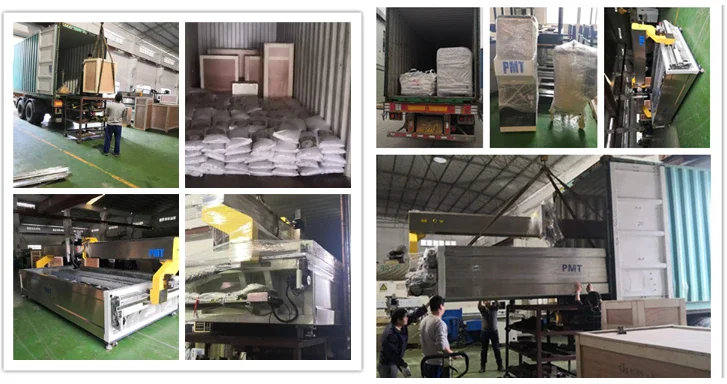

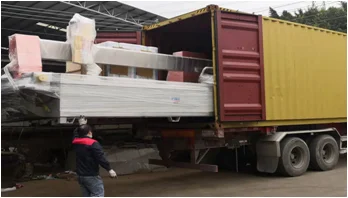

Product packaging

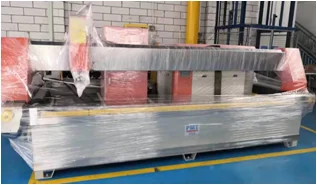

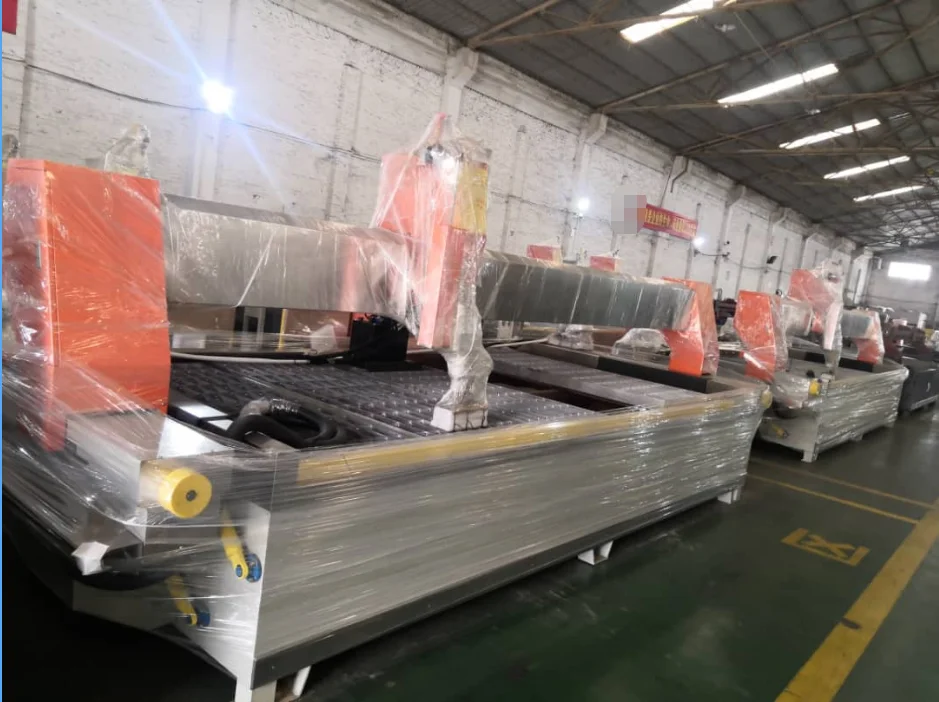

Wate jet cutting machine package : wooden package out side , inside soft packages or all of soft film and ensure safety. including hp pump ,waterjet cutting table bed with cutting head,CNC waterjet controller,waterjet sand feeder,spare parts with the pump,loading by 20feet or 40feet container. about 30-40cbm , 4000-6000kgs ,whole one set waterjet machine equiment.
Water jet spare parts : soft package inside,carton package outside. waterjet abrasive garnet sand: packing by*25kg small packing + 40bags in a big bag. The package ways aslo can according to customer requirement.
Delivery time for machines:15-30days Delivery time
waterjet spare parts : 1-7days
waterjet spare parts : 1-7days

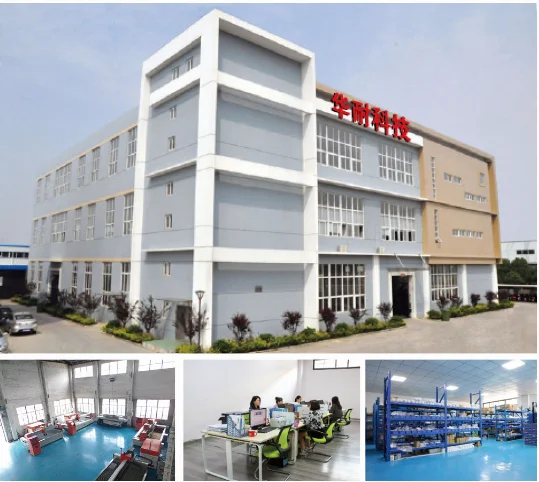

Company Profile
Guangzhou Perfect machinery Technology Co.，Ltd.PMTech is a high-tech Manu- facturing and trading company in waterjet cutting machineWe have accumulated more than 15 national utility model technology patents and 3 national invention patentsand won the national title of “high tech industry”through review in 2018 We focus on developind high-end ultra-high pressure pumps and wateriet cutting equipmente
We master the world’s most advanced five axis dynamic and 3D cutting water jet technology. as well as 6-axis manipulator sanding/pure water cutting technoloay. We are in a leading position in the field of desiqning and manufacturing waterjet cutting machine in China.
PMT waterjet has provided hundreds of sets of high-end waterjet cutting machine to qlobal water cutting users, and has successfully established a good reputationWe sell more than 80 sets waterjet machine every year, and have loyal users and service in more than 60 countries around the world.
PMTech will always adhere to manufacturing high-quality machinery and equipment, and adhere to the concept of continuous innovation and pragmatism, and always take“making PMT a trusted brand in the world” as the goal.
We master the world’s most advanced five axis dynamic and 3D cutting water jet technology. as well as 6-axis manipulator sanding/pure water cutting technoloay. We are in a leading position in the field of desiqning and manufacturing waterjet cutting machine in China.
PMT waterjet has provided hundreds of sets of high-end waterjet cutting machine to qlobal water cutting users, and has successfully established a good reputationWe sell more than 80 sets waterjet machine every year, and have loyal users and service in more than 60 countries around the world.
PMTech will always adhere to manufacturing high-quality machinery and equipment, and adhere to the concept of continuous innovation and pragmatism, and always take“making PMT a trusted brand in the world” as the goal.

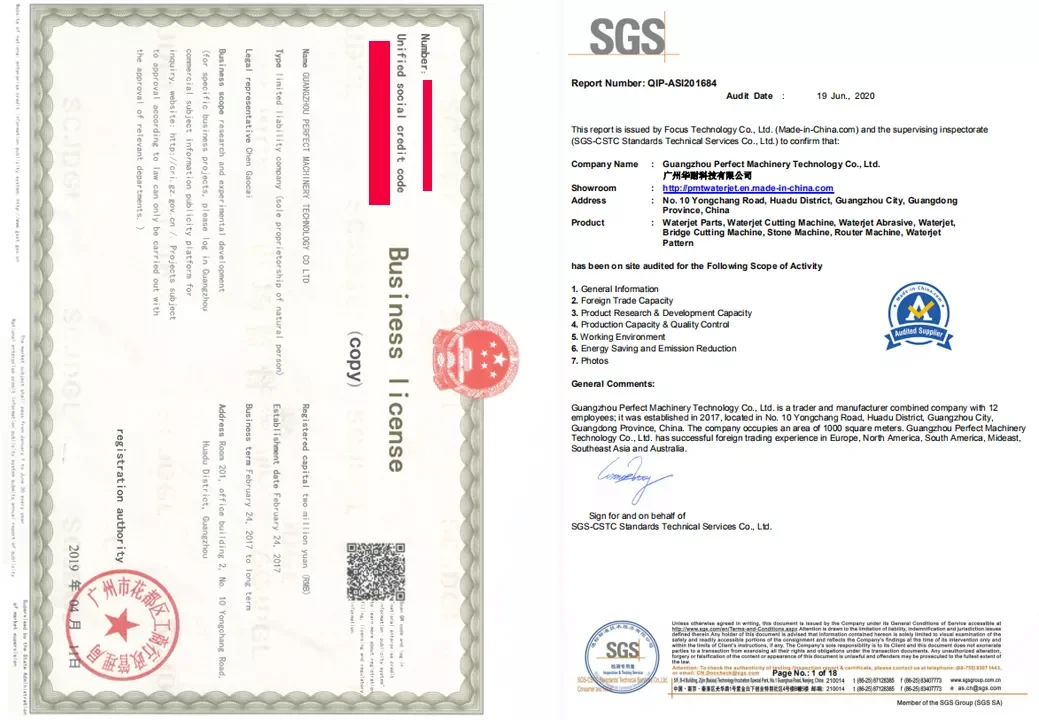

Certifications
FAQ
Q: What is the advantage of water jet cutting head machine?
A :Cold processing, no heat reaction zone. no deformation; strong cutting ability, pure water jet can cut soft materials, abrasive waterjet can cut hard materials; can cut flammable and explosive objects;cutting precision is high, edge is neat no secondary processing is required. Waterjet also has the title of universalcutting machine.
Q: How to choose the cutting table for waterjet cutting machine?
A:You need to offer the size of the materials.you want to process or the size of the cutting table.
Q:How to solve the incision problem of water cutting for waterjet machine ?
A:It is not a vertical cutting for a waterjet cutter. This is due to the physical characteristics of waterjet. If it is required
precise vertical angle cutting, we will provide you with a five-axis dynamic cutting system.
A:It is not a vertical cutting for a waterjet cutter. This is due to the physical characteristics of waterjet. If it is required
precise vertical angle cutting, we will provide you with a five-axis dynamic cutting system.
Q:Is the equipment easy to operate for waterjet cutting machine?
A:Wonlean intelligent waterjet cutting machine is easy to operate. You could upload the electronic images file of DXF format to the operating system via USB or network. The system will automatically program, and only need to set a few simple parameters, it can automatically complete the cutting operatio.
