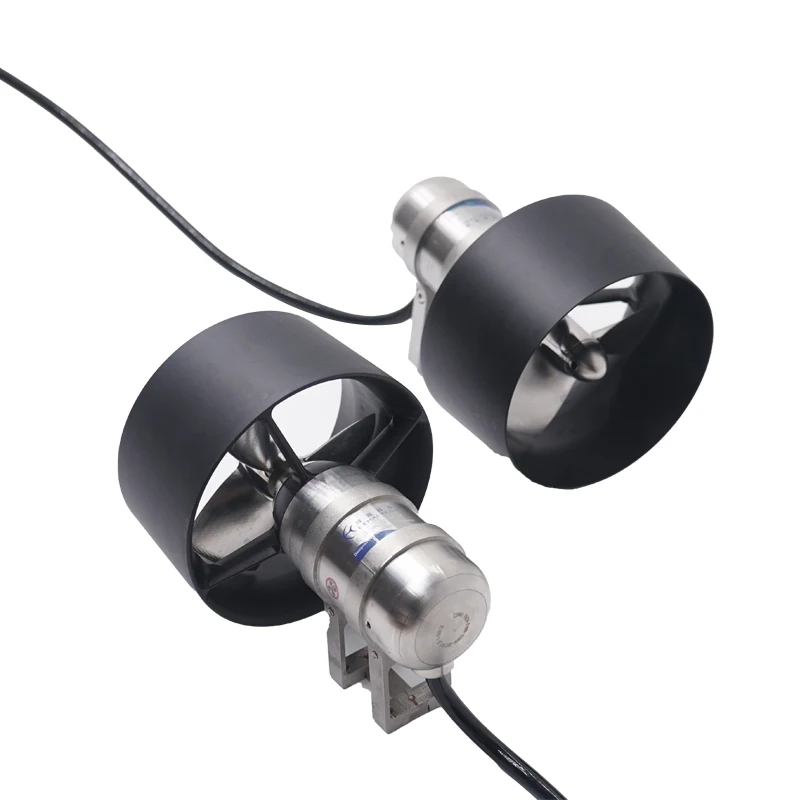

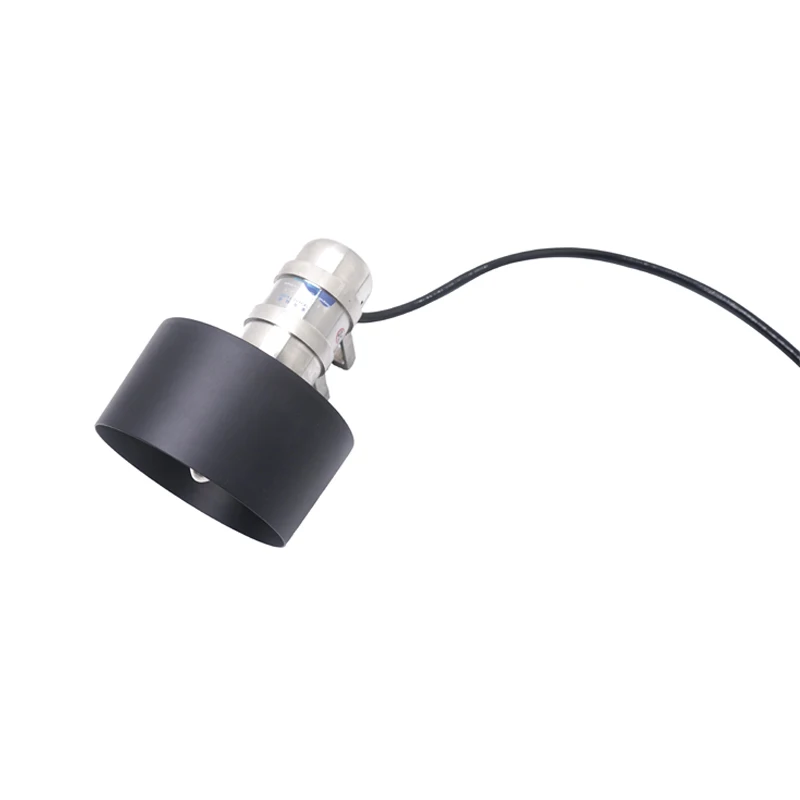

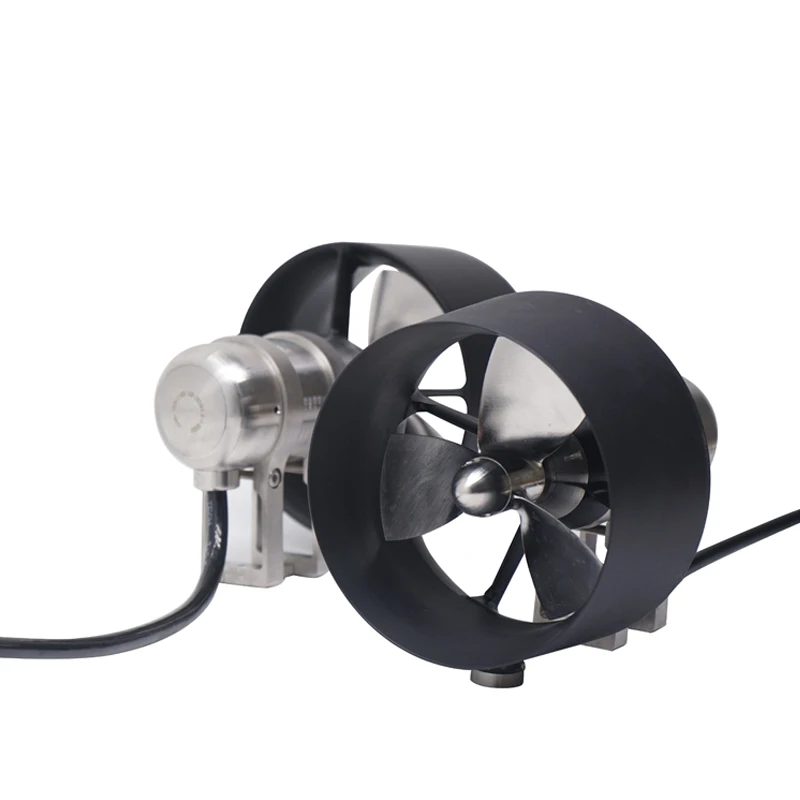

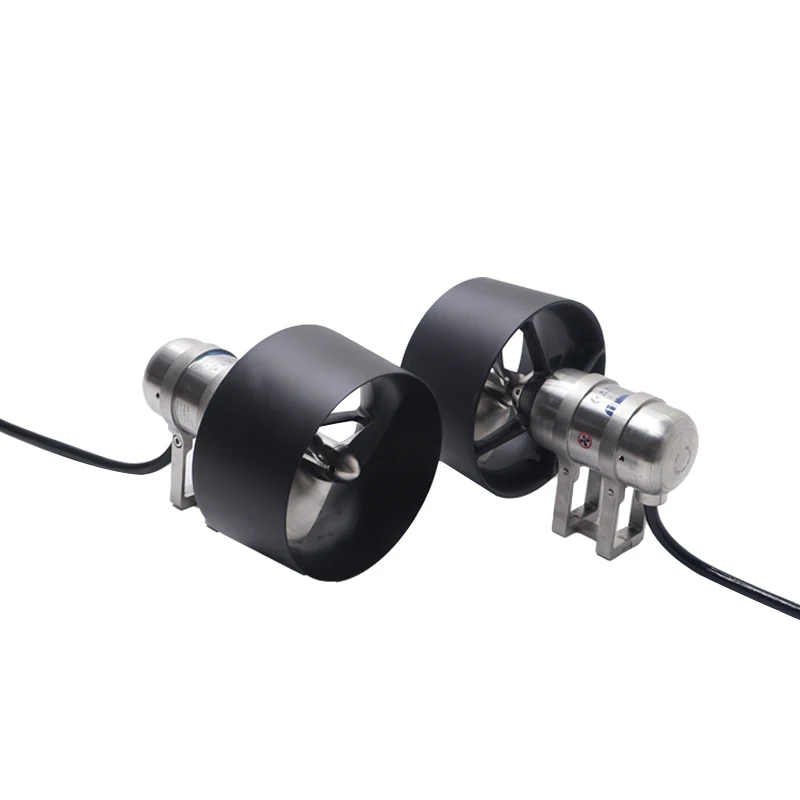

fulldetpth 2022new 6.7kg ROV depth 300m Underwater Thruster Underwater Propeller

fulldetpth 2022new 6.7kg ROV depth 300m Underwater Thruster Underwater Propeller

Category: Marine Propellers >>>
Supplier: Yantai,FullDepth,Technology,Co.,Ltd.

Price:$335.00 - $419.00

Price in USD:Details

Quantity:

Product Overview

Description

Product Description

Features

1. The maximum thrust is 6.7 kg, and the rated depth is 400 meters.
2. Fully sealed underwater thruster with oil pressure compensation
3. 316L stainless steel pressure housing, more resistant to seawater corrosion
4. Efficient fluid simulation structure, smaller volume, greater thrust
5. High-power brushless motor, reliable and durable

Specification

index	parameter
Model	T080-60/T080-60p
Model description	T80-60: An underwater thruster with a propeller diameter of 80mm and a thrust of about 60N T80-60P: An underwater thruster with a propeller diameter is 80mm, the thrust is about 60N, and has a screen duct
Sealing method	Maintenance free and fully sealed-free full seal
Sealing structure	Double compensation low resistance rotary dynamic seal structure
Oil pressure compensation	Yes

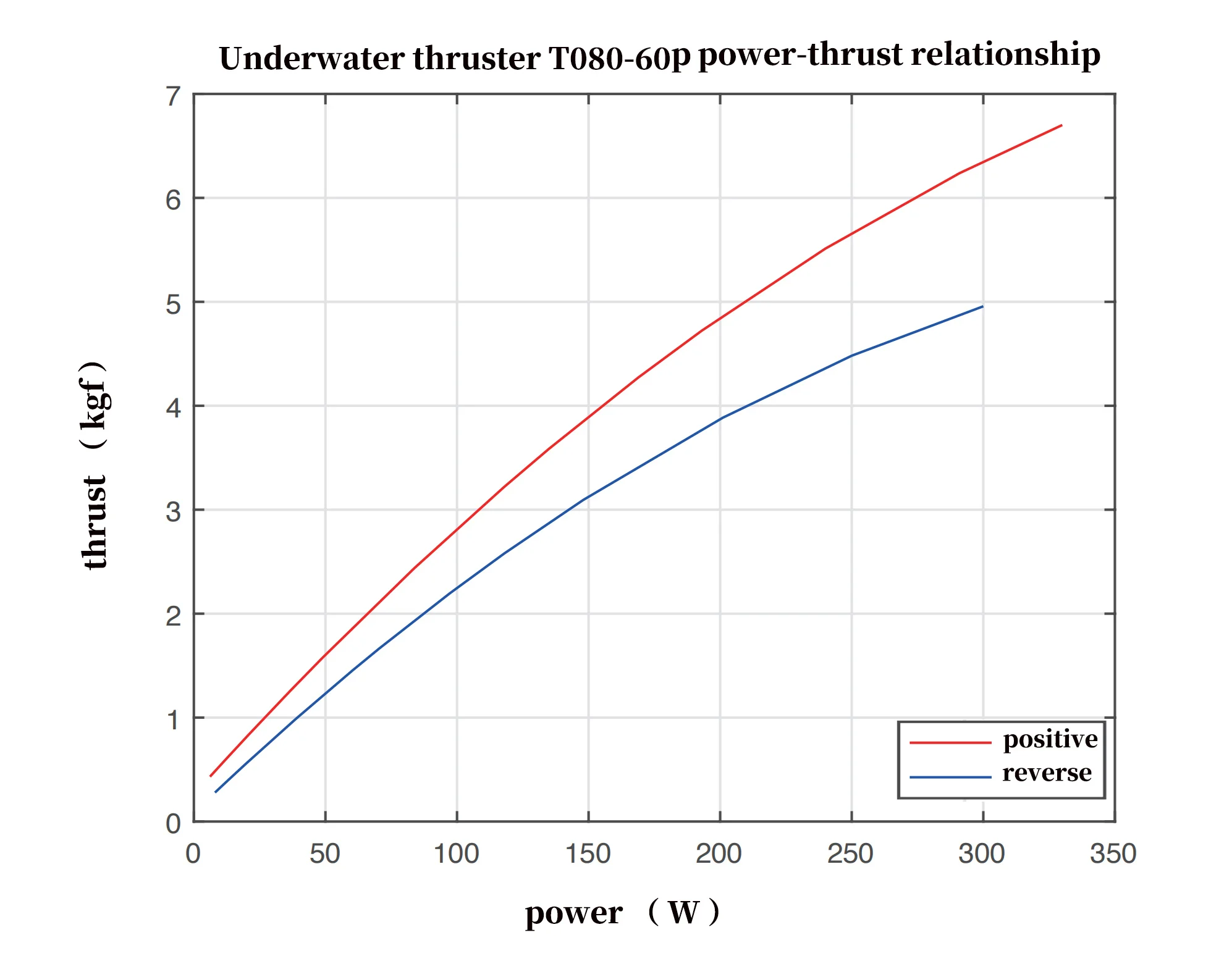

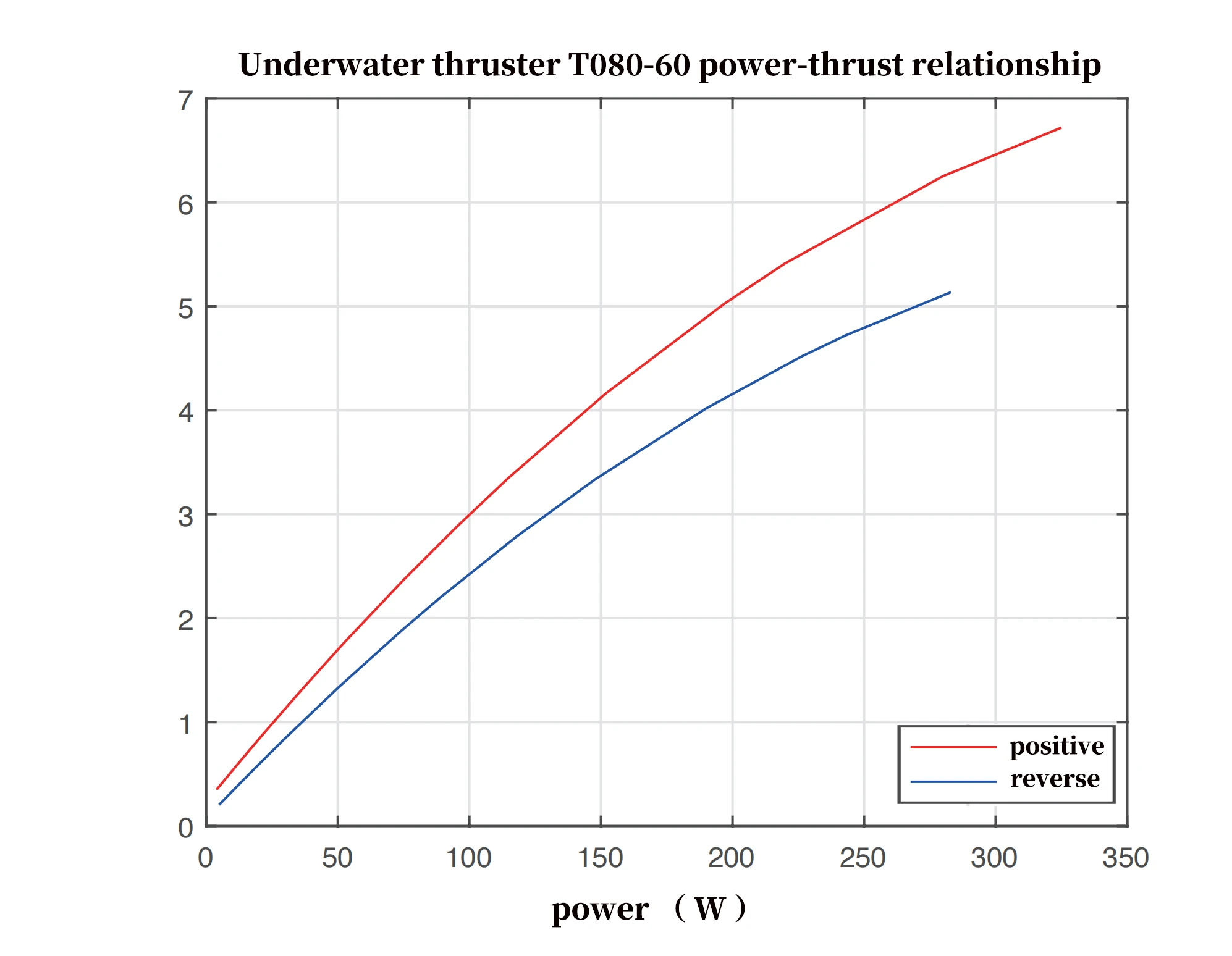

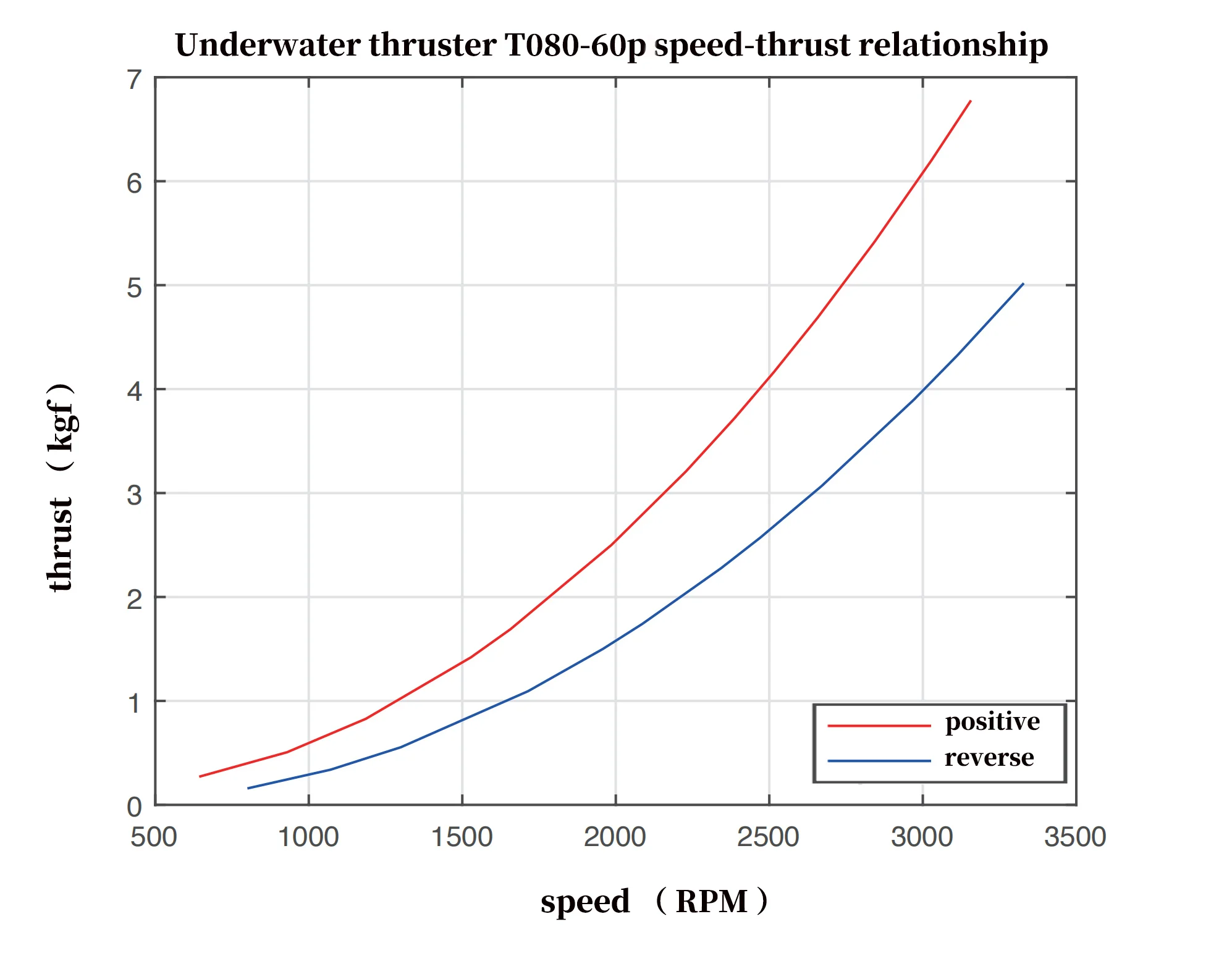

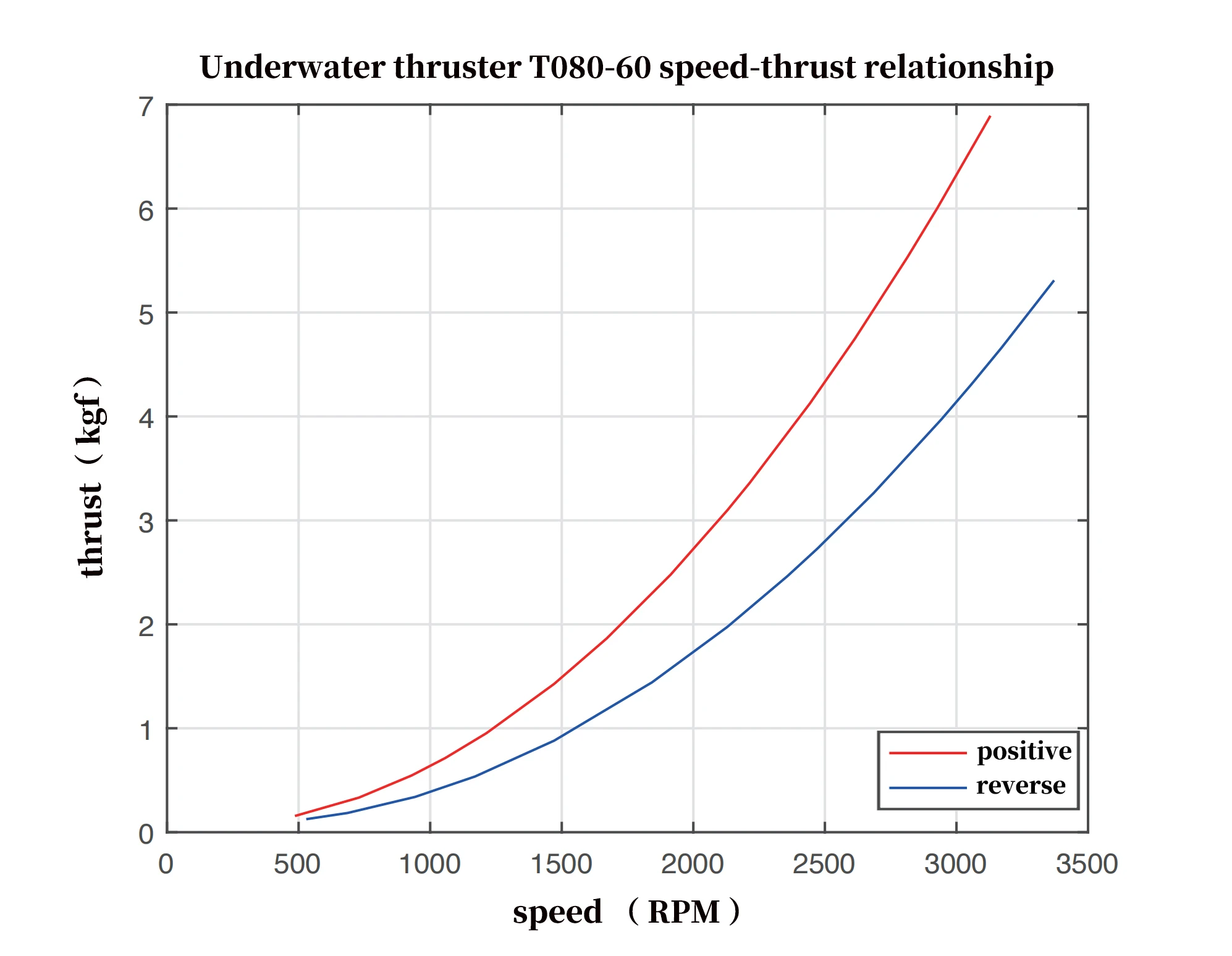

Rated thrust	6.7kgf (forward) 5.2kgf (reverse)
voltage	Rated voltage:24VDC Operating Voltage:11.1-25.2VDC
Rated power	325W
Motor type	external rotor brushless motor
Motor pole pair number	7

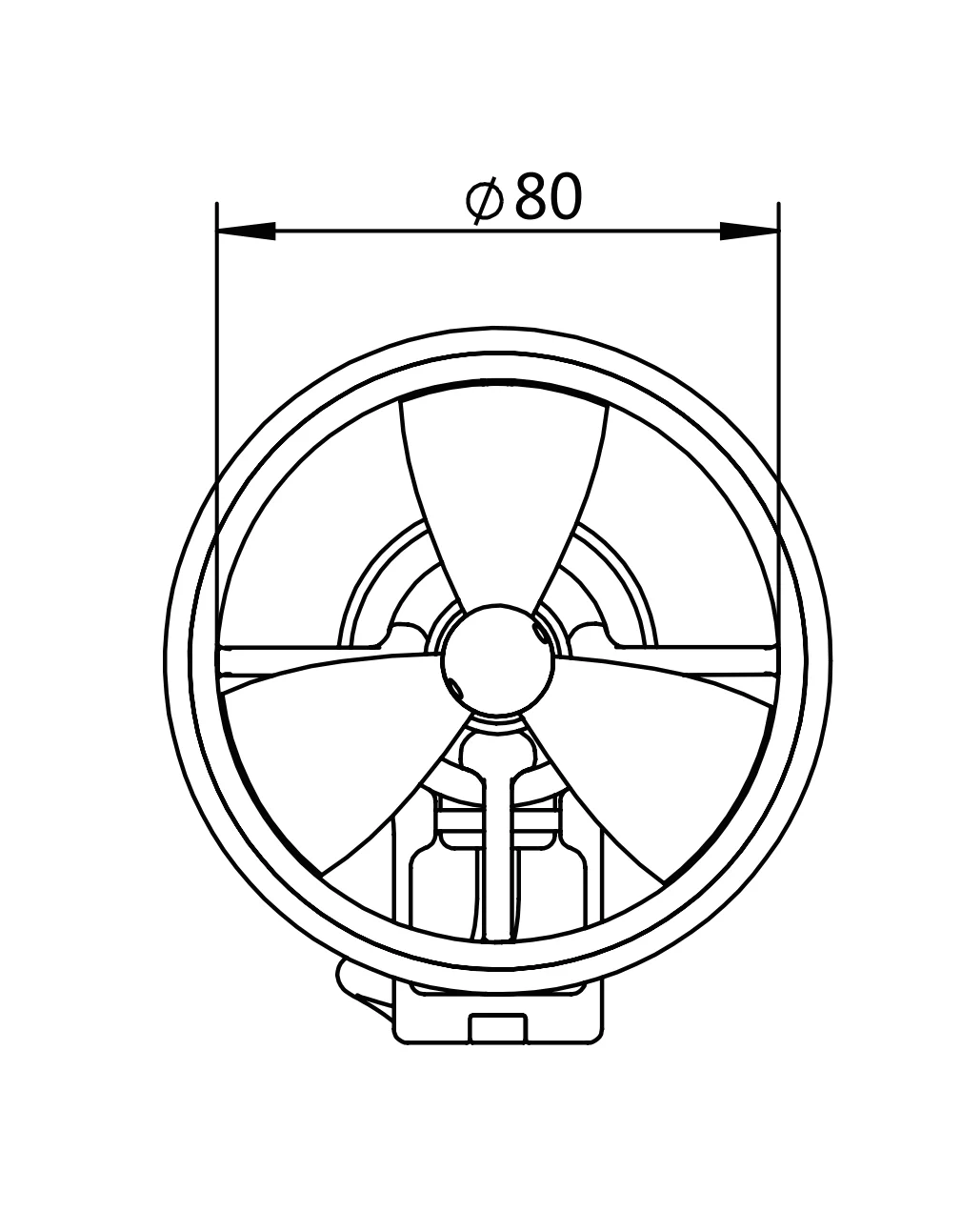

Propeller diameter	80mm
Propeller configuration	CW/CCW
Propeller material	PC (can be customized aluminum alloy material)
Deflector material	PC
Propeller housing material	316L stainless steel
Cable outer skin material	TPU (polyurethane)
Cable specifications	outside diameter 6mm length 1m inner core 3x1.0mm2
Mount material	316L stainless steel
Other parts material	316L stainless steel
Driver	external
Pressure resistance depth	400m (can be customized for other depths)
Thruster weight with mount	T80-60: 750g in air and 505g in water T80-60P: 820g in air and 535g in water
Temperature	Storage temperature:0-40℃ Operating temperature:0-35℃
