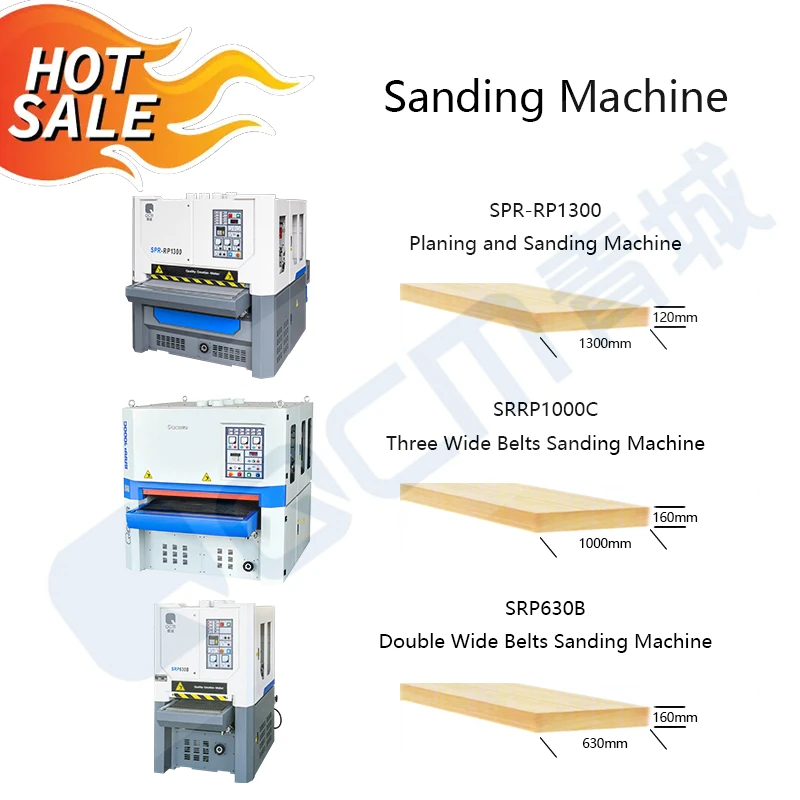

QCM SRP630B Wide Belt Sanding Machine Wood Sander Wood Polishing Machine For Woodworking Industry
- Category: >>>
- Supplier: Hangzhou Smart Panther Tech Ltd.
Share on (1600573452298):
Product Overview
Description
SRP630B Wide Belt Sanding Machine Wood Sander Wood Polishing Machine For Woodworking Industry
Products Description
QCM Sanding Mahine for Woodworking | ||||||||||
Technical Parameter | ||||||||||
Specifications | Unit | SRP1300B | SRP1000B | SRP630B | SRRP630S | |||||
sanding cutting width | mm | 40-1300 | 40-1000 | 40-630 | 40-630 | |||||
sanding cutting thickness | mm | 3-120 | 3-160 | 3-160 | 3-180 | |||||
the shortest sand cutting lenght | mm | 620 | 600 | 500 | 230 | |||||
speed of the first group of sanding belt | m/s | 19 | 19 | 19 | 19 | |||||
speed of the second group of sanding belt | m/s | 18 | 18 | 16 | 16 | |||||
feeding speed | m/min | 6-30 | 6-30 | 5-27 | 6-30 | |||||
sanding belt size | mm | 1330*2200 | 1030*2200 | 650*2100 | 650*2100 | |||||
total motor power | kW/HP | 57.12/77 | 40.32/54 | 20.74/28 | 20.74/28 | |||||
the first group of belt motor | kW/HP | 30/40 | 22/30 | 11/15 | 11/15 | |||||
the second group of belt motor | kW/HP | 22/30 | 15/20 | 7.5/10 | 7.5/10 | |||||
feeding motor | kW/HP | 4/5.5 | 2.2/3 | 1.5/2 | 1.5/2 | |||||
dust brush motor | kW/HP | 0.37/0.5 | 0.37/0.5 | 0.37/0.5 | 0.37/0.5 | |||||
workbench lifting motor | kW/HP | 0.75/1 | 0.75/1 | 0.37/0.5 | 0.37/0.5 | |||||
vacuum port diameter | kW/HP | 5*φ150 | 5*φ150 | 5*φ150 | 5*φ150 | |||||
Air source pressure | MPa | 0.6 | 0.6 | 0.6 | 0.55 | |||||
Overall dimensions | mm | 2260*1060*2230 | 2250*1750*2150 | 2120*1280*2050 | 2120*1270*2050 | |||||
Weight | kg | 3700 | 3100 | 1950 | 1900 | |||||
Our Advantages

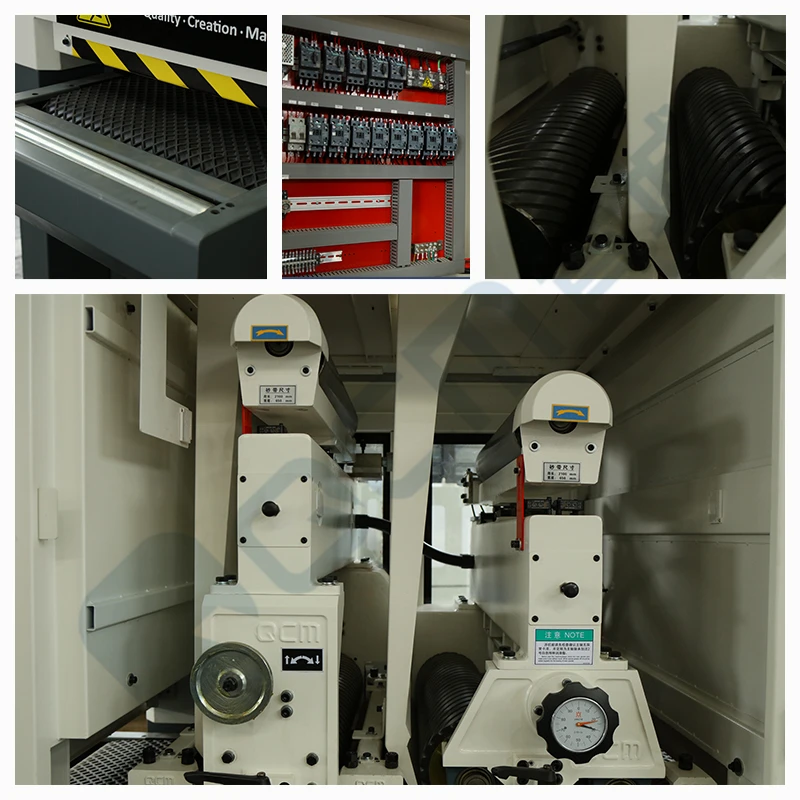

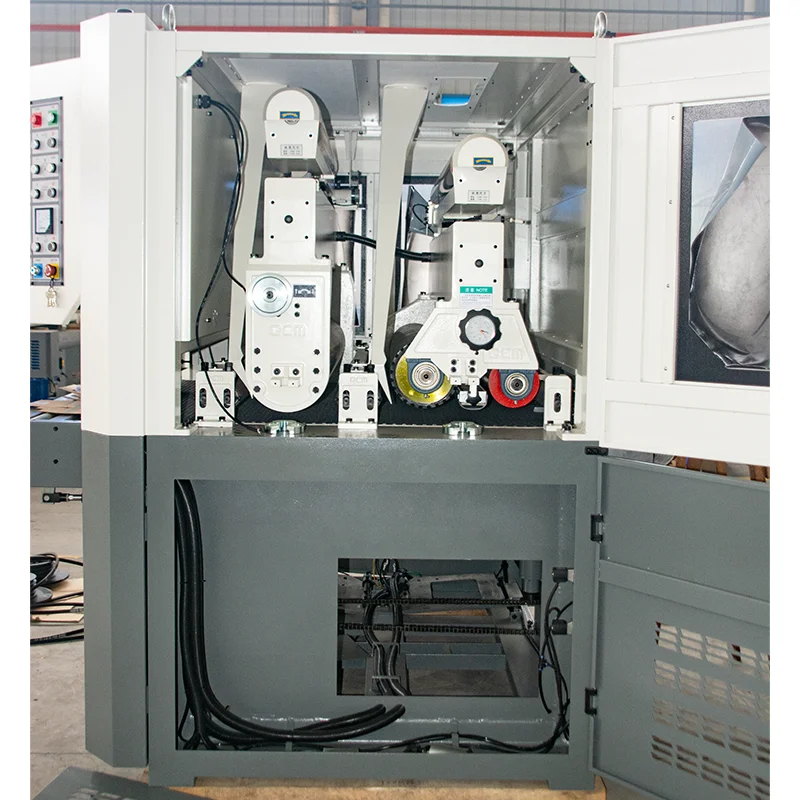

1. Motors for coarse sanding, semi-fine sanding, fine sanding are inside setted , to make cleaning appearance.
2. The second group of idler rollers is anti-reversal roller, to protect the safety of the operator.
3. The support plates are made of high quality casting, which makes our machine more stable and high accuracy.
4. Double pressure roller structure to ensure seady and smooth feeding.
5. SPR-RP series configured with precision spiral planing cutter module, and in keyboard type sectional pressuring structure. It's can plan and sanding at the same time, stablly and precisely.
6. SRR630S type is equipped with 8 sets feeding rollers, 3 front, 2 in middle, 3 rear. So it can apply to materails over 230mm length.
Company Information
Certificate & Delivery
HUZHOU QINGCHENG MACHINERY CO., LTD
QCM Machinery was established in 1970 and have been specializing in production of woodworking machinery for more than 50 years now.
We have our own casting workshop and more than 300 sets of modern CNC machining equipment and testing equipment. Strong R&D team with 55 people can provide our customers with the biggest professional technical support.
Choose our machinery, to help you improve productivity, processing quality, and profit.
We have our own casting workshop and more than 300 sets of modern CNC machining equipment and testing equipment. Strong R&D team with 55 people can provide our customers with the biggest professional technical support.
Choose our machinery, to help you improve productivity, processing quality, and profit.
