electrostatic painting spray machine glitter powder coating machine
- Category: Metal Coating Machinery >>>
- Supplier: Ningbo,Yinzhou,Jitian,Electric,Appliance,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Product model:
Powder coating machine
STP120-9000
• Powder coating is tougher than conventional paint,easy to use and clean up and covers better
• System provides a minimum 80% transfer efficiency
• 1/4 NPS air inlet
• 10-30 PSI input air pressure
STP120-9000
• Powder coating is tougher than conventional paint,easy to use and clean up and covers better
• System provides a minimum 80% transfer efficiency
• 1/4 NPS air inlet
• 10-30 PSI input air pressure
Specification
item | Description |
Power Consumption | 120 -240VAC,50-60HZ |
Output high pressure | 15KV-30KV |
Line Cord | 6 feet long,16 AWG,3-prong grounded plug |
Air Supply Pressure | 10 to 30 PSI |
Cubic Feet Per Minute | 3.5 CFM at 30 PSI |
Air Inlet Size | 1/4 inch |
Remote Activation Switch | 10 feet long |
Gun Power Lead | 8 feet ,high voltage lead |
Grounding Cable | 8 feet long with ground clamp |
Control Box Fuse | 0.5 amps |
Paint Curing Temperature | 400 degrees F. for 15 minutes(recommended) |
Weight | 6.35 lbs |

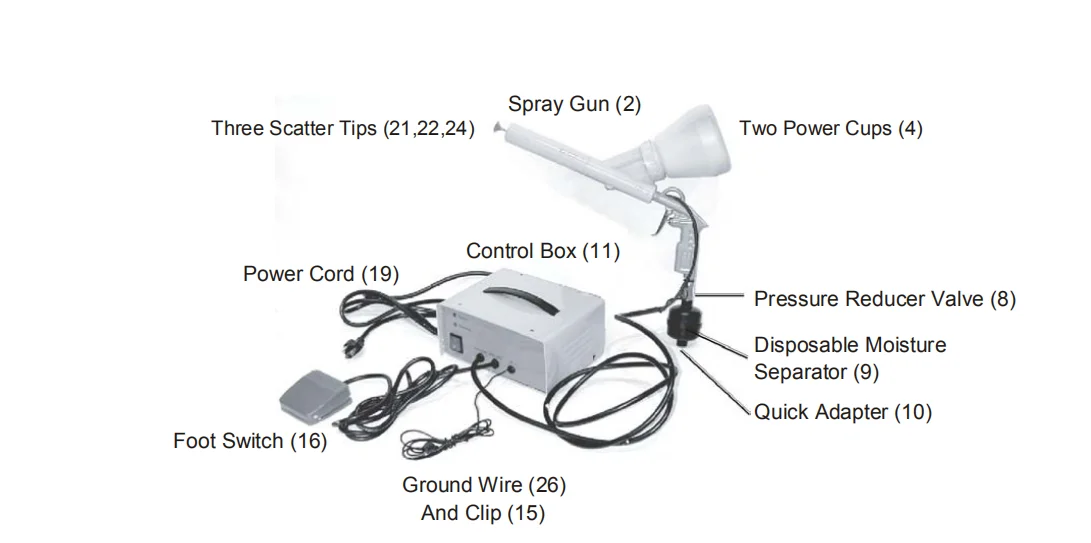

PARTS LIST AND ASSEMBLY DIAGRAM | Q’ty | ||
Part | Description | Q’ty | |
1 | Control Box | 1 | |
2 | Spray Gun | 1 | |
3 | Scatter Tips | 3(Small,Medium,Large) | |
4 | Powder Cups | 2 | |
5 | Pressure Reducer Valve | 1 | |
6 | Disposable Moisture Separator | 1 | |
7 | Quick Adapter | 1 | |
8 | Foot Switch | 1 | |
9 | Power Cord | 1 | |
10 | Ground Wire and Clip | 1 | |

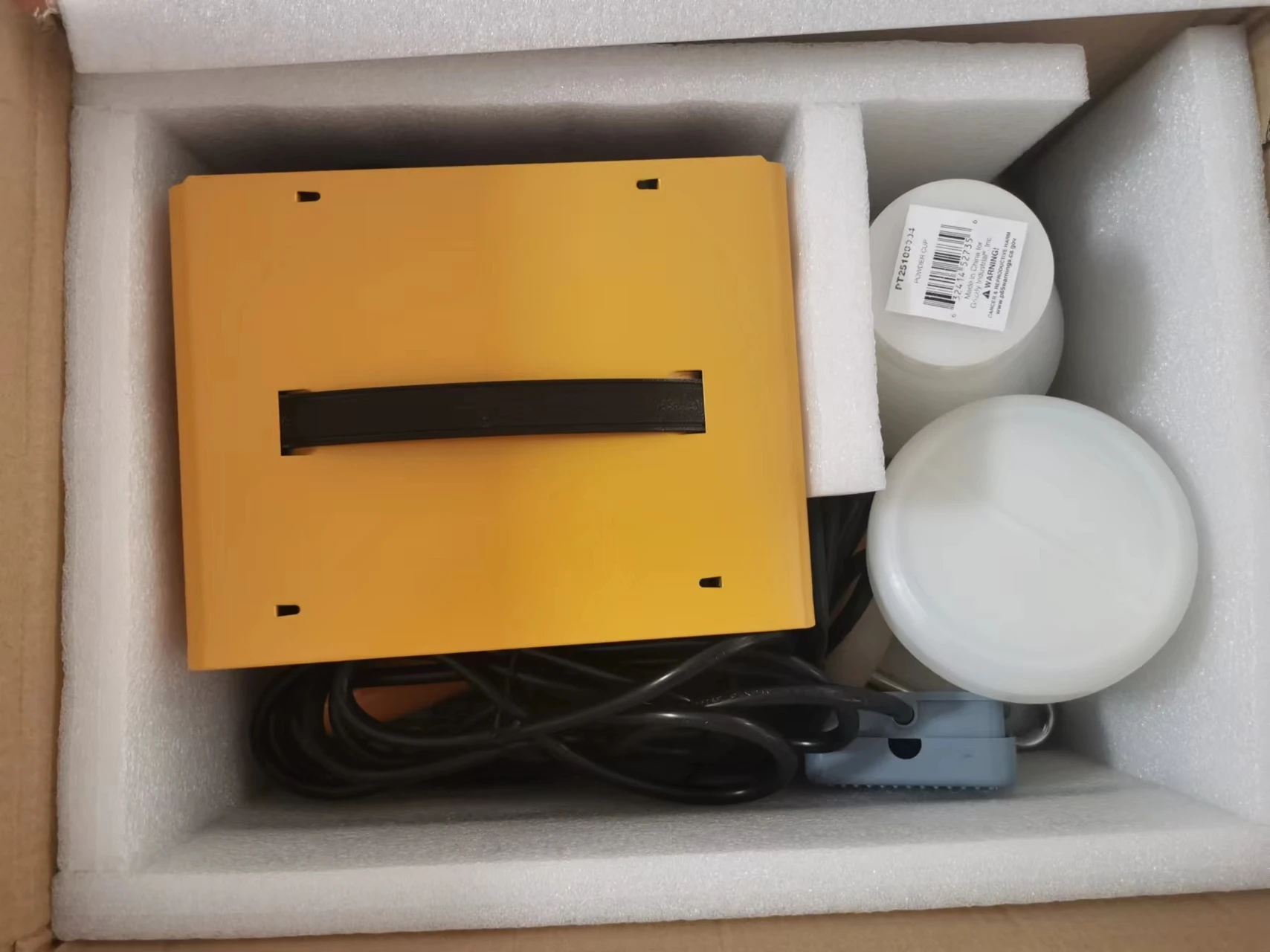

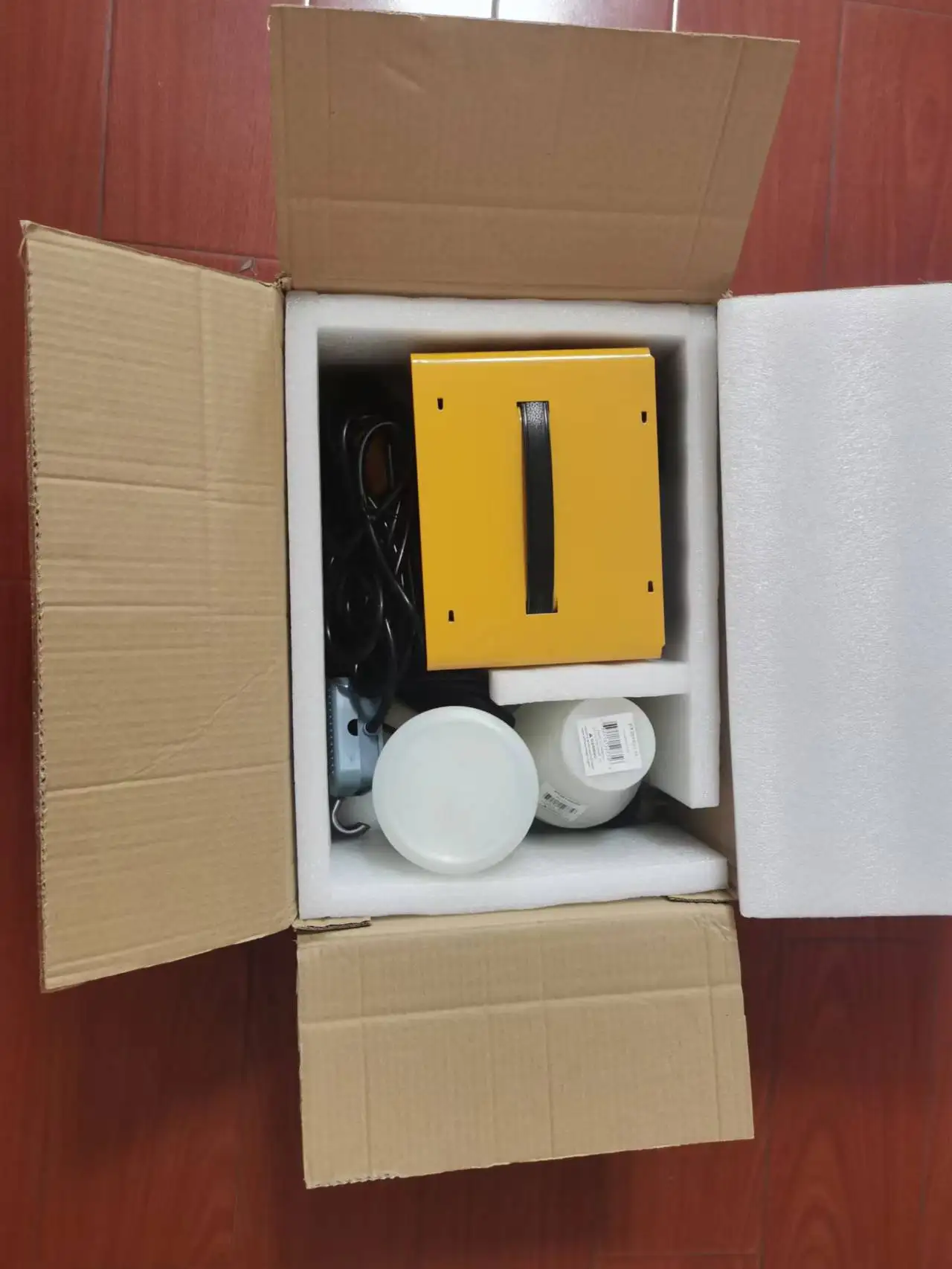

Packing & Delivery
Double corrugated cardboard qty:1pcs/ctn
Ctn size:42*30*20cm
Ctn size:42*30*20cm
