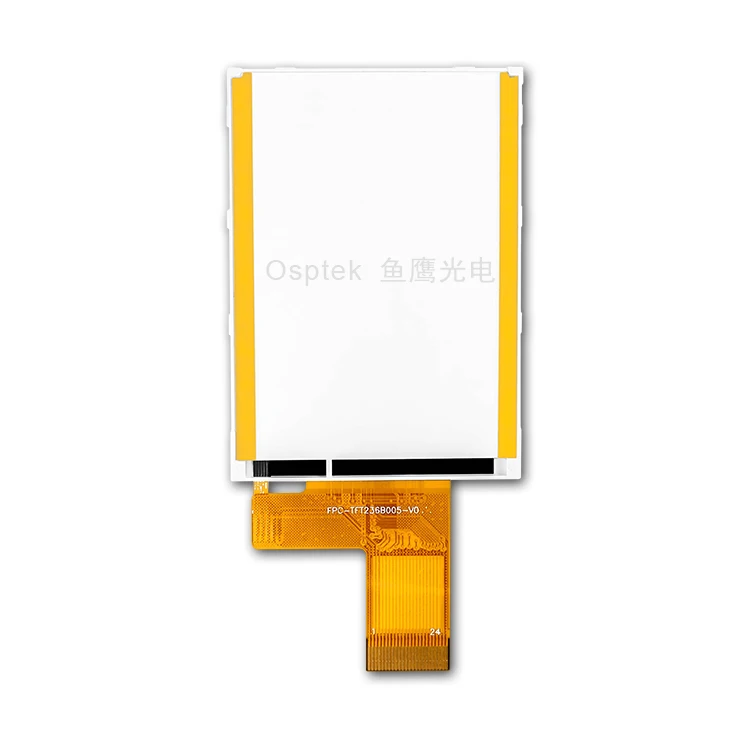

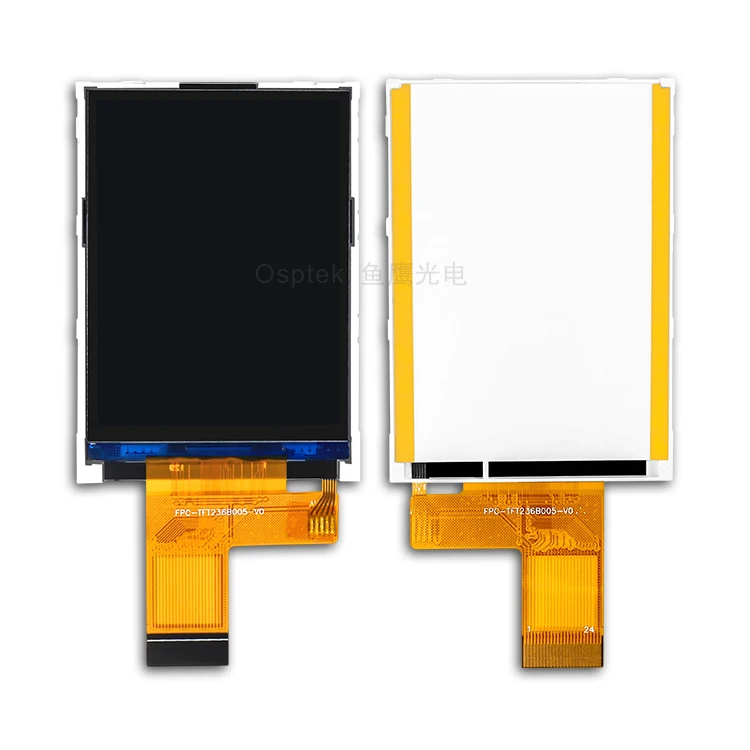

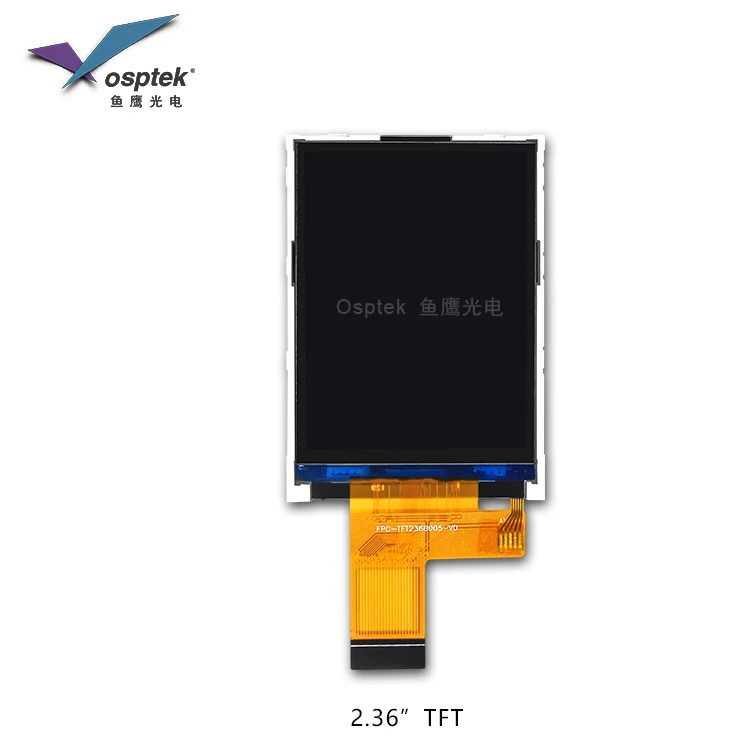

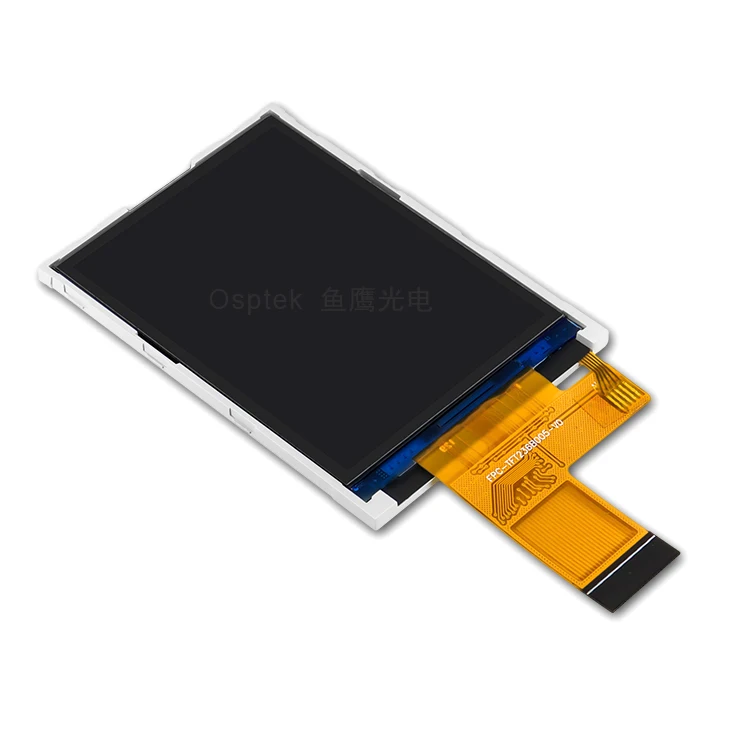

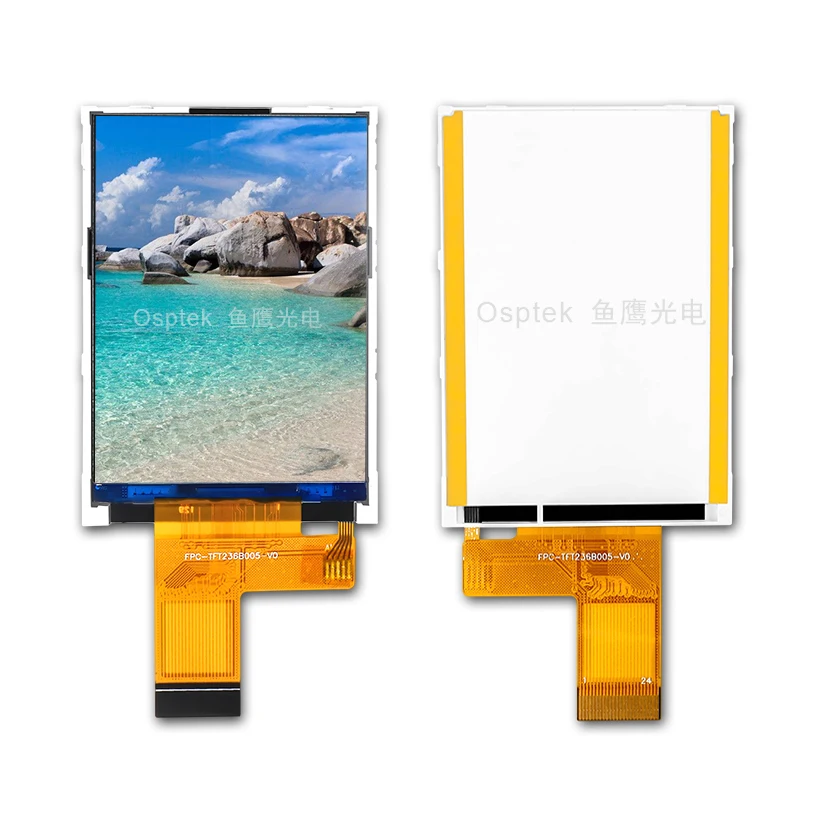

2.36 inch 2.4 inch mcu Interface IPS panel 128x160 cog lcd display module
- Category: >>>
- Supplier: Shenzhen Osprey Optoelectronics Technology Co. Ltd.
Share on (1600573931237):
Product Overview
Description
Product Description

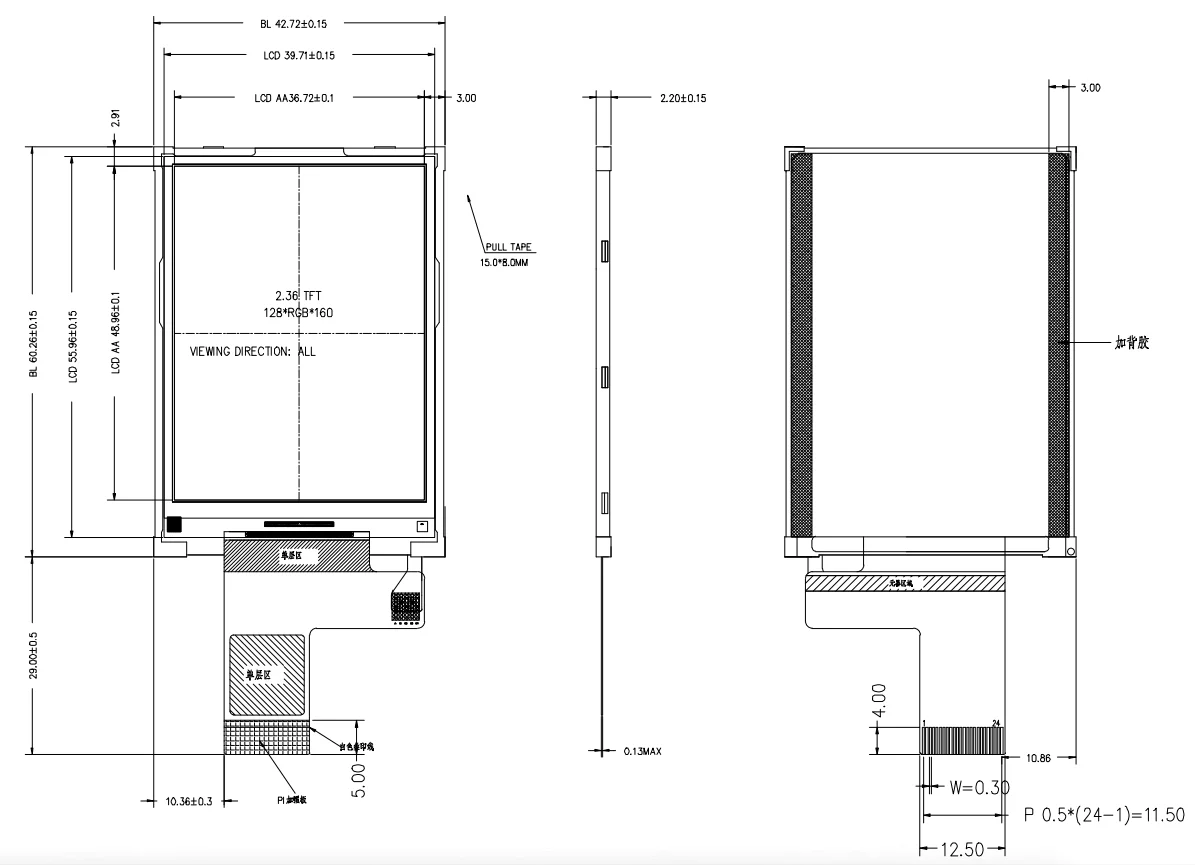

1.MECHANICAL DATA
NO | ITEM | SPCIFICATION | UNIT | Remark |
1 | LCD Size | 2.36 Inch | Inch | - |
2 | Panel Type | IPS | - | - |
3 | Resolution | 128RGBx160 | Pixel | - |
4 | Display Mode | - | - | - |
5 | Number of Colors | 262K | - | - |
6 | Viewing Direction | All | - | - |
7 | NTSC | 55% | - | Typ. |
8 | Contrast Ratio | - | - | - |
9 | Luminance | cd/m2 | Typ. | |
10 | Module Size | 42.72(H)x60.26(V)x2.2(D) | mm | - |
11 | Active Area | 36.72x48.96 | mm | - |
12 | Pixel Pitch | 0.153(H) x 0.153(V) | mm | - |
13 | Pixel Arrangement | RGB - stripe | - | - |
14 | Weight | TBD | g | - |
15 | Driver IC | ST7789V | - | - |
16 | Driver IC RAM Size | 1382400 | bit | - |
17 | Light Source | 4 LED light | - | - |
18 | Interface | MCU 16Bit | - | - |
19 | Operating Temperature | -20~+70 | ℃ | - |
20 | Storage Temperature | -30~+80 | ℃ | - |

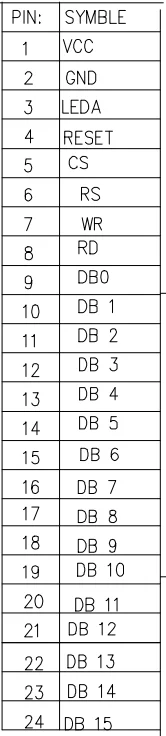

3.PIN ASSIGNMENTS
Application
Product Process
Company Profile
Packing & Delivery
FAQ
1.Q: Order process
A:PO is placed by clients → PI is issued by Osptek → Payment by clients → Lead time is confirmed by Osptek → Shipping instrction by Clients → Delivery → Cargo tracking → Receipt of cargo
2.Q: Lead time ( after payment is confirmed)
A: Sample: 1-10 working days
Volume: 3-60 working days
3.Q: Payment
A: T/T , Western union, L/C, Credit card, and Cash
4.Q: Warranty
A: 12 months warranty ( Please find more details via our datasheet by item of Limited Warranty)
5.Q:RMA Process
A:Claimed by cliens with photos or videos → Sales rep of Osptek confirm if have questions
→ Sales rep issue RMA No to clients if confirmed by QA → Return to Osptek → Formal
report after goods received by Osptek → Clients confim the analysis report → Proceeding
as per the Report both agreed
6.Q:Notes
A:Please check both appearance and function of products prior to installation.
Any damage caused by improper use or unprofessional installation is not covered under warranty.
7.Q:Custom
A: You could let us know the concrete requirements then we will design and confirm with you.
