Pressure Transducer Companies Melt Pressure Transducers
US $598.00-$629.00
XINYI Waterproof 4 20ma Transmitters 3051 Pressure Transmitter
- Category: Pressure Sensors >>>
- Supplier: Xi'an,Xinyi,Instrument,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Product Description

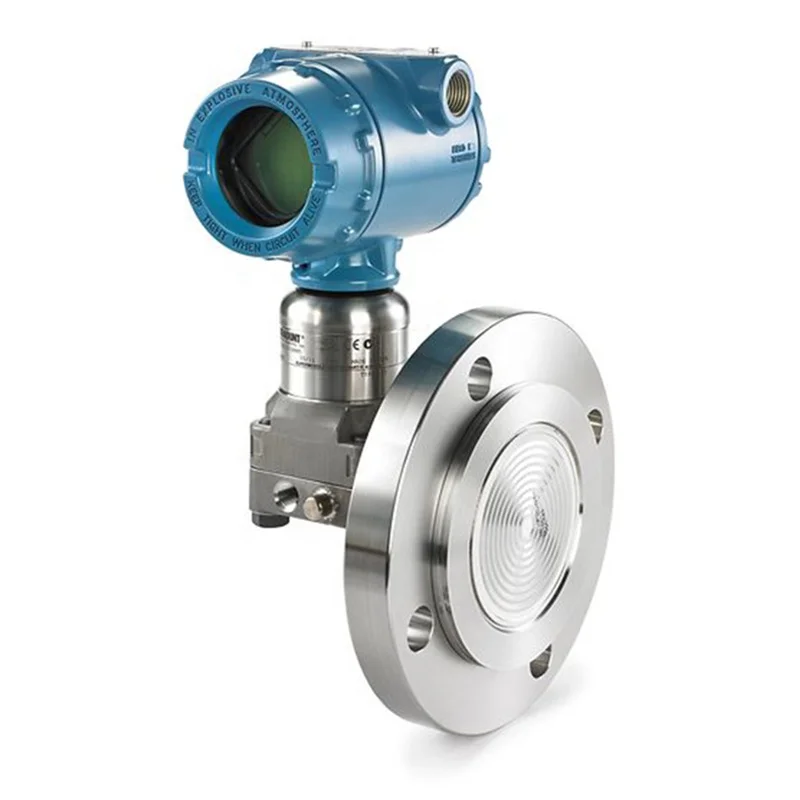

Pressure Transmitter The differential pressure transmitter is suitable to measure liquid, gas, or steam flow as well as liquid level, density and pressure. Outputs a 4~20mADC signal corresponding to the measured differential pressure. Its highly accurate and stable sensor can also measure the static pressure which can be shown on the integral indicator or remotely monitored via HART communications. Other key features include quick response, remote set-up using communications, self-diagnostics and optional status output for pressure high/low alarm.
Specification:
Proof pressure | ≤1.5X rated pressure or 110MPa which ever is less |
Pressure type | Gauge, absolute ,sealed gauge |
Power Supply Effects | ±0.001% /10V (12~42V DC) |
Static Pressure Effects | ±(0.05%URL+0.075%Span)/10MPa |
Operating Temperature Range | -20℃~80℃ |
Storage Temperature Range | -40℃~120℃ |
Power supply | 15～30VDC |
Output signal | 4～20mA 0～10/20mA 0/1～5VDC |
Working Pressure Limits | Maximum working pressure: 16MPa,25MPa,40MPa |
Sensor Body | 316L stainless steel |
UpTime | < 15s |
Process Connection | Flange with fixing thread 7/16-20 UNF and 1/4-18 NPT female thread on both sides |
Insulation resistance | 100MΩ,100VDC |
Protection | IP65 |
Ordering Note
1. Media must compatible with wetted part.
2. To ensure the products can working reliable, we suggest that customer install lightning protection device and make sure products & power are earthed.
3. Special requirement ,such as strong shock, moment vibration, strong electromagnetism, radio frequency interference ,please consult us.
Warranty:Pressure transmitters have a limited one-year warranty to the original purchaser. We will replace or repair defective products free of charge. This warranty does not apply to any units have been modified, misused, neglected.
2. To ensure the products can working reliable, we suggest that customer install lightning protection device and make sure products & power are earthed.
3. Special requirement ,such as strong shock, moment vibration, strong electromagnetism, radio frequency interference ,please consult us.
Warranty:Pressure transmitters have a limited one-year warranty to the original purchaser. We will replace or repair defective products free of charge. This warranty does not apply to any units have been modified, misused, neglected.
