Factory supply 375L/600kgs small capacity Teka pan type electric cement mixers for ready made concrete
- Category: Concrete Machinery >>>
- Supplier: Suzhou,Panho,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Product Description

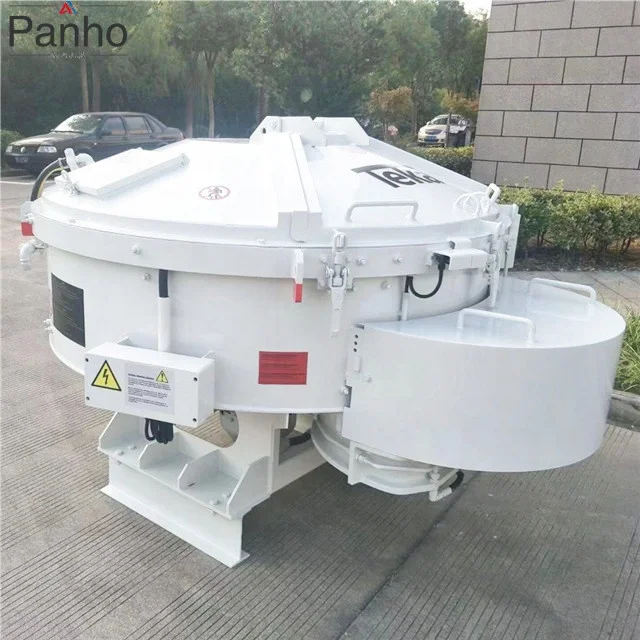

Factory supply 375L/600kgs small capacity Teka pan type electric cement mixers for ready-made concrete
| Filling quantity | 375L/600KGS |
| Compacted concrete output | 0.25m3 |
| Driver power | 11KW |
| Speed of rotor | 37 RPM |
| Total diameter of mixer | 1700MM |
| Total height of mixer | 1305MM |
| Weight of mixer | 1500KGS |
| Loading | 6Sets/20GP |
| Skip hoist 600 | |
| Filling capacity of skip hoist bucket | 550KGS |
| Multi-layer drum | 3KW |
| Speed of bucket | 0.33m/sec |
| Standard configuration and Nonstandard configuration | |||
| Configuration details | THZ | TPZ | |
Standard configuration (Other details, pls. see quotation sheet) | Discharge gate | 1 Set | 1 Set |
| Stop block of discharge gate | 2 PCS(Full open/Full close) | 2 PCS(Full open/Full close) | |
| Mixer cover | 1/2 open | 1Set 60°full open pneumatic gate | |
| Safety device on mixer cover | 1Set | 1Set | |
| Wear-resisting scaleboard at bottom | ST60/65mm/10mm | ST60/65mm/10mm | |
| Outward wear resistant lining board | ST60/65mm/10mm | ST60/65mm/10mm | |
| Inside wear resistant lining board | ST60/65mm/10mm | No | |
| Bottom mixing blade | W3/W4 | W3/W4 | |
| Outward scraper blade | W3/W4 | W3/W4 | |
| Inside scraper blade | W3/W4 | No | |
| Electrical connector | 1 PC | 1 PC | |
| Hand winch | 1Set | No | |
| Tool bag | 1Set | 1Set | |
| Oil filter | 1PC | No | |
| Operation Manual | 1Copy | 1Copy | |
| Spare parts list | 1Copy | 1Copy | |
| Viewport | 1PC | 1PC | |
| Centralization lubrication | No(Can add) | 1Set | |
| Independent hydraulic station | No | 1Set | |
| Feedwater device | 1Set | 1Set | |
Nonstandard configuration (Can add or replace) | Second discharge gate | Yes | Yes |
| Third discharge gate | Yes | Yes | |
| Forth discharge gate | THZ1125 and smaller mixer | Yes | |
| Second review gate | Yes(No less than 60°) | Yes | |
| Broken bag machine | Yes | Yes | |
| Hydraulic couplers | Yes | Yes | |
| Into size for aggregate, powder , additive etc. | Yes | Yes | |
| Docking chute of discharge gate | Yes | Yes | |
| Full sealed protection cover of discharge gate | Yes | Yes | |
| Stop block of middle discharge gate | Yes | Yes | |
| Dust collection device | Yes(Airbag) | Yes(Airbag) | |
| High pressure cleaning device | Yes | Yes | |
| Water metering device | Yes | Yes | |
| Steam-heating unit | Yes | No | |
| Scraper blade of drive disc | Yes | No | |
| Humidity detectors | Yes(can supply/no commissioning) | Yes(can supply/no commissioning) | |
| Temperature sensor | Yes(can supply/no commissioning) | Yes(can supply/no commissioning) | |
| Bottom wear resistant lining board(Optional) | Harddox/Clad plate/Alloy slab/15mm | Harddox/Clad plate/Alloy slab/15mm | |
| Bottom mixing blade(Optional) | Nonmetal/Hard alloy | Nonmetal/Hard alloy | |
| Skip hoist(Standard 60°/Rail extension in 3 meters) | Yes | Yes | |
| Skip hoist(Nonstandard 70°/Rail extension more than 3 meters) | Yes | Yes | |
| Manual control box | Yes | Yes |
Application fields
Packaging & Shipping

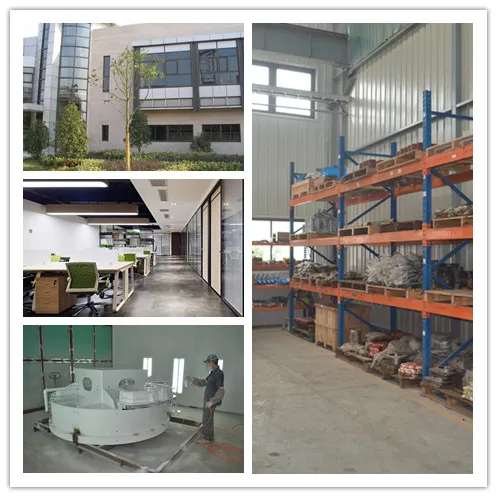

Company Information
Panho Machinery is located in Suzhou China, a beautiful city known as the Venice of the East. Suzhou is famous for its exquisite silk and embroidery culture.
We are a professional supplier for Teka planetary mixer, Teka pan mixer,concrete batch plant, hydraulic elevator and other high quality machines.
We would like to work with customers from all over the world. Give your trust to us, we will return good quality fabrics and best service to you.
FAQ
1. What is machines we can supply?
Teka pan mixer, Teka planetary mixer, concrete batch plant, hydraulic elevator and other high quality machine.
2. Do you suppply customized design?
Yes, we can make cutomzied design for the whole batch plant.
3. Where is your company?
Our company is located in Suzhou city, which is close to Shanghai.
One hour drive from Suzhou to Shanghai.
4. How to ship the products to you.
Normally we ship the machines by sea.
