Вертикальные пластиковые литьевые машины для литья под давлением, 32 г
- Category: Injection Molding Machines >>>
- Supplier: Dongguan,Jieyang,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Machine Description
32
G

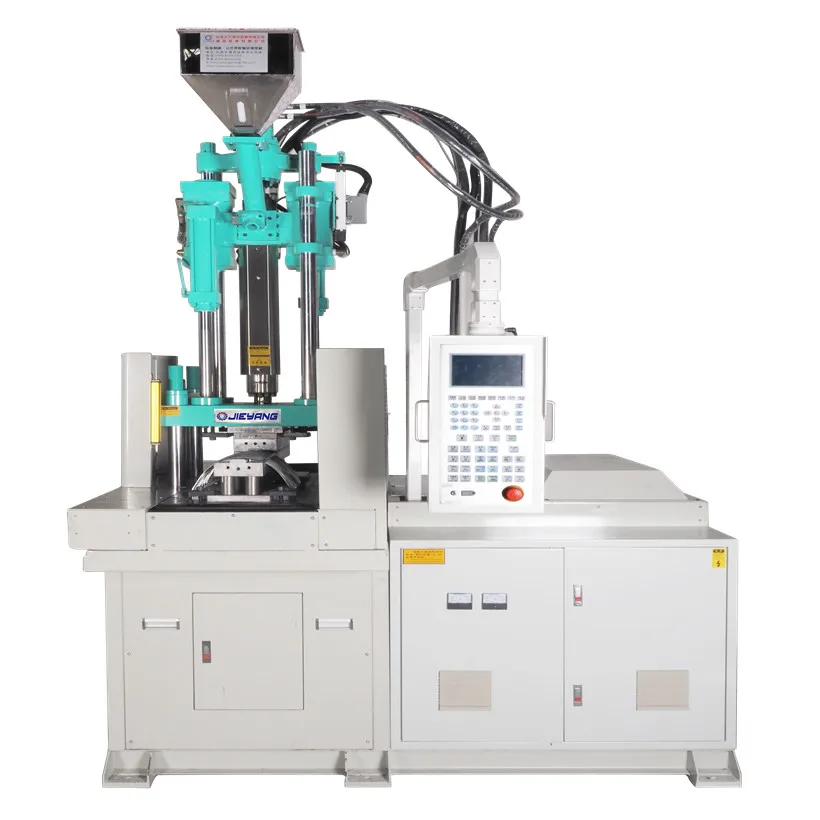

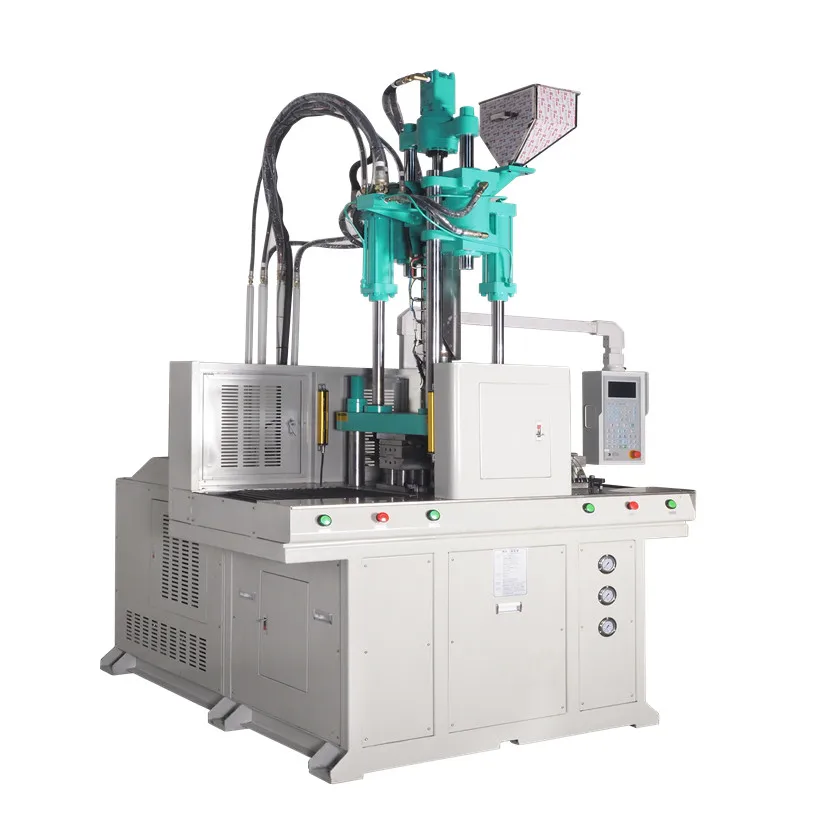

Blood Lancet Making Vertical Plastic Injection Moulding Machines
Main Features:
1.Straight screw ejected assembly.
2.Two(three)-phase temperature, ejected speed, backing pressure and screw speed is suitable for various plastic to confectioned.
3.Low-die fixed top active mode makes inserted objects excellent positioned features and the machine has liftout attachment for finished goods.
4.Low-pressure closed die assembly can protect the safety of die.
5.Material tube can be lifted. It is easy to clean stub bar. It is easy to fix die.
6.Can be installed a single mold or double shuttle table.
7.English/Arabic/Spanish LCD and so on about ten language display, which can memorize 999 groups of mold data.
Specification
Specification for JY-1200ST-DM
Blood Lancet Making Vertical Plastic Injection Moulding Machines
| MODEL | UNIT | JY-1200ST-DM | |||
| Injection Unit | Screw Diameter | mm | 40 | 45 | 50 |
| Injection Pressure | kg/cm2 | 1838 | 1452 | 1176 | |
| Max.Shot Weight(PS) | g | 213.6 | 270 | 333.8 | |
| Injection Stroke | mm | 180 | |||
| Clamping Unit | Clamping Force | Tons | 120 | ||
| Platen Size | mm | 1290*560 | |||
| Max.Open Distance | mm | 560/660 | |||
| Min.Mold Height | mm | 280/380 | |||
| Opening Stroke | mm | 280 | |||
| Enjection Force | Tons | 4.6 | |||
| Enjection Stroke | mm | 100 | |||
| Power Unit | Max.Hydaulic Pressure | kg/cm2 | 140 | ||
| Pump Motor Power | KW/HP | 15/20 | |||
| Total Power | KW | 26 | |||
| Other | Machine Weight | Tons | 5.8 | ||
| Machine Dimensions(LxWxH) | m | 2.2*2*4.1 | |||
Here is Jieyang Brand machines company, we are a vertical plastic injection machine manufacturer.
This model we recommended has been a best seller for nearly few years.
We can provide machines to make above product and share you more details.
So you can quickly understand the performance of the machine, we will help you debug and lifetime maintenance services in advance, whenever you happen to me.
Our R&D team would help you to design a machine that meet your requiry.
Plastic PBT Led Light Led Bulb Making Rotary Table Injection Molding Machine
Machine Applications
Our double sliding table injection molding mahchines are widely apply to produce various medical products specially the lancet.
Plastic PBT Led Light Led Bulb Making Rotary Table Injection Molding Machine
Our Company
Disposable Safety Blood Lancet Making Machine/Vertical Injection Molding Machine
Why Choose Us
1. 24 hours online and telephone support; Nomatter anytime, anywhere or any question I will reply you as soon as possible.
2. Exclusive and unique solution can be provided to our customers by well-trained and professional engineers and staffs.
3. Engineers and professional technicians keep seeking the new ways to innovate all of our wheel loaders, which could provide you the most competitive products.
4. Global cooperation with distributors, you can get the most convinent after-sale service. Special discount and protection of sales area provided to your distributor.
5. Your success is our business. We will do our best to provide you the most competitive product with high quality and low price.
Packaging&Delivery
Disposable Safety Blood Lancet Making Machine/Vertical Injection Molding Machine
FAQ
Q1: Are you a trading company or a manufacturer? |
A1: Factory we are, all the machine are made by ourselves. Besides, you can get the customize service with your requirements |
Q2: What's your warranty for the machine? |
A2: One Year Warranty(all the machine parts can be replaced within one year free of charge, not including the manmade broke), life-time maintenance. |
Q3: What's your Delivery Time? |
A3: Usually it is 3-5 days if the machine is in stock; If not, the delivery time is 10-25 days according to your required quantity and our busy season. |
Q4: Where is your factory? How can visit you? |
A4: Our factory is next to Guangzhou and Shenzhen. We will drive you to our factory by car when you arrive at Dongguan or Changping Railway(Bus) station. |
Q5: Why choose Jieyang Machinery Co., Ltd.? |
A5: "Customer Satisfaction, Continual Improvement & Innovative Service" are the driving force for our company to moving forwards. We will devote every efforts to do the best level machine and service. |
