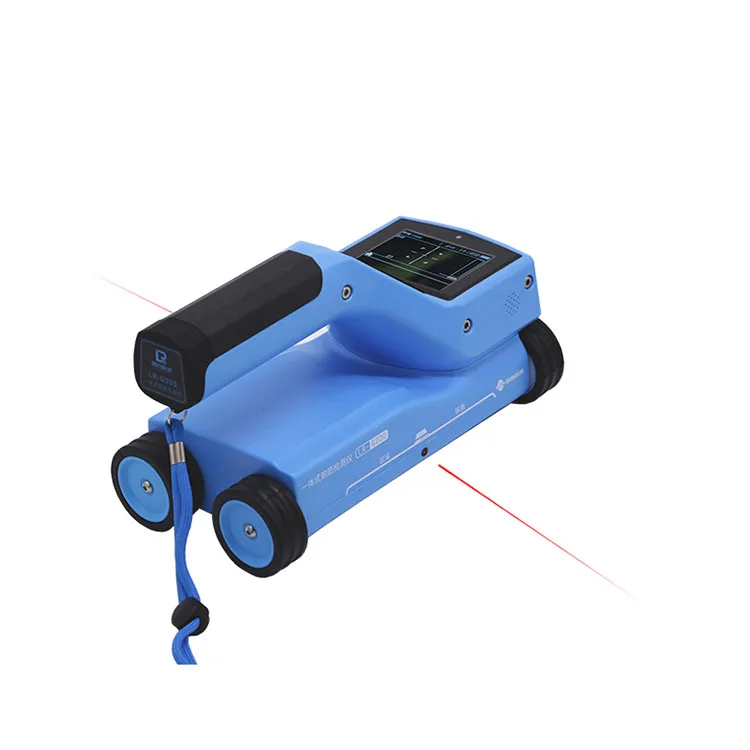

Integrated Rebar Scanner
It is mainly used to detect the position,
distribution and direction of rebar,
Thickness of concrete cover and
diameter of rebar in reinforced concrete structures.
ASTM A 615/A 615M-01b

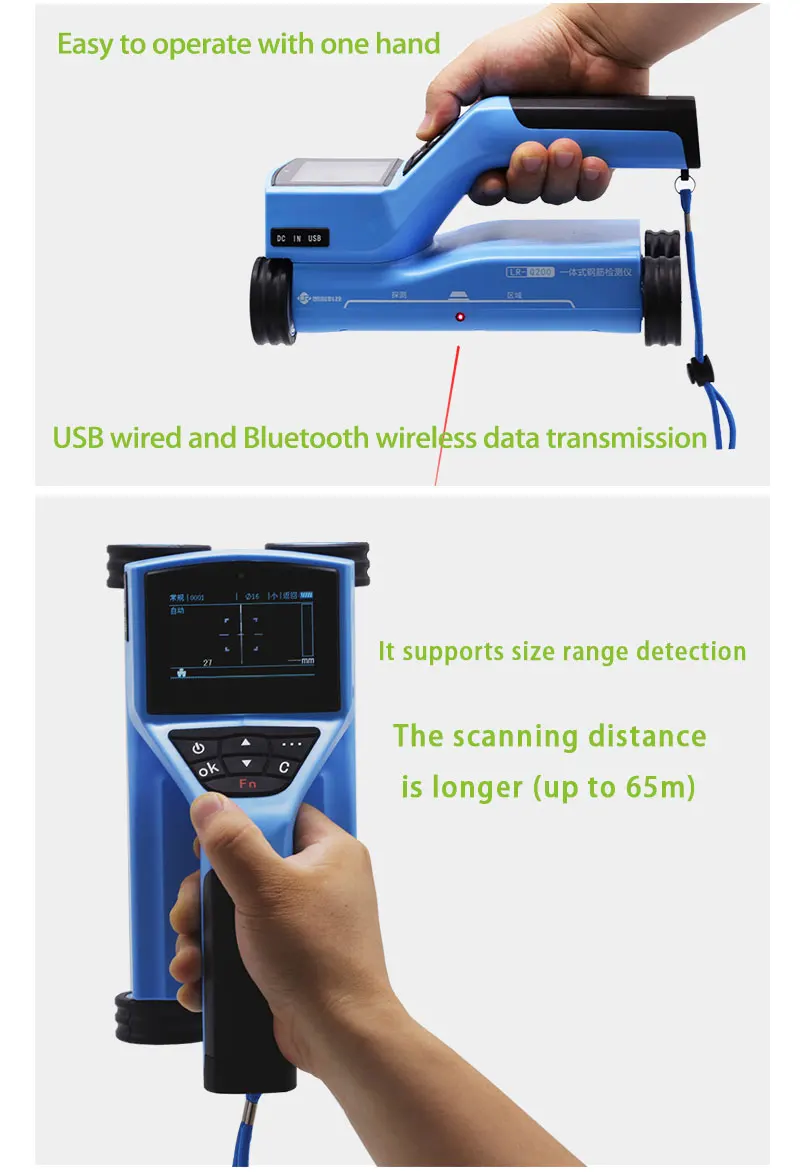

1. The instrument sensor is of integrated structure in small size, thus permitting easy operation.
2. Carry out testing with combination of high-power transmitting coil and multiple small coil to ensure higher accuracy and resolution.
3. Perform displacement scanning and rebar distance measurement at a higher accuracy level with use of high-accuracy grating sensor.
4. Provide different types of scanning to suit the different measurement cases.
5. Permit large and small-range testing, with the scanning distance up to 65m max. Perform data testing in a flexible way. The instrument itself allows storage of max. 4000 components.
6. Permit correction of multiple stirrup so as to obtain more accurate testing results.
7. Furthermore, the USB wire data transmission and device wireless data transmission are allowed so that the quick data uploading is possible.

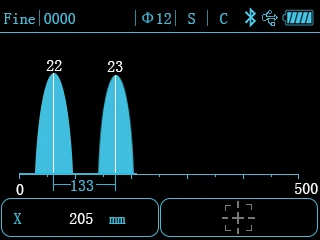

8. Use 3.2” 65K color LCD screen to yield the higher resolution and better display, plus the capacitive touch screen, thus facilitating the man-machine interaction.
9. Perform power supply with use of 8.4v 3200mah high capacity lithium-ion battery to ensure that the instrument can continuously operate around-the-clock.
Applicable range of rebar diameter(mm)
Max. range (mm)
Max. allowable deviation on thickness of the concrete cover
Applicable range on diameter estimate (mm)
Max. deviation on diameter estimate
Display accuracy on diameter estimate (mm)
Performance indicators on LR-G200 integrated rebar scanner
Range of scanning
Mode of data transmission
Way of power supply
Touch screen operation
The rebar detection data analysis software is a multi-function analysis
software developed by Jinan Langrui Detection Technology Co., Ltd. for
processing the rebar detection data. The software can run in XP/win7/win10
OS, presenting friendly interface and easy operation, which is specificallydesigned for project detection staff.
1) Conduct management on all component information as well as the
detection data at each measuring point;
2) Conduct analysis and evaluation on detection data according to the
construction quality acceptance criteria;
3) Display the component data in a graphic way;
4) Generate a detection data file through integration of several ones; it is
easy to add or remove the detection data;
5) Print the preview and export treatment results;
6) It is easy to import the rebar scanner data into the computer with use
of the software to facilitate further analysis and archive;
7) Automatically generate the detection report in word format.
The data files saved in the software has the file extension name in . xgjy
format. The detection report automatically generated has the file extension
name in .docx format.
Supporting software interface
Q: Are your company a trading one or a factory?
A: Factory+ trade, professional manufacturer of NDT instruments.
Q: After an order is placed, when to deliver?
A: We can arrange shipment within 3 days. Please be aware that our production lead times depend on specific items and item quantities.
Q: What about the warranty with after-sales services?
A: The testing machine is guaranteed for 12 months, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, 24 hours technical support by email or call
Q: What about the product's services and quality?
A: Each instrument must be carried out 100% quality examination and test when shipping and delivery goods product use training, each of our product provides video training to show you how to install operate.
Q: Why your price is higher than others?
A: As we persist on that each factory should put quality at the first place. We spend time and money on developing how to make machines much more automatic, accurate and high quality. We can make sure that our machine could use more than ten years without any problem.
