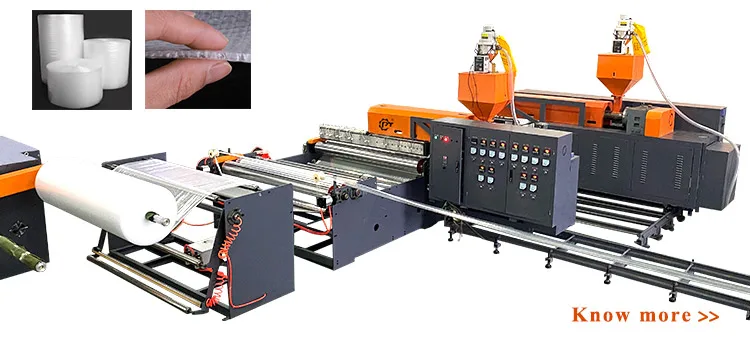

Bubble machine and air bubble film wrap roll and bubble film air packing film making machine
- Category: Plastic Extruders >>>
- Supplier: Shanghai,Shenxin,Plastic,Machinery,Factory
Share on:
Product Overview
Description
Comlete film width(mm) | 1200 | 1600 | 2000 | 2600 | 3000 |
Model number | PT-L2S1- W1200 | PT-L2S1- W1600 | PT-L2S1- W2000 | PT-L2S1- W2600 | PT-L2S1- W3000 |
Material | LDPE/LLDPE | LDPE/LLDPE | LDPE/LLDPE | LDPE/LLDPE | LDPE/LLDPE |
Line speed(m/hr) | 600-2100 | 600-2100 | 600-2100 | 600-2100 | 600-2100 |
Capacity(kg/hr) | 50-70 | 60-80 | 70-95 | 90-130 | 100-180 |
Thickness(g/m²) | 25-300 | 25-300 | 28-300 | 30-300 | 34-300 |
Main screw diameter(mm) | Φ75 | Φ75 | Φ85 | Φ90 | Φ110 |
Heating power(kw) | 37 | 48 | 60 | 68 | 68 |
Operation(kw) | 25 | 34 | 38 | 50 | 68 |
DimensionL×W×H(m) | 7×2.0×2.5 | 7×2.4×2.5 | 8×2.8×2.5 | 9×3.4×2.5 | 10×3.8×2.5 |
weighr(kg) | 3500 | 4500 | 5000 | 7000 | 9000 |
Bubble film width(mm) | 1200 | 1600 | 2000 | 2600 |
Model number | PT-L5-S2- W1200 | PT-L5-S2- W1600 | PT-L5-S2- W2000 | PT-L5-S2- W2600 |
Material | LDPE/LLDPE | LDPE/LLDPE | LDPE/LLDPE | LDPE/LLDPE |
Line speed(m/hr) | 600-2100 | 600-2100 | 600-2100 | 600-2100 |
Capacity(kg/hr) | 80-100 | 100-140 | 110-158 | 120-180 |
Thickness(g/m²) | 38-300 | 38-300 | 40-300 | 45-300 |
Main screw diameter(mm) | Φ75 | Φ75 | Φ80 | Φ90 |
Sub screw diameter(mm) | Φ50 | Φ50 | Φ65 | Φ75 |
Heating power(kw) | 72 | 88 | 110 | 130 |
Operation(kw) | 36 | 44 | 55 | 69 |
Installation power(kw) | 100 | 136 | 159 | 202 |
DimensionL×W×H(m) | 10×5.0×2.5 | 10×6.0×2.5 | 11×6.5×2.5 | 12×7.5×2.5 |
weighr(kg) | 6000 | 6500 | 7500 | 8500 |
No worry about the installation
● We provide step-by-step guide videos of machine installation,
operation,and maintenance.
● We support video call with our engineers to provide you direct
guidance.
● 24/7 online service. Lifelong technical support.
operation,and maintenance.
● We support video call with our engineers to provide you direct
guidance.
● 24/7 online service. Lifelong technical support.
Pansatec, brand of Shanghai Shenxin Plastic Machinery Factory, is one plastic industry leading manufacturer in
research, development, production, sales and service of air bubble film wrapa machines, stretch film machines,
air cushion packing material making machines, bag making machines, coreless rewinder and related auxiliary
machines.
In the past three decades, we have helped our customers get successful in their local and online packing
markets and created a strong long-term cooperation with them globally.
Now we keep providing quality machines with custom solutions and service for customers all over the world.
