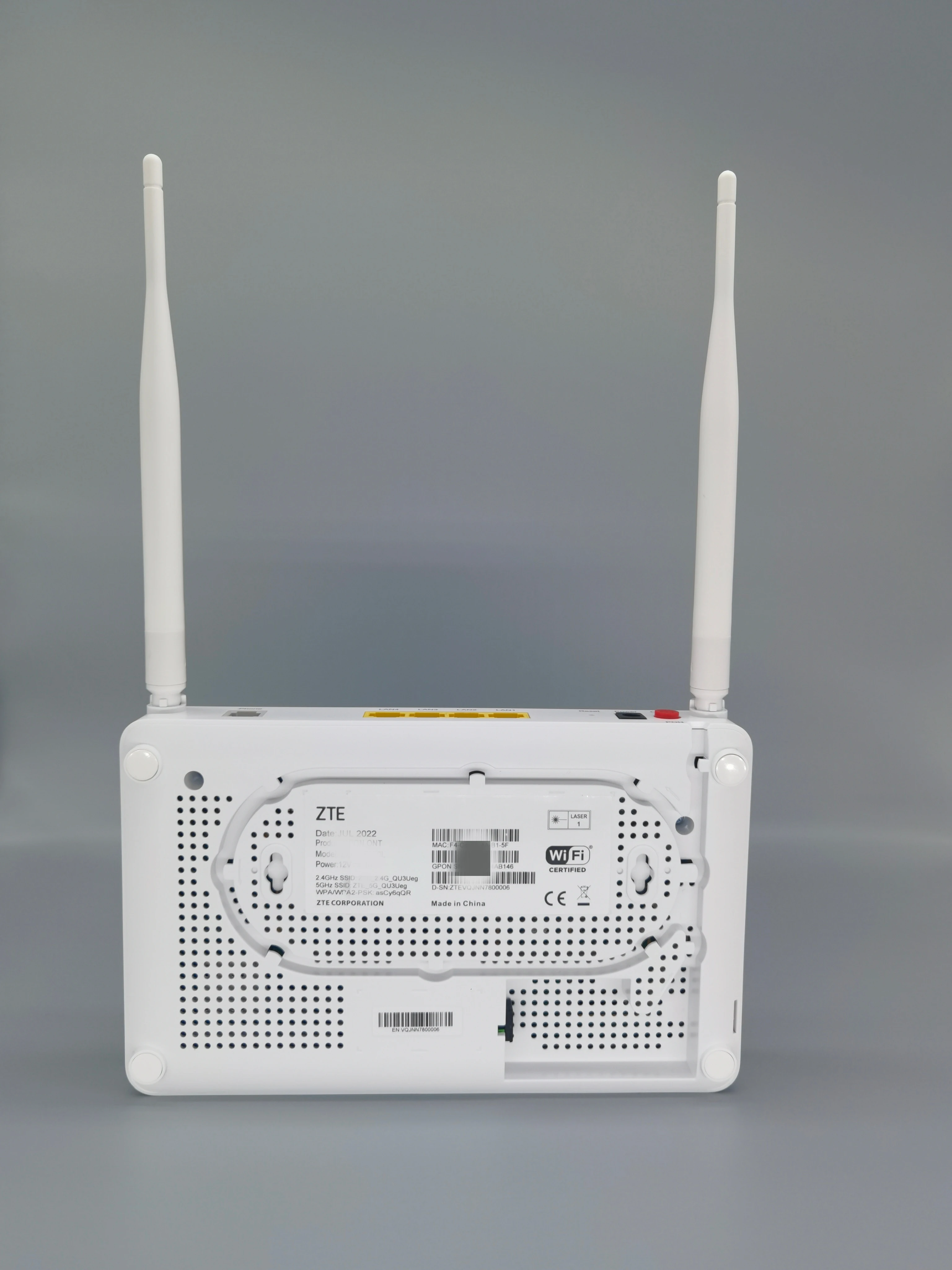

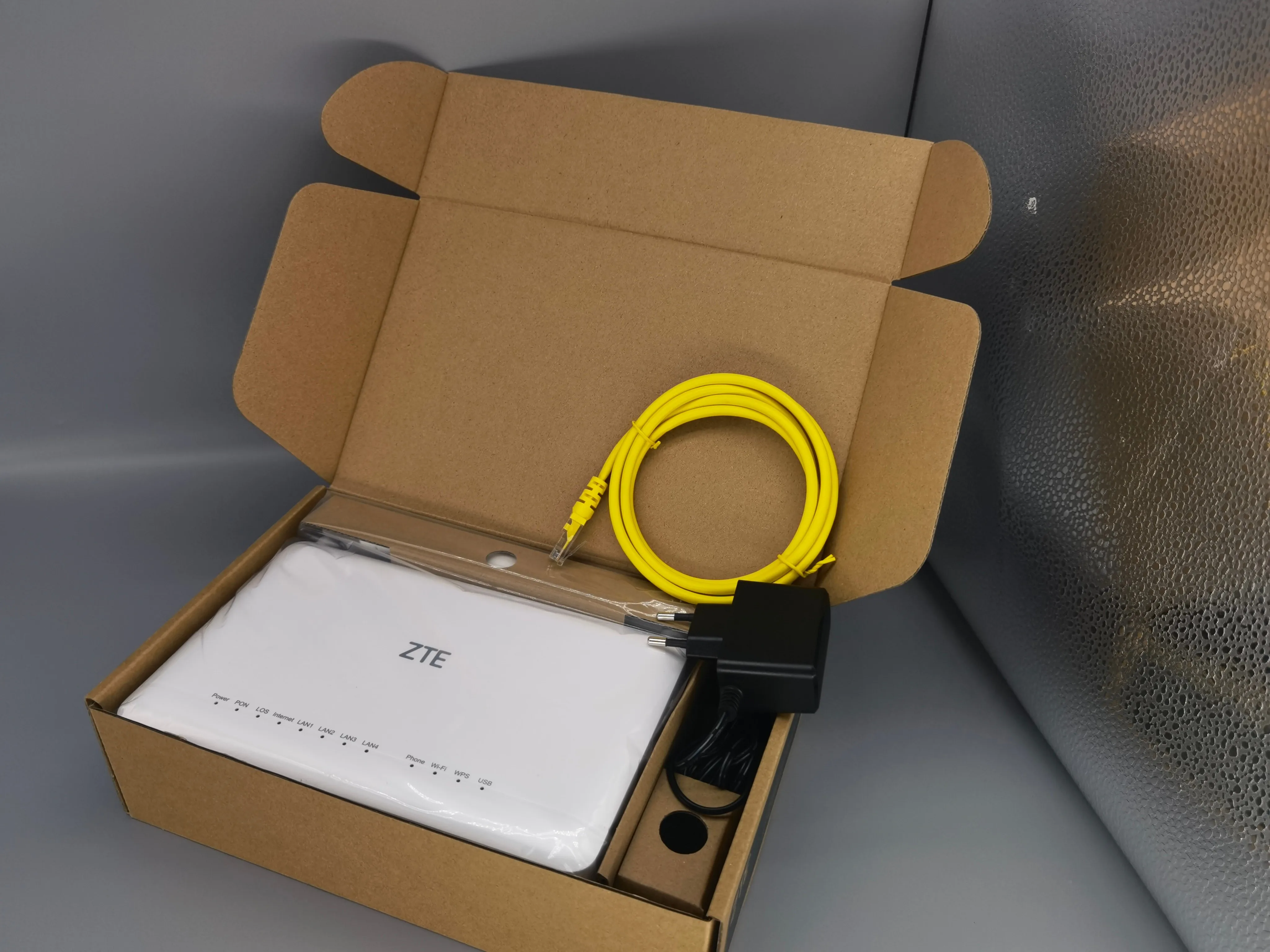

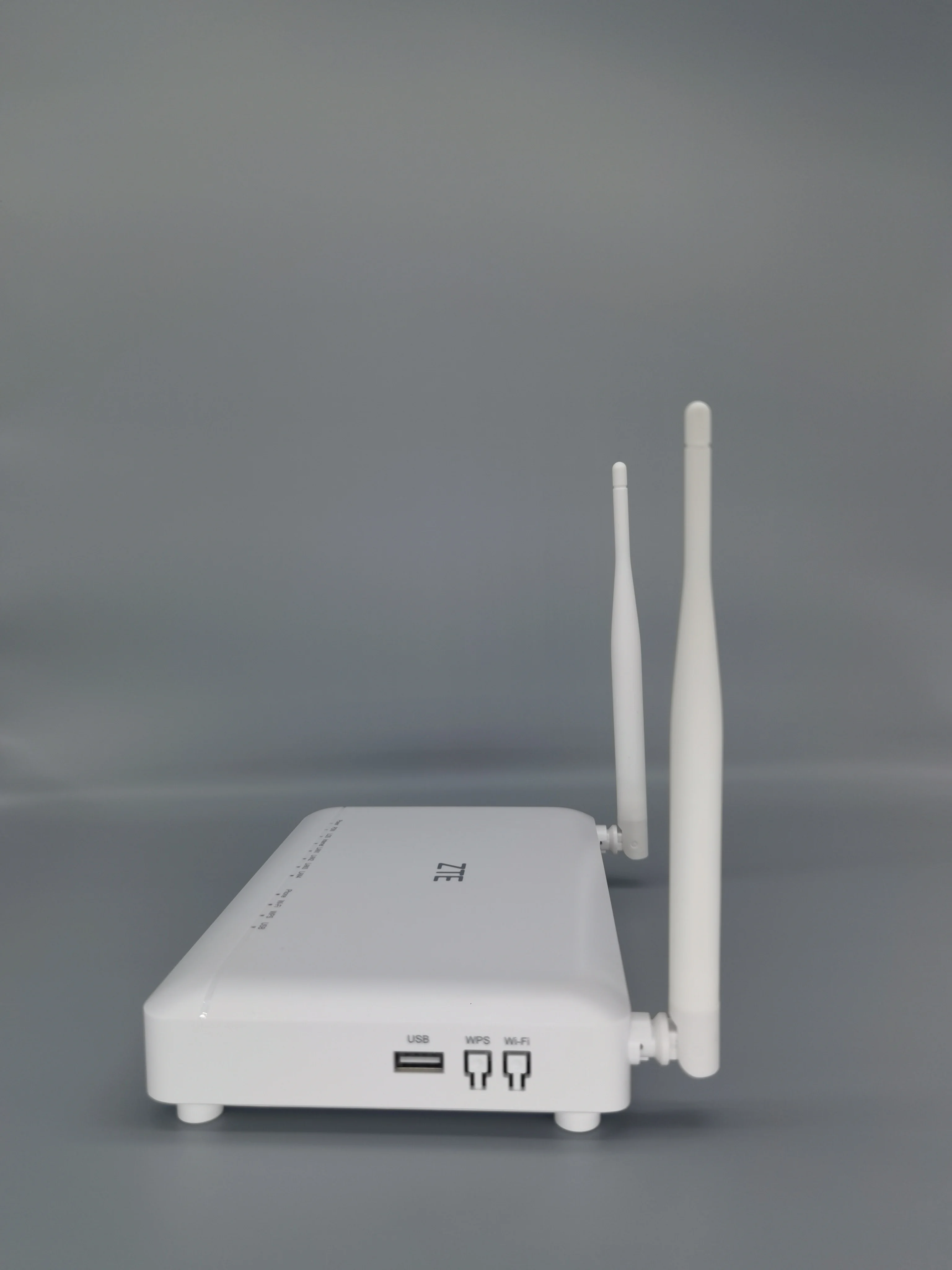

New Arrivals Ont Zxhn 2 Antenas F670l for zte Onu Dual Band 2.4g 5g Wifi Gpon OLT DSL router
- Category: >>>
- Supplier: Shenzhen Zexing Zhiyun Technology Co. LTD
Share on (1600574667487):
Product Overview
Description
Products Description
The ZXHN F670L is an AC1200 dual band Gigabit Premium triple-play GPON gateway. It comes with 1GE&3FE LAN ports, one phone port and next generation multi-stream Wi-Fi, operating simultaneously in 2.4GHz 2x2 over 802.11n and 5GHz 2x2 over 802.11ac. Based on customer requirements, the maximum 5dBi gain antennas can enhance the Wi-Fi coverage area and improve the performance.
Specification
item | value |
Model Number | F670l |
Type | ONU |
Place of Origin | China |
Guangdong | |
Use | FTTX |
Warranty Time | 1 YEARS |
Network | Wireless Lan, wifi |
Product name | Ftth Onu |
Application | FTTTH FTTTB FTTTX |
Color | White |
Certification | CE/ROHS/ISO9001 |
Power supply | 12V |
Ports | 4 Ports |
Warranty | 1 Year / 12 Months |
Connector Type | SC APC |
Keywords | GPON EPON XPON ONT |
Details Images
Hardware | ||
Interfaces | • 1 SC/APC connector for GPON • 4 RJ-45 ports for GE&FE interface • 1 RJ-11 ports for VoIP | |
Buttons | • Power On/Off • WPS • Reset • Wi-Fi | |
LEDs | • Power, PON, LOS, Internet, LAN1, LAN2, LAN3, LAN4, Phone, Wi-Fi, WPS | |
Antenna | • External antennas(optional internal antennas) | |
VoIP | • SIP (RFC3261) • Codec: G.711 (μ-law and A-law), G.729, G.722 • RTP/RTCP(RFC 1890) • Echo cancellation • VAD/CNG • DTMF • T.30/T.38 FAX • Caller Identification/Call Waiting/Call Forwarding/Call Transfer/Call Hold/3-way Conference | |
Wi-Fi | • Frequency: 2.4 GHz, 5GHz • IEEE 802.11a/n/ac Wi-Fi @ 5GHz(2x2) • IEEE 802.11b/g/n Wi-Fi @ 2.4GHz(2x2) • WPA/WPA2 Security • Up to four broadcast/hidden SSIDs for each band | |
Software | ||
Networking | • IPv4/IPv6 Dual Stack • SNTP client • NAT/ALG • Static routing/Dynamic routing • PPPoE client/passthrough • DNS client/relay • DHCP client/server • IGMP and MLD snooping/proxy | |
QoS | • Flexible packet classification • Up to eight queues • SP/WRR/SP+WRR • Ingress rate limit • Egress shaping • WMM(Wi-Fi Multi Media) | |
Security | • Traffic filtering based on UNI port, VLAN ID, 802.1p, UNI+802.1p or VLAN+802.1p • DoS attack defending • Multiple VPN (IPSec, PPTP) passthrough • MAC address filtering • Broadcast/Unicast/Multicast attack protection • Broadcast packet rate limit • Dual image for firmware auto rollback | |
Management | • TR-069/OMCI remote management • WEB GUI management • Local built-in diagnostic function • Logs and statistics • Remote upgrade by HTTP | |
Others | ||
Electrical Characteristics | • Power input: 12V DC • Power consumption: 9W | |
Physical Characteristics | • Net weight: 320g • Dimensions: 205x120x28 mm | |
Environmental Characteristics | • Operating temperature: 0 °C~ 40°C; (32°F ~ 104°F ) • Humidity: 5% ~ 95% (non-condensing) | |
Certification | • CE certification • Wi-Fi certification | |
Company Profile
Shenzhen Zexing Zhiyun Technology Co., Ltd. was founded in 2018. Following the rapid expansion of the world's Internet industry, the company is committed to building a reliable and good network for the world, and continues to grow and grow into a leading network equipment provider in China. Technological innovation is the soul of Zexing Zhiyun. The company has a R&D team of nearly 100 people, and has established dual R&D bases in Shenzhen and Chengdu, with a production center of more than 500 people.
The company's products cover: home wireless, commercial wireless, switches, access terminals, PLC power grids, etc., with more than 20 product series. Their common features are: strong performance, stable signal, easy deployment, easy installation, high quality and low price. Zexing is based in China, serves the world, and extends its tentacles to every corner of the world. The company has set up branches in Beijing and Chengdu, and has set up multiple offices in various places. It has established offices in the United States, Brazil, Australia, Russia, India, Indonesia, South Africa and other countries, and established cooperative relations with many agents around the world. Tenda products are exported to more than 10 countries and regions around the world. As of the fourth quarter of 2021, the total sales volume of Tenda products has exceeded 50 million units.
Exhibition
Certifications
Manufacturing Technique
FAQ
1. who are we?
We are based in Guangdong, China, start from 2018,sell to Domestic Market(30.00%),Southeast Asia(20.00%),South America(10.00%),Eastern Europe(10.00%),Africa(10.00%),Mid East(10.00%),South Asia(10.00%). There are total about 51-100 people in our office.Our product shipments are at 50K per month。
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
XPON,DSL,CPE,ROUTER,MODEM
4. why should you buy from us not from other suppliers?
We have many years of experience in optical modem, router design and R&D. The R&D team has about 50 people, all of whom are senior engineers for many years.We cooperate with many big customers at home and abroad, such as ZTE, Huawei, China Telecom, sagem, D-LINKD, etc.
5. what services can we provide?
Accepted Delivery Terms: FOB；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C;
We are based in Guangdong, China, start from 2018,sell to Domestic Market(30.00%),Southeast Asia(20.00%),South America(10.00%),Eastern Europe(10.00%),Africa(10.00%),Mid East(10.00%),South Asia(10.00%). There are total about 51-100 people in our office.Our product shipments are at 50K per month。
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
XPON,DSL,CPE,ROUTER,MODEM
4. why should you buy from us not from other suppliers?
We have many years of experience in optical modem, router design and R&D. The R&D team has about 50 people, all of whom are senior engineers for many years.We cooperate with many big customers at home and abroad, such as ZTE, Huawei, China Telecom, sagem, D-LINKD, etc.
5. what services can we provide?
Accepted Delivery Terms: FOB；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C;
