QSMOTOR 165 5000W 72V 35H Mid Drive Motor Hall Version Conversion Kit With Fardriver ND72530 Controller

Product Overview

Description

QSMOTOR 165 5000W 72V 35H Mid drive Motor Hall Version Conversion Kit With Fardriver ND72530 Controller

For 165 5000W motor powertrain kits, it could be used for electric motorcycle, which could be 60V 90KPH.

e.g. Similar Light bee

E-motorcycle weight, approx 80kg+1*70kg

Speed: peak 90km/h

Gear ratio: 1:4.77

Climbing slope: 20°@10kph@150kg@60s

Tire: 100/70-19

P.S. If you have any confused about the shipping cost, please feel free to contact with us.

Also could place order but don't pay first, then we could adjust the price.

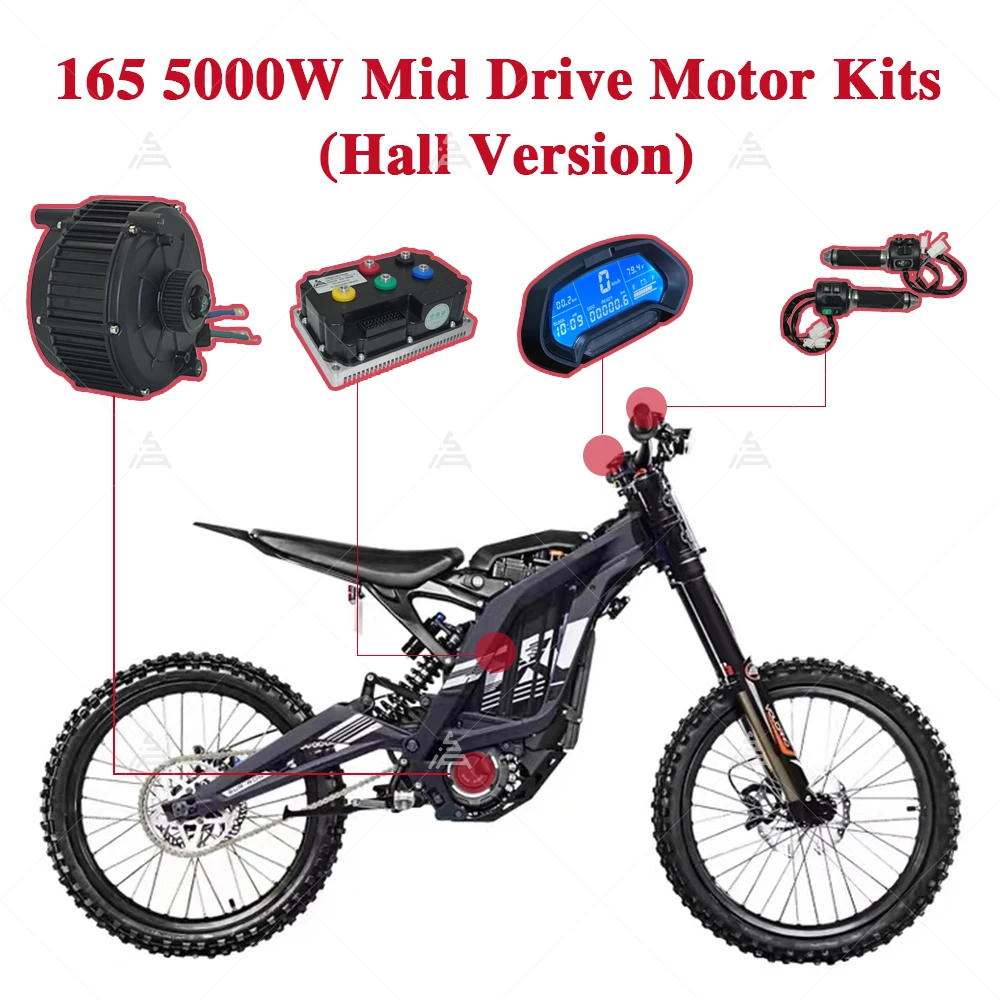

One set including below kits

1. 1pc X QS 165 5000W Hall Mid drive motor

2. 1pcs X ND72530 motor controller

3. 1pcs X Blue-tooth adapter

4. 1pcs X CT-22 speedometer

5. 1pcs X Z6 throttle

Key Features

1). Simplify to make a electric-motorcycle. Gearbox, transmission shaft, clutch are no need. Which save space.

2). It could be installed in the rear to save more space for battery.

3). Support regenerative braking

4). High efficiency: 85~92%

Product Description

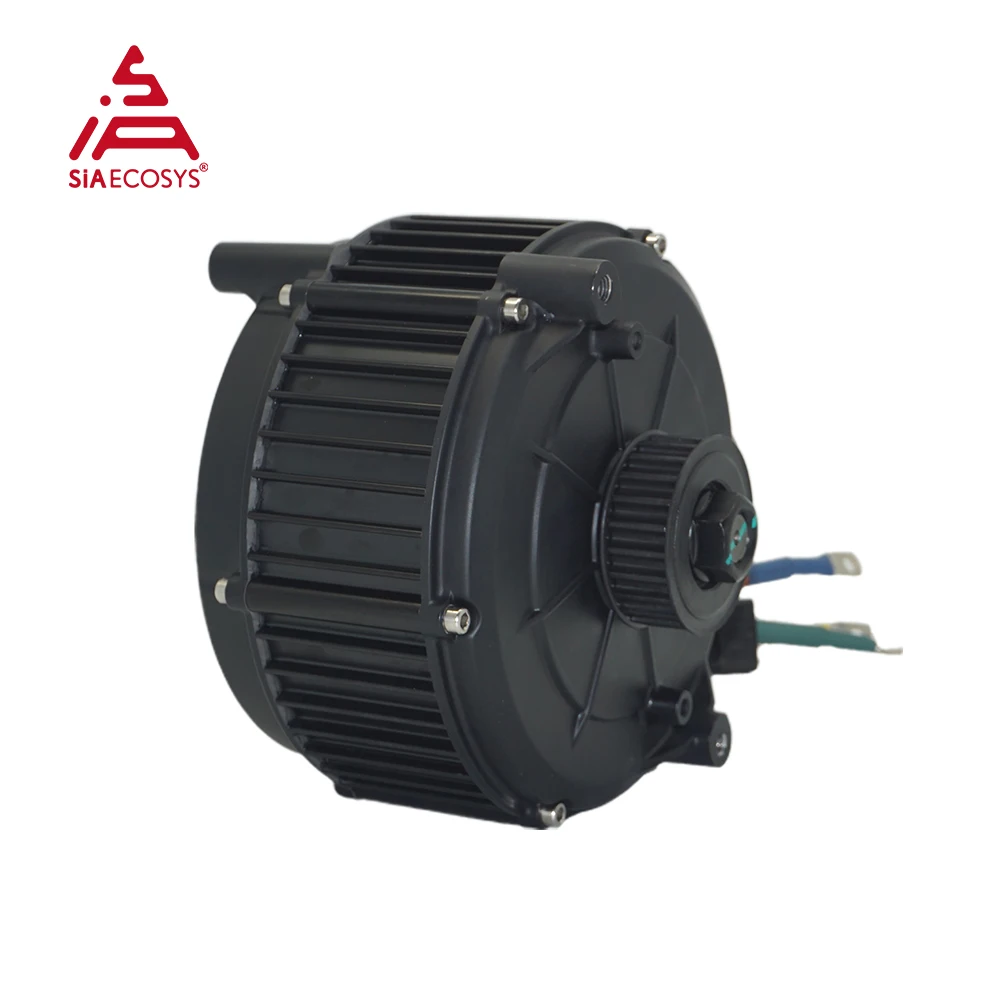

1. QSMOTOR 165 5000W Mid drive motor

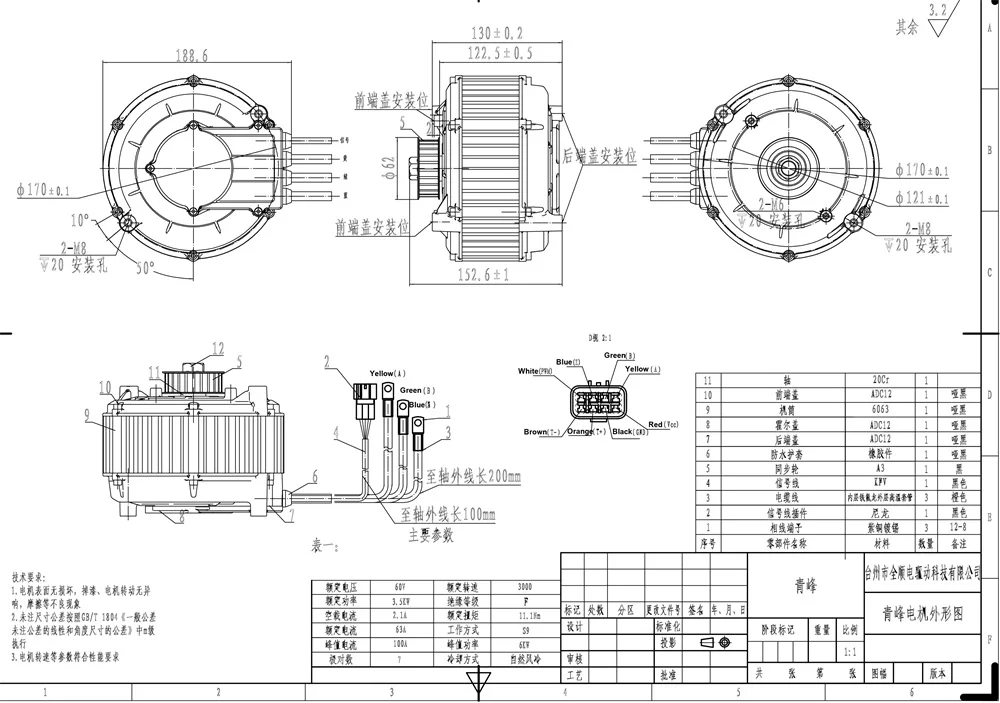

Drawing

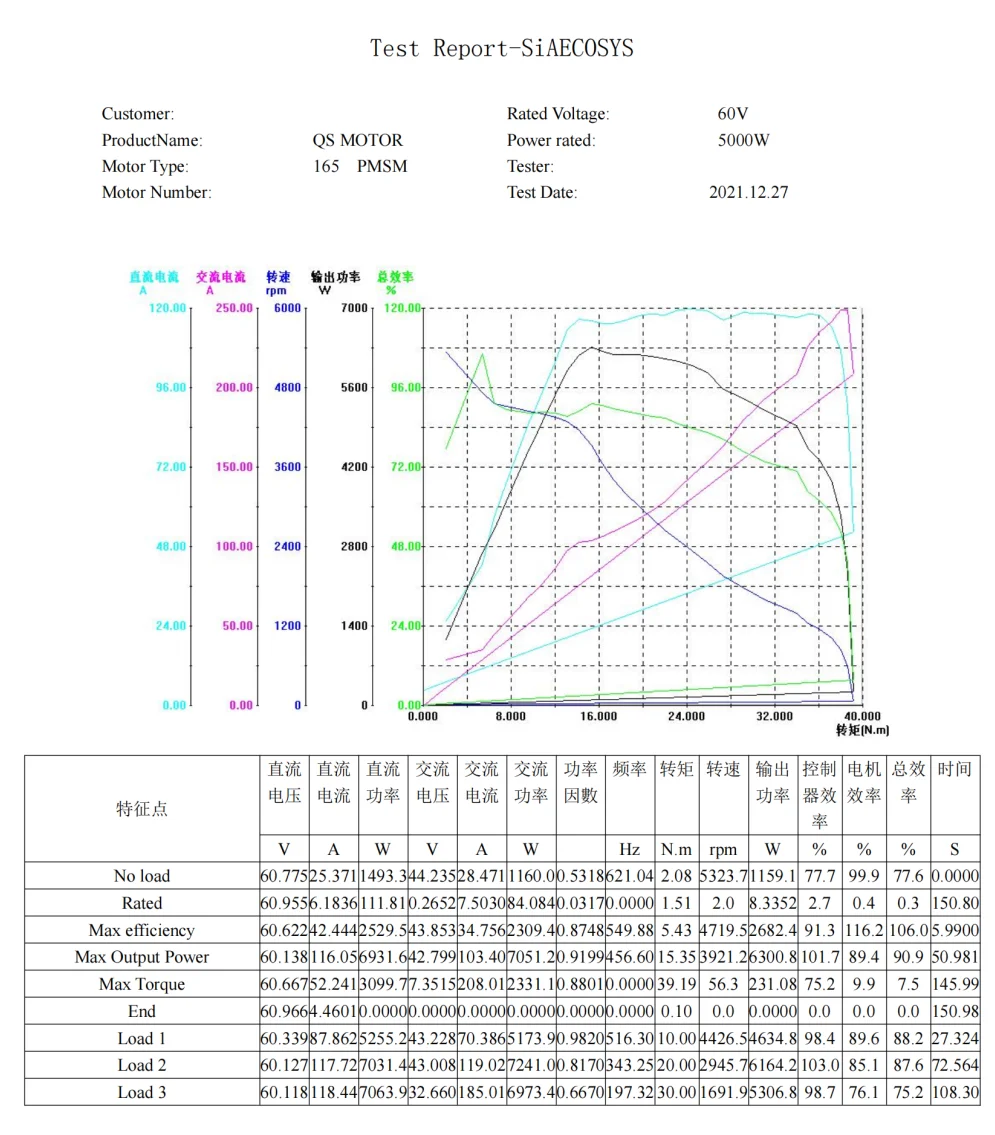

Test Report

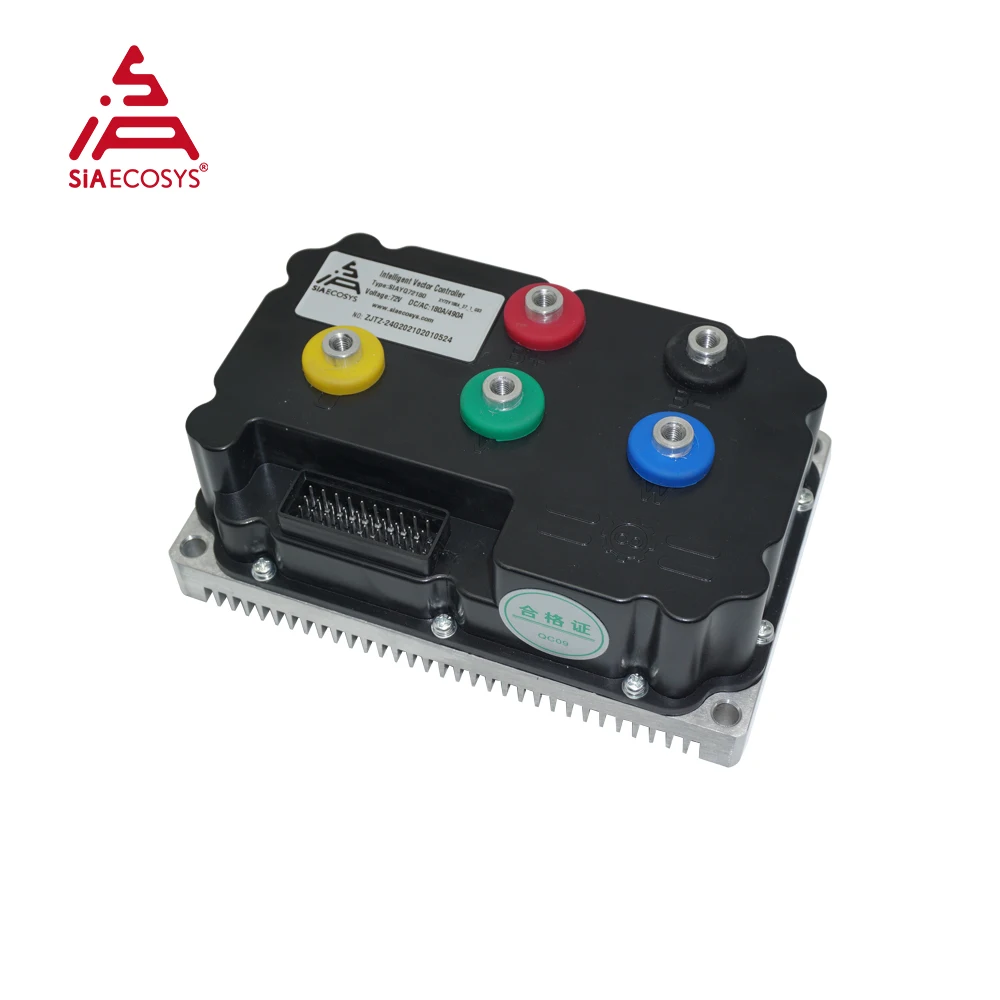

2. ND72530 sine wave motor controller

ND series controller is sine wave type controller, which is DC controller with self-learning function. Generally, it matches well with QS 165 Mid Drive Motor, if you want to match with new brand motor, some parameters should be tested by yourself.

SPEC

Drawing for ND72530 Controller

Controller Software Interface

Blue-tooth Adapter

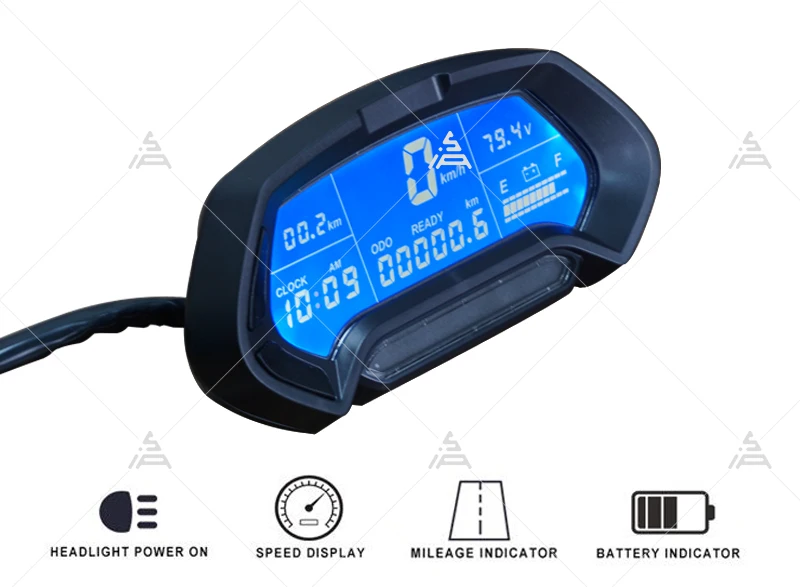

3.CT-22speedometer

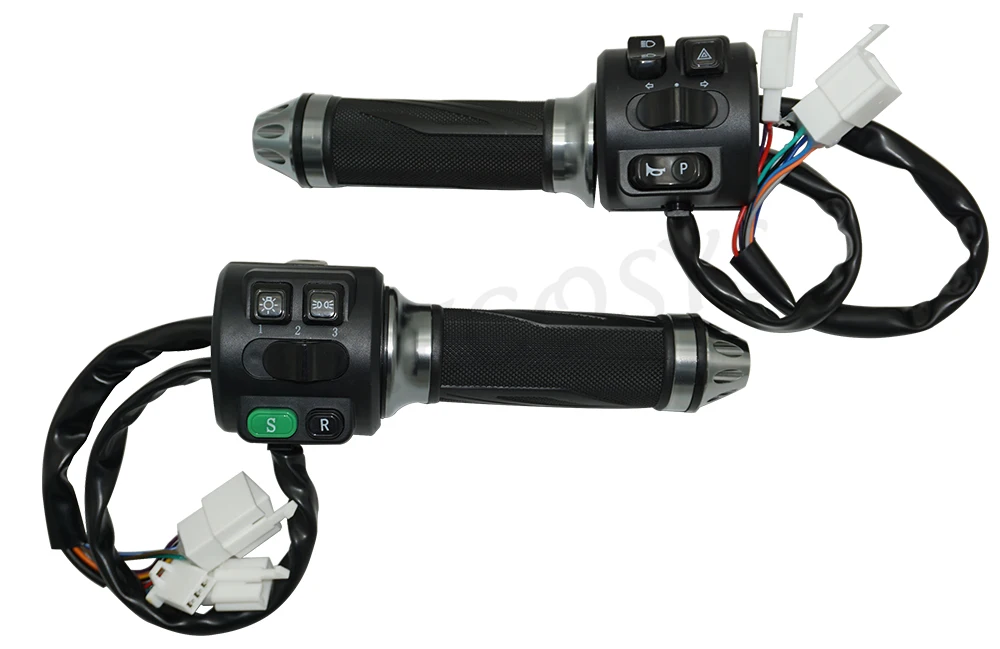

4.Z6 Throttle

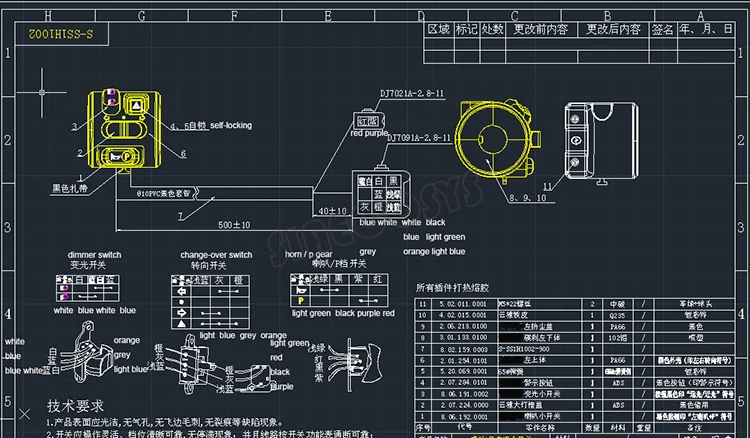

Harness definition

Right

Left

Application
