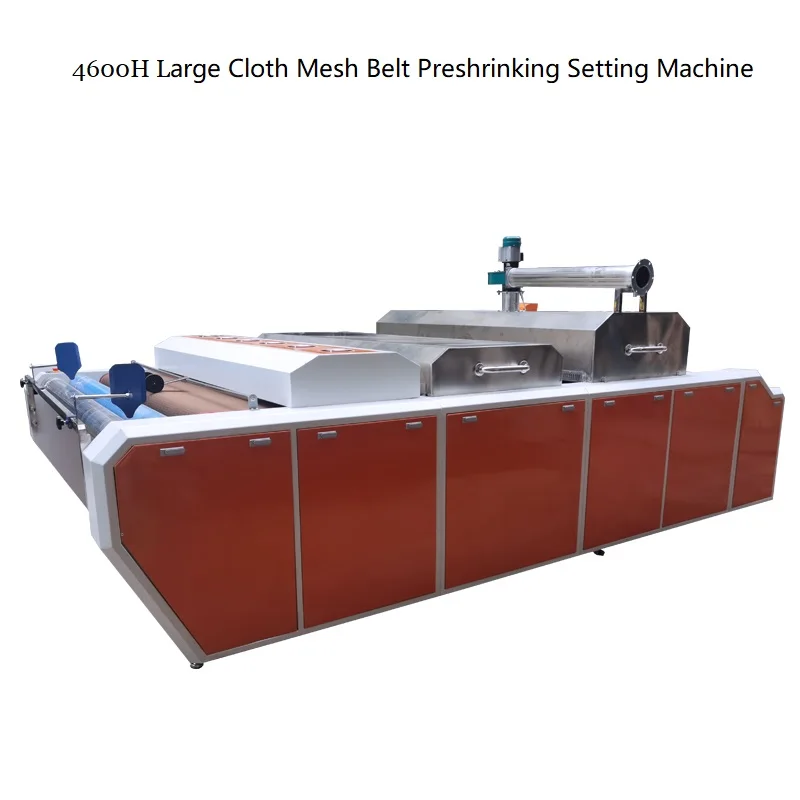

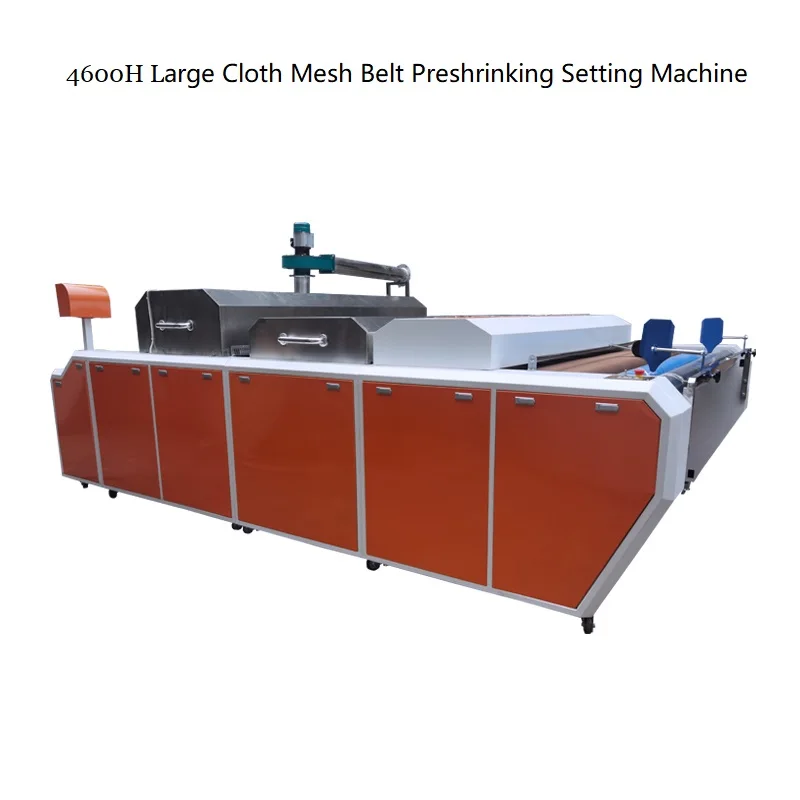

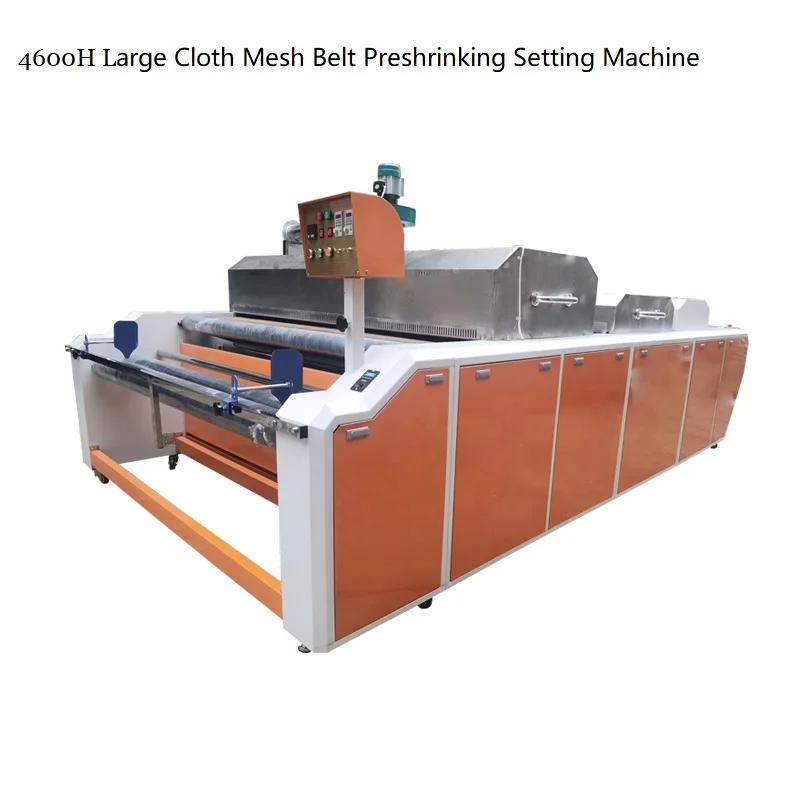

fabric shrinkage and forming machine for carpet sofa knitted polyester silk denim fabrics
- Category: Textile Finishing Machines >>>
- Supplier: Dongguan Huli Mechanical Equipment Co. Ltd.
Share on (1600574988399):
Product Overview
Description
Products Description
Fabric shrinking setting machine Main functions：
1.Steam humidification and heating
2.Drying is mainly by steam heating, electric heating is auxiliary. Not only for save energy
but also meet the temperature requirements of different fabric.
3.Adopt strong cooling device, quickly cooling fabric, stabilize fabric size.
4.Vibration function allow the fiber to be fluffy naturally.
5.Spreading fabric、preshrinking fabric， Measurement, folding fabric.
6.Steam temperature can be adjustment.
7.Automatic mesh belt feeding cloth device.
fabric preshrinking setting machine Product description:
HW-4600: Suitable for
Knit and woven , a variety of general fabric. Especially suitable for silk, wool, linen .
HW-4600 H: Suitable for
Special for cotton and linen weaving fabric, cotton and linen chemical fabric, woolen fabric and other fabric with strong water-absorbing.
2.Drying is mainly by steam heating, electric heating is auxiliary. Not only for save energy
but also meet the temperature requirements of different fabric.
3.Adopt strong cooling device, quickly cooling fabric, stabilize fabric size.
4.Vibration function allow the fiber to be fluffy naturally.
5.Spreading fabric、preshrinking fabric， Measurement, folding fabric.
6.Steam temperature can be adjustment.
7.Automatic mesh belt feeding cloth device.
fabric preshrinking setting machine Product description:
HW-4600: Suitable for
Knit and woven , a variety of general fabric. Especially suitable for silk, wool, linen .
HW-4600 H: Suitable for
Special for cotton and linen weaving fabric, cotton and linen chemical fabric, woolen fabric and other fabric with strong water-absorbing.
fabric preshrinking setting machine of specification | ||||||||
Model | HW-4600 H | |||||||
Voltage&Frequency | AC 380V 50HZ | |||||||
Steam consumption | 200 kg/h | |||||||
Steam pressure | 0.4-0.7 Mpa | |||||||
Maximum roll fabric diameter | 50 cm | |||||||
Maximum working width | 2200mm | |||||||
Working speed | Adjustable, 0-50m/min | |||||||
Drying temperature | Adjustable,<230 °C | |||||||
Drying heating power | 18 kw | |||||||
Total Power | 36 kw | |||||||
Boundary dimension | 4800*2680*1600 mm | |||||||
fabric preshrinking setting machine Main feature：
* This model is divided into steam humidification area, drying setting area and cooling setting area.
* Spraying humidifier,double steam humidifier,especially suitable for fabric with strong water-absorbing, better shrinkage effect.
* Drying is mainly by steam heating,electric heating is auxiliary.cycle use.
* Electronic heating drying setting area.steam humidification.
* Automatic cloth feeding device: keep a certain vertical arc between the cloth and the conveyor belt,
so that the cloth can be conveyed in a tension-free state.
* Heating device: Electric heating and steam circulation are adopted at the upper and lower ends
* Screw for combing and crimping device
* Electric eye monitoring cloth, Vibration cloth device
* The steam temperature can be adjusted according to the requirements of the fabric, the temperature
can be adjusted from 125℃ to 230℃, and the temperature can be replenished quickly.
* Cooling device: The strong suction cooling system is adopted, which can completely cool and shape the fabric;
* Suction hood device: absorb the residual steam in the humidification area to make the air fresh in the workplace;
* Cloth unloading device: fold the cloth back and forth neatly by swinging the rocker arm;
* Code counter: electronic code counter, accurate measurement of cloth length and shrinkage;
* Steam temperature can be adjustment.

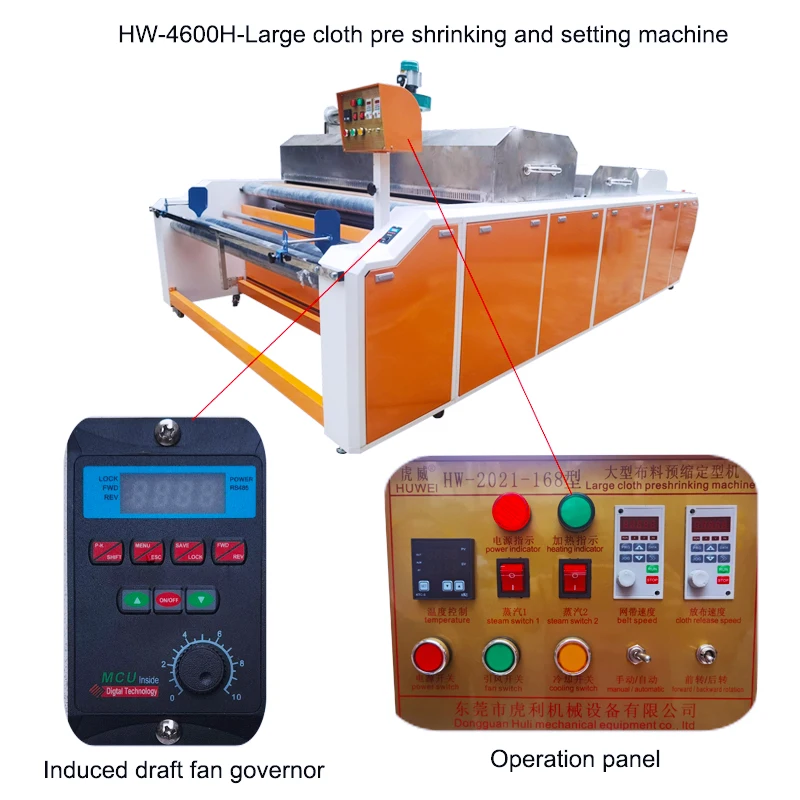

* Using microcomputer programming technology, visual man-machine interface, simple and
convenient operation.
* Spraying humidifier,double steam humidifier,especially suitable for fabric with strong water-absorbing, better shrinkage effect.
* Drying is mainly by steam heating,electric heating is auxiliary.cycle use.
* Electronic heating drying setting area.steam humidification.
* Automatic cloth feeding device: keep a certain vertical arc between the cloth and the conveyor belt,
so that the cloth can be conveyed in a tension-free state.
* Heating device: Electric heating and steam circulation are adopted at the upper and lower ends
* Screw for combing and crimping device
* Electric eye monitoring cloth, Vibration cloth device
* The steam temperature can be adjusted according to the requirements of the fabric, the temperature
can be adjusted from 125℃ to 230℃, and the temperature can be replenished quickly.
* Cooling device: The strong suction cooling system is adopted, which can completely cool and shape the fabric;
* Suction hood device: absorb the residual steam in the humidification area to make the air fresh in the workplace;
* Cloth unloading device: fold the cloth back and forth neatly by swinging the rocker arm;
* Code counter: electronic code counter, accurate measurement of cloth length and shrinkage;
* Steam temperature can be adjustment.
* Using microcomputer programming technology, visual man-machine interface, simple and
convenient operation.
Recommend Products
Company Profile
FAQ
Q1 :Our workers can't operate the machine, how to train the staff?
A1: We will send you the teaching video of the machine and 24-hour online service,we also support free training service, engineers can train your workers for free in our factory for 1-3 days.
Q2 : I don’t know which one is suitable for me ?
A2: Please tell me your
1) Your materials
2) Max size of your material
3) Max cut thickness
4) Popular cut thickness
Q3 :It's not convenient for me to go to China, but I want to see the condition of the machine in the factory. What should I do?
A3: We support the production visualization service. The sales department who responds to your inquiry for the first time will be responsible for your follow-up work. You can contact him /her to go to the factory to check the production progress of the machine, or send you the sample pictures and videos you want. We support free sample service.
A1: We will send you the teaching video of the machine and 24-hour online service,we also support free training service, engineers can train your workers for free in our factory for 1-3 days.
Q2 : I don’t know which one is suitable for me ?
A2: Please tell me your
1) Your materials
2) Max size of your material
3) Max cut thickness
4) Popular cut thickness
Q3 :It's not convenient for me to go to China, but I want to see the condition of the machine in the factory. What should I do?
A3: We support the production visualization service. The sales department who responds to your inquiry for the first time will be responsible for your follow-up work. You can contact him /her to go to the factory to check the production progress of the machine, or send you the sample pictures and videos you want. We support free sample service.
