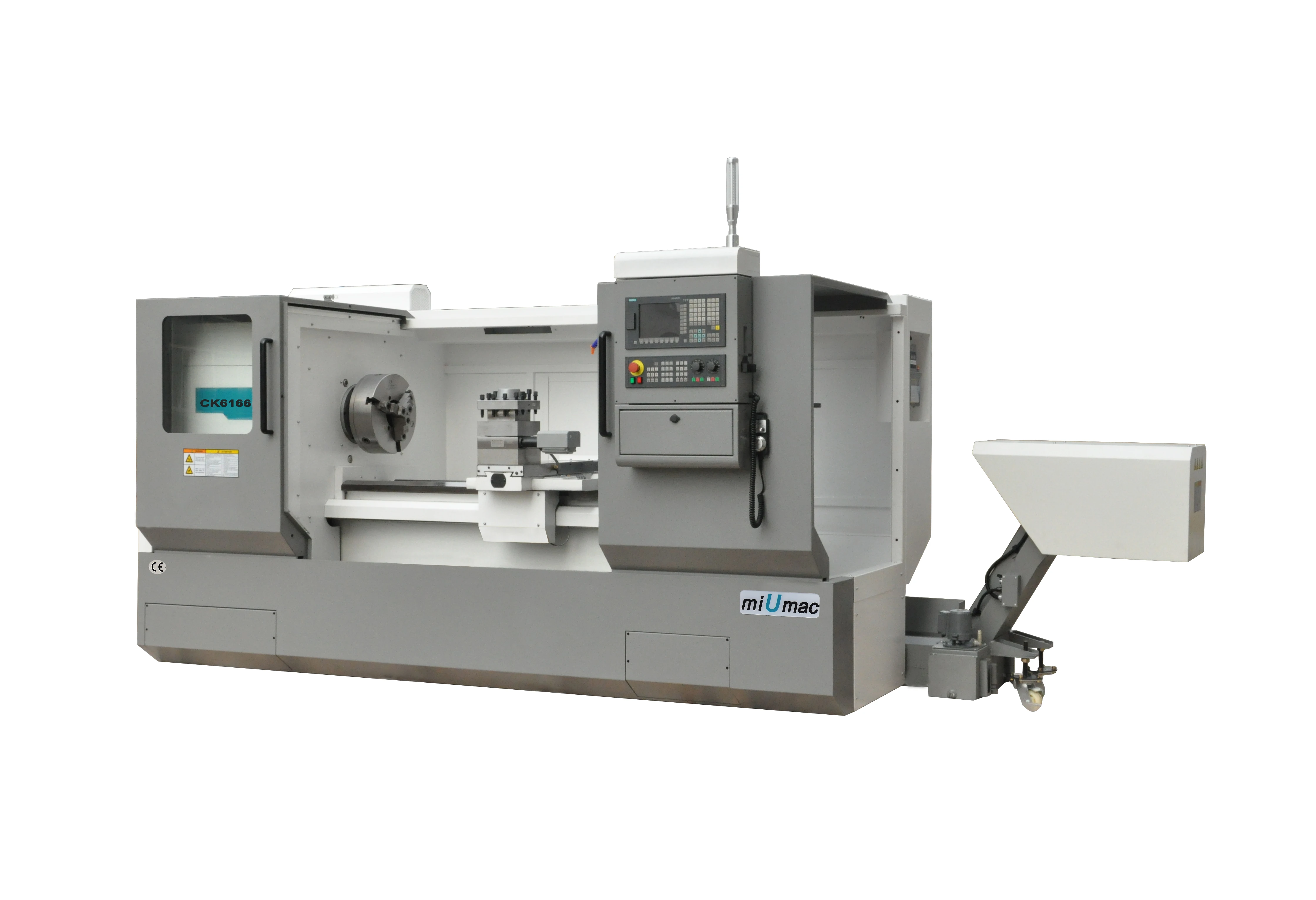

KD CK6166 lathe and milling machine combo car rim making machine
- Category: >>>
- Supplier: Zhejiang Kaida Machine Tool Co. Ltd.
Share on (1600575177958):
Product Overview
Description
FEATURES AT A GLANCE
Product Features

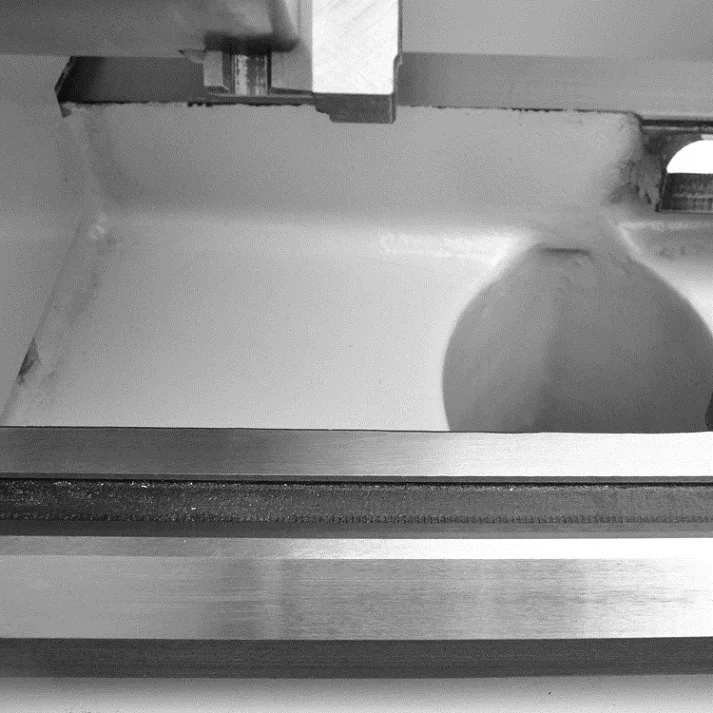

1. Adopting high strength, high quality cast iron made by resin sand process and aging treatments.
2. Adopting high precision rolling bearings lubricated with grease.

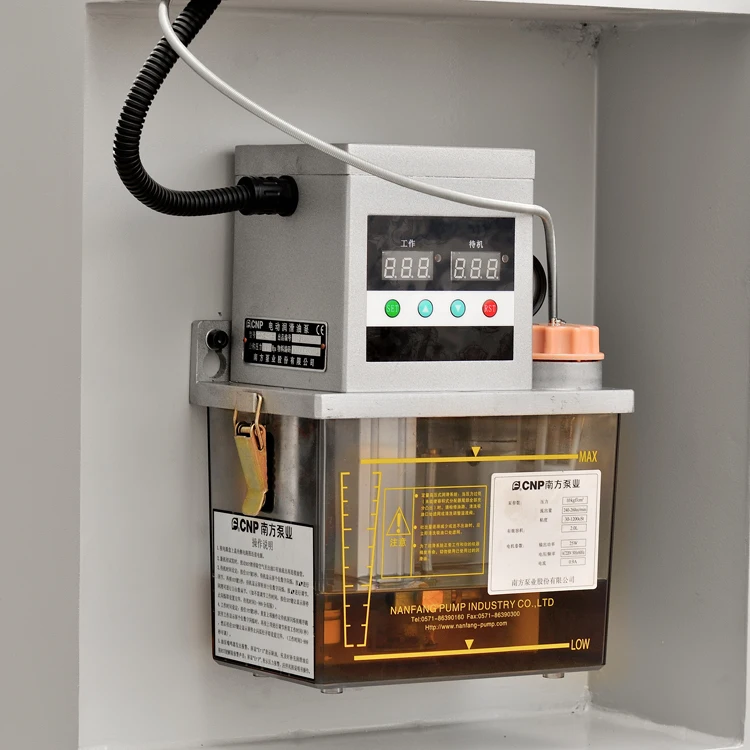

3. Centralized lubrication.
4. Full enclosure with safety switch and door interlock.
5. Movable control panel is convenient for operation and allows easy access.
Right elevation
Left elevation
Back elevation
PRODUCT SPECIFICATIONS
MODELS | DF2640-C | DF2660-C | DF2680-C | DF26120-C | |||
CAPACITY | |||||||
Max. swing over bed | Ф660mm | ||||||
Max. swing over carriage | Ф430mm | ||||||
Max. length of workpiece | 1000mm | 1500mm | 2000mm | 3000mm | |||
Max. turning length | 900mm | 1400mm | 1900mm | 2900mm | |||
6-station turret max turning length | 735mm | 1235mm | 1735mm | 2735mm | |||
6- station turret max turning diameter | Ф520mm | ||||||
8-station turret max turning length | 670mm | 1170mm | 1670mm | 2670mm | |||
8- station turret max turning diameter | Ф410mm | ||||||
TRAVEL | |||||||
Max. cross travel(X) | 365mm | ||||||
Max. longitudinal travel(Z) | 970mm | 1470mm | 1970mm | 2970mm | |||
FEED | |||||||
Rapid feed for axis X | 8m/min | ||||||
Rapid feed for axis Z | 10m/min | ||||||
SPINDLE | |||||||
Spindle nose | D8 / option: A2-11 | ||||||
Spindle bore | Ф105mm / option: Ф155mm | ||||||
Taper bore of spindle | Ф113 1:20 / option: Ф165 1:20 | ||||||
Steps of spindle speed (manual) | 4 | ||||||
Spindle speed (manual chuck) | 27~135, 55~270, 160~805, 325~1630rpm/ option: 30~130, 60~250, 130~520, 250~1000rpm | ||||||

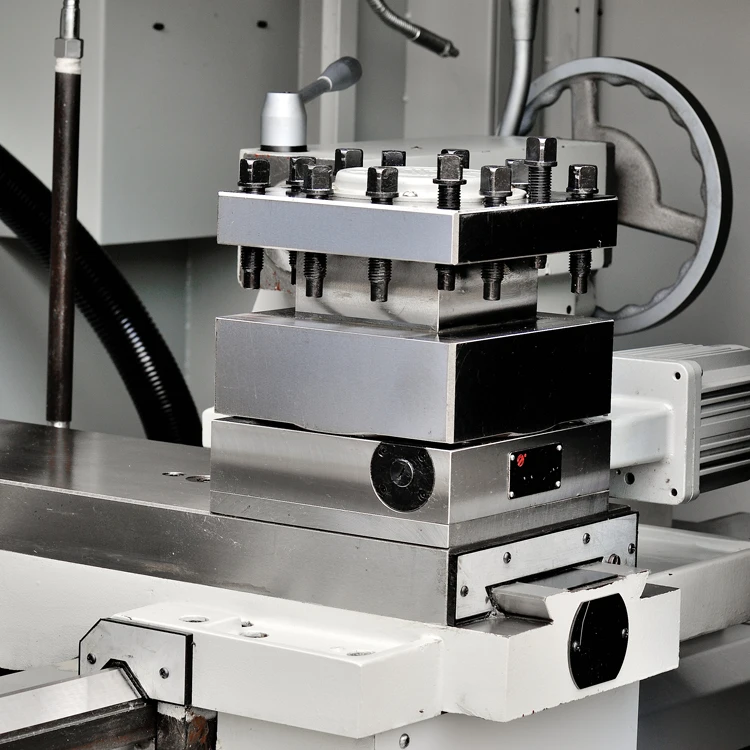

TOOL POST | |||||||
Tool post stations | 4-way | ||||||
Tool cross section | 32×32mm | ||||||

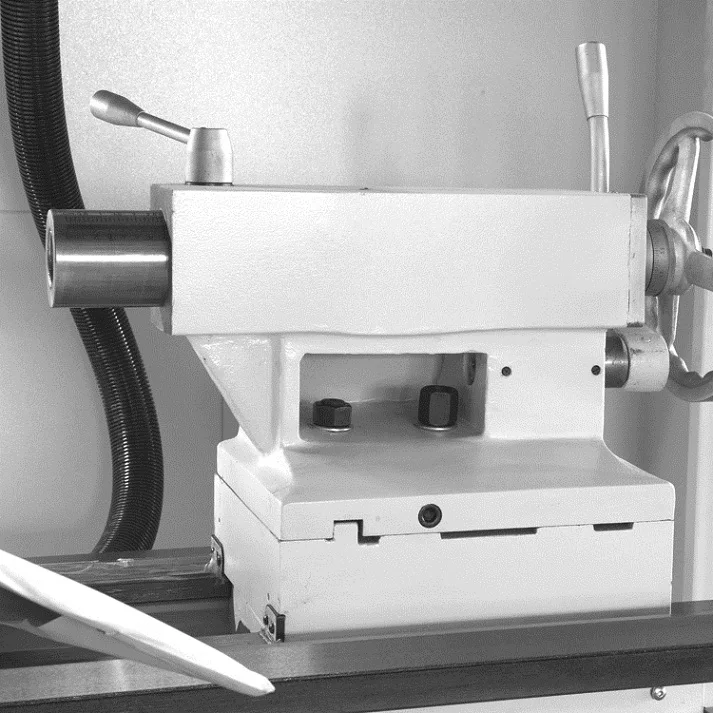

TAILSTOCK | |||||||
External diameter of tailstock sleeve | Ф75mm | ||||||
Taper bore of tailstock sleeve | M.T.NO.5 | ||||||
Max. travel of tailstock sleeve | 150mm | ||||||
OTHERS | |||||||
Min. input | 0.001mm | ||||||
Main motor power | 11kw | ||||||
Coolant pump power | 90w | ||||||
Overall dimensions(L×W×H) | 3100/3700/4300/5300×1250×1580mm | ||||||
Net weight | 3100/3700/4300/5300kg | ||||||
PRODUCT CONFIGURATION
3-jaw manual chuck or Taiwan hydraulic chuck is optional.

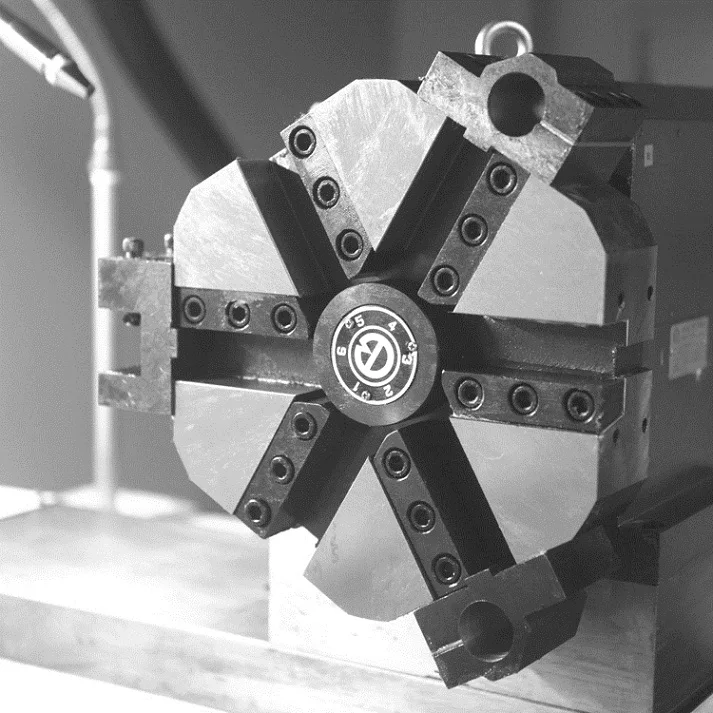

4-station/6-station/8-station turret are optional.
Manual tailstock or hydraulic tailstock is optional.
FANUC, SIEMENS, FAGOR, MITSUBISHI, GSK cnc controllers are optional.
Auto chip conveyor is optional.
Auto bar feeder is optional.
