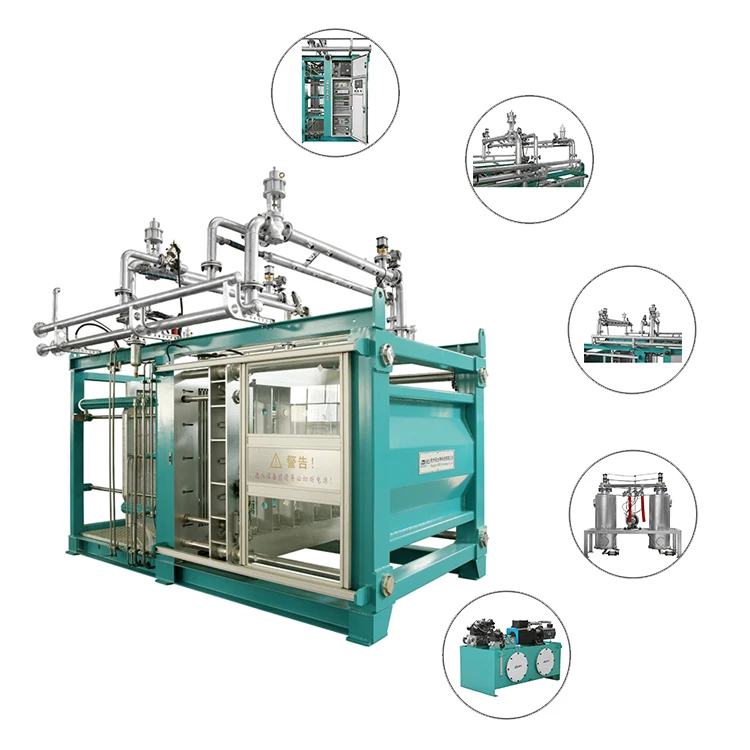

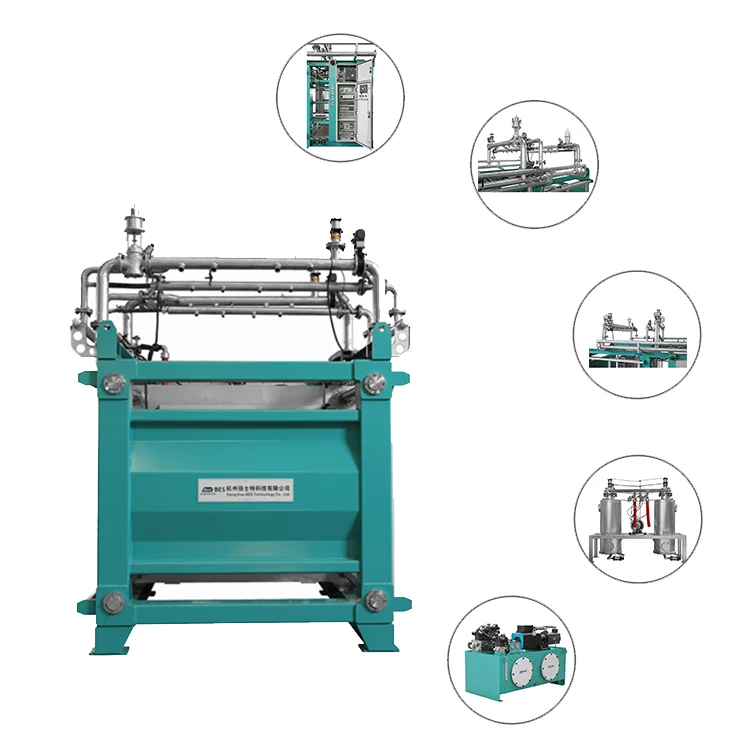

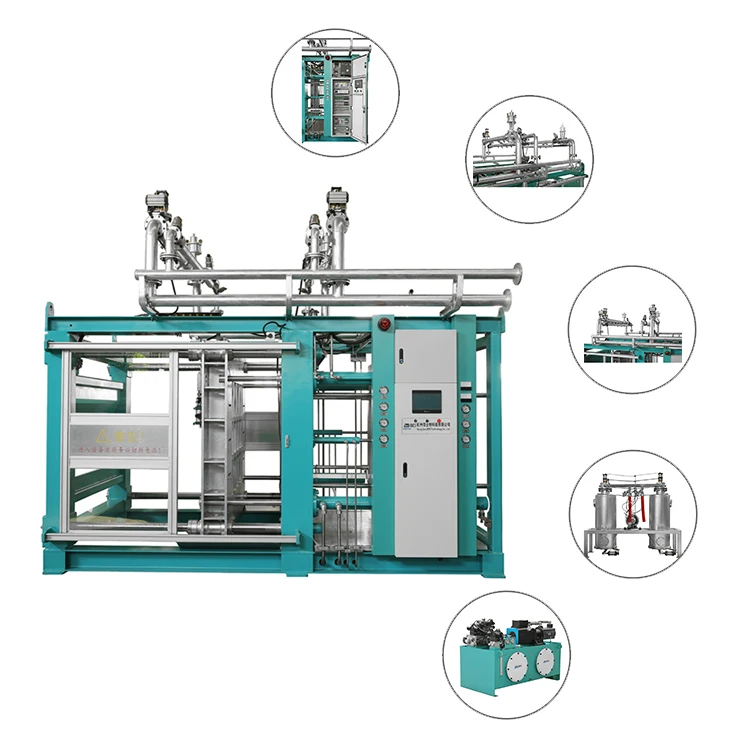

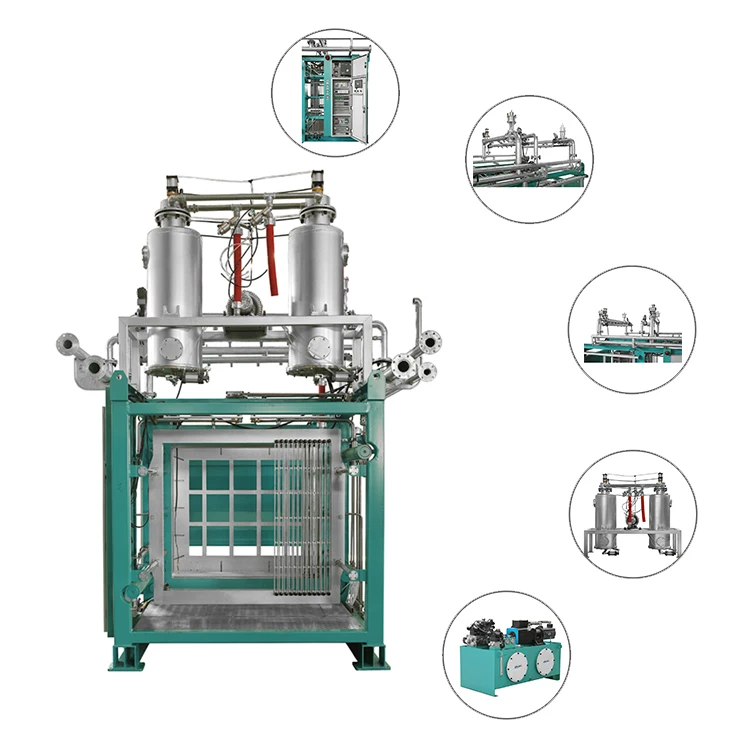

EPS Polystyrene Insulated Concrete Forms ICF Block Making Machine
- Category: >>>
- Supplier: Hangzhou Bes Technology Co. Ltd.
Share on (1600575239987):
Product Overview
Description
Item | Unit | BES-PZE-140 | BES-PZE-160 | BES-PZE-175 | BES-PZE-180 | BES-PZE-200 | ||||
Mould Dimension | mm | 1400×1200 | 1600×1350 | 1750×1450 | 1800×1600 | 2040×1800 | ||||
Max Product Dimension | mm | 1200×1000×350 | 1400×1100×350 | 1550×1300×350 | 1610×1400×330 | 1850×1600×350 | ||||
Stroke | Mm | 210-1470 | 270-1470 | 270-1470 | 220-1470 | 220-1470 | ||||
Steam Entry | mm | DN100 | DN100 | DN100 | DN100 | DN125 | ||||
Steam Consumption | kg/cycle | 8-10T steam for 1T EPS Raw Material | ||||||||
Water Entry | mm | DN80 | DN80 | DN80 | DN80 | DN80 | ||||
Cooling Water Consumption | Kg/cycle | 50-150 | 55-180 | 60-190 | 80-200 | 90-210 | ||||
Compressed Air Entry | mm | DN65 | DN65 | DN65 | DN65 | DN65 | ||||
Compressed Air Consumption | m3/cycle | 1.8 | 2 | 2 | 2.2 | 2.5 | ||||
Vacuum Pump Capacity | m3/h | 230 | 280 | 280 | 280 | 280 | ||||
Connected Load | KW | 15.2 | 17.2 | 17.2 | 17.2 | 17.20 | ||||
Overall Dimension | mm | 4970×2320×3890 | 5020×2700×3970 | 5020×2850×4070 | 5100×2950×4350 | 5100×3170×4450 | ||||
Machine Weight | kg | 6000 | 7000 | 7500 | 8500 | 10000 | ||||
Cycle Time | s | 60-120 | 70-130 | 70-130 | 80-140 | 100 | ||||
